RACKCONV1701

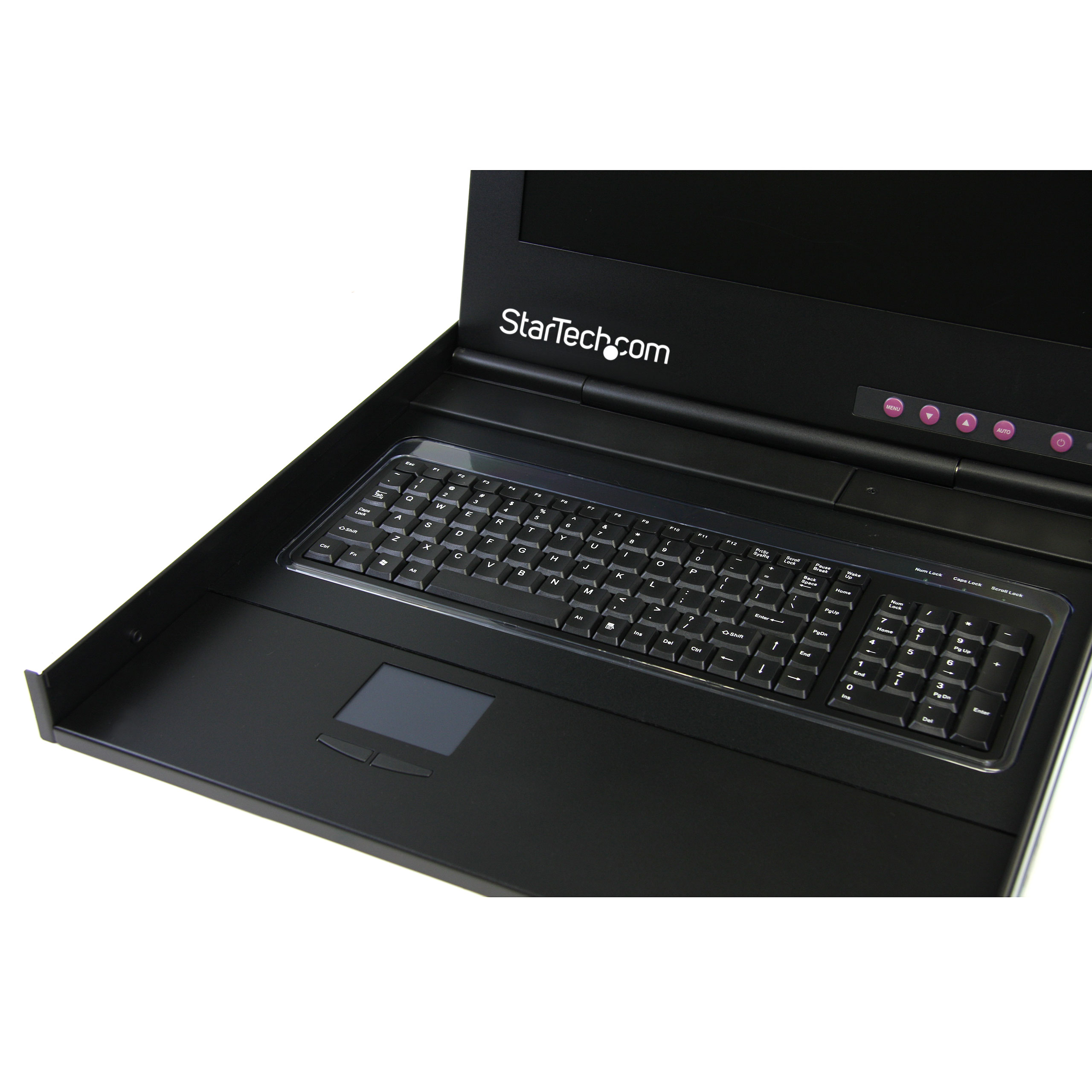

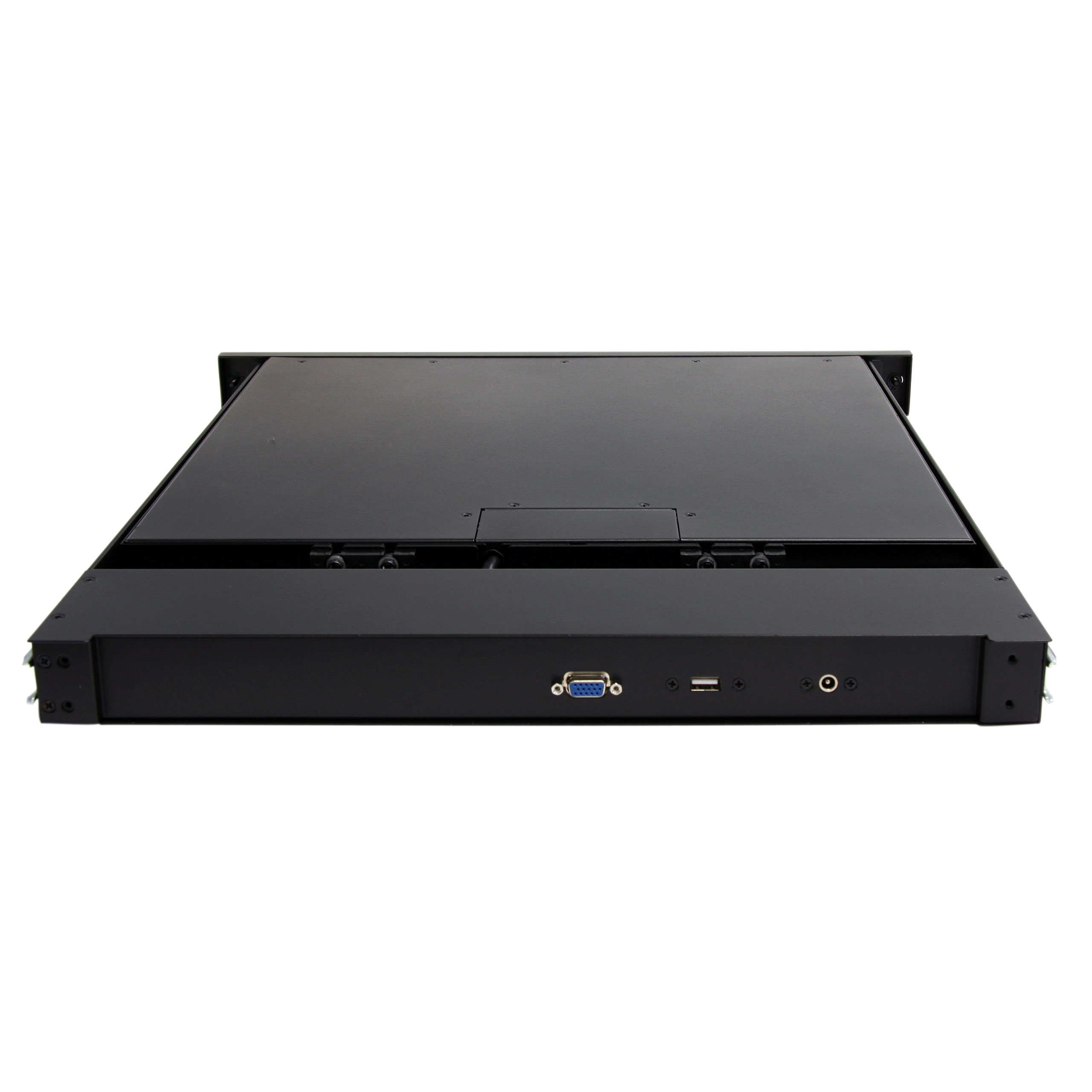

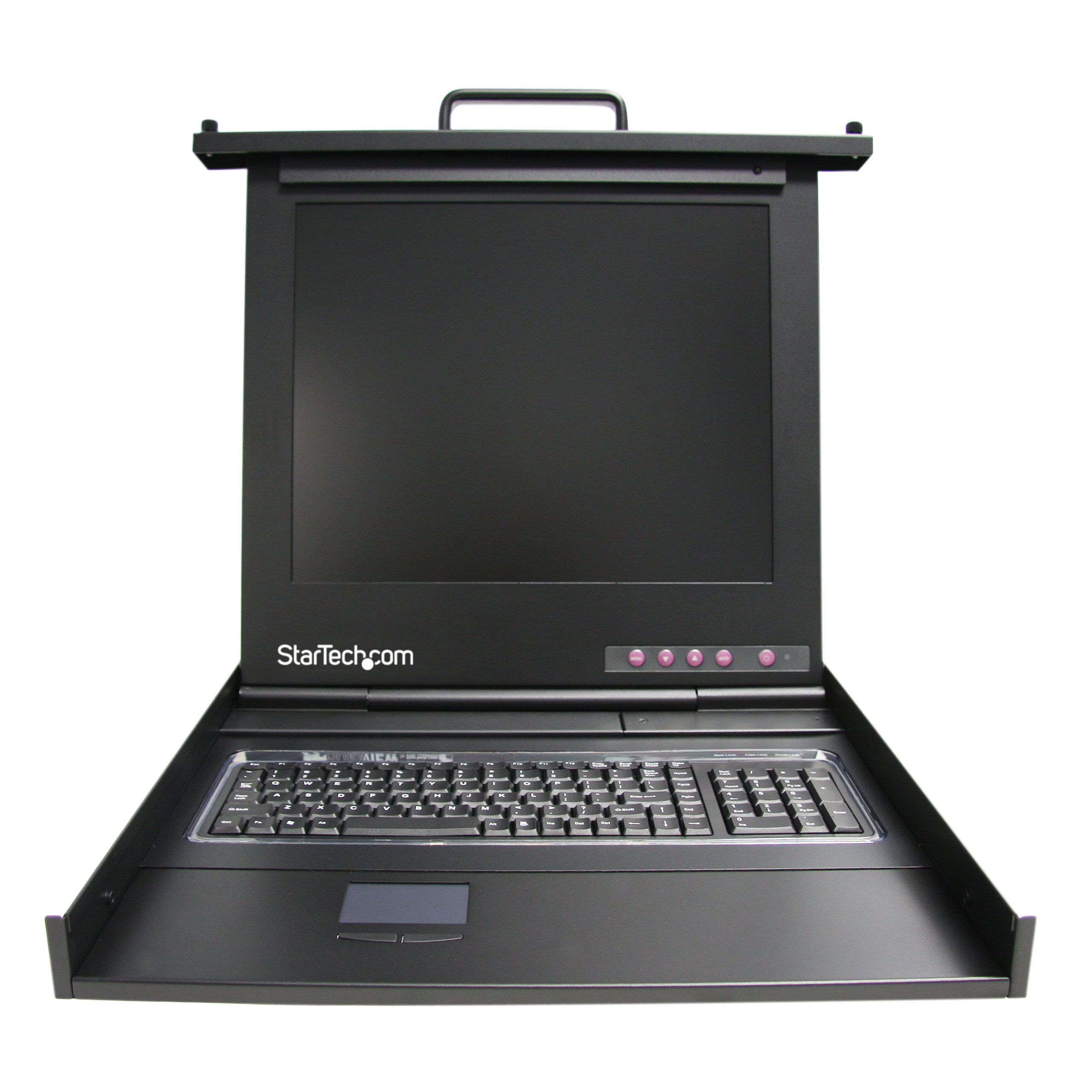

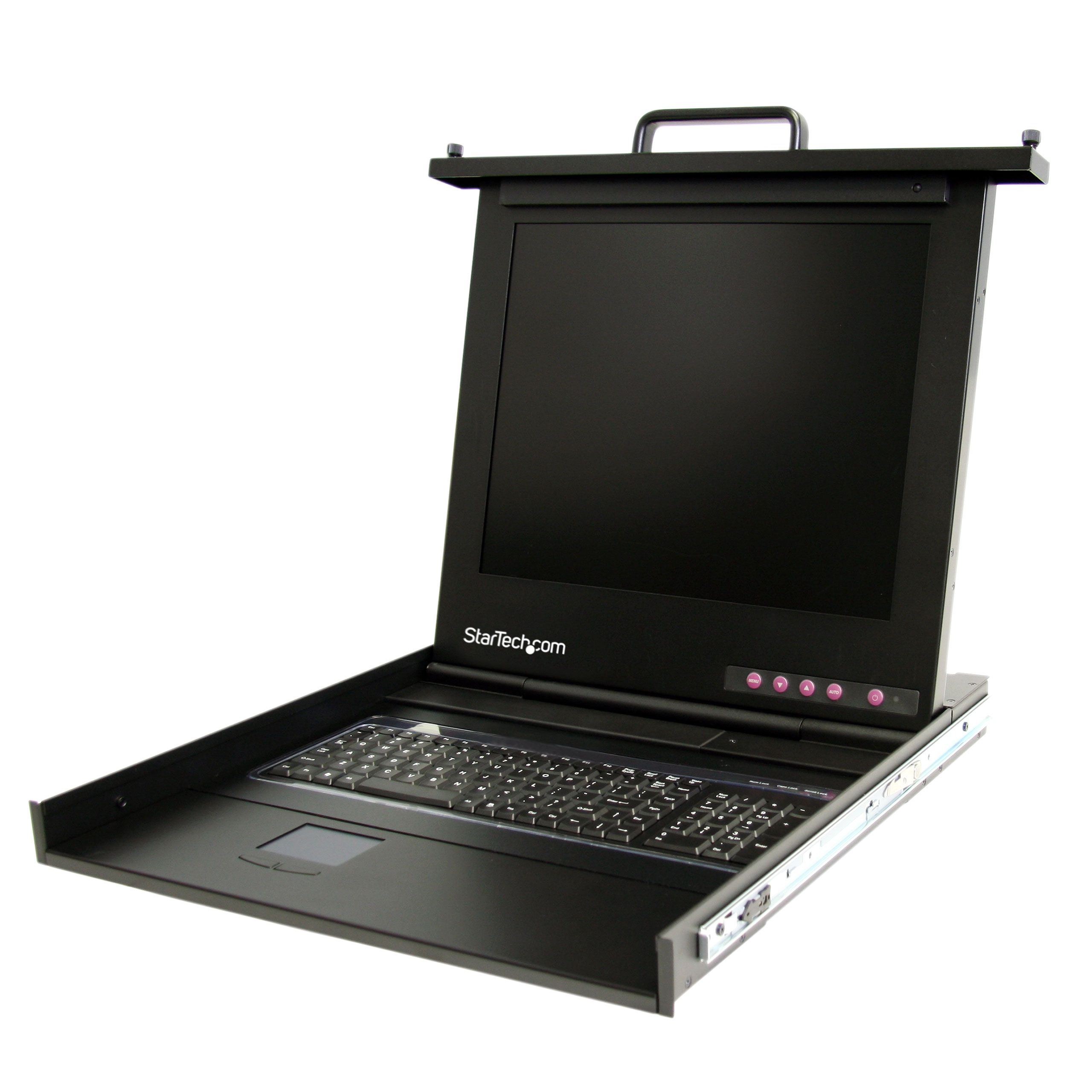

Value 1U 17in Rack Mount LCD Console
Centralized control of a server or a USB KVM switch with this 1U rack-mountable LCD console
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name Value 1U 17in Rack Mount LCD Console Product Number RACKCONV1701 UPC 065030836791 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 KVM Switches Category Level 2 Enterprise KVMs Category Level 3 Single Port LCD Consoles Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX009X Product Title (Ultra-Short) . Product Title (Short) 1U 17" Rackmount LCD Console USB Product Title (Standard) 1U 17" Rackmount LCD Console – USB – Value Series Product Title (Long) 1U 17" Rackmount LCD Console – USB – Value Series Product Title (AMZ) 1U 17" Rackmount LCD Console – USB – Value Series - KVM Console 1U Rack Mount with 17in LCD (RACKCONV1701) Title Ingram (Part 1) 1U 17" Rackmount LCD Console – U Title Ingram (Part 2) SB – Value Series Website Product Headline Centralized control of a server or a USB KVM switch with this 1U rack-mountable LCD console Bullet 1 Bright Active Matrix TFT Display, 300 cd/m² Bullet 2 Durable steel chassis design Bullet 3 OSD function (On Screen Display) for LCD display Bullet 4 USB host connection for USB compatible KVMs and PCs Bullet 5 OS independent Bullets (Consolidated) Centralized control of a server or a USB KVM switch with this 1U rack-mountable LCD console - Compatible with Intel Server System Rack Servers - Rack Console/Server LCD/KVM Console/Rackmount LCD/Rack Mount LCD - 17" LCD display - Supports VGA resolutions up to 1280x1024 - Full-sized keyboard and touchpad - Provide compact, local access to a server or KVM switch in your data center or back-office server room Marketing Copy Applications - Centralized control of dozens of PCs and servers when used with optional KVM
- Improving the internal space efficiency of existing cabinets
- Managing rack mounted headless servers
Website Search Keyword - 17 inch console
- cabinet console
- LCD console
- rack console
- KVM Console
- 1U Console
- USB Console
- Rackmount LCD
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class A Digital Device Interference Full Statement
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - MXT101MMHQ25
- MXT101MMHQ35
- MXT101MMLP10
- MXT101MMLP15
- SV1631DUSBU
- SV1654DX4I
- SV1653DXI
- SV3254DX4I
- SV3253DXI
- SV831DUSBU
Related Products - 1UCABCONS
- 1UCABCONS17
- 1UCABCONS19
- CABCONS16
- CABCONS1716I
- CABCONS8
- RACKCONS
- RACKCONS1501
- RACKCONS1701
- RACKCONS1708
- RACKCONS1716
- RACKCONS1901
- RACKCONS1916
- RACKCONV1901

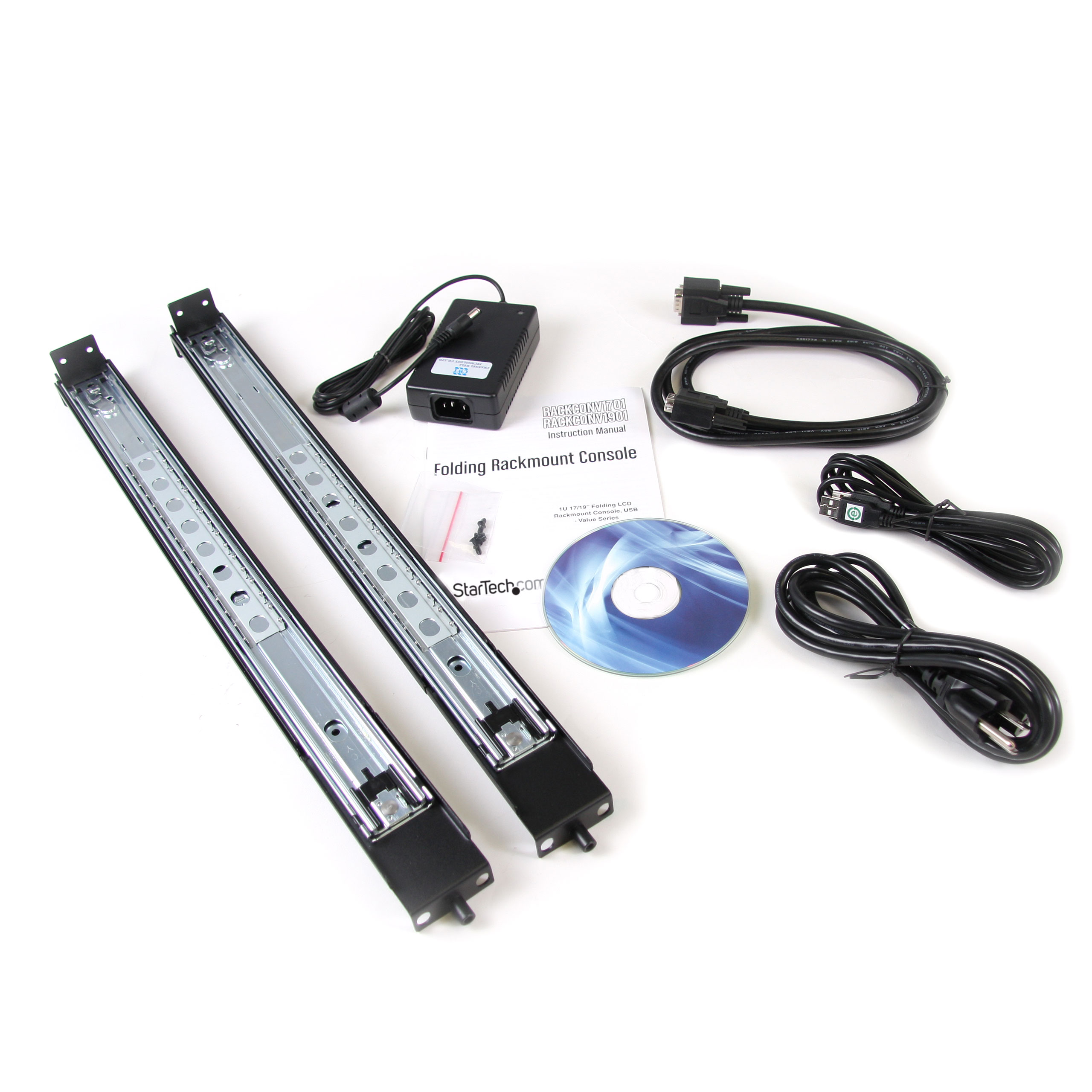

Input Voltage 100 - 240 AC Output Current 4.16A Output Voltage (V) 12V DC Power Consumption (In Watts) 49.92 Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Color Black Humidity 90% RH Material Heavy Duty Steel Maximum Mounting Depth (mm) 809 Minimum Mounting Depth (mm) 508 Operating Temperature 0 ~ 50 °C / 32 ~ 122 °F Product Length (mm) 509.200 Product Width (mm) 477.600 Product Height (mm) 43.700 Product Weight (g) 10400.000 Storage Temperature -20 ~ 60 °C / -4 ~ 140 °F TAA Compliant Yes KVM IP Control No Maximum Analog Resolutions 1280x1024 @ 60Hz MTBF (hours) 60,000 Hours On-Screen Display Yes OS Compatibility OS Independent Aspect Ratio 4:3 Audio No Display Size 17" Front Door Key Lock No Number of KVM Ports 1 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms USB U Height 1U Carton Depth (mm) 680 Carton Height (mm) 242 Carton Quantity 1 Carton Weight Gross (g) 19100 Included in Package - 1 - 1U LCD Rack Console Drawer
- 1 - Console Cable Kit
- 1 - Mounting Rails - Set
- 1 - Power Adapter
- 1 - Instruction Manual
- 1 - Package of 6 screws
Package Depth (mm) 680 Package Height (mm) 242 Package Width (mm) 560 Package Quantity 1 Package Weight (g) 17900 Packaging Description 1U 17" LCD Rack Console USB – Value Series Packaging Description India 1U 17" LCD Rack Console USB – Value Series Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 VGA Host Connector 1 (Quantity) 1 Host Connector 2 USB-A (480Mbps, 2.5W) Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
