RACKCONV1901
Value 1U 19in Rack Mount LCD Console
Simple and compact server control with this 19" USB LCD Console
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name Value 1U 19in Rack Mount LCD Console Product Number RACKCONV1901 UPC 065030839600 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 KVM Switches Category Level 2 Enterprise KVMs Category Level 3 Single Port LCD Consoles Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX009X Product Title (Short) 1U 19" Rackmount LCD Console – USB Product Title (Standard) 1U 19" Rackmount LCD Console – USB – Value Series Product Title (Long) 1U 19" Rackmount LCD Console – USB – Value Series Product Title (AMZ) 1U 19" Rackmount LCD Console – USB – Value Series (RACKCONV1901) Title Ingram (Part 1) 1U 19" Rackmount LCD Console – U Title Ingram (Part 2) SB – Value Series Website Product Headline Simple and compact server control with this 19" USB LCD Console Bullet 1 105 Key Keyboard with touch pad mouse Bullet 2 Bright Active Matrix TFT 19" Display, 300 cd/m2 Bullet 3 Durable steel chassis design Bullet 4 OS independent; No software or drivers required Bullet 5 OSD function (On Screen Display) for LCD display Marketing Copy Applications - Centralized control of dozens of PCs and servers when used with optional KVM
- Improving the internal space efficiency of existing cabinets
- Managing rack mounted headless servers
Website Search Keyword - 19 inch console
- 1U Console
- cabinet console
- KVM Console
- LCD console
- rack console
- Rackmount LCD
- USB Console
Accessory Products - GCUSBABMF
- MXT101MMHQ10
- MXT101MMHQ25
- MXT101MMHQ35
- MXT101MMLP10
- MXT101MMLP15
- SV1631DUSBU
- SV1631DUSB
- SV1654DX4I
- SV1653DXI
- SV3254DX4I
Related Products - 1UCABCONS
- 1UCABCONS17
- 1UCABCONS19
- CABCONS16
- CABCONS1716I
- CABCONS8
- RACKCONS
- RACKCONS1501
- RACKCONS1701
- RACKCONS1708
- RACKCONS1716
- RACKCONS1901
- RACKCONS1916
- RACKCONV1701

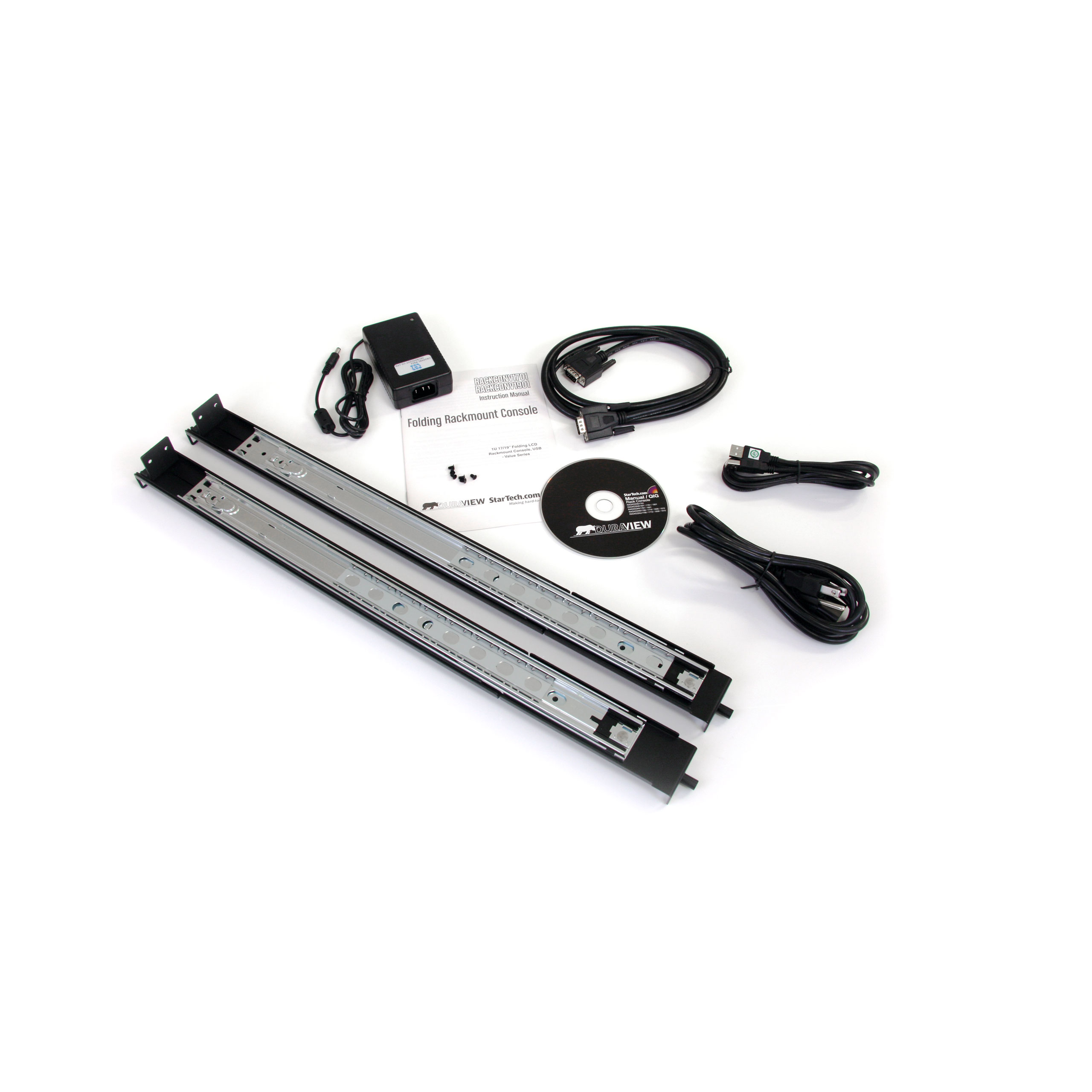

Input Voltage 110V-240V AC Output Current 4.16A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Color Black Humidity 90% RH Material Heavy Duty Steel Maximum Mounting Depth (mm) 1000 Minimum Mounting Depth (mm) 560 Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 555.1 Product Width (mm) 477.6 Product Height (mm) 43.7 Product Weight (g) 11200 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No KVM IP Control No Maximum Analog Resolutions 1280x1024 @ 60Hz MTBF (hours) 60,000 Hours On-Screen Display Yes OS Compatibility OS Independent Aspect Ratio 4:3 Audio No Display Size 19" Front Door Key Lock No Number of KVM Ports 1 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms USB U Height 1U Carton Depth (mm) 725 Carton Height (mm) 244 Carton Quantity 1 Carton Weight Gross (g) 26800 Included in Package - 1 - 1U LCD Rack Console Drawer
- 1 - Console Cable Kit
- 1 - Mounting Rails - Set
- 1 - Power Adapter
- 1 - Power Cord
- 1 - Manual on CD
- 1 - Package of 6 screws
Package Depth (mm) 725 Package Height (mm) 244 Package Width (mm) 170 Package Quantity 1 Package Weight (g) 25520 Packaging Description 1U 19" LCD Rack Console USB – Value Series Packaging Description India 1U 19" LCD Rack Console USB – Value Series Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 VGA Host Connector 1 (Quantity) 1 Host Connector 2 USB-A (480Mbps, 2.5W) Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
