3 Drive SCA U160 SCSI Lockable Backplane

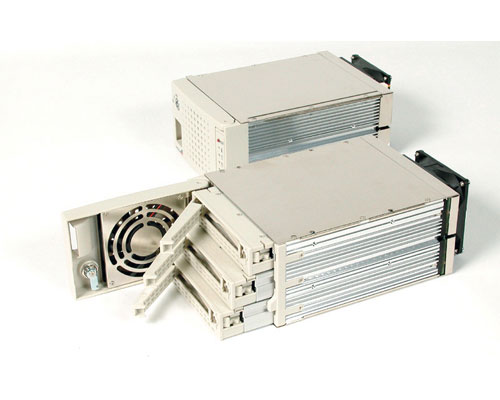

Main Image

Product Name	3 Drive SCA U160 SCSI Lockable Backplane
Product Number	RAIDBAY3
UPC	065030789219
Lifecycle status	Discontinued
Warranty	2 Years
Taxonomy	Product > Legacy Discontinued
Category Level 1	Legacy Category
Category Level 2	Legacy Sub-Category
Category Level 3	Legacy Group

Manual https://images.salsify.com/image/upload/s--h4rGtD-g--/3da6983e07baf7ba0a0412d662f5fb141ba53854.pdf

Product Title (Long)	3 Drive SCA U160 SCSI Lockable Backplane
Bullet 1	Supports U160 Ultra3 SCSI signaling speeds
Bullet 2	Fits (3) 3.5 inch SCA SCSI drives into (2) 5.25 inch drive bays (full height)
Bullet 3	2 Cooling fans provide a combined 75 CFM of airflow
Bullet 4	Drives can be hot-swapped if supported by the host RAID controller
Bullet 5	Several RAIDBAY3s can be linked to form a larger array
Marketing Copy
Applications	Server RAID Disk Array
Website Search Keyword	scsi

General Specifications

Chassis rear SCSI connectors: (2) x Half Pitch DB68 Female
Drive Connectors: (3) x SCA80 Male
Power Connectors: (2) x LP4 Internal Power Male
Front Door Fan: (1) x 3 1/8" x 0.39 in (8 x 1 cm) Dual Ball Bearing with fan guard
Rear Fans: (1) x 3 1/8" x 1 in (8 x 2.5 cm) Dual Ball Bearing with fan guard
Certifications: CE
Note: Unit is model specific and is not meant for use with different models of drive drawer unless otherwise stated

Carton Depth (mm)	0
Carton Height (mm)	0
Carton Weight Gross (g)	0
Included in Package	1 - 3 Drive SCA U160 SCSI Lockable Backplane 1 - Instructional Manual 1 - Set of Screws and Keys
Package Depth (mm)	130
Package Height (mm)	190
Package Width (mm)	260
Package Weight (g)	1750
Sub-Carton Depth (mm)	0
Sub-Carton Height (mm)	0
Sub-Carton Width (mm)	0
Sub-Carton Weight (g)	0

Accessory Products	TE_33A21 SCATRAY SCSI320INT SCSI320INT5 SCSI320INT7
Related Products	RAIDBAY3BK
