RH2A-7M-HDMI-CABLE
Rugged HDMI 2 0 7m Black Active cable

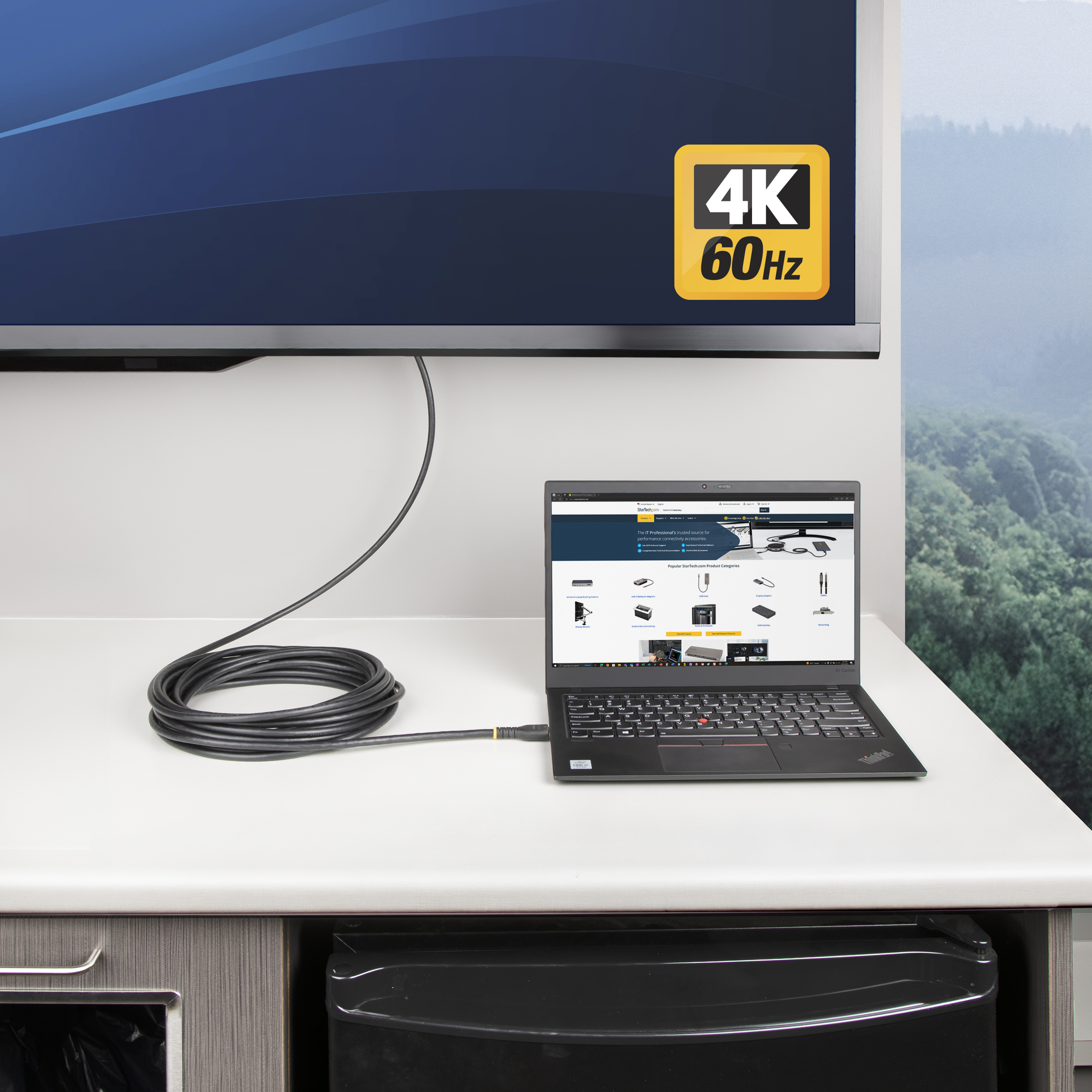

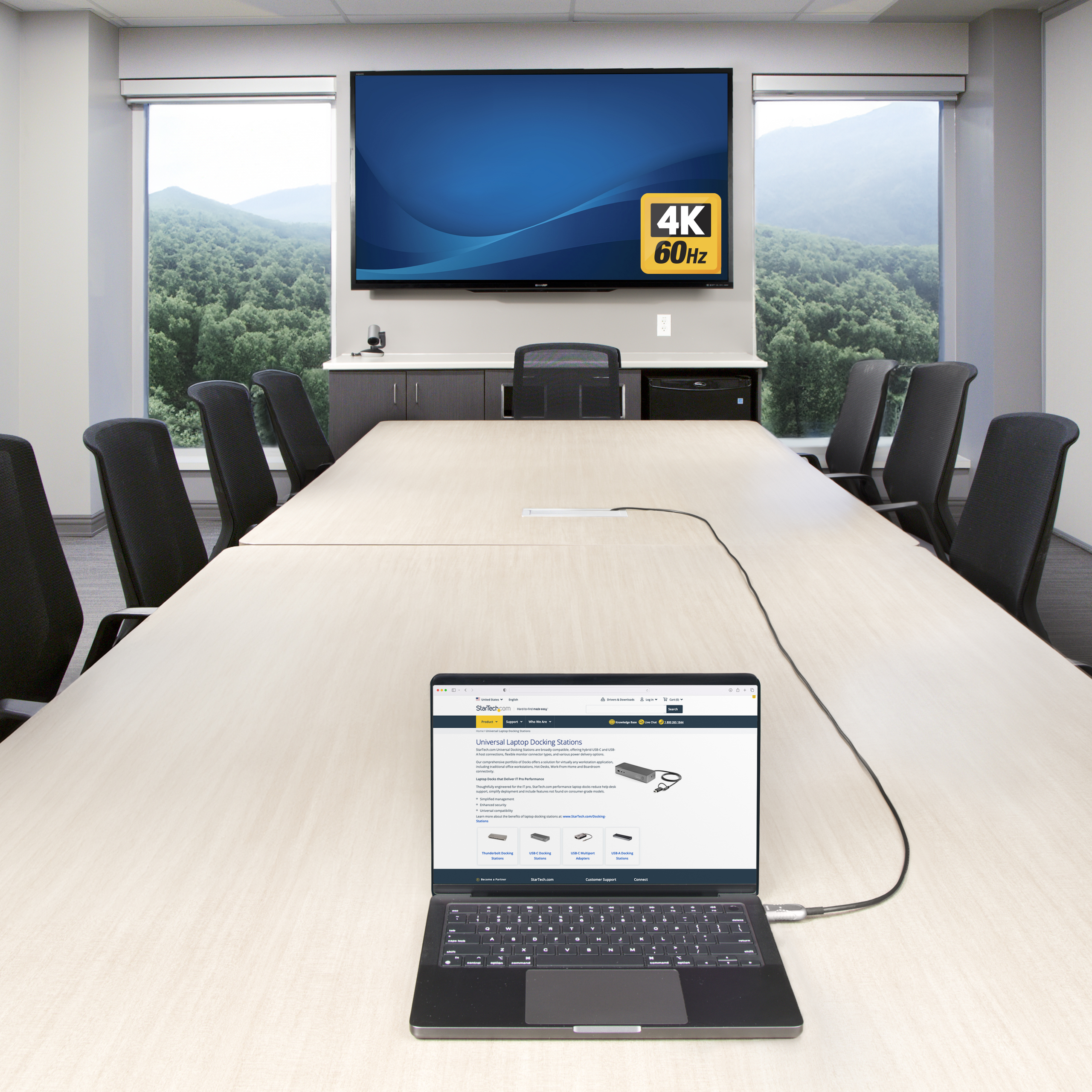

Connect 4K HDMI-enabled devices up to 7m away with no signal loss
Main Image
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Name Rugged HDMI 2 0 7m Black Active cable Product Number RH2A-7M-HDMI-CABLE UPC 065030897037 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cables > Video Cables Category Level 1 Digital Display Cables Category Level 2 HDMI Cables Category Level 3 HDMI Cables - Active Family Active HDMI 2.0 Rugged Cables, 4K60 Web Hierarchy Cables - Audio-Video Cables - HDMI Cables Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) Vietnam Country of Origin Revision (1) XXXXXX170X Country of Origin History (2) China Country of Origin Revision (2) XXXXXX171X Product Title (Ultra-Short) Active HDMI 2.0 Cord Product Title (Short) 23ft Active HDMI Cable, 4K 60Hz Product Title (Medium) 23ft Active HDMI Cable, HDMI 2.0 4K 60Hz UHD, Rugged HDMI 2.0 Cord Product Title (Standard) 7m (23ft) Active HDMI Cable, HDMI 2.0 4K 60Hz UHD, Rugged HDMI Cord w/ Aramid Fiber, Heavy-Duty High Speed HDMI 2.0 Cable Product Title (Long) 23ft (7m) Active HDMI Cable w/ Ethernet - HDMI 2.0 4K 60Hz UHD - Rugged HDMI Cord w/ Aramid Fiber - Durable High Speed HDMI Cable - Heavy-Duty HDMI 2.0 Cable Product Title (AMZ) 23ft Active HDMI Cable w/ Ethernet - HDMI 2.0 4K 60Hz UHD - Rugged HDMI Cord w/ Aramid Fiber - Durable High Speed HDMI Cable - Heavy-Duty HDMI 2.0 Cable (RH2A-7M-HDMI-CABLE) Title Ingram (Part 1) 7m (23ft) Active HDMI Cable - Title Ingram (Part 2) Long HDMI 2.0 Cord 4K 60Hz Website Product Headline Connect 4K HDMI-enabled devices up to 7m away with no signal loss Bullet 1 HIGH PERFORMANCE: 23ft (7m) HDMI 2.0 Cable with Ethernet, 4K 60Hz (up to 4096x2160p), 18Gbps bandwidth, HDR10, and 32 channel multi-stream audio with 1536Hz sampling (5.1/7.1/DD+/Dolby TrueHD/Atmos); Unidirectional cable with source/display labels Bullet 2 ACTIVE CIRCUITRY: Active bus-powered amplifier boosts video signals over longer distances to extend HDMI signal up to 23ft (7m); Supports additional color spaces, such as Adobe RGB and YCC601 Color Bullet 3 DURABLE CABLE: 100% copper cable (28AWG) with long lasting TPE jacket and strain reliefs absorbs stress of frequent bends, protecting the core of the rugged UHD HDMI cord; TPE is non-toxic, halogen free and RoHS certified for environmental sustainability Bullet 4 QUALITY CONSTRUCTION: Gold-plated connectors, and superior EMI shielding with Al-Mylar foil and copper braid improve signal integrity and reliability, deliver 4K 60Hz over long distances; Ideal for conference room, offices, or classrooms Bullet 5 SPECS: 23 feet (7 meters); Color: Black; Version: HDMI 2.0; Connectors: Male to Male; Wire Gauge: 28 AWG; OD: 7.5mm; Cable Jacket: TPE; Shield: Al-Mylar Foil with Copper Braid; Features: ARC, Deep Color, HDCP 2.2, CEC, BT.2020 Colorimetry Bullets (Compact) 23ft Active HDMI 2.0 Cable with Ethernet supports 4K 60Hz - Built-in amplifier - Directional cable with source/display labels - Heavy-duty 28AWG HDMI cord with TPE jacket and strain reliefs - Long HDMI cable for conference rooms/offices/classrooms Bullets (Consolidated) 23ft Active HDMI 2.0 Cable with Ethernet supports 4K 60Hz (up to 4096x2160p)/18Gbps bandwidth/HDR10/ARC/32 Ch multi-stream audio (5.1/7.1/Dolby TrueHD/Atmos) - Active circuitry with built-in bus-powered video amplifier to extend HDMI signal; Unidirectional cable with source/display labels - Deliver 4K 60Hz over long distances; Ideal for conference rooms or offices - 28AWG heavy-duty HDMI cord with TPE jacket and strain reliefs reduces stress; Aramid fibers protect the rugged UHD HDMI cable core Marketing Copy Marketing Copy (No HTML) Website Search Keyword - 23ft active hdmi cable
- active hdmi 2.0 cable
- active hdmi cable
- hdmi 2.0 cable
- hdmi cable for tv
- hdmi cord
- hdmi monitor cable
- heavy-duty hdmi cable
- ultra high speed hdmi
- ultra high speed hdmi cable
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device

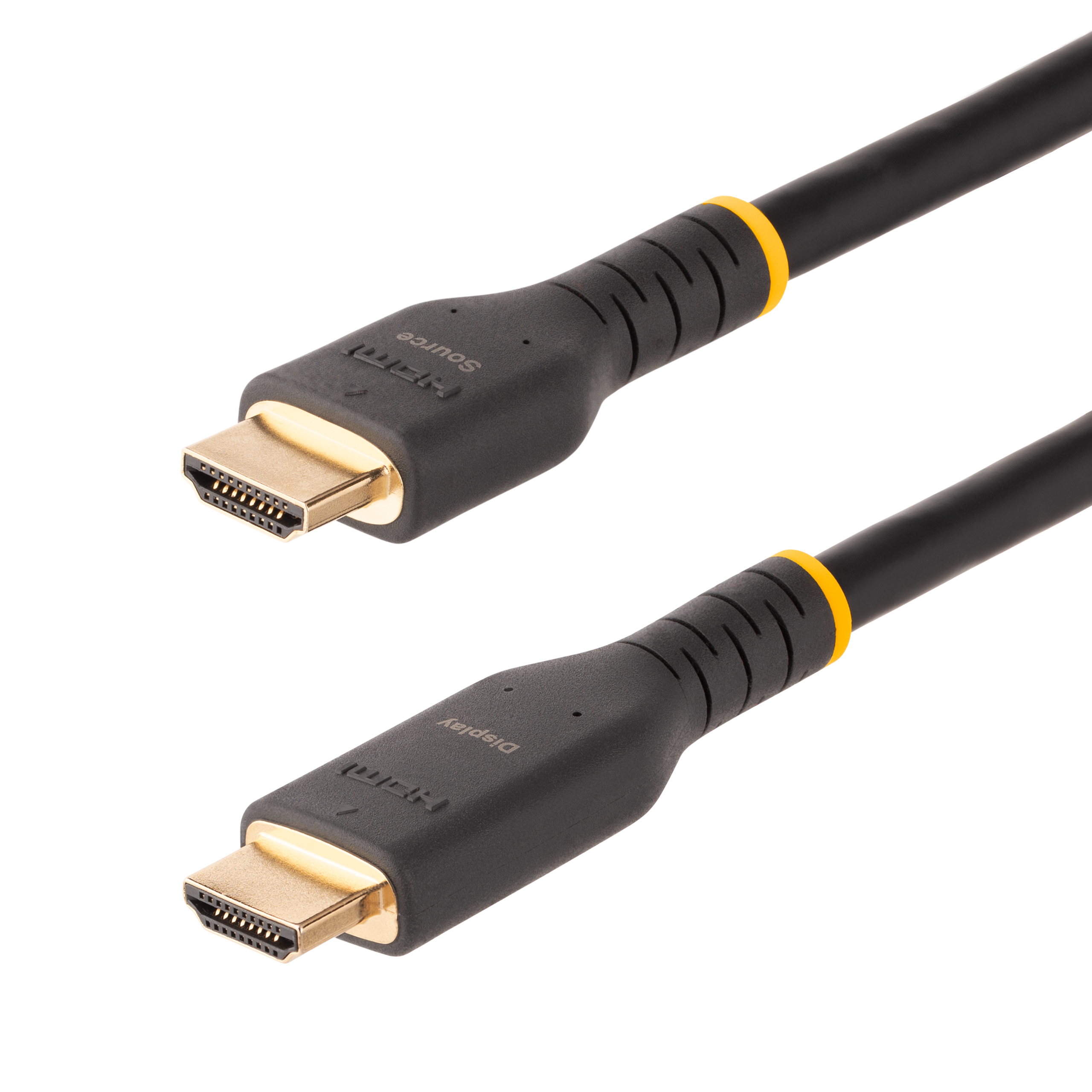

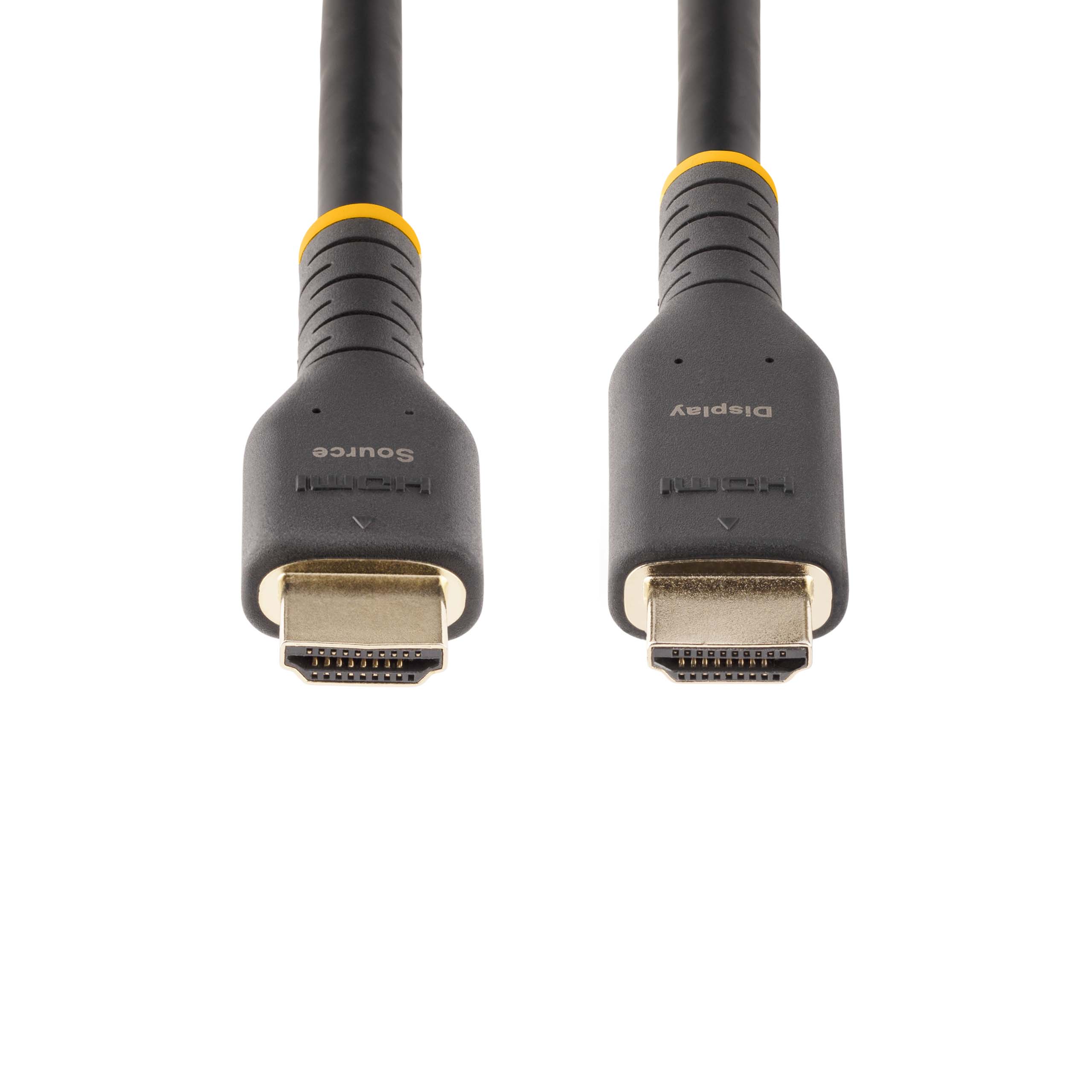

Special Notes This HDMI Cable is unidirectional with identified connectors for Source and Display. Please ensure that the HDMI connector labelled with "Display" is connected to the Display, TV, or Projector. Related Products RH2A-10M-HDMI-CABLE Cable Length (mm) 7000 Cable OD 7.5 Color Black Connector Style Straight Humidity 0 to 85% RH Operating Temperature 0 to 50°C (32 to 122°F) Product Length (mm) 7000.000 Product Width (mm) 20.500 Product Height (mm) 11.000 Product Weight (g) 465.000 Storage Temperature 0 to 50°C (32 to 122°F) TAA Compliant No Wire Gauge 28 AWG Audio Specifications HDMI - 32 Channel Audio HDMI Version HDMI 2.0 (18Gbps) HDR Support HDR10 Active or Passive Adapter Active Cable Jacket Material TPE - Thermoplastic Elastomers Cable Shield Material Aluminum-Mylar Foil with Braid Chipset ID Spectra7 - HT8181 Connector Plating Gold Connectors HDMI to HDMI Industry Standards HDMI 2.0 Number of Conductors 19 Carton Depth (mm) 430 Carton Height (mm) 290 Carton Quantity 20 Carton Weight Gross (g) 11500 Included in Package 1 - 7m Rugged Active HDMI® 2.0 Cable Included In Package for Label 1 - 7M Rugged ACtive HDMI&Reg; 2.0 Cable Package Depth (mm) 248 Package Height (mm) 45 Package Width (mm) 201 Package Quantity 1 Package Weight (g) 494 Packaging Description 7m Rugged Active High-Speed HDMI Cable - 18 Gbps / 4K 60Hz Packaging Description India 7m Rugged Active High-Speed HDMI Cable - 18 Gbps / 4K 60Hz Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 HDMI Connector 2 (Quantity) 1 A+ Not Required Amazon Merchandising Manager Veronica Ye Application Photos Uploaded Artwork Due Date 2022-07-14 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2022-09-14 Enhanced Gallery Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,SE,SG,UK,US Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager David Muzinic Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2022-01-31 Target Production Release 2022-07-14 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream Video Not Required
