RJ45SPLITTER

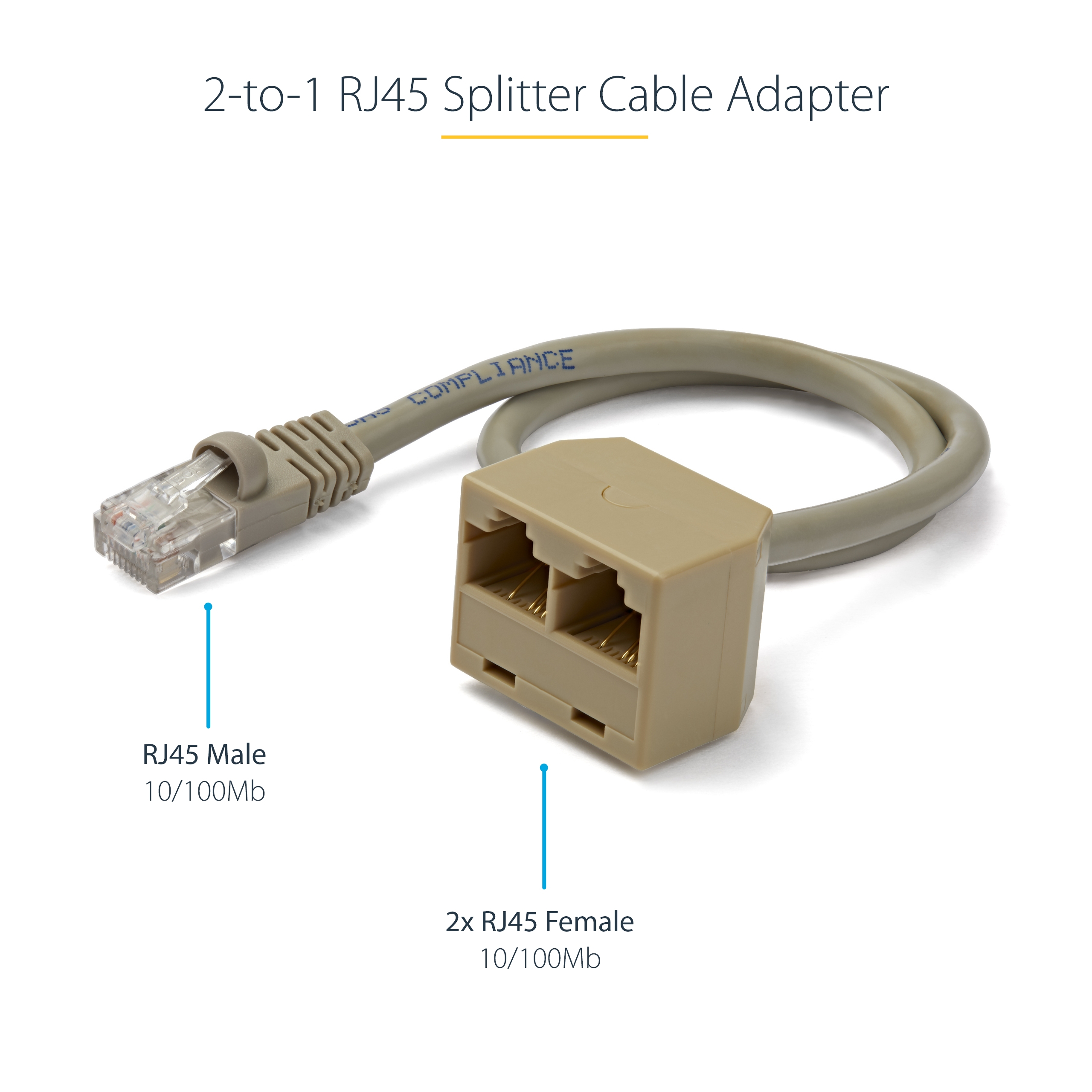

RJ45 Splitter Adapter Cable

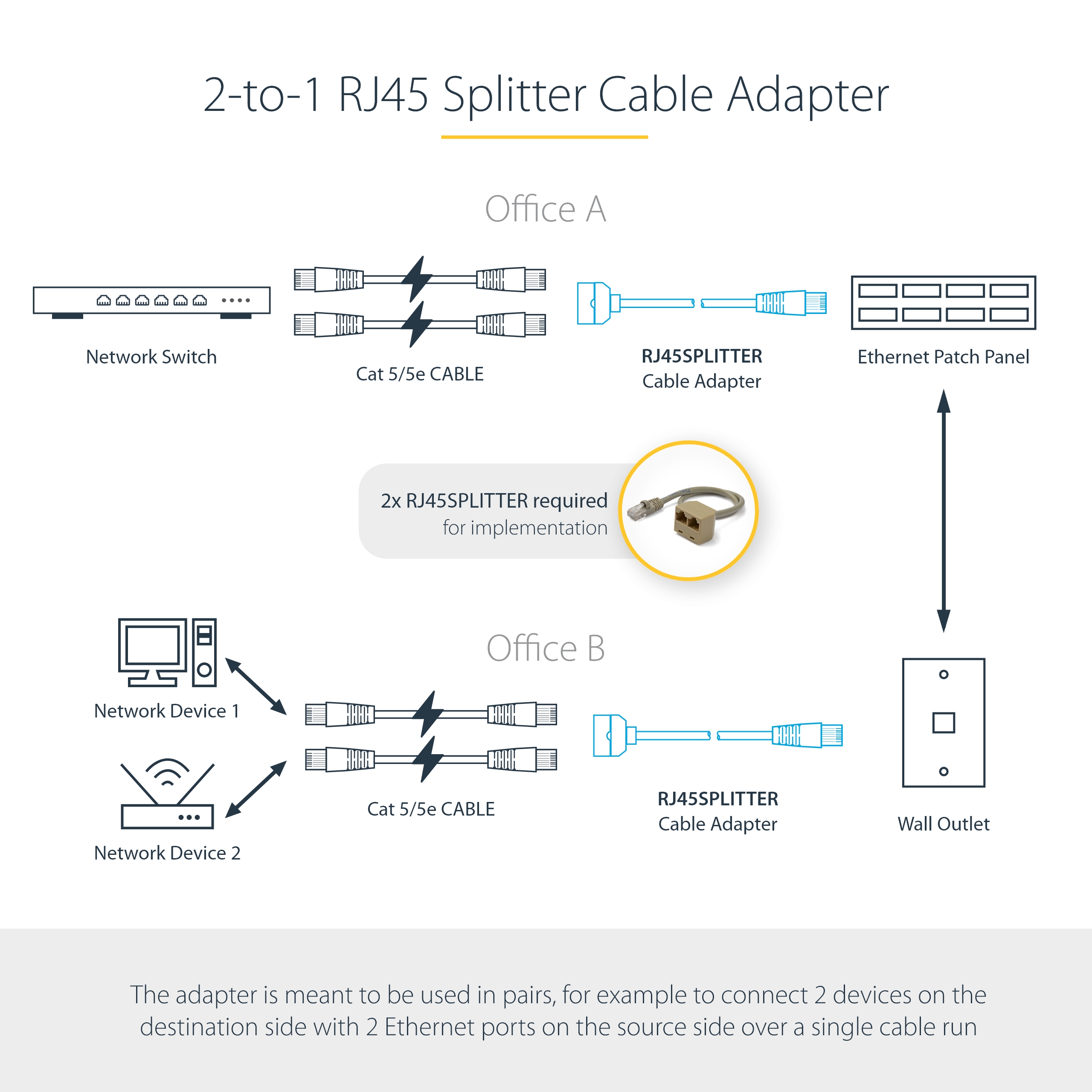

Connect two 10/100 Ethernet devices to a single Cat5/Cat5e cable drop
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Quick-Start Guide
Product Name RJ45 Splitter Adapter Cable Product Number RJ45SPLITTER UPC 065030783347 Lifecycle status Active Warranty Lifetime Taxonomy Product > Other > Unclassifiables Category Level 1 Network Cables Category Level 2 Network Cable Accessories Category Level 3 Networking Cable Adapters Family Adapters Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX045X Product Title (Ultra-Short) . Product Title (Short) 2-to-1 RJ45 Splitter Cable Adapter - F/M Product Title (Medium) x Product Title (Standard) 2-to-1 RJ45 Splitter Cable Adapter - Network splitter - RJ-45 (M) - RJ-45 (F) Product Title (Long) 2-to-1 RJ45 Splitter Cable Adapter - F/M Product Title (AMZ) 2-to-1 RJ45 10/100 Mbps Splitter/Combiner - One adapter required at each end of the connection (RJ45SPLITTER) Title Ingram (Part 1) 2-to-1 RJ45 Splitter Cable Adapt Title Ingram (Part 2) er - F/M Website Product Headline Connect two 10/100 Ethernet devices to a single Cat5/Cat5e cable drop Bullet 1 RJ45 SPLITTER: This RJ45 cable adapter enables two 100Mb network connections from a single 8 wire network connection, without the need to run additional cables Bullet 2 EASY INSTALL: RJ45 splitter cable is easy to use and install; Combine two Ethernet ports into one RJ45 wall outlet and then split one Cat 5/5e line back out to two devices through the wall outlet at the other end of the connection Bullet 3 RELIABLE AND DURABLE: The RJ45 adapter provides a stable connection for two devices, allowing you to work efficiently without any interruption Bullet 4 IMPORTANT NOTE: This adapter cannot be used to split a network connection in two ports; The adapter is meant to be used in pairs, for example to connect 2 devices on the destination side with 2 Ethernet ports on the source side over a single cable run Bullet 5 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this RJ45 splitter is backed for life, including free lifetime 24/5 multi-lingual technical assistance Bullets (Consolidated) Connect two 10/100 Ethernet devices to a single Cat5/Cat5e cable drop - RJ45 Splitter/LAN Splitter/Cat5e Ethernet Cable Splitter - Combine two cables into one RJ45 wall outlet and then split one Cat 5/5e line back out to two devices using an RJ45SPLITTER at both ends of the installation - Allows two 10/100 Ethernet signals through a single Cat 5/5e wire - Note: Cannot be used to share a single network line with two computers you need to use a hub instead Marketing Copy Applications - Allows two 10/100 Ethernet signals through a single Cat 5/5e wire
- Cannot be used to share a single network line with two computers - use a hub instead
- Ideal for 10/100Mbps Ethernet application (Not suitable for Gigabit network (1000Mbps)
Website Search Keyword - N035001
- N035-001
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device

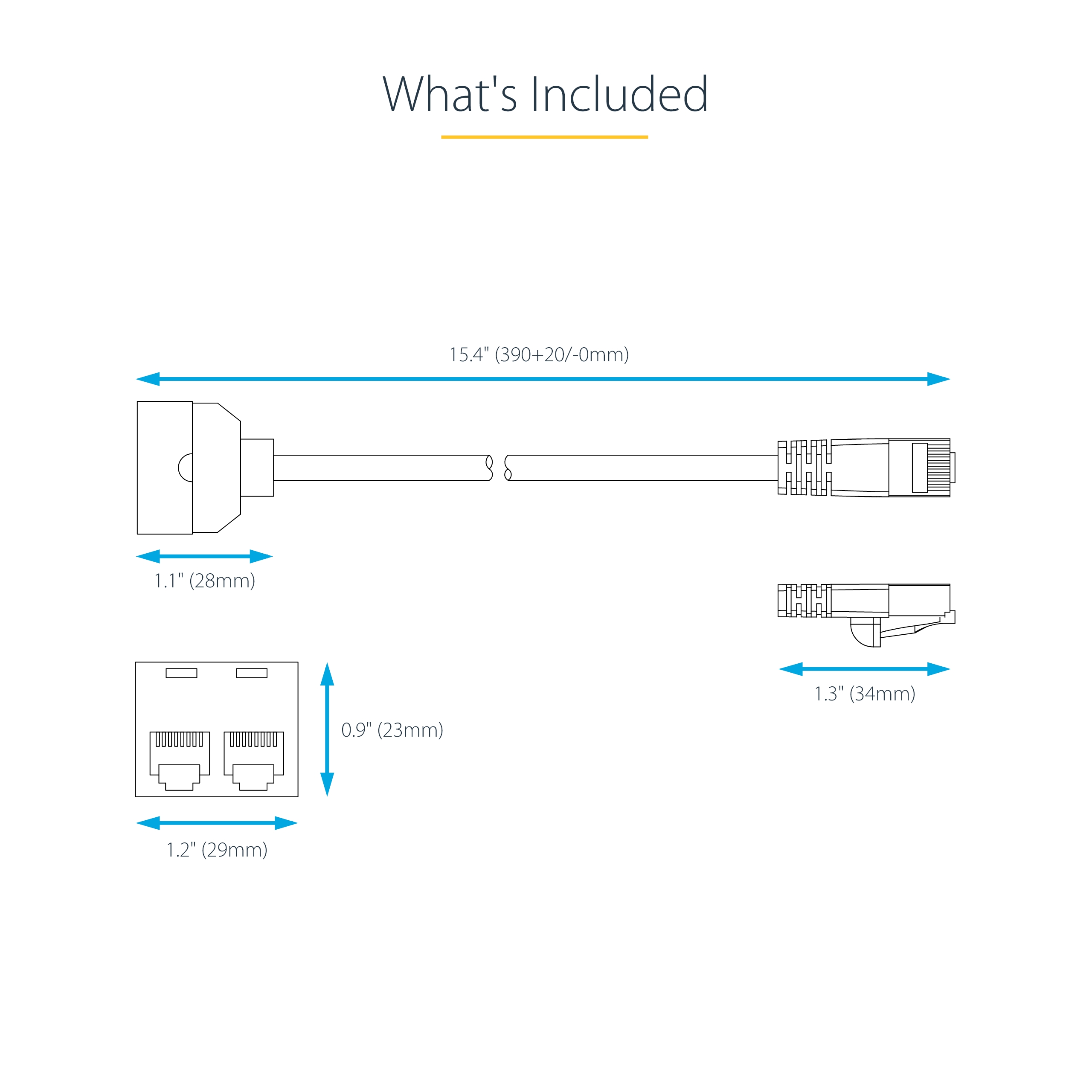

Cable Length (mm) 330 Color Beige Installation Type Toolless Primary Material Plastic Product Length (mm) 330.000 Product Width (mm) 30.000 Product Height (mm) 25.000 Product Weight (g) 21.000 Product Type RJ45 Couplers and Adapters TAA Compliant No Wire Gauge 24 AWG Cable Jacket Material PVC - Polyvinyl Chloride Connection Type Cat 5e Number of Conductors 8 Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 372 Carton Height (mm) 278 Carton Quantity 200 Carton Weight Gross (g) 7656 Included in Package 1 - 2-to-1 RJ45 Splitter Cable Adapter - F/M Included In Package for Label 1 - 2-To-1 Rj45 Splitter Cable Converter - F/M Number of Sub-Cartons 20 Package Depth (mm) 199 Package Height (mm) 32 Package Width (mm) 158 Package Quantity 1 Package Weight (g) 32 Packaging Description 2-to-1 RJ45 Splitter Cable Adapter - F/M Packaging Description India 2-to-1 RJ45 Splitter Cable Converter - F/M Sub-Carton Depth (mm) 246 Sub-Carton Height (mm) 73 Sub-Carton Width (mm) 249 Sub-Carton Quantity 10 Sub-Carton Weight (g) 360 Connector 1 RJ-45 Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Uploaded Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SG,UK,US Primary Technology None Product Development Specialist Brian Ha Product Information Creation Specialist (PICS) Brian Chan Product Manager Tim North Product Performance Specialist Ray Aoki Product Photographer Caleigh Le Grand Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
