RK1219WALLOH

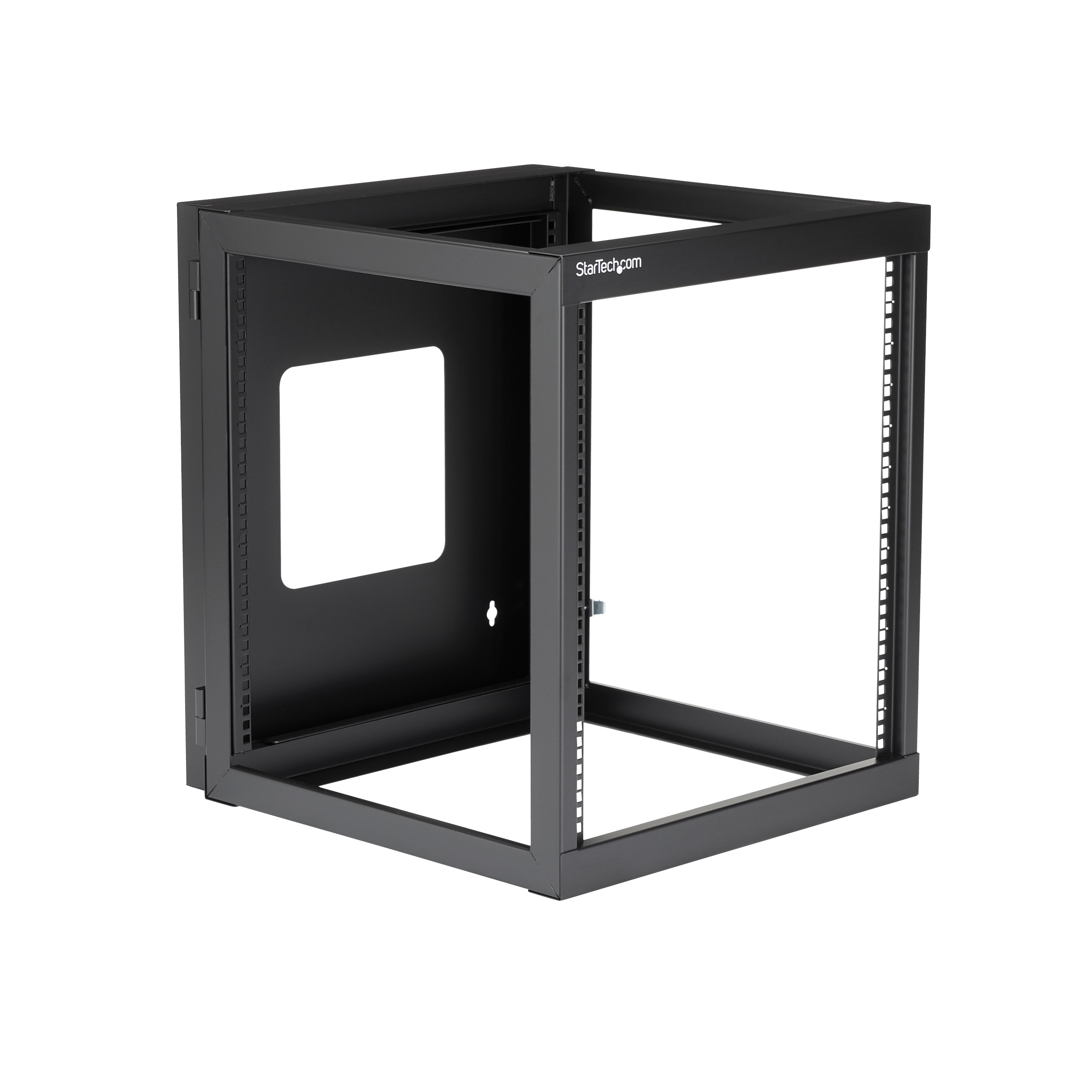

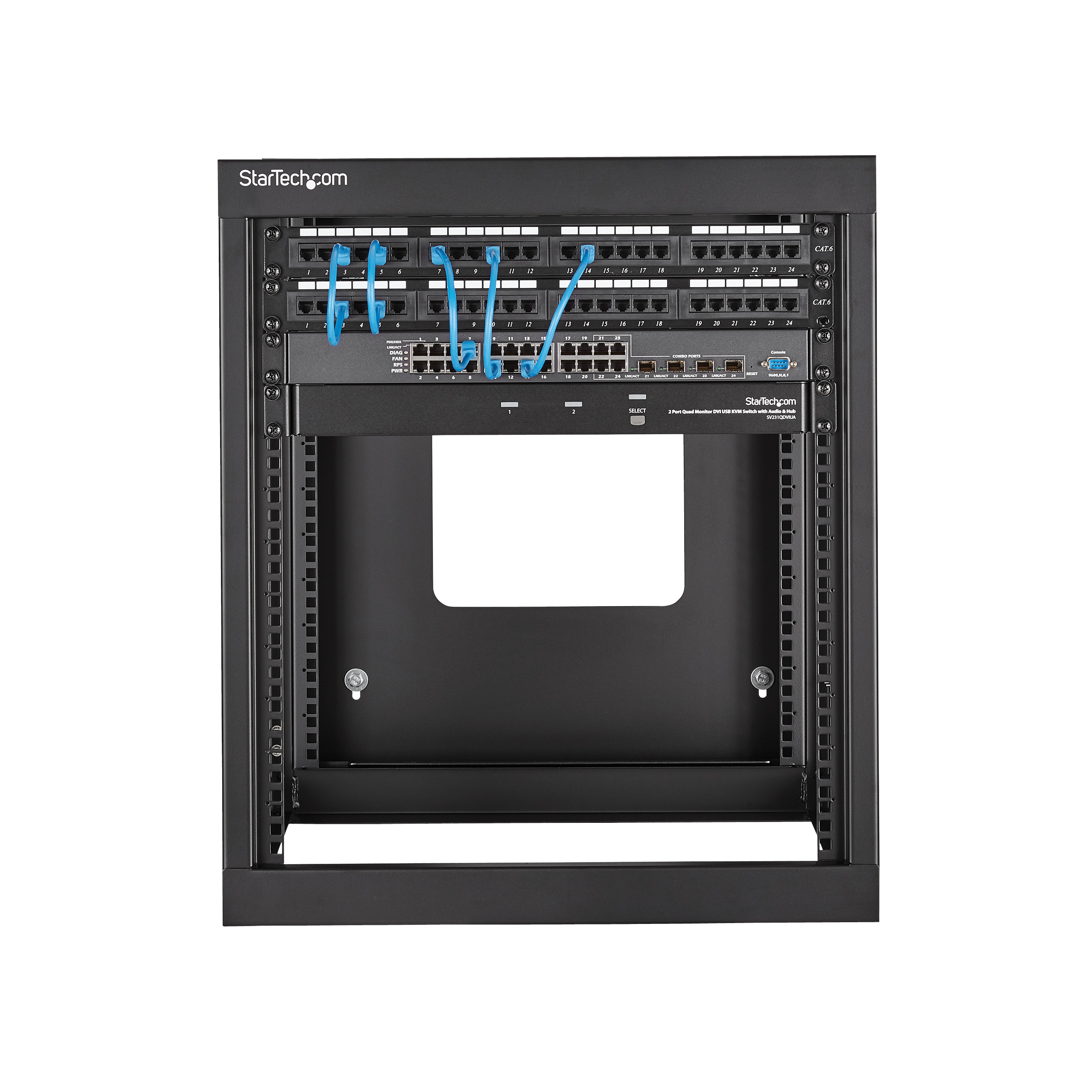

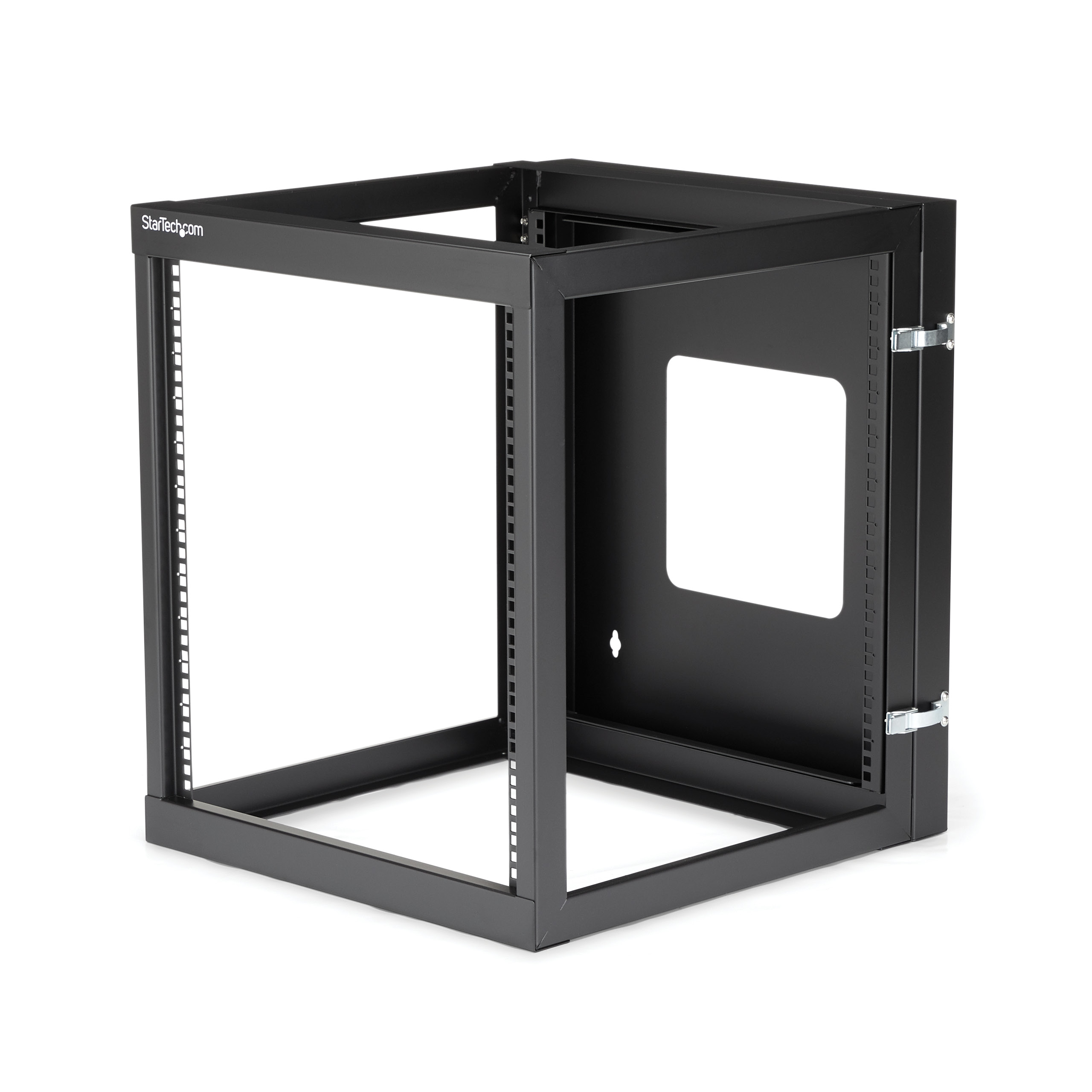

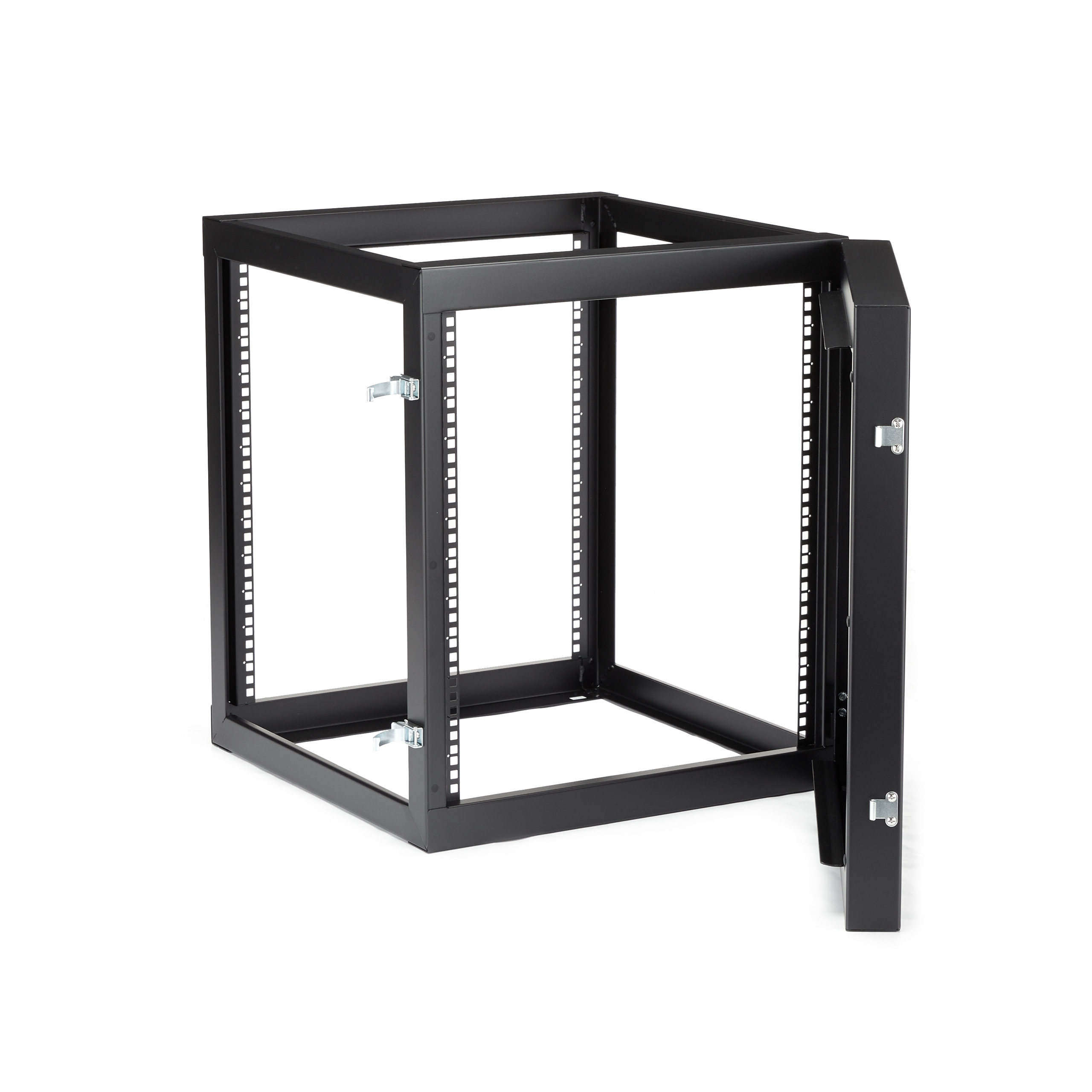

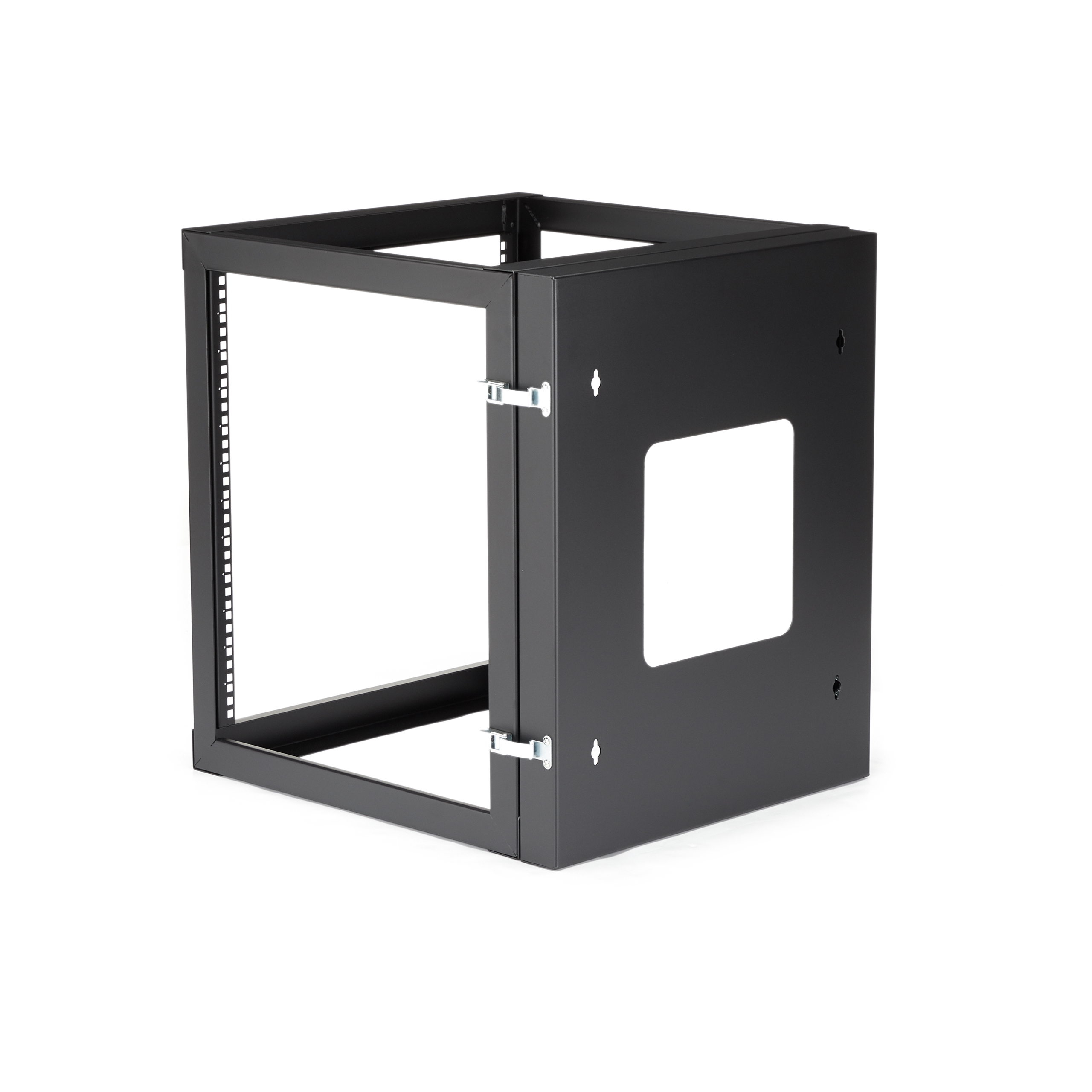

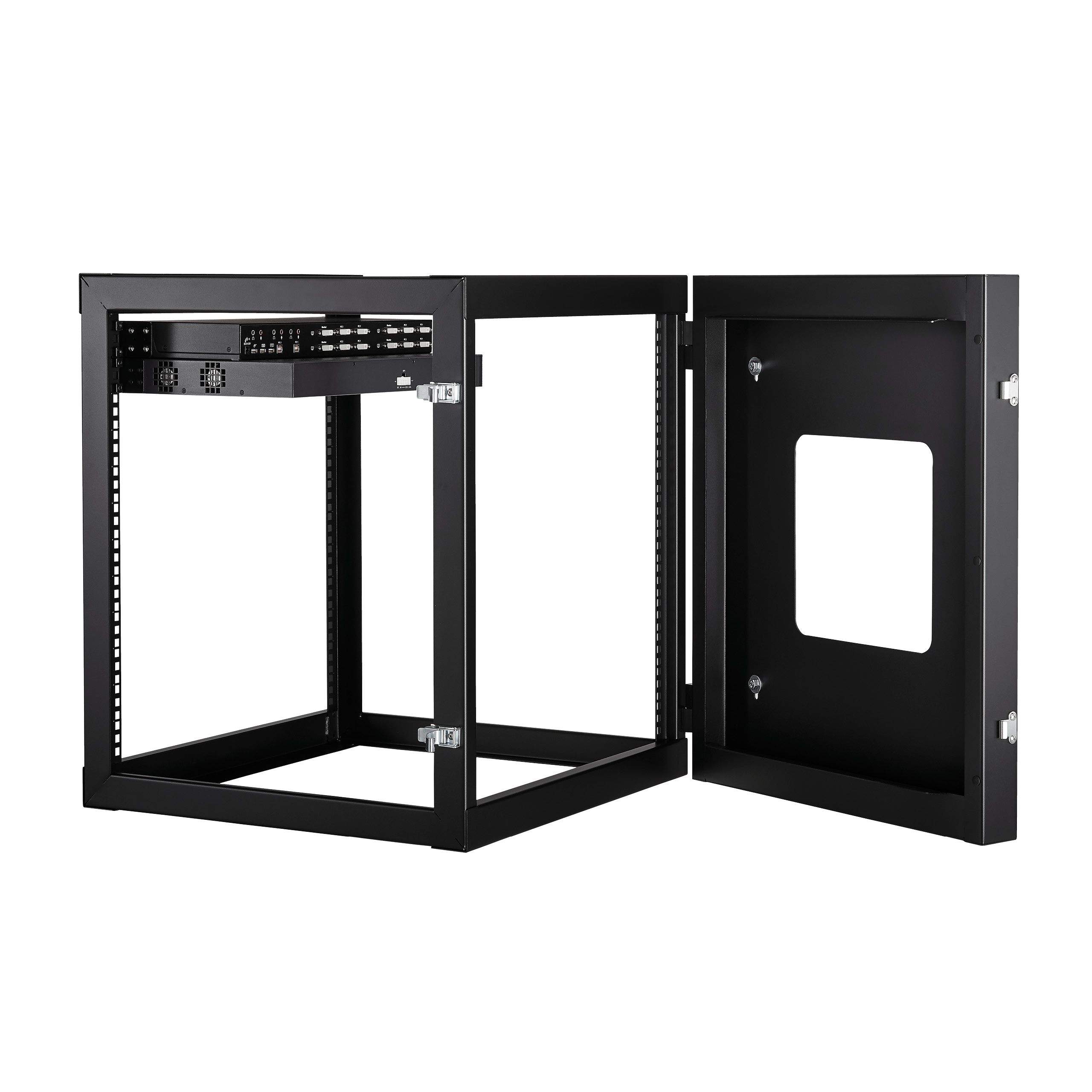

12U Hinged Open Frame Wall Mount Equipment Rack
Wall-mount your server or networking equipment with a hinged rack design for easy access and maintenance
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Video Link YouTube
Product Name 12U Hinged Open Frame Wall Mount Equipment Rack Product Number RK1219WALLOH UPC 065030848855 Lifecycle status Active Warranty Lifetime Taxonomy Product > Mechanical Products > Open Frame Racks Category Level 1 Racks and Enclosures Category Level 2 Wall-Mount Racks and Enclosures Category Level 3 Open Frame Wall-Mount Racks Family Open Frame Wall-Mount Racks-4 Post Hinged Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX124X Product Title (Ultra-Short) x Product Title (Short) 12U Open Frame Wallmount Server Rack Product Title (Medium) x Product Title (Standard) 4-Post 12U Hinged Wall-Mount Network Rack, 19" Open Frame Server Rack, Wall Mount Data Rack for IT Computer Equipment Product Title (Long) 4-Post 12U Hinged Wall-Mount Network Rack, 19" Open Frame Server Rack with 19.8in Mounting Depth, Wall Mount Swing Out Data Rack for IT / AV / Patch Panel / Computer Equipment Product Title (AMZ) 4-Post 12U Hinged Wall-Mount Network Rack, 19" Open Frame Server Rack with 19.8in Mounting Depth, Wall Mount Swing Out Data Rack for IT / AV / Computer Equipment Title Ingram (Part 1) 12U Hinged Wallmount Open Frame Title Ingram (Part 2) Rack Cabinet - Server Rack Website Product Headline Wall-mount your server or networking equipment with a hinged rack design for easy access and maintenance Bullet 1 4-POST 12U HINGED WALL-MOUNT RACK: IT Server Rack with 19.8in (50.2cm) maximum mounting depth is perfect for installing network switches out of the way (for example high up on a wall) in your warehouse, office, server room or store location Bullet 2 OPTIMIZED DESIGN: The Wall Mount Data Rack features a hinged open frame rack design that allows the entire frame to swing open for easy installation and maintenance; Unobstructed airflow helps to keep your Data / AV / IT equipment cool Bullet 3 BUILT TO LAST: The 12U wall mount computer equipment rack offers a 4 post design for additional support of your equipment; Constructed of high-quality SPCC cold-rolled steel for strength and durability with a maximum weight capacity of 139lbs (63kg) Bullet 4 FULLY ASSEMBLED: The hinged server rack ships fully assembled with all of the rack screws and cage nuts required to mount your equipment; Hinged Data Rack is EIA/ECA-310-E Compliant Bullet 5 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this 12U wall mounted network rack is backed for life, including free lifetime 24/5 multi-lingual technical assistance Bullets (Compact) 12U Open Frame Wall Mount Server Rack - Network rack with 19.8in mounting depth offers a hinged design for easy equipment access - 4-Post computer rack with 139lbs (63kg) weight capacity - Cage nuts and screws included - EIA/ECA-310-E Compliant Bullets (Consolidated) - Network rack system with 19.8in mounting depth is perfect for installing switches / patch panels - Open Frame Wall Mount Server Rack features a hinged rack design that allows easy installation / maintenance of your Data / AV / IT equipment - 12U mount computer rack offers a 4-post design for additional support; Weight capacity up to 139lbs (63kg) - Wallmount server rack for maximum airflow; Includes all screws and cage nuts required to mount your equipment - EIA/ECA-310-E Compliant Marketing Copy Marketing Copy (No HTML) The 12U 22in Depth Hinged Open Frame Wall Mount Server Rack lets you wall mount your (19-inch wide) servers, A/V or network equipment and features a hinged rack design that allows the entire frame to swing open for easy installation and maintenance of your equipment. The 12U wallmount communications rack offers a 4 post design for additional support of your equipment, storing a maximum weight capacity of 63 kg (140 lbs). Constructed of high-quality SPCC cold-rolled steel for strength and durability, the open frame wallmount server rack allows for maximum airflow, and ships complete with all of the rack screws and cage nuts required to mount your equipment, saving the expense of purchasing them separately. This wall mount rack for network switch is backed by a StarTech.com Lifetime warranty. Applications - Perfect for installing network switches out of the way and high up on a wall in a branch office, warehouse, or superstore location
- Ideal for small and medium businesses requiring small rack solutions dispersed throughout the organization
- Mount Audio/Video broadcast or distribution components
Website Search Keyword - SRWO12US
- SRWO12US2
- SRWO16US
Required Regulatory Compliance Marks - REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Triman/Info-Tri - Product - Waste - European Union - Furniture and Non-EEE
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Accessory Products - CABCAGENT62B
- CABCAGENTS62
- CABCAGENUT2B
- CABCAGENUT6B
- CABCAGENUTS
- CABCAGENUTS2
- CABCAGENUTS6
- CABCAGENUTSB
- CABSCREWM5
- CABSCREWM52
- CABSCREWM52B
- CABSCREWM5B
- CABSCREWM6
- CABSCREWM62
- CABSCREWM62B
- CABSCREWM6B
- CABSCREWS
- CABSCREWSB
- CABSCREWSM5
- CABSCREWSM5B
- CABSCREWSM6
- CABSCREWSM6B
- CABSCRWSM62B
- RKPW081915
- RKPW161915
- C6PANEL24
- PANEL4524
- PANELHU24
- PANEL4548
- C6PANL4524
- CABLMANAGER2
- CMBRUSH1U
- CMDUCT1UX
- CMDUCT2U
- CMHOOK1U
- CMHOOK1UL
- CMHOOK1UN
- CMHOOKMW
- CMPNL2U
- CMVELC1U
Related Products - RK819SIDEM
- RK1019SIDEM
- RK812WALLOA
- RK1219SIDEM
Constrained SKU Alternatives (Limited Stock) RK12WALLOA Color Black Construction Material Steel Depth Capacity (Filter) 12.1 - 24 in. (306 - 609mm) Material Steel Maximum Mounting Depth (mm) 502 Primary Material Steel Product Length (mm) 601.600 Product Width (mm) 555.000 Product Height (mm) 647.200 Product Weight (g) 22700.000 TAA Compliant No Rack Weight Capacity Range Less Than 300 lbs (136kg) Weight Capacity for Racks with No Casters (g) 63350 Frame Type Open Frame Industry Standards EIA/ECA-310-E Mounting Hole Types Square (For Cage Nut) Mounting Rail Profile L-Shape Rack Special Features - Ships Fully Assembled
- Wall-Mountable

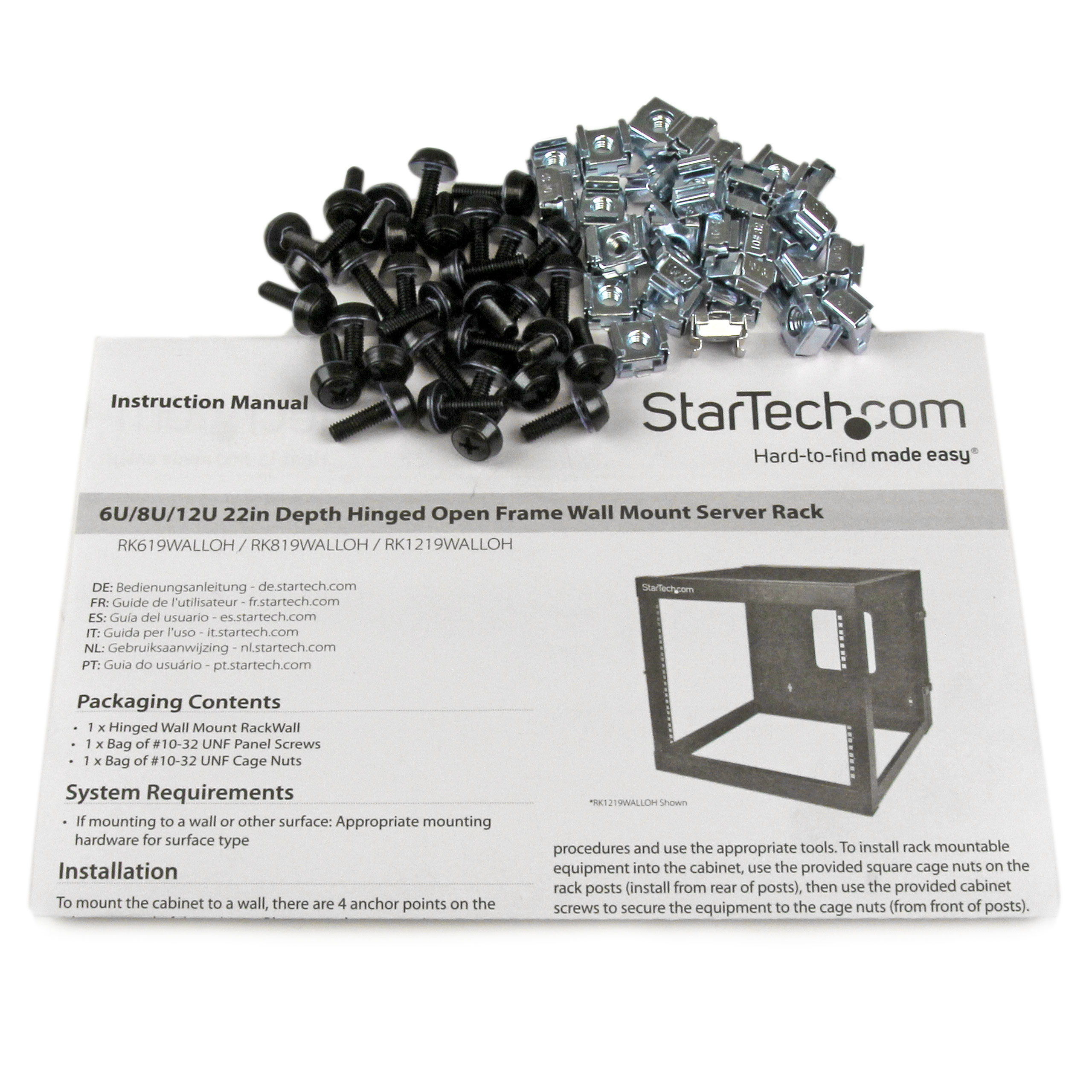

Rack Type 4-Post Rack U Height Ranges 12-26U U Height 12U Wallmountable Yes Carton Depth (mm) 670 Carton Height (mm) 760 Carton Weight Gross (g) 25200 Included in Package - 1 - Hinged Wall Mount Rack
- 48 - #10-32 UNF Panel Screws
- 48 - #10-32 UNF Cage Nuts
- 1 - Quick-Start Guide
Included In Package for Label - 1 - Quick-Start Guide
- 48 - #10-32 Unf Cage Nuts
- 48 - #10-32 Unf Panel Screws
- 1 - Hinged Wall Mount Rack
Package Depth (mm) 739 Package Height (mm) 768 Package Width (mm) 682 Package Quantity 1 Package Weight (g) 26310 Packaging Description 12U Hinged Open Frame Wall-Mount Server Rack - 22in Deep Packaging Description India 12U Hinged Open Frame Wall-Mount Server Rack - 22in Deep Rack Flatpack No Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-02-13 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,CL,DE,DK,ES,EU,FR,IE,IN,IT,JP,NL,SE,UK,US Primary Technology None Product Development Specialist Sead Ferhatovic Product Information Creation Specialist (PICS) Alex Garcia Product Manager Bhuvan Uppal Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
