RK12OD2
12U 19 Open Frame Desktop Rack
Store your lightweight, rack-mountable equipment(max. capacity 110lb / 50kg) in this 2-post rack
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 12U 19 Open Frame Desktop Rack Product Number RK12OD2 UPC 065030897914 Lifecycle status End of Life Warranty Lifetime Taxonomy Product > Mechanical Products > Open Frame Racks Category Level 1 Racks and Enclosures Category Level 2 Open Frame Racks Category Level 3 Small Racks - Less than 12U Family 2 Post Open Desktop Rack Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX095X Product Title (Short) 12U 19in Desktop Open Frame 2 Post Rack Product Title (Medium) x Product Title (Standard) 12U 19" Desktop Open Frame Rack, 2-Post Free-Standing Network Rack, Switch/Patch Panel/AV/IT Equipment, 110lb / 50kg capacity Product Title (Long) 12U 19" Desktop Open Frame Rack - 2 Post Free-Standing Network Rack Switch Depth for Patch Panel/Data/AV/Communication/Studio Equipment 110lb(50kg) Capacity w/Cage Nuts/Screws Product Title (AMZ) 12U 19" Desktop Open Frame Rack - 2 Post Free-Standing Network Rack Switch Depth for Patch Panel/Data/AV/Communication/Studio Equipment 110lb(50kg) Capacity w/Cage Nuts/Screws (RK12OD2) Title Ingram (Part 1) 12U Open Frame Desktop Rack Title Ingram (Part 2) - 2 Post - Weight Cap. 110lb/50kg Website Product Headline Store your lightweight, rack-mountable equipment(max. capacity 110lb / 50kg) in this 2-post rack Bullet 1 2-POST 12U DESKTOP OPEN FRAME RACK: Ideal for use on a workbench or in the back room of small office spaces without dedicated wiring closets - offers easy access to IT equipment like switches or routers Bullet 2 DESIGNED FOR EASY ACCESS: This free standing network rack is 12U in height with ample mounting space, and is ideal for environments where frequent front & rear access to equipment is required Bullet 3 TECH SPECS: 12U Open Frame Rack - 19" Wide - 2 Post - EIA/ECA-310-E Compliant - U Heights Marked - 110lb (50 kg) Capacity - M6 Cage nuts & screws incl. Bullet 4 EASY TO SHIP & SET UP: Quick and easy assembly combined w/6.8lb (3.1 kg) shipping weight makes the AV/studio switch depth rack ideal for remote sites - ships w/cage nuts & screws for mounting equipment Bullet 5 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this 2-Post 12U Desktop Open-Frame Rack is backed for life, including free lifetime 24/5 multi-lingual technical assistance Bullets (Consolidated) Mount smaller rack mountable devices right at your desk with this lightweight 12U 2 post desktop rack - 12U Desktop Rack/2 Post Desktop Server Rack/Desk Top Rack/Equipment Rack/Telecom Rack - Supports a maximum weight capacity of up to 110 lbs (50 kg) - Includes rack screws and cage nuts for mounting devices - Rack mount small A/V equipment, KVM switches and network devices in a satellite office, boardroom or repair center Marketing Copy Marketing Copy (No HTML) Applications - Mount patch panels, network switches, and routers in small or home office networks or IT offices to provide easy access to equipment
- Mount KVMs and rack-mount computer/server systems neatly on or beside your desk
- Mount AV equipment such as broadcast/distribution devices, switches or extenders
Website Search Keyword - Open Rack
- 2 post rack
- free standing rack
- desktop rack
- AV rack
- Audio Video rack
- Equipment rack
- KVM rack
- racks
- telecom rack
- telecommunications rack
- telco
Required Regulatory Compliance Marks - CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Accessory Products - CABSCREWS
- CABCAGENUTS
- CABLMANAGER2
- CABCAGENT62B
- CABCAGENTS62
- CABCAGENUT2B
- CABCAGENUT6B
- CABCAGENUTS2
- CABCAGENUTS6
- CABCAGENUTSB
- CABSCREWM5
- CABSCREWM52
- CABSCREWM52B
- CABSCREWM5B
- CABSCREWM6
- CABSCREWM62
- CABSCREWM62B
- CABSCREWM6B
- CABSCREWSB
- CABSCREWSM5
- CABSCREWSM5B
- CABSCREWSM6
- CABSCREWSM6B
- CABSCRWSM62B
- CABSHELF
- CABSHELF1U
- CABSHELF22
- CABSHELF22V
- CABSHELFHD
- CABSHELFV
- ADJDINKIT
- CMBRUSH1U
- CMDUCT1UX
- CMVELC1U
- C6PANEL24
- PANEL4524
- PANELHU24
- PANEL4548
- C6PANL4524
Related Products - CAB1019WALL
- 4POSTRACK25
- RK2236BKF
- 2POSTRACK
- RK1219WALL
- RK1219WALH

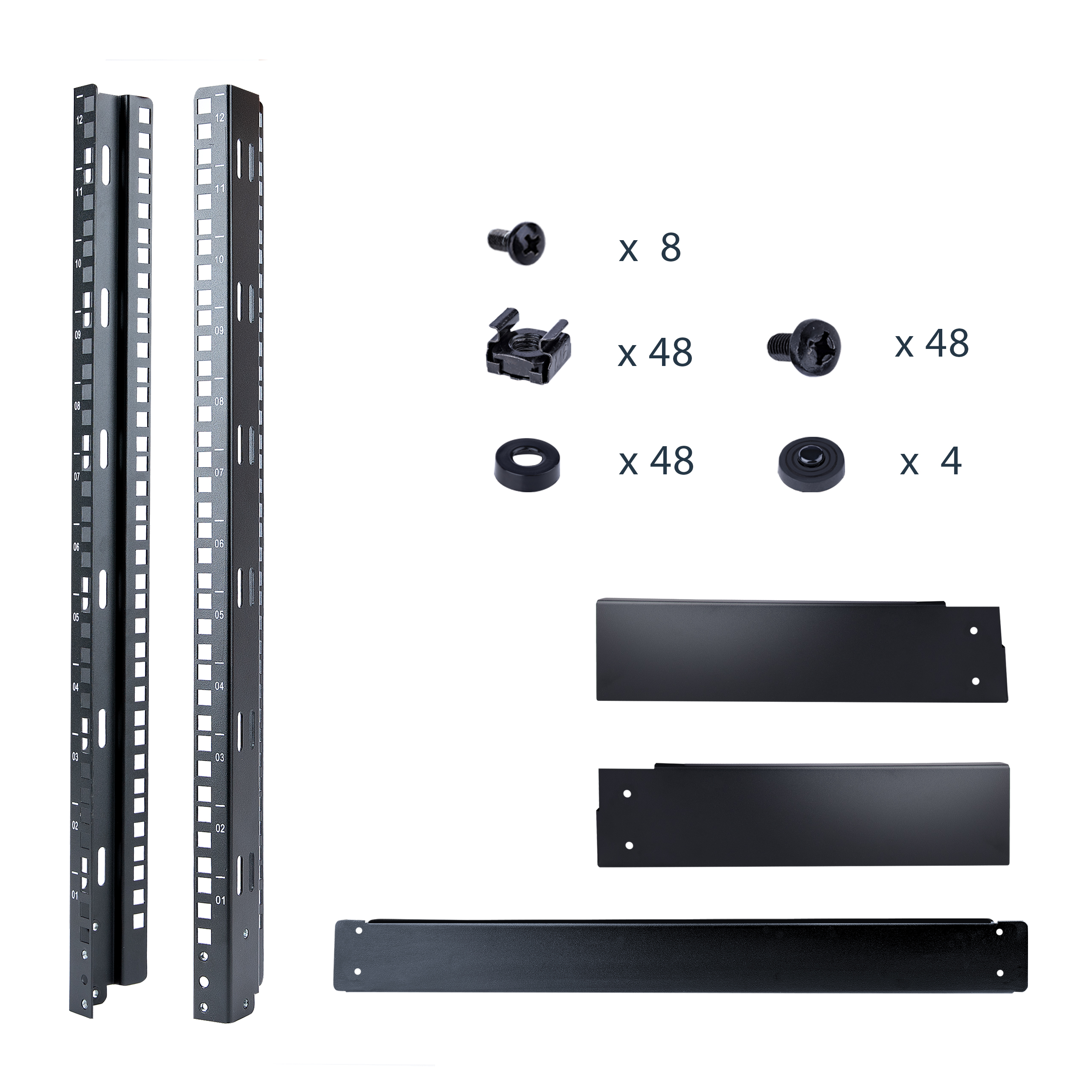

Color Black Construction Material Steel Depth Capacity (Filter) Open Depth Maximum Mounting Depth (mm) 290.0 Primary Material Steel Product Length (mm) 295.720 Product Width (mm) 503.300 Product Height (mm) 584.690 Product Weight (g) 0.000 TAA Compliant No Weight Capacity for Racks with No Casters (g) 50000 Frame Type Open Frame Industry Standards EIA/ECA-310-E Mounting Hole Types Square (For Cage Nut) Mounting Rail Profile G-Shape Rack Special Features Easy Assembly Rack Type 2-Post U Height 12U Wallmountable No Carton Depth (mm) 670 Carton Height (mm) 350 Carton Quantity 9 Carton Weight Gross (g) 25200 Included in Package - 1 - Left Base Bracket
- 1 - Right Base Bracket
- 1 - Left Vertical Rail
- 1 - Right Vertical Rail
- 1 - Front Base Bracket

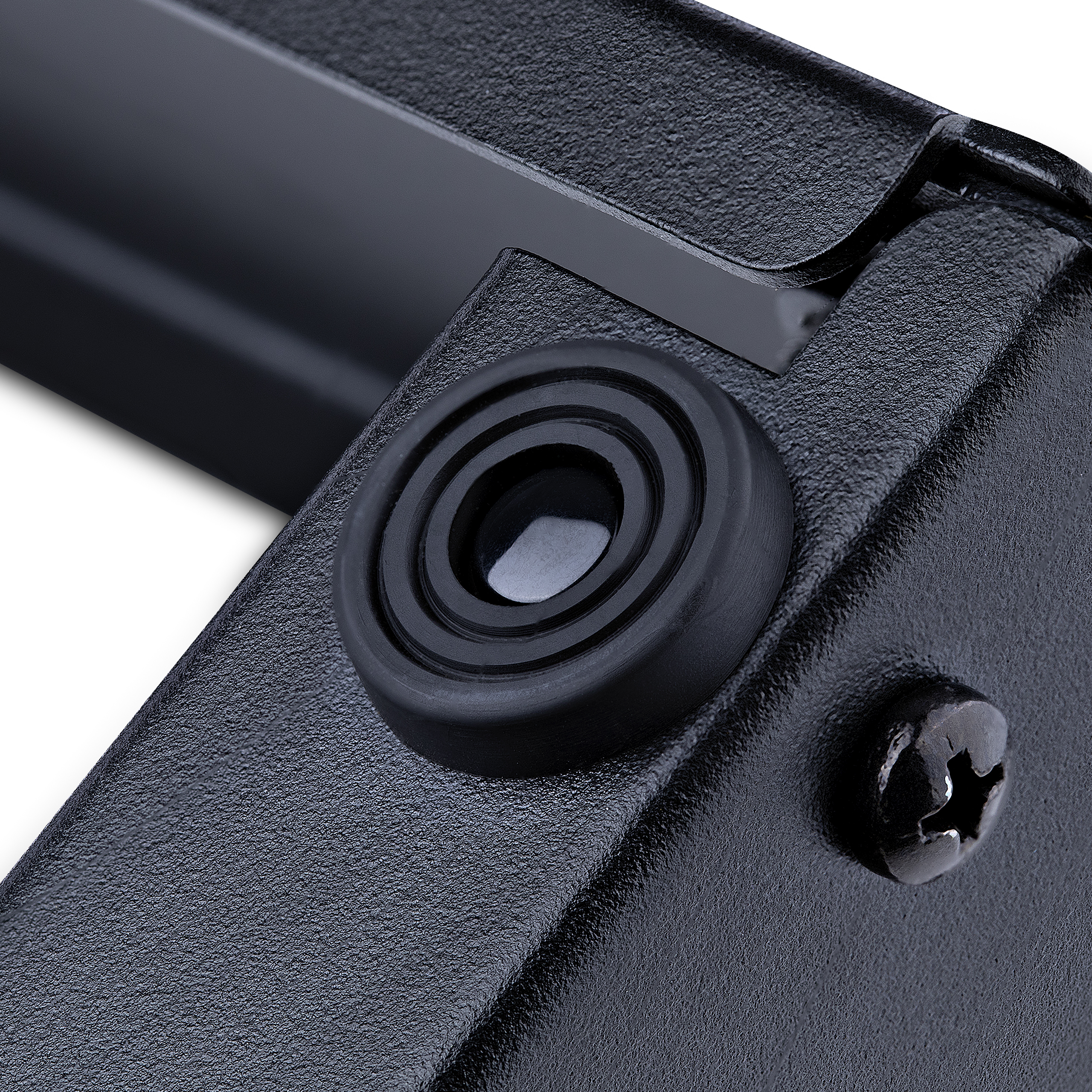

- 4 - Rubber Feet
- 8 - M5x12 Assembly Screws
- 48 - M6x12 Screws
- 48 - M6 Cage Nuts
- 48 - M6 Plastic Washers
- 1 - Quick-Start Guide
Package Depth (mm) 650 Package Height (mm) 100 Package Width (mm) 100 Package Quantity 1 Package Weight (g) 2800 Packaging Description 12U 19in Open Frame 2-Post Desktop Rack Packaging Description India 12U 19in Open Frame 2-Post Desktop Rack Rack Flatpack Yes Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 A+ Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kathleen Marshall Application Photos Required Artwork Due Date 2022-07-14 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2022-11-28 Enhanced Gallery Not Required Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AU,HK,IN,JP Product Development Specialist Brian Ha Product Information Creation Specialist (PICS) Alex Garcia Product Manager Bhuvan Uppal Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2022-03-30 Target Production Release 2022-08-30 Tech Lead Stefan Tirolese Technical Writer Alex Garcia Technology Lifecycle None Vending Machine Not Compatible with Vending Machine Video Required
