RK12WALHM

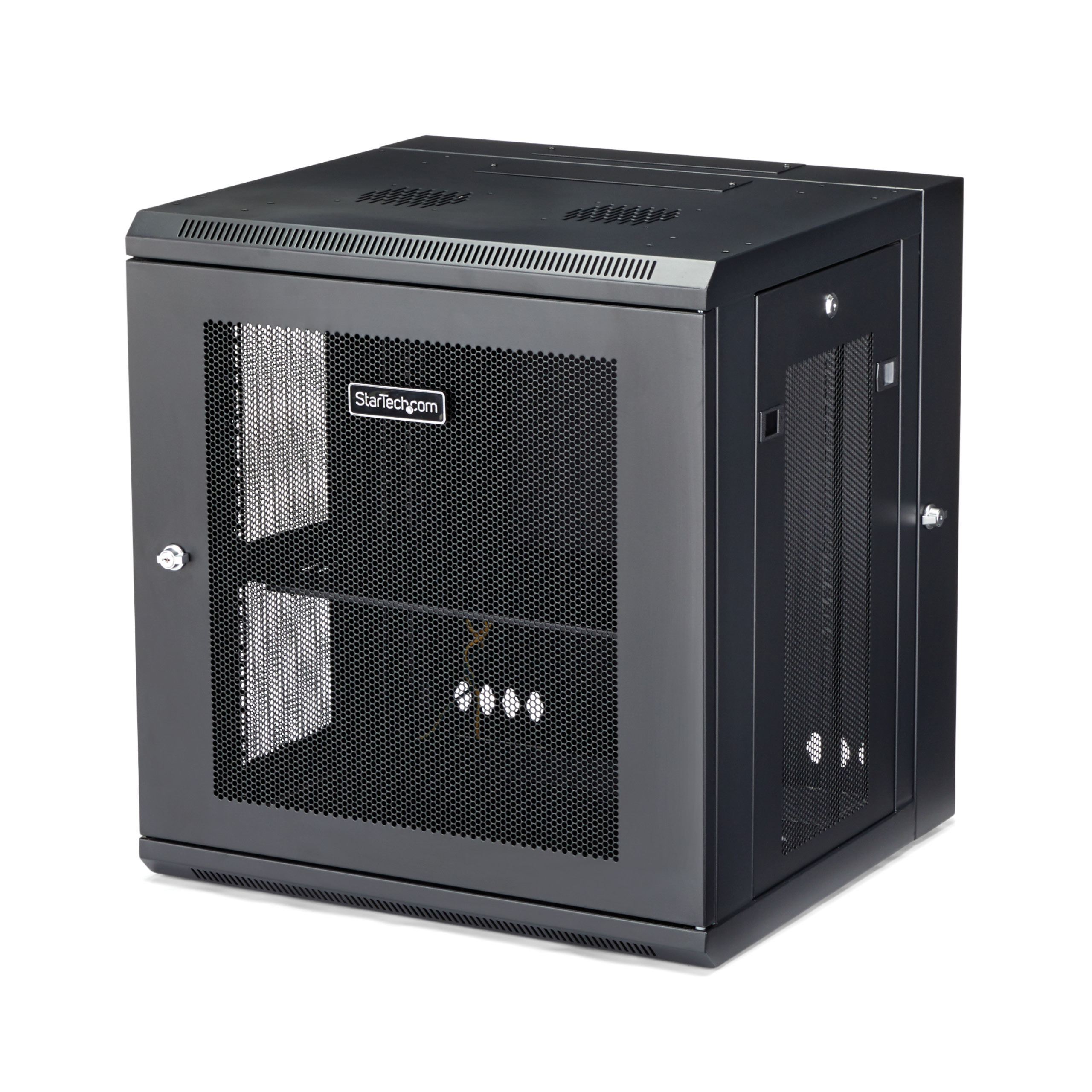

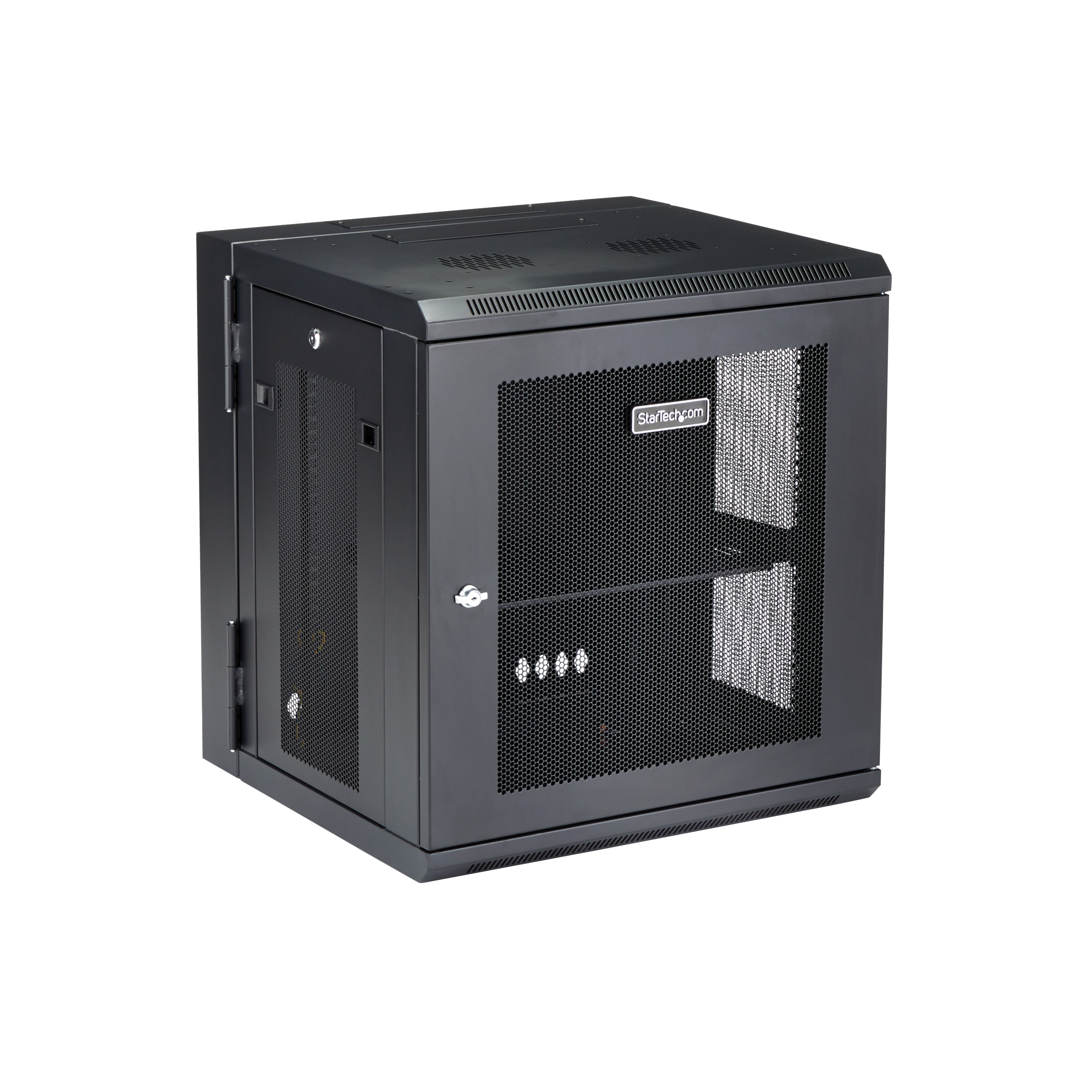

Wall Mount Server Rack Enclosure with Hinge - 12U
Securely mount your servers, network and telecom equipment to the wall, with this ventilated, lockable enclosure
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Video Link YouTube
Video Link YouTube
Product Name Wall Mount Server Rack Enclosure with Hinge - 12U Product Number RK12WALHM UPC 065030867405 Lifecycle status Active Warranty 5 Years Taxonomy Product > Mechanical Products > Rack Enclosures Category Level 1 Racks and Enclosures Category Level 2 Wall-Mount Racks and Enclosures Category Level 3 Wall-Mount Enclosures Family 16" Deep Hinged Wall Mount Network Cabinet - Vented Door Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX095X Product Title (Ultra-Short) 12U Rack Product Title (Short) 12U Wall Mount Network Cabinet 16in Deep Product Title (Medium) 12U Wall-Mount Server Rack Cabinet - Hinged Enclosure - Up to 16 in. Deep Product Title (Standard) 4-Post 12U Wall Mount Network Cabinet, 19" Hinged Wall-Mounted Server Rack for IT Equipment, Flexible Lockable Rack Enclosure Product Title (Long) 4-Post 12U Wall Mount Network Cabinet with 1U Shelf, 19" Hinged Wall-Mounted Server Rack for Data / AV / Electronics / Computer Equipment, Flexible Vented Rack Enclosure Product Title (AMZ) 4-Post 12U Wall Mount Network Cabinet with 1U Shelf, 19in Wall-Mounted Server Rack Kit, Up to 16in Mounting Depth, Ships Fully Assembled Title Ingram (Part 1) 12U Server Rack Enclosure with Title Ingram (Part 2) Hinge - Wall Mount Network Rack Website Product Headline Securely mount your servers, network and telecom equipment to the wall, with this ventilated, lockable enclosure Bullet 1 4-POST 12U RACK CABINET: Wall-Mount Server Rack w/ adjustable mounting depth 2.4" to 16" (6,0cm to 40,6cm) is ideal for installing network switches, patch panels and other rackmount equipment in your warehouse, home / office, store location or server room Bullet 2 FULLY ASSEMBLED: Swinging network cabinet ships fully assembled with all of the rack screws and cage nuts required to mount your equipment; Includes a shelf and a roll of hook-and-loop fastener; Wall-mount equipment cabinet is EIA/ECA-310-E Compliant Bullet 3 DESIGNED FOR COOLING: Vented IT rack enclosure features mesh front doors and side panels for passive airflow and supports active cooling with up to four optional 120mm fans (e.g., ACFANKIT12 – available in US/CA only) Bullet 4 BUILT TO LAST: The 12U wall-mounted network cabinet offers a 4 post design for additional support of your equipment; Constructed of high-quality SPCC cold-rolled steel for strength and durability with a maximum weight capacity of 198lb (90kg) Bullet 5 EASY ACCESS: Wall-mount data rack features a 180° hinged, enclosed and lockable rack design with easy access to the rear of the mounted devices; Flexible locking server cabinet with reversible and removable front door and removable side panels Bullets (Compact) Wall-Mount Server Rack for rackmount equipment - Flexible data rack features a hinged design w/easy access to the devices - 4 Post 12U wall-mounted network cabinet - Ships fully assembled and includes a shelf and accessories - EIA/ECA-310-E Compliant Bullets (Consolidated) - Wall-Mount Server Rack w/adjustable mounting depth for switches, patch panels and other rackmount devices in your home/office - Flexible data rack features a hinged, enclosed and lockable design with easy access to the devices - 12U wall-mounted network cabinet offers a 4 post design for additional support of your IT equipment - Ships fully assembled; Includes a shelf, screws / cage nuts and a roll of hook-and-loop fastener - Made of high-quality SPCC cold-rolled steel; EIA/ECA-310-E Compliant Marketing Copy Marketing Copy (No HTML) Applications - Wall-mount your server and networking equipment flush against the wall, in areas with limited space, such as technology store fronts or repair centers
- Install the rack in your small office environment, where you can't fit a full-sized rack

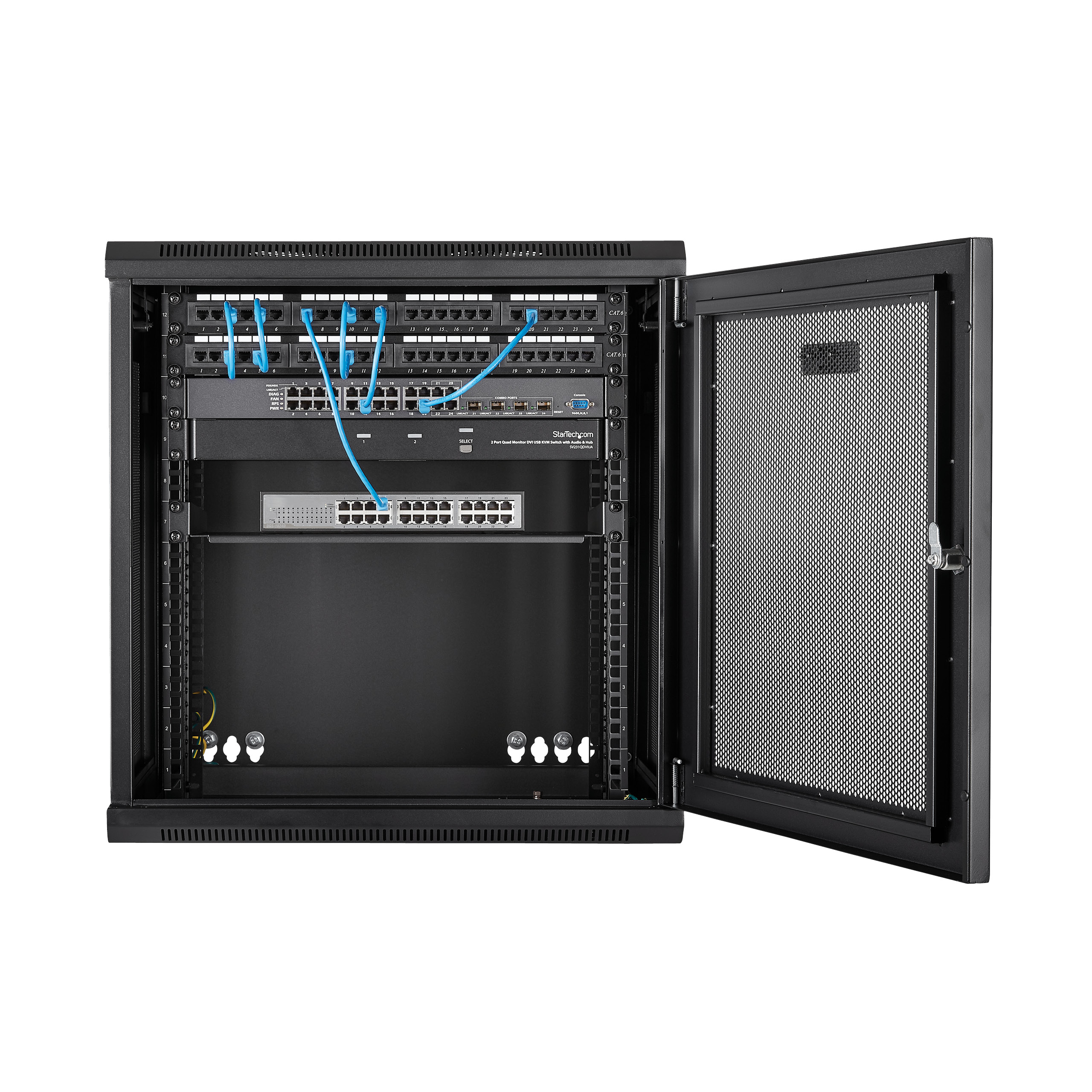

- Organize cabling or equipment in your network closet, wiring closet, back office or IDF
Website Search Keyword - SRW12U
- SRW12US
Required Regulatory Compliance Marks - Temp - N/A - Global - Used to replace duplicates or identify for removal
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - Furniture and Non-EEE

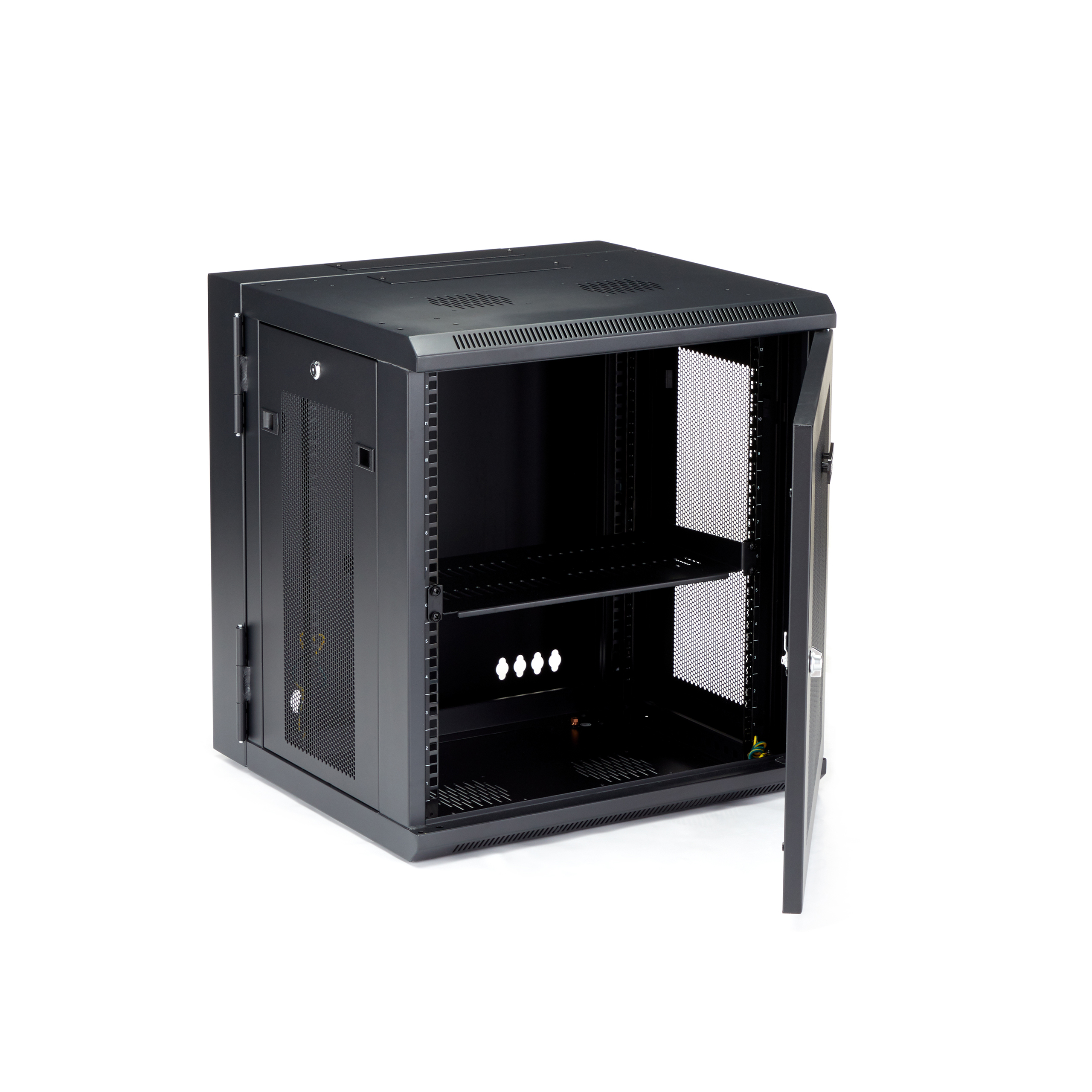

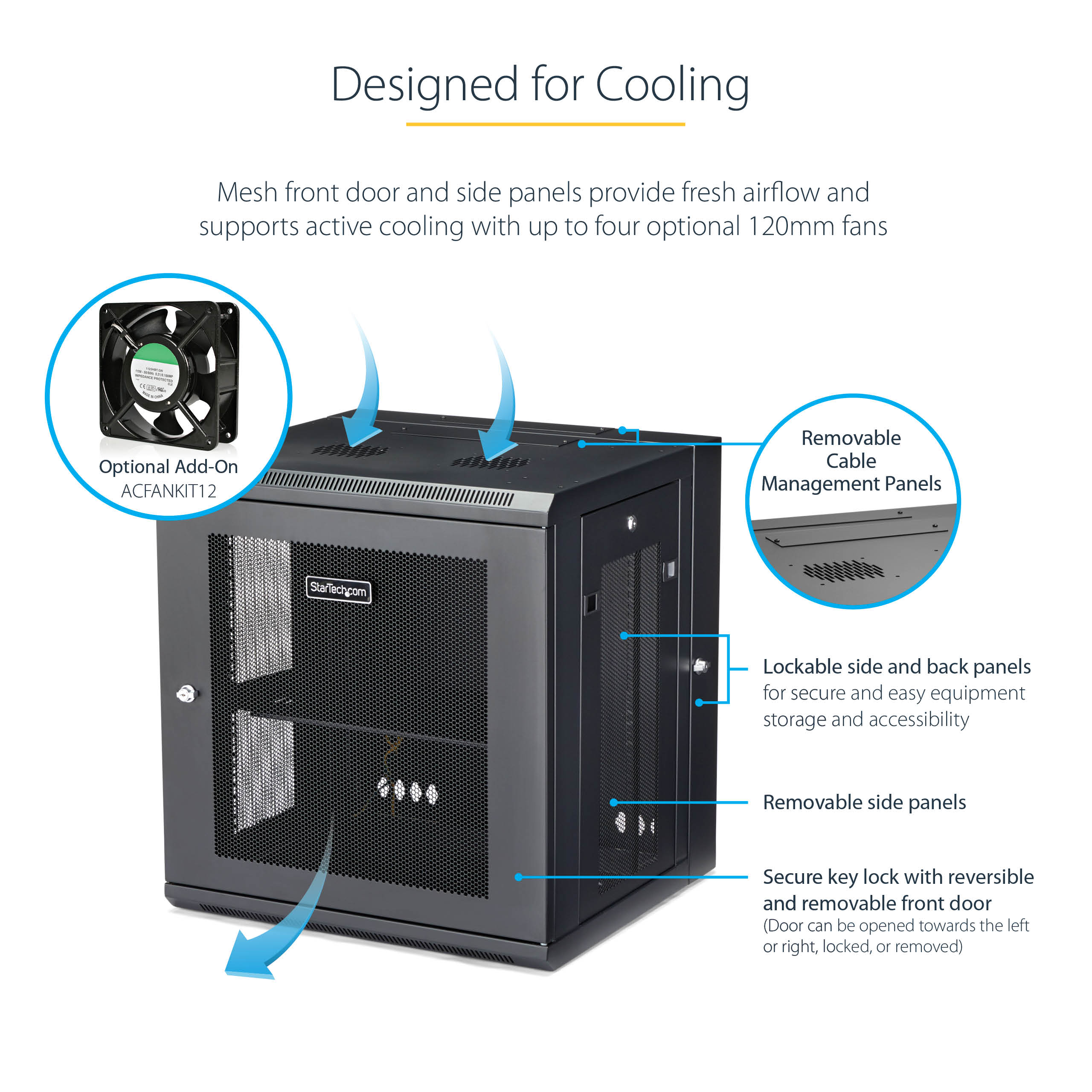

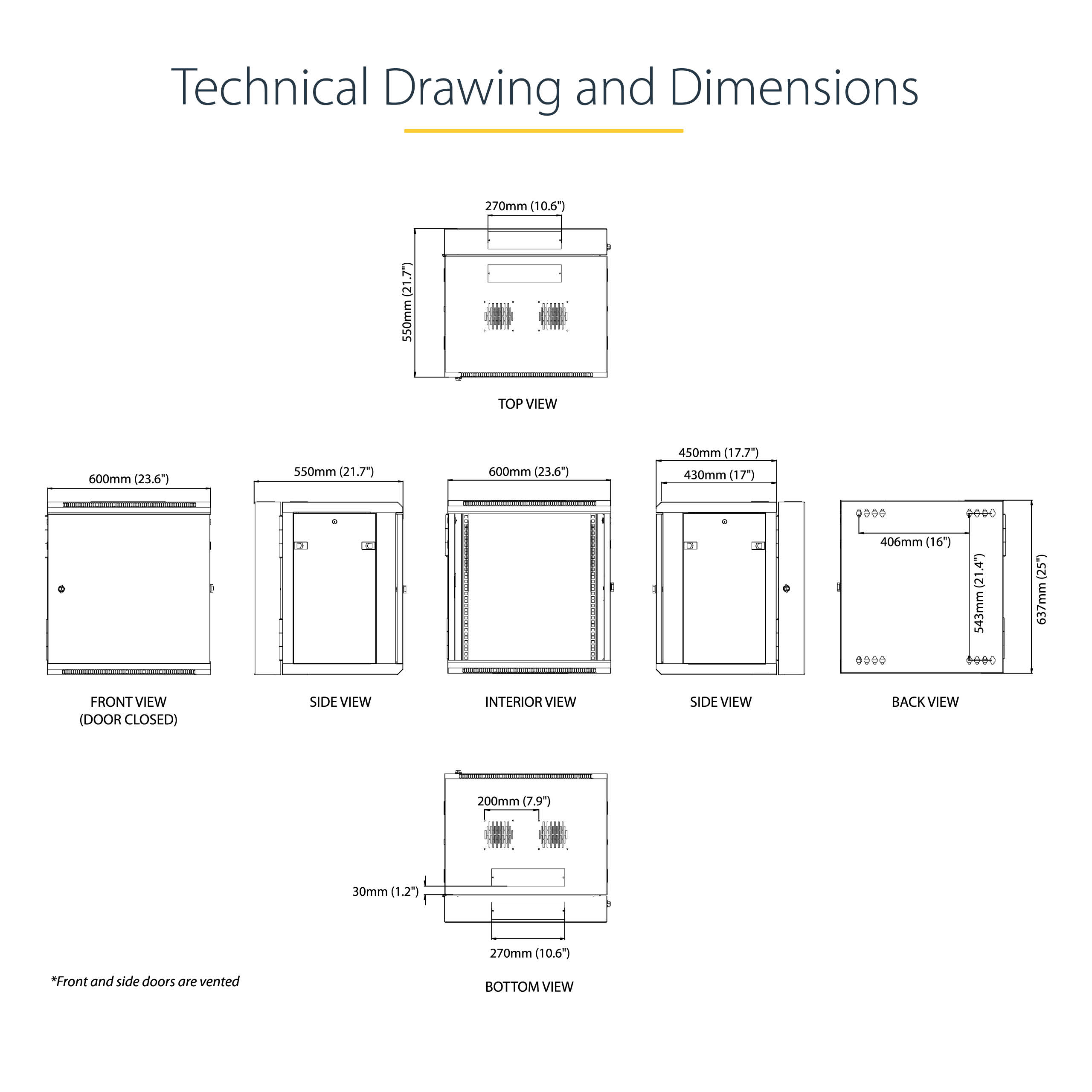

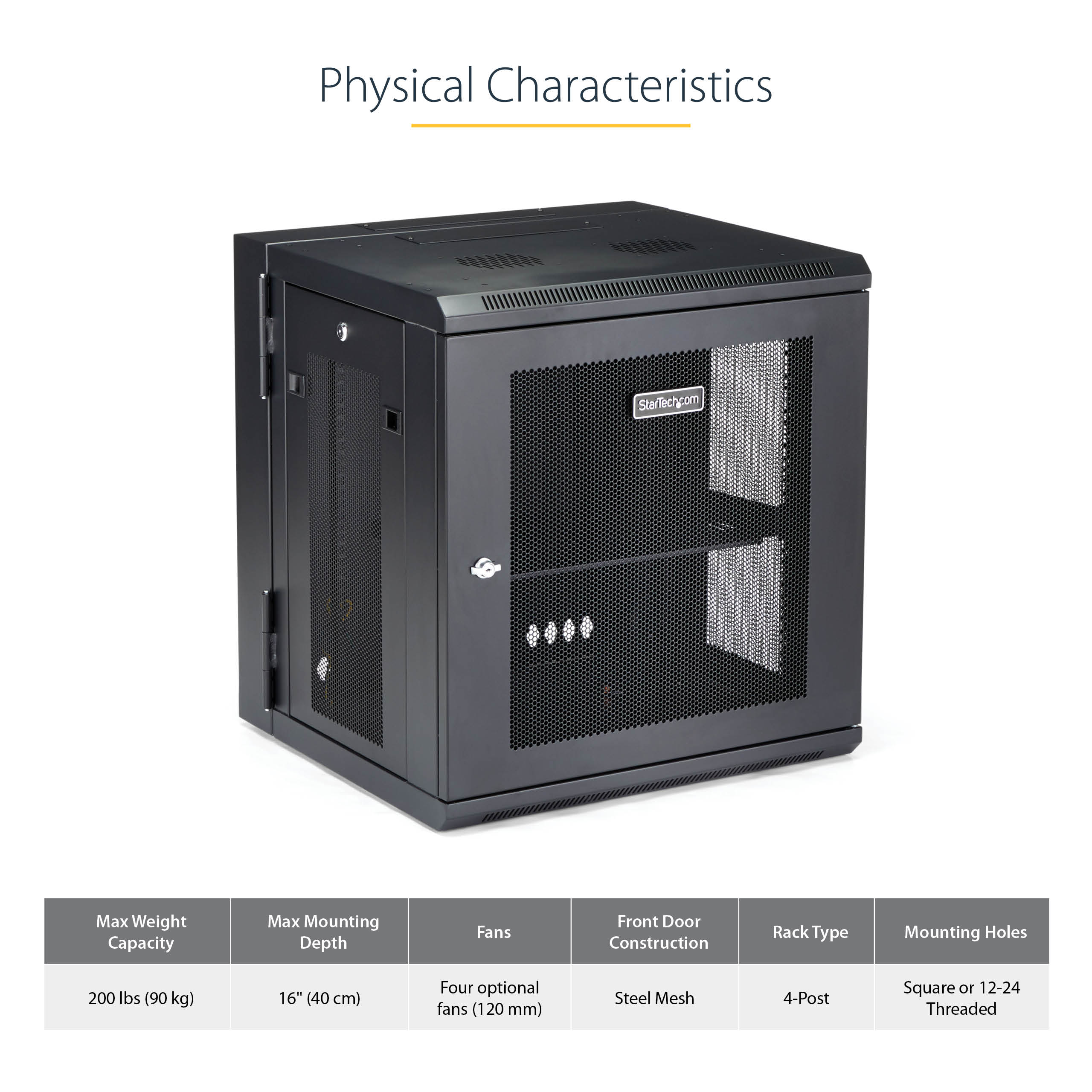

Special Notes Includes CABSHELFV1U and 2 pairs of keys Back Door Features Secure Key Lock Color Black Depth Capacity (Filter) 12.1 - 24 in. (306 - 609mm) Front Door Features Secure Key Lock with Reversible and Removable Front Door Internal Depth (mm) 545 Internal Width (mm) 595 Material Steel Maximum Mounting Depth (mm) 406 Minimum Mounting Depth (mm) 60 Primary Material Steel Product Length (mm) 550.000 Product Width (mm) 600.000 Product Height (mm) 637.000 Product Weight (g) 28900.000 Side Panel Construction Steel Mesh TAA Compliant No Rack Weight Capacity Range 175 - 200 lbs. (79 - 90 kg.) Weight Capacity for Racks with No Casters (g) 90000 Back Door Construction Steel Fan Options Four Optional Fans: 120 mm Frame Type Enclosed Cabinet Front Door Construction Steel Mesh Industry Standards EIA/ECA-310-E Mounting Hole Types - Square (For Cage Nut)
- Threaded Hole
Mounting Rail Profile L-Shape Rack Special Features - Adjustable Mounting Rails
- Built-in Cable Management
- Grounding Lug(s)
- U-Markings

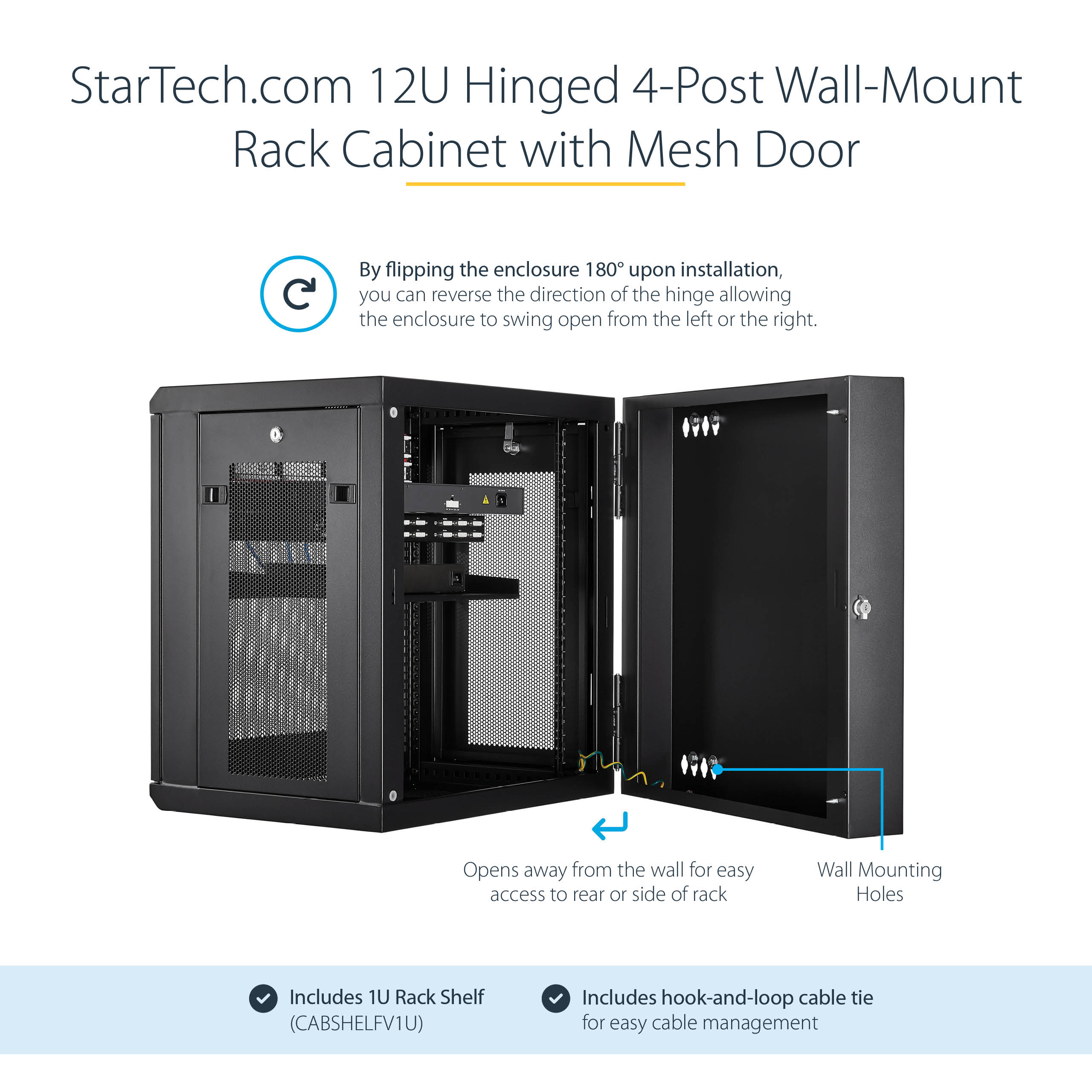

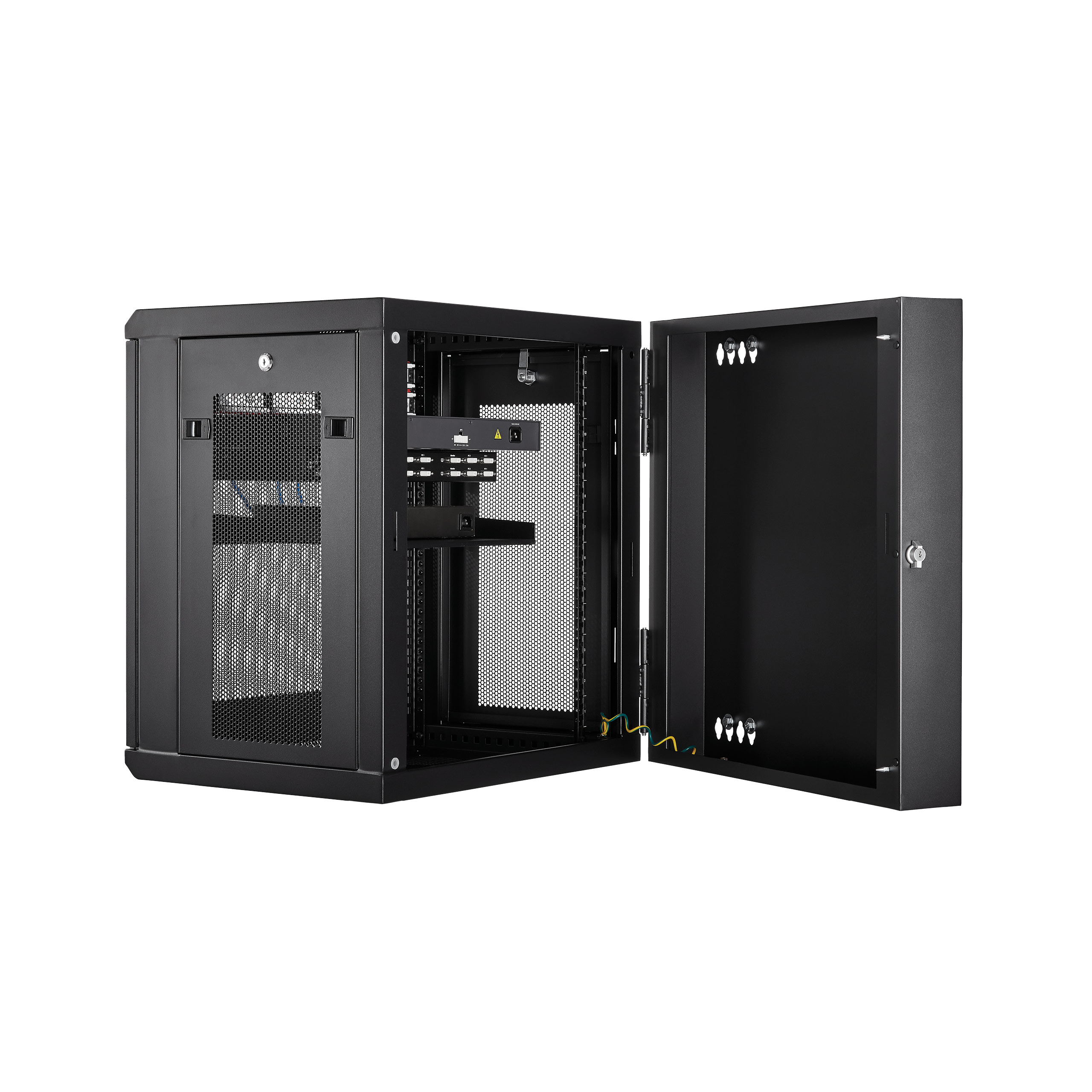

- Wall-Mountable with Rear Access Hinges
- Ships Fully Assembled

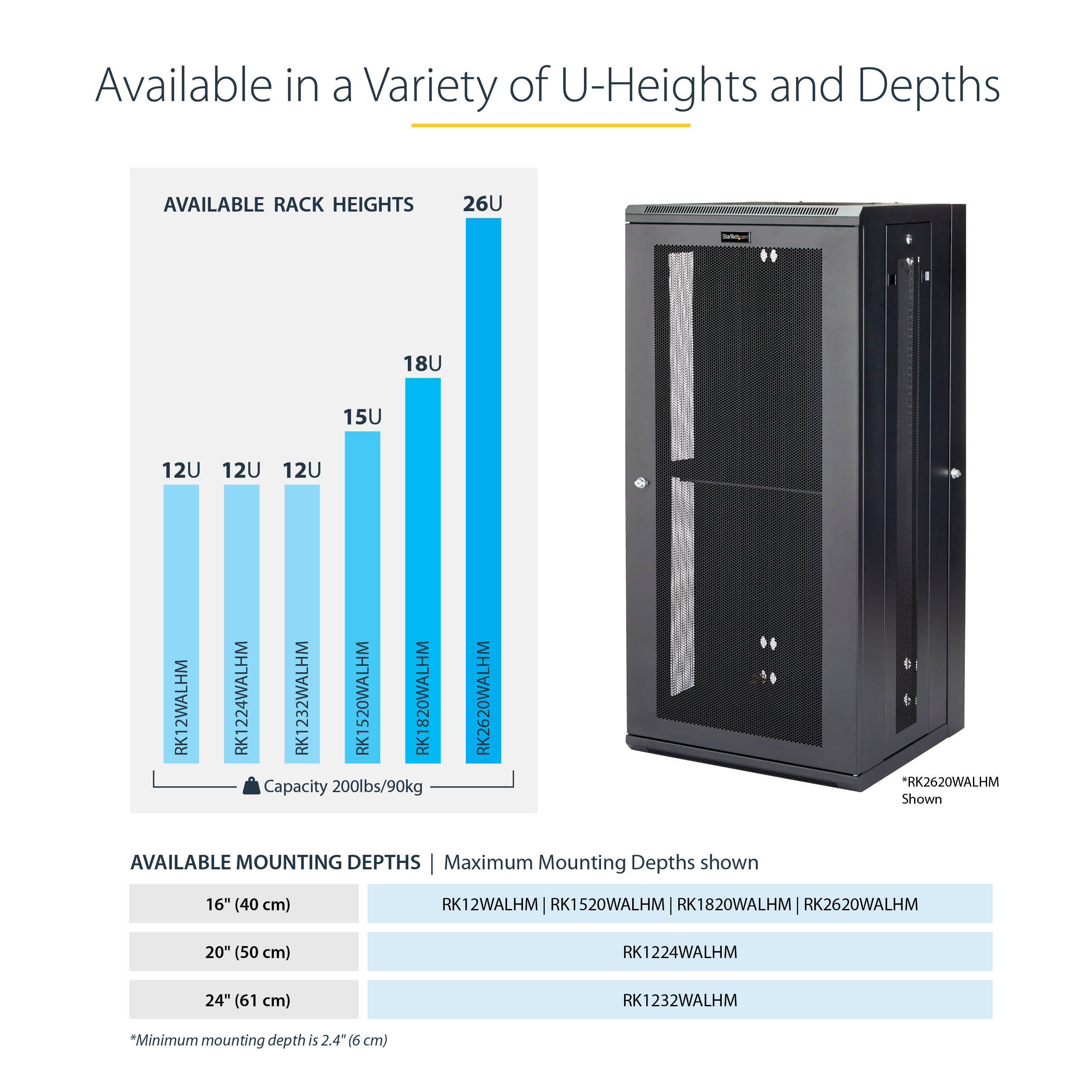

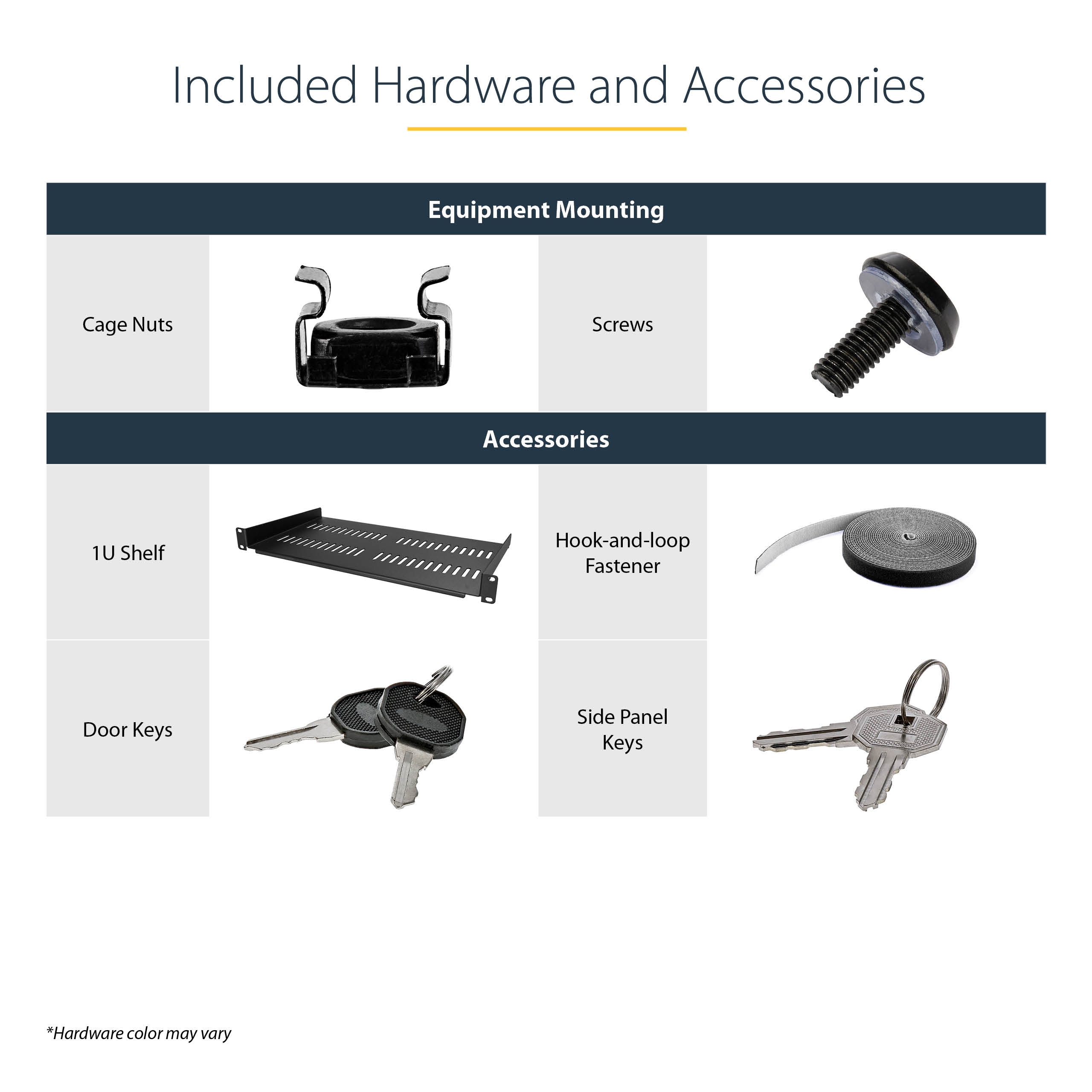

Rack Type 4-Post Rack U Height Ranges 12-26U Side Panel Construction Steel Mesh Side Panel Features Secure Key Lock with Removable Side Panels U Height 12U Wallmountable Yes Carton Depth (mm) 675 Carton Height (mm) 720 Carton Weight Gross (g) 32660 Included in Package - 1 - wall-mount enclosure
- 1 - 1U shelf
- 1 - roll of hook-and-loop fastener
- 50 - 12-24 cage nuts
- 50 - 12-24 screws
- 2 - door keys
- 2 - side panel keys
- 1 - instruction manual
Included In Package for Label - 1 - Enclosure
- 1 - 1U Shelf
- 1 - Roll Of Hook-And-Loop Fastener
- 2 - Door Keys
- 1 - Hardware Kit
- 1 - Instruction Manual
- 2 - Side Panel Keys
Package Depth (mm) 629 Package Height (mm) 734 Package Width (mm) 684 Package Quantity 1 Package Weight (g) 33000 Packaging Description 12U Wall-Mount Server Rack Cabinet - Up to 16 in. Deep - Hinged Enclosure Packaging Description India 12U Wall-Mount Server Rack Cabinet - Up to 16 in. Deep - Hinged Enclosure Rack Flatpack No Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2017-03-24 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2017-05-17 Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,NL,NZ,SE,SG,UK,US Primary Technology None Product Development Specialist Anthony Slater Product Information Creation Specialist (PICS) Alex Garcia Product Manager Bhuvan Uppal Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2017-04-21 Target Production Release 2017-04-21 Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine Video Uploaded
