RK1520WALHM

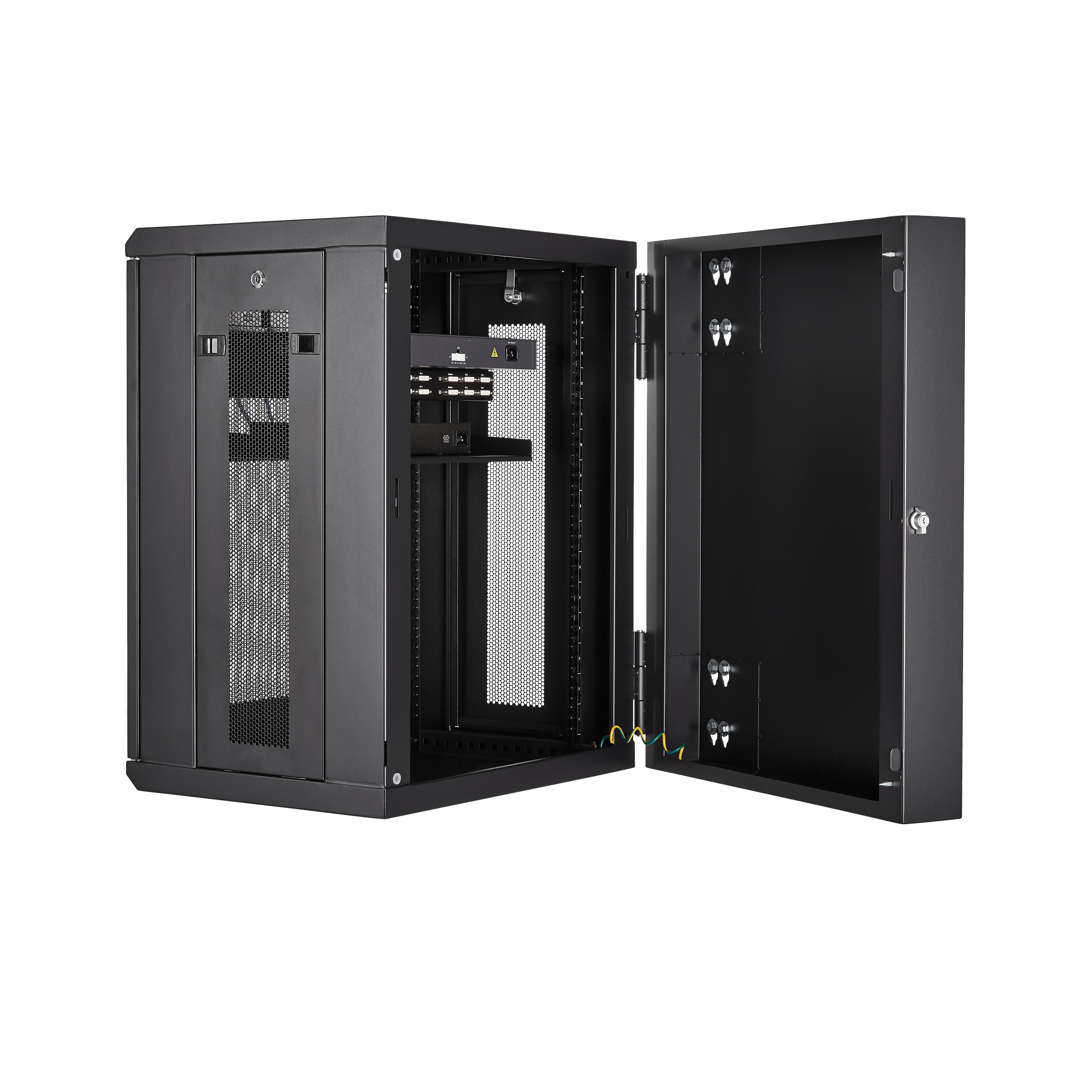

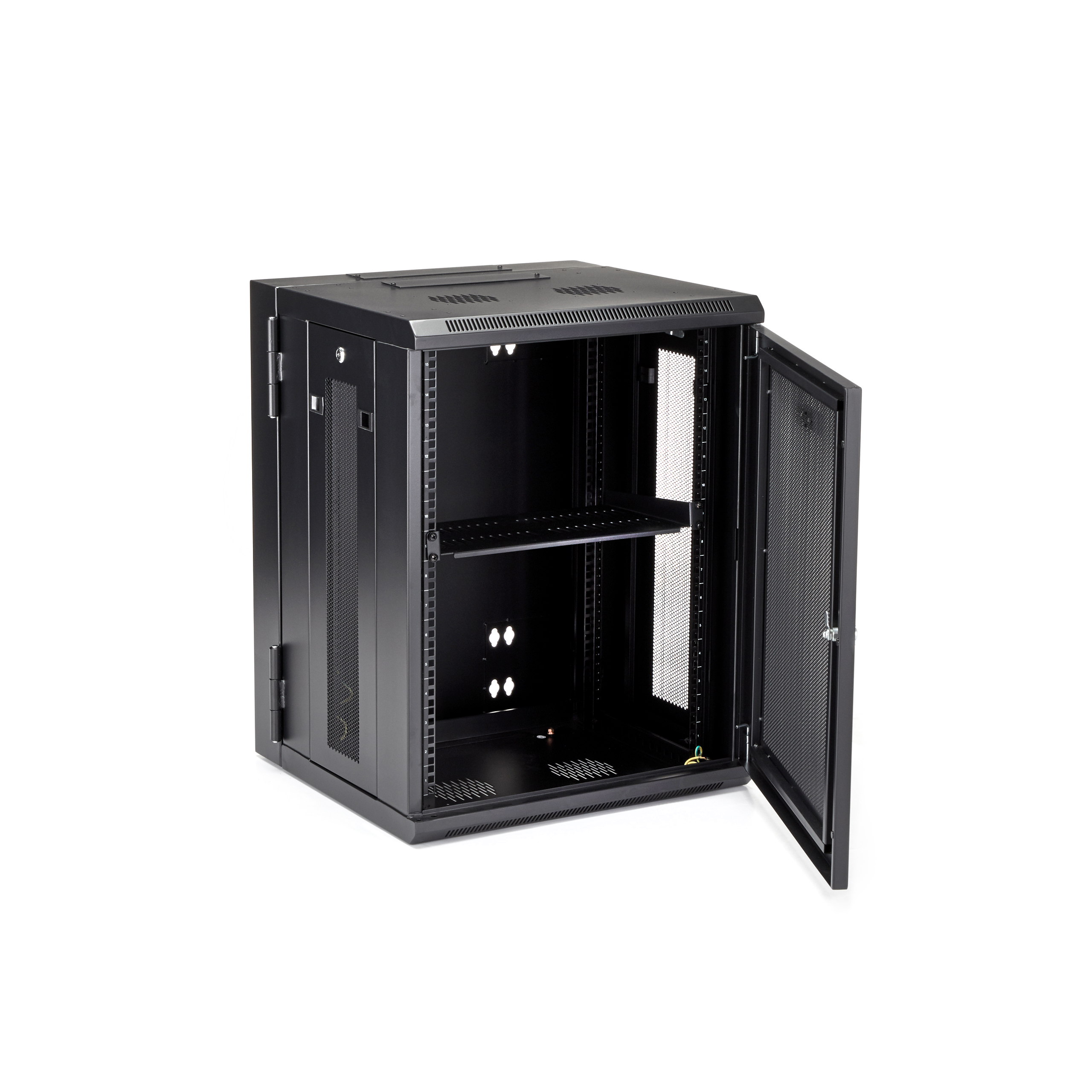

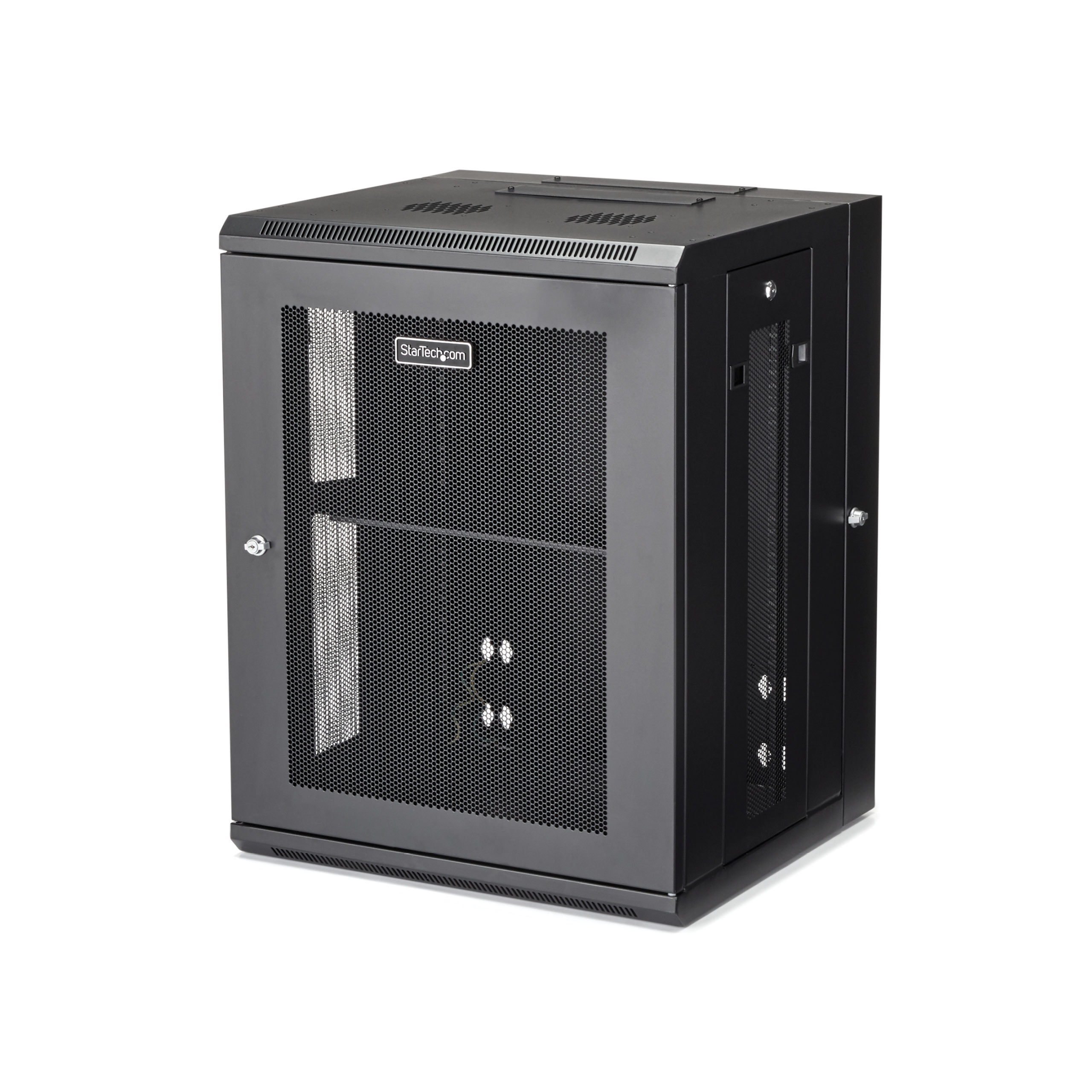

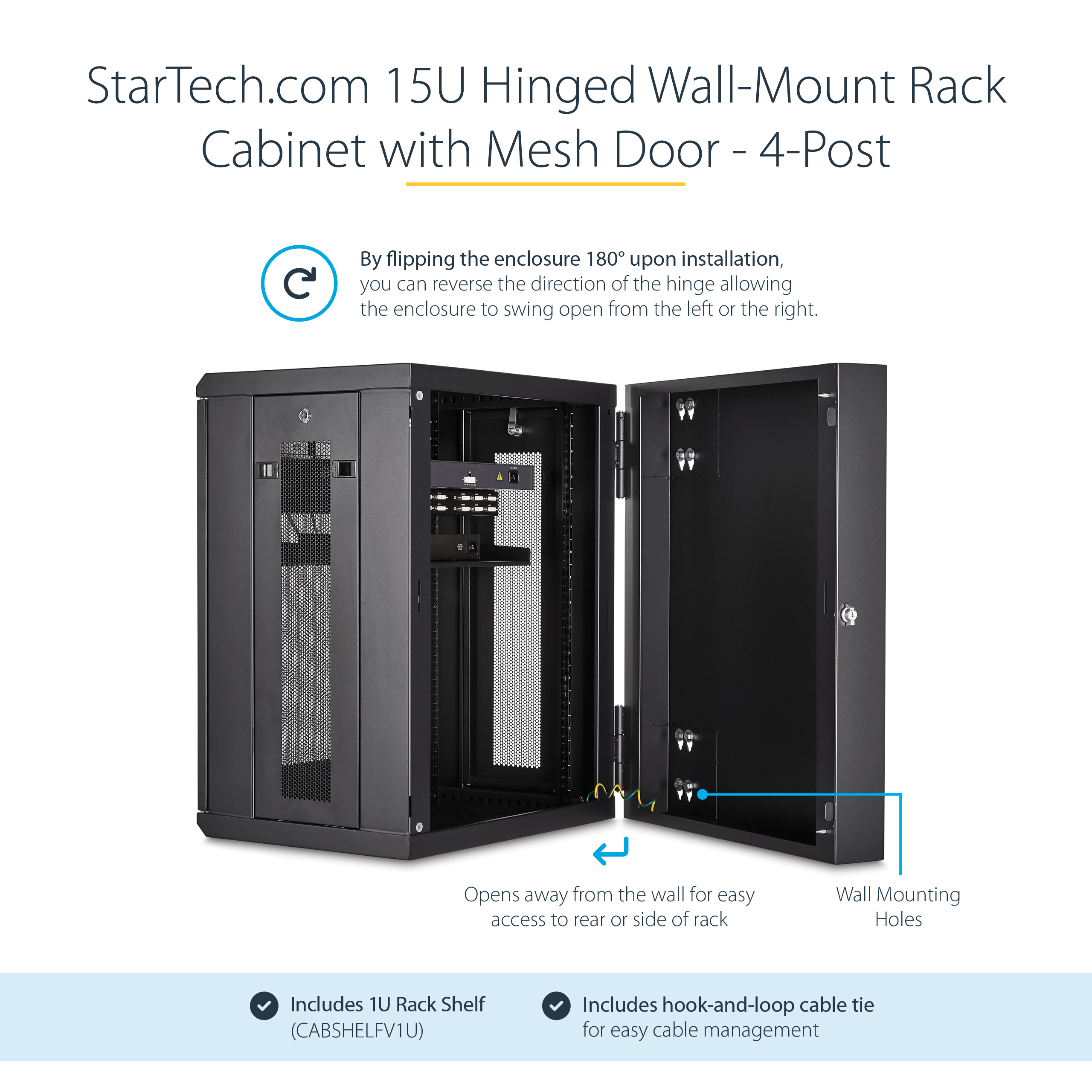

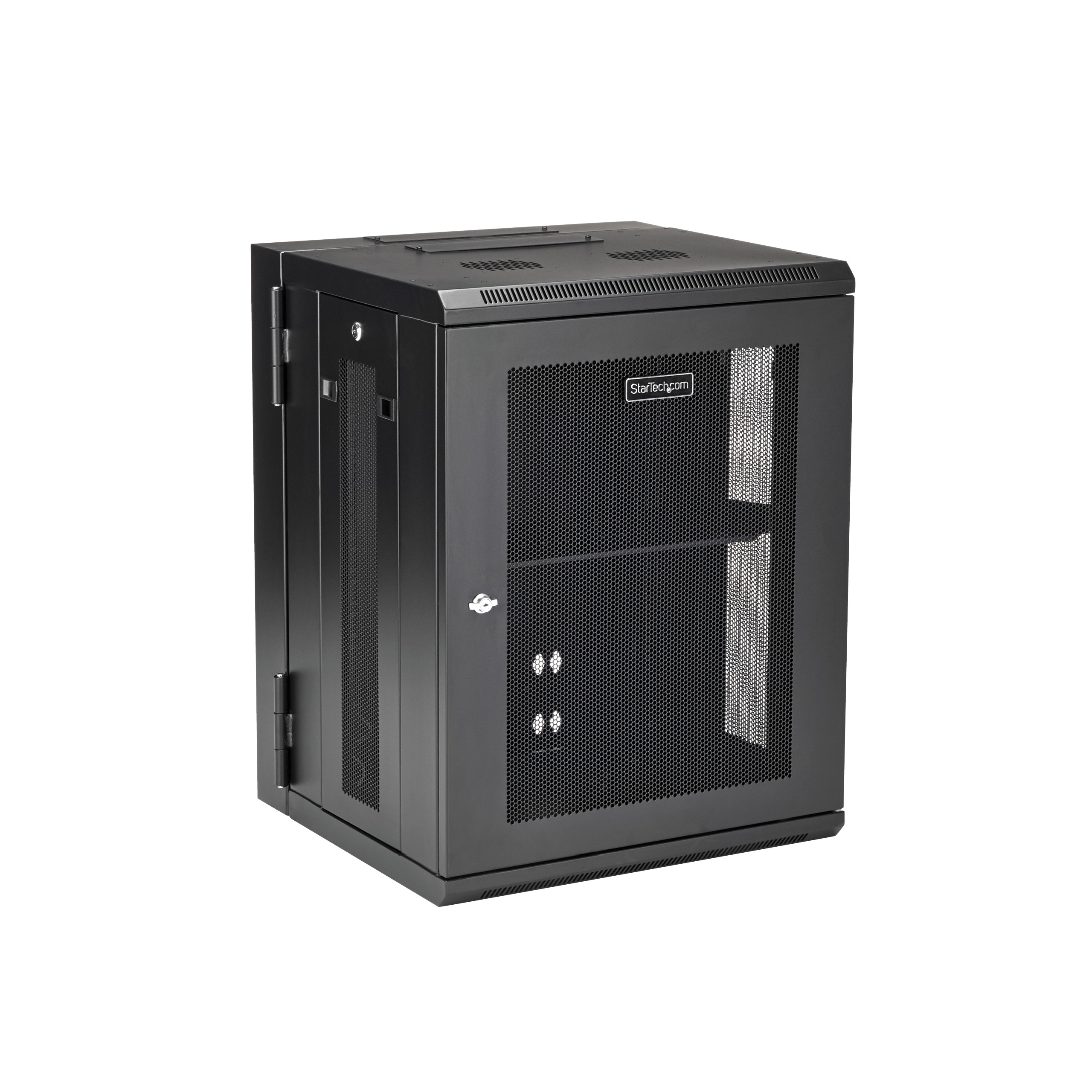

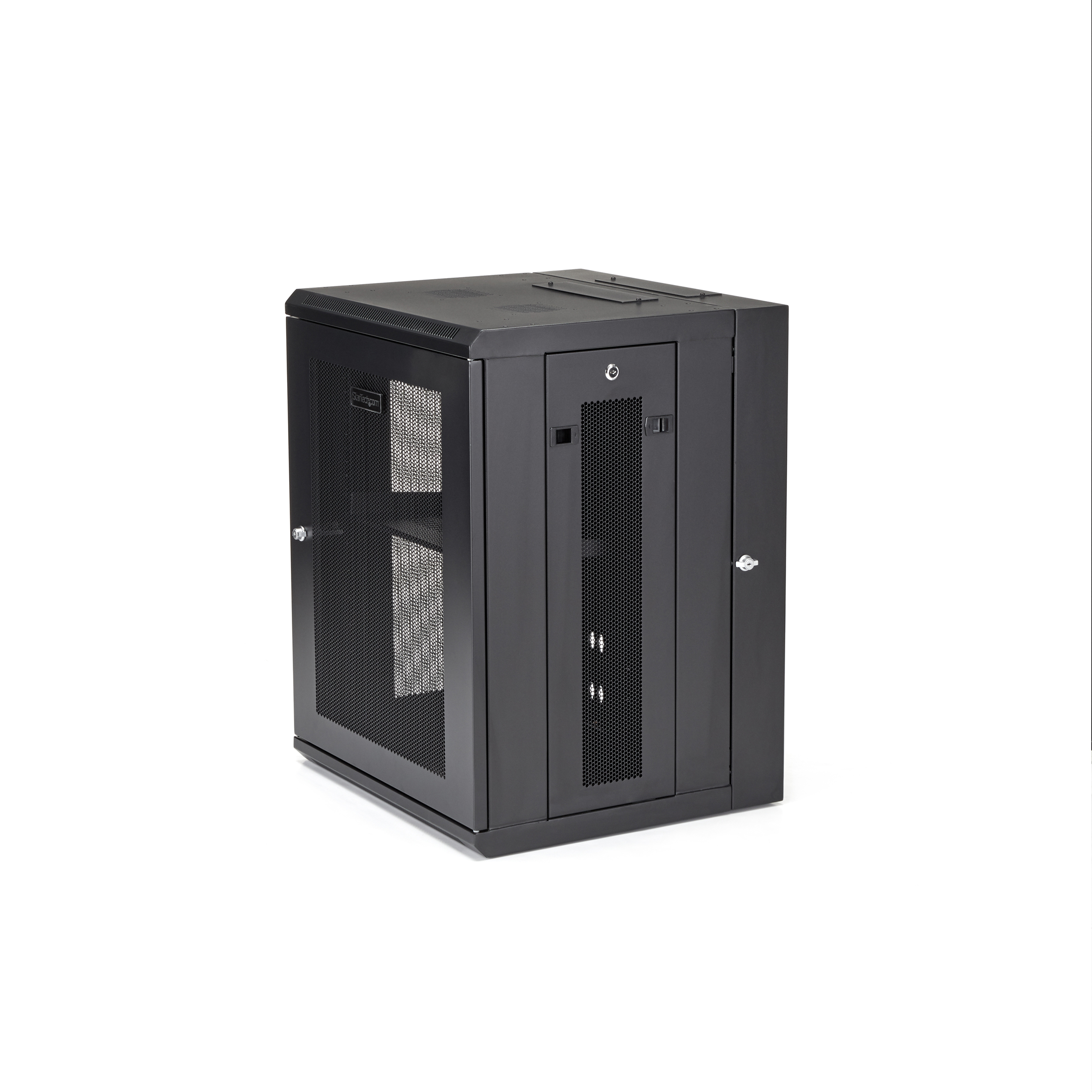

15U 20 5 inch deep hinged wallmount enclosure

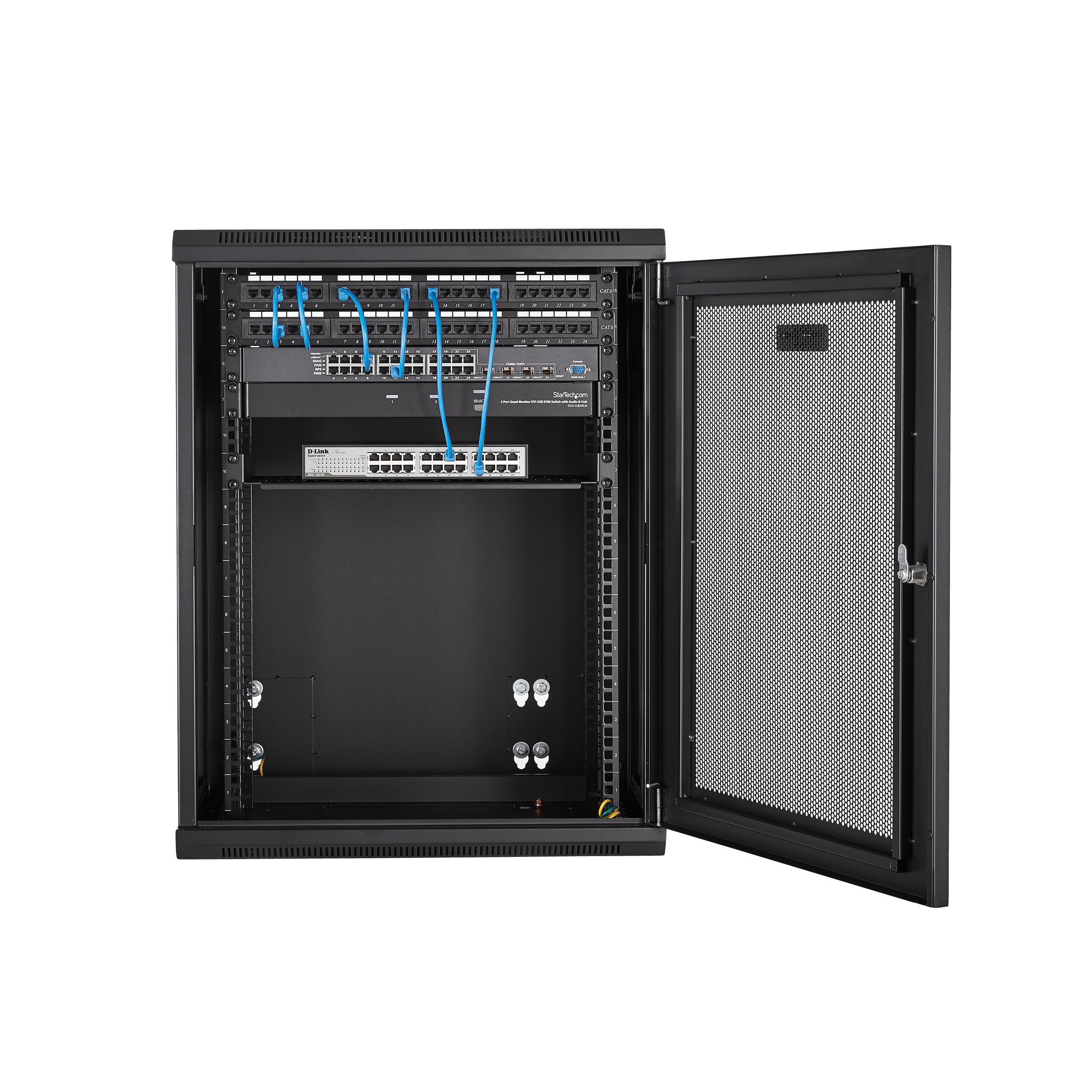

Use this wall mount network cabinet to mount your server or networking equipment to the wall with a hinged enclosure for easy access
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Video Link YouTube
Video Link YouTube
Product Name 15U 20 5 inch deep hinged wallmount enclosure Product Number RK1520WALHM UPC 065030870085 Lifecycle status Active Warranty 5 Years Taxonomy Product > Mechanical Products > Rack Enclosures Category Level 1 Racks and Enclosures Category Level 2 Wall-Mount Racks and Enclosures Category Level 3 Wall-Mount Enclosures Family 16" Deep Hinged Wall Mount Network Cabinet - Vented Door Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX095X Product Title (Ultra-Short) 15U Rack Product Title (Short) 15U Wall Mount Network Cabinet 16in Deep Product Title (Medium) 15U Wall-Mount Server or Network Rack Cabinet - Hinged Enclosure - 16in Deep Product Title (Standard) 4-Post 15U Wall Mount Network Cabinet, 19" Hinged Wall-Mounted Server Rack for Data / IT Equipment, Lockable Rack Enclosure Product Title (Long) 4-Post 15U Wall Mount Network Cabinet with 1U Shelf, 19" Hinged Wall-Mounted Server Rack for Data / AV / Electronics / Computer Equipment, Flexible Vented Rack Enclosure Product Title (AMZ) 4-Post 15U Wall Mount Network Cabinet w/ 1U Shelf, 19" Wall-Mounted Server Rack Kit for IT / Data Computer Equipment, Ships Fully Assembled Title Ingram (Part 1) 15U Server Rack Enclosure with Title Ingram (Part 2) Hinge - Wall Mount Network Rack Website Product Headline Use this wall mount network cabinet to mount your server or networking equipment to the wall with a hinged enclosure for easy access Bullet 1 4-POST 15U RACK CABINET: Wall-Mount Server Rack w/ adjustable mounting depth 2.4" to 16" (6,0cm to 40.6cm) is ideal for installing network switches, patch panels and other rackmount equipment in your warehouse, home / office, store location or server room Bullet 2 EASY ACCESS: Wall-mount data rack features a 180° hinged, enclosed and lockable rack design with easy access to the rear of the mounted devices; Flexible locking server cabinet with reversible and removable front door and removable side panels Bullet 3 BUILT TO LAST: The 15U wall-mounted network cabinet offers a 4 post design for additional support of your equipment; Constructed of high-quality SPCC cold-rolled steel for strength and durability with a maximum weight capacity of 198lb (90kg) Bullet 4 DESIGNED FOR COOLING: Vented IT rack enclosure features mesh front doors and side panels for passive airflow and supports active cooling with up to four optional 120mm fans (e.g., ACFANKIT12 – available in US/CA only) Bullet 5 FULLY ASSEMBLED: Swinging network cabinet ships fully assembled with all of the rack screws and cage nuts required to mount your equipment; Includes a shelf and a roll of hook-and-loop fastener; Wall-mount equipment cabinet is EIA/ECA-310-E Compliant Bullets (Compact) Wall-Mount Server Rack for rackmount equipment - Data rack features a hinged design with easy access to the devices - 4 Post 15U wall-mounted network cabinet - Ships fully assembled and includes a shelf and accessories - EIA/ECA-310-E Compliant Bullets (Consolidated) - Wall-Mount Server Rack with adjustable mounting depth for switches, patch panels and other rackmount devices in your home / office - Data rack features a hinged, enclosed and lockable design with easy access to the devices - 15U wall-mounted network cabinet offers a 4 post design for additional support of your IT equipment - Ships fully assembled; Includes a shelf, screws / cage nuts and a roll of hook-and-loop fastener - Made of high-quality SPCC cold-rolled steel; EIA/ECA-310-E Compliant Marketing Copy Marketing Copy (No HTML) Applications - Wall-mount your server and networking equipment flush against the wall, in areas with limited space such as technology store fronts or repair centers
- Install the rack in your small office environment, where you can't fit a full-sized rack
- Organize cabling or equipment in your network closet, wiring closet, back office or IDF
Website Search Keyword SRW15US Required Regulatory Compliance Marks - Temp - N/A - Global - Used to replace duplicates or identify for removal
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - Furniture and Non-EEE

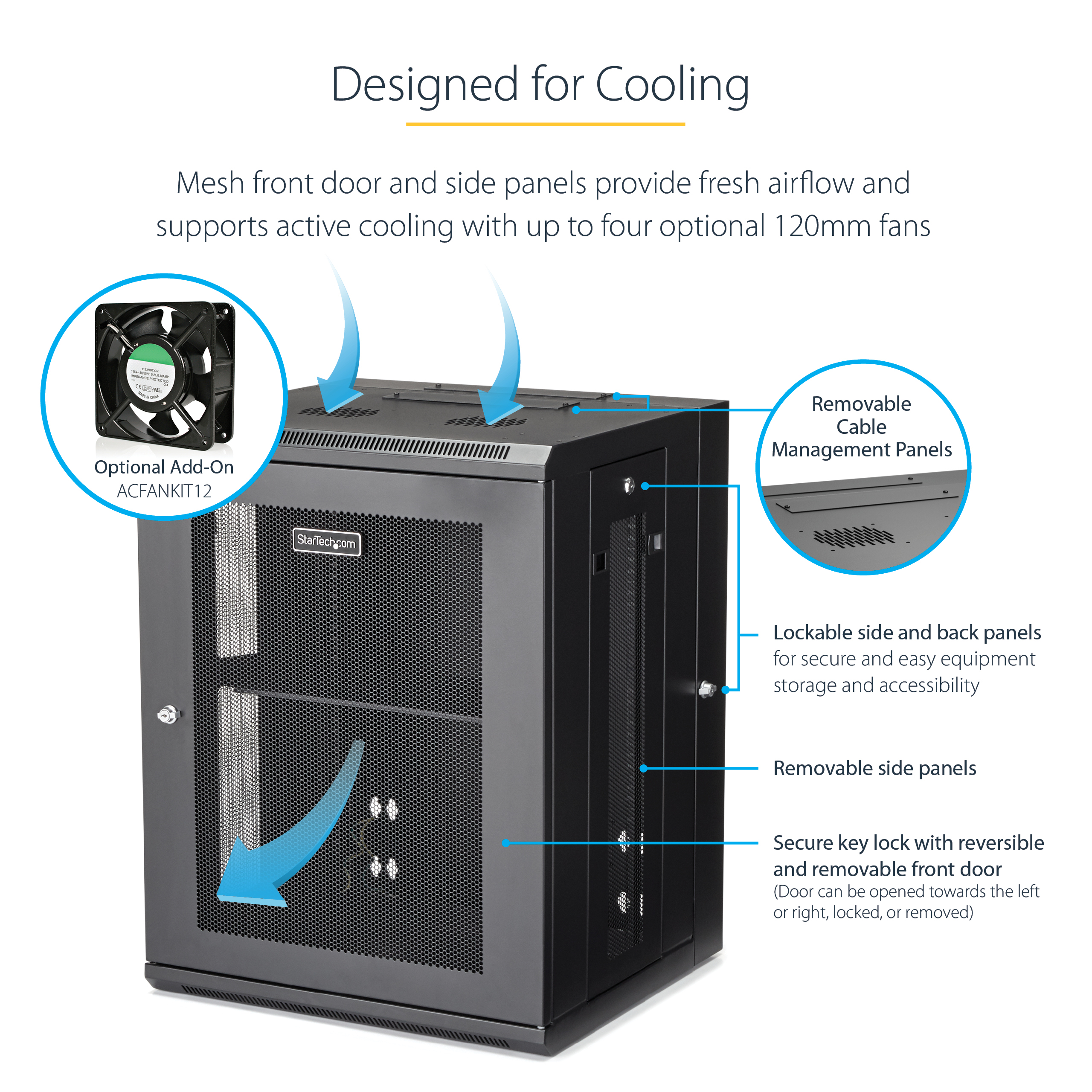

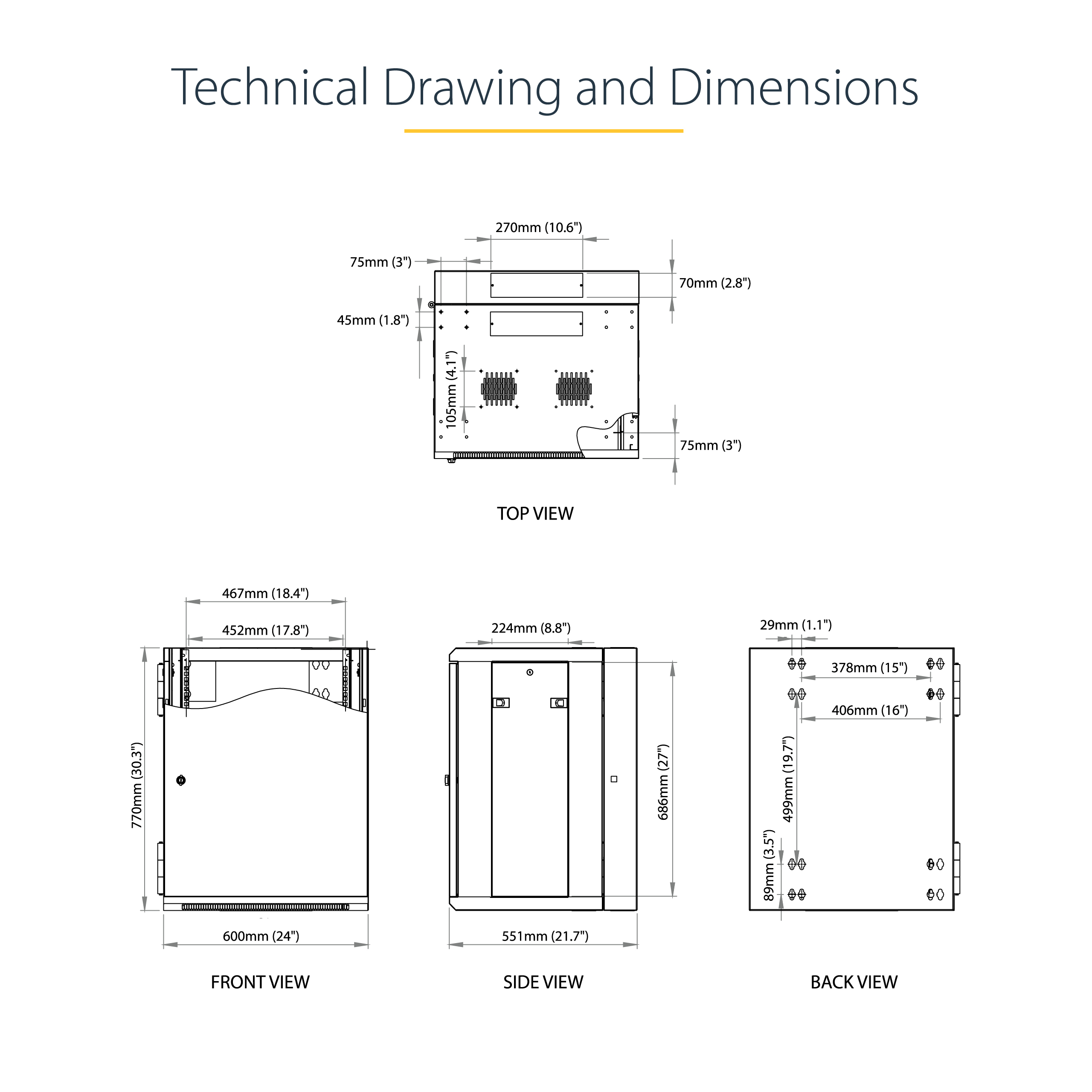

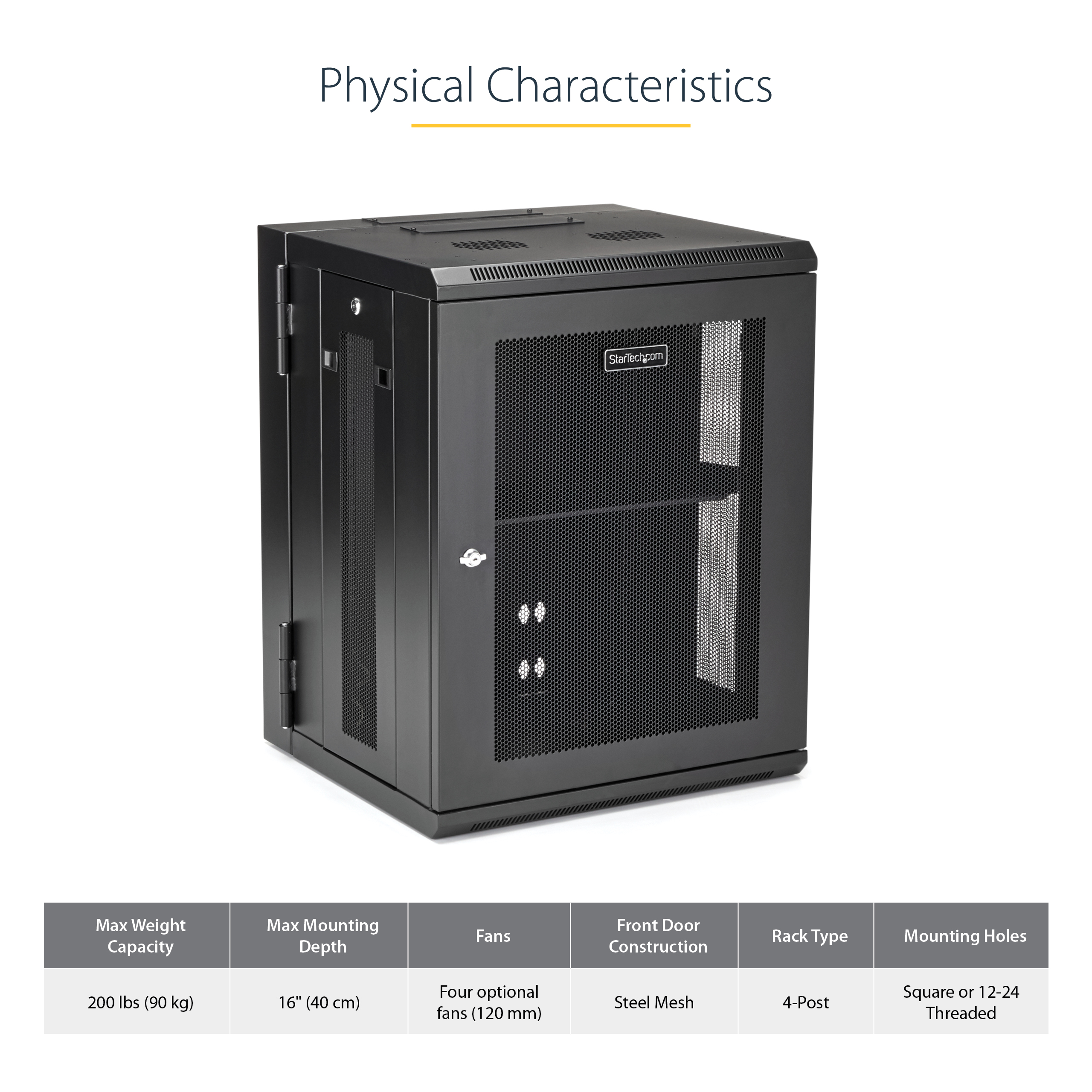

Special Notes Includes CABSHELFV1U and 2 pairs of keys Back Door Features Secure Key Lock Color Black Depth Capacity (Filter) 12.1 - 24 in. (306 - 609mm) Front Door Features Secure Key Lock with Reversible and Removable Front Door Internal Depth (mm) 547 Internal Width (mm) 596 Material Steel Maximum Mounting Depth (mm) 406 Minimum Mounting Depth (mm) 60 Primary Material Steel Product Length (mm) 551.000 Product Width (mm) 600.000 Product Height (mm) 770.350 Product Weight (g) 39600.000 Side Panel Construction Steel Mesh TAA Compliant No Rack Weight Capacity Range 175 - 200 lbs. (79 - 90 kg.) Weight Capacity for Racks with No Casters (g) 90000 Back Door Construction Steel Fan Options Four Optional Fans: 120 mm Frame Type Enclosed Cabinet Front Door Construction Steel Mesh Industry Standards EIA/ECA-310-E Mounting Hole Types - Square (For Cage Nut)
- Threaded Hole
Mounting Rail Profile L-Shape Rack Special Features - Adjustable Mounting Rails
- Built-in Cable Management
- Grounding Lug(s)
- U-Markings
- Wall-Mountable
- Ships Fully Assembled

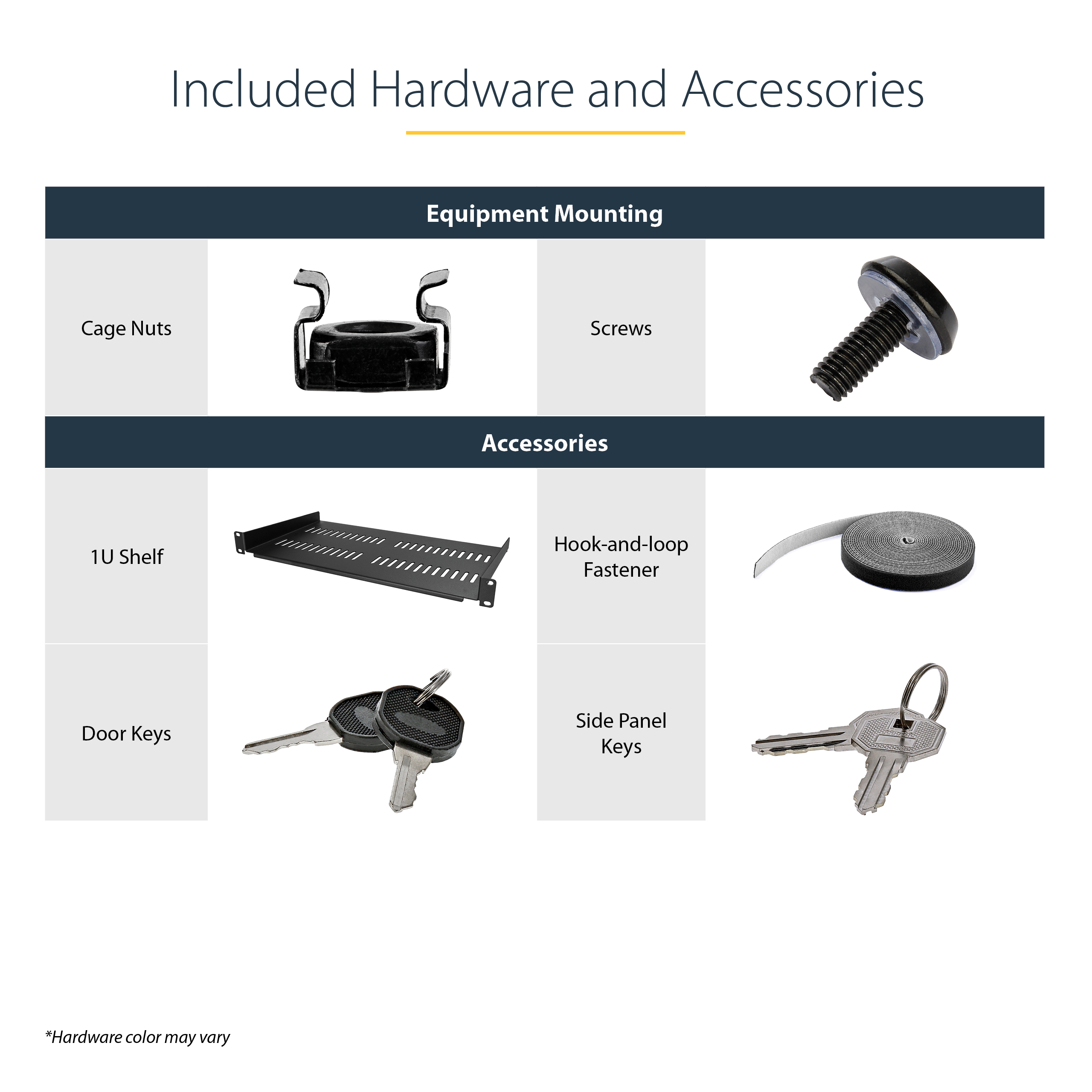

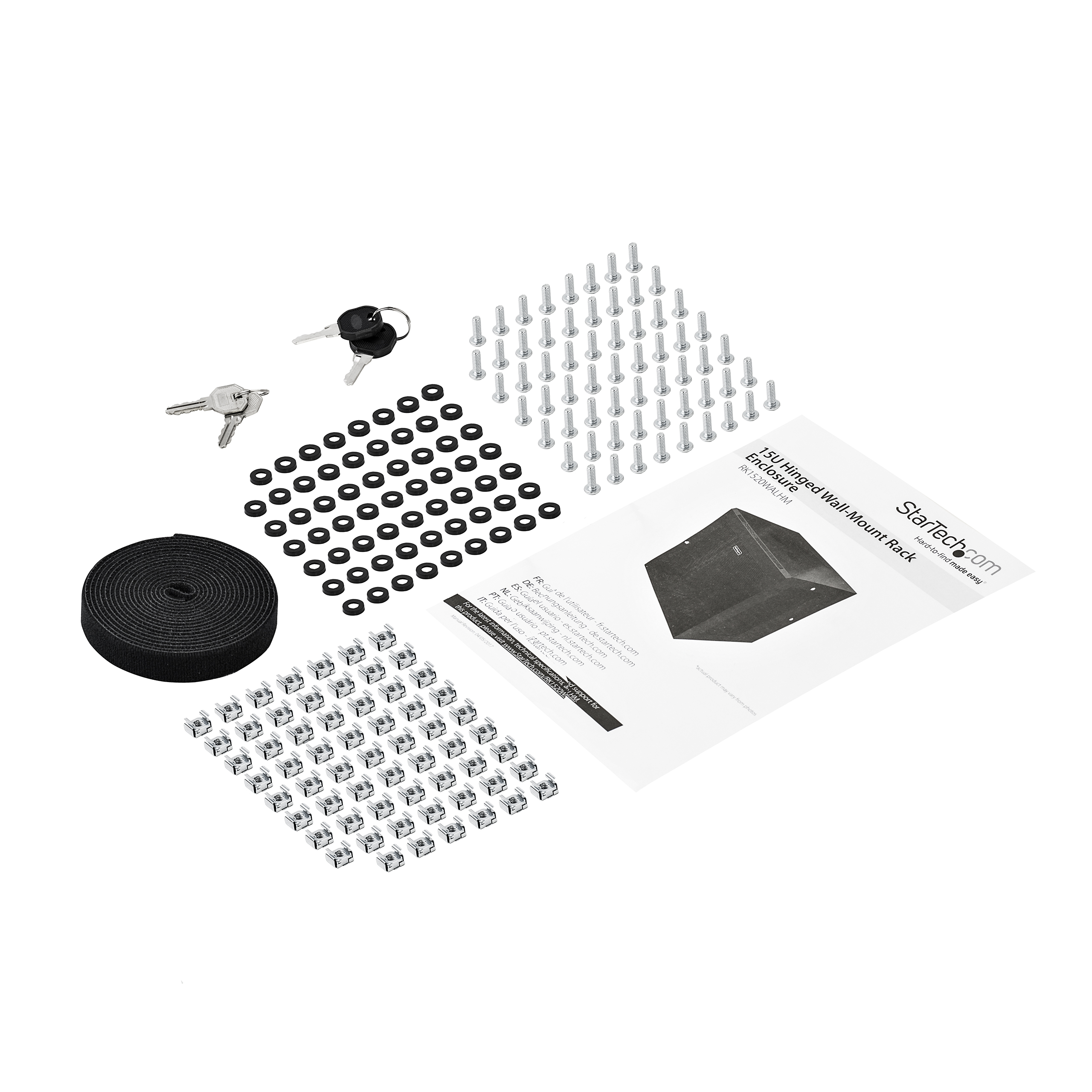

Rack Type 4-Post Rack U Height Ranges 12-26U Side Panel Construction Steel Mesh Side Panel Features Secure Key Lock with Removable Side Panels U Height 15U Wallmountable Yes Carton Depth (mm) 635 Carton Height (mm) 855 Carton Quantity 1 Carton Weight Gross (g) 84000 Included in Package - 1 - wall-mount enclosure
- 1 - 1U shelf
- 1 - 10 ft hook and loop
- 62 - 12-24 cage nuts
- 62 - 12-24 screws
- 2 - door keys
- 2 - side panel keys
- 1 - instruction manual
Included In Package for Label - 1 - Wall-Mount Enclosure
- 1 - 1U Shelf
- 1 - 10 Ft Hook And Loop
- 1 - Hardware Kit
- 1 - Instruction Manual
- 2 - Door Keys
- 2 - Side Panel Keys
Package Depth (mm) 683 Package Height (mm) 852 Package Width (mm) 639 Package Quantity 1 Package Weight (g) 42180 Packaging Description 15U Wall-Mount Server Rack Cabinet - 16 in. Deep - Hinged Packaging Description India 15U Wall-Mount Server Rack Cabinet - 16 in. Deep - Hinged Rack Flatpack No Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2017-03-24 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2017-05-17 Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,IE,IN,IT,JP,NL,NZ,SE,SG,UK,US Primary Technology None Product Development Specialist Anthony Slater Product Information Creation Specialist (PICS) Alex Garcia Product Manager Bhuvan Uppal Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2017-04-21 Target Production Release 2017-04-21 Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine Video Uploaded
