RK1820WALHM

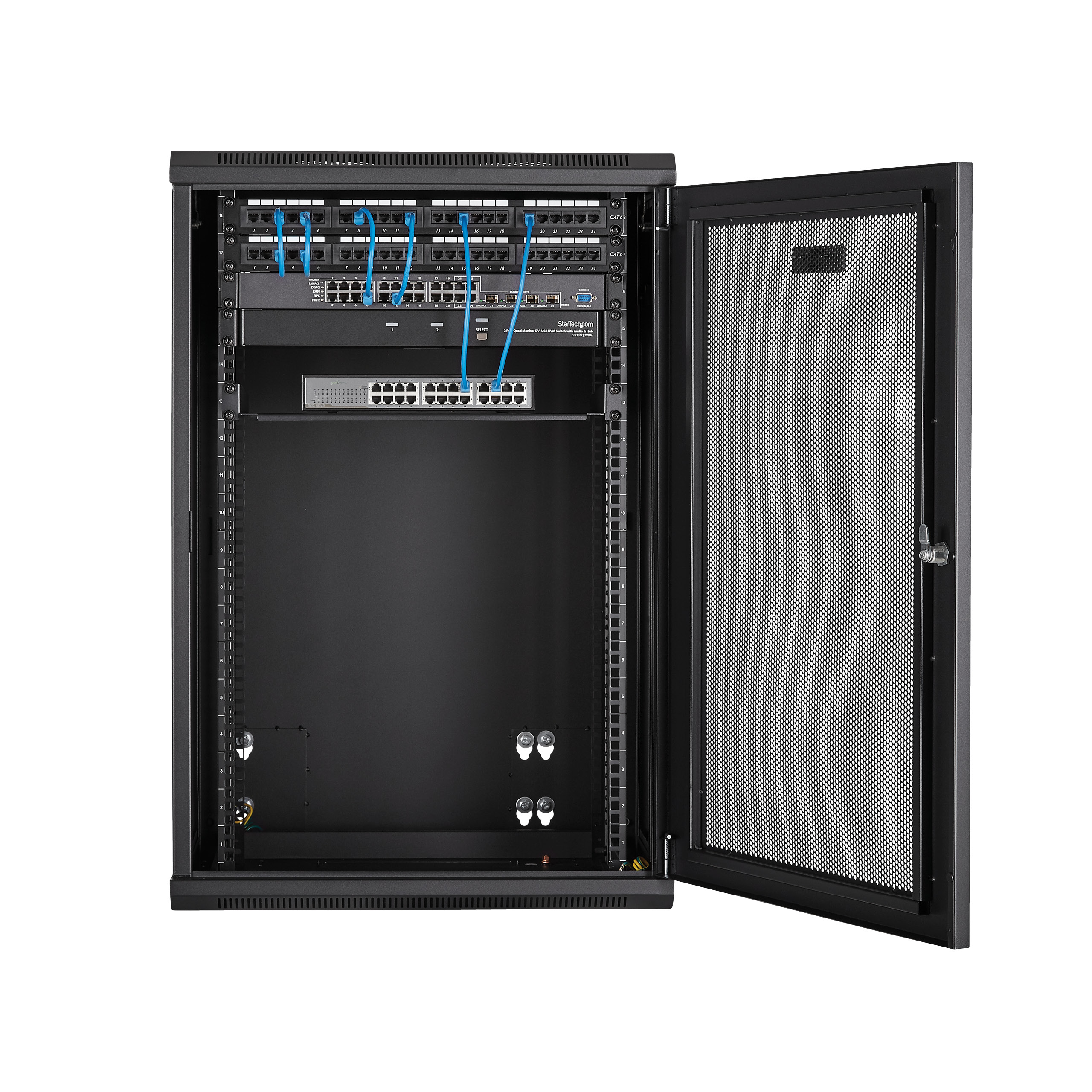

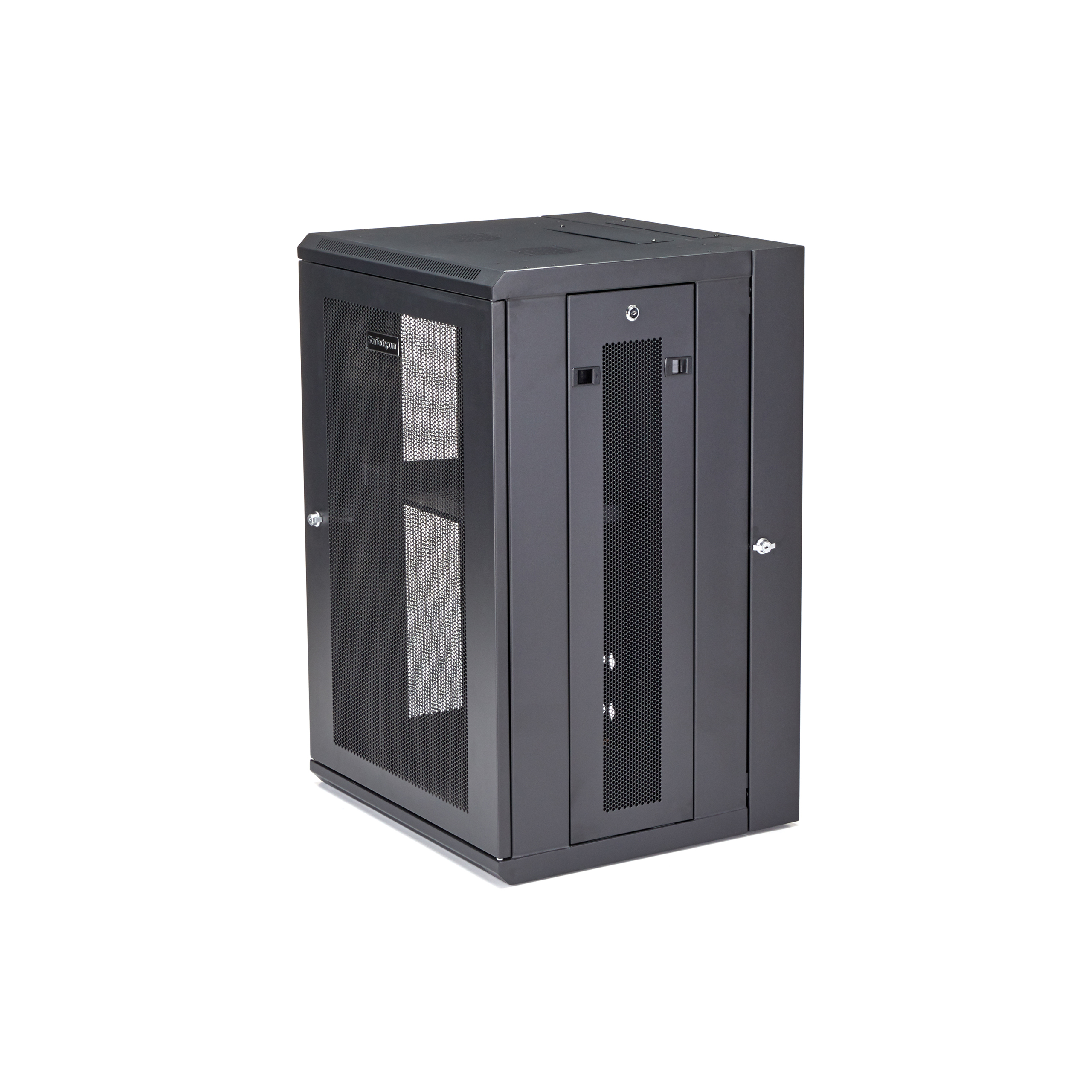

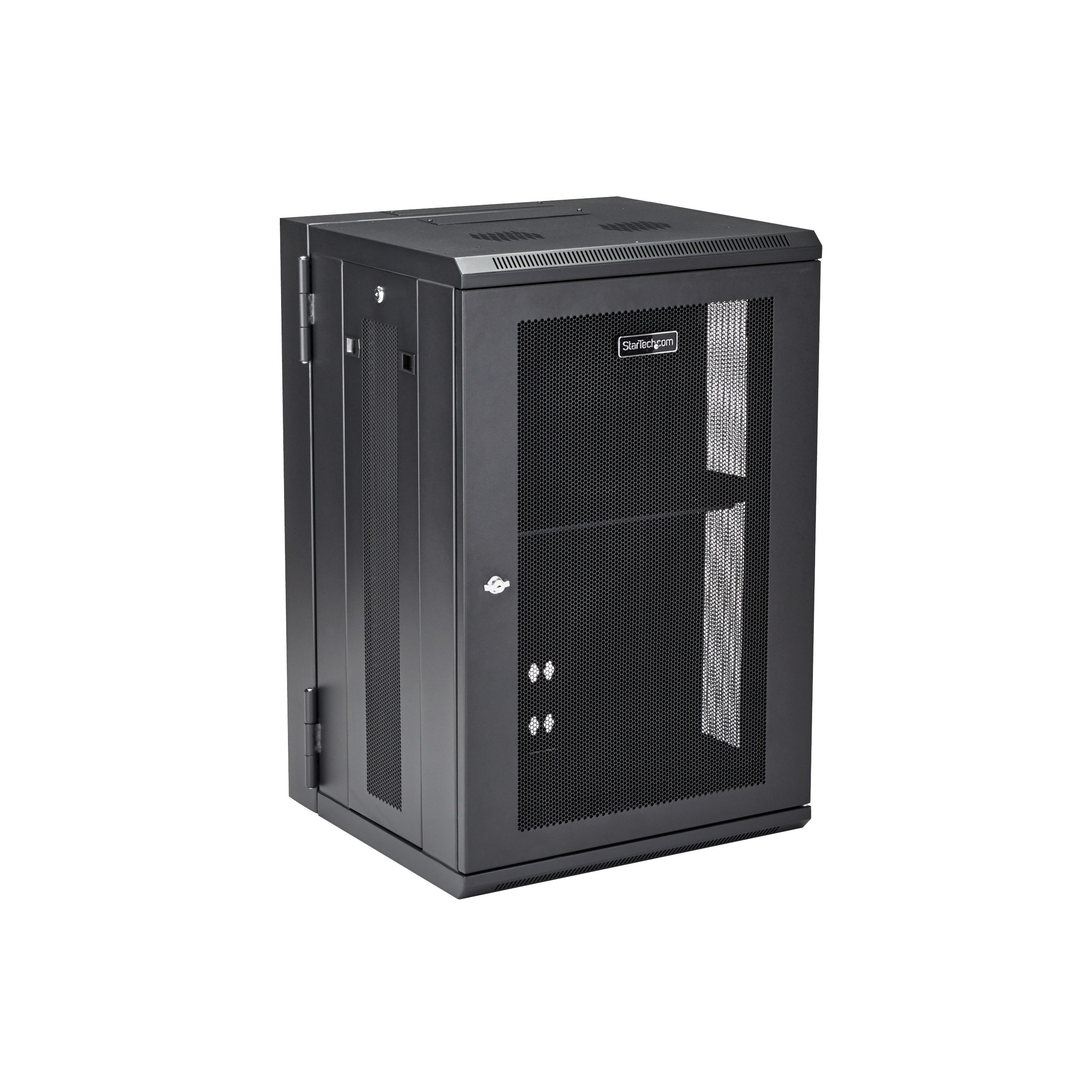

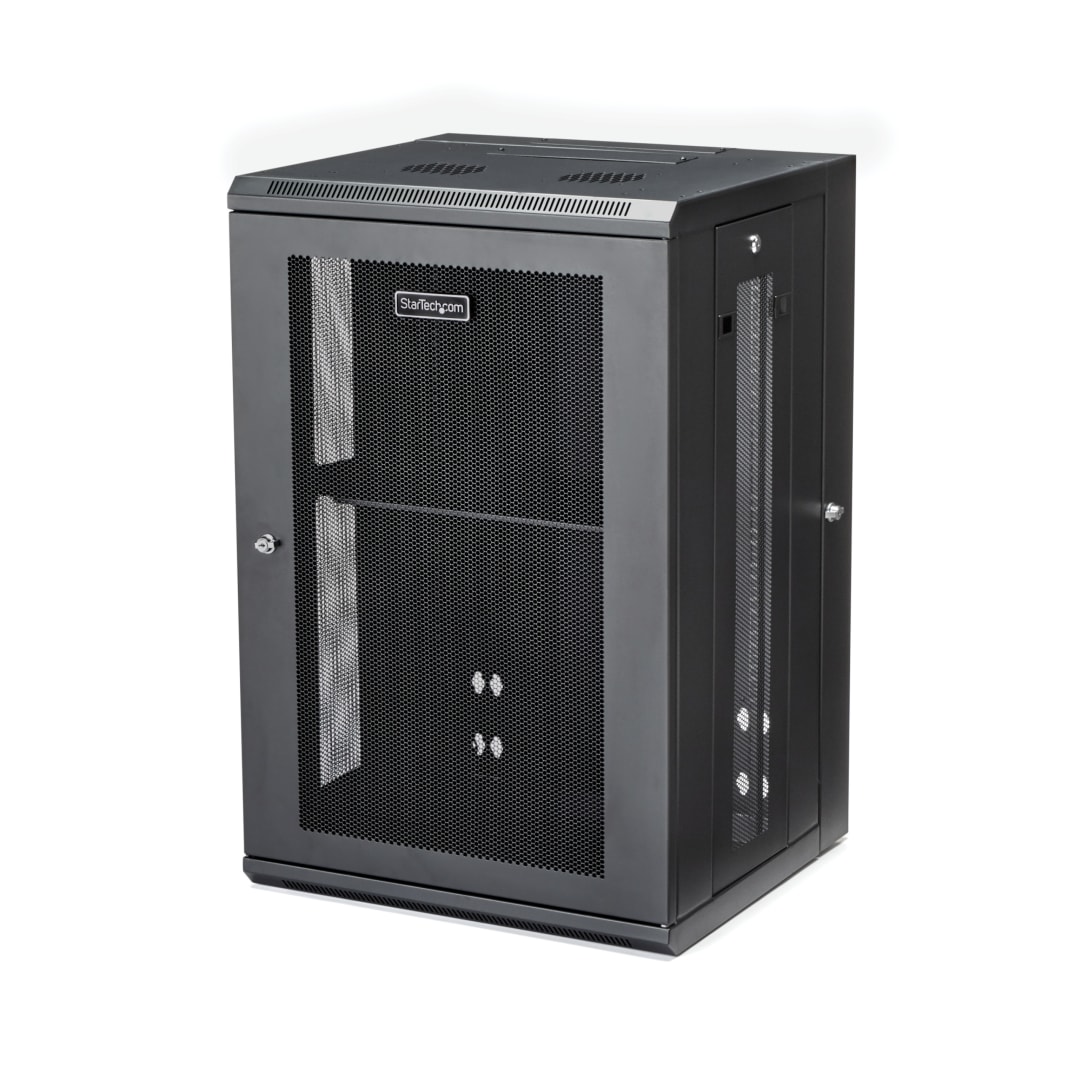

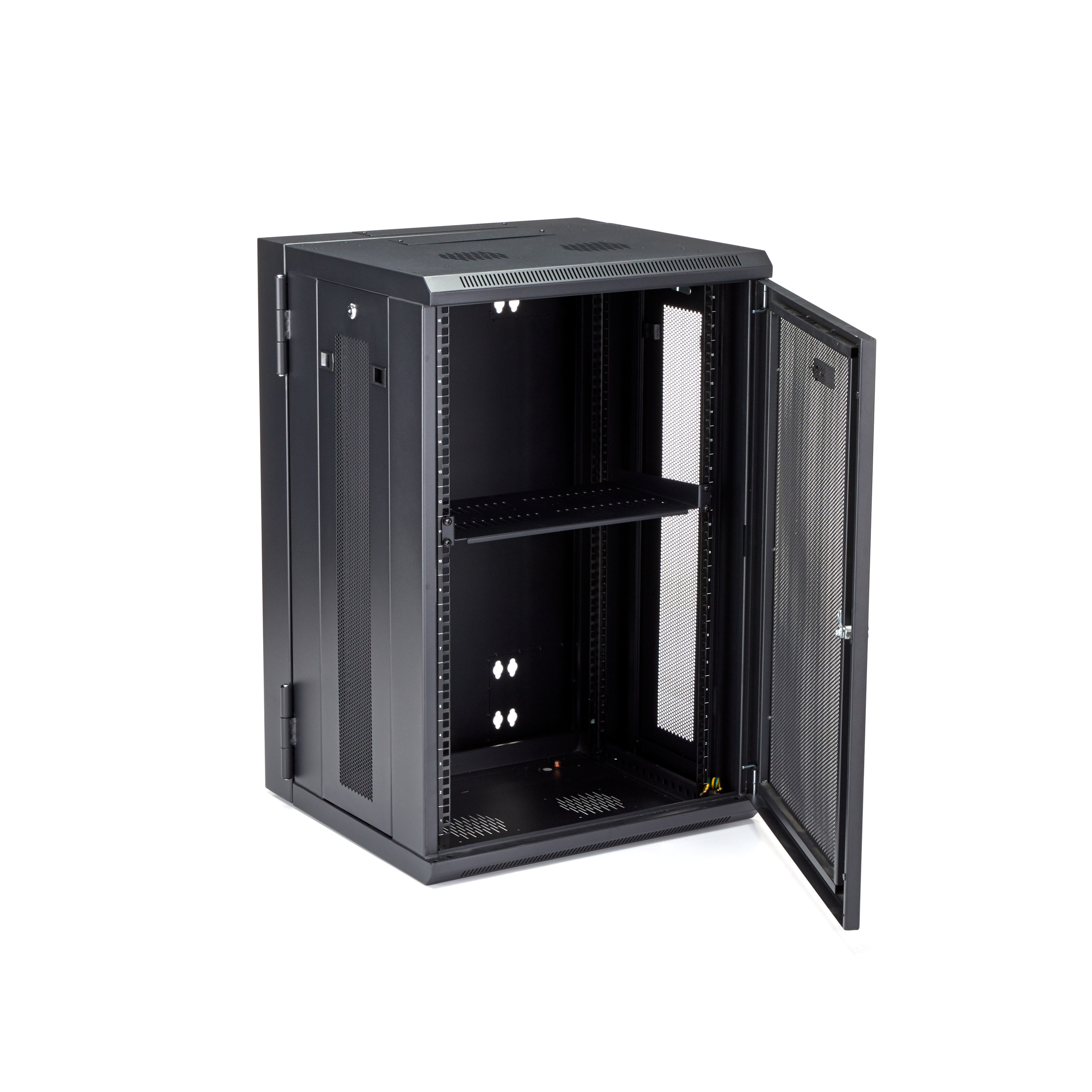

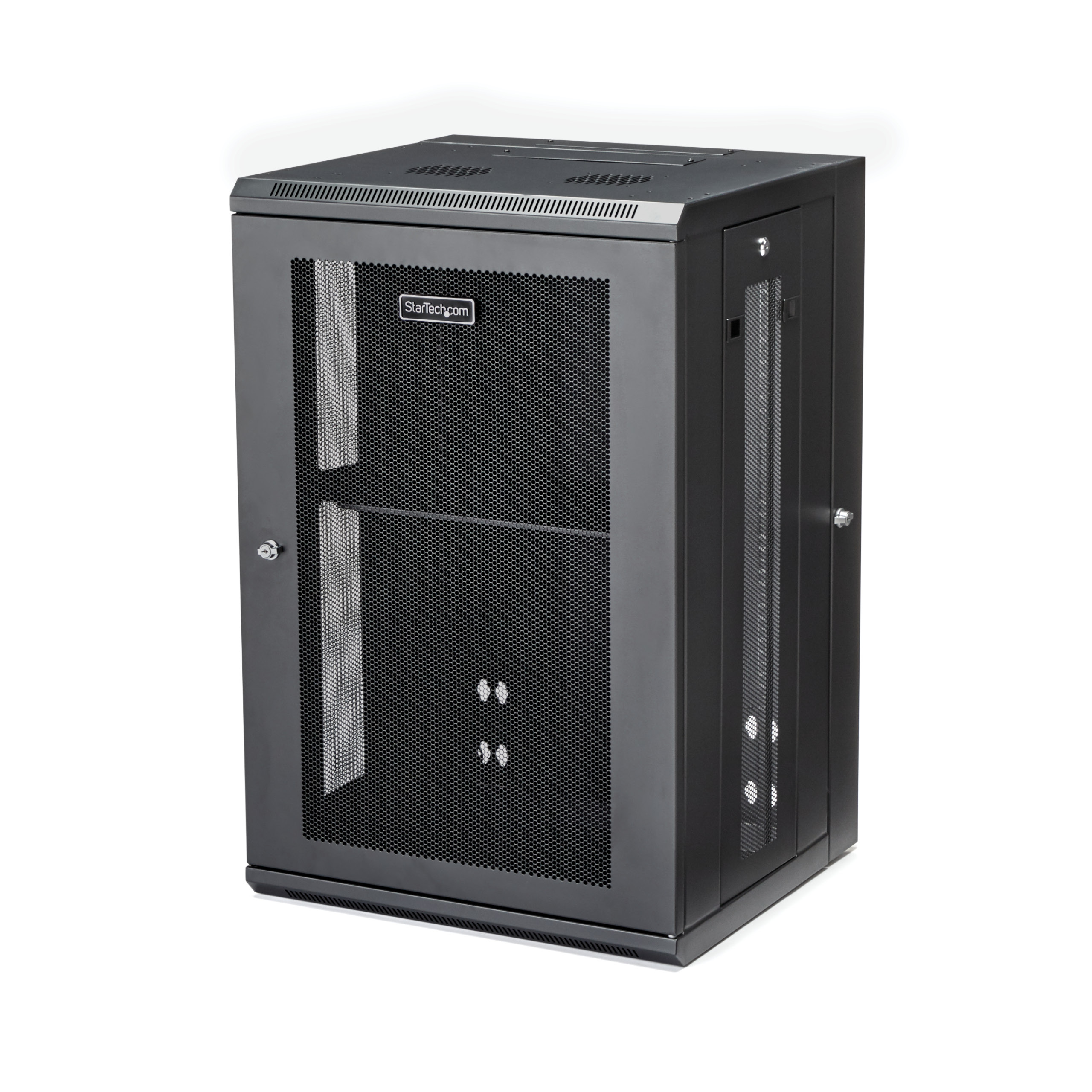

18U 20 5 inch deep hinged wallmount enclosure
IT Cabinet | 16” Deep | EIA-310 | 4 Post | Weight Cap. 200 lbs. | Lockable | Assembled
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Video Link YouTube
Video Link YouTube
Product Name 18U 20 5 inch deep hinged wallmount enclosure Product Number RK1820WALHM UPC 065030870061 Lifecycle status Active Warranty 5 Years Taxonomy Product > Mechanical Products > Rack Enclosures Category Level 1 Racks and Enclosures Category Level 2 Wall-Mount Racks and Enclosures Category Level 3 Wall-Mount Enclosures Family 16" Deep Hinged Wall Mount Network Cabinet - Vented Door Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX095X Product Title (Ultra-Short) 18U Rack Product Title (Short) 18U Wall Mount Network Cabinet 16in Deep Product Title (Medium) 18U Wall-Mount Server or Network Rack Cabinet - Hinged Enclosure - 16 in Deep Product Title (Standard) 4-Post 18U Wall Mount Network Cabinet, 19" Hinged Wall-Mounted Server Rack for Data / IT Equipment, Lockable Rack Enclosure Product Title (Long) 4-Post 18U Wall Mount Network Cabinet with 1U Shelf, 19" Hinged Wall-Mounted Server Rack for Data / AV / Electronics / Computer Equipment, Flexible Vented Rack Enclosure Product Title (AMZ) 4-Post 18U Wall Mount Network Cabinet w/ 1U Shelf, 19" Wall-Mounted Server Rack Kit for IT / Data Computer Equipment, Ships Fully Assembled Title Ingram (Part 1) 18U Server Rack Enclosure with Title Ingram (Part 2) Hinge - Wall Mount Network Rack Website Product Headline IT Cabinet | 16” Deep | EIA-310 | 4 Post | Weight Cap. 200 lbs. | Lockable | Assembled Bullet 1 4-POST 18U RACK CABINET: Wall-Mount Server Rack w/ adjustable mounting depth 2.4" to 16" (6.0cm to 40.6cm) is ideal for installing network switches, patch panels and other rackmount equipment in your warehouse, home / office, store location or server room Bullet 2 EASY ACCESS: Wall-mount data rack features a 180° hinged, enclosed and lockable rack design with easy access to the rear of the mounted devices; Flexible locking server cabinet with reversible and removable front door and removable side panels Bullet 3 BUILT TO LAST: The 18U wall-mounted network cabinet offers a 4 post design for additional support of your equipment; Constructed of high-quality SPCC cold-rolled steel for strength and durability with a maximum weight capacity of 198lb (90kg) Bullet 4 DESIGNED FOR COOLING: Vented IT rack enclosure features mesh front doors and side panels for passive airflow and supports active cooling with up to four optional 120mm fans (e.g., ACFANKIT12 – available in US/CA only) Bullet 5 FULLY ASSEMBLED: Swinging network cabinet ships fully assembled with all of the rack screws and cage nuts required to mount your equipment; Includes a shelf and a roll of hook-and-loop fastener; Wall-mount equipment cabinet is EIA/ECA-310-E Compliant Bullets (Compact) Wall-Mount Server Rack for rackmount equipment - Data rack features a hinged design with easy access to the devices - 4 Post 18U wall-mounted network cabinet - Ships fully assembled and includes a shelf and accessories - EIA/ECA-310-E Compliant Bullets (Consolidated) - Wall-Mount Server Rack with adjustable mounting depth for switches, patch panels and other rackmount devices in your home / office - Data rack features a hinged, enclosed and lockable design with easy access to the devices - 18U wall-mounted network cabinet offers a 4 post design for additional support of your IT equipment - Ships fully assembled; Includes a shelf, screws / cage nuts and a roll of hook-and-loop fastener - Made of high-quality SPCC cold-rolled steel; EIA/ECA-310-E Compliant Marketing Copy Marketing Copy (No HTML) Applications - Wall-mount your server and networking equipment flush against the wall, in areas with limited space such as technology store fronts or repair centers
- Install the rack in your small office environment, where you can't fit a full-sized rack
- Organize cabling or equipment in your network closet, wiring closet, back office or IDF
Website Search Keyword SRW18USDPG Required Regulatory Compliance Marks - Temp - N/A - Global - Used to replace duplicates or identify for removal
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - Furniture and Non-EEE

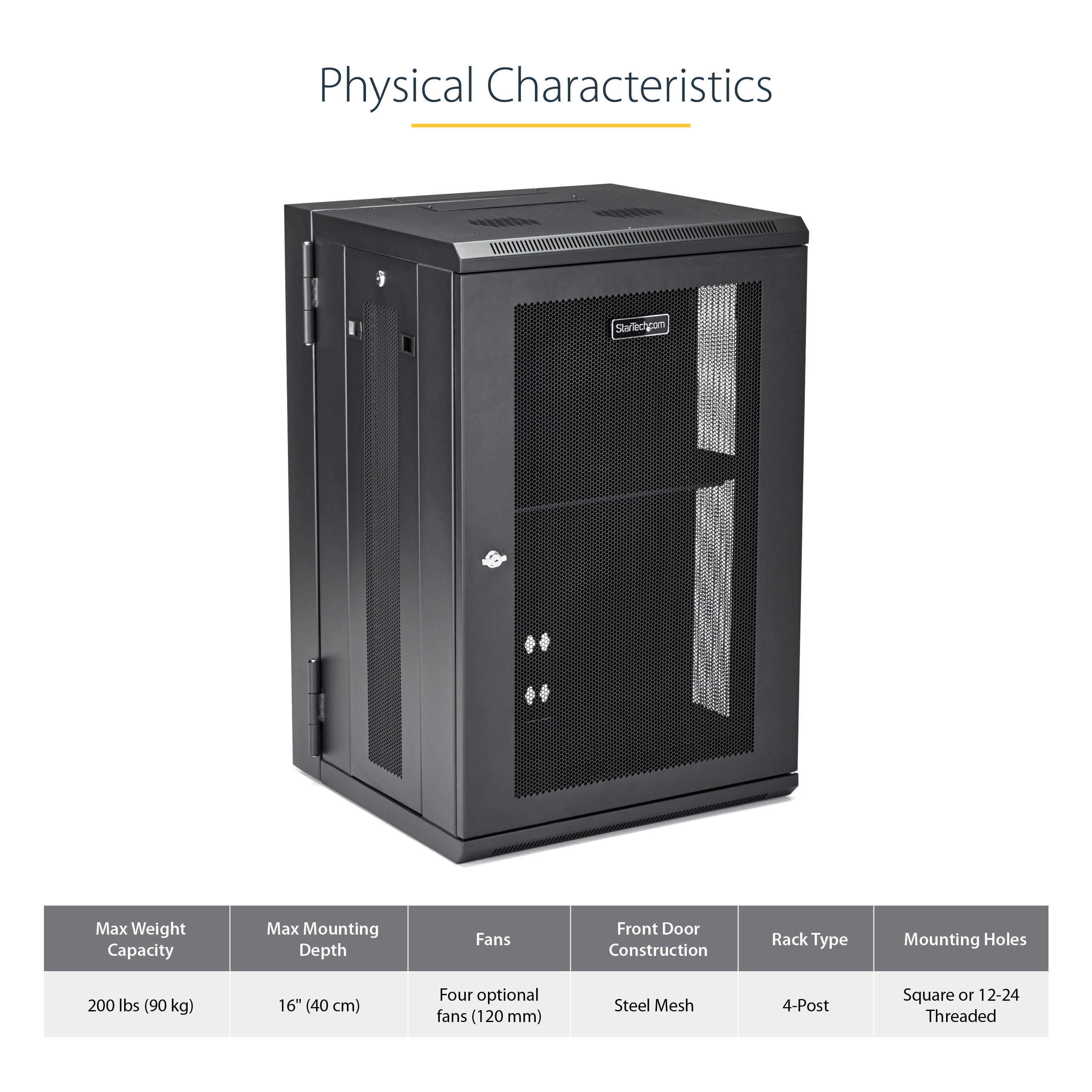

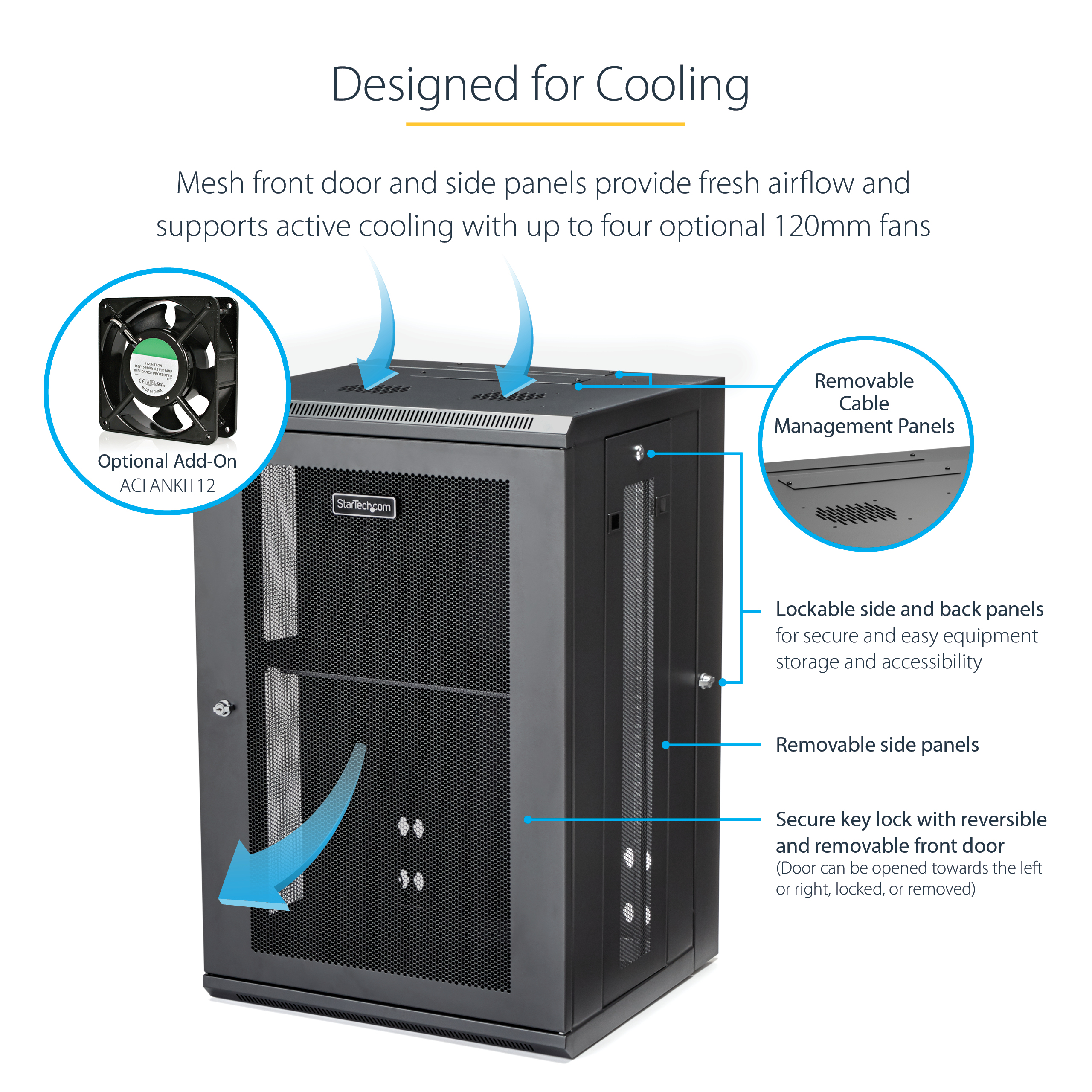

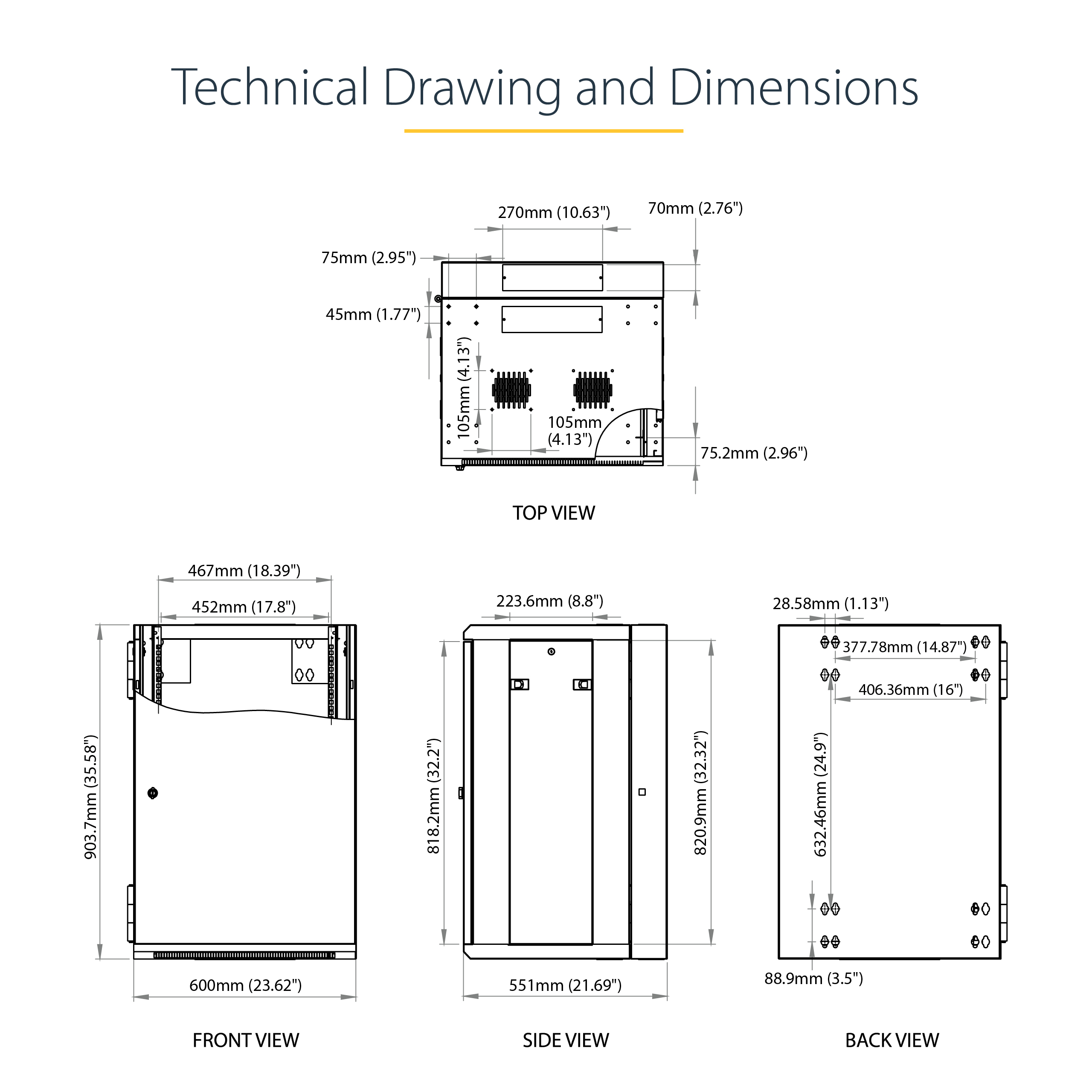

Special Notes Includes CABSHELFV1U and 2 pairs of keys Back Door Features Secure Key Lock Color Black Depth Capacity (Filter) 12.1 - 24 in. (306 - 609mm) Front Door Features Secure Key Lock with Reversible and Removable Front Door Internal Depth (mm) 550 Internal Width (mm) 597 Material Steel Maximum Mounting Depth (mm) 406 Minimum Mounting Depth (mm) 60 Primary Material Steel Product Length (mm) 551.000 Product Width (mm) 600.000 Product Height (mm) 903.700 Product Weight (g) 67700.000 Side Panel Construction Steel Mesh TAA Compliant No Rack Weight Capacity Range 175 - 200 lbs. (79 - 90 kg.) Weight Capacity for Racks with No Casters (g) 90000 Back Door Construction Steel Fan Options Four Optional Fans: 120 mm Frame Type Enclosed Cabinet Front Door Construction Steel Mesh Industry Standards EIA/ECA-310-E Mounting Hole Types - Square (For Cage Nut)
- Threaded Hole
Mounting Rail Profile L-Shape Rack Special Features - Adjustable Mounting Rails
- Grounding Lug(s)
- U-Markings

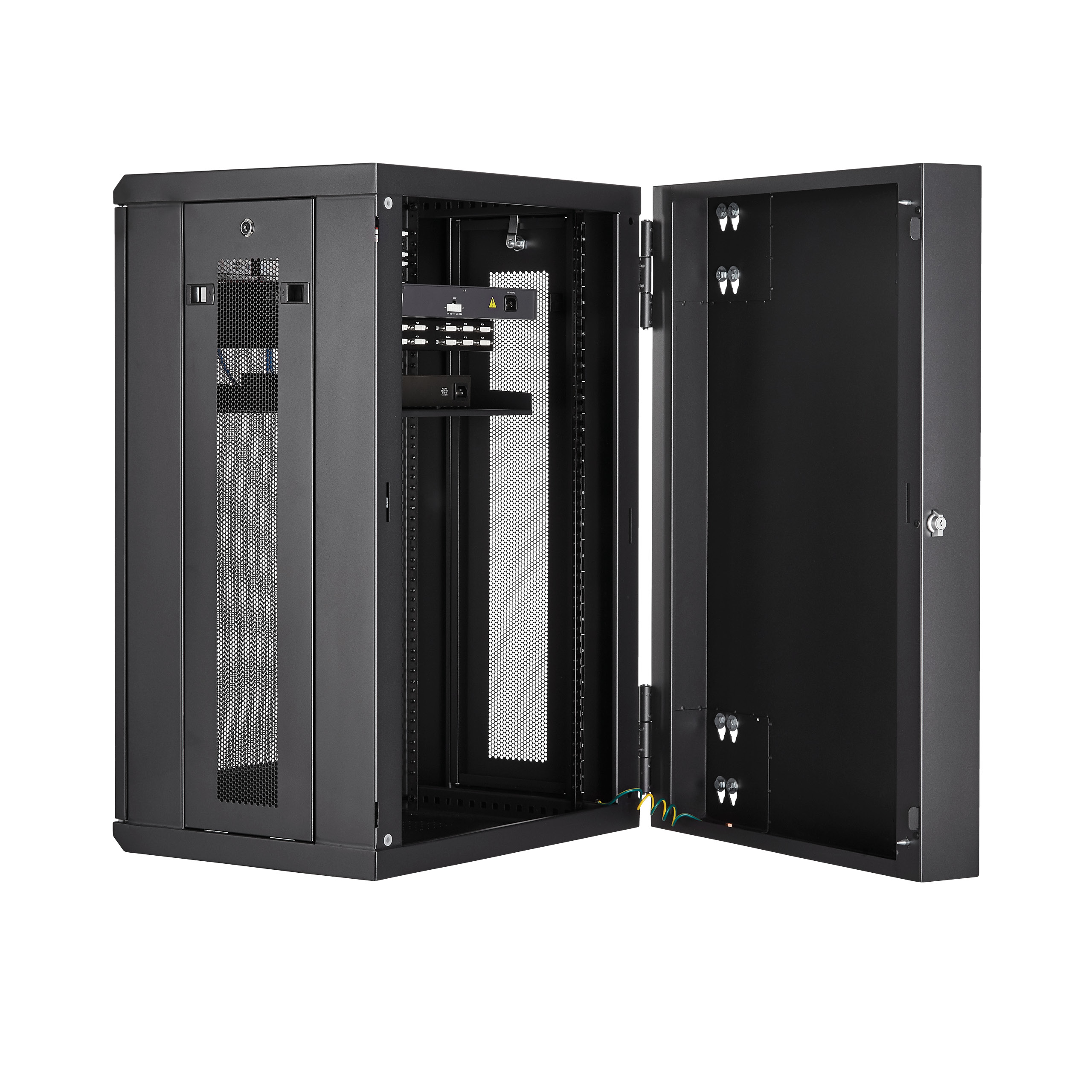

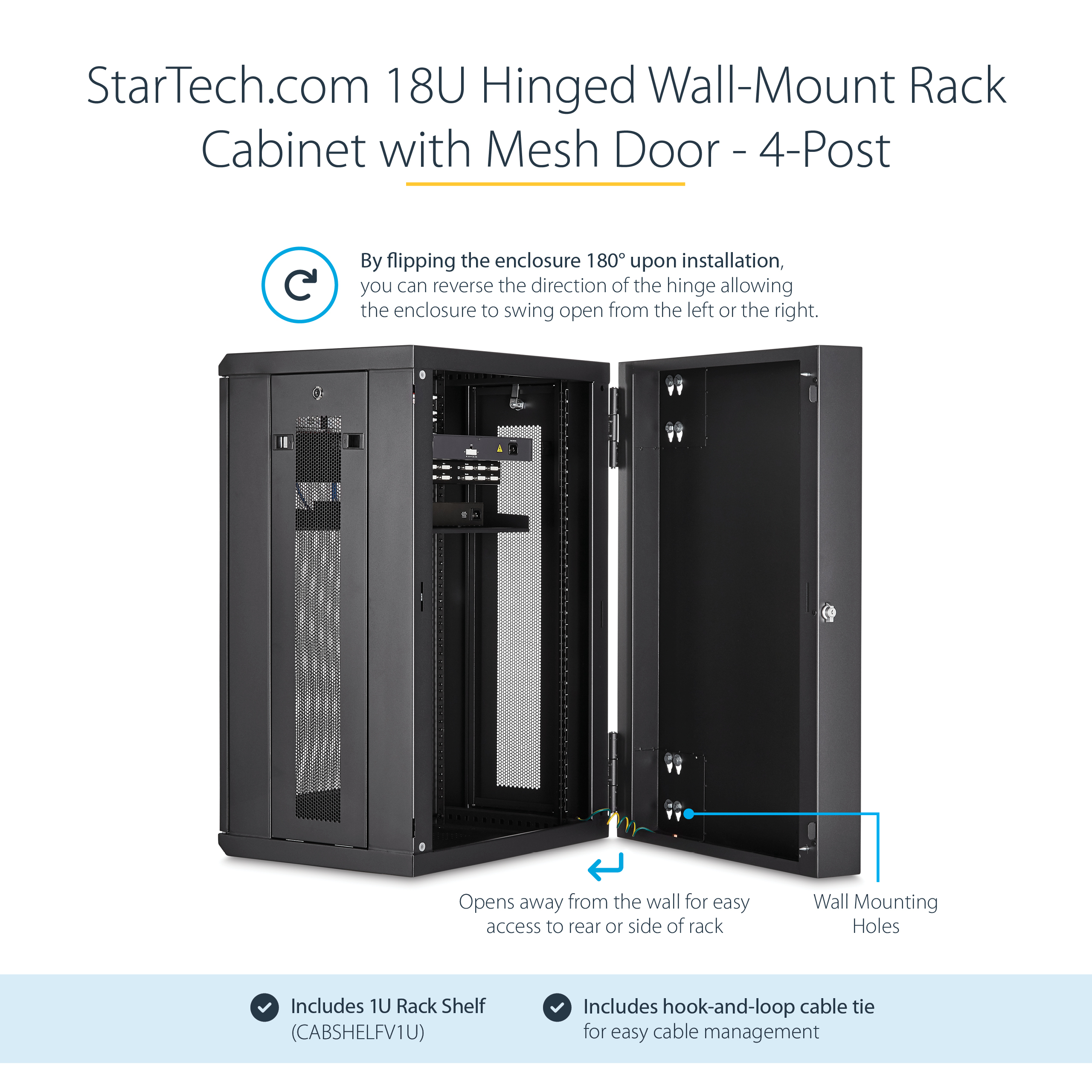

- Wall-Mountable with Rear Access Hinges
- Ships Fully Assembled

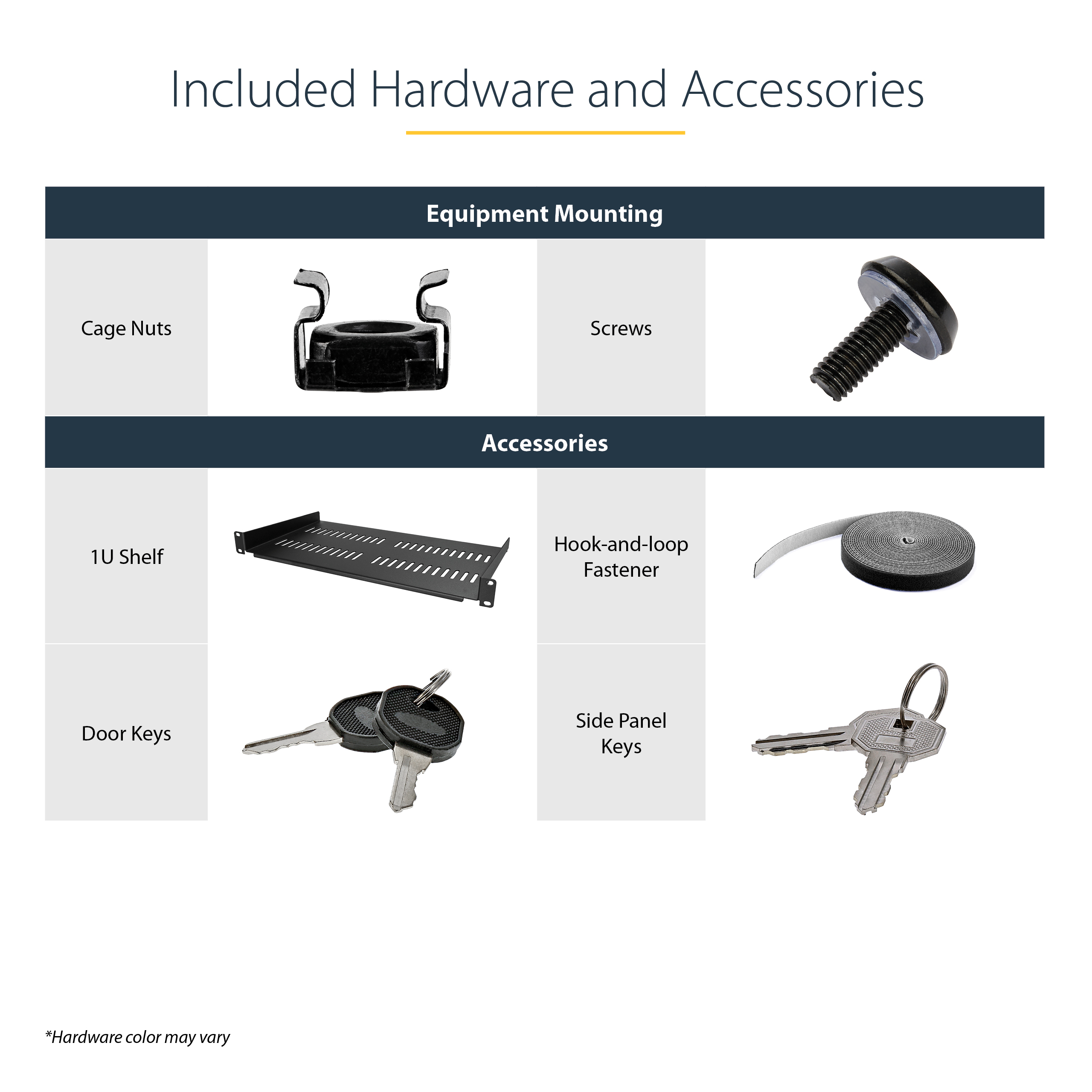

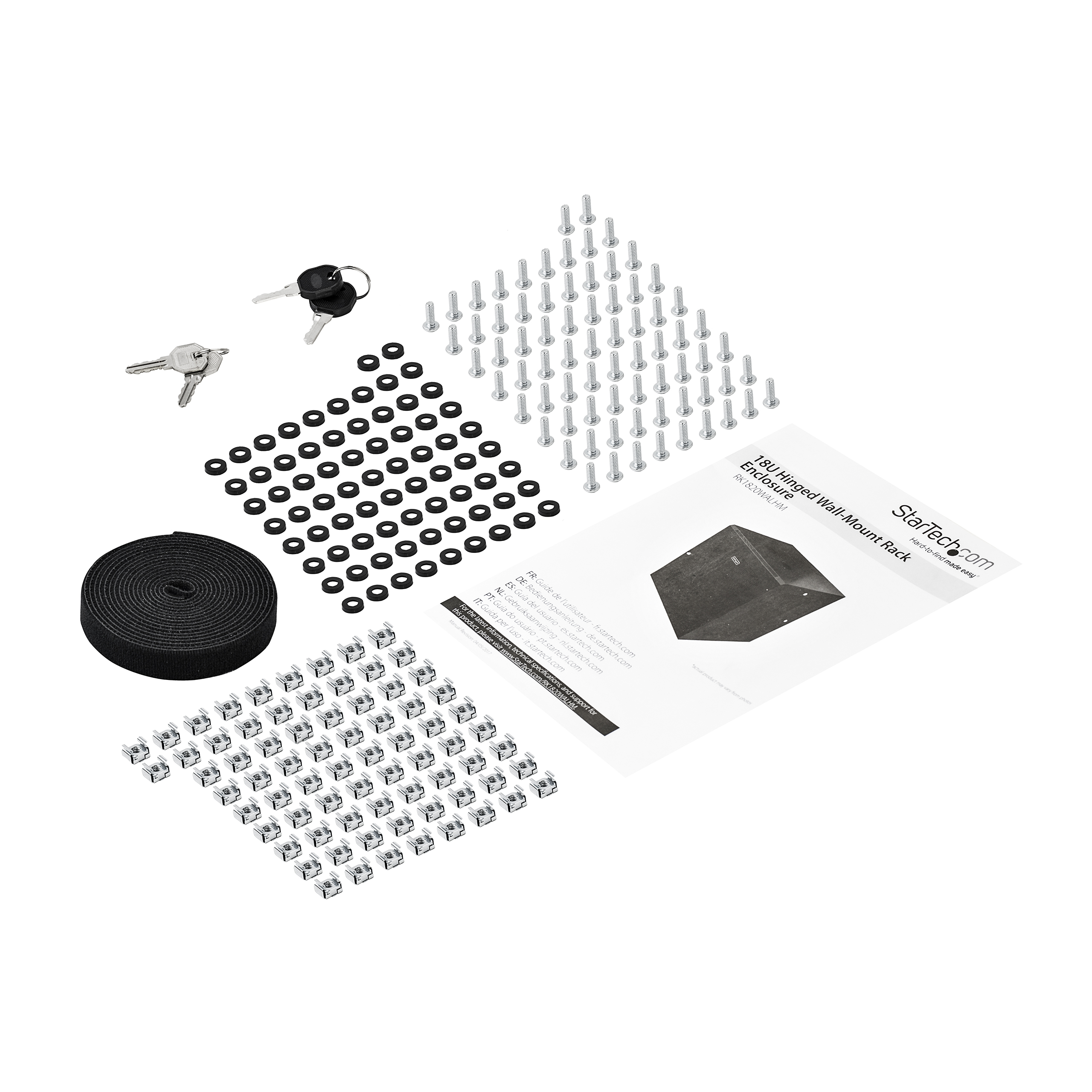

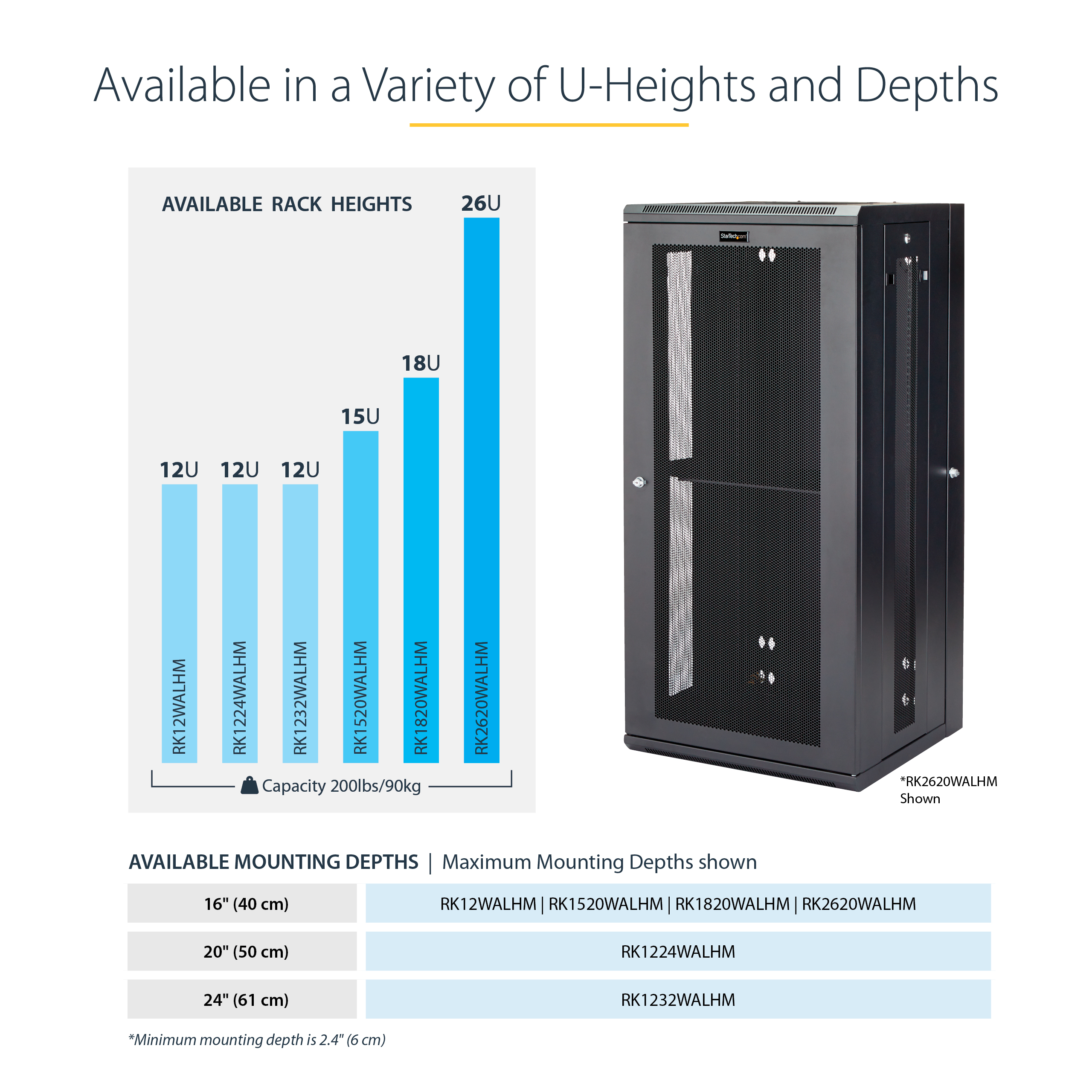

Rack Type 4-Post Rack U Height Ranges 12-26U Side Panel Construction Steel Mesh Side Panel Features Secure Key Lock with Removable Side Panels U Height 18U Wallmountable Yes Carton Depth (mm) 600 Carton Height (mm) 1060 Carton Quantity 1 Carton Weight Gross (g) 54000 Included in Package - 1 - wall-mount enclosure
- 1 - 1U shelf
- 1 - roll of hook-and-loop fastener
- 75 - 12-24 cage nuts
- 75 - 12-24 screws
- 2 - door keys
- 2 - side panel keys
- 1 - instruction manual
Included In Package for Label - 1 - Enclosure
- 1 - 1U Shelf
- 1 - Roll Of Hook-And-Loop Fastener
- 1 - Hardware Kit
- 1 - Instruction Manual
- 2 - Keys
Package Depth (mm) 594 Package Height (mm) 1055 Package Width (mm) 642 Package Quantity 1 Package Weight (g) 53500 Packaging Description 18U Wall-Mount Network Switch Cabinet with Hinged Back Panel - 16 in. Deep Packaging Description India 18U Wall-Mount Network Switch Cabinet with Hinged Back Panel - 16 in. Deep Rack Flatpack No Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2017-03-24 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2017-05-17 Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IN,IT,JP,NL,SE,UK,US Primary Technology None Product Development Specialist Anthony Slater Product Information Creation Specialist (PICS) Alex Garcia Product Manager Bhuvan Uppal Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2017-04-21 Target Production Release 2017-04-21 Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine Video Uploaded
