Main Image
RK219WALVO

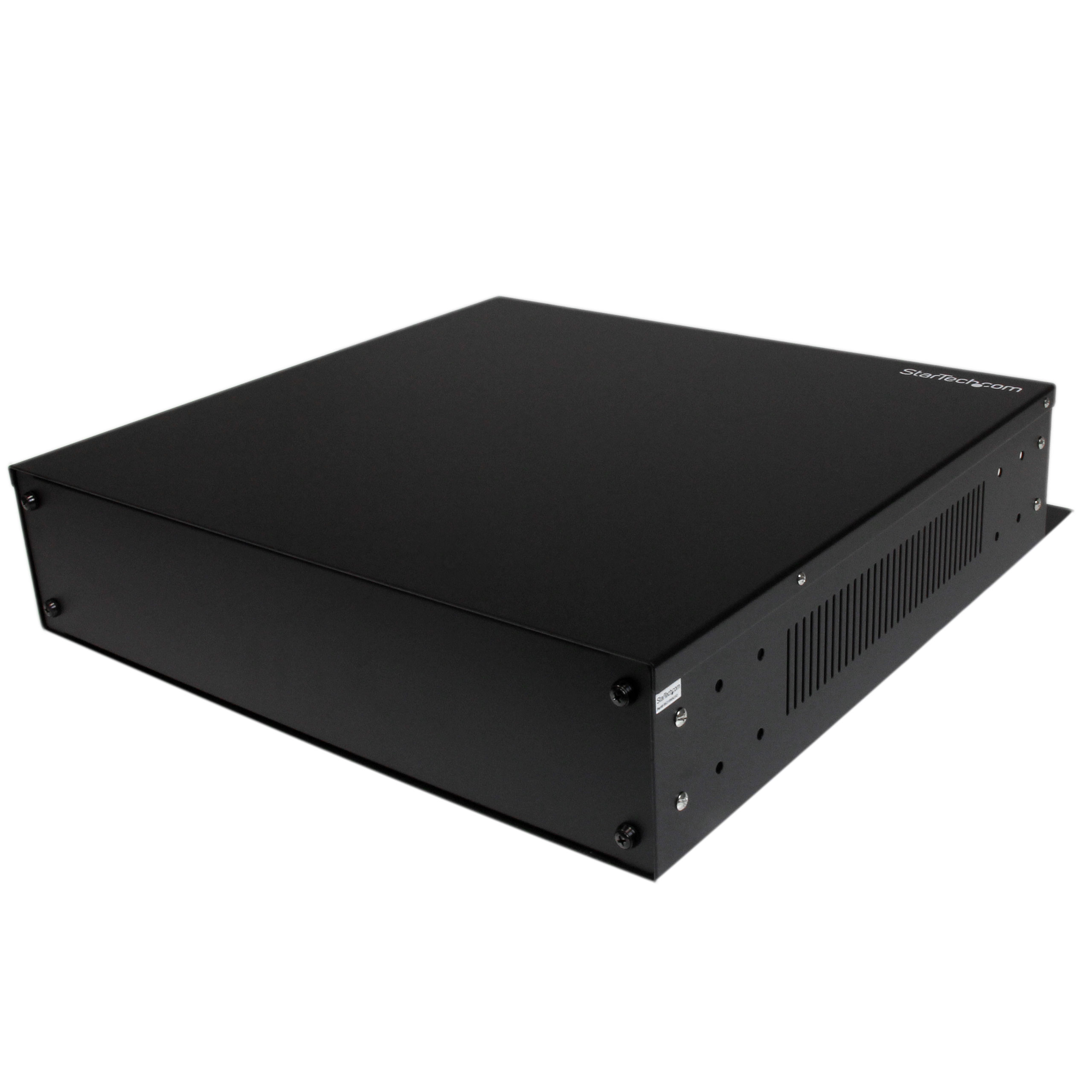

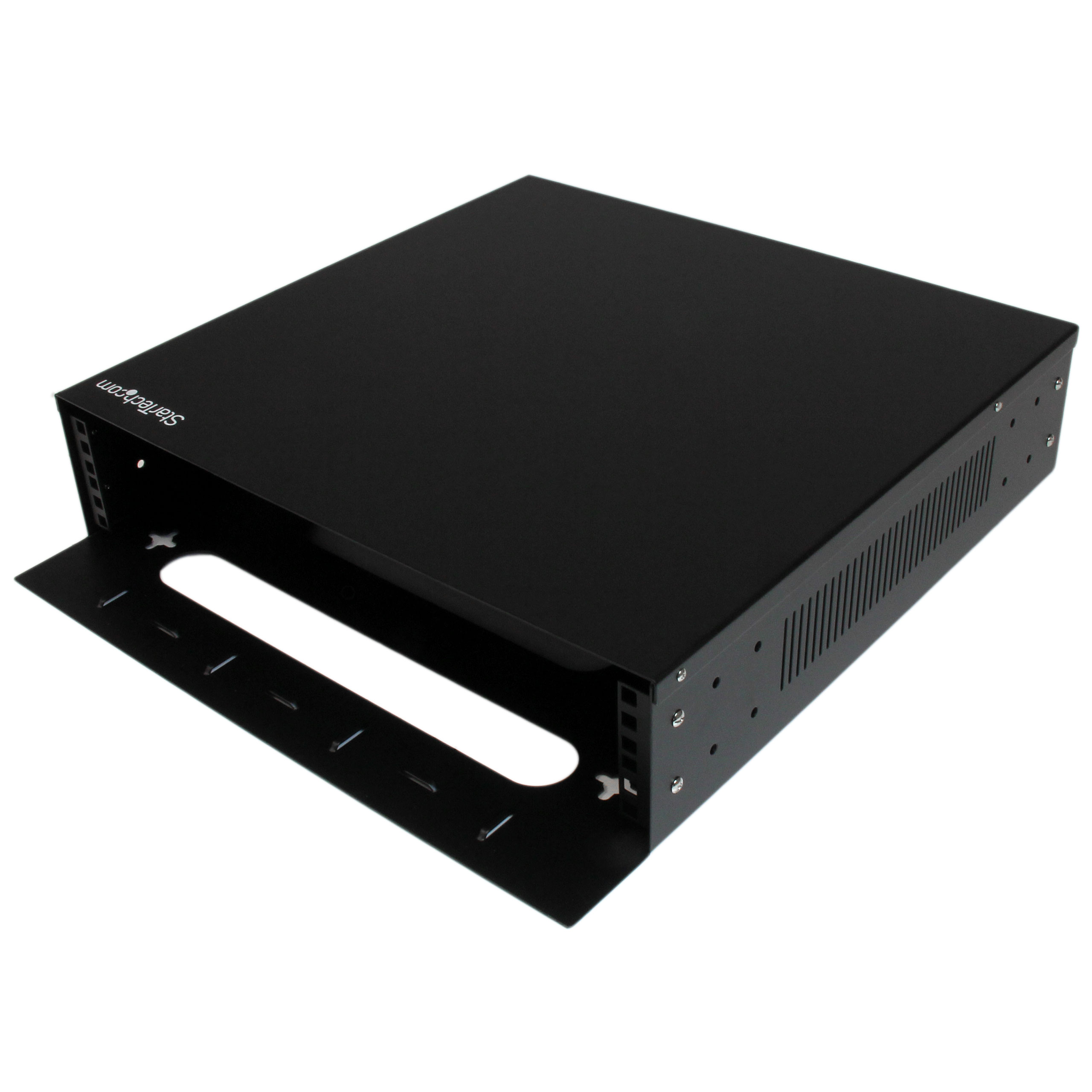

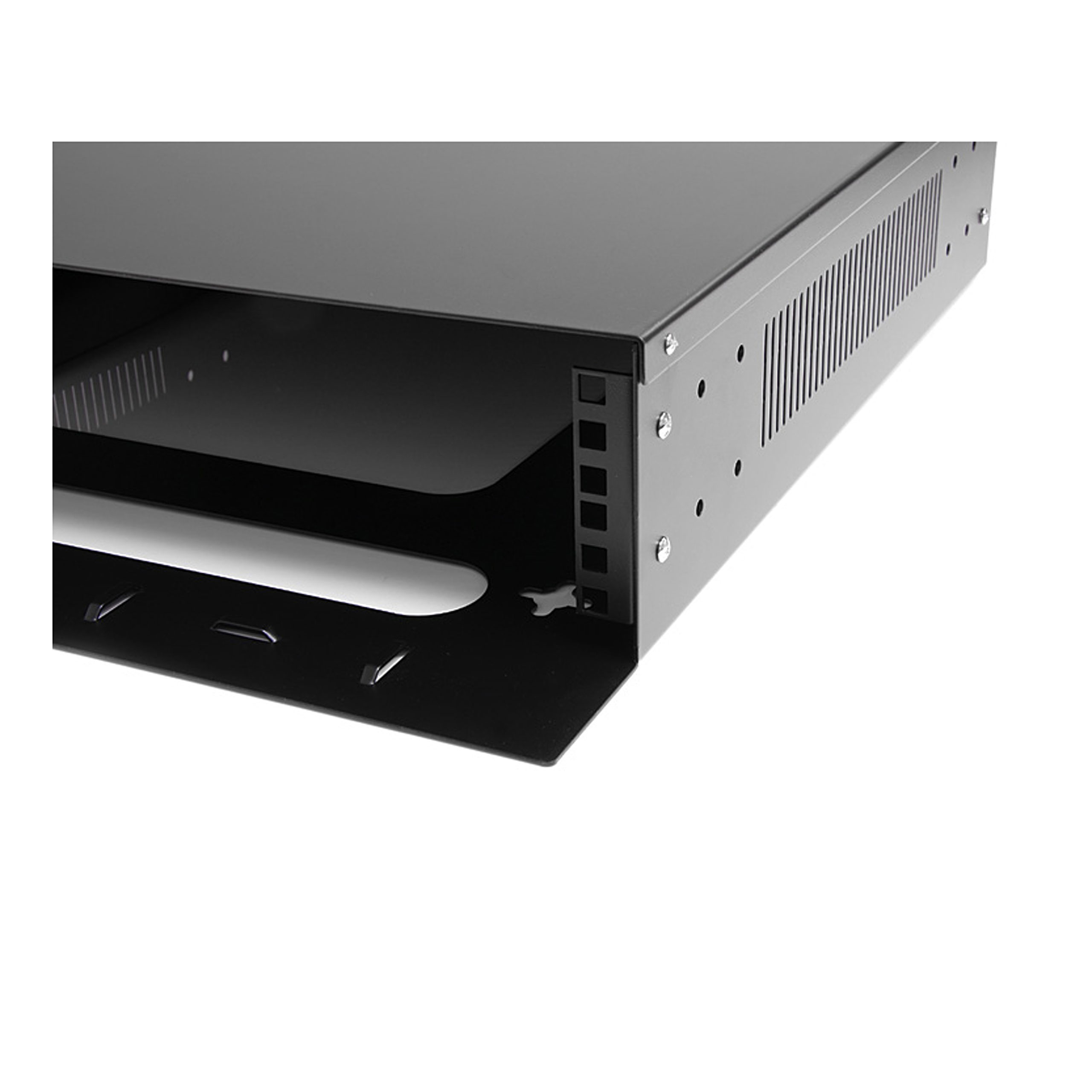

2U Equipment Rack & Wall Mount Server Rack Bracket

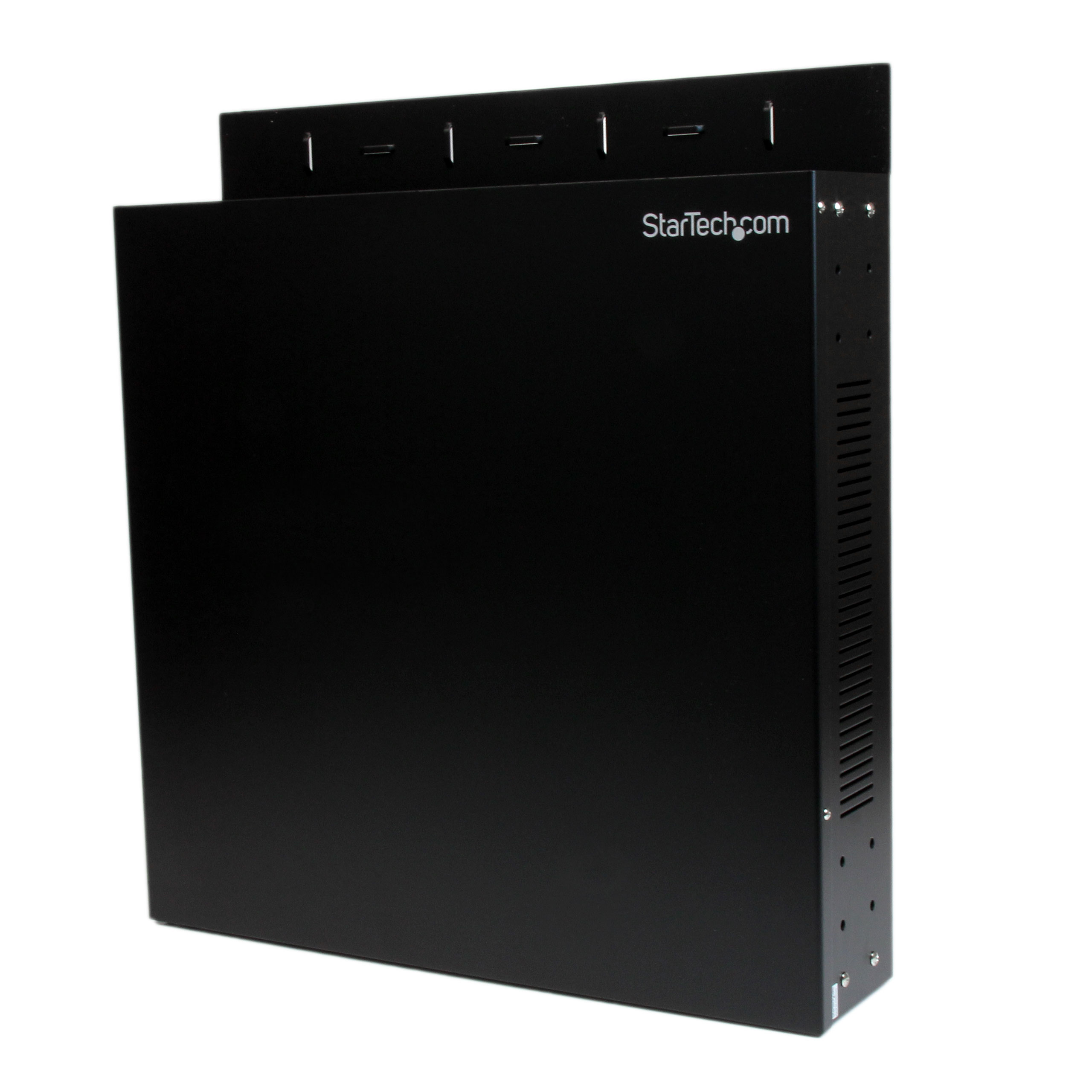

Vertically mount your server or networking equipment to a wall, in this low-profile cabinet
Main Image
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Product Name 2U Equipment Rack & Wall Mount Server Rack Bracket Product Number RK219WALVO UPC 065030841665 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Racks and Enclosures Category Level 2 Wall-Mount Racks and Enclosures Category Level 3 Vertical Wall-Mount Brackets Family Vertical Server Cabinet Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX094X Product Title (Ultra-Short) 2U Vertical Rack Product Title (Short) 2U Vertical Wallmountable Server Rack Product Title (Standard) Wallmount Server Rack - Vertical Mounting Rack for Server - 2U Product Title (Long) 2U Vertical Wall Mount Server Rack - Low-profile 2 Post Server Cabinet for Switch, Router or Network Equipment - 61.2 lbs capacity Product Title (AMZ) 2U Vertical Wall Mount Server Rack - Low-profile 2 Post Server Cabinet for Switch, Router or Network Equipment - 61.2 lbs capacity (RK219WALVO) Title Ingram (Part 1) 2U 19in Steel Vertical Wall Title Ingram (Part 2) Mountable Server Rack Website Product Headline Vertically mount your server or networking equipment to a wall, in this low-profile cabinet Bullet 1 EASY TO USE: This 2U wall mount rack can be mounted to a wall or directly under a desk/table, expanding your workspace and keeping equipment easily accessible Bullet 2 SAVES SPACE: Perfect for SOHO environments, the wallmount network cabinet offers a space-saving installation for environments lacking the footprint space for a full-size server equipment rack Bullet 3 STURDY DESIGN: Constructed to EIA-RS310 19-inch rack standards, the vertical wall mountable server rack features a sturdy steel design Bullet 4 TAA COMPLIANT: This TAA compliant 2U 19-inch Steel Side Mount Rack adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases Bullet 5 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this wall mount rack is backed for life, including free lifetime 24/5 multi-lingual technical assistance Bullets (Consolidated) Vertically mount your server or networking equipment to a wall, in this low-profile cabinet -Universally compatible with rack-mount servers and UPS' from brands such as Lenovo Cisco and APC - Wall mount server rack/wall mount server cabinet/2U server rack/19" server rack - Made from solid steel for durability - Wall-mounting holes spaced 16 in. apart matching standard dry-wall - Mount servers and telecommunication equipment flush against the wall - Install a blade server anywhere in an office Marketing Copy Marketing Copy (No HTML) The 2U 19-inch Steel Side Mount Rack is a Wall Mountable Server Rack that provides a robust solution for mounting your telecom, network or server equipment. This TAA compliant data cabinet adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases. This 2U wall mount network cabinet can be mounted to a wall or directly under a desk/table, expanding your workspace and keeping equipment easily accessible. Perfect for SOHO (Small Office, Home Office) environments, the wallmount IT cabinet offers a space-saving installation for environments lacking the footprint space for a full-size server equipment rack. The server room cabinet allows your equipment to be mounted vertically - non-rackmount equipment can be installed using the rack as a wall case/chassis. Constructed to EIA-RS310 19-inch rack standards, the 2U wall mount rack features a sturdy steel design and is backed by a Lifetime warranty. Applications - Mount servers and telecommunication equipment flush against the wall
- Mount KVM switches or workstations under a desk or work bench to free up work space
- Ideal for small and medium businesses requiring small rack solutions dispersed throughout the organization
- Install a blade server anywhere in an office without a full server room
Website Search Keyword - 19" rack
- computer rack
- wall rack
- equipment rack
- wall mount rack
- side mount
- vertical rack
- blade server rack
- horizontal wall rack
- wall chassis
- wall case
- mountable server case
- SRWO2UBRKT
- SRWF2U
Required Regulatory Compliance Marks - REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Accessory Products - CABSCREWM6
- CABSCREWS
- CABCAGENUTS
- CABLMANAGER2
- CABCAGENT62B
- CABCAGENTS62
- CABCAGENUT2B
- CABCAGENUT6B
- CABCAGENUTS2
- CABCAGENUTS6
- CABCAGENUTSB
- CABSCREWM5
- CABSCREWM52
- CABSCREWM52B
- CABSCREWM5B
- CABSCREWM62
- CABSCREWM62B
- CABSCREWM6B
- CABSCREWSB
- CABSCREWSM5
- CABSCREWSM5B
- CABSCREWSM6
- CABSCREWSM6B
- CABSCRWSM62B
- RKPW081915
- RKPW161915
- C6PANEL24
- PANEL4524
- PANELHU24
- PANEL4548
- C6PANL4524
Related Products - RK419WALVO
- RK419WALVS
- RK119WALLV
- RK219WALLV
- RK319WALLV
- RK419WALLV
- CAB1019WALL
- RK1219WALHM
- RK812WALLO
- RK1219WALH
- RK1219WALL
- RK619WALL
Constrained SKU Alternatives (Limited Stock) - RK419WALVO
- RK219WALLV
Color Black Depth Capacity (Filter) 12.1 - 24 in. (306 - 609mm) Internal Depth (mm) 481 Internal Width (mm) 497 Material Steel Maximum Mounting Depth (mm) 481 Primary Material Steel Product Length (mm) 119.000 Product Width (mm) 501.000 Product Height (mm) 554.000 Product Weight (g) 8000.000 Side Panel Construction Steel TAA Compliant Yes Rack Weight Capacity Range Less Than 300 lbs (136kg) Weight Capacity for Racks with No Casters (g) 27700 Frame Type Enclosed Cabinet Industry Standards EIA/ECA-310-E Mounting Hole Types Square (For Cage Nut) Mounting Rail Profile L-Shape Rack Special Features - Ships Fully Assembled
- Wall-Mountable

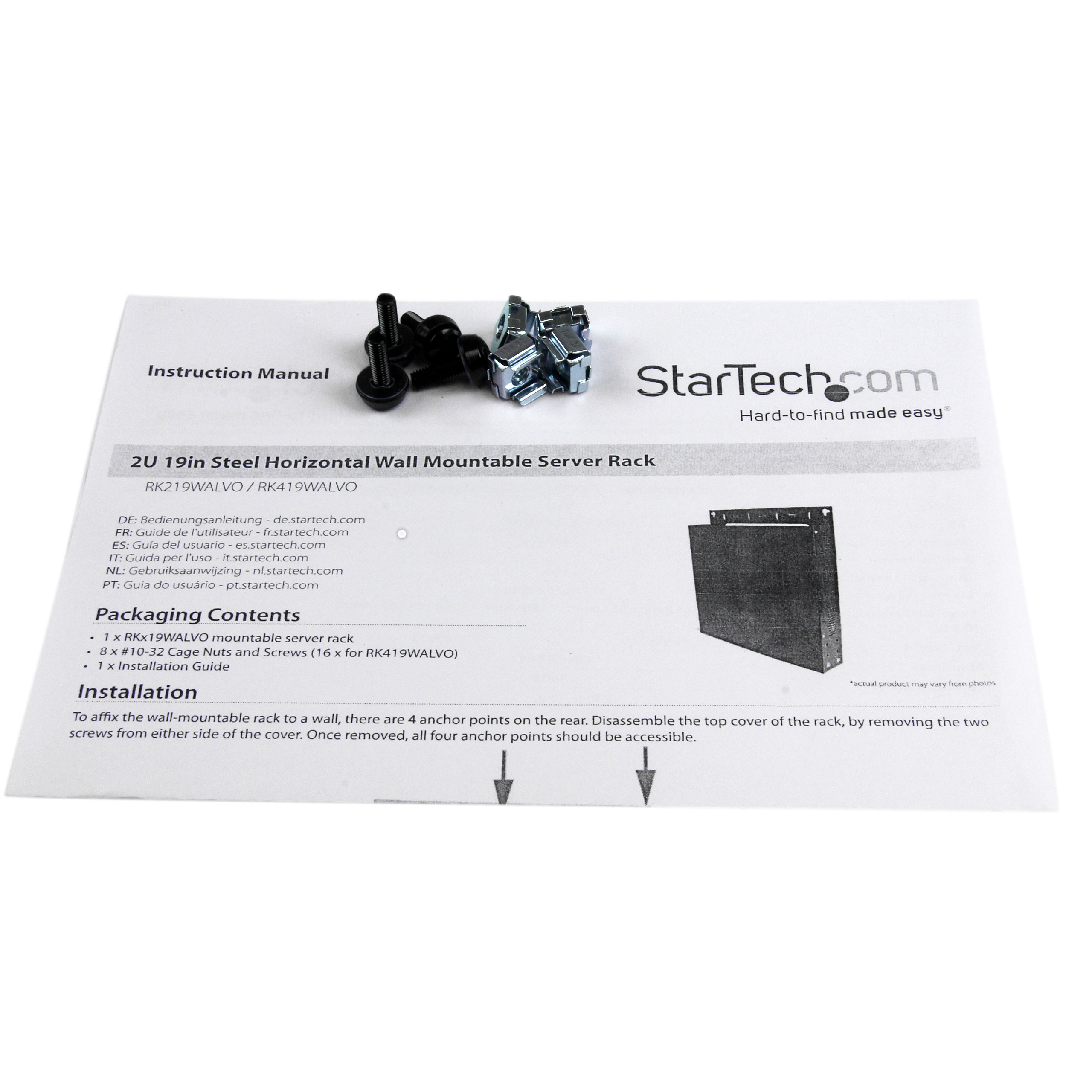

Rack Type 2-Post Rack U Height Ranges 1-5U Side Panel Construction Steel U Height 2U Wallmountable Yes Carton Depth (mm) 532 Carton Height (mm) 154 Carton Quantity 1 Carton Weight Gross (g) 9670 Included in Package - 1 - RK219WALVO 2U Wallmount rack
- 8 - #10-32 Screws
- 8 - #10-32 Cage Nuts
Package Depth (mm) 531 Package Height (mm) 146 Package Width (mm) 574 Package Quantity 1 Package Weight (g) 9742 Packaging Description 2U 19in Horizontal Wall Mount Server Rack Packaging Description India 2U 19in Horizontal Wall Mount Server Rack Rack Flatpack No Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,JP,MX,NL,SE,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Bhuvan Uppal Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
