RK419WALLV-N

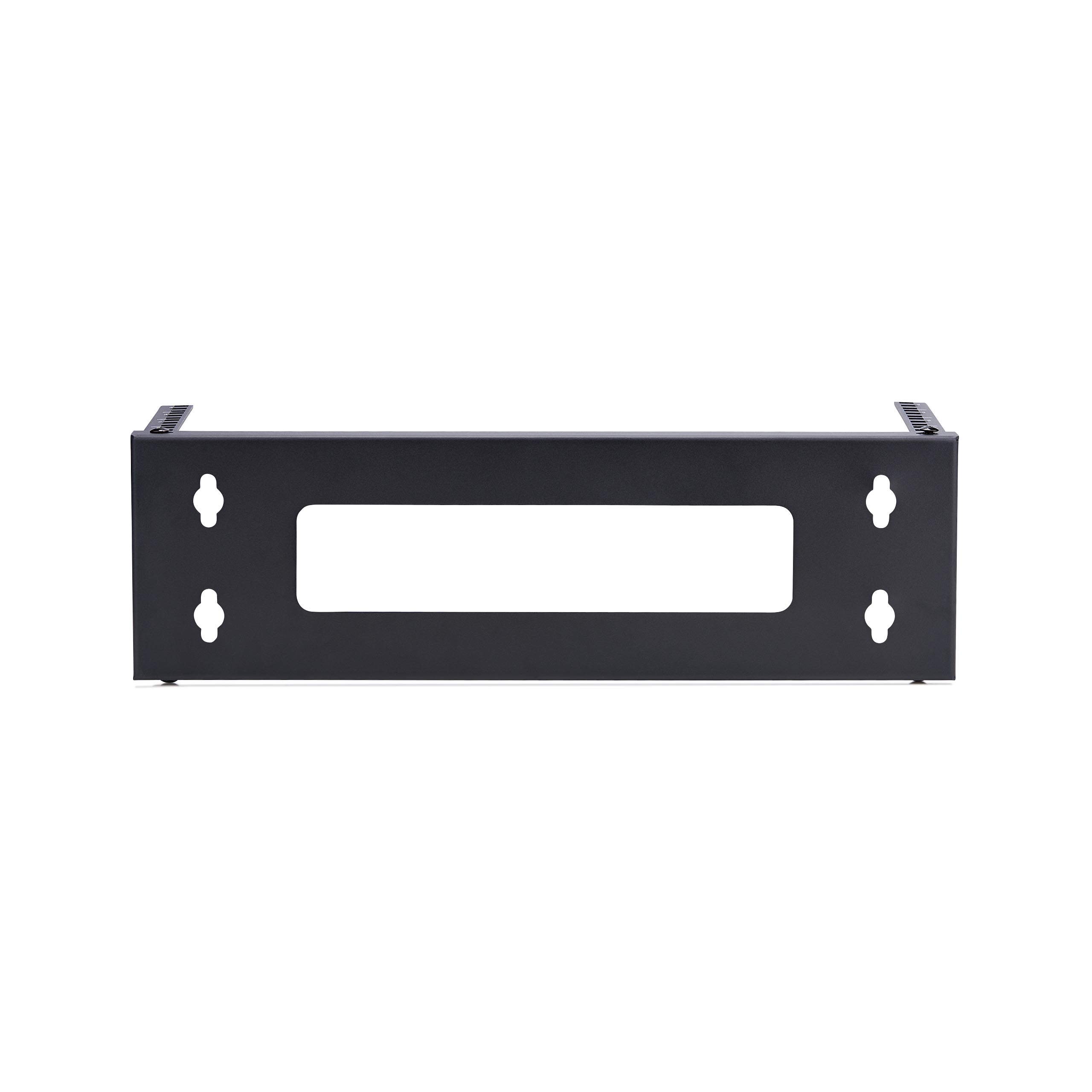

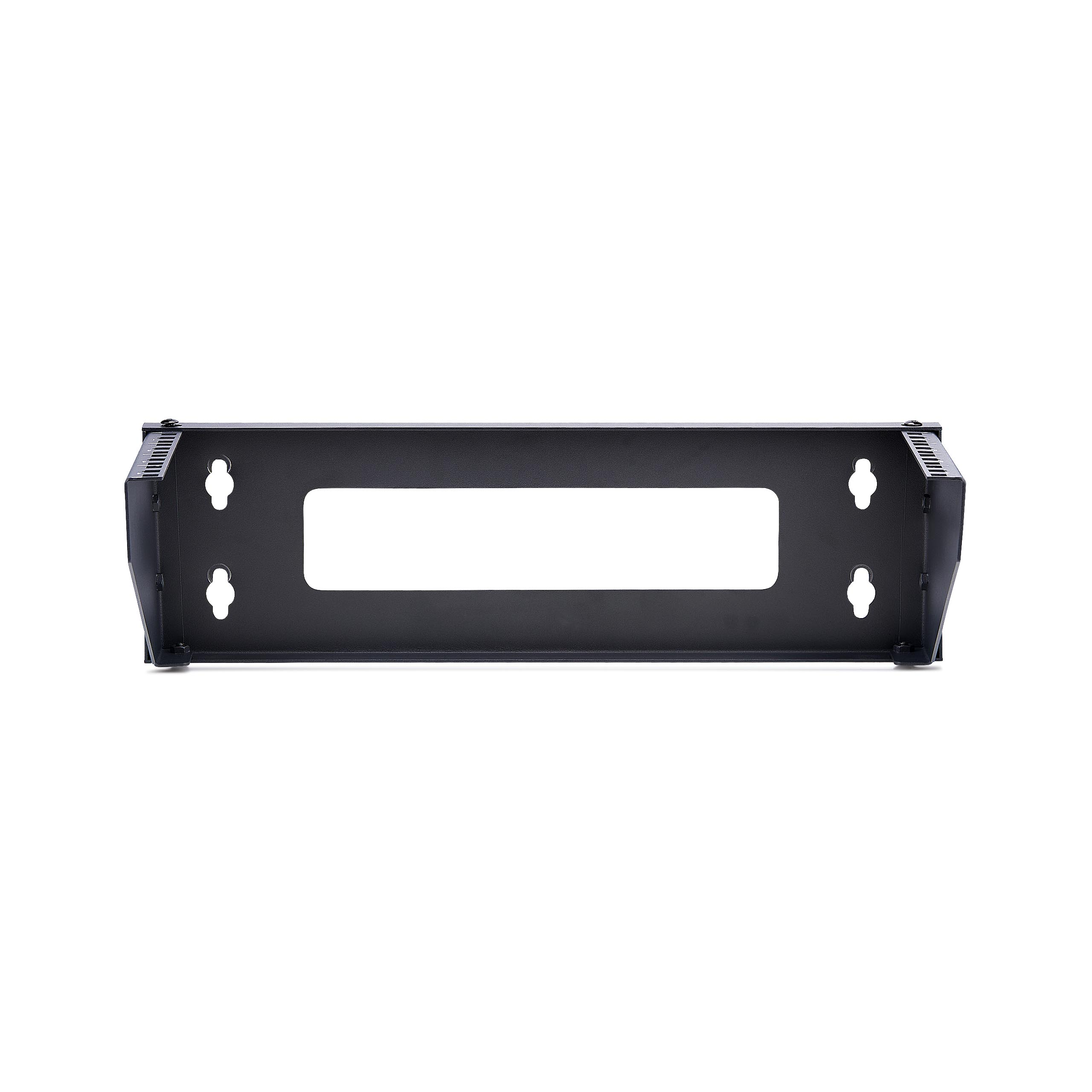

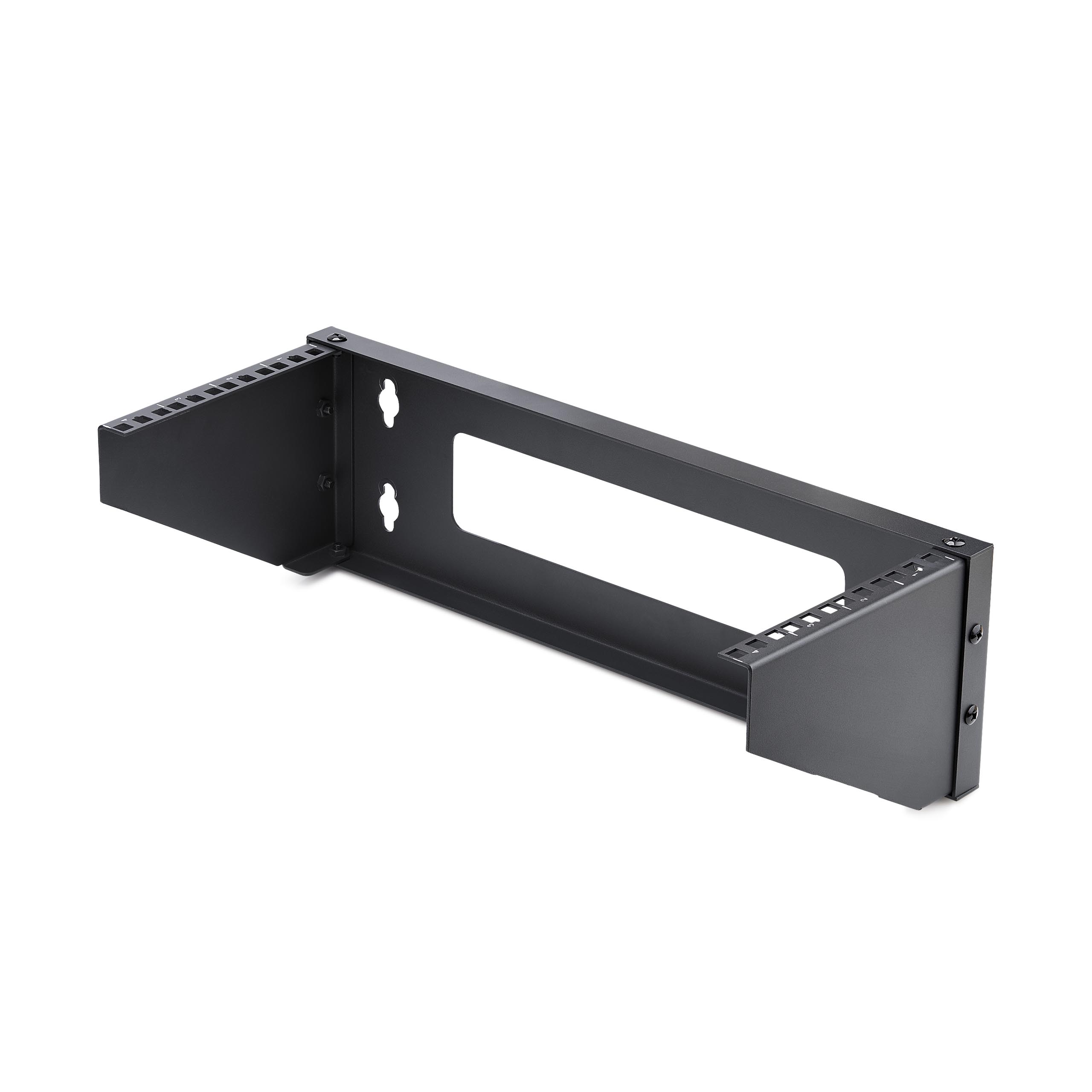

4U 19in Vertical Wall Mount Rack Bracket, Steel

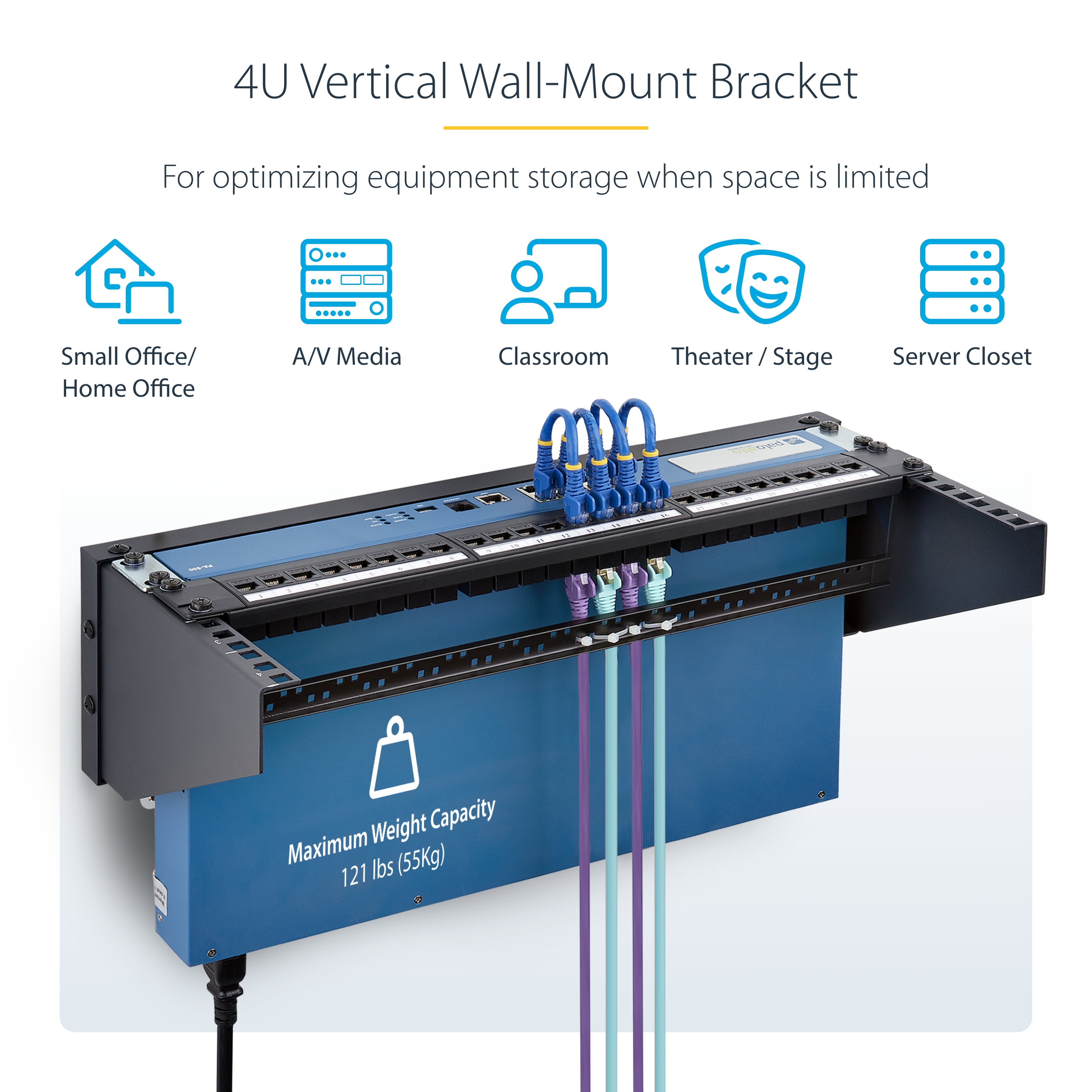

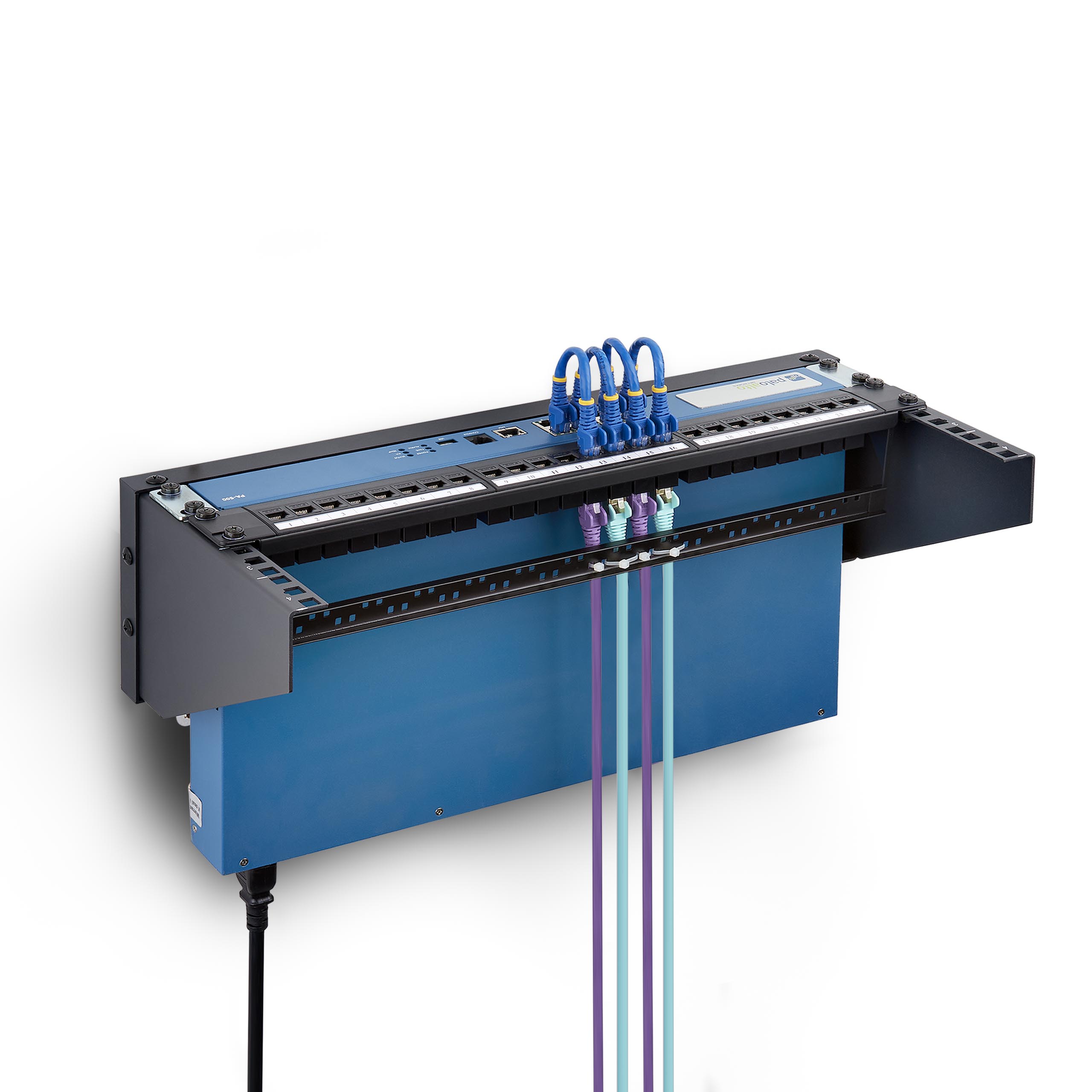

Mount servers, network equipment, or telecommunications devices vertically with this wall-mount rack bracket
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Video Link YouTube
Product Name 4U 19in Vertical Wall Mount Rack Bracket, Steel Product Number RK419WALLV-N UPC 065030912914 Lifecycle status Active Warranty Lifetime Weighted Opportunity 0 Taxonomy Product > Mechanical Products > Open Frame Racks Category Level 1 Racks and Enclosures Category Level 2 Wall-Mount Racks and Enclosures Category Level 3 Vertical Wall-Mount Brackets Family Vertical Wall Brackets Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX144X Product Title (Ultra-Short) 4U Vertical Rack Product Title (Short) 4U Vertical Wall-Mount Bracket/Rack Product Title (Medium) 4U Vertical Wall-Mount Bracket For 19inch Rack Mountable Equipment, 121lb Cap Product Title (Standard) 4U Vertical Wall-Mount Bracket For 19-inch Rack Mountable Equipment, 121lb/55kg Capacity, For Patch Panels/Servers/Networking Product Title (Long) 4U Vertical Wall-Mount Bracket For 19inch Rack Mountable Equipment, 121lb/55kg Capacity, For Patch Panels/Servers/NAS/Networking, Ships Flat-Packed, ISTA-6 Product Title (AMZ) 4U Vertical Wall-Mount Bracket For 19inch Rack Mountable Equipment, 121lb/55kg Capacity, For Patch Panels/Servers Title Ingram (Part 1) 4U Vertical Wall-Mount Rack - Title Ingram (Part 2) Bracket For 19-inch Rack Equipment Website Product Headline Mount servers, network equipment, or telecommunications devices vertically with this wall-mount rack bracket Bullet 1 VERTICAL WALL MOUNT RACK: 4U Wall mount bracket is EIA-310 compliant to ensure compatibility with standard 19" rack-mountable servers, patch panels, NAS, & networking equipment of various depths; Weight capacity 121.2lb (55kg); Minimal footprint Bullet 2 READY TO USE: Wall-mounted vertical rack ships flat-packed and includes wall mounting screws, M5 cage nuts and M5 screws for mounting the equipment; Four keyhole wall mounting holes for simplified mounting and unmounting Bullet 3 BUILT TO LAST: Vertical rack is made from 14-gauge (2mm) cold-rolled steel for durability & sturdiness providing a stable equipment mounting point; Powder-coated finish is scratch resistant ensuring long lasting durability and performance Bullet 4 CERTIFIED PACKAGING: This 19-inch wall rack ships with ISTA-6 certified packaging for damage-free delivery ensuring the data rack is ready for use Bullet 5 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this wall rackmount bracket is backed for life, including free lifetime 24 hour, 5 day, multi-lingual technical assistance Bullets (Compact) 4U vertical wall-mount bracket for 19inch rack mountable equipment - For patch panels/servers/NAS/networking equipment; 121.2lb capacity - Ships flat-packed; Includes cage nuts/screws - 14-gauge cold-rolled steel; Powder-coated finish for durability Bullets (Consolidated) - 4U vertical wall-mount bracket; For 19-inch rack-mountable patch panels/servers/NAS/networking - Can hold equipment of various depths - 121.2lb/55kg capacity; EIA-310 compliant; Compact design for minimal footprint - Rack ships flat-packed with wall mounting screws/M5 cage nuts/M5 screws; Four keyhole wall mounting holes for easy mounting/unmounting - Made from 14-gauge (2mm) cold-rolled steel; Powder-coated finish for long-lasting durability - Damage-free delivery w/ISTA-6 certified packaging Marketing Copy Marketing Copy (No HTML) Required Regulatory Compliance Marks - REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box
- Triman/Info-Tri - Product - Waste - European Union - Furniture and Non-EEE
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - Low-Density Polyethylene
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark

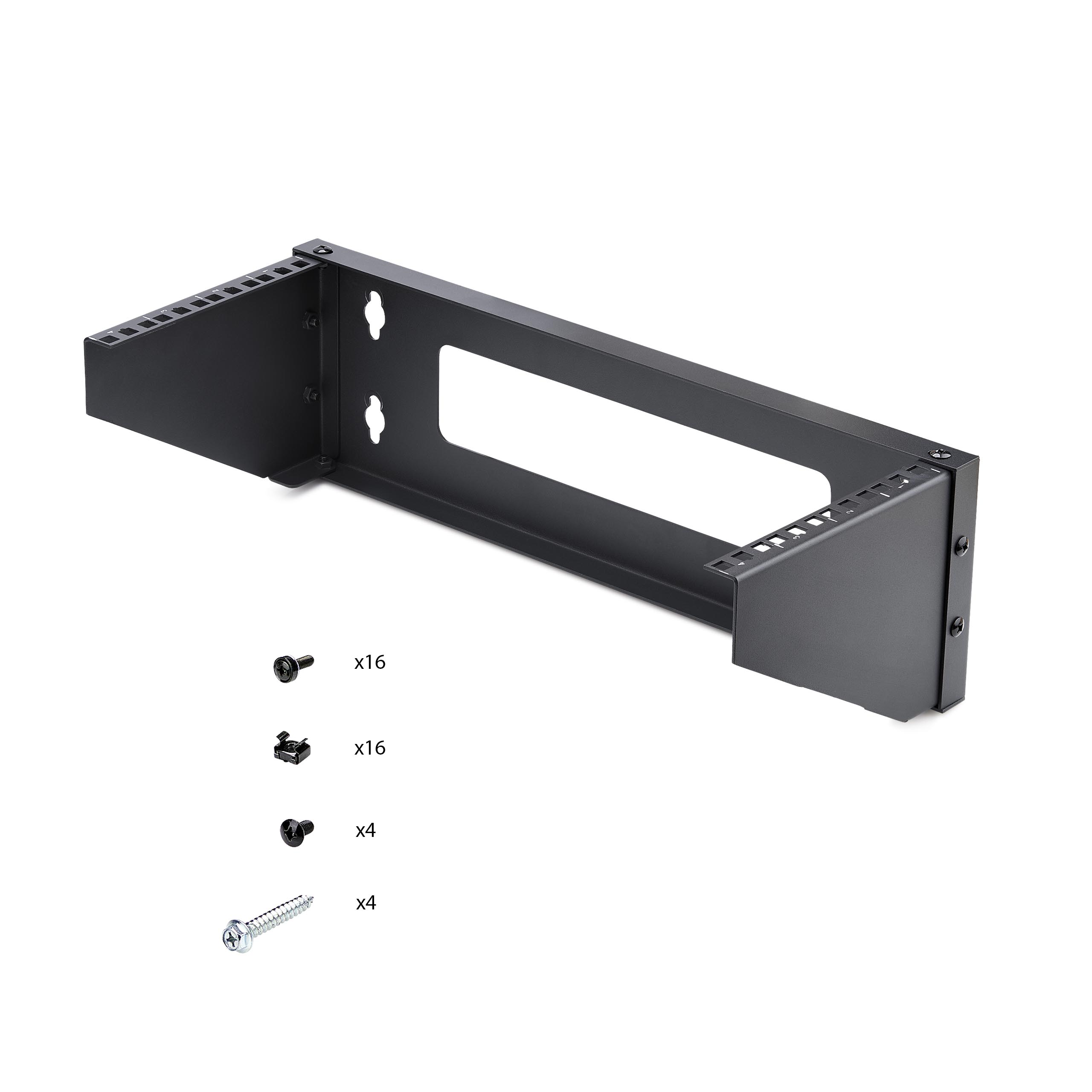

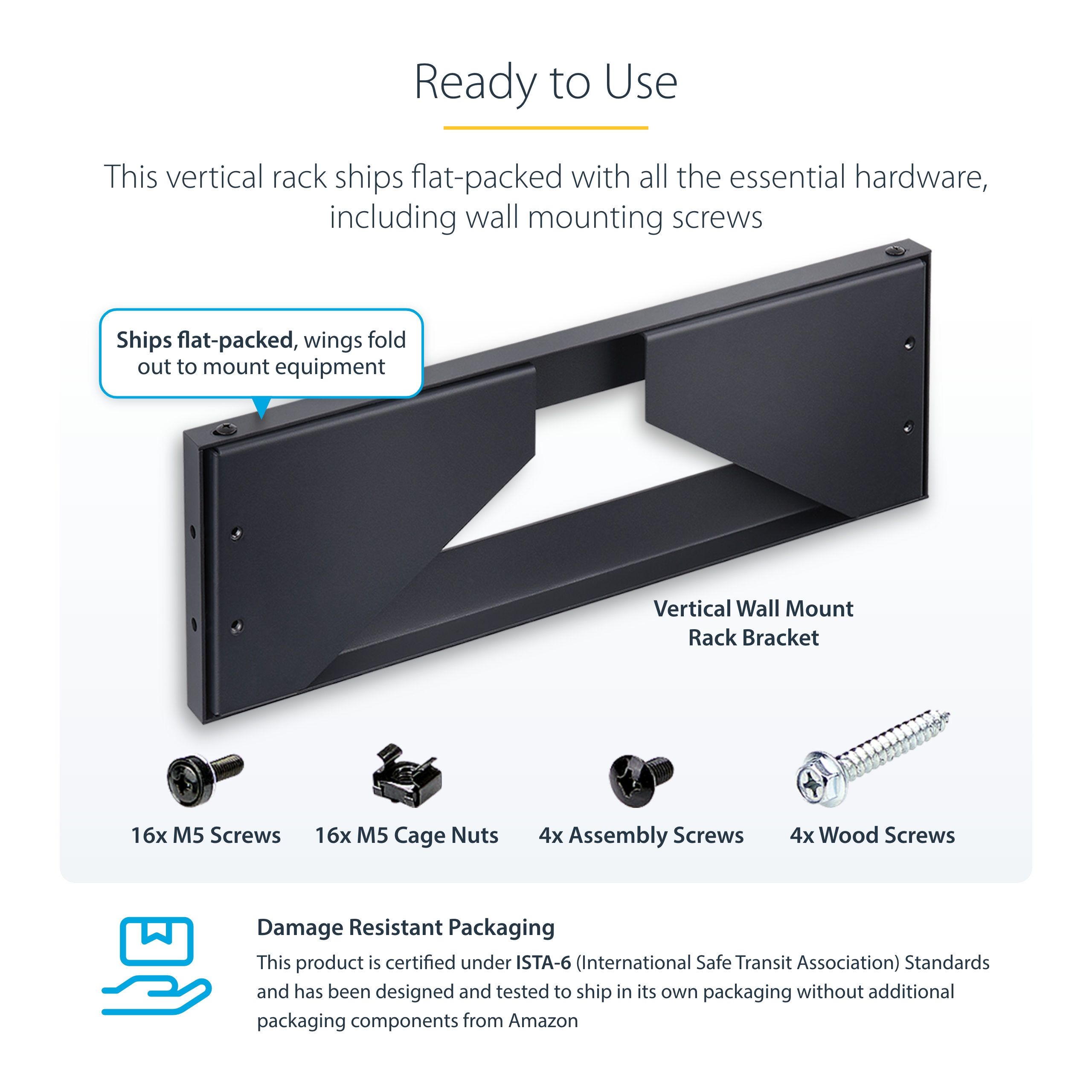

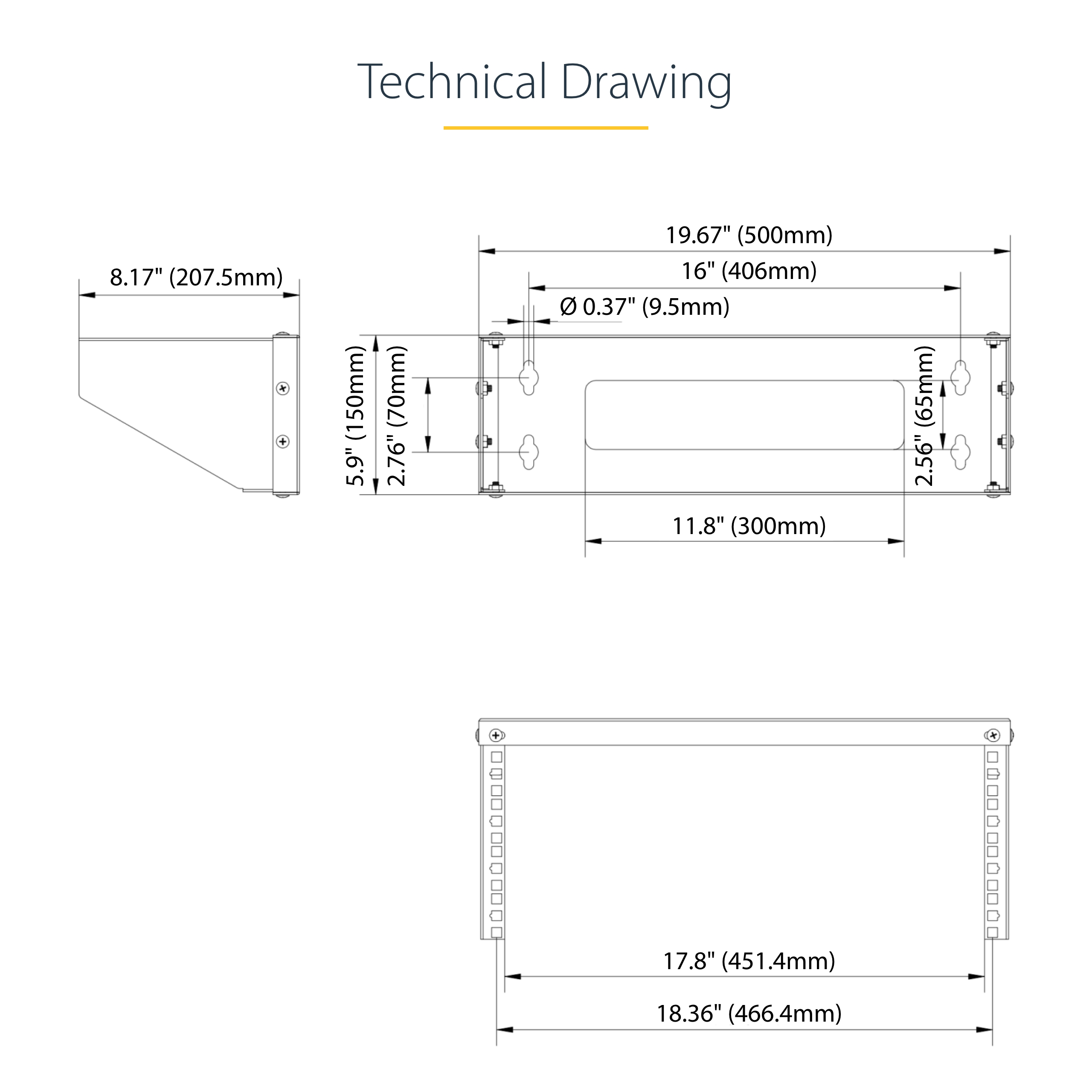

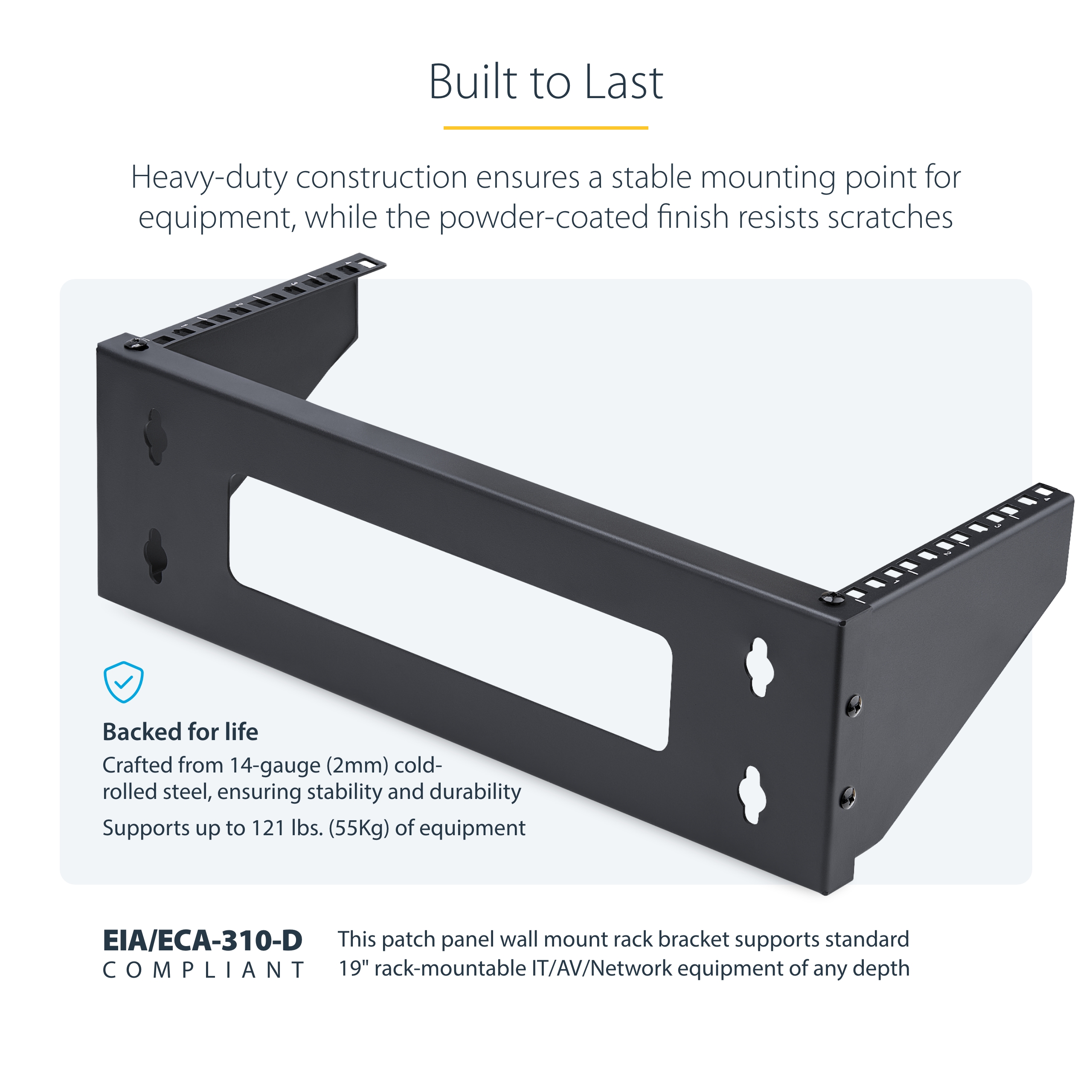

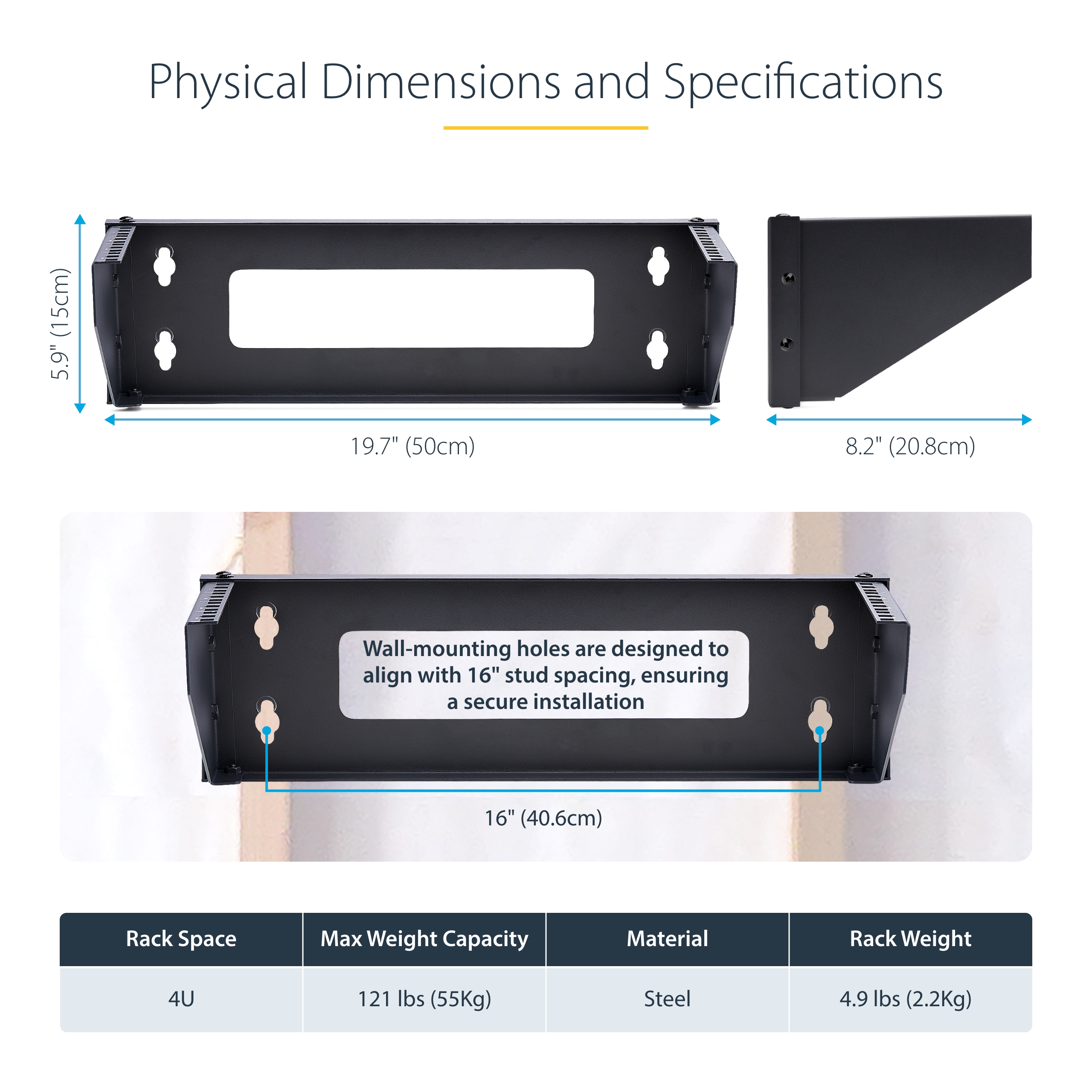

Special Notes Package includes screws for mounting to wood surfaces, additional hardware will be required for other materials. Color Black Construction Material Steel Depth Capacity (Filter) Open Depth Primary Material Steel Product Length (mm) 150.000 Product Width (mm) 500.000 Product Height (mm) 205 Product Weight (g) 2404 TAA Compliant No Rack Weight Capacity Range 90 - 150 lbs. (40 - 68 kg.) Weight Capacity for Racks with No Casters (g) 55000 Frame Type Open Frame Industry Standards EIA/ECA-310-E Mounting Hole Types Square (For Cage Nut) Rack Type 2-Post Rack U Height Ranges 1-5U Tools Included No U Height 4U Wallmountable Yes Carton Depth (mm) 225 Carton Height (mm) 100 Carton Quantity 1 Carton Weight Gross (g) 2850 Included in Package - 1 - Vertical Wall Mount Rack Bracket
- 4 - Assembly Screws
- 4 - Wood Screws
- 1 - Quick-Start Guide
- 16 - M5 Cage Nuts
- 16 - M5 Screws
Package Depth (mm) 225 Package Height (mm) 100 Package Width (mm) 570 Package Weight (g) 2850 Packaging Description 4U 19in Vertical Wall Mount Rack Bracket - Flat-Pack Packaging Description India 4U 19in Vertical Wall Mount Rack Bracket - Flat-Pack Rack Flatpack Yes Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 A+ Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kathleen Marshall Amazon Only SKU Yes Application Photos Uploaded Artwork Due Date 2024-08-09 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Comparable SKU Comment 4U, 2 Post, 125lb, Full Assem. Comparable SKU 2 Comment NA Digital Content Due Date 2024-10-11 Enhanced Gallery Uploaded Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Sticker label - 37x20mm Launch Markets (concatenated) AU,CA,DE,ES,EU,FR,IN,IT,JP,MX,NL,SE,UK,US Primary Technology None Priority New Product High Product Development Specialist Brian Ha Product Information Creation Specialist (PICS) Alex Garcia Product Manager Bhuvan Uppal Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2024-08-02 Target Production Release 2024-08-09 Tech Lead Justin Weaver Technical Writer Alex Garcia Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
