RK4242BK24

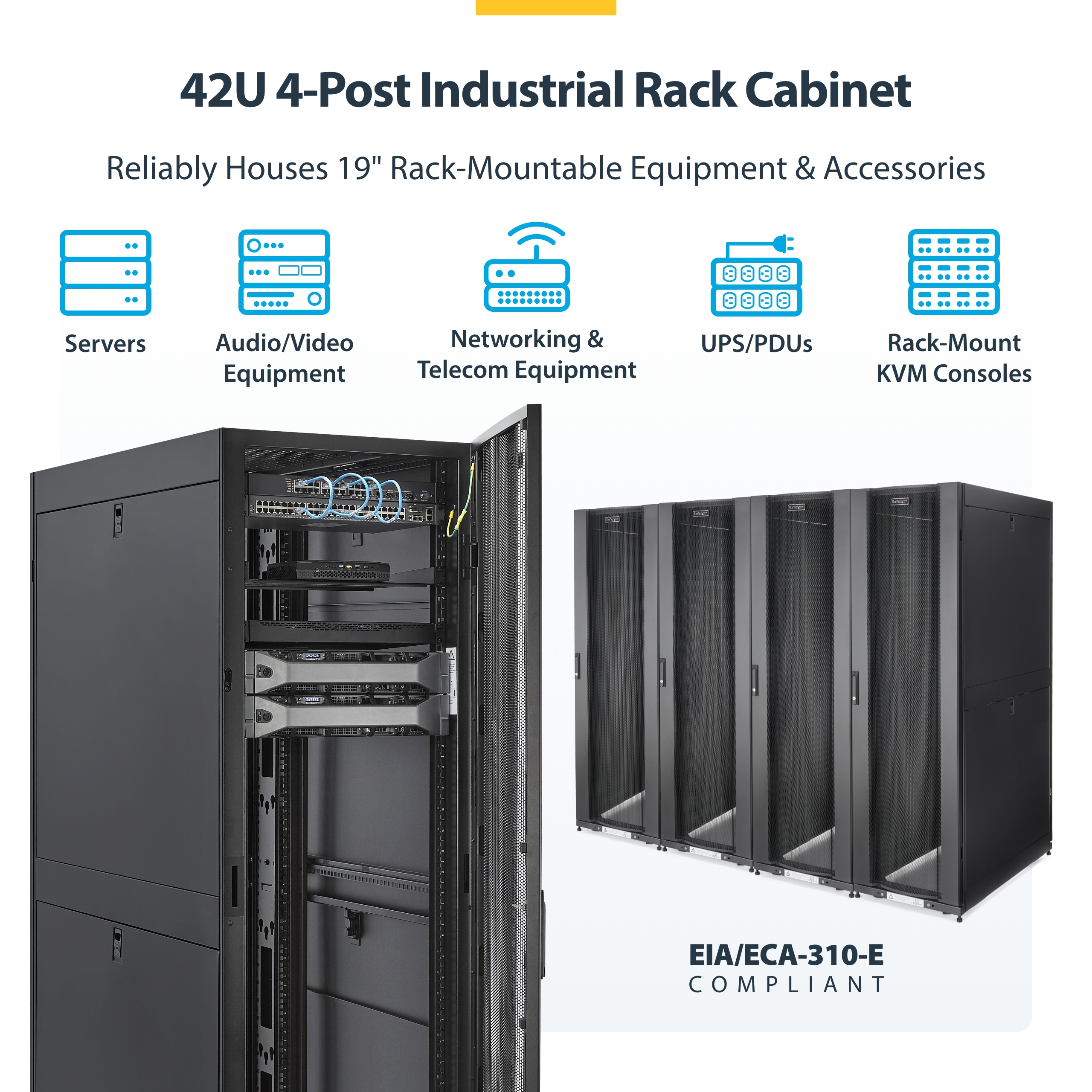

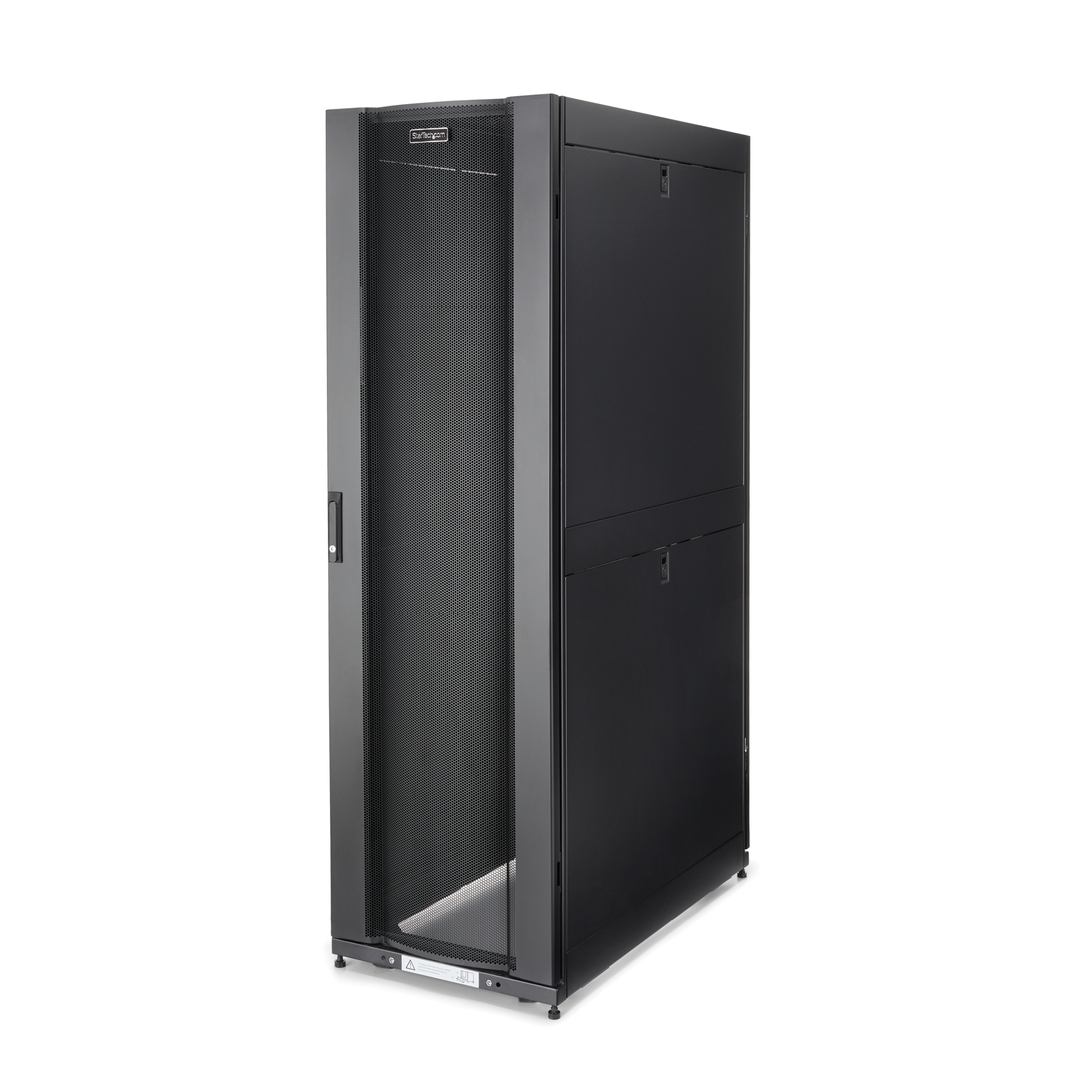

42U 42in Server Rack Cabinet
Securely store servers, network and telecommunications equipment in this 42U server rack
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Video Link YouTube
Product Name 42U 42in Server Rack Cabinet Product Number RK4242BK24 UPC 065030867504 Lifecycle status Active Warranty 5 Years Taxonomy Product > Mechanical Products > Rack Enclosures Category Level 1 Racks and Enclosures Category Level 2 Rack Enclosures Category Level 3 Full-Size Enclosures - 40U+ - A Family 19" Assembled Server Rack Cabinet - Vented Door Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX095X Product Title (Ultra-Short) 42U Rack Cabinet Product Title (Short) 42U Server Rack Cabinet 3-40in w/Casters Product Title (Medium) 42U Server Rack Cabinet - 37 in. Deep Enclosure - Server Cabinet Network Cabinet Product Title (Standard) 4-Post 42U Server Rack Cabinet, 19" Data Rack Cabinet for Computer / IT Equipment mount, Rack Server Cabinet with Casters Product Title (Long) 42U Enterprise-Grade Server Rack Cabinet Kit, 19in Enclosed 4-Post Rack with Built-in Cable Management, 35in (89cm) Mounting Depth, 3307lb (1500kg) Capacity Product Title (AMZ) 42U Enterprise-Grade Server Rack Cabinet Kit, 19in Enclosed 4-Post Rack with Built-in Cable Management, 35in (89cm) Mounting Depth, 3307lb (1500kg) Capacity Title Ingram (Part 1) 42U Server Rack Cabinet Adjustable Title Ingram (Part 2) to 37” Deep - Assembled Website Product Headline Securely store servers, network and telecommunications equipment in this 42U server rack Bullet 1 ADJUSTABLE DEPTH: 4-Post 42U server rack enclosure with 4 vertical rails and adjustable mounting depth 5.0" to 35.0" (12,7 to 88,9cm); 19" IT rack works with a wide number of servers / switches / video / AV / data / IT networking equipment Bullet 2 DESIGN AND VENTILATION: 42U computer rack cabinet has lockable and removable door and side panels with vented top allowing airflow; 4 Post 19" with 3307lb (1500kg) weight capacity (stationary); EIA/ECA-310-E Compliant Bullet 3 FULLY ASSEMBLED: Network cabinet rack enclosure ships fully assembled; Includes 200x M6 Screws, 200x M6 Cage Nuts, 200x Washers, 1x Hex Key 2x Door Keys; Server storage cabinet is EIA/ECA-310-E compliant Bullet 4 SECURITY & VENTILATION: 42U rack server cabinet has lockable mesh doors and removable side panels with independent quick-release locks that keep your equipment secure while increasing airflow to promote passive cooling Bullet 5 MAXIMIZE MOBILITY: The 4-post durable steel IT rack cabinet comes with both casters and leveling feet already installed, providing ease of mobility for your office, studio, or server room storage Bullets (Compact) 4-Post 42U server rack enclosure w/ adjustable mounting depth - 3300lb (1500kg) weight capacity - Network cabinet rack ships fully assembled - IT rack cabinet comes w/ installed casters & leveling feet - EIA/ECA-310-E compliant Bullets (Consolidated) - 4-Post 42U server rack enclosure w/ adjustable mounting depth (5.0-35.0in/12,7-88,9cm); 19" IT rack is for servers / IT equipment - 42U computer rack cabinet; 3300lb (1500kg) weight capacity (stationary) - Network cabinet rack ships fully assembled; Server storage cabinet is EIA/ECA-310-E compliant - 42U rack server cabinet has lockable / removable doors increasing airflow - IT rack cabinet comes with installed casters and leveling feet adding mobility for your office / server room storage Marketing Copy Marketing Copy (No HTML) Applications - Broadcasting equipment
- Mount servers and KVM switches
- Deploy to maximize space
- Keep equipment secure
Website Search Keyword - 24 inches wide
- 37 inch mounting depth
- 42U
- 42u rack
- 42u rack cabinet
- 42u rack enclosure
- 42u server cabinet
- 42u server rack
- ASE81042
- cabinet rack
- computer rack
- computer server rack
- data cabinet
- data rack
- data rack enclosure
- easy rail depth adjustment
- EIA-310 compliant
- enclosed server rack
- half server rack

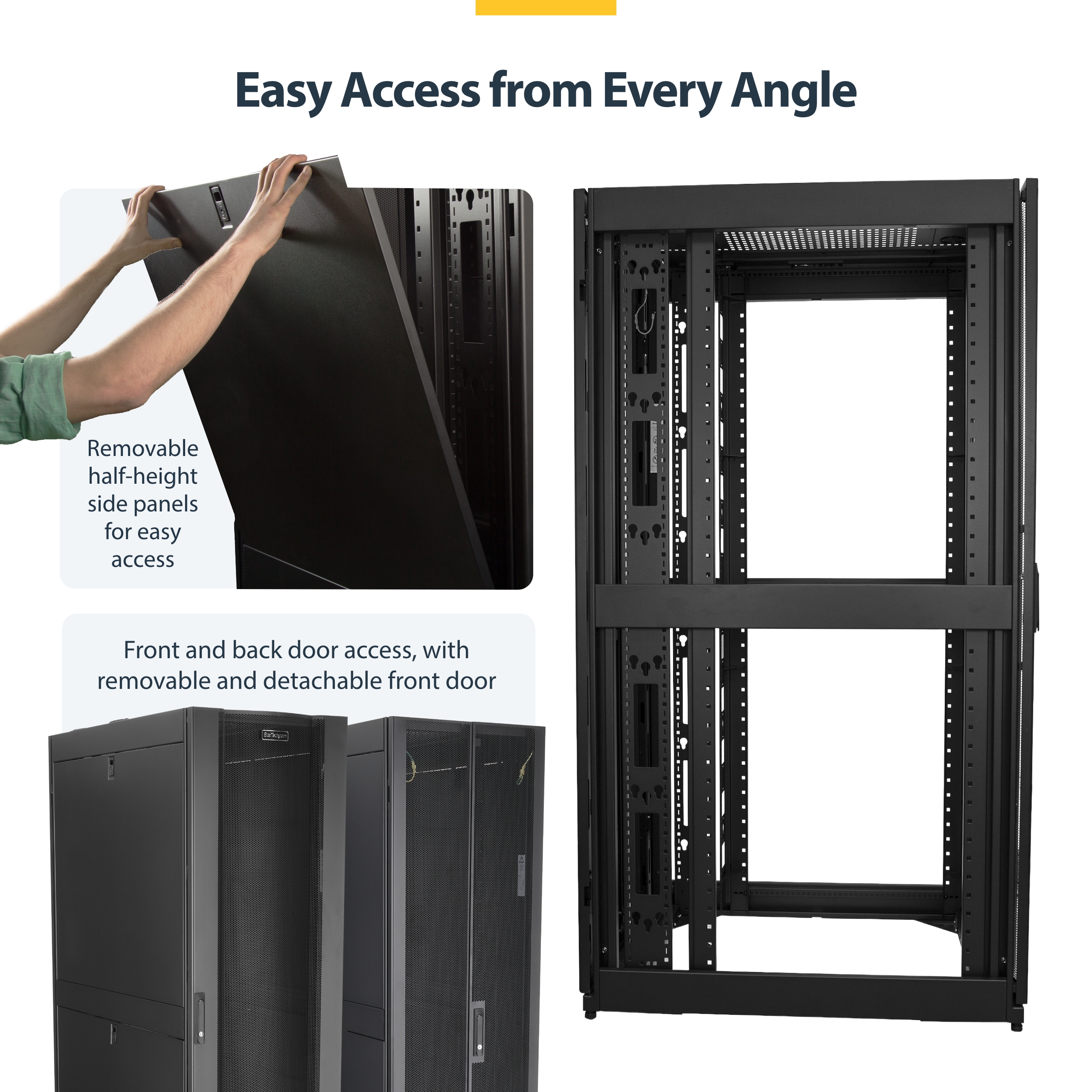

- half-height removable side panels
- it cabinet
- lifetime warranty
- network cabinet
- network rack
- network rack cabinet
- networking cabinet
- networking rack
- portable server rack
- quick-release doors and panels
- rack
- rack cabinet
- rack cabinet enclosure
- rack enclosure
- rack mount cabinet
- rack mount enclosure
- rolling server rack
- server cabinet
- server cage
- server enclosure
- server rack
- server rack 42u
- server rack cabinet
- server rack enclosure
- solid steel
- split rear doors
- Tripp Lite rack
- u numbers front and back
- SR42UBDPWD
- SR42UB
- SRX42UB
- SRX42UBDP
Required Regulatory Compliance Marks - Temp - N/A - Global - Used to replace duplicates or identify for removal
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - Furniture and Non-EEE

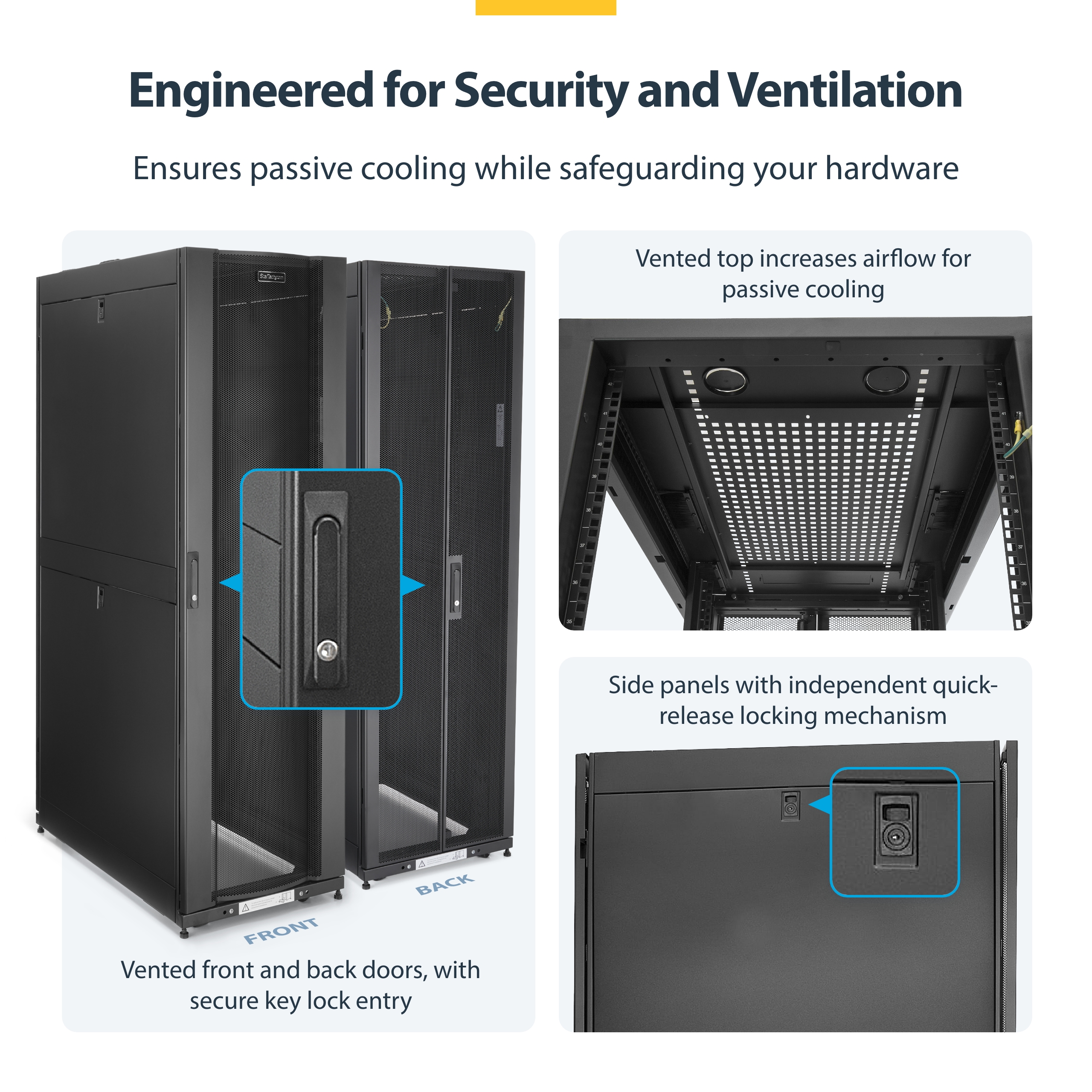

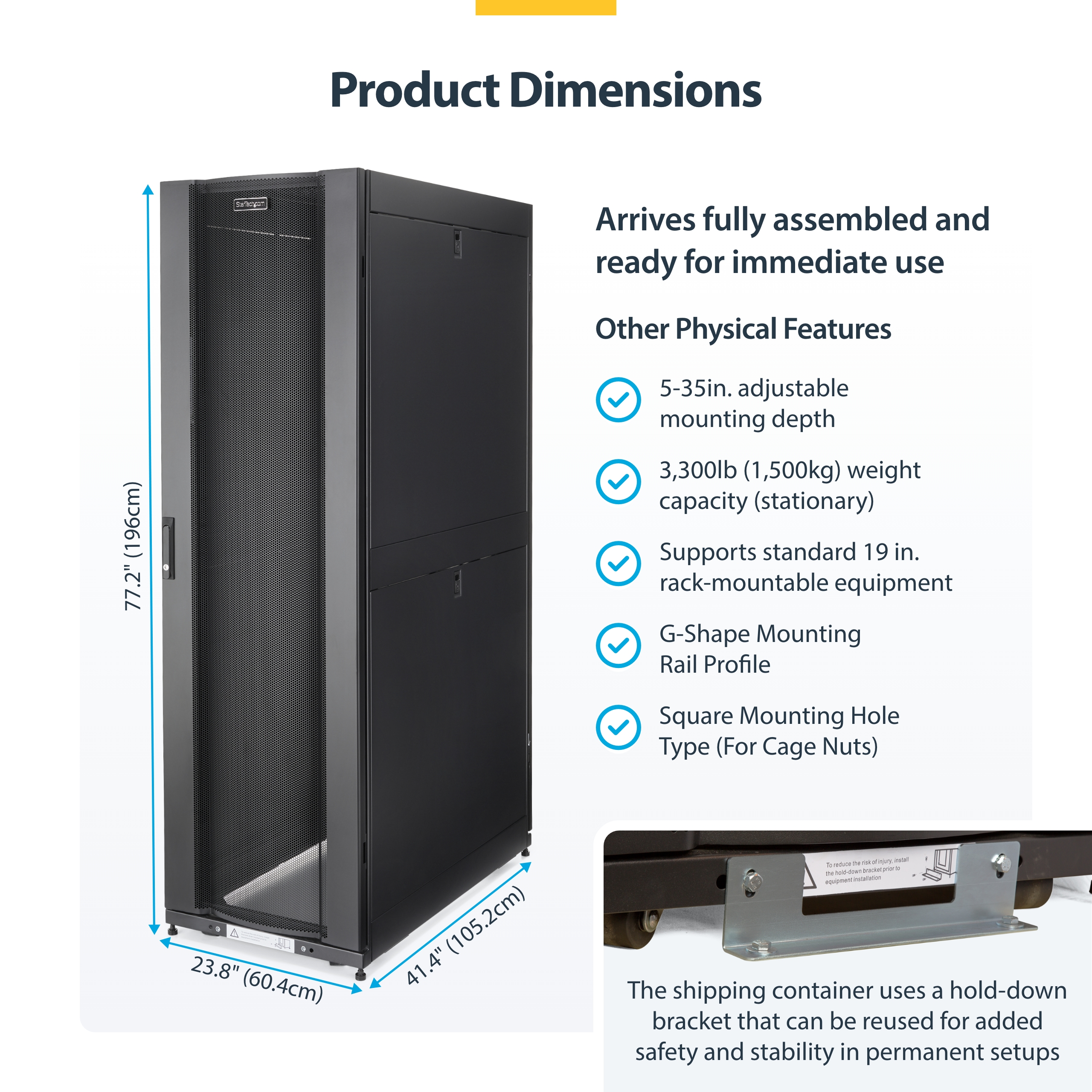

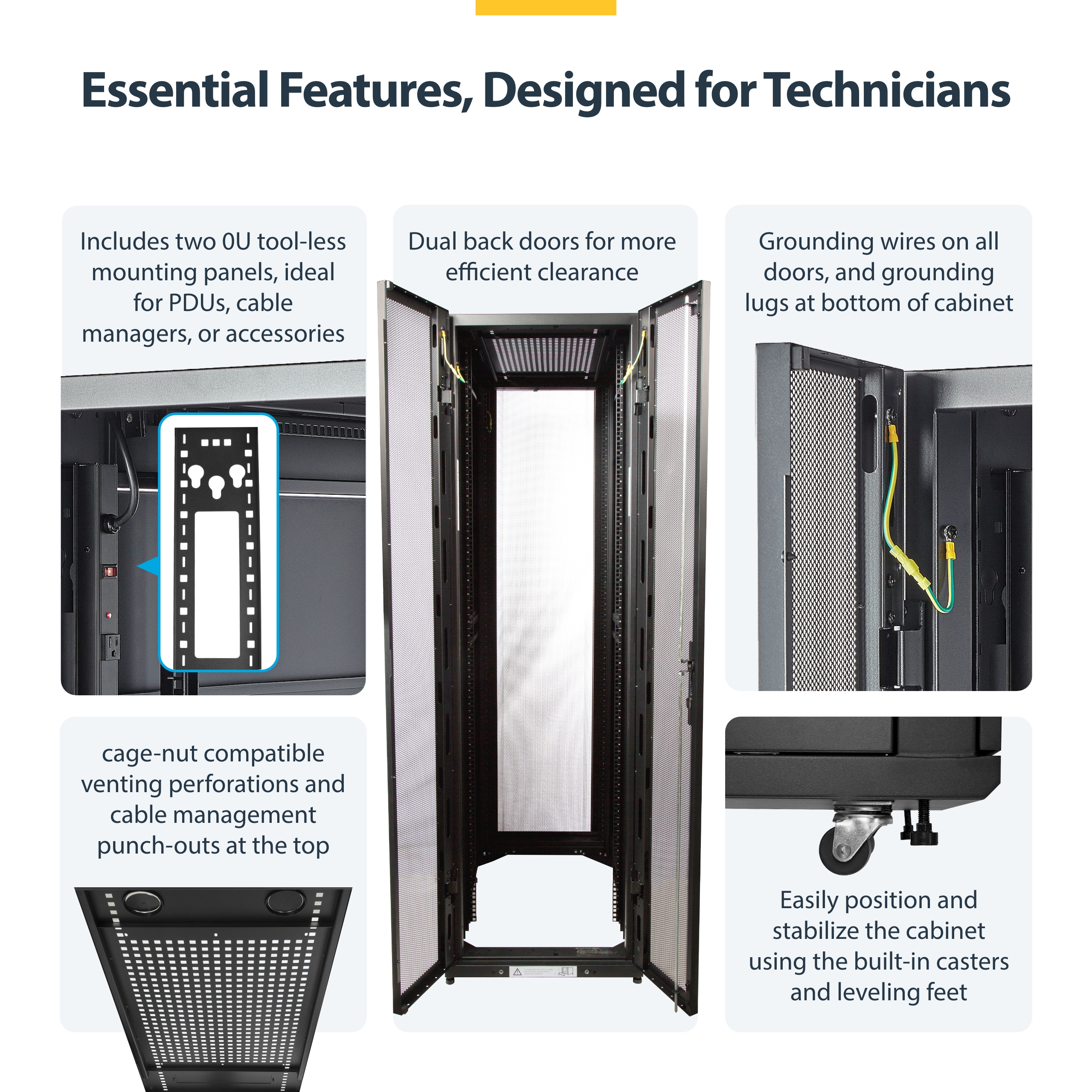

Back Door Features Secure Key Lock with Removable Back Door Color Black Depth Capacity (Filter) Greater Than 24 in. (610mm) Front Door Features Secure Key Lock with Removable Front Door Height with Casters (mm) 1992 Internal Depth (mm) 1052 Internal Width (mm) 600 Material Steel Maximum Mounting Depth (mm) 889 Minimum Mounting Depth (mm) 132 Primary Material Steel Product Length (mm) 1069.000 Product Width (mm) 600.000 Product Height (mm) 1955.500 Product Weight (g) 129000.000 Side Panel Construction Steel TAA Compliant No Rack Weight Capacity Range Greater Than 3000lbs (1360kg) Weight Capacity for Racks (Rolling) (g) 1050000 Weight Capacity for Racks (Stationary) (g) 1500000 Back Door Construction Steel Mesh Frame Type Enclosed Cabinet Front Door Construction Steel Mesh Industry Standards EIA/ECA-310-E Mounting Hole Types Square (For Cage Nut) Mounting Rail Profile G-Shape Rack Special Features - Adjustable Mounting Rails
- Built-in Cable Management
- Grounding Lug(s)
- Leveling Feet
- U-Markings
- Ships Fully Assembled
- Casters (Included)

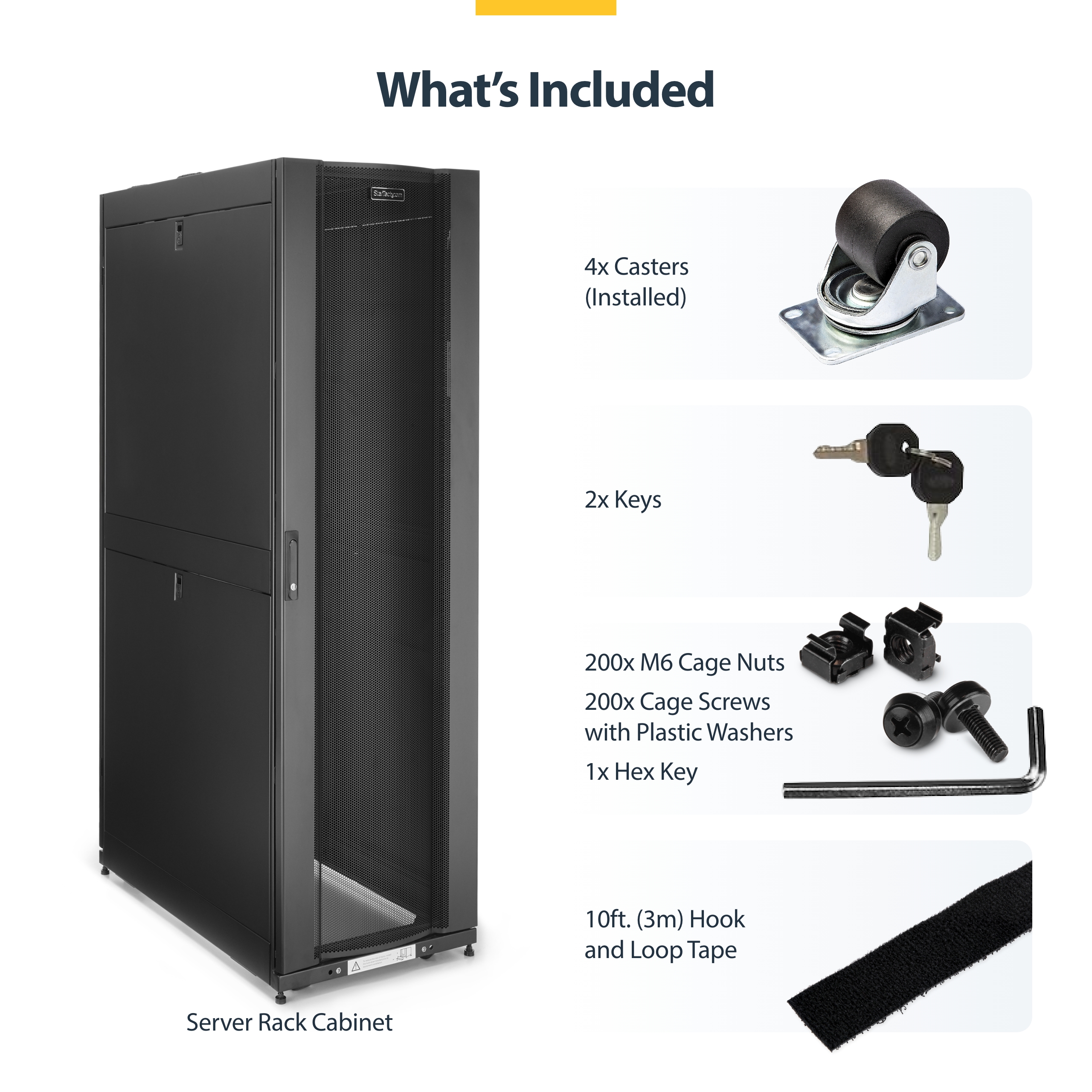

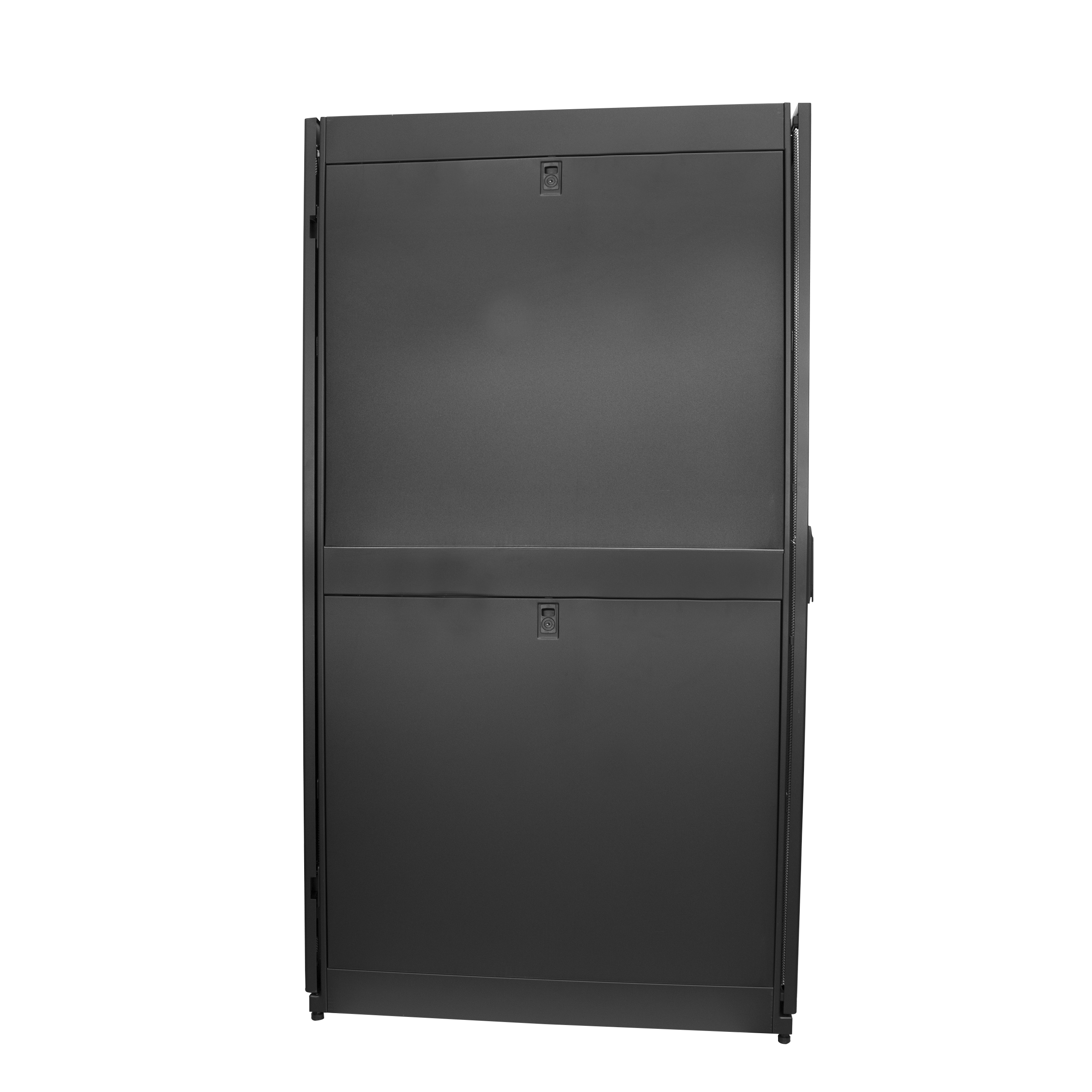

Rack Type 4-Post Rack U Height Ranges 36-45U Side Panel Construction Steel Side Panel Features Secure Key Lock with Removable Side Panels U Height 42U Wallmountable No Carton Depth (mm) 675 Carton Height (mm) 2135 Carton Quantity 1 Carton Weight Gross (g) 169000 Included in Package - 1 - Server Rack Cabinet
- 200 - M6 Cage Nuts
- 200 - M6 Screws
- 200 - Plastic Cup Washers
- 1 - Hex Key
- 2 - Keys
- 1 - 10 ft. [3 m] Hook and Loop Tape
- 1 - User Manual
Included In Package for Label - 1 - Cabinet
- 200 - Hardware Kit
- 2 - Keys
- 1 - User Manual
- 1 - 10 Ft [3 M] Hook And Loop Tape
- 200 - Plastic Cup Washers
- 1 - Hex Key
Package Depth (mm) 680 Package Height (mm) 2134 Package Width (mm) 1170 Package Quantity 1 Package Weight (g) 160500 Packaging Description Server Rack Cabinet - 42U Packaging Description India Server Rack Cabinet - 42U Rack Flatpack No Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2017-03-08 Buying Center - AV & Collaboration No Buying Center - Data Center Yes Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2017-06-20 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) CA,IN,JP,NZ,SG,US Primary Technology None Product Development Specialist Anthony Slater Product Information Creation Specialist (PICS) Alex Garcia Product Manager Bhuvan Uppal Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2017-02-20 Target Production Release 2017-03-10 Tech Lead Stefan Tirolese Technical Writer Alex Garcia Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
