RK616WALM

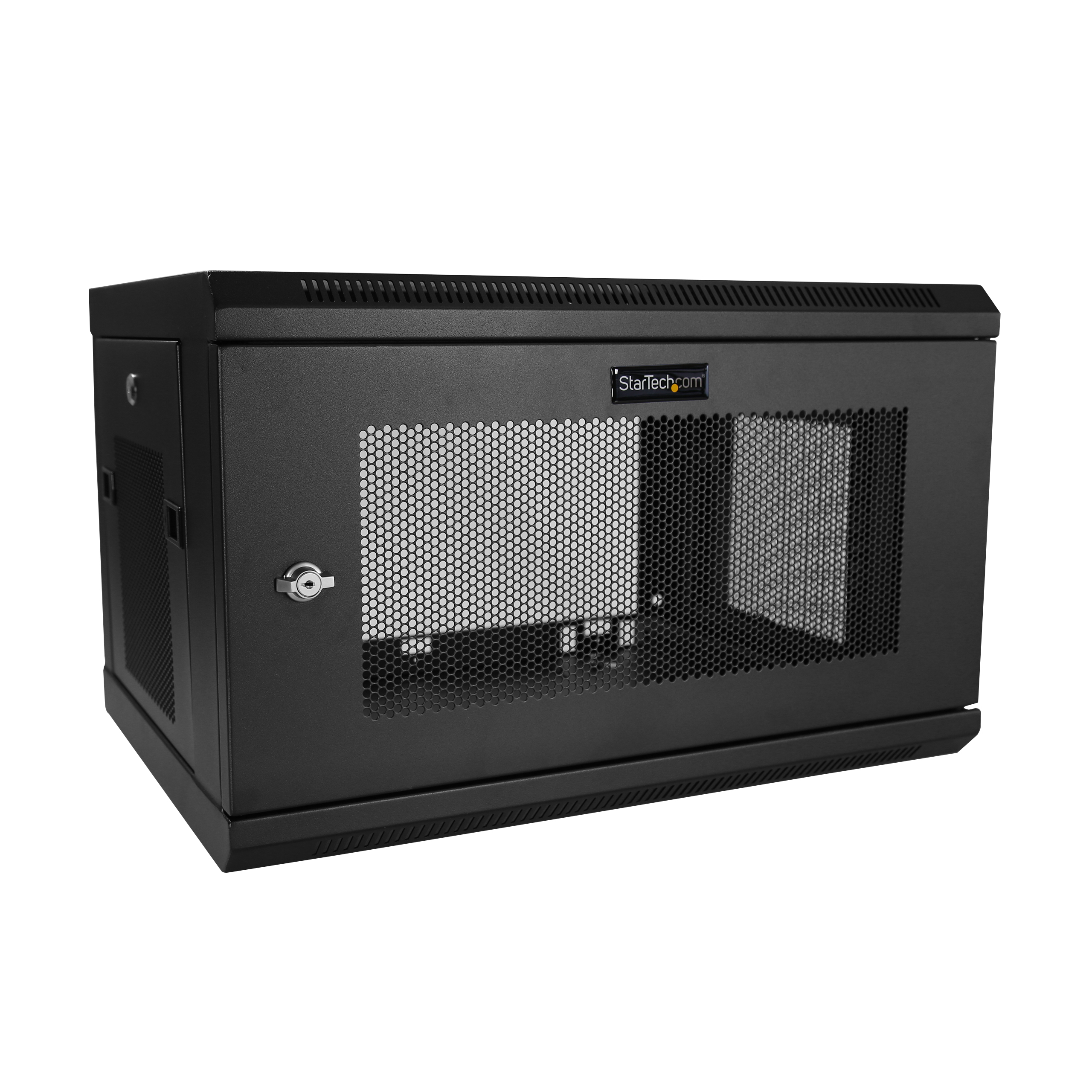

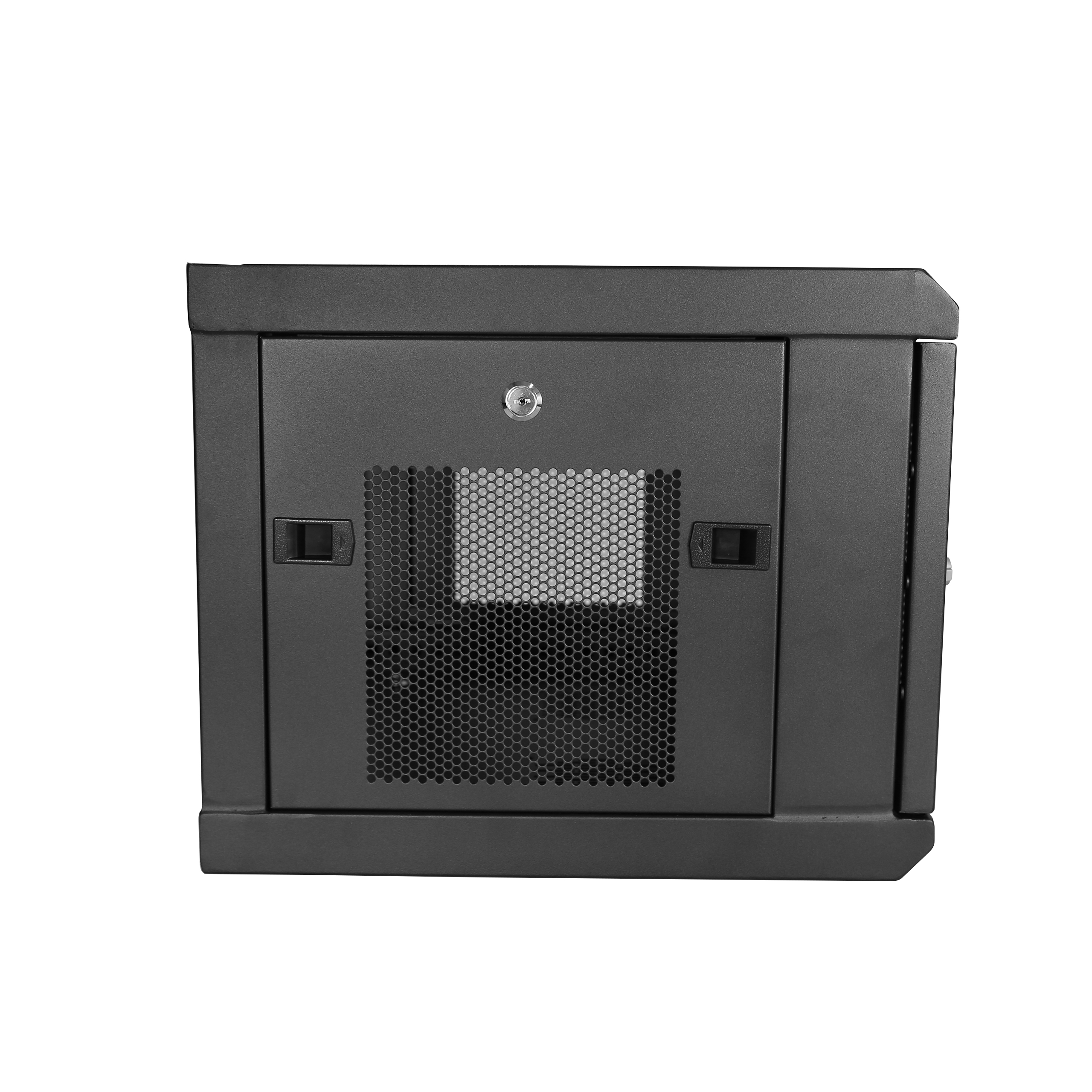

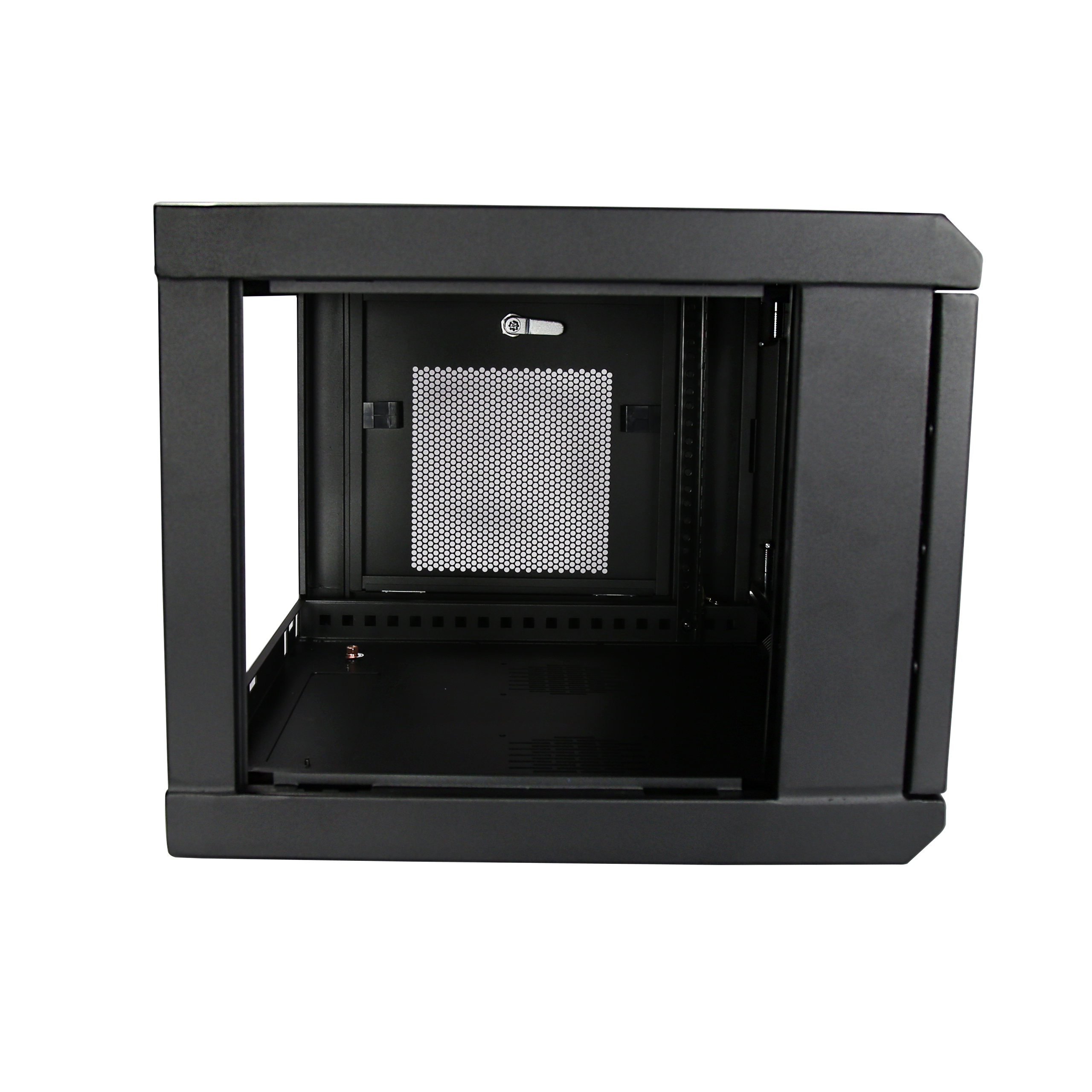

6U 16 5 inch deep wallmount rack
Use this wall mount network cabinet to mount your server or networking equipment to the wall
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Product Name 6U 16 5 inch deep wallmount rack Product Number RK616WALM UPC 065030870047 Lifecycle status Active Warranty 5 Years Taxonomy Product > Mechanical Products > Rack Enclosures Category Level 1 Racks and Enclosures Category Level 2 Wall-Mount Racks and Enclosures Category Level 3 Wall-Mount Enclosures Family Wall Mount Network Rack Cabinet Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX095X Product Title (Ultra-Short) 6U Wall-Mount Rack Product Title (Short) 2Post 6U Wall Mount Network Cabinet 15in Product Title (Medium) 6U Wall Mount Server Rack Enclosure - Server Rack Enclosure - Up to 15in Deep Product Title (Standard) 2-Post 6U Wall Mount Network Cabinet, 19" Wall-Mounted Server Rack for Data / IT Equipment, Small Lockable Rack Enclosure Product Title (Long) 2-Post 6U Wall Mount Network Cabinet with 1U Shelf, 19" Wall-Mounted Server Rack for Data / Networking / AV / Electronics / Computer Equipment, Small Vented Rack Enclosure Product Title (AMZ) 2-Post 6U Wall Mount Network Cabinet w/ 1U Shelf, 19" Wall-Mounted Server Rack Kit for IT / Data Computer Equipment, Ships Fully Assembled Title Ingram (Part 1) 6U Wall Mount Rack - Wall Mount Title Ingram (Part 2) Server and Network Cabinet - 6U Website Product Headline Use this wall mount network cabinet to mount your server or networking equipment to the wall Bullet 1 2-Post 6U RACK CABINET: Wall-Mount Server Rack with a maximum mounting depth of 15.0" (38.0cm) is ideal for installing network switches, patch panels and other rackmount equipment in your warehouse, home / office, store location or server room Bullet 2 EASY ACCESS: Wall-mount data rack features an enclosed and lockable rack design with easy access to the rear of the mounted devices; Small locking server cabinet with reversible and removable front door and removable side panels Bullet 3 BUILT TO LAST: The 6U wall-mounted network cabinet is constructed of high-quality SPCC cold-rolled steel for strength and durability with a maximum weight capacity of 198lb (90kg) Bullet 4 FULLY ASSEMBLED: Swinging network cabinet ships fully assembled with all of the rack screws and cage nuts required to mount your equipment; Includes a shelf and a roll of hook-and-loop fastener; Wall-mount equipment cabinet is EIA/ECA-310-E Compliant Bullet 5 DESIGNED FOR COOLING: Vented IT rack enclosure features mesh front doors and side panels for passive airflow and supports active cooling with up to four optional 120mm fans (e.g., ACFANKIT12 – available in US/CA only) Bullets (Compact) Wall-Mount Server Rack for rackmount equipment - Small data rack features a design with easy access to the devices - 2 Post 6U wall-mounted network cabinet - Ships fully assembled and includes a shelf and accessories - EIA/ECA-310-E Compliant Bullets (Consolidated) - Wall-Mount Server Rack is ideal for switches, patch panels and other rackmount devices in your home / office - Small data rack features an enclosed and lockable design with easy access to the devices - 6U wall-mounted network cabinet is made of high-quality SPCC cold-rolled steel for strength and durability - Ships fully assembled; Includes a shelf, screws / cage nuts and a roll of hook-and-loop fastener - Mesh front door / side panels to provide fresh airflow; EIA/ECA-310-E Compliant Marketing Copy Marketing Copy (No HTML) This 6U server rack cabinet lets you mount your EIA-310 compliant equipment to the wall. The enclosure features a mounting depth up to 15 in. and offers a maximum load capacity of 200 lb. (90 kg). Save valuable floor space, by wall-mounting the enclosure. The wall-mounted design makes this enclosure the ideal solution for optimizing equipment storage in your classroom, retail store, server room or office. This rack also includes a 1U shelf that gives you a stable surface for storing your tools or placing equipment that's not rack-mountable. The wall-mount network rack makes it easy to install your equipment, with 2-post mounting rails that can be positioned to create more room at the front or the back of the enclosure depending on your requirements. The 6U network cabinet features a removable and reversible front door and removable side panels, each with quick-release mechanisms, so you can easily access your equipment. Plus, each door and panel on this rack features an independent lock, ensuring your equipment is secure. The wall-mount server rack also includes all of the cage nuts and mounting screws you'll need to fill the rack with equipment, saving you the time, hassle and cost of sourcing mounting hardware. For hassle-free cable management, the rack includes a 3-meter roll of hook-and-loop cable tie that makes it easy to keep your cables neat and tidy by binding them together or binding them to the rack. The self-gripping fabric can be cut to any size, enabling a wrap-around solution for the cables of any rack-mount equipment. This server rack enclosure features heavy-duty steel construction, with lockable doors at all entrances. For hassle-free equipment installation, the mounting rails on the rack can be switched for use with square holes and cage nuts, or tapped rails. The RK616WALM is backed by a StarTech.com 5-year warranty and free lifetime technical support. Applications - Wall-mount your server and networking equipment flush against the wall, in areas with limited space, such as technology store fronts or repair centers
- Install the rack in your small office environment, where you can't fit a full-sized rack
- Organize cabling or equipment in your network closet, wiring closet, back office or IDF
Website Search Keyword - SRW6UKD
- SRW6UDP
- SRW6U
Required Regulatory Compliance Marks - Temp - N/A - Global - Used to replace duplicates or identify for removal
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - Furniture and Non-EEE

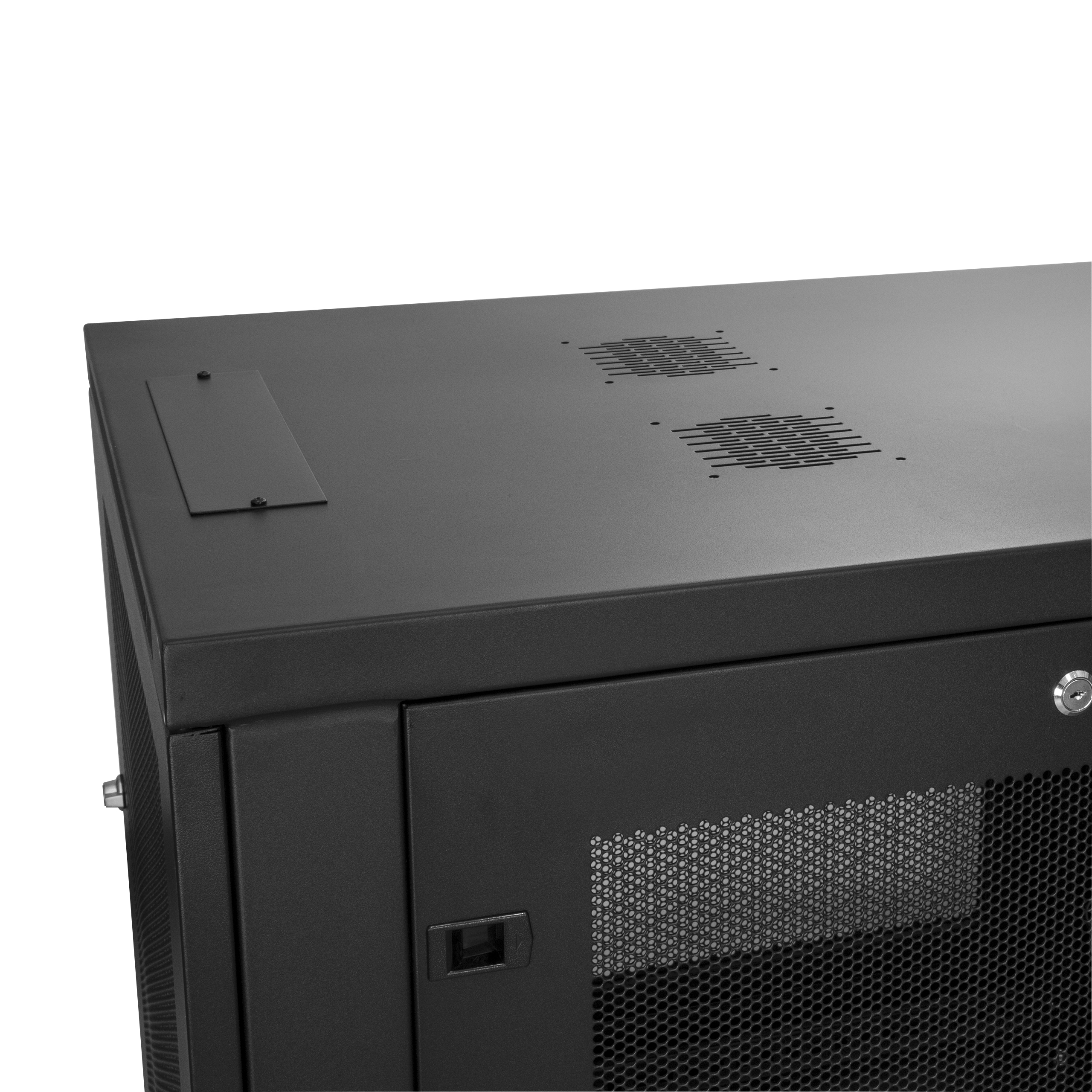

Special Notes Includes CABSHELFV1U and 2 pairs of keys Color Black Depth Capacity (Filter) 12.1 - 24 in. (306 - 609mm) Front Door Features Secure Key Lock with Reversible and Removable Front Door Internal Depth (mm) 450 Internal Width (mm) 594 Material Steel Maximum Mounting Depth (mm) 375 Primary Material Steel Product Length (mm) 450.000 Product Width (mm) 600.000 Product Height (mm) 371.000 Product Weight (g) 17600.000 Side Panel Construction Steel Mesh TAA Compliant No Rack Weight Capacity Range 175 - 200 lbs. (79 - 90 kg.) Weight Capacity for Racks with No Casters (g) 90000 Fan Options Four Optional Fans: 120 mm Frame Type Enclosed Cabinet Front Door Construction Steel Mesh Industry Standards EIA/ECA-310-E Mounting Hole Types - Square (For Cage Nut)
- Threaded Hole

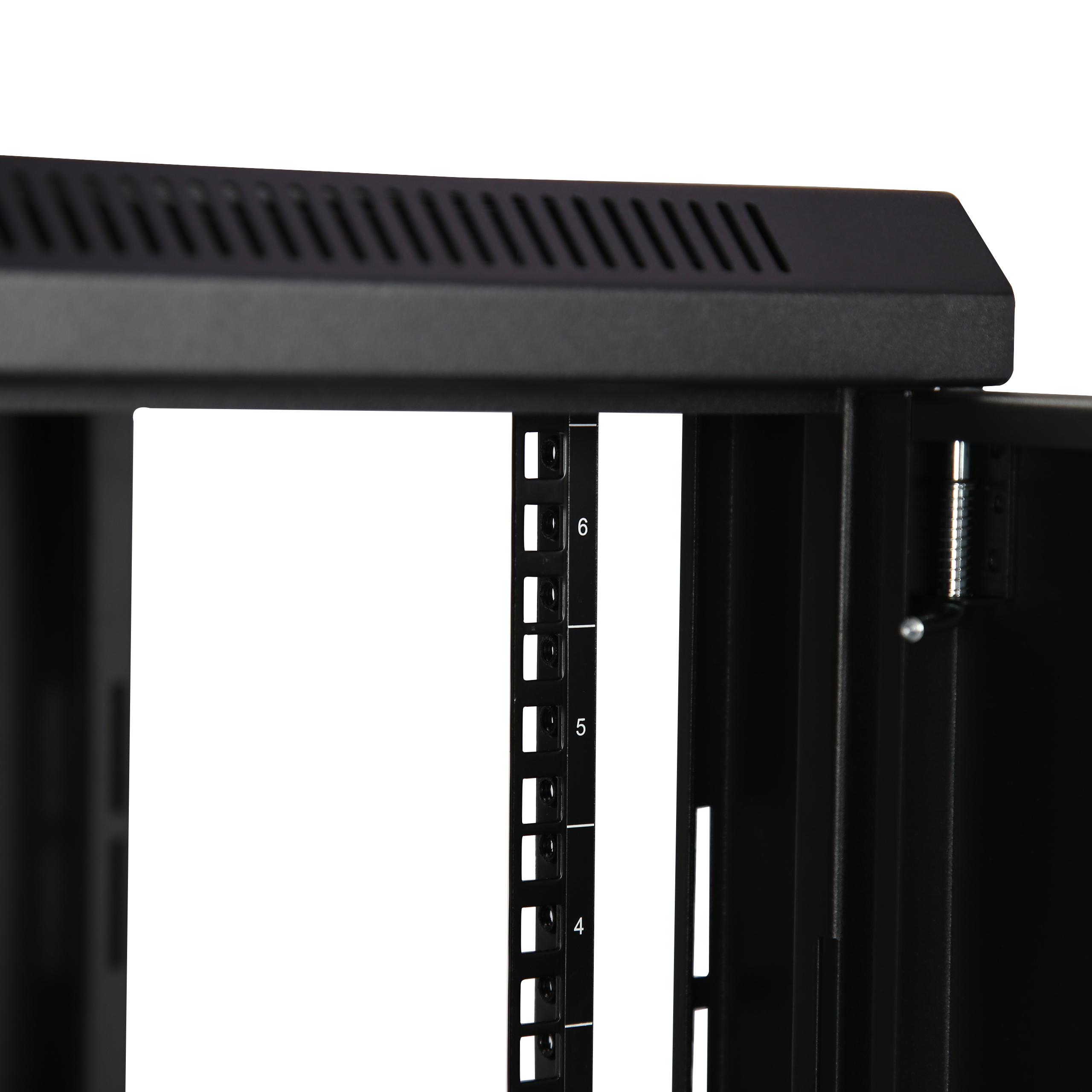

Mounting Rail Profile L-Shape Rack Special Features - Adjustable Mounting Rails
- Built-in Cable Management
- Grounding Lug(s)
- U-Markings

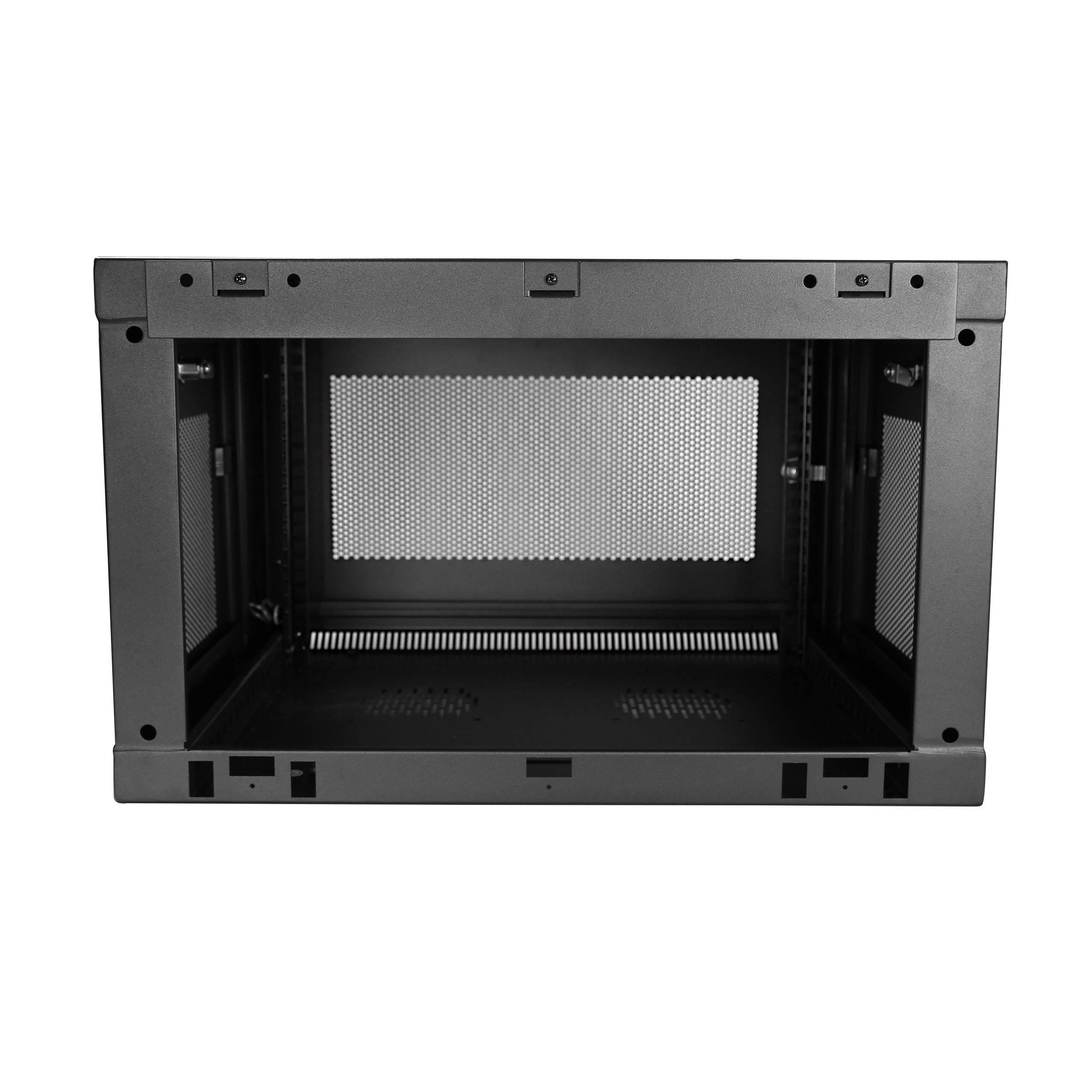

- Wall-Mountable with Rear Access Hinges
- Ships Fully Assembled

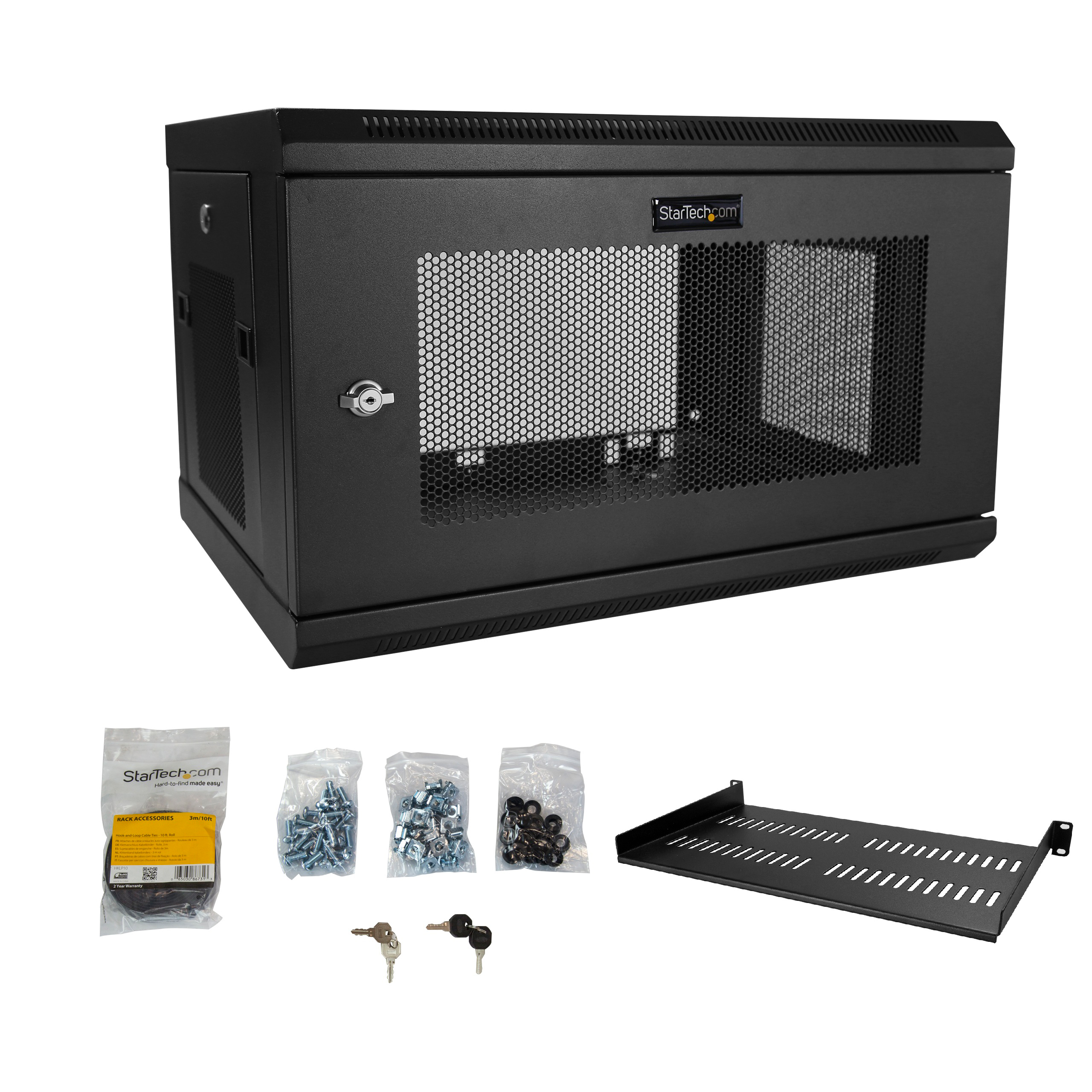

Rack Type 2-Post Rack U Height Ranges 6-10U Side Panel Construction Steel Mesh Side Panel Features Secure Key Lock with Removable Side Panels U Height 6U Wallmountable Yes Carton Depth (mm) 525 Carton Height (mm) 450 Carton Quantity 1 Carton Weight Gross (g) 19600 Included in Package - 1 - wall-mount enclosure
- 1 - 1U shelf
- 1 - roll of hook-and-loop fastener
- 24 - 12-24 cage nuts
- 24 - 12-24 screws
- 2 - door keys
- 2 - side panel keys
- 1 - instruction manual
Included In Package for Label - 1 - Wall-Mount Enclosure
- 1 - 1U Shelf
- 1 - Roll Of Hook-And-Loop Fastener
- 1 - Manual
- 2 - Keys
- 24 - Hardware Kit
Package Depth (mm) 672 Package Height (mm) 455 Package Width (mm) 540 Package Quantity 1 Package Weight (g) 17690 Packaging Description 6U Wall-Mount Rack Enclosure Packaging Description India 6U Wall-Mount Rack Enclosure Rack Flatpack No Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2017-03-24 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2017-05-29 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,CL,DE,DK,ES,EU,FR,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Anthony Slater Product Information Creation Specialist (PICS) Alex Garcia Product Manager Bhuvan Uppal Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2017-04-21 Target Production Release 2017-04-21 Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
