Main Image
RK630WALVS

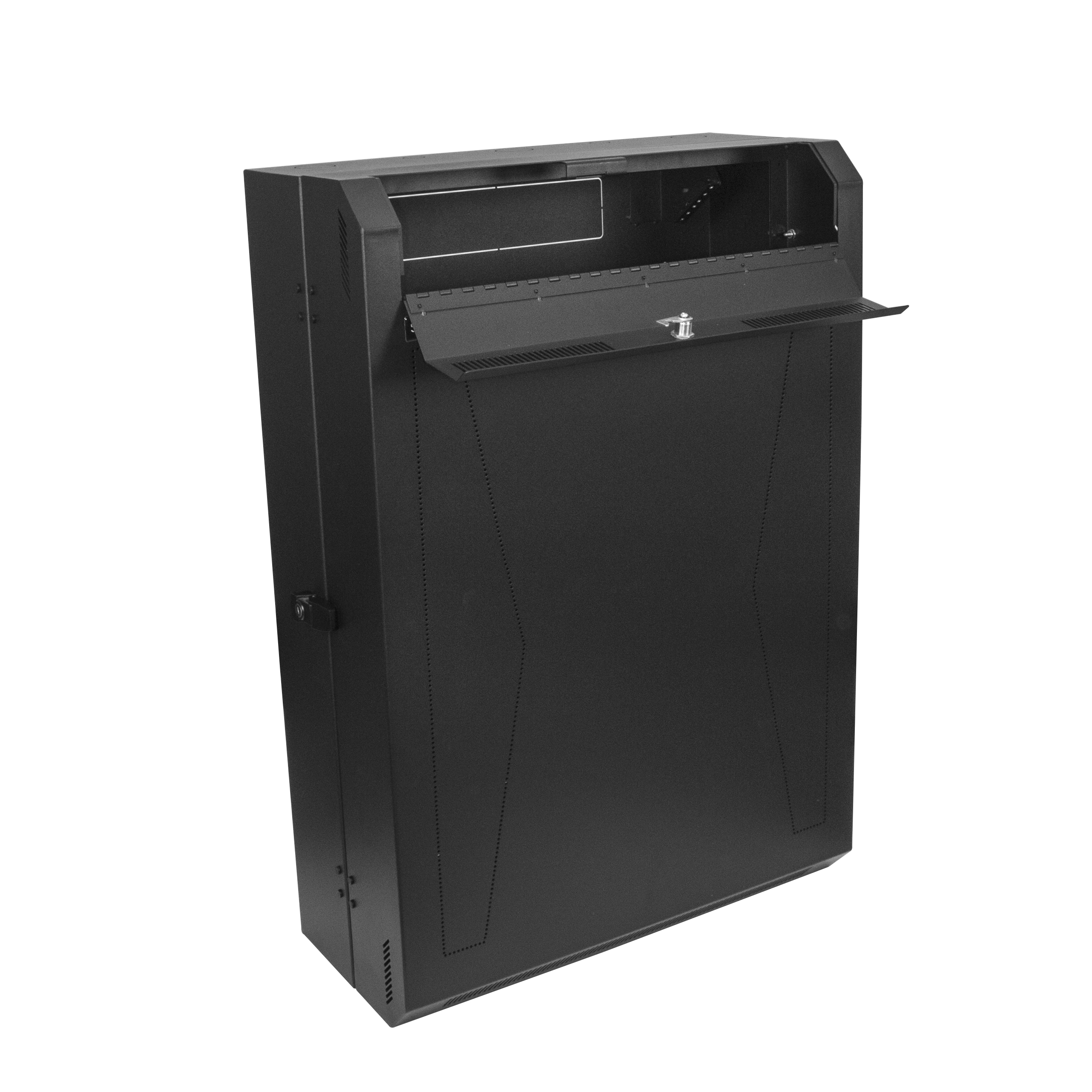

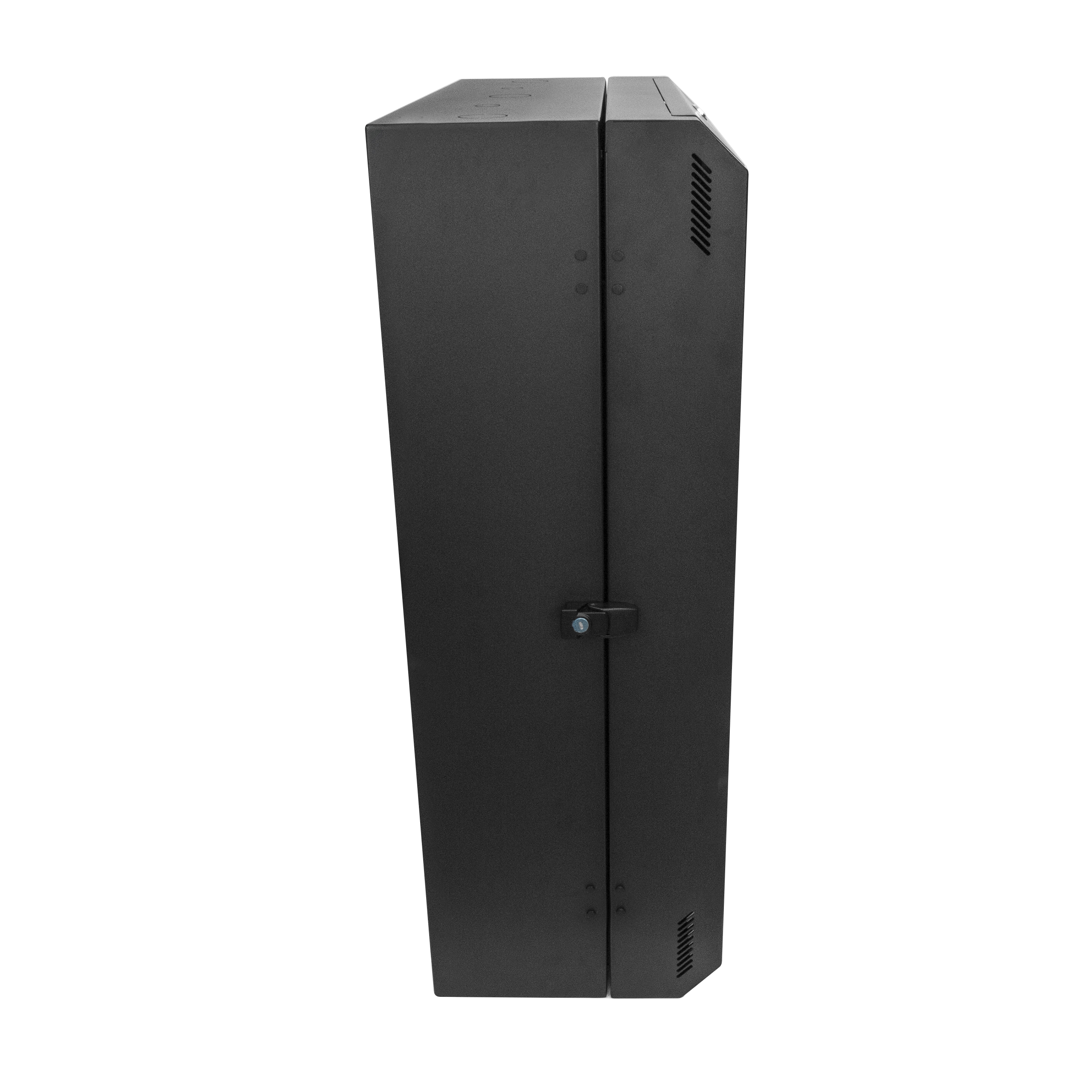

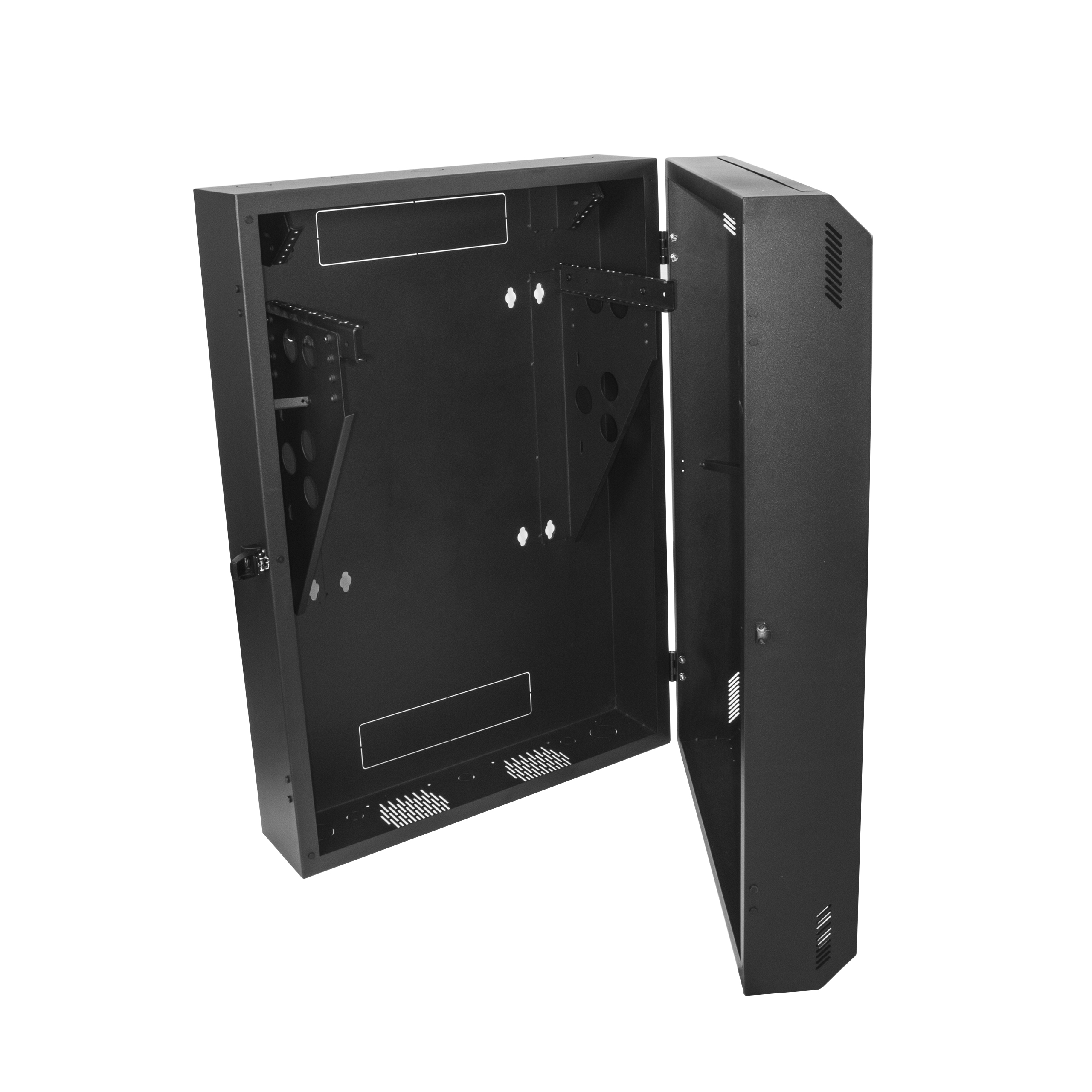

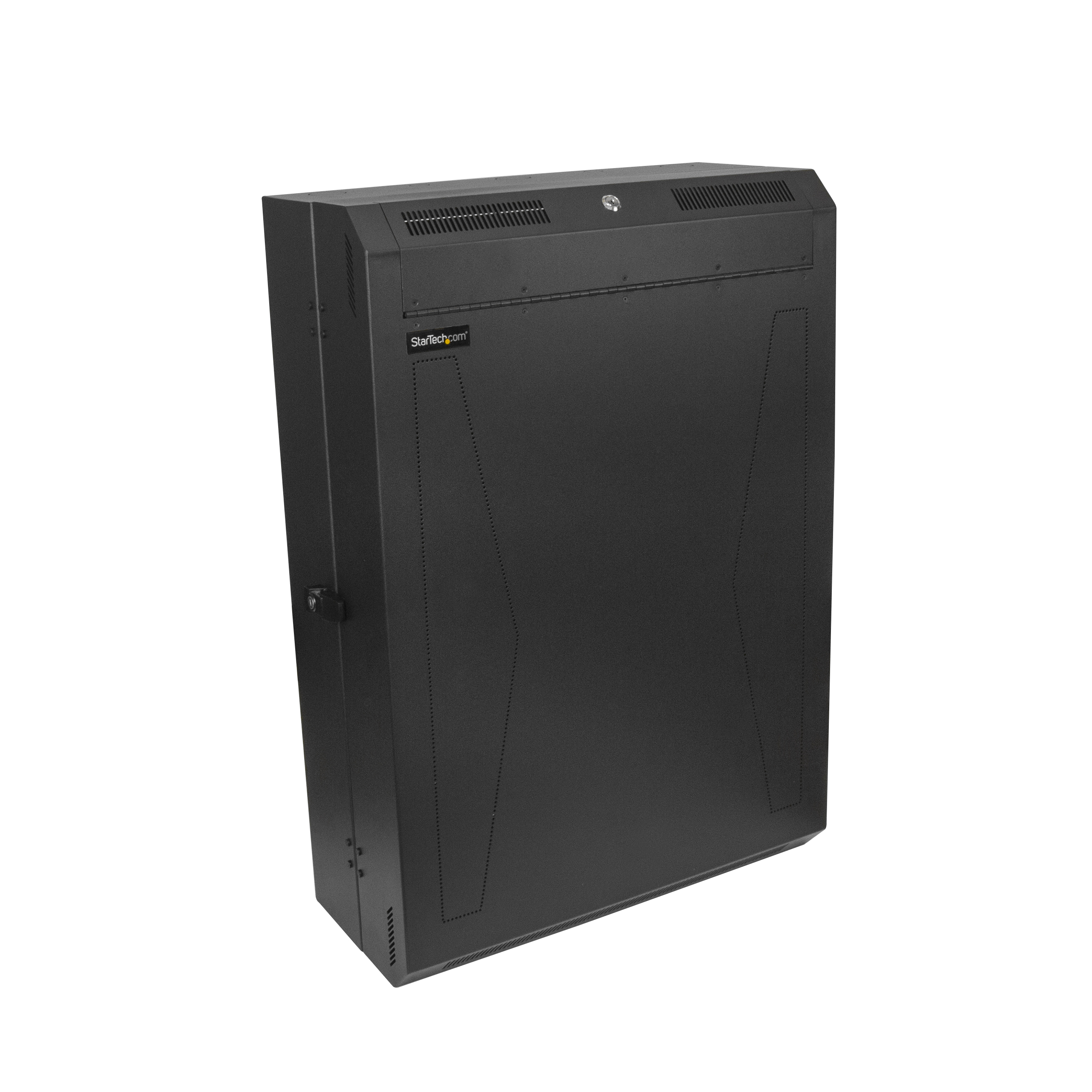

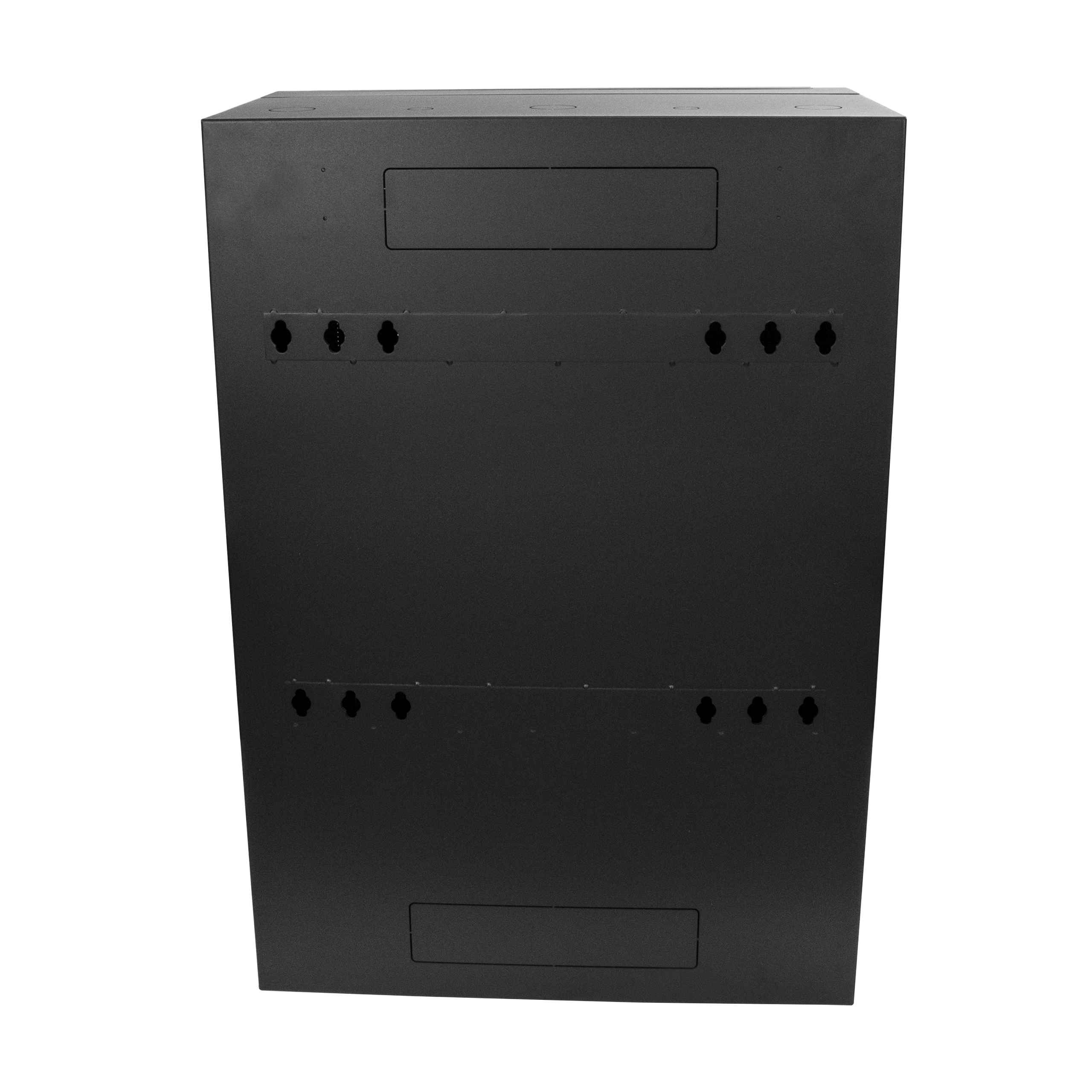

6U Vertical Wallmount Enclosure - 30 inch depth
Vertically wall-mount your server or networking equipment in this 6U network cabinet
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images

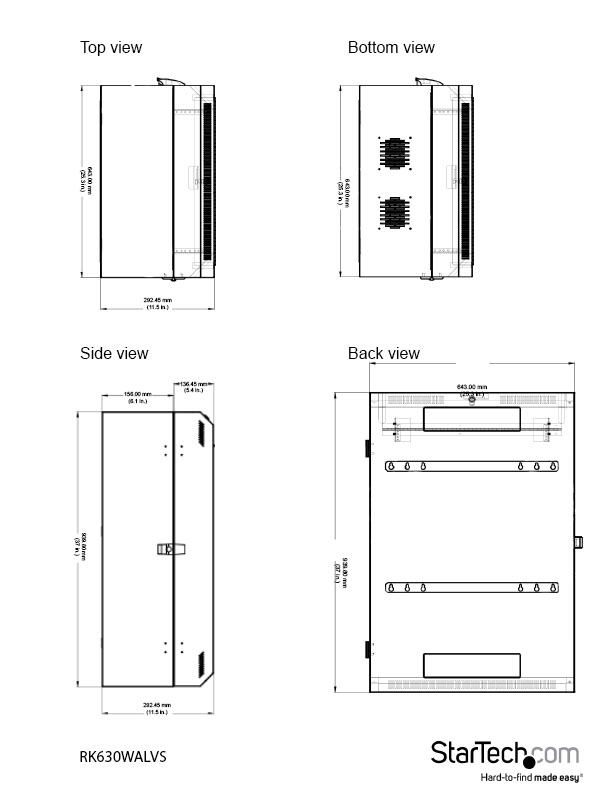

BOM Image
Video Link YouTube
Product Name 6U Vertical Wallmount Enclosure - 30 inch depth Product Number RK630WALVS UPC 065030870078 Lifecycle status Active Warranty 5 Years Taxonomy Product > Mechanical Products > Rack Enclosures Category Level 1 Racks and Enclosures Category Level 2 Wall-Mount Racks and Enclosures Category Level 3 Vertical Wall-Mount Brackets Family Vertical Server Cabinet With Fans Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX095X Product Title (Ultra-Short) 6U Server Cabinet Product Title (Short) 6U Wallmounted Vertical Server Cabinet Product Title (Medium) 6U Vertical Server Cabinet - Wall Mount Network Cabinet - 30 in. depth Product Title (Standard) 6U Vertical Server Cabinet - Wallmount Network Cabinet - 30 in. depth Product Title (Long) 6U Wall Mount Network Cabinet - Vertical Wall Mount Patch Panel Rack - 30" Server Room Cabinet Product Title (AMZ) 6U Wall Mount Network Cabinet - Vertical Wall Mount Patch Panel Rack - 30" Server Room Cabinet (RK630WALVS) Title Ingram (Part 1) 6U Vertical Server Cabinet - Title Ingram (Part 2) - 30 in. depth Website Product Headline Vertically wall-mount your server or networking equipment in this 6U network cabinet Bullet 1 ADDED MOUNTING FEATURES: The IT server room cabinet features a 2U mounting bracket positioned toward the top of the enclosure, that you can use to mount patch cables or other rack-mount equipment Bullet 2 SAVES SPACE: The 6U wall mount network cabinet saves space by extending only minimally from the wall and housing the length of your equipment vertically Bullet 3 STURDY DESIGN: To help keep your equipment secure, the vertical vented 6U wall mount data rack cabinet features a sturdy metal design and a lock on both the door and access panel Bullet 4 HASSLE-FREE INSTALLATION: The wall mount patch panel rack cabinet comes fully assembled and includes all of the necessary hardware to install equipment; the mounting holes are spaced 16 in. apart Bullet 5 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this wall mount network cabinet is backed for 5-years, including free lifetime 24/5 multi-lingual technical assistance Bullets (Compact) Vertically mount your server or networking equipment to a wall with this 6U network cabinet - Wall Mount Server Rack Cabinet - Server Rack - Vertical Server Cabinet - Network Rack - Network Cabinet - Wall Mount Server Rack - Wall-mount Network Rack Bullets (Consolidated) Vertically mount your server or networking equipment to a wall with this 6U network cabinet - Total load capacity of 198 lb. (90 kg) - Extra 2U of space for switches and patch cables - Vertical Server Cabinet/Wall Mount Server Rack Cabinet/Server Rack/Server Cabinet/Network Rack/Network Cabinet/Wall-Mount Server Rack/Wall Mount Network Rack/Wall Mount Data Rack/Wall Mount Equipment Rack/Wall Mount Network Cabinet/Network Enclosure/6U Wall Mount Rack Marketing Copy Marketing Copy (No HTML) This 6U network cabinet offers a space-saving way to keep your network and server equipment secure. With its 30 in. depth and a weight capacity of up to 200 lb. (90.7 kg), the data cabinet is designed to fit your needs. The electronics cabinet also features an additional 2U mounting bracket positioned toward the top of the enclosure, that you can use to mount patch cables or other shallow rack-mount equipment. Wall-mount your equipment, even if you don't have enough space for a full-sized rack or cabinet. This low-profile IT cabinet is perfect for areas where space is at a premium, such as an office. The patch panel cabinet saves space by extending only minimally from the wall and housing the length of your equipment vertically. To help keep your equipment secure, the vertical server room cabinet features a sturdy metal design and a lock on both the door and access panel. The wall mount network cabinet is also vented, providing passive cooling to help keep your equipment running at suitable temperatures. The 6U wall mount rack comes fully assembled and includes all the necessary hardware to install equipment, making installation fast and easy. The mounting holes are spaced 16 in. apart, making it suitable for mounting on almost any wall, based on common North American wall-frame stud spacing. The wall mount patch panel rack is backed by a StarTech.com 5-year warranty and free lifetime technical support. Applications - Securely mount servers and telecommunication equipment flush against the wall
- Perfect for installing network switches out of the way and high up on a wall in a branch office, warehouse, or retail supercenter
- Install a large server anywhere in an office without a full server room, while protecting against unauthorized access
- Ideal for small and medium businesses requiring small, secure rack solutions dispersed throughout the organization
Website Search Keyword - black
- wall mount
- server rack
- 30 inches
- wall mount cabinet
- server cabinet
- network rack
- networking rack
- wall mount rack
- computer rack
- network cabinet
- 6u
- server management
- server rack cabinet
- server chassis
- wall mount server rack
- wall mounted server rack
- wallmount server rack
- wall mounted network rack
- wall mount network rack
- tripp lite rack
- 30 in
- 6u rack
- server enclosure
- vertical rack
- wall mount data rack
- wall mount enclosure
- wall mount equipment rack
- wall mount network cabinet
- wall mount rack enclosure
- wall mounted rack enclosure
- wall hanging rack
- tripp lite wall mount rack
- network enclosure
- 6u wall mount rack
- server rack enclosure
- vertical wall mount rack
- wall mount av cabinet
- wall mount av rack
- wall mounted metal cabinet
- wall mounted av cabinet
- wall mounted av rack
- wall mount server cabinet
- wall mounted data cabinet
- wall mount data cabinet
- vertical server rack
- av equipment cabinet
- network rack cabinet
- network rack wall mount
- wall mounted computer cabinet
- wall mount rack enclosure cabinet
- wall mount rack cabinet
- wall mount server rack cabinet
- vertical wall mount
- Vertical Mount
- wall mount computer rack
- 6u server rack
- network cabinet wall mount
- network wall cabinet
- server rack wall mount
- network wall mount rack
- 6u rack cabinet
- 6u cabinet
- 6u case
- 6u server case
- network wall mount cabinet
- server wall mount rack
- wall mount enclosure cabinet
- vertical server mount
- vertical wall mount server rack
- server room management
- server computer rack
- 6u server cabinet
- 6u network cabinet
- 6u vertical wall mount enclosure
- vertical wall mount enclosure
- SRWF6U36
Required Regulatory Compliance Marks - Temp - N/A - Global - Used to replace duplicates or identify for removal
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - Furniture and Non-EEE
Accessory Products - ACFANKIT12
- CABSCRWS1224
Constrained SKU Alternatives (Limited Stock) RK830WALVS Color Black Depth Capacity (Filter) Greater Than 24 in. (610mm) Front Door Features Secure Key Lock with Reversible and Removable Front Door Internal Depth (mm) 288 Internal Width (mm) 641 Material Steel Maximum Mounting Depth (mm) 760 Primary Material Steel Product Length (mm) 292.500 Product Width (mm) 643.000 Product Height (mm) 939.800 Product Weight (g) 33000.000 Side Panel Construction Steel TAA Compliant No Rack Weight Capacity Range 175 - 200 lbs. (79 - 90 kg.) Weight Capacity for Racks with No Casters (g) 90000 Fan Options Two Optional Fans: 120 mm Frame Type Enclosed Cabinet Front Door Construction Steel Industry Standards EIA/ECA-310-E Mounting Hole Types Threaded Hole Mounting Rail Profile C-Shape Rack Special Features - Adjustable Mounting Rails

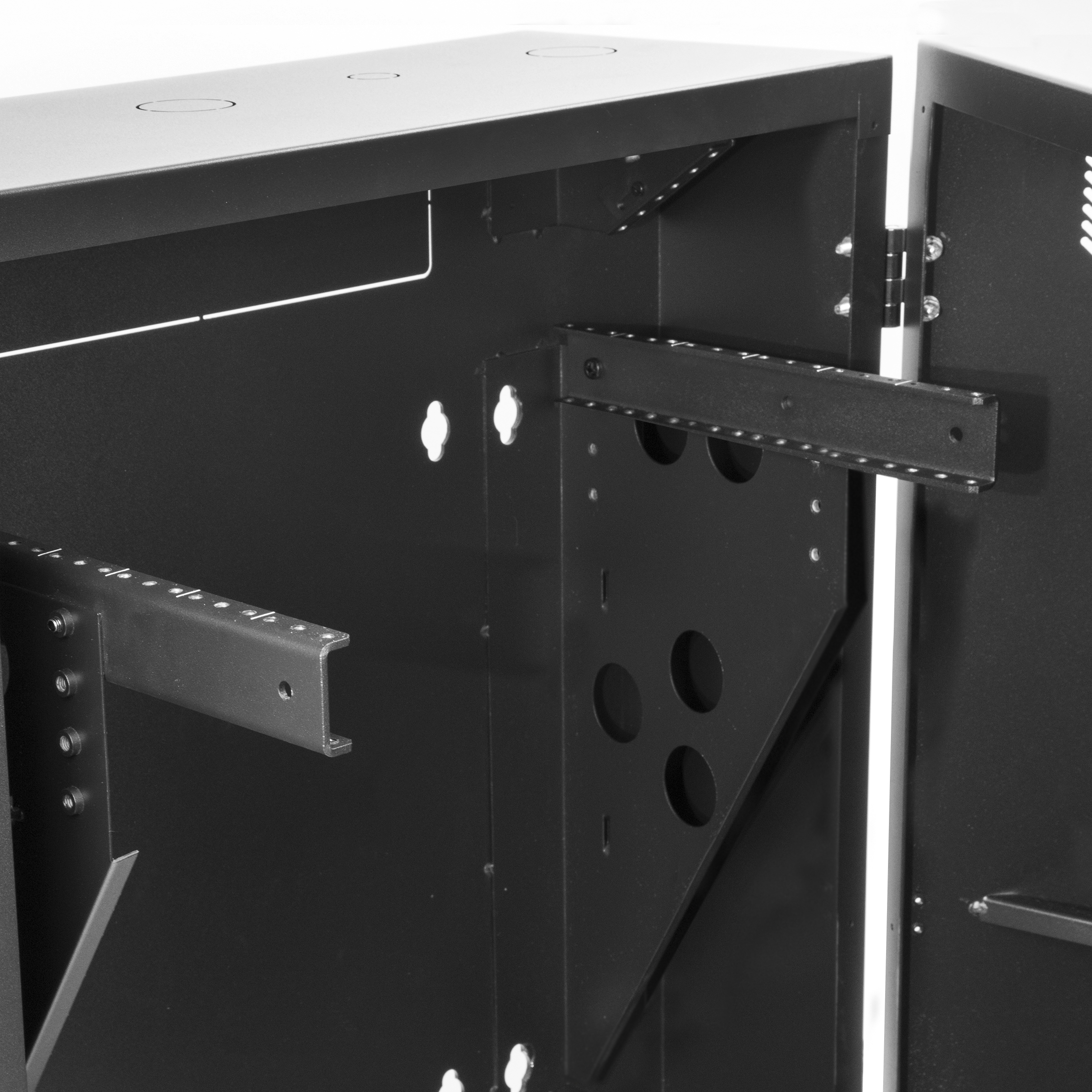

- Lockable Top Hatch
- Wall-Mountable
- Ships Fully Assembled

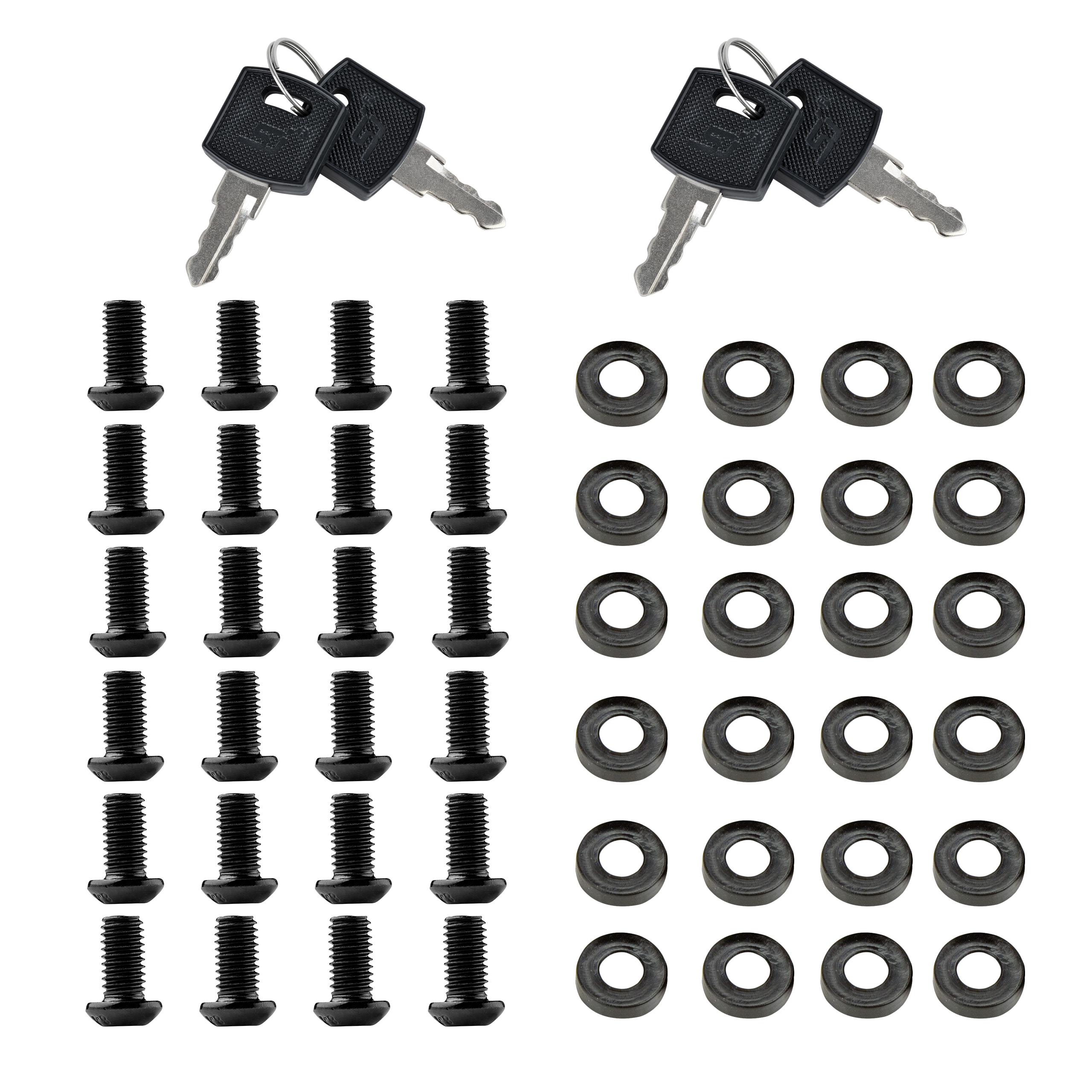

Rack Type 2-Post Rack U Height Ranges 6-10U Side Panel Construction Steel U Height 6U Wallmountable Yes Carton Depth (mm) 370 Carton Height (mm) 1020 Carton Quantity 1 Carton Weight Gross (g) 35000 Included in Package - 1 - wall-mount rack
- 2 - door keys
- 2 - front-panel keys
- 24 - 12-24 screws
- 24 - plastic washers
- 1 - instruction manual
Included In Package for Label - 1 - Wall-Mount Rack
- 2 - Door Keys
- 2 - Front-Panel Keys
- 24 - 12-24 Screws
- 24 - Plastic Washers
- 1 - Instruction Manual
Package Depth (mm) 1040 Package Height (mm) 375 Package Width (mm) 718 Package Quantity 1 Package Weight (g) 33500 Packaging Description 6U Vertical Server Cabinet - 30 in. Deep Packaging Description India 6U Vertical Server Cabinet - 30 in. Deep Rack Flatpack No Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2017-08-01 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2017-09-19 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FI,FR,IE,IN,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Anthony Slater Product Information Creation Specialist (PICS) Alex Garcia Product Manager Bhuvan Uppal Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2017-06-23 Target Production Release 2017-08-04 Tech Lead Stefan Tirolese Technical Writer Alex Garcia Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
