Main Image
RK9WALM

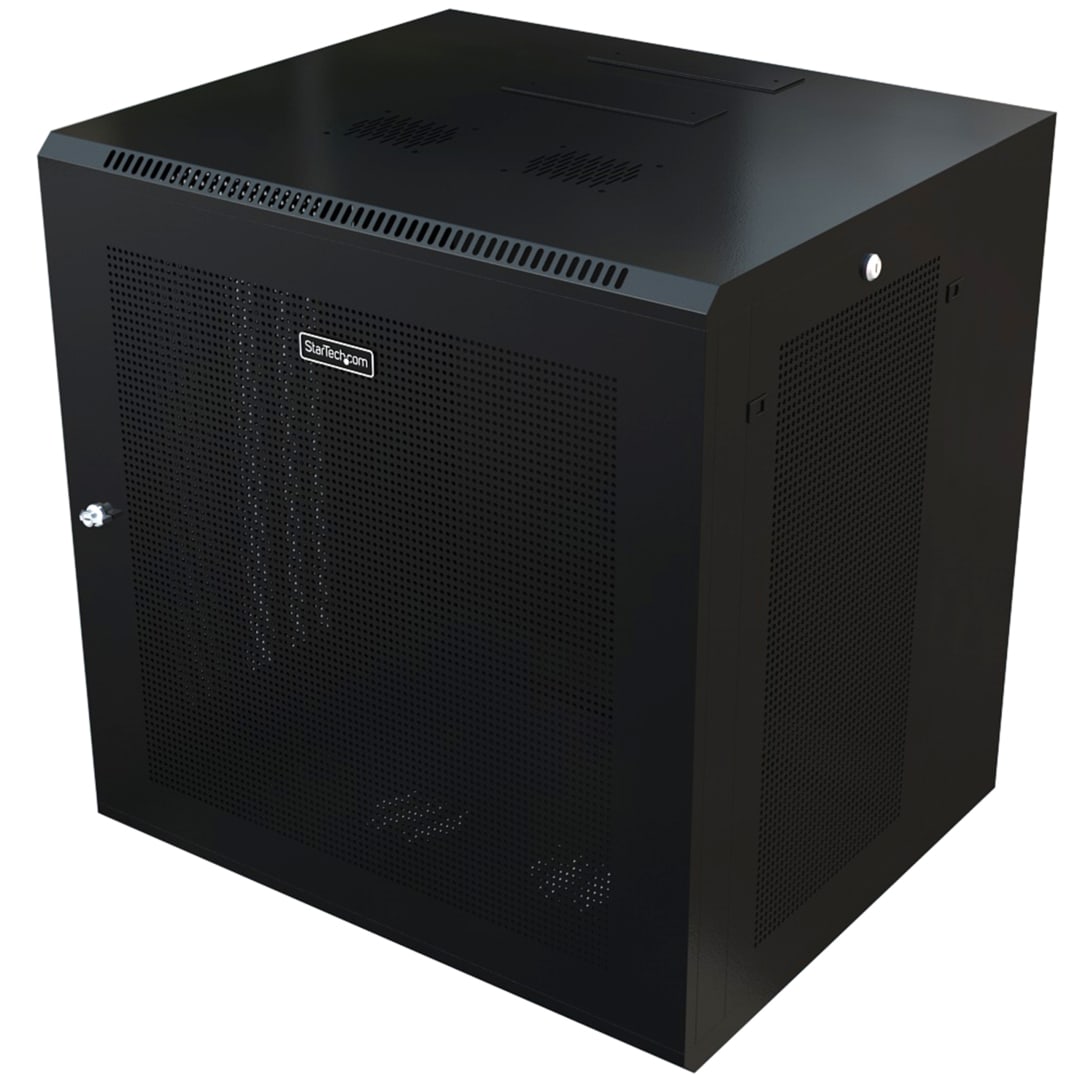

9U Wall-mount Rack Enclosure Cabinet
Use this wall mount network cabinet to mount your equipment to the wall
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Video Link YouTube
Product Name 9U Wall-mount Rack Enclosure Cabinet Product Number RK9WALM UPC 065030868341 Lifecycle status Active Warranty 5 Years Taxonomy Product > Mechanical Products > Rack Enclosures Category Level 1 Racks and Enclosures Category Level 2 Wall-Mount Racks and Enclosures Category Level 3 Wall-Mount Enclosures Family Wall Mount Network Rack Cabinet Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX095X Product Title (Ultra-Short) 9U Wall-Mount Rack Product Title (Short) 2Post 9U 19in Wall Mount Network Cabinet Product Title (Medium) 9U Wall Mount Server Rack Cabinet - Wall Mount Network Cabinet - 15 in. Deep Product Title (Standard) 2-Post 9U Wall Mount Network Cabinet, 19" Wall-Mounted Server Rack for Data / IT Equipment, Small Lockable Rack Enclosure Product Title (Long) 2-Post 9U Wall Mount Network Cabinet with 1U Shelf, 19" Wall-Mounted Server Rack for Data / Networking / AV / Electronics / Computer Equipment, Small Vented Rack Enclosure Product Title (AMZ) 2-Post 9U Wall Mount Network Cabinet w/ 1U Shelf, 19" Wall-Mounted Server Rack Kit for IT / Data Computer Equipment, Ships Fully Assembled Title Ingram (Part 1) 9U Wall Mount Rack - Wall Mount Title Ingram (Part 2) Server and Network Cabinet - 15in Website Product Headline Use this wall mount network cabinet to mount your equipment to the wall Bullet 1 2-Post 9U RACK CABINET: Wall-Mount Server Rack with a maximum mounting depth of 15.0" (38.0cm) is ideal for installing network switches, patch panels and other rackmount equipment in your warehouse, home / office, store location or server room Bullet 2 BUILT TO LAST: The 9U wall-mounted network cabinet is constructed of high-quality SPCC cold-rolled steel for strength and durability with a maximum weight capacity of 198lb (90kg) Bullet 3 FULLY ASSEMBLED: Swinging network cabinet ships fully assembled with all of the rack screws and cage nuts required to mount your equipment; Includes a shelf and a roll of hook-and-loop fastener; Wall-mount equipment cabinet is EIA/ECA-310-E Compliant Bullet 4 DESIGNED FOR COOLING: Vented IT rack enclosure features mesh front doors and side panels for passive airflow and supports active cooling with up to four optional 120mm fans (e.g., ACFANKIT12 – available in US/CA only) Bullet 5 EASY ACCESS: Wall-mount data rack features an enclosed and lockable rack design with easy access to the rear of the mounted devices; Small locking server cabinet with reversible and removable front door and removable side panels Bullets (Compact) Wall-Mount Server Rack for rackmount equipment - Small data rack features a design with easy access to the devices - 2 Post 9U wall-mounted network cabinet - Ships fully assembled and includes a shelf and accessories - EIA/ECA-310-E Compliant Bullets (Consolidated) - Wall-Mount Server Rack is ideal for switches, patch panels and other rackmount devices in your home / office - Small data rack features an enclosed and lockable design with easy access to the devices - 9U wall-mounted network cabinet is made of high-quality SPCC cold-rolled steel for strength and durability - Ships fully assembled; Includes a shelf, screws / cage nuts and a roll of hook-and-loop fastener - Mesh front door / side panels to provide fresh airflow; EIA/ECA-310-E Compliant Marketing Copy Marketing Copy (No HTML) Applications - Wall-mount your server and networking equipment flush against the wall, in areas with limited space, such as technology store fronts or repair centers
- Install the rack in your small-office environment, where you can't fit a full-sized rack
- Organize cabling or equipment in your network closet, wiring closet, back office or IDF
Website Search Keyword - 15 inch depth
- 2 post
- 9 u cabinet
- 9u
- 9u cabinet
- 9u rack
- 9u rack cabinet
- 9u server cabinet
- 9U server rack
- 9u wall mount cabinet
- 9u wall mount rack
- apc wall mount rack
- cabinet 9u
- cabinet enclosure
- communications cabinet
- computer rack
- Data center
- enclosure cabinet
- lockable server cabinet
- locking server cabinet
- locking wall cabinet
- network cabinet
- network cabinet wall mount
- network enclosure cabinet
- network rack
- network server cabinet
- network wall cabinet
- network wall mount cabinet
- rack 9u
- rack enclosure
- rack enclosure cabinet
- rack mount cabinet
- rack mount enclosure
- rack mount enclosure cabinet
- server cabinet
- server enclosure
- server equipment
- server management
- server rack 9u
- server rack cabinet
- server rack enclosure
- server room
- server room rack
- small server rack
- switch cabinet wall mount
- tripp lite rack
- tripp lite rack enclosure
- tripp lite server rack
- tripp lite smart rack enclosure
- tripp lite smartrack
- Tripp Lite SRW9U
- Tripp Lite SRW9UDP
- tripp lite wall mount rack
- wall hanging rack
- wall mount
- wall mount cabinet rack
- wall mount data cabinet
- wall mount data rack
- wall mount enclosure
- wall mount enclosure cabinet
- wall mount network cabinet
- wall mount network rack
- wall mount rack
- wall mount rack cabinet
- wall mount rack enclosure
- wall mount rack enclosure cabinet
- wall mount rack for switches
- wall mount server cabinet
- wall mount server rack
- wall mount server rack cabinet
- wall mount switch rack
- wall mountable rack
- wall mounted network cabinet
- wall mounted network rack
- wall mounted rack cabinet
- wall mounted rack enclosure
- wall mounted server rack
- wall network rack
- wall server rack
- wall-mount cabinet
- wallmount rack
- wall-mount rack
- wall-mount rack for switch
- wallmount server rack
- SRW9U
Required Regulatory Compliance Marks - Temp - N/A - Global - Used to replace duplicates or identify for removal
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - Furniture and Non-EEE
Special Notes Includes CABSHELFV1U and 2 pairs of keys Accessory Products - CABSCREWM6
- CABCAGENUTS
- CABSCREWS
- CABLMANAGER2
- C6PANL4524
- PANEL4512
- PANEL4524
- PANEL4548
- BLANKPATCH24
- CABCAGENT62B
- CABCAGENTS62
- CABCAGENUT2B
- CABCAGENUT6B
- CABCAGENUTS2
- CABCAGENUTS6
- CABCAGENUTSB
- CABSCREWM5
- CABSCREWM52
- CABSCREWM52B
- CABSCREWM5B
- CABSCREWM62
- CABSCREWM62B
- CABSCREWM6B
- CABSCREWSB
- CABSCREWSM5
- CABSCREWSM5B
- CABSCREWSM6
- CABSCREWSM6B
- CABSCRWSM62B
- C6PANEL24
- PANELHU24
- CMBRUSH1U
- CMDUCT1UX
- CMDUCT2U
- CMHOOK1U
- CMHOOK1UL
- CMHOOK1UN
- CMHOOKMW
- CMPNL2U
- CMVELC1U
- ACFANKIT12
Related Products - RK812WALLO
- CAB1019WALL
- RK619WALL
- 4POSTRACK12
- 4POSTRACK12A
- 2636CABINET
- 4POSTRACK25
- RKCASTER2
Constrained SKU Alternatives (Limited Stock) RK920WALM Color Black Depth Capacity (Filter) 12.1 - 24 in. (306 - 609mm) Front Door Features Secure Key Lock with Reversible and Removable Front Door Internal Depth (mm) 433 Internal Width (mm) 594 Material Steel Maximum Mounting Depth (mm) 370 Primary Material Steel Product Length (mm) 450.000 Product Width (mm) 600.000 Product Height (mm) 503.650 Product Weight (g) 17690.000 Side Panel Construction Steel Mesh TAA Compliant No Rack Weight Capacity Range 175 - 200 lbs. (79 - 90 kg.) Weight Capacity for Racks with No Casters (g) 90000 Fan Options Four Optional Fans: 120 mm Frame Type Enclosed Cabinet Front Door Construction Steel Mesh Industry Standards EIA/ECA-310-E Mounting Hole Types - Square (For Cage Nut)
- Threaded Hole
Mounting Rail Profile L-Shape Rack Special Features - Adjustable Mounting Rails
- Built-in Cable Management
- Grounding Lug(s)
- U-Markings
- Wall-Mountable with Rear Access Hinges
- Ships Fully Assembled

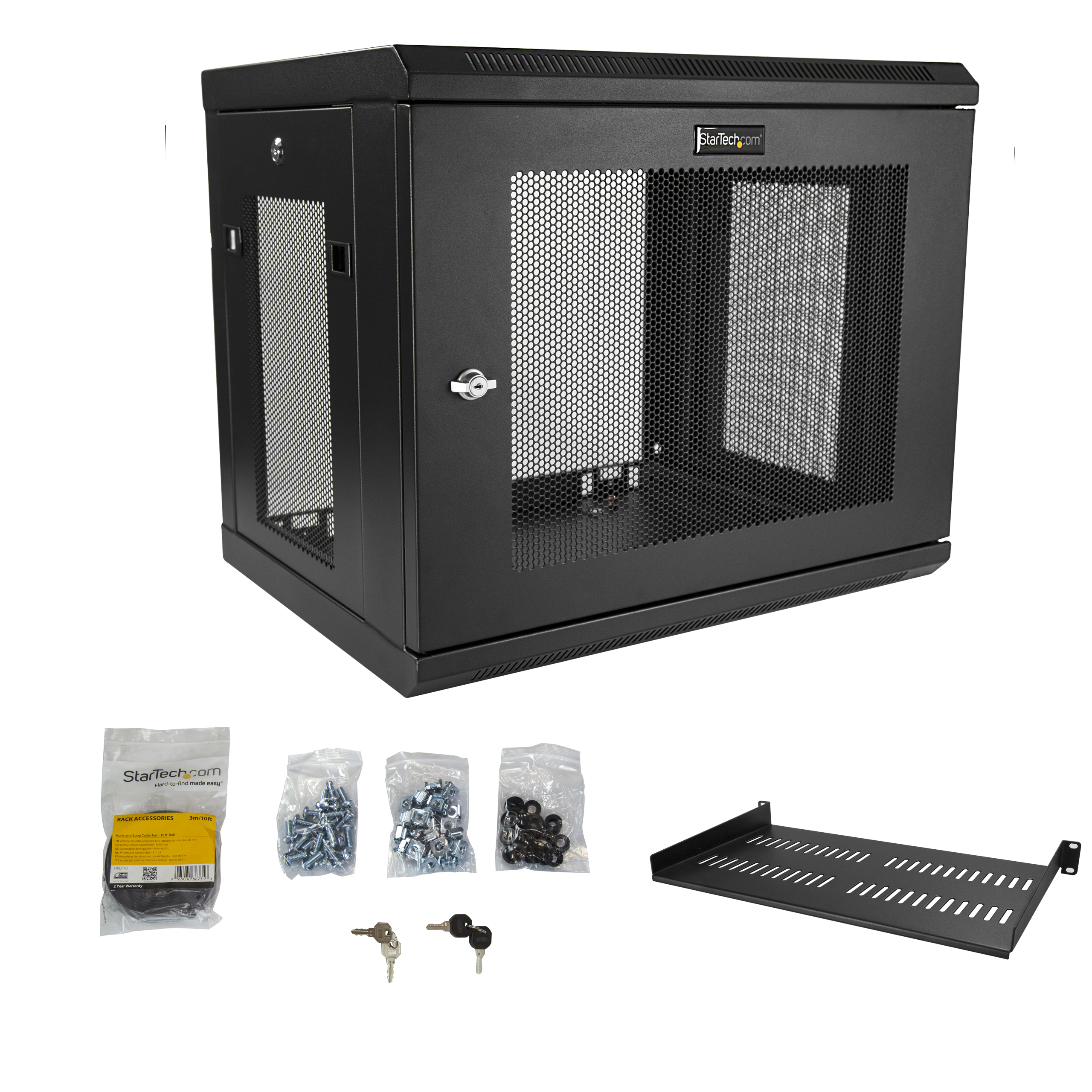

Rack Type 2-Post Rack U Height Ranges 6-10U Side Panel Construction Steel Mesh Side Panel Features Secure Key Lock with Removable Side Panels U Height 9U Wallmountable Yes Carton Depth (mm) 670 Carton Height (mm) 580 Carton Quantity 1 Carton Weight Gross (g) 20810 Included in Package - 1 - wall-mount enclosure
- 1 - 1U shelf
- 1 - roll of hook-and-loop fastener
- 36 - 12-24 cage nuts
- 36 - 12-24 screws
- 2 - door keys
- 2 - side panel keys
- 1 - instruction manual
Included In Package for Label - 1 - Wall-Mount Enclosure
- 1 - 1U Shelf
- 1 - Roll Of Hook-And-Loop Fastener
- 1 - Hardware Kit
- 1 - Instruction Manual
- 2 - Keys
Package Depth (mm) 677 Package Height (mm) 590 Package Width (mm) 527 Package Quantity 1 Package Weight (g) 20410 Packaging Description 9U Wall-Mount Server Rack Cabinet - 15 in. Deep Packaging Description India 9U Wall-Mount Server Rack Cabinet - 15 in. Deep Rack Flatpack No Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2017-03-24 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2017-05-24 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,EU,FI,FR,IE,IN,IT,JP,NL,NZ,SE,SG,UK,US Primary Technology None Product Development Specialist Anthony Slater Product Information Creation Specialist (PICS) Alex Garcia Product Manager Bhuvan Uppal Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2017-04-21 Target Production Release 2017-04-21 Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
