Main Image
RKCOND17HD
17 in Rackmount LCD Console
1080p Display | 17 Inch | 1U | DVI & VGA Interface | Cables Included
Main Image
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 17 in Rackmount LCD Console Product Number RKCOND17HD UPC 065030872515 Lifecycle status Active Warranty 2 Years Taxonomy Product > KVMs, Switches & Splitters > KVM Consoles Category Level 1 KVM Switches Category Level 2 Enterprise KVMs Category Level 3 Single Port LCD Consoles Family Basic Country of Origin Europe & Japan China Country of Origin North America China Product Title (Ultra-Short) 17" Dual Rail Product Title (Short) Dual Rail 1U 17in Rackmount KVM Console Product Title (Medium) 17" HD Rackmount KVM Console - Dual Rail - 1080p - DVI & VGA - Rackmount LCD Product Title (Standard) Dual Rail Rackmount KVM Console HD 1080p - DVI/VGA KVM w/17" LCD Monitor - 1U LCD KVM Server Rack Drawer w/Cables USB Support Product Title (Long) Dual Rail Rackmount KVM Console HD 1080p - Single Port DVI/VGA KVM w/17" LCD Monitor for Server Rack - Fully Featured 1U LCD KVM Drawer w/Cables - USB Support - 44230 MTBF Product Title (AMZ) Dual Rail Rackmount KVM Console HD 1080p - Single Port DVI/VGA KVM w/17" LCD Monitor for Server Rack - Fully Featured 1U LCD KVM Drawer w/Cables - USB Support - 44230 MTBF (RKCOND17HD) Title Ingram (Part 1) 17" HD Rackmount KVM Console Title Ingram (Part 2) - Dual Rail - 1080p KVM - DVI & VGA Website Product Headline 1080p Display | 17 Inch | 1U | DVI & VGA Interface | Cables Included Bullet 1 Flexible Design: Rackmount KVM console w/ dual rails that allow the screen & keyboard to be pulled in & out independently, perfect for system monitoring as needed and to be put away when not in use Bullet 2 High Definition: Rack mount monitor w/high-resolution widescreen (16:9) 1080p LCD panel perfect for applications needing extra detail or substantial info on one screen E.g. IP camera monitoring Bullet 3 Versatile Interfaces: 17.3" Active Matrix TFT 16:9 widescreen | Dual Rails | 1U height | Full keyboard + Trackpad | Integrated Power Supply | Front Facing USB Port | Supports VGA / DVI & USB Bullet 4 Wide compatibility: Single port HD KVM console drawer works w/ any KVM switch brand or model that supports VGA or DVI and USB interfaces and conveniently slides into the server rack when not in use Bullet 5 Max Durability: Features a durable steel housing design and rails to stand up to frequent use, rated to work in environments from 0 to 40 deg. C and a 44,230 hour MTBF with 24/5 Tech Support Bullets (Compact) Rackmount KVM console drawer w/dual rails allowing screen & keyboard to be pulled in & out independently - HD 1080p 17.3in TFT LCD monitor panel - Integrated Power Supply - Compatible w/any VGA/DVI + USB KVM switch - Durable housing 44230 hour MTBF Bullets (Consolidated) Rackmount KVM console drawer w/ dual rails that allow screen and keyboard to be pulled in and out independently - Rack mount monitor w/ HD widescreen (16:9) 1080p LCD panel for applications needing extra detail - 17.3" Active Matrix TFT widescreen|Dual Rails|1U height|Supports VGA/DVI USB|Full keyboard + Trackpad|Integrated Power Supply - Tested for maximum compatibility w/ any KVM switch w/ VGA/DVI and USB interfaces - Durable steel housing and rails withstand frequent use w/ 44230 hour MTBF Marketing Copy Marketing Copy (No HTML) Applications - Large server farms
- Co-location facilities
Website Search Keyword - 1080p KVM
- 1080p KVM console
- 1u kvm
- 1u kvm console
- Dual rail KVM console
- hd console
- HD KVM console
- hd kvm switch
- High Definition KVM
- kvm console
- kvm switch vga
- lcd with kvm
- rack kvm console
- rack mount console
- rack mount monitor
- rack mount rails
- rackmount console
- rackmount kvm
- rackmount kvm console
- rackmount lcd
- rackmount LCD Monitor
- server rack rails
- Single Port KVM
- Single port kvm console
- VGA KVM
- VGA Rackmount KVM Console
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- CE - Safety - Electrical - European Union - Low Voltage Directive (LVD) 2014/35/EU
- UL - Safety - Electrical - Canada / United States - Enhanced UL Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Accessory Products - DVID4N1USB6
- DVID4N1USB10
- SVUSB2N1_6
- SVUSB2N1_10
- SVUSB2N1_15
- MXT101MMHQ
- MXT101MMHQ10
- DVIDDMM6
- DVIDDMM10
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIFM
- USB2HAB6
- USB2HAB10
- MU3MMS
- MU6MMS
- MU10MMS
- PXTC13C20143
- PXTC13C20146
- PXTF10110
- PXTMG10110
- PXT1001410
- UNIRAILS1UB
Related Products - RKCONS1901
- RKCONS1908K
- RKCONS1916K
- RKCONS1701
- RKCONS1708K
- RKCONS1716K
- CABCONS1716I
Input Current 1A Input Voltage 100 - 240 AC Power Consumption (In Watts) 19.4W Power Source International Power Cords Color Black Humidity 0~80% RH Non-condensing Material Steel Maximum Mounting Depth (mm) 1000 Minimum Mounting Depth (mm) 640.8 Operating Temperature 0~40 Celsius Degree Primary Material Steel Product Length (mm) 685.000 Product Width (mm) 480.000 Product Height (mm) 44.000 Product Weight (g) 13602.000 Storage Temperature -20~60 Celsius Degree TAA Compliant No DVI Support Yes General Specifications Keyboard Layout: US/NA - Standard English QWERTY Keyboard Hot-Key Selection Yes Maximum Analog Resolutions 1920 x 1080 @ 60Hz Maximum Digital Resolutions 1920 x 1080 @ 60Hz MTBF (hours) Approx. 44230 hrs. On-Screen Display No OS Compatibility OS Independent Supported Resolutions Wide Screen Supported Yes Aspect Ratio 16:9 Audio Yes Cables Included Yes Display Size 17.3" LED Indicators - 1 - Power
- 1 - Num Lock
- 1 - Caps Lock
- 1 - Scroll Lock

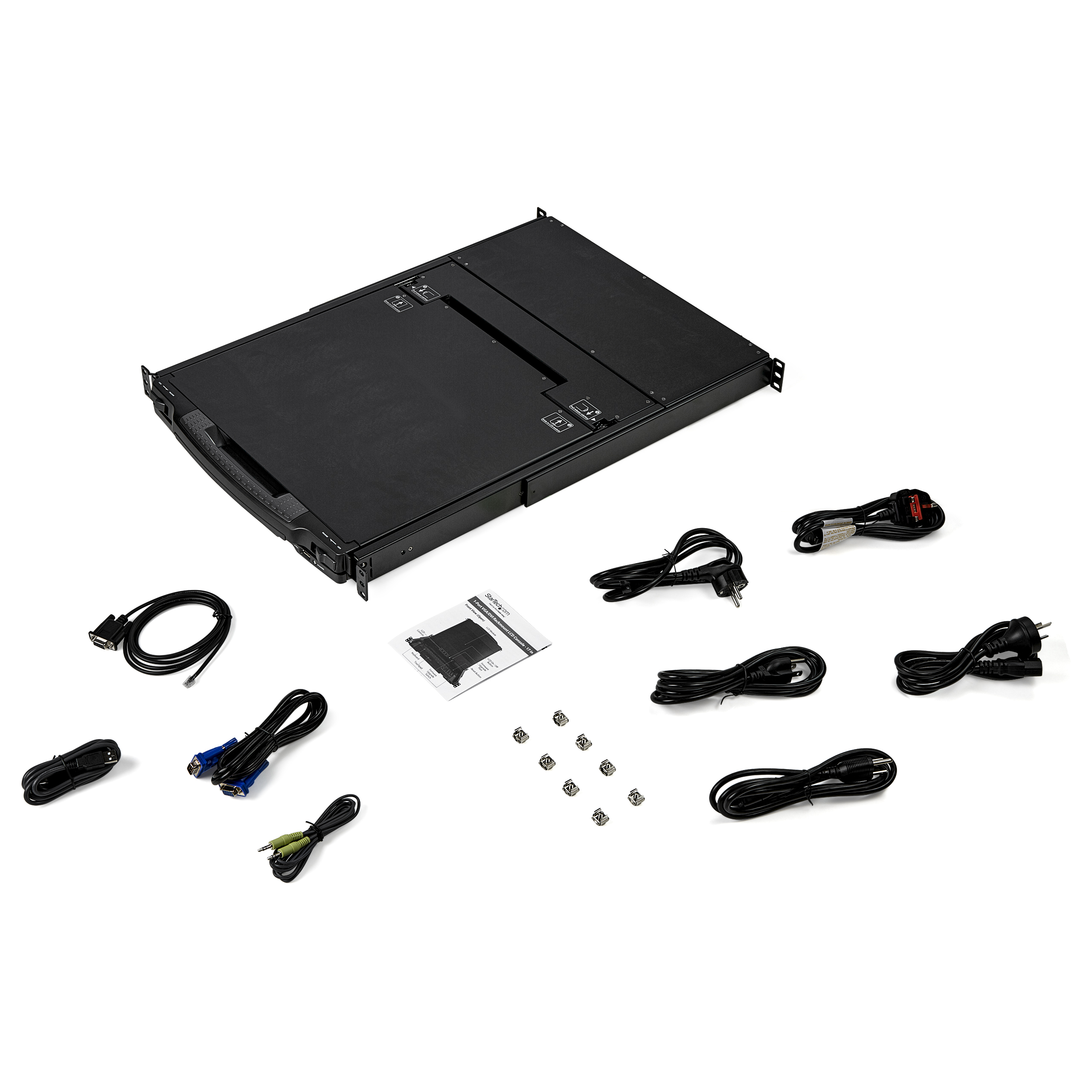

Number of KVM Ports 1 Number of Monitors Supported 1 PC Video Type DVI+VGA Rack-Mountable Yes Supported Platforms USB U Height 1U Carton Depth (mm) 680 Carton Height (mm) 133 Carton Quantity 1 Carton Weight Gross (g) 18910 Included in Package - 2 - Rear Mounting Brackets
- 1 - Set of KVM Cables (USB/VGA)
- 8 - M5 Cage Nuts
- 8 - M5 Screws
- 1 - Quick-Start Guide
- 1 - LCD Console
- 5 - Power Cords (NA, JP, UK, EU, ANZ)
- 1 - Audio Cable
- 1 - Firmware Update Cable
Package Depth (mm) 674 Package Height (mm) 136 Package Width (mm) 829 Package Quantity 1 Package Weight (g) 19000 Packaging Description 1-Port VGA/DVI Rackmount LCD Console - 17 in. - 1080p - 1U Packaging Description India 1-Port VGA/DVI Rackmount LCD Console - 17 in. - 1080p - 1U Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 2 Connector 3 DVI-D Dual-Link (25-Pin) Connector 3 (Quantity) 1 Connector 4 3.5mm (3 Conductors, TRS) Connector 4 (Quantity) 1 Host Connector 1 VGA Host Connector 1 (Quantity) 1 Host Connector 2 DVI-D Dual-Link (25-Pin) Host Connector 2 (Quantity) 1 Host Connector 3 USB-B (480Mbps, 2.5W) Host Connector 3 (Quantity) 1 Host Connector 4 3.5mm (3 Conductors, TRS) Host Connector 4 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2018-05-31 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Digital Content Due Date 2018-08-10 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FI,FR,IE,IT,JP,NL,SE,UK,US Primary Technology None Priority New Product N/A Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2018-04-20 Target Production Release 2018-06-15 Tech Lead Stefan Tirolese Technical Writer Evan Hanbidge Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
