RKCOND17HDEU
1U Rackmount LCD Console - 17in - 1080p
Control your server from a Full HD KVM console, with a convenient dual-rail slide design
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 1U Rackmount LCD Console - 17in - 1080p Product Number RKCOND17HDEU UPC 065030860871 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 KVM Switches Category Level 2 Enterprise KVMs Category Level 3 Single Port LCD Consoles Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX009X Product Title (Ultra-Short) LCD Console - 17" Product Title (Short) 1U Rackmount LCD Console - 17in - 1080p Product Title (Medium) 1U Rackmount 17" LCD Console - Fingerprint Scan & USB Hub - US Keyboard - 1080p Product Title (Standard) Rackmount LCD Console with Fingerprint Reader & USB Hub - 1U - 17in Screen - US Keyboard - 1080p Product Title (Long) Rackmount LCD Console - 1U - 17in Screen - US Keyboard - 1080p Product Title (AMZ) Rackmount LCD Console with Fingerprint Reader - 1U - 17in Screen - US Keyboard - 1080p (RKCOND17HDEU) Title Ingram (Part 1) 1U 17" Rackmount LCD Console Title Ingram (Part 2) w/ Fingerprint Scanner - 1080p Website Product Headline Control your server from a Full HD KVM console, with a convenient dual-rail slide design Bullet 1 Dual-rail design lets you slide the display out separately from the keyboard and trackpad Bullet 2 Maximize your screen viewing area with support for a high-definition resolutions up to 1080p Bullet 3 1U rack-mountable design Bullet 4 LED backlit display offers reduced power consumption Bullet 5 Security features include port locking and auto scan Bullets (Consolidated) Control your server from a full HD KVM console with a convenient dual-rail slide design - Compatible with VGA and USB or PS/2 computers and KVM consoles - Supports resolutions up to 1920x1080 - 1U 17" LCD console/Rack console/HD 1080p Dual Rail Rackmount LCD Console - Fingerprint Reader and Front USB Hub/LCD Rack Console/Widescreen HD KVM Console/Rack Mount LCD - Perfect for racks with acrylic or glass doors for easy and secure monitoring Marketing Copy Applications - Install the console in a rack with an acrylic or glass door, so you can close the rack and leave the display visible for simple, secured monitoring
- Control a single system, or dozens of KVM-connected computers
- Improve the internal space efficiency of your server cabinet
- Manage cabinet-mounted servers and KVM switches
- Lock access from the console to connected systems with your fingerprint, through built-in biometric security
- Connect a flash drive to the front USB hub to install software on your servers
Website Search Keyword - KVM console
- LCD console
- rackmount LCD
- keyboard mouse and monitor rackmount console
- KVM display console
- rack console
- high-definition rack console
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - CAB1641HDI
- SV1631DUSBU
- SV831DUSBU
- SV1641HDIE
- SV1653DXI
- SV3253DXI
- SV1654DX4I
- SV3254DX4I
- PS23N1THIN10
- PS23N1THIN15
- PS23N1THIN25
- PS23N1THIN6
- SV125
- CAB832DS
- CAB831HD
- CAB1631HD
- CAB1631D1U
- USB2HAB10
- USB2HAB15
- SVA12M5NA
Related Products - RACKCONS2001
- RACKCONV1901
- RACKCONS1701
- RACKCONV1701
- RACKCONS1708
- RACKCONS1716
- 1UCABCONS17
- RACKCONS1501
- RACKCONS1916
- RKCOND17HDGB
- RACKCOND1701

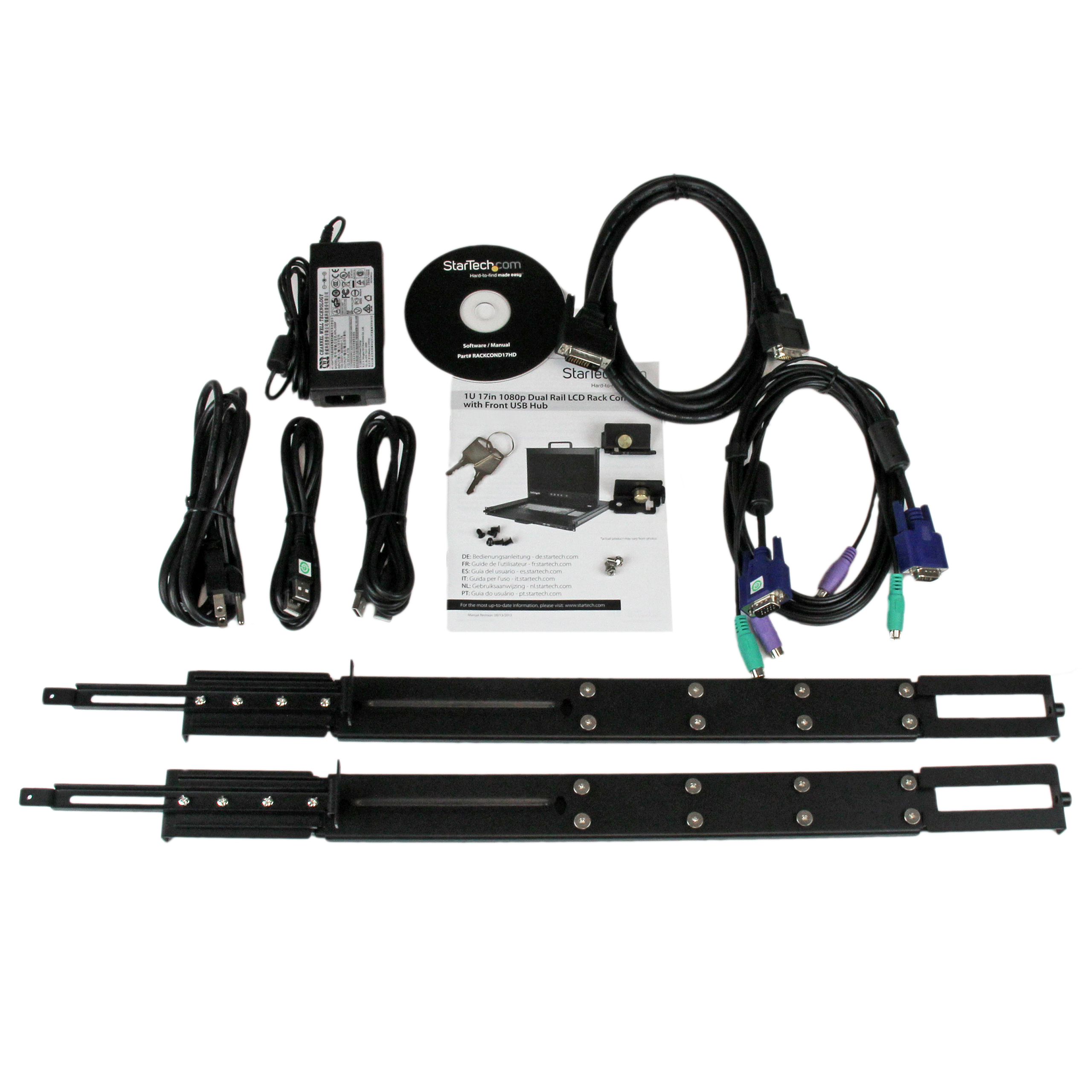

Replacement Product RKCOND17HD Input Current 1.8A Input Voltage 100 - 240 AC Output Current 4A Output Voltage (V) 12V DC Power Consumption (In Watts) 16 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0~80% RH Material Heavy Duty Steel Maximum Mounting Depth (mm) 1150 Minimum Mounting Depth (mm) 600 Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 480.800 Product Width (mm) 680.000 Product Height (mm) 43.800 Product Weight (g) 15600.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes KVM IP Control No Maximum Analog Resolutions 1920x1080 @ 60/70/75Hz Maximum Number of Users 1 MTBF (hours) 50, 000 Hours On-Screen Display Yes OS Compatibility OS Independent Port Selection Support Push Button and OSD (On Screen Display) Aspect Ratio 16:9 Audio No Cables Included Yes Cascadable Yes Display Size 17" Front Door Key Lock No Number of KVM Ports 1 Number of Monitors Supported 1 PC Video Type DVI+VGA Rack-Mountable Yes Supported Platforms USB and PS/2 U Height 1U Carton Depth (mm) 570 Carton Height (mm) 210 Carton Quantity 1 Carton Weight Gross (g) 0 Included in Package - 1 - Dual Rail Rack Console
- 1 - Set, Mounting Rails
- 2 - USB A to A Cables
- 1 - DVI-D Cable
- 1 - VGA PS/2 KVM Cable
- 2 - Keys
- 2 - Blockers w/ screws
- 6 - 6mm Flat Screws
- 1 - Power Cord
- 1 - Power Adapter
- 1 - Instruction Manual / Software CD
Package Depth (mm) 543 Package Height (mm) 203 Package Width (mm) 812 Package Quantity 1 Package Weight (g) 18200 Packaging Description 1U 17in 1080p Dual Rail LCD Rack Console - US Keyboard Packaging Description India 1U 17in 1080p Dual Rail LCD Rack Console - US Keyboard Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 2 Connector 2 PS/2 Connector 2 (Quantity) 2 Connector 3 VGA Connector 3 (Quantity) 1 Connector 4 DVI-I Dual-Link (29-Pin) Connector 4 (Quantity) 1 Connector 5 USB-A (480Mbps, 2.5W) Connector 5 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-11-27 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) BE,DE,DK,ES,EU,FR,IT,NL,SE Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2015-02-20 Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
