Main Image
RKCONS1501GB
Main Image
Product Images
Product Images
Product Images
Product Name DuraView 15 in. LCD Console Drawer Product Number RKCONS1501GB UPC 065030823340 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX009X Product Title (Short) 1U 15in Folding Rackmount LCD Console Product Title (Standard) StarTech.com 1U 15 in. Folding rackmount LCD rack Console - USB + PS/2 - KVM console - rack-mountable - TFT - 15" - 1024 x 768 - 400:1 - 16 ms - 0.297 mm - 1U Product Title (Long) 1U 15in Folding Rackmount LCD Console - USB + PS/2 Title Ingram (Part 1) 1U 15in Folding Rackmount LCD Co Title Ingram (Part 2) nsole - USB + PS/2 Bullet 1 Durable design Bullet 2 OSD function (On Screen Display) for LCD display Bullet 3 Security features, including port locking and auto scan Bullet 4 Bright Active Matrix TFT Display Marketing Copy Applications - Managing cabinet mounted servers
- Improving the internal space efficiency of existing cabinets
- PCs and servers if used with optional KVM
Website Search Keyword - LCD
- rack
- cabinet
- 15 inch
- drawer
Accessory Products - PS23N1THIN6
- PS23N1THIN10
- PS23N1THIN15
- PS23N1THIN25
- SV125
- USBEXTAA10
- USBEXTAA_6
Related Products - RKCONS1701GB
- RKCONS1901GB
Power Source AC Adapter Included Center Tip Polarity Positive Color Black Maximum Mounting Depth (mm) 800 Minimum Mounting Depth (mm) 550 Product Length (mm) 530 Product Width (mm) 480.8 Product Height (mm) 45 Product Weight (g) 11000 TAA Compliant No General Specifications - Display Size: 15"
- Panel Type: Active Matrix TFT LCD
- Resolution: Up to 1280 x 1024 @ 85Hz
- Pixel Pitch: Supports 0.297mm x0.297mm
- Viewing Angle: Right-Left view 130 (Typ) & Up-Down View 100 (Typ)
- Contrast Ratio: 400:1
- Response Time: Rising Time 5ms , Decay Time 11ms
- Operating Systems: DOS, Windows (3.1, 9x, 2000, NT4, ME, XP, 2003 Server) Linux, Novell 3.12-6, HP UX, SUN
- Multiplatforms: Supports PS/2 and USB
- Sync: 45~80KHZ
- Power Consumption: 16W, 10.41W for Panel
- Temp Operating: 0 ~ 50 C / 32 ~ 122 F
- Temp Storage: 20 ~ 60 C / -4 ~ 140 F
- Chassis material: Heavy duty steel materials
- Lock: LCD Key Locking

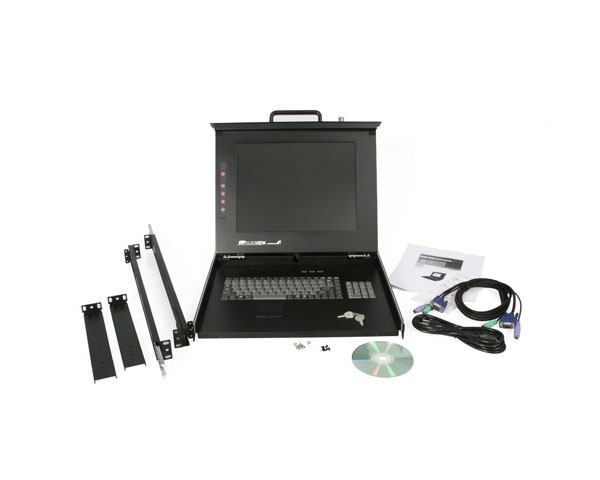

On-Screen Display Yes Carton Depth (mm) 665 Carton Height (mm) 210 Carton Quantity 1 Carton Weight Gross (g) 17810 Included in Package - 1 - 1U LCD Rack Console Drawer (1)
- 1 - Console Cable Kit (1)
- 1 - Mounting Rails - Set (1)
- 1 - Power Adapter (1)

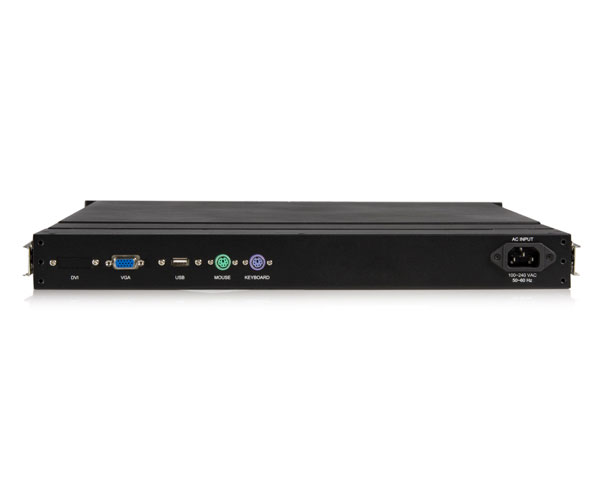

Package Depth (mm) 665 Package Height (mm) 210 Package Width (mm) 568 Package Weight (g) 16610 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 1 Connector 2 PS/2 Connector 2 (Quantity) 2 Connector 3 USB-A (480Mbps, 2.5W) Connector 3 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
