Main Image
RKCONS1701

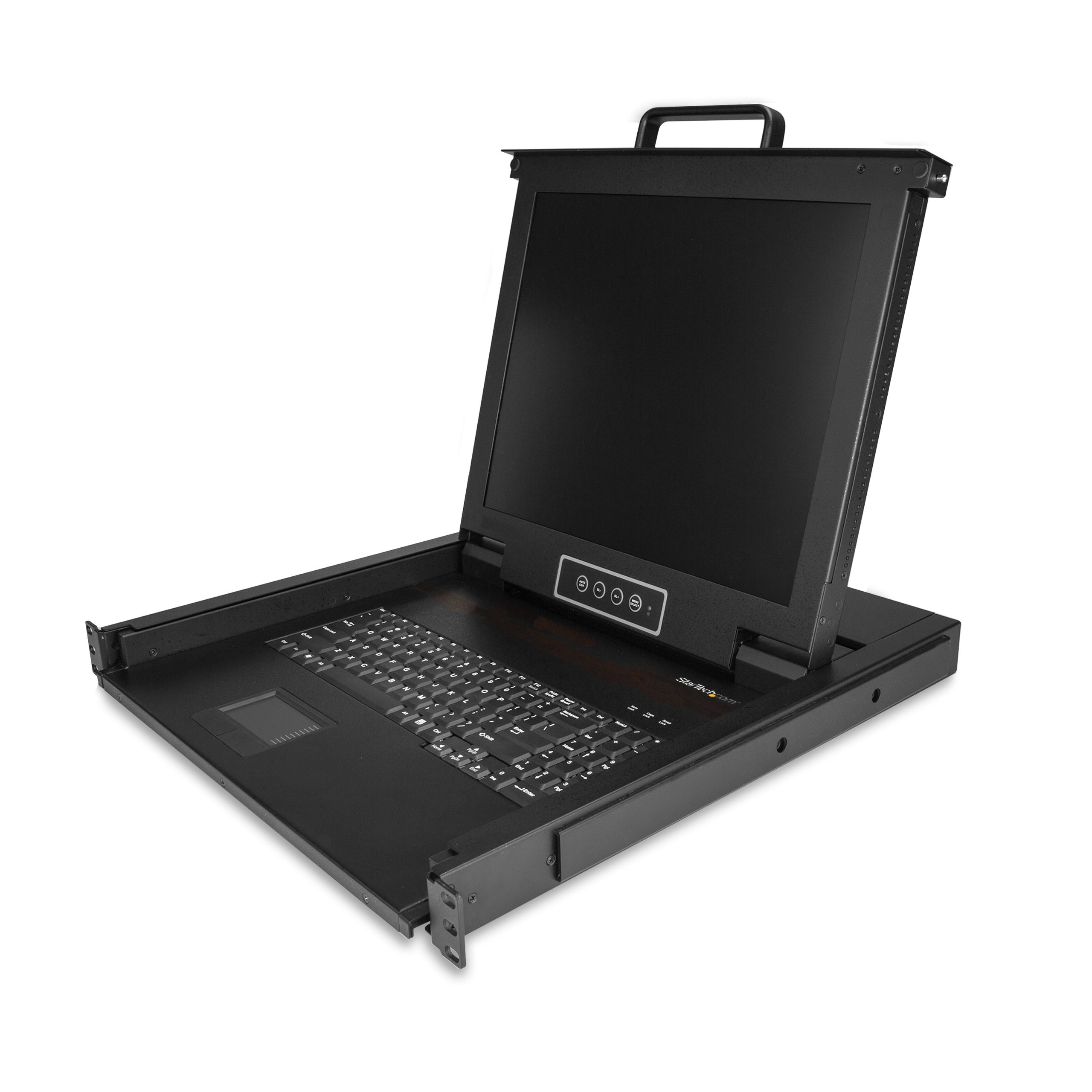

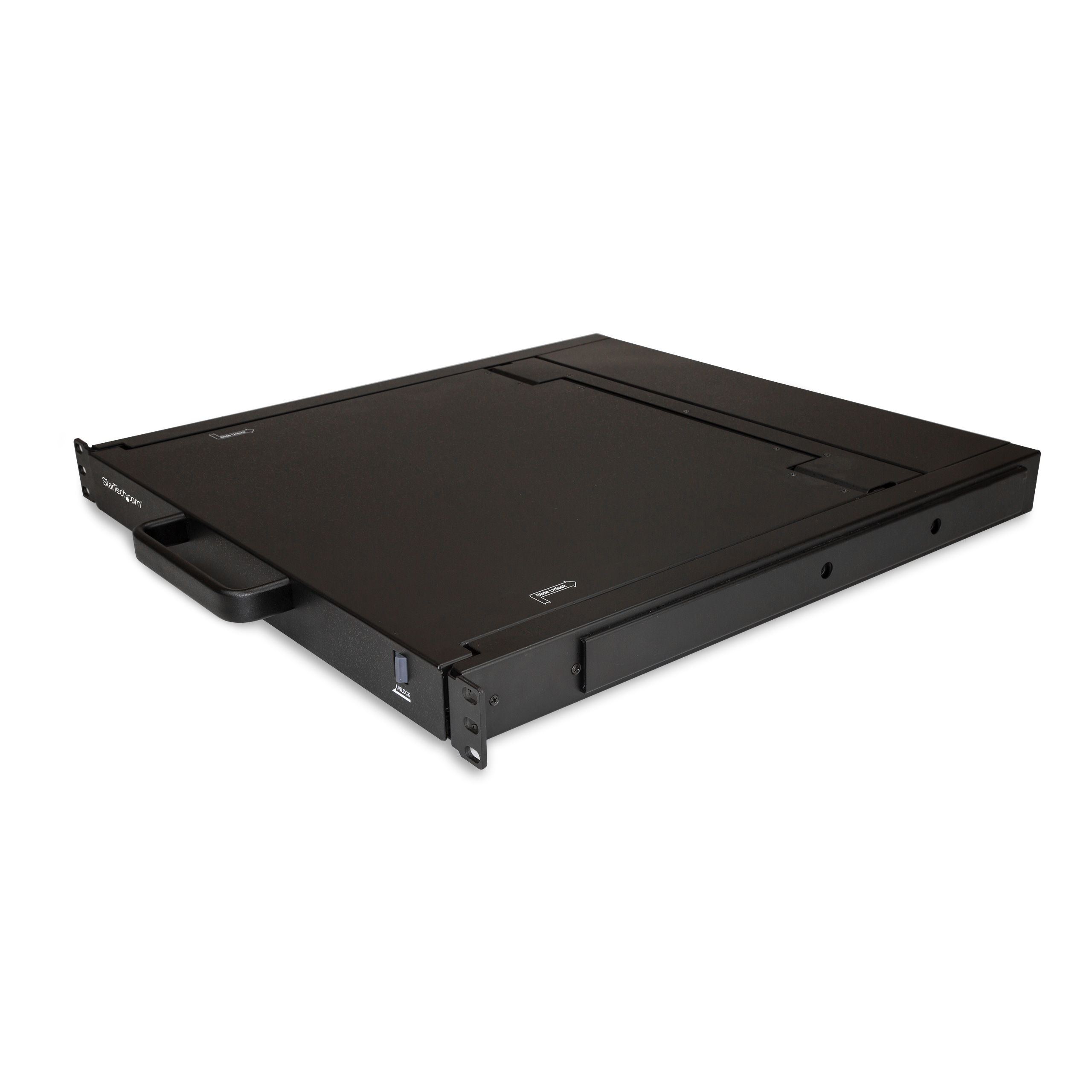

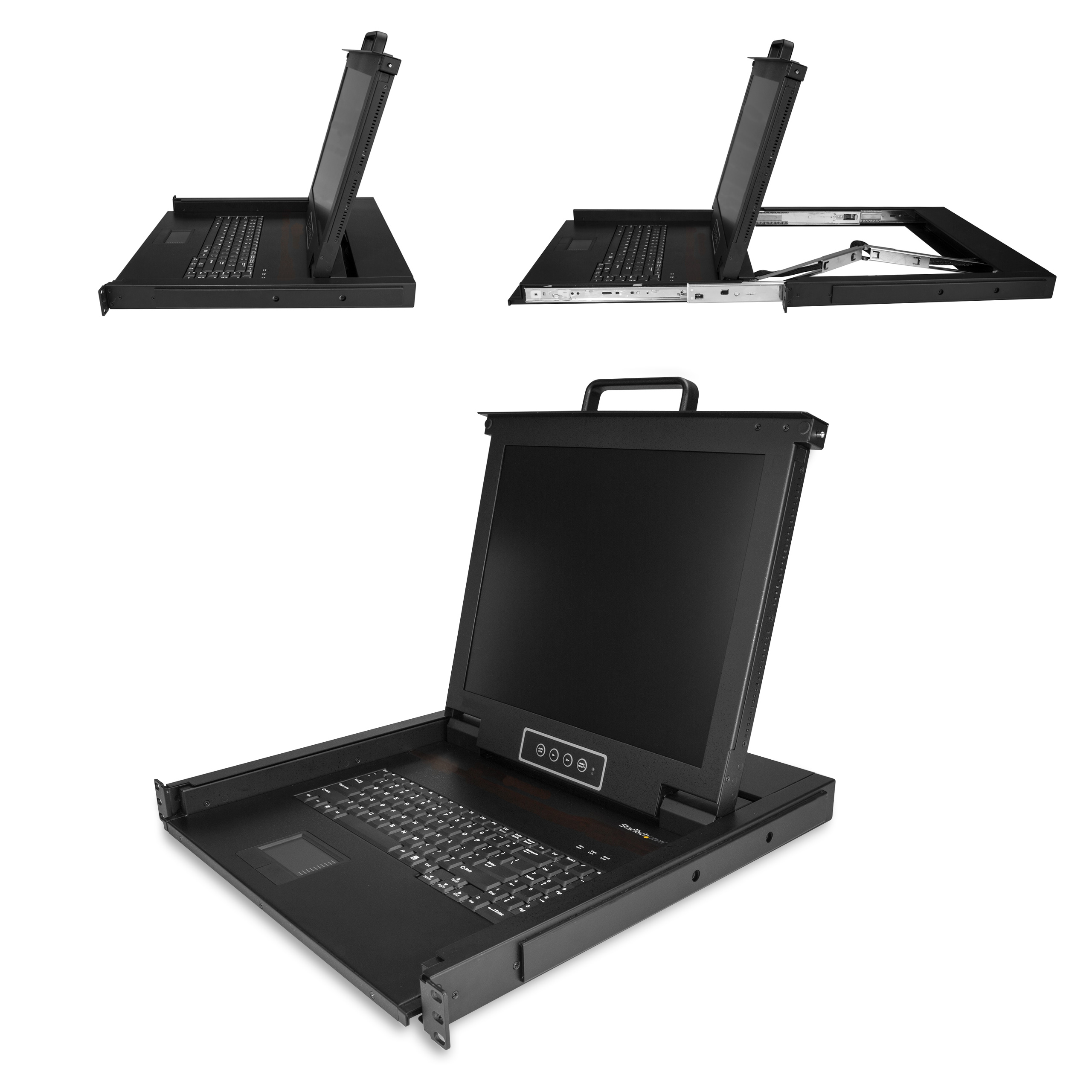

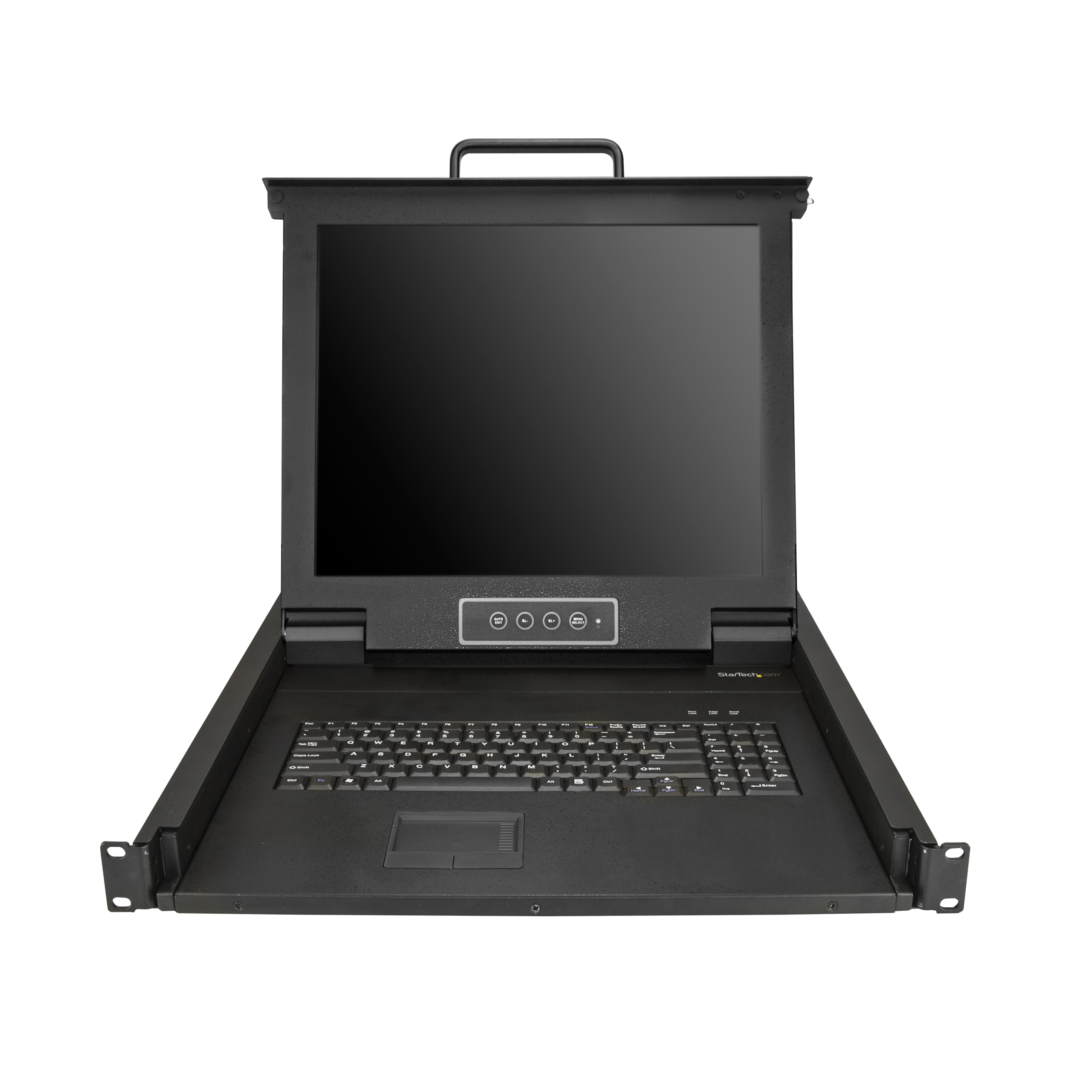

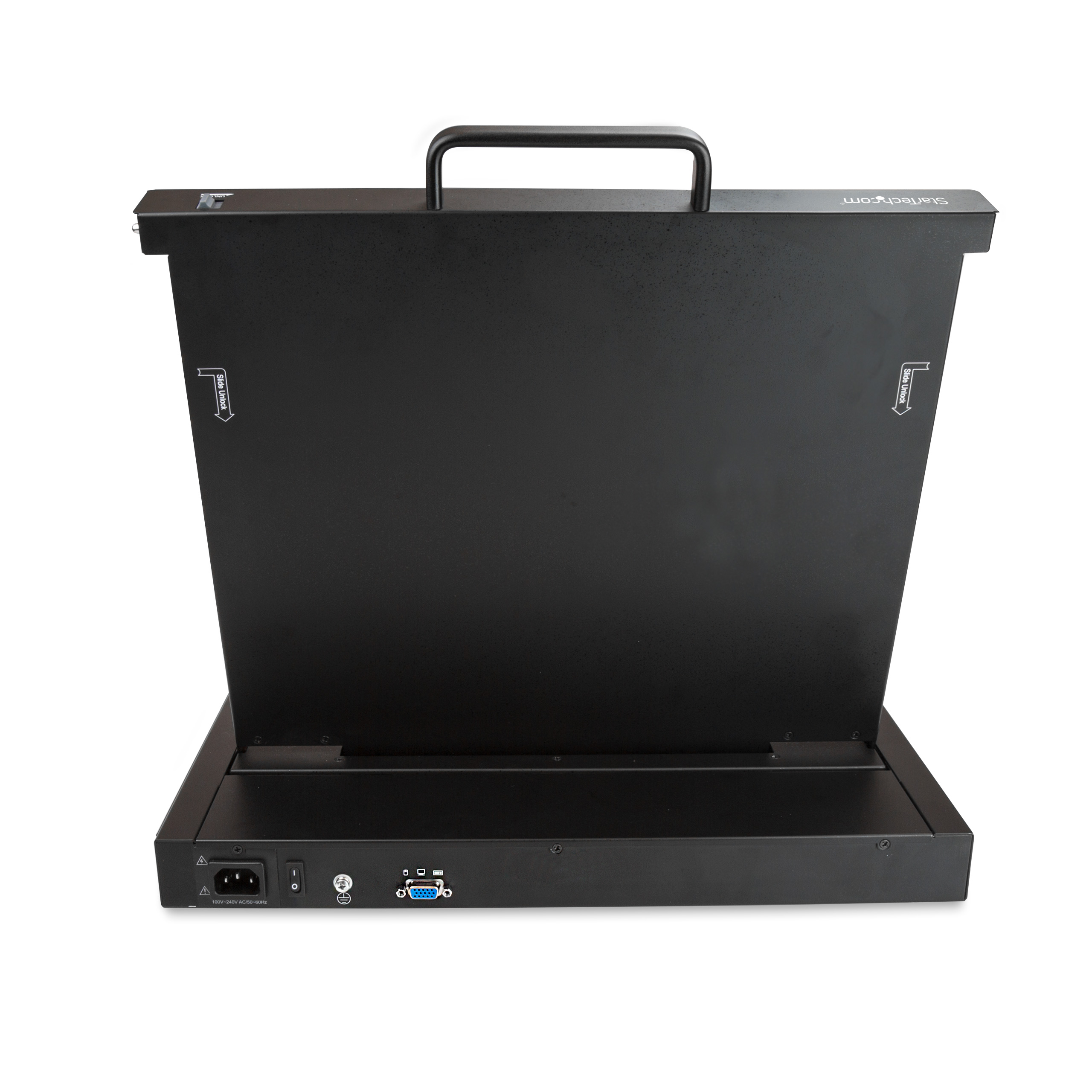

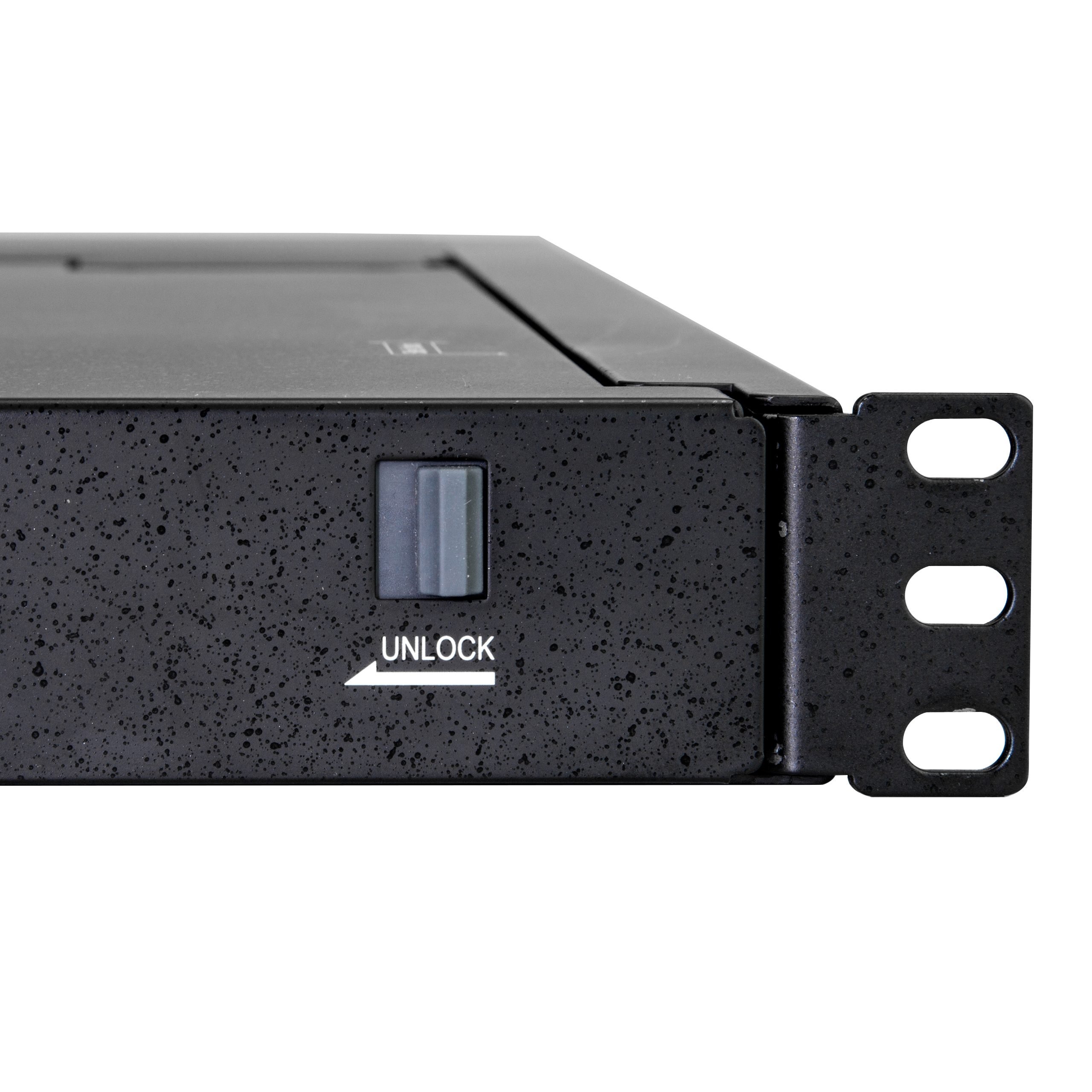

17 in Single VGA port KVM console for server rack
KVM Console | 1U | VGA | 1280x1024 | Cable & Mounting Hardware Included
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 17 in Single VGA port KVM console for server rack Product Number RKCONS1701 UPC 065030872522 Lifecycle status Active Warranty 2 Years Taxonomy Product > KVMs, Switches & Splitters > KVM Consoles Category Level 1 KVM Switches Category Level 2 Enterprise KVMs Category Level 3 Single Port LCD Consoles Family Basic Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX077X Product Title (Ultra-Short) Single Server KVM Product Title (Short) Rackmount KVM Console - 1U 17in LCD VGA Product Title (Medium) Single Port Rackmount KVM Console with 17” LCD Display Product Title (Standard) Rackmount KVM Console - 1U 17" LCD Monitor Single Port VGA KVM Server Rack Drawer includes Cables & Hardware - USB Support Product Title (Long) Rackmount KVM Console - Single Port VGA KVM with 17" LCD Monitor for Server Rack - Fully Featured Universal 1U LCD KVM Drawer w/Cables & Hardware - USB Support - 50,000 MTBF Product Title (AMZ) Rackmount KVM Console - Single Port VGA KVM with 17" LCD Monitor for Server Rack - Fully Featured Universal 1U LCD KVM Drawer w/Cables & Hardware - USB Support - 50,000 MTBF (RKCONS1701) Title Ingram (Part 1) 1-Port Rackmount KVM Console Title Ingram (Part 2) 17” LCD - Mount Parts & Cable Incl Website Product Headline KVM Console | 1U | VGA | 1280x1024 | Cable & Mounting Hardware Included Bullet 1 FLEXIBLE DESIGN: This rackmount KVM console drawer works with all KVM switch brands and models that supports VGA and USB interfaces and conveniently slides into the server rack when not in use Bullet 2 VERSATILE INTERFACES: Rack mount monitor w/ 17" Active Matrix TFT 1280 x 1024 LCD| 1U height | 99 key full keyboard with numeric keypad + Trackpad | Supports VGA and USB | Integrated Power Supply Bullet 3 MAX DURABILITY: Features durable steel housing design and rails that withstand frequent use, rated to work in environments from 0 to 40 deg. C and a 50,000 hour MTBF Bullet 4 TESTED AND PROVEN: Our KVM consoles are backed by a 2 year warranty with 24/5 by multi-lingual tech support based in North America with free technical support for the life of the product Bullet 5 KVM Collection: Can be purchased with integrated 8-port (RKCONS1708K) or 16-port (RKCONS1716K) KVM or use with StarTech.com enterprise KVM switches: SV831DUSB, SV831DUSBUK, SV1631DUSBU, SV1631DUSBUK. Bullets (Compact) Rackmount KVM console works w/all KVM switches w/ VGA + USB interfaces - Rack mount monitor w/17in Active Matrix TFT 1280 x 1024 LCD - 1U height - Integrated power supply - Server rack drawer w/durable steel enclosure 50000 hour MTBF 2 year warranty Bullets (Consolidated) This rackmount KVM console drawer works w/all VGA + USB KVM switch brands and models - Rack mount monitor w/17" Active Matrix TFT 1280x1024 LCD | 1U | 99 key full keyboard w/numeric keypad + Trackpad |Integrated power supply - Server rack drawer w/durable steel housing and rails | Operating Temperature 0 to 40 deg. C | 50000 hour MTBF - Backed by 2 year warranty with 24/5 by multi-lingual tech support - Compatible with StarTech.com integrated 8-port (RKCONS1708K) or 16-port (RKCONS1716K) KVMs Marketing Copy Marketing Copy (No HTML) Applications - Control a single system, or dozens of KVM-connected computers
- Improve the internal space efficiency of your server cabinet
- Manage cabinet-mounted servers and KVM switches
Website Search Keyword - 17 in. LCD KVM Console
- 17" display
- 1U
- 1u kvm
- 1u kvm console
- 1U LCD KVM Switch
- Avocent KVM
- Back Office
- Belkin KVM
- Black Box KVM
- Black Box KVT417A-1UV-R3
- Black Box KVT41A-1IP
- BlackBox KVM
- Data Center
- iogear kvm
- kvm switch vga
- LCD Display
- LCD KVM drawer
- lcd with kvm
- rack console
- rack kvm console
- Rack mount
- rack mount console
- rack mount kvm
- rackmount console
- rackmount kvm
- rackmount kvm console
- rackmount lcd
- Server Room
- Single Port KVM
- Single port kvm console
- Tripp Lite KVM
- Tripp Lite NetCommander
- Tripp Lite NetController
- Tripp Lite NetDirector
- VGA
- VGA KVM
- VGA KVM switch
- VGA Rackmount KVM Console
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- CE - Safety - Electrical - European Union - Low Voltage Directive (LVD) 2014/35/EU
- UL - Safety - Electrical - Canada / United States - Enhanced UL Mark
- PSE - Safety - Electrical - Japan - PSE Circle Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Special Notes The minimum mounting depth of this rackmount console (17.7in / 45,0cm) is less than the length of the console itself (18.5in / 47.1cm). Please consider the length of the rackmount console when evaluating if it will fit into your rack. Accessory Products - SV1631DUSBU
- SV831DUSBU
- SV831DUSBUK
- SV1631DUSBUK
- SV831DUSBAU
- SV431DUSB
- SV431DUSBU
- SV841HDIE
- SV441DUSBI
- RKCONSUV6
- RKCONSUV10
- RKCONSUV15
- CABSHELFV
Related Products - RKCONS1908K
- RKCONS1916K
- RKCONS1901
- RKCOND17HD

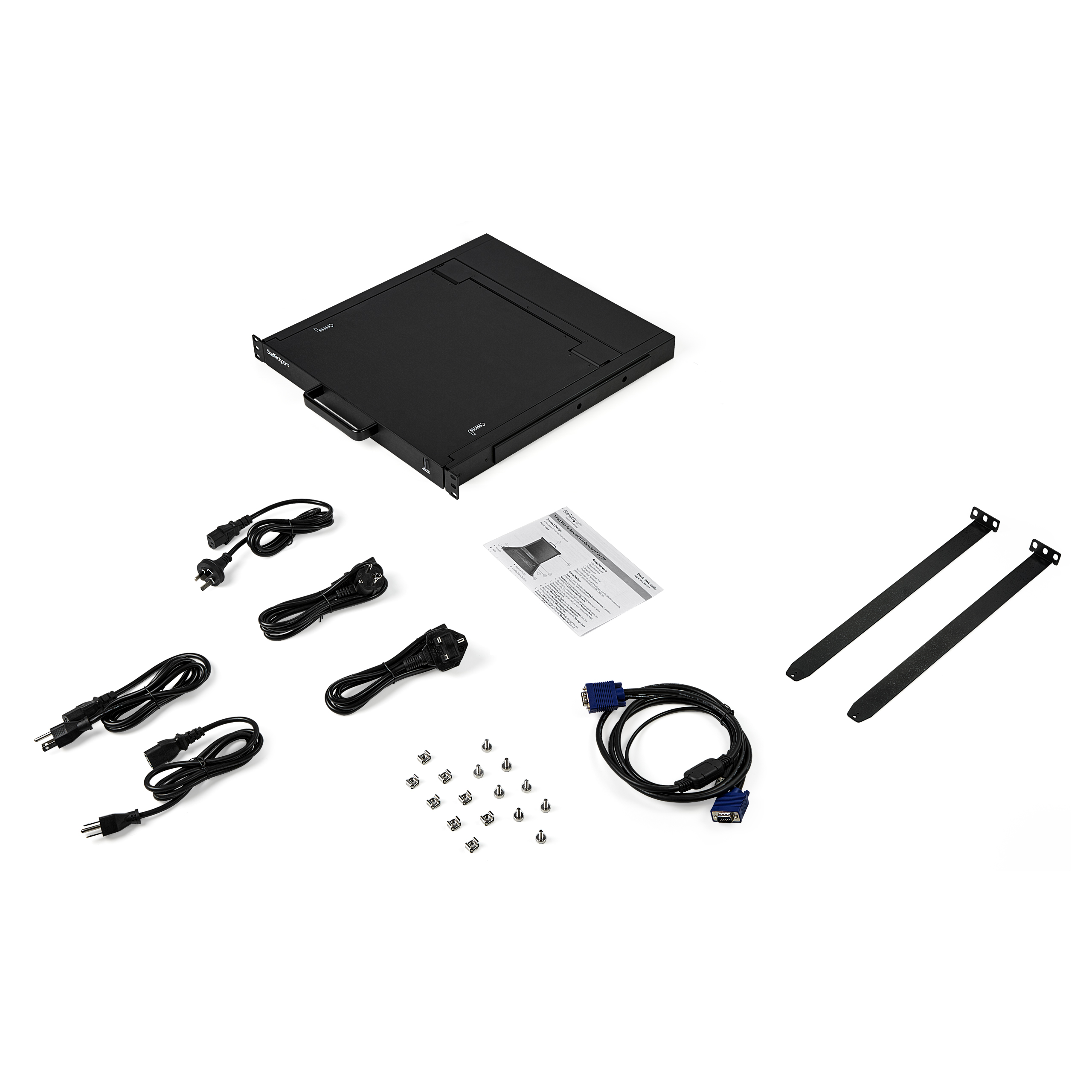

Constrained SKU Alternatives (Limited Stock) RKCONS17HD Input Current 1.5A Input Voltage 100 - 240 AC Power Consumption (In Watts) 13W Power Source International Power Cords Color Black Humidity 10 ~ 80% RH (non-condensing) Material Steel Maximum Mounting Depth (mm) 790 Minimum Mounting Depth (mm) 450 Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Steel Product Length (mm) 471.000 Product Width (mm) 448.000 Product Height (mm) 42.500 Product Weight (g) 11605.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No KVM IP Control No Maximum Analog Resolutions 1280 x 1024 Maximum Number of Users 1 MTBF (hours) 50, 000 Hrs On-Screen Display Yes Supported Resolutions Resolutions up to 1280 x 1024 @ 60Hz Aspect Ratio 5:4 Audio No Cables Included Yes Display Size 17" Front Door Key Lock No LED Indicators 1 - Power / Status LED Number of KVM Ports 1 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms USB U Height 1U Carton Depth (mm) 781 Carton Height (mm) 196 Carton Quantity 1 Carton Weight Gross (g) 17294 Included in Package - 1 - KVM console
- 2 - mounting rails
- 1 - KVM cable
- 5 - regional power cords (NA, JP, UK, EU, ANZ)
- 1 - quick-start guide
- 8 - M5 cage nuts
- 8 - M5 screws
Package Depth (mm) 620 Package Height (mm) 190 Package Width (mm) 775 Package Quantity 1 Package Weight (g) 17500 Packaging Description 1-Port VGA Rackmount LCD Console - 17 in. - 1U Packaging Description India 1-Port VGA Rackmount LCD Console - 17 in. - 1U Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 VGA Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2018-10-19 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Digital Content Due Date 2018-11-02 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,EU,FI,FR,HK,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology None Priority New Product N/A Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2018-07-27 Target Production Release 2018-08-17 Tech Lead Stefan Tirolese Technical Writer Evan Hanbidge Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
