RKCONS1708K

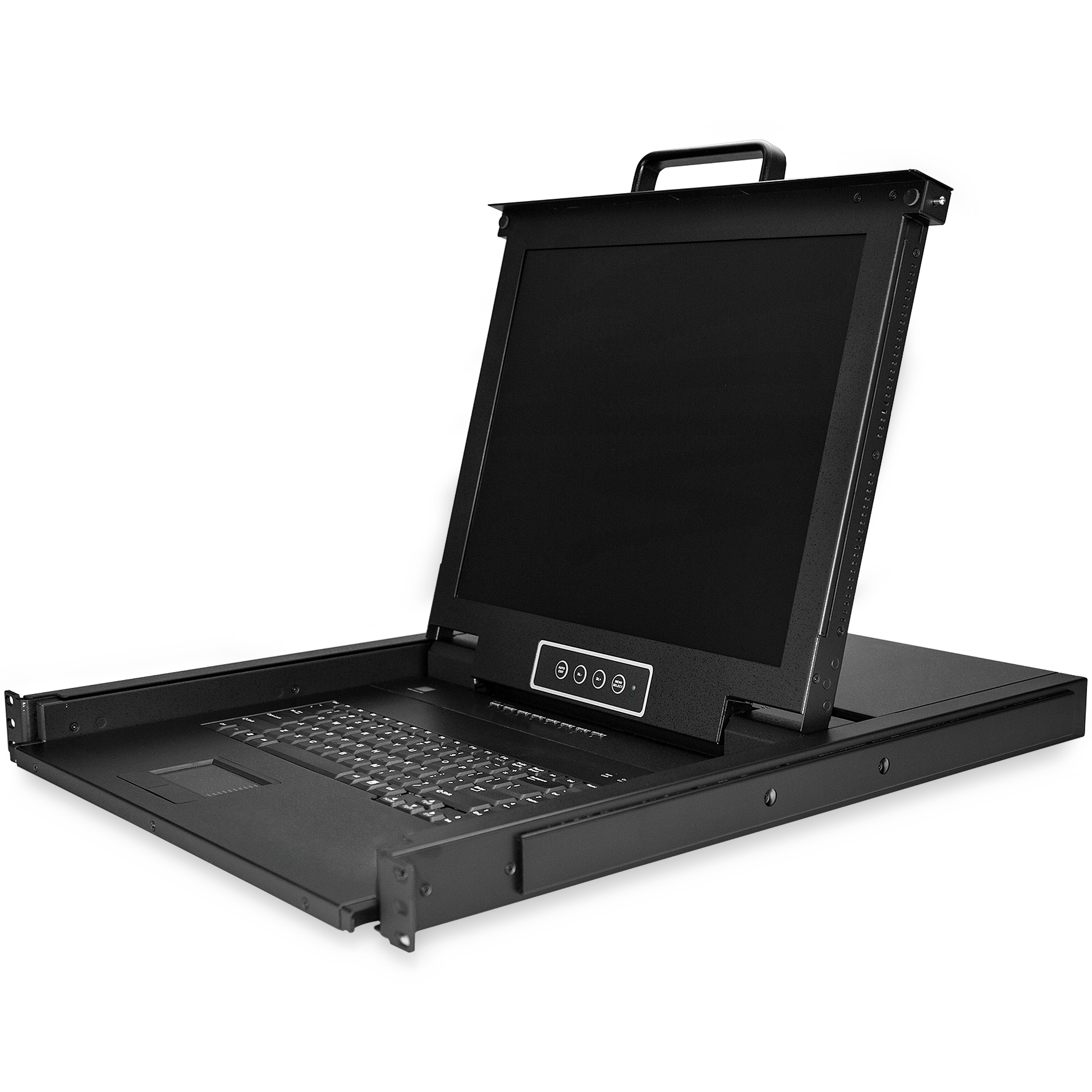

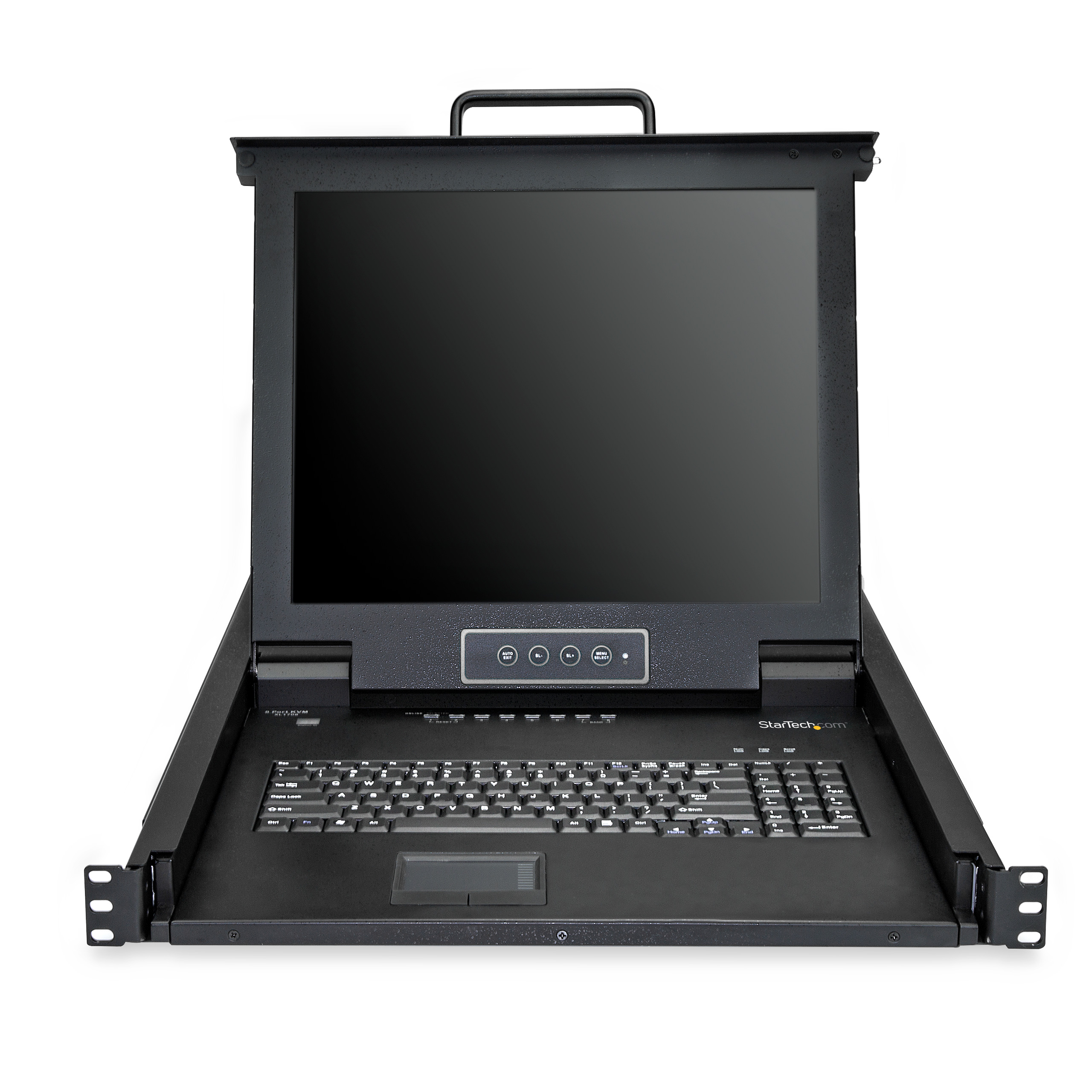

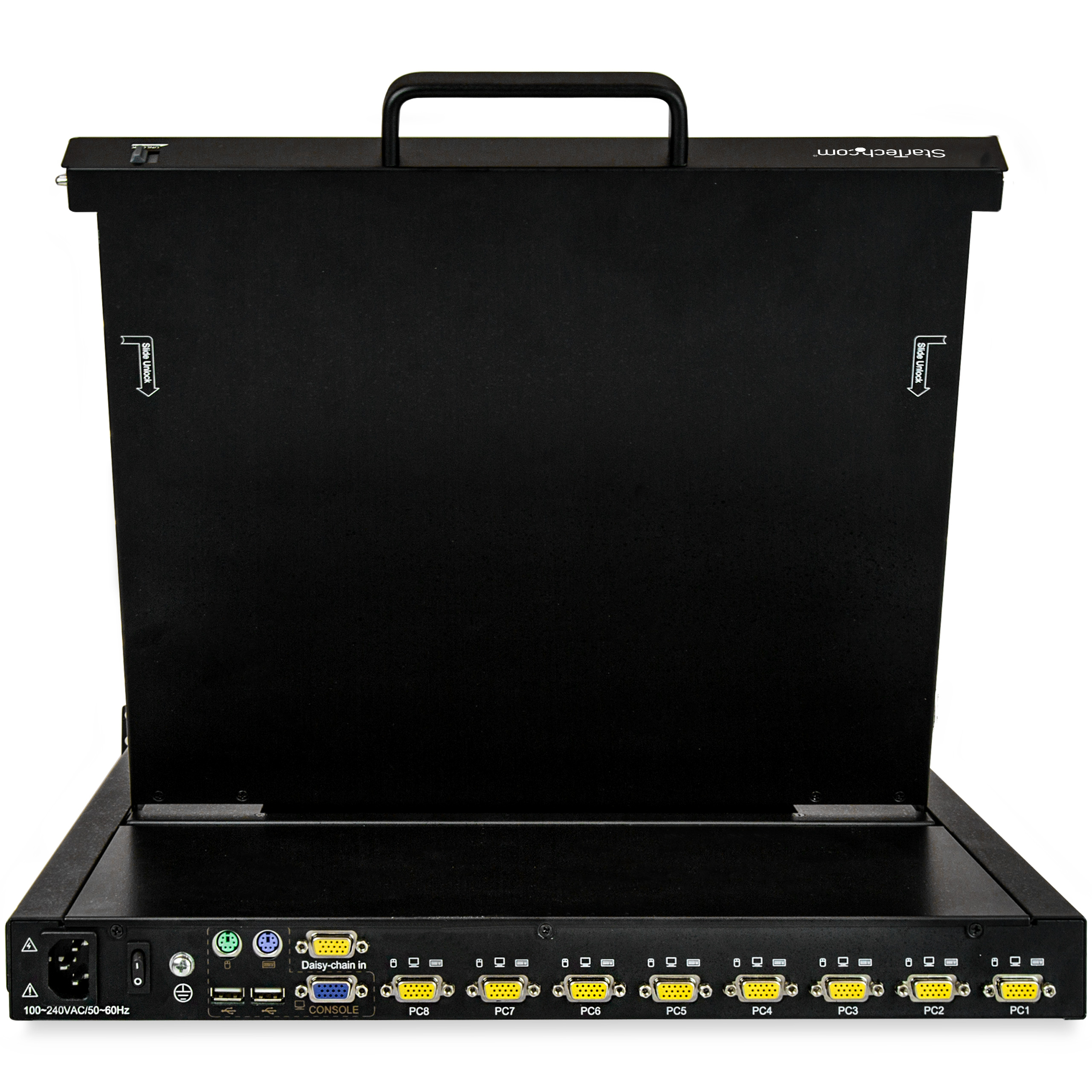

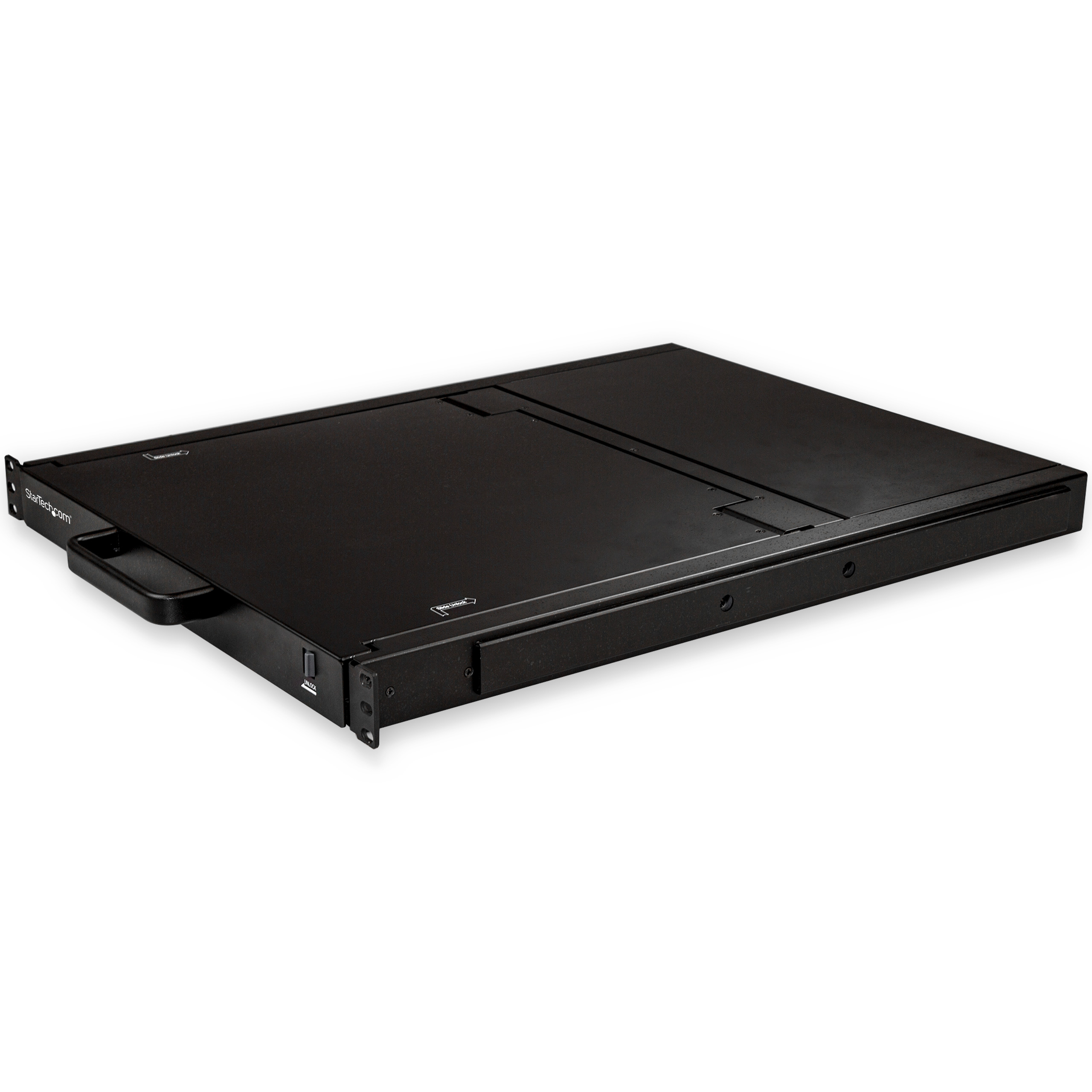

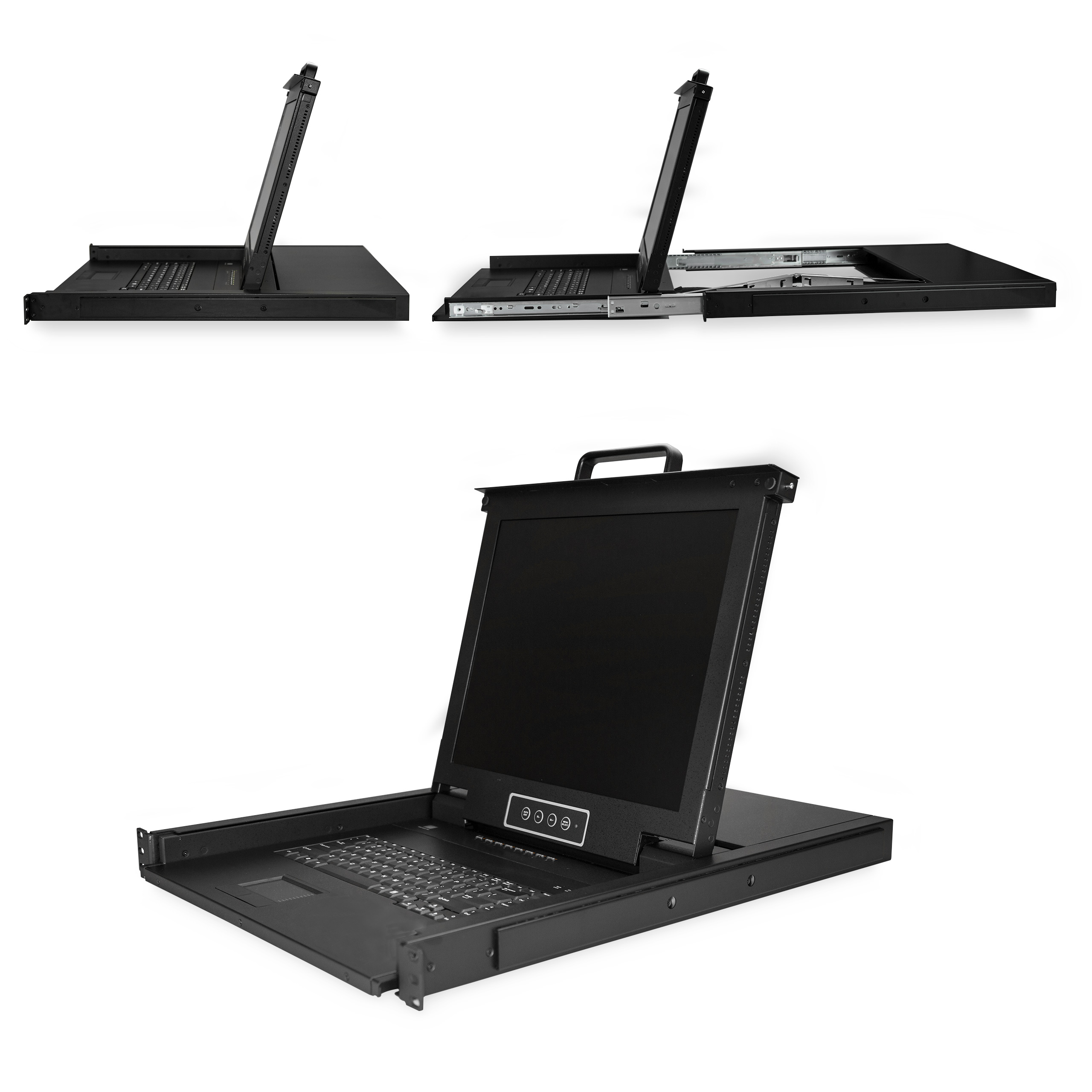

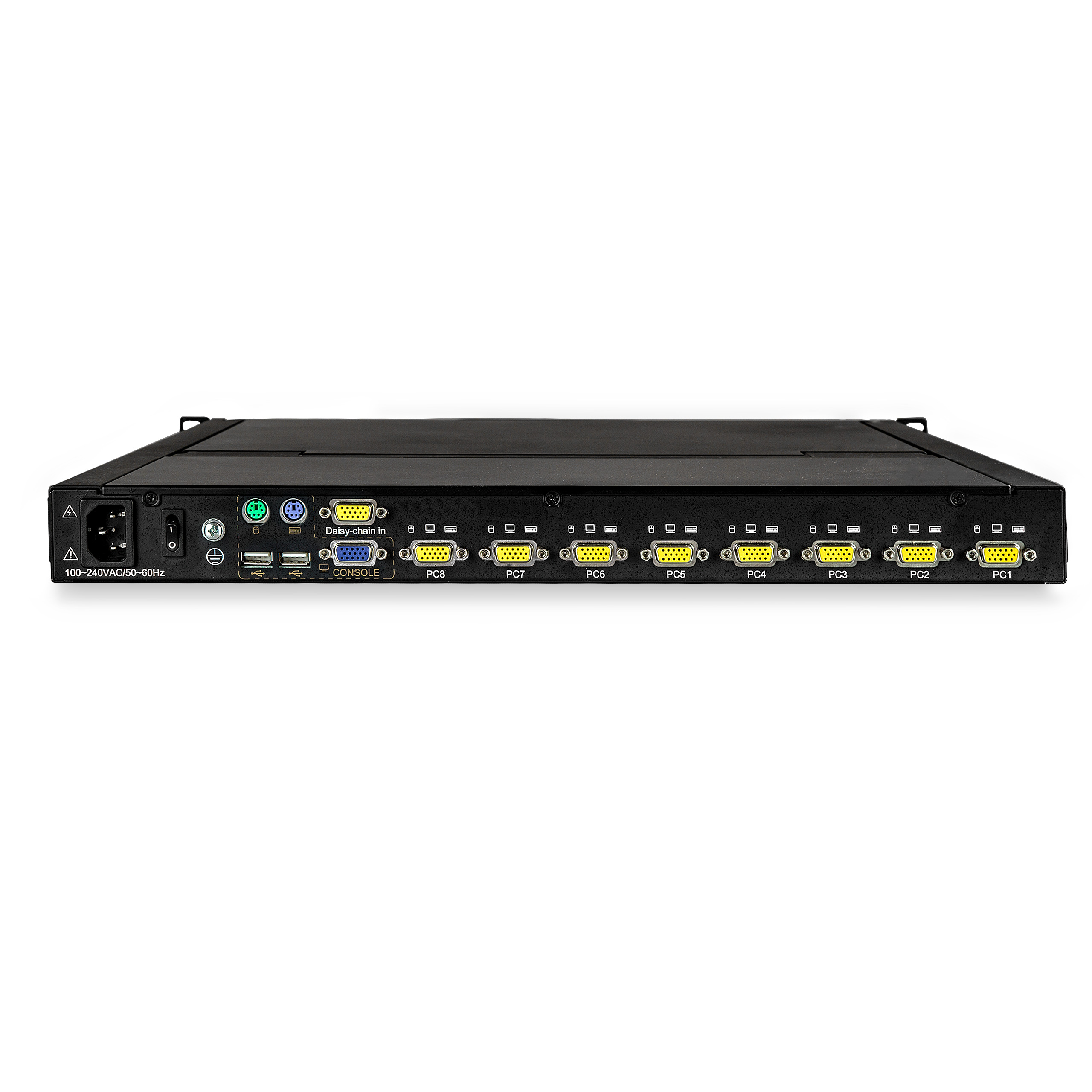

17 in 8-Port VGA Rackmount LCD Console
KVM Console | 1U | VGA | 1280x1024 | Cables & Mounting Hardware Included
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 17 in 8-Port VGA Rackmount LCD Console Product Number RKCONS1708K UPC 065030872485 Lifecycle status Active Warranty 2 Years Taxonomy Product > KVMs, Switches & Splitters > KVM Consoles Category Level 1 KVM Switches Category Level 2 Enterprise KVMs Category Level 3 Multiport LCD Consoles Family Mid Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX077X Product Title (Ultra-Short) 1U 8 Port KVM Product Title (Short) 8 Port Rackmount KVM Console w/17in LCD Product Title (Medium) 8 Port Rackmount KVM Console with 17” LCD Displa Product Title (Standard) 8 Port Rackmount KVM Console w/ Cables - Integrated KVM Switch w/ 17" LCD - 1U LCD KVM Drawer 50000 MTBF - USB + VGA Support Product Title (Long) 8 Port Rackmount KVM Console w/ 6ft Cables - Integrated KVM Switch w/ 17" LCD Monitor - Fully Featured 1U LCD KVM Drawer- OSD KVM - Durable 50,000 MTBF - USB + VGA Support Product Title (AMZ) 8 Port Rackmount KVM Console w/ 6ft Cables - Integrated KVM Switch w/ 17" LCD Monitor - Fully Featured 1U LCD KVM Drawer- OSD KVM - Durable 50,000 MTBF - USB + VGA Support (RKCONS1708K) Title Ingram (Part 1) 8-Port Rackmount KVM Console Title Ingram (Part 2) 17” LCD - Mount Parts & Cables Incl Website Product Headline KVM Console | 1U | VGA | 1280x1024 | Cables & Mounting Hardware Included Bullet 1 TECH SPECIFICATIONS: Rackmount KVM Console, 17" Active Matrix TFT LCD Monitor, 1280 x 1024, 8 port VGA KVM switch w/ 6 ft. cables, 99 key full keyboard + numeric keypad & trackpad; Supports USB 2.0 Bullet 2 PROFESSIONAL & SECURE: Customizable hot-keys, on-screen display (OSD), multi-level user security, user access levels / port permissions, & auto scan Bullet 3 INTEGRATED DESIGN: Combines a KVM + Console w/ integrated power supply into 1U of rack space allowing space for other equipment. Mount depth: 22" [56 cm] to 35" [90 cm] (incl. mounting hardware) Bullet 4 HEAVY DUTY: LCD KVM drawer has durable steel construction and heavy duty rail design that supports frequent use in operating environments from 0C to 40C (32F to 104F) with an MTBF of 50,000 hours Bullet 5 TESTED & PROVEN: This OS independent rack console is universally compatible w/ leading servers and backed by a StarTech.com 2-year warranty and free lifetime 24/5 multilingual technical support Bullets (Compact) Rackmount KVM Console w/ 17in Active Matrix TFT LCD Monitor / 1280 x 1024 / 8 Port VGA KVM Switch / 1U LCD KVM Drawer / Set of 6ft Cables / Full Keyboard / Trackpad / OSD, Hot Keys, Admin/User Security - Mount Depth: 22in to 35in - 2-Yr Warranty Bullets (Consolidated) Rackmount KVM Console w/17" Active Matrix TFT LCD Monitor/1280 x 1024/8 Port VGA KVM Switch/Full Keyboard + Keypad/Trackpad/Integrated Power Supply/OS Independent/USB 2.0 - Incl. 6' Cables/Mounting Hardware/Universal Compatibility - Customizable Hot-Keys/On-Screen Display (OSD)/Admin + User Level Security and Auto Scan - Integrated KVM + console in 1U rack space w/mounting depth 22" [56 cm] to 35" [90 cm] - Heavy duty LCD KVM Drawer with rails - StarTech.com 2-year warranty Marketing Copy Marketing Copy (No HTML) Providing centralized control of your single PC or dozens of servers, this 8-port rackmount KVM console gives you easy access to and visibility of your systems. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space. The 1U rackmount console features a built-in keyboard, and a touchpad for intuitive control, as well as a 17-inch LCD display that supports resolutions up to 1280x1024. This 8-port KVM console comes with everything you need to set up right out of the box: 8 VGA KVM Cables, Mounting Rails, M5 Cage Nuts and Screws. The rackmount LCD console has 8 ports connecting you directly to sixteen servers. The KVM module offers the flexibility you need for easily integrating the console into your existing server infrastructure. Rack consoles provide convenient, rack-mounted control options for single servers or the entire server room. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. RKCONS1708K is backed by a StarTech.com 2-year warranty and free lifetime technical support. Applications - Control a single system, or dozens of KVM-connected computers
- Improve the internal space efficiency of your server cabinet
- Manage cabinet-mounted servers and KVM switches
Website Search Keyword - 17 in. LCD KVM Console
- 17" display
- 1U
- 1u kvm
- 1u kvm console
- 1U LCD KVM Switch
- 8 port
- 8 port kvm
- 8 port kvm console
- 8 port kvm switch
- 8 port Rackmount KVM Console
- 8 port VGA KVM Switch
- 8 port vga switch
- Avocent KVM
- Back Office
- Belkin KVM
- Black Box KVM
- BlackBox KVM
- BlackBox KVT417A-8-1IP
- Cables Included
- Data Center
- iogear kvm
- kvm switch vga
- LCD Display
- LCD KVM drawer
- lcd with kvm
- rack console
- rack kvm console
- Rack mount
- rack mount console
- rack mount kvm
- rackmount console
- rackmount kvm
- rackmount kvm console
- rackmount kvm switch
- rackmount lcd
- Server Room
- Tripp Lite B020-008-17
- Tripp Lite KVM
- Tripp Lite NetCommander
- Tripp Lite NetController
- Tripp Lite NetDirector
- VGA
- VGA KVM
- VGA KVM switch
- VGA Rackmount KVM Console
- B020-U08-19-K
Required Regulatory Compliance Marks - CE - Safety - Electrical - European Union - Low Voltage Directive (LVD) 2014/35/EU
- UL - Safety - Electrical - Canada / United States - Enhanced UL Mark
- PSE - Safety - Electrical - Japan - PSE Circle Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes The minimum mounting depth of this rackmount console is less than the length of the console itself. Please consider the length of the rackmount console when evaluating if it will fit into your rack. Accessory Products - CMPNL2UCD
- CMPNL1UC
- CABLMANAGER2
- CMBRUSH1U
- CMHOOKMW
- CMVELC1U
- RKPW081915
- CMHOOK1U
- RKCONSUV6
- RKCONSUV10
- RKCONSUV15
Related Products - RKCOND17HD
- RKCONS1701
- RKCONS1916K
- RKCONS1908K
- RKCONS1901

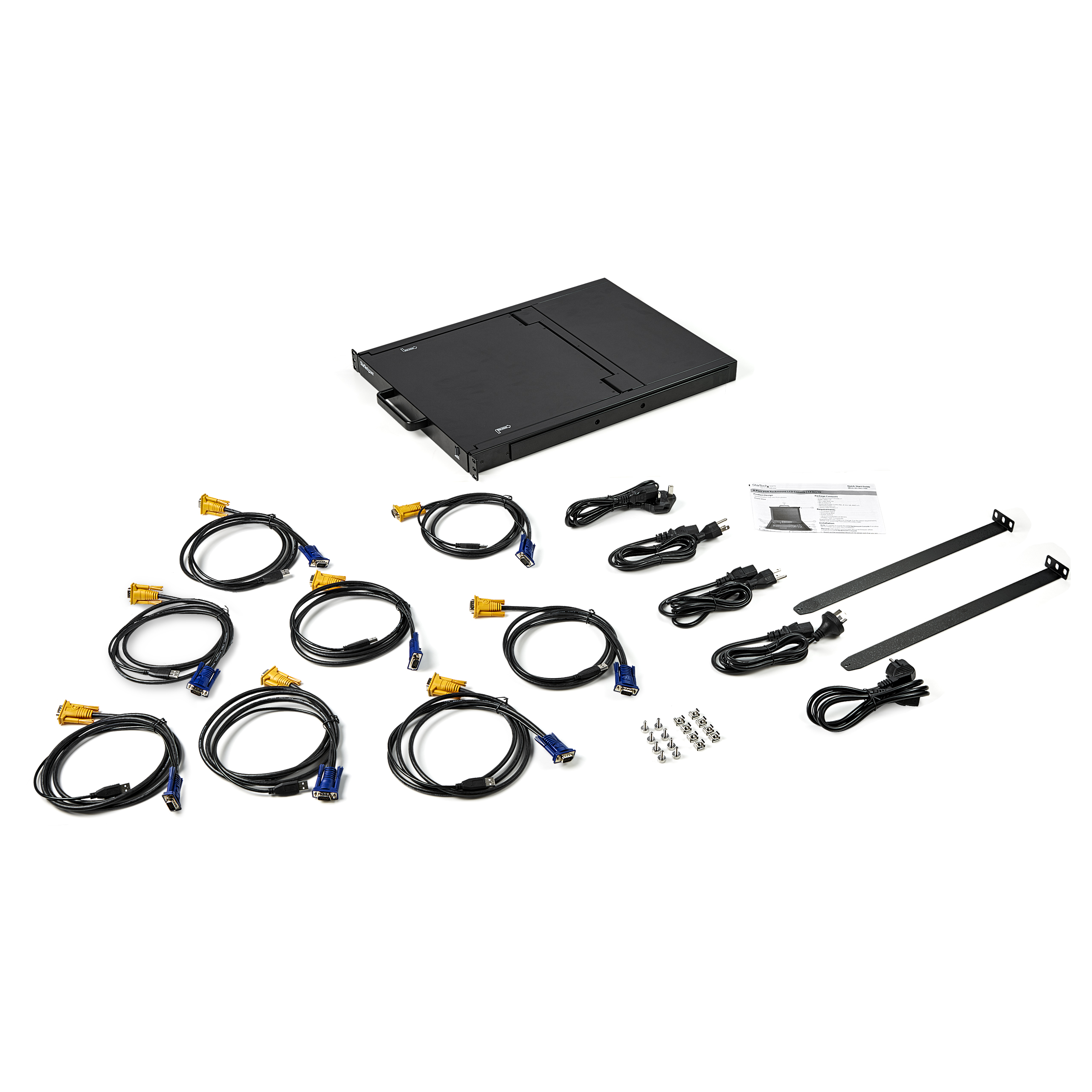

Constrained SKU Alternatives (Limited Stock) RKCONS1908K Input Current 1.5A Input Voltage 100 - 240 AC Power Consumption (In Watts) 17W Power Source International Power Cords Color Black Humidity 10 ~ 80% RH Material Steel Maximum Mounting Depth (mm) 900 Minimum Mounting Depth (mm) 560 Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Steel Product Length (mm) 623.000 Product Width (mm) 480.000 Product Height (mm) 420.000 Product Weight (g) 17000.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No KVM IP Control No Maximum Analog Resolutions 1280 x 1024 Maximum Number of Users 1 MTBF (hours) 50, 000 Hrs On-Screen Display Yes Port Selection Support Push Button, Hotkeys, and OSD (On Screen Display) Supported Resolutions Resolutions up to 1280 x 1024 @ 60Hz Aspect Ratio 5:4 Audio No Cables Included Yes Cascadable No Display Size 17" Front Door Key Lock No LED Indicators 8 - Green/Red - Online/Selected LED Number of KVM Ports 8 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms USB U Height 1U Carton Depth (mm) 767 Carton Height (mm) 182 Carton Quantity 1 Carton Weight Gross (g) 19669 Included in Package - 1 - KVM console
- 2 - Mounting Rails
- 8 - KVM cables
- 5 - Power Cords (NA, JP, UK, EU, ANZ)
- 1 - Quick-Start Guide
- 8 - M5 cage nuts
- 8 - M5 screws
Package Depth (mm) 785 Package Height (mm) 185 Package Width (mm) 615 Package Quantity 1 Package Weight (g) 19676 Packaging Description 8-Port VGA Rackmount LCD Console - 17 in. - 1U Packaging Description India 8-Port VGA Rackmount LCD Console - 17 in. - 1U Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 1 Connector 2 VGA Connector 2 (Quantity) 1 Connector 3 USB-A (480Mbps, 2.5W) Connector 3 (Quantity) 2 Host Connector 1 VGA Host Connector 1 (Quantity) 8 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2018-10-19 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Digital Content Due Date 2018-11-02 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IT,JP,NL,NZ,PE,SE,UK,US Primary Technology None Priority New Product N/A Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2018-07-27 Target Production Release 2018-08-17 Tech Lead Stefan Tirolese Technical Writer Evan Hanbidge Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
