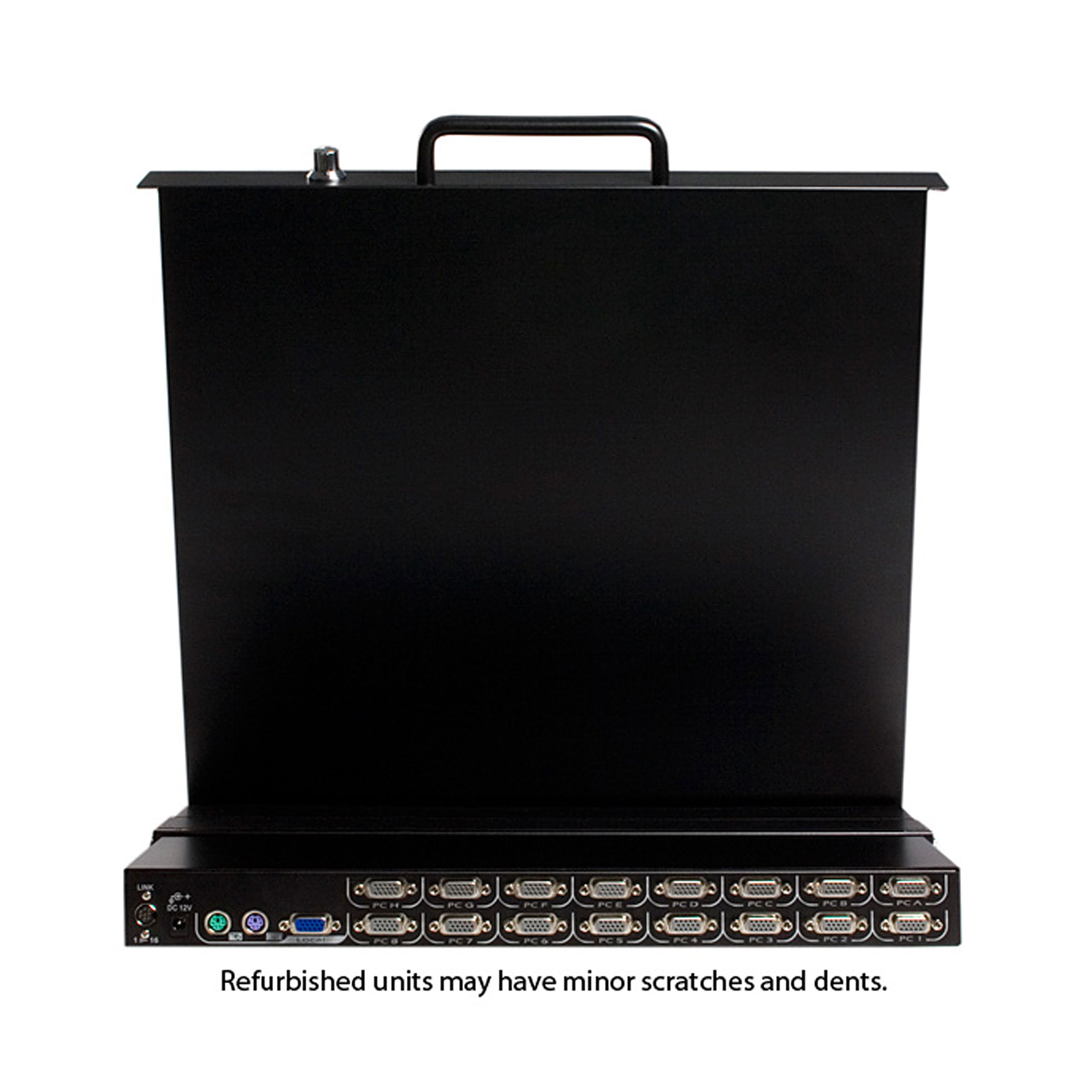

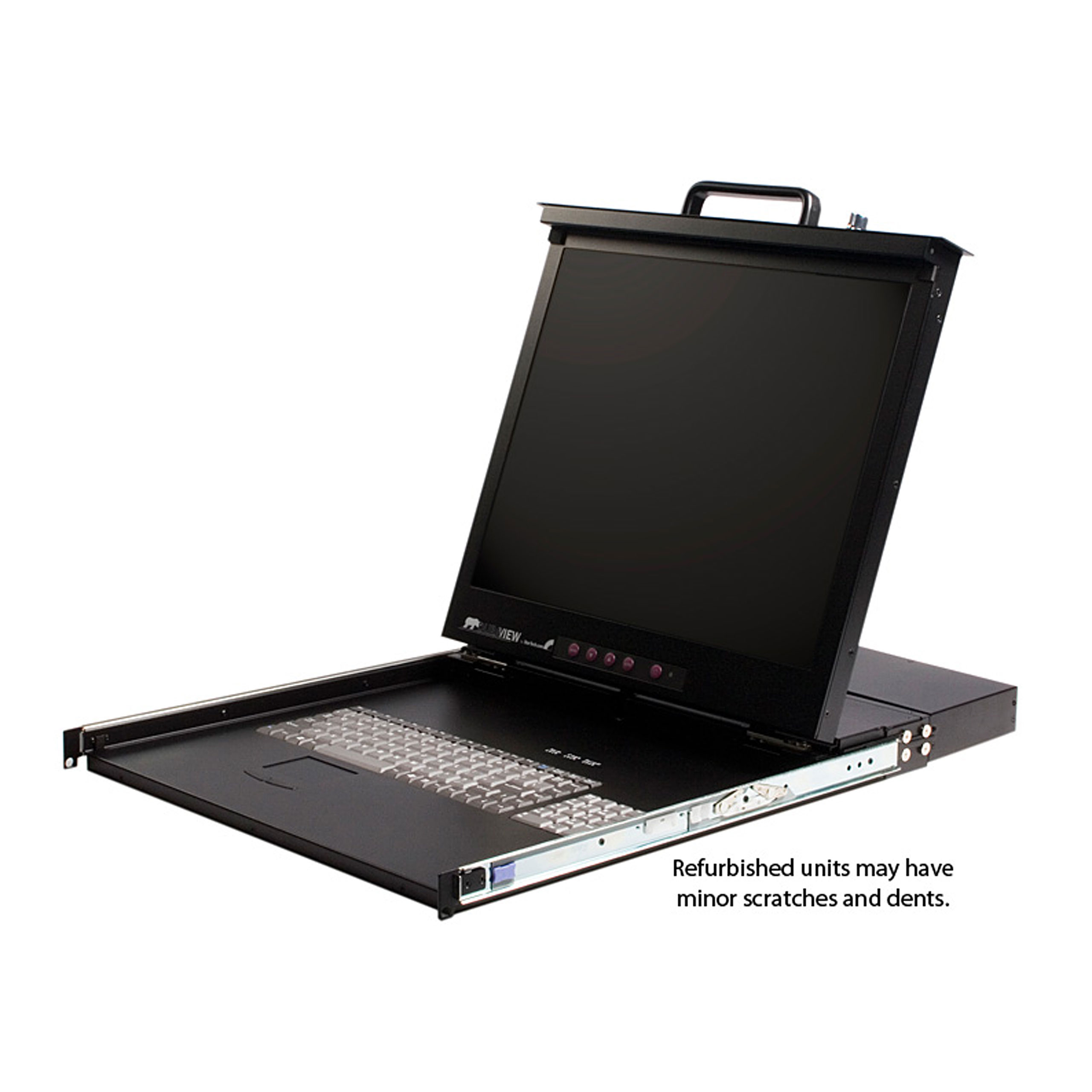

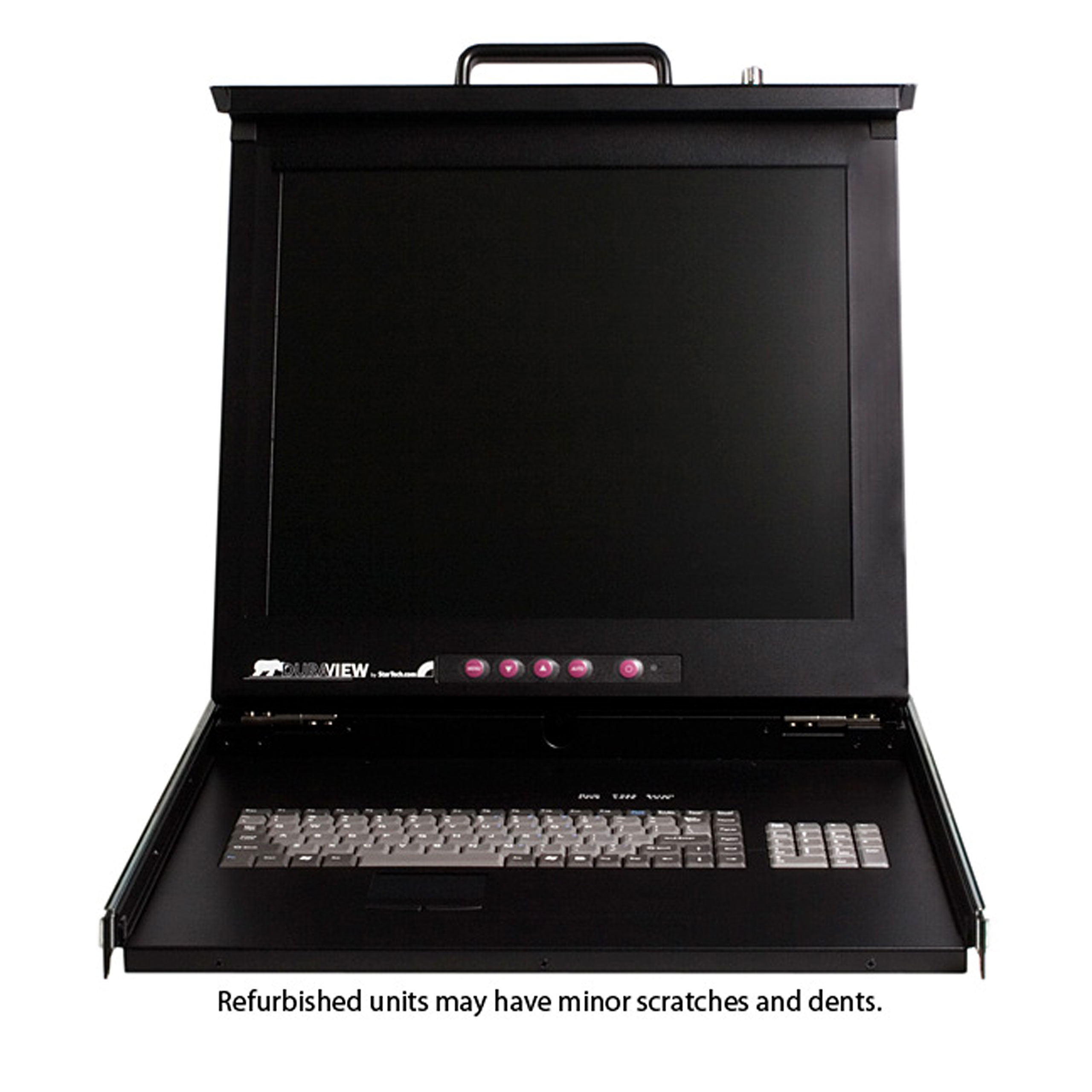

Product Name Refurbished 17 in. Rackmount LCD Console with 16 - port Product Number RKCONS1716R UPC 065030842716 Lifecycle status Discontinued Warranty Refurbished 90 Days Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Long) Refurbished 17" LCD Rack Console with 16 Port Multi-Platform KVM Bullet 1 Auto Scan Mode lets you switch between computers for easy monitoring Bullet 2 Cascadable design Bullet 3 Compatible with PC, Mac and Sun servers and systems Bullet 4 Durable design Bullet 5 Hot-pluggable Marketing Copy Applications - Centralized control of up to 112 PCs
- Improving the internal space efficiency of existing cabinets
- Managing cabinet mounted servers
- User can complete the basic tasks in the server room
Website Search Keyword - 16 Port
- KVM
- LCD Console
- multi-platform
- rack
- RACKCONS
Accessory Products - CAB832DS
- CAB1641HDI
- SV125
- SVSERIALAD
- USB2PS2
- MXT101MMHQ
- MXT101MMHQ10
- MXT105MMHQ
- SVECON25
Related Products - 1UCABCONS17
- RACKCONS1908
- RACKCONS1708
- RACKCONS1716
- RACKCONS1916
- RKCONS1701R
- RKCONS1708R
- RKCONS1901R
- RKCONS1916R

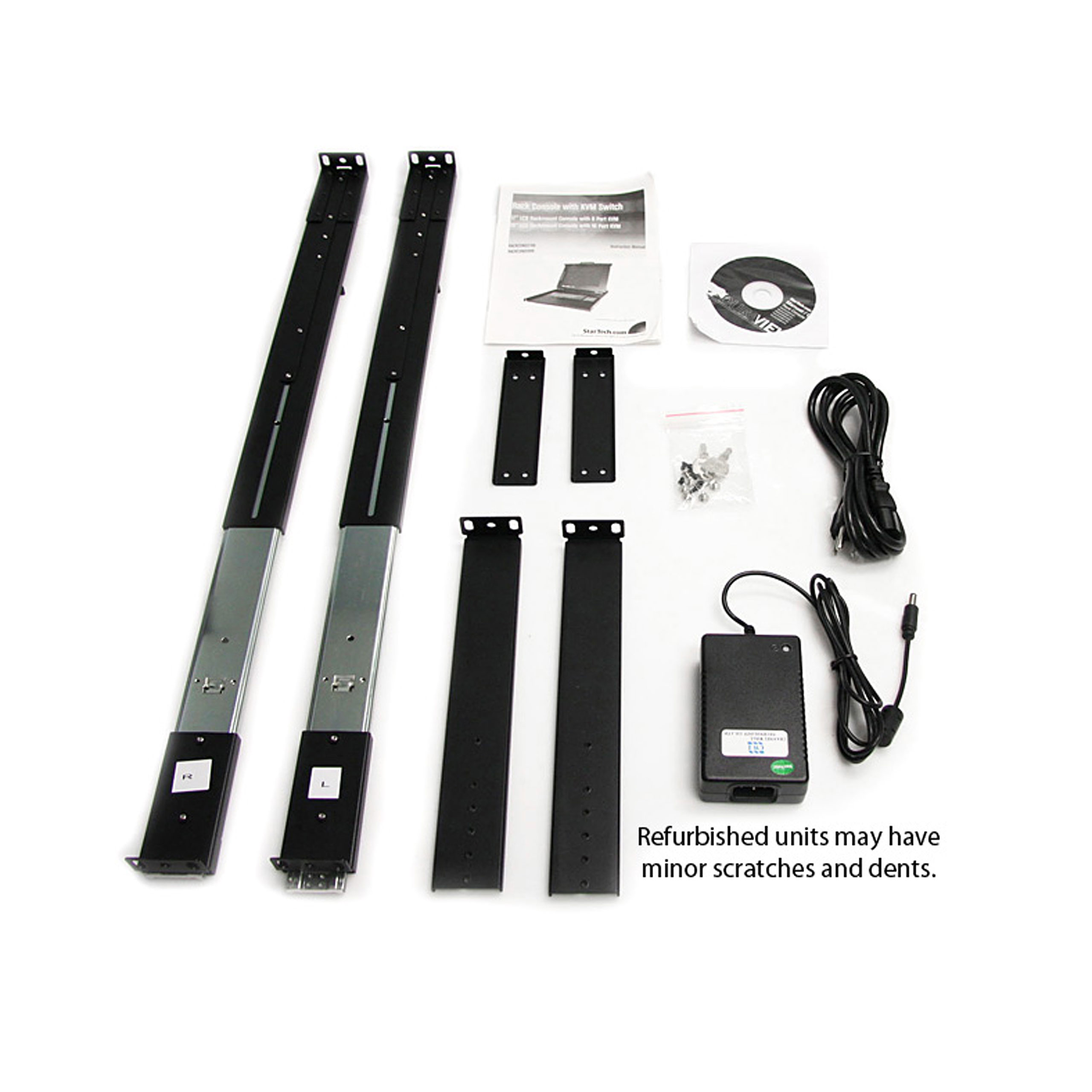

Input Voltage 115V-230V AC Output Current 4A Output Voltage (V) 12V DC Power Source AC Adapter Included Center Tip Polarity Positive Color Black Humidity 10%~90%RH Material Heavy Duty Steel Minimum Mounting Depth (mm) 762 Operating Temperature 0 – 50 °C / 32 – 122 °F Product Length (mm) 470.000 Product Width (mm) 440.000 Product Height (mm) 44.000 Product Weight (g) 11000.000 Storage Temperature -20 – 60 °C / -4 -140 °F TAA Compliant Yes KVM IP Control No Maximum Analog Resolutions 1280x1024 @85Hz (SXGA) Maximum Number of Users 1 On-Screen Display Yes OS Compatibility OS Independent Port Selection Support Hotkeys and OSD (On Screen Display) Aspect Ratio 4:3 Audio No Cascadable Yes Display Size 17" Front Door Key Lock Yes Number of KVM Ports 16 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms USB and PS/2 U Height 1U Carton Depth (mm) 780 Carton Height (mm) 211 Carton Quantity 1 Carton Weight Gross (g) 21340 Included in Package - 1 - 1U 16 Port Multi-Platform KVM Switch
- 1 - 1U LCD Rack Console Drawer
- 1 - Mounting Rails (Set)
- 1 - Power Adapter
Package Depth (mm) 780 Package Height (mm) 211 Package Width (mm) 568 Package Weight (g) 19600 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Centronics (36-Pin) Connector 1 (Quantity) 1 Connector 2 PS/2 Connector 2 (Quantity) 2 Connector 3 VGA Connector 3 (Quantity) 1 Host Connector 1 VGA Host Connector 1 (Quantity) 16 en-US Content Approved Yes Product Manager Daryl Hunt
