RKCONS17HDEU

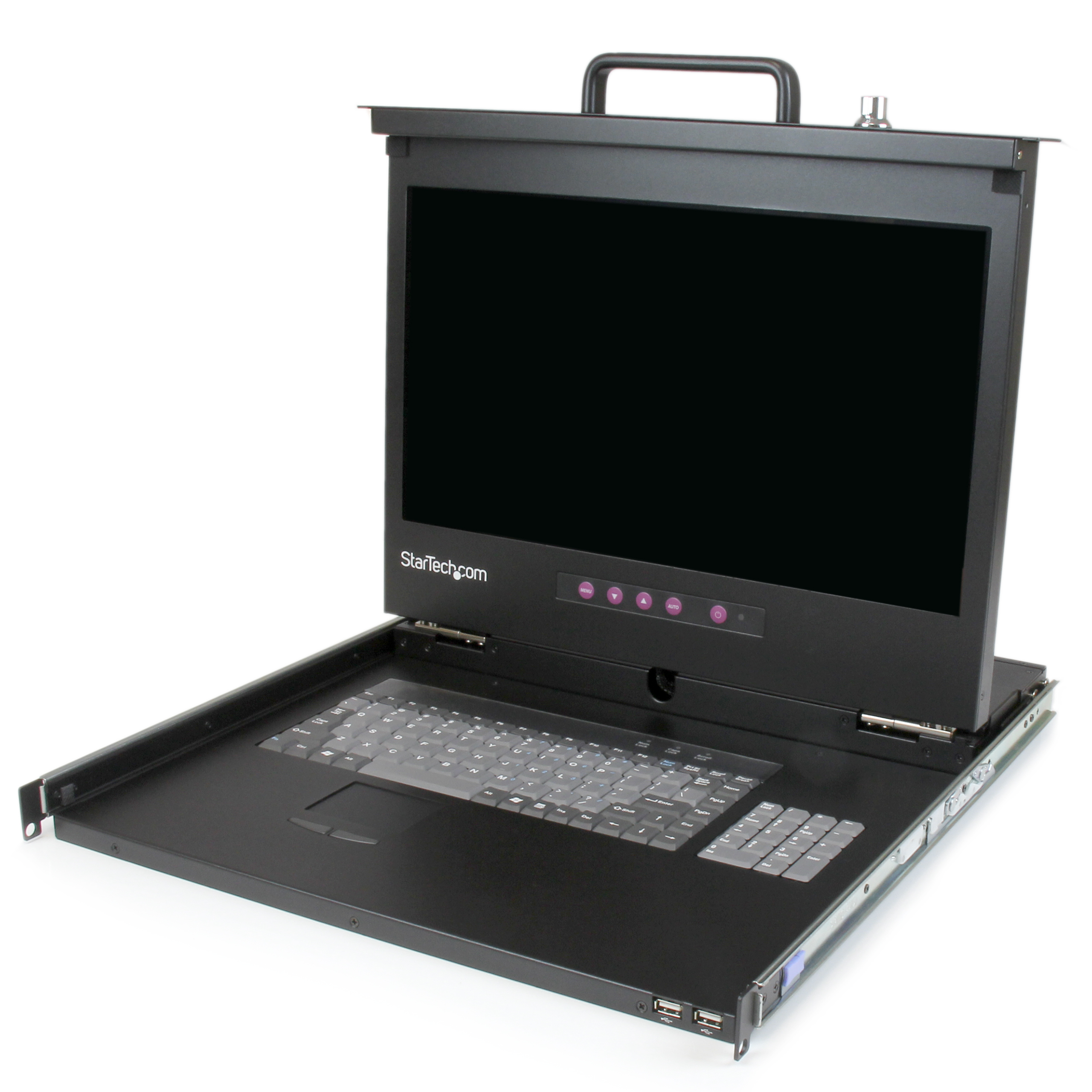

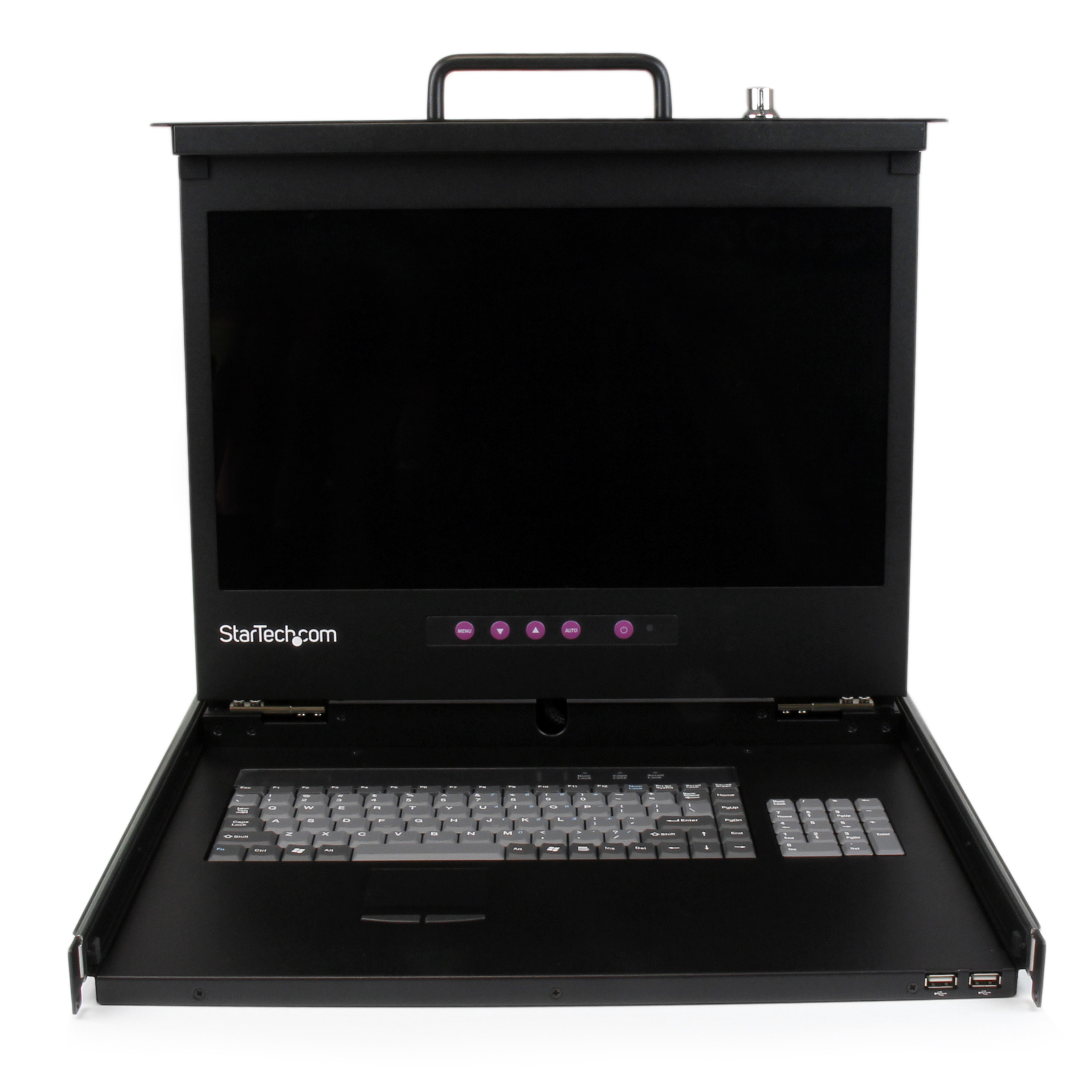

17in. LCD Rack Console 1920x1080 DVI USB

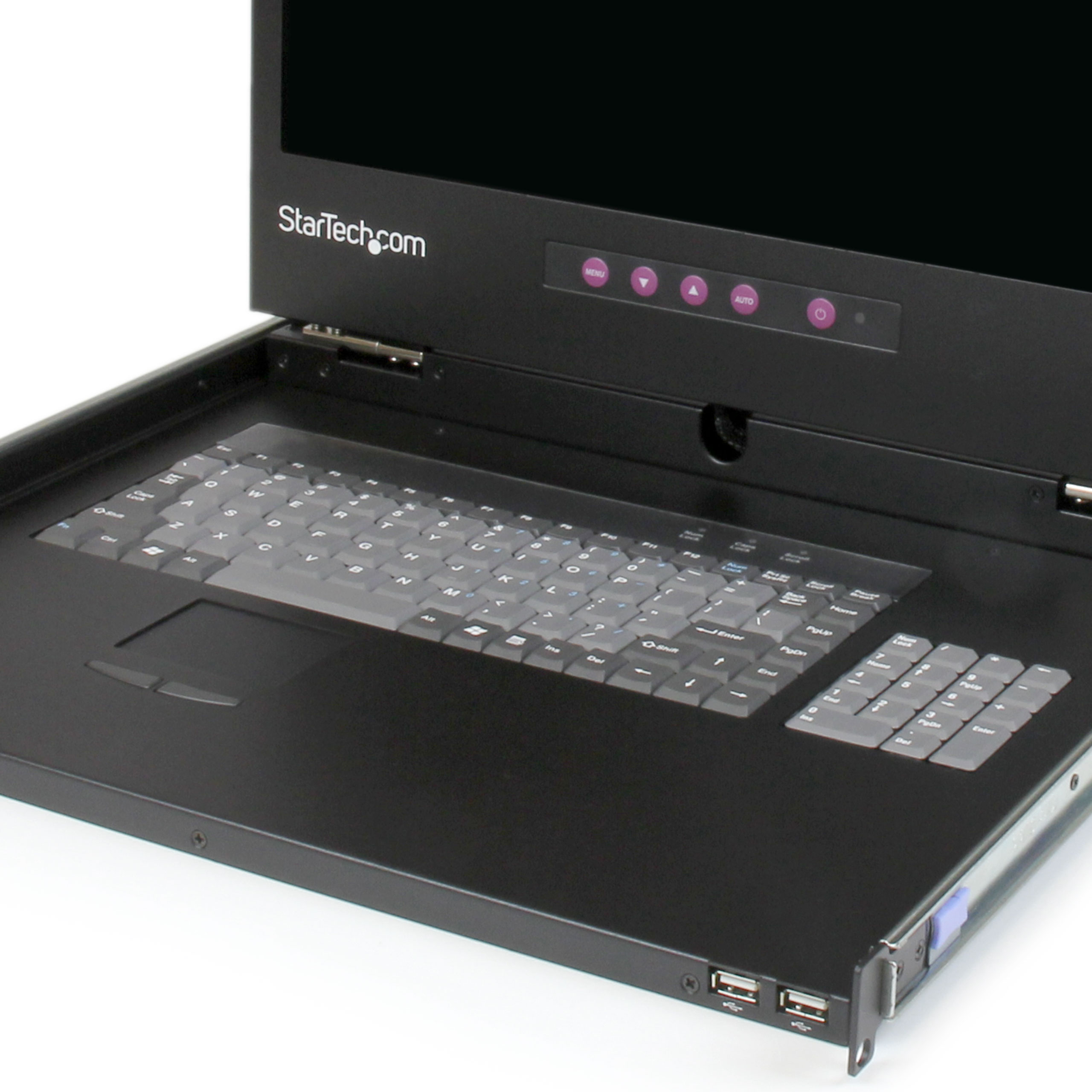

Control your server from a full HD KVM console, with a convenient front panel 2-port USB hub
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 17in. LCD Rack Console 1920x1080 DVI USB Product Number RKCONS17HDEU UPC 065030860888 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 KVM Switches Category Level 2 Enterprise KVMs Category Level 3 Single Port LCD Consoles Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX009X Product Title (Ultra-Short) LCD Console - 17" Product Title (Short) 1U Rackmount LCD Console - 17in - 1080p Product Title (Medium) Rackmount LCD Console with 2-port USB Hub - 1U - 17in - US Keyboard - 1080p Product Title (Standard) Rackmount LCD Console with 2-port USB Hub - 1U - 17in Screen - US Keyboard - 1080p Product Title (Long) Rackmount LCD Console - 1U - 17in Screen - US Keyboard - 1080p Product Title (AMZ) Rackmount LCD Console with 2-port USB hub - 1U - 17in Screen - US Keyboard - 1080p (RKCONS17HDEU) Title Ingram (Part 1) 1U VGA or DVI Rackmount LCD Title Ingram (Part 2) Console - 17in screen - 1080p Website Product Headline Control your server from a full HD KVM console, with a convenient front panel 2-port USB hub Bullet 1 Maximized screen viewing area, with support for high-definition resolutions up to 1080p Bullet 2 Easy peripheral device accessibility with front mounted 2-port USB hub Bullet 3 1U rack-mountable design Bullet 4 LED backlit display offers reduced power consumption Bullet 5 Security features include port locking and auto scan Bullets (Consolidated) Control your server from a full HD KVM console with a convenient front panel 2-port USB hub - Compatible with DVI or VGA, and USB or PS/2 computers and KVM consoles - Supports resolutions up to 1920x1080 - Front access 2-port USB hub - 1U 17" LCD console/Rack console/HD 1080p Rackmount LCD Console/Front USB Hub/LCD Rack Console/Widescreen HD KVM Console/Rack Mount LCD - Connect a USB flash drive to the front USB hub to install software on your servers Marketing Copy Applications - Connect a flash drive to the front USB hub to install software on your servers
- Control a single system, or dozens of KVM-connected PCs
- Improve the internal space efficiency of your server cabinet
- Manage cabinet-mounted servers and KVM switches
- Run multiple applications on the integrated 1080p display at the same time
Website Search Keyword - KVM console
- LCD console
- rackmount LCD
- keyboard mouse and monitor rackmount console
- KVM display console
- rack console
- high-definition rack console
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes This rack mount console supports DVI-D (digital) signaling only. Using DVI-D cabling across all connections is recommended for best results. Please contact technical support if you require and further assistance identifying the proper cables. Accessory Products - SV1631DUSBU
- SV831DUSBU
- SV1641HDIE
- SV1653DXI
- SV3253DXI
- SV1654DX4I
- SV3254DX4I
- SVA12M5NA
Related Products - RACKCOND17HD
- RACKCONS2001
- RACKCONS1701
- RACKCONV1701
- RACKCONS1708
- RACKCONS1716
- RACKCONS1916
- RACKCOND1701

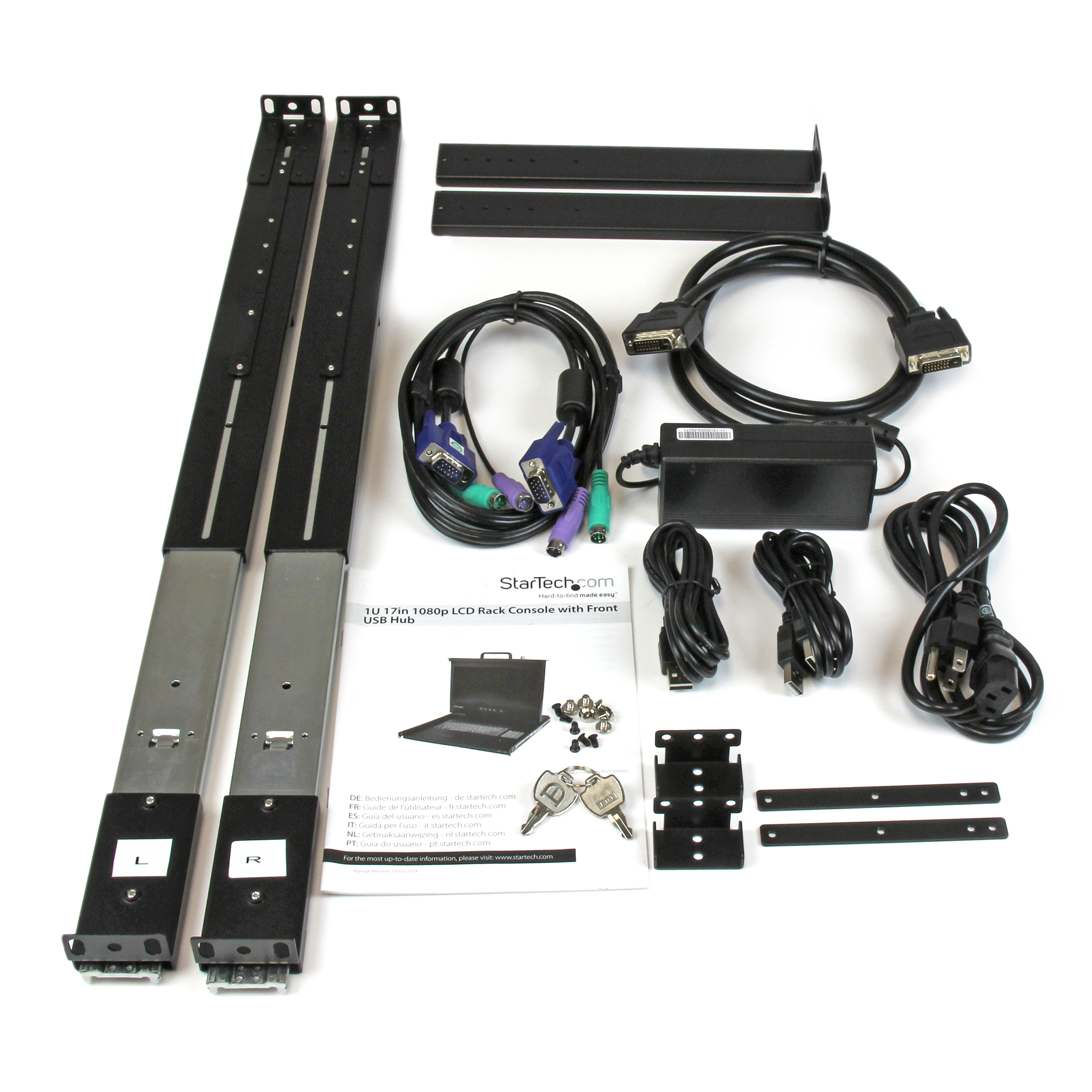

Input Current 1.7 A Input Voltage 100 - 240 AC Output Current 4.17 A Output Voltage (V) 12V DC Power Consumption (In Watts) 23.35 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 10~90% RH Material Heavy Duty Steel Maximum Mounting Depth (mm) 1000 Minimum Mounting Depth (mm) 504 Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 470.000 Product Width (mm) 440.000 Product Height (mm) 44.000 Product Weight (g) 9280.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes KVM IP Control No Maximum Number of Users 1 MTBF (hours) 50, 000 Hrs On-Screen Display Yes OS Compatibility OS Independent Supported Resolutions Up to 1920 x 1080 Aspect Ratio 16:9 Audio No Cables Included Yes Cascadable Yes Display Size 17" Front Door Key Lock Yes Number of KVM Ports 1 Number of Monitors Supported 1 PC Video Type DVI+VGA Rack-Mountable Yes Supported Platforms USB and PS/2 U Height 1U Carton Depth (mm) 570 Carton Height (mm) 210 Carton Quantity 1 Carton Weight Gross (g) 17089 Included in Package - 1 - 1U Rack Console
- 1 - Set, Mounting Rails
- 2 - Extended Brackets
- 2 - Short Brackets
- 2 - Short Bracket Attachments
- 2 - Keys
- 1 - 6ft (1.8m) PS/2 VGA KVM Cable
- 1 - 6ft (1.8m) USB A-A Cable
- 6 - #6-32x6 Flat Screws
- 6 - M4x5 Screws
- 1 - Power Adapter
- 1 - Power Cord
- 1 - Instruction Manual

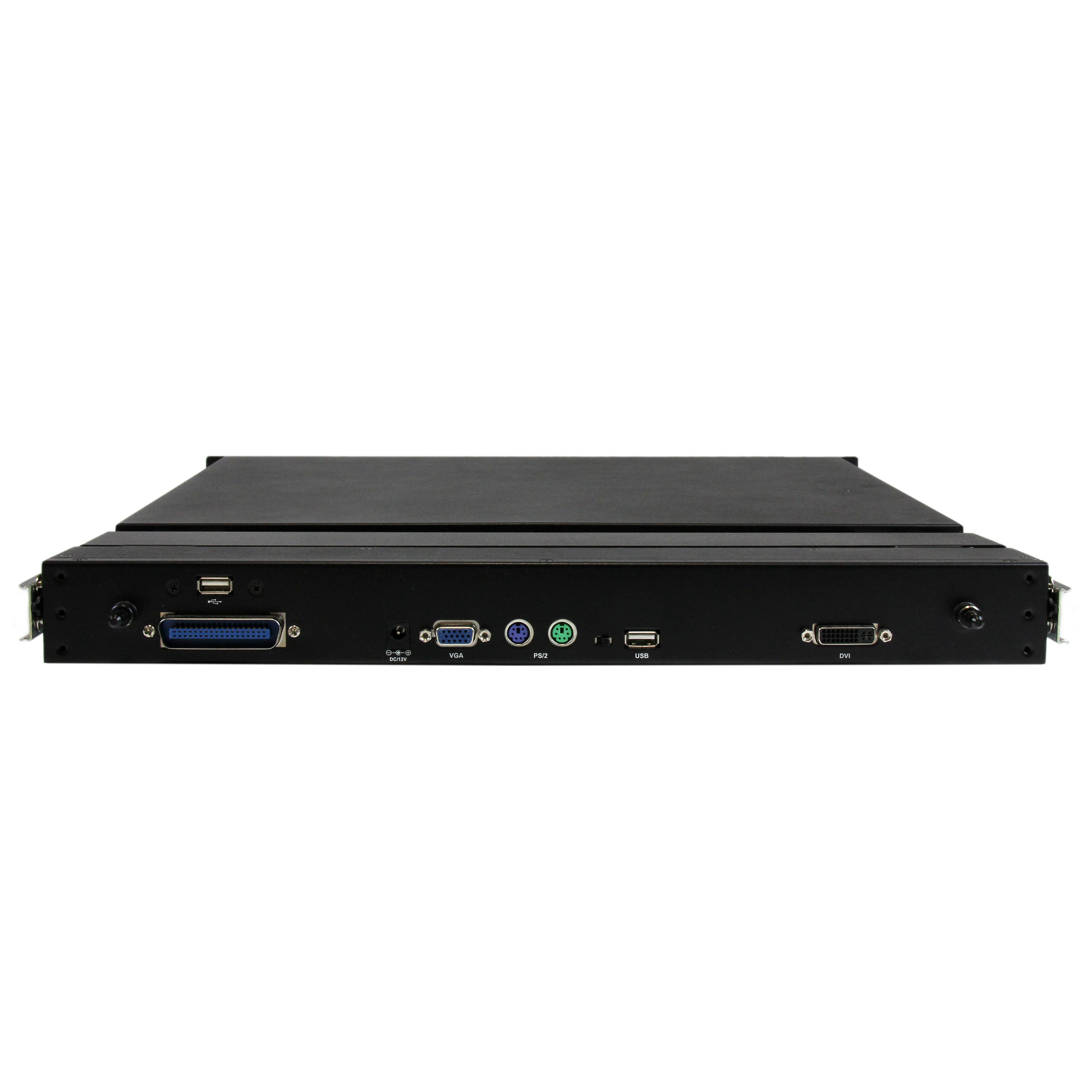

Package Depth (mm) 568 Package Height (mm) 198 Package Width (mm) 775 Package Quantity 1 Package Weight (g) 18200 Packaging Description 1U 17in 1080p LCD Rack Console w/ Front USB Hub - US keyboard Packaging Description India 1U 17in 1080p LCD Rack Console w/ Front USB Hub - US keyboard Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 2 Connector 2 PS/2 Connector 2 (Quantity) 2 Connector 3 VGA Connector 3 (Quantity) 1 Connector 4 DVI-I Dual-Link (29-Pin) Connector 4 (Quantity) 1 Connector 5 USB-A (480Mbps, 2.5W) Connector 5 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-11-27 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) BE,DE,DK,ES,EU,FR,IT,NL,SE Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2015-02-20 Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
