Main Image
RKCONS1908GB

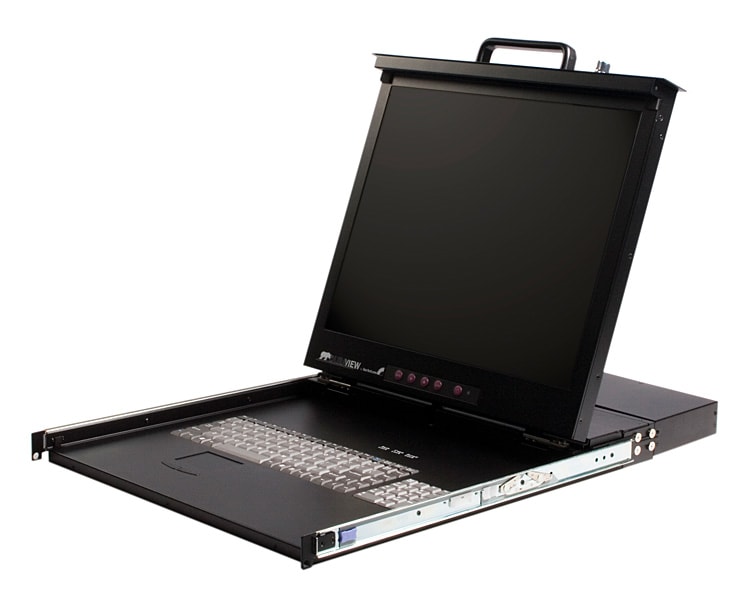

19 Inch Folding LCD Rack Console with 8 port KVM
Control up to 8 servers or KVM switches with this 1U rack-mountable LCD console
Main Image
Product Images
Product Images
Product Images
Product Name 19 Inch Folding LCD Rack Console with 8 port KVM Product Number RKCONS1908GB UPC 065030843164 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 KVM Switches Category Level 2 Enterprise KVMs Category Level 3 Multiport LCD Consoles Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) 19in Rackmount LCD Console - 8 Port KVM Product Title (Standard) 1U 19in Rackmount LCD Console with Integrated 8 Port KVM Switch Product Title (Long) 1U 19in Rackmount LCD Console with Integrated 8 Port KVM Switch Product Title (AMZ) Module de commutateur KVM à 8 ports pour console 1UCABCONS17/19 - Noir (RKCONS1908GB) Title Ingram (Part 1) 1U 19in Folding Rackmount LCD Co Title Ingram (Part 2) nsole with 8 Port KVM Website Product Headline Control up to 8 servers or KVM switches with this 1U rack-mountable LCD console Bullet 1 Compatible with PC, Mac® and Sun servers and systems Bullet 2 Universal 8-port KVM switch Module controls up to 8 computers directly Bullet 3 Can be cascaded with additional KVM switches for scalability Bullet 4 Durable construction Bullet 5 Login authentication restricts access to authorized users Marketing Copy Applications - Managing cabinet-mounted servers in large server farms or co-location facilities
- Centralized control of up to 64 servers when cascaded with additional KVM switches
- Improving the internal space efficiency of existing cabinets
Website Search Keyword - 8 Port
- KVM
- LCD Console
- multi-platform
- rack
- RACKCONS
- 19in LCD
- KVM Console
- Rack Console
- rack mount lcd
- rack lcd
- lcd mount
- folding lcd
- folding console
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class A Digital Device Interference Full Statement
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - CAB1631HD
- CAB832DS
- SV125
- SVSERIALAD
- USB2PS2
- CABCONSPA
- SV831DUSB
- SV1631DUSB
- SVA12M5NA
Related Products - RACKCONS1916
- RACKCONS1708
- RACKCONS1716
- RACKCONS2001
- 1UCABCONS17
- CABCONS8
- RACKCONS1701
- RACKCONV1901
- RACKCONV1701

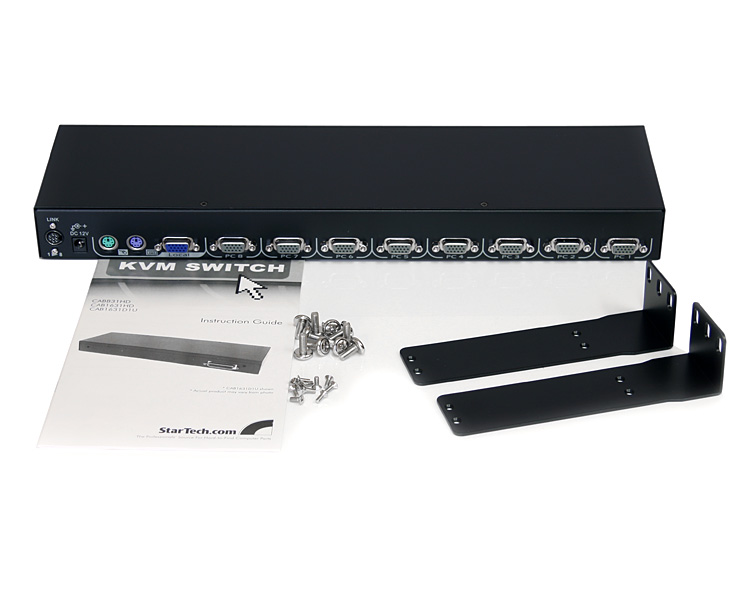

Input Current 1500mA Input Voltage 100 - 240 AC Output Current 4A Output Voltage (V) 12V DC Power Consumption (In Watts) 48 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 10~90%RH Material Heavy Duty Steel Maximum Mounting Depth (mm) 1000 Minimum Mounting Depth (mm) 554 Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 470 Product Width (mm) 440 Product Height (mm) 44 Product Weight (g) 11000 Storage Temperature -20°C to -60°C (-4°F to -76°F) TAA Compliant Yes KVM IP Control No Maximum Analog Resolutions 1280X1024 (SXGA) Maximum Number of Users 1 MTBF (hours) 60,000 Hours On-Screen Display Yes OS Compatibility OS Independent Port Selection Support Hotkeys and OSD (On Screen Display) Aspect Ratio 4:3 Audio No Cascadable Yes Display Size 19" Front Door Key Lock Yes Number of KVM Ports 8 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms USB and PS/2 U Height 1U Carton Depth (mm) 780 Carton Height (mm) 211 Carton Quantity 1 Carton Weight Gross (g) 21340 Included in Package - 1 - 1U 8 Port Multi-Platform KVM Switch

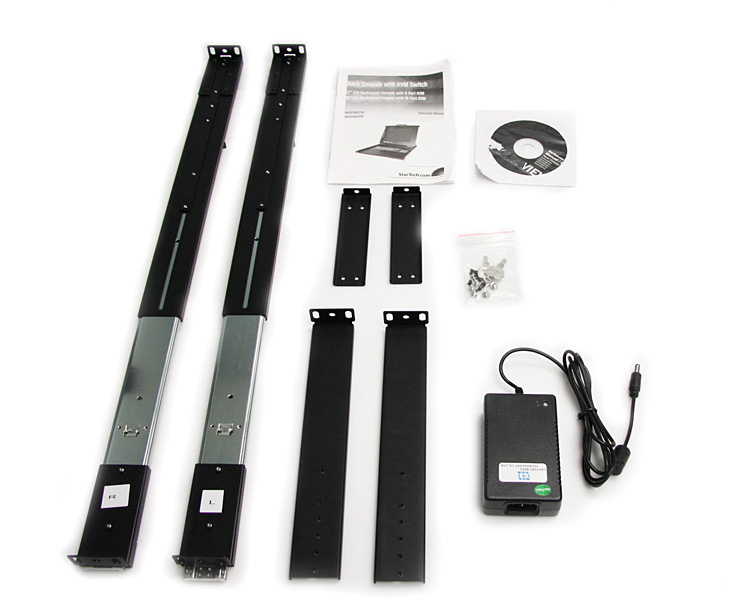

- 1 - 1U LCD Rack Console Drawer
- 1 - Mounting Rails (Set)
- 1 - Power Adapter
Package Depth (mm) 780 Package Height (mm) 211 Package Width (mm) 568 Package Quantity 1 Package Weight (g) 21340 Packaging Description 1U 19in Rackmount LCD Console - 8 Port KVM Packaging Description India 1U 19in Rackmount LCD Console - 8 Port KVM Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 1 Connector 2 PS/2 Connector 2 (Quantity) 2 Host Connector 1 VGA Host Connector 1 (Quantity) 8 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) UK Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
