Main Image
RKCONS1916GB

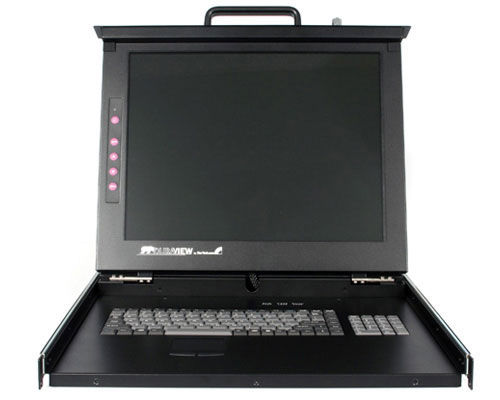

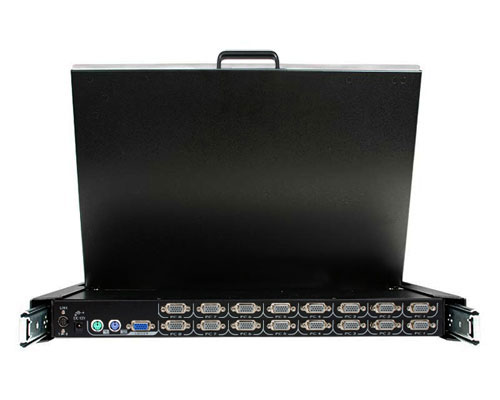

19 inch Rackmount LCD Console with 16 Port KVM
Control up to 16 servers or KVM switches with this 1U rack-mountable LCD console
Main Image
Product Images
Product Name 19 inch Rackmount LCD Console with 16 Port KVM Product Number RKCONS1916GB UPC 065030830751 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 KVM Switches Category Level 2 Enterprise KVMs Category Level 3 Multiport LCD Consoles Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) 19" Rackmount LCD Console - 16 Port KVM Product Title (Standard) 1U 19" Rackmount LCD Rack Console w/ 16 Port KVM Product Title (Long) 1U 19" Rackmount LCD Console with 16 Port Multi-Platform KVM Product Title (AMZ) 1U 19" Rackmount LCD Console with 16 Port Multi-Platform KVM (RKCONS1916GB) Title Ingram (Part 1) 1U 19" Rack Mmount LCD Console w Title Ingram (Part 2) ith 16 Port KVM Website Product Headline Control up to 16 servers or KVM switches with this 1U rack-mountable LCD console Bullet 1 On Screen Display (OSD) Bullet 2 Durable design Bullet 3 Compatible with PC, Mac and Sun servers and systems Bullet 4 Cascadable design Bullet 5 Hot-pluggable Marketing Copy Applications - Centralized control of up to 136 Servers
- Improving the internal space efficiency of existing cabinets
- Managing cabinet mounted servers
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class A Digital Device Interference Full Statement
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - CAB832DS
- CAB1641HDI
- SV125
- USB2PS2
- SVSERIALAD
- SVA12M5NA
Related Products - 1UCABCONS19
- RKCONS1708GB
- CAB831HD
Output Current 4A Output Voltage (V) 12V DC Power Consumption (In Watts) 48 Power Source AC Adapter Included Humidity 10%~90% RH Material Heavy Duty Steel Minimum Mounting Depth (mm) 762 Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 530 Product Width (mm) 440 Product Height (mm) 44 Product Weight (g) 12000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes KVM IP Control No Maximum Analog Resolutions 1280X1024 (SXGA) Maximum Number of Users 1 On-Screen Display Yes OS Compatibility OS Independent Port Selection Support Hotkeys and OSD (On Screen Display) Aspect Ratio 4:3 Audio No Cascadable Yes Display Size 19" Front Door Key Lock Yes Number of KVM Ports 16 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms USB and PS/2 Carton Depth (mm) 780 Carton Height (mm) 211 Carton Quantity 1 Carton Weight Gross (g) 22180 Included in Package - 1 - 1U LCD Rack Console Drawer
- 1 - 1U 16 Port Multi-Platform KVM Switch
- 1 - Mounting Rails (Set)
- 1 - Power Adapter
Package Depth (mm) 780 Package Height (mm) 211 Package Width (mm) 568 Package Quantity 1 Package Weight (g) 20979 Packaging Description 1U 19in Rackmount LCD Console - 16 Port KVM Packaging Description India 1U 19in Rackmount LCD Console - 16 Port KVM Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 1 Connector 2 PS/2 Connector 2 (Quantity) 2 Host Connector 1 VGA Host Connector 1 (Quantity) 16 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) UK Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
