RKCONS2001GB

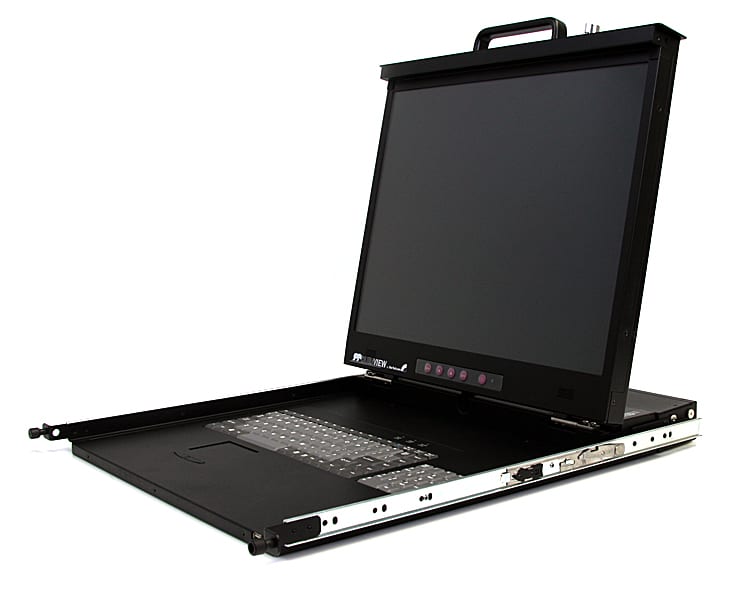

20" Folding LCD Rack Console 1600x1200
Centralize control of your server rack, with the largest and highest resolution LCD screen available in a rack mount console
Main Image
Product Images
Product Images
Product Images
Product Name 20" Folding LCD Rack Console 1600x1200 Product Number RKCONS2001GB UPC 065030842389 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 KVM Switches Category Level 2 Enterprise KVMs Category Level 3 Single Port LCD Consoles Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX009X Product Title (Short) 20" Rackmount LCD Console for 19" Rack Product Title (Standard) 1U 20" High Resolution Folding Rackmount LCD Console for 19" Rack Product Title (Long) 1U 20" High Resolution Folding Rackmount LCD Console for 19in Rack Title Ingram (Part 1) 1U 20" High Resolution Rackmount Title Ingram (Part 2) LCD Console for 19in Rack Website Product Headline Centralize control of your server rack, with the largest and highest resolution LCD screen available in a rack mount console Bullet 1 Bright Active Matrix TFT Display Bullet 2 Built-in speakers Bullet 3 Compatible with both USB and PS/2 PCs and KVMs Bullet 4 Durable, heavy duty steel design Bullet 5 High resolution 20.1" LCD display Marketing Copy Applications - Centralized control of dozens of PCs and servers if used with optional KVM
- Improving the internal space efficiency of existing cabinets
- Managing cabinet mounted servers and KVM switches
- Rack mount LCD Console solution for server applications requiring high resolutions
Website Search Keyword - 20" console
- cabinet console
- DVI rack console
- High res 19" console
- lcd drawer
- rack lcd
- rackmount LCD
- USB 2.0 rack console
- USB Pass Through
- British keyboard
- English keyboard
Accessory Products - DVIDDMM10
- DVIDDMM15
- DVIDDMM6
- MU1MFRCA
- MU6MM
- MXT101MMHQ
- MXT101MMHQ10
- PS23N1THIN10
- PS23N1THIN15
- PS23N1THIN25
- PS23N1THIN6
- SV125
- SV1631DUSBU
- SV831DUSBU
Related Products - 1UCABCONS19
- CBCON1716IGB
- RKCONS1701GB
- RKCONS1708GB
- RACKCONS1716
- RKCONS1901GB
- RKCONS1916GB

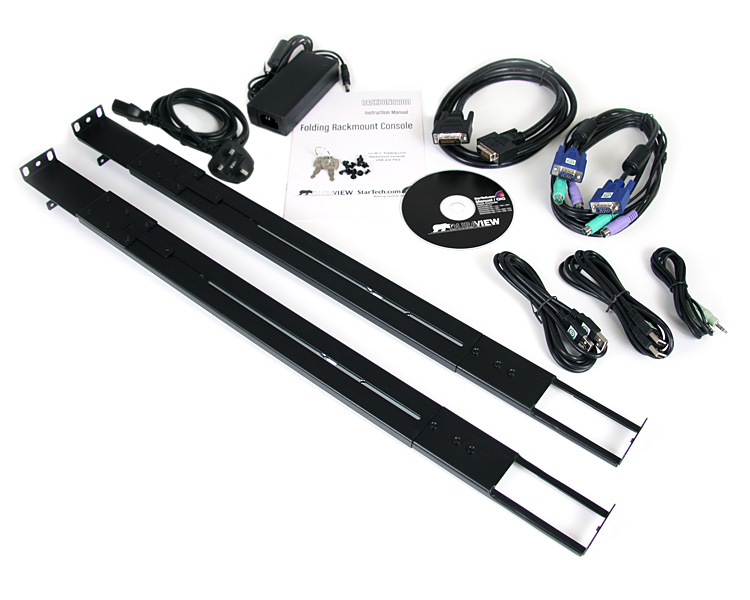

Input Voltage 110V-240V AC Output Current 3.3A Output Voltage (V) 18 DC Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Color Black Humidity 10~90% RH Material Heavy Duty Steel Maximum Mounting Depth (mm) 1000 Minimum Mounting Depth (mm) 764 Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 608.4 Product Width (mm) 448.7 Product Height (mm) 44 Product Weight (g) 15500 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No KVM IP Control No Maximum Analog Resolutions 1600 x 1200 (UXGA) Maximum Number of Users 1 MTBF (hours) 60,000 Hours On-Screen Display Yes OS Compatibility OS Independent Aspect Ratio 4:3 Audio No Display Size 20" Front Door Key Lock Yes Number of KVM Ports 1 Number of Monitors Supported 1 PC Video Type DVI+VGA Rack-Mountable Yes Supported Platforms USB and PS/2 U Height 1U Carton Depth (mm) 806 Carton Height (mm) 200 Carton Quantity 1 Carton Weight Gross (g) 22500 Included in Package - 1 - 1U 20.1in LCD Rack Console Drawer
- 1 - 3.5mm Audio cable
- 2 - 6 ft USB A to A Male Male cables
- 1 - Mounting Rails - Set
- 1 - Power Adapter
- 1 - Power Cord
- 1 - PS2 and VGA Console cable
- 1 - Set of Keys
- 1 - Set of mounting screws
- 1 - User Manual
- 1 - 6 ft DVI Cable
Package Depth (mm) 806 Package Height (mm) 200 Package Width (mm) 550 Package Quantity 1 Package Weight (g) 21300 Packaging Description 1U 20in Rackmount LCD Console for 19in Rack Packaging Description India 1U 20in Rackmount LCD Console for 19in Rack Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 DVI-I Dual-Link (29-Pin) Host Connector 1 (Quantity) 1 Host Connector 2 3.5mm (3 Conductors, TRS) Host Connector 2 (Quantity) 1 Host Connector 3 PS/2 Host Connector 3 (Quantity) 2 Host Connector 4 VGA Host Connector 4 (Quantity) 1 Host Connector 5 USB-A (480Mbps, 2.5W) Host Connector 5 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) UK Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
