RKCONV1701R

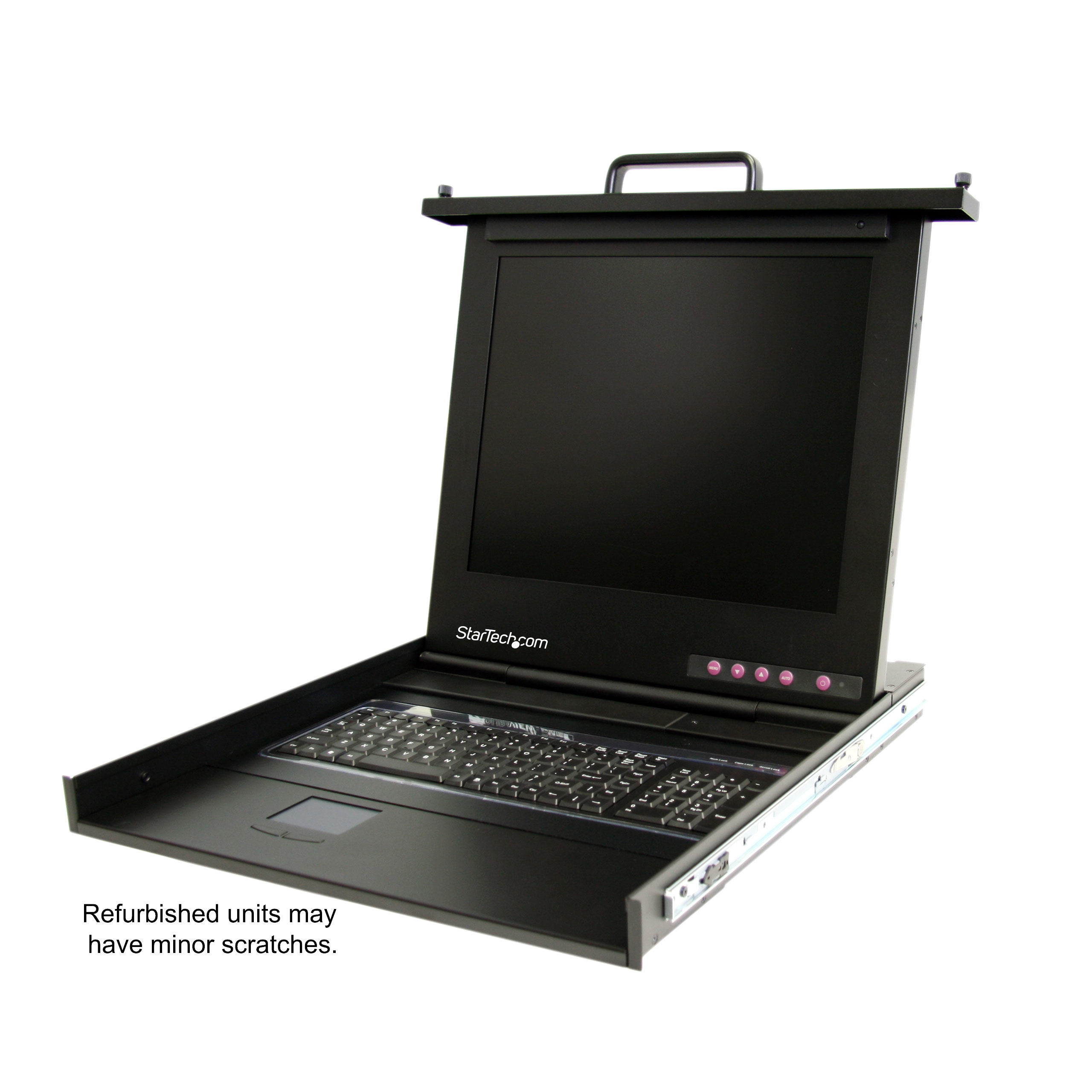

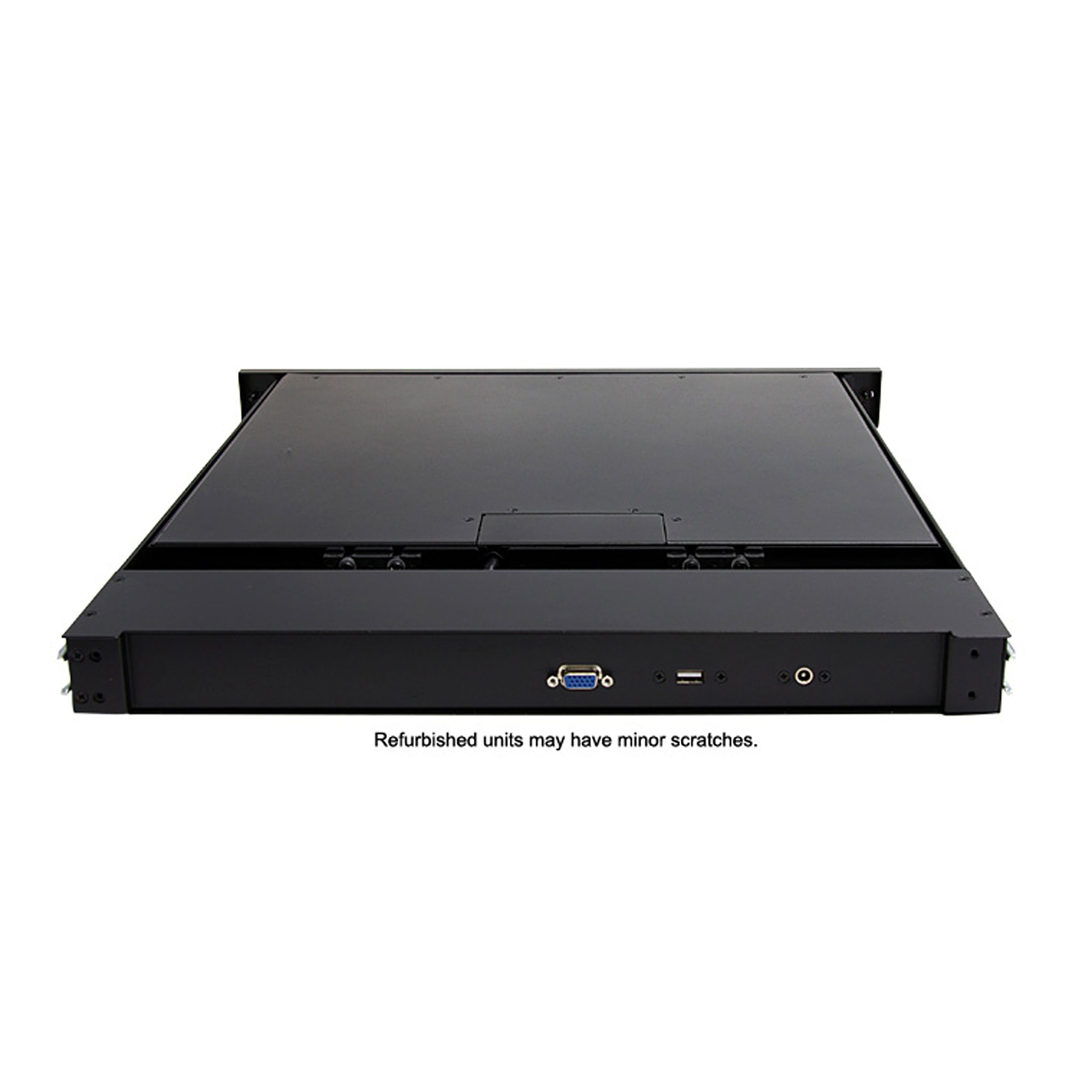

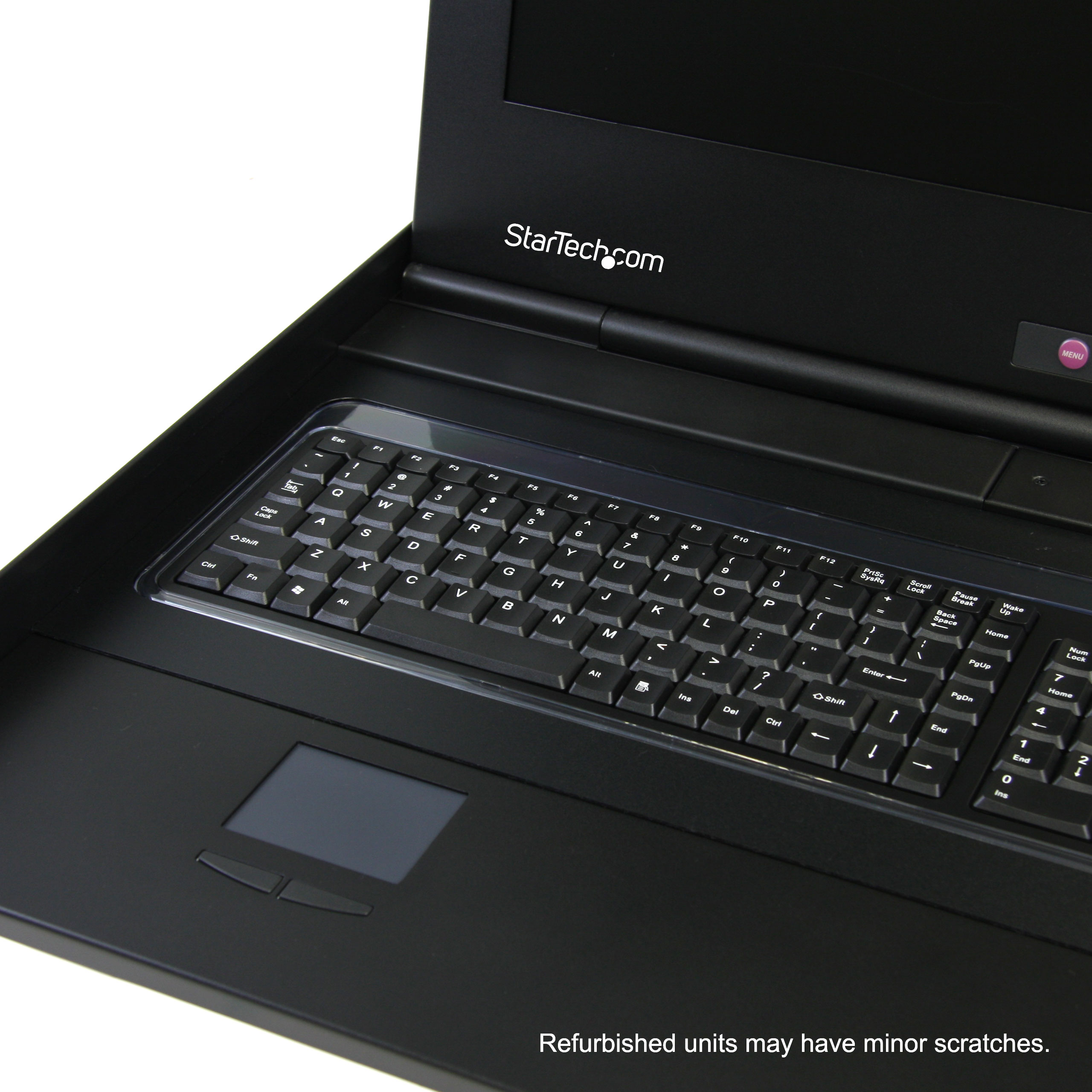

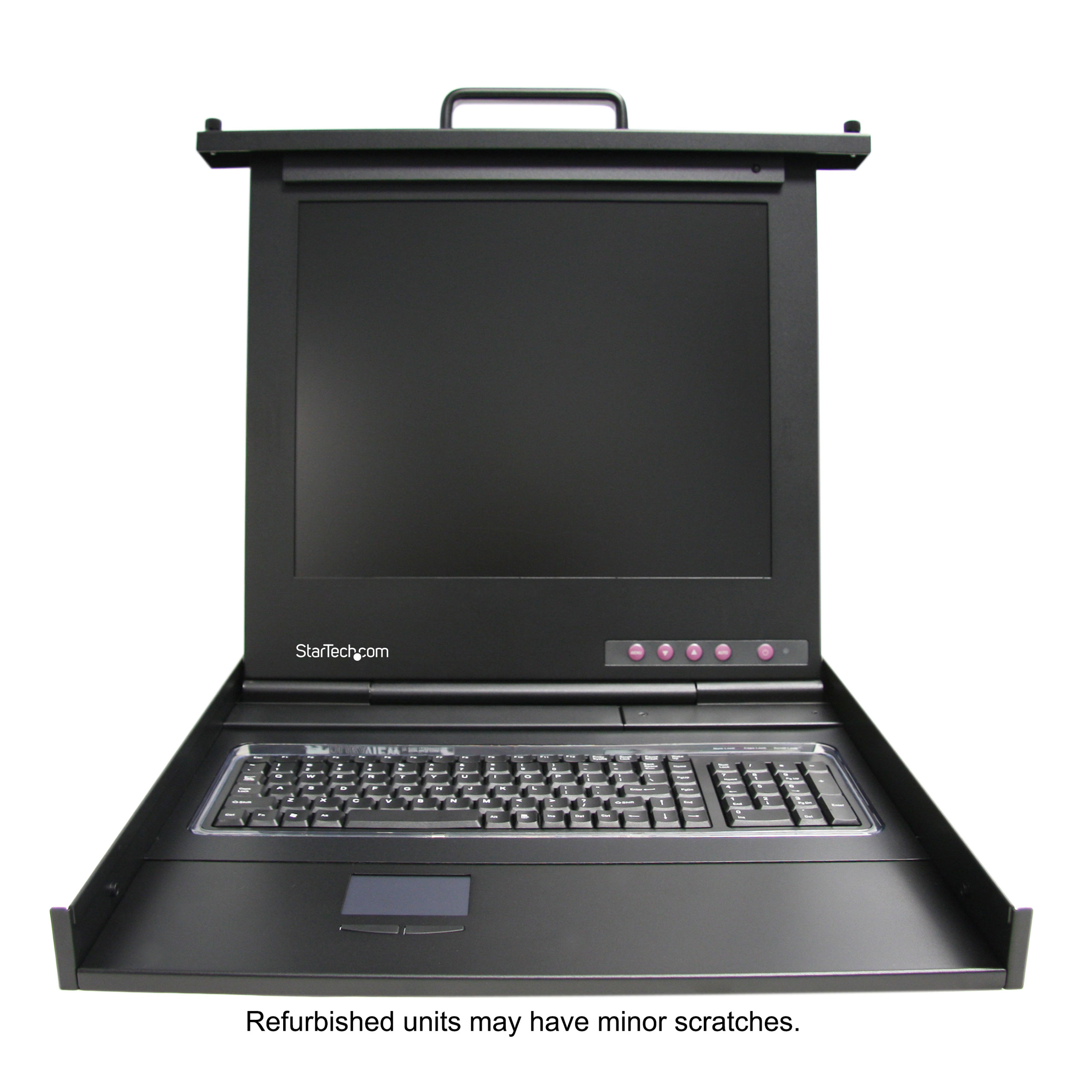

Refurbished 1U 17inch LCD KVM Rack Console
Centralized control of a server or a USB KVM switch with this 1U rack-mountable LCD console
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name Refurbished 1U 17inch LCD KVM Rack Console Product Number RKCONV1701R UPC 065030842525 Lifecycle status Discontinued Warranty Refurbished 90 Days Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX009X Product Title (Short) Refurbished 17" Rack LCD Console USB Product Title (Standard) Refurbished 1U 17" Rackmount LCD Console – USB – Value Series Product Title (Long) Refurbished 1U 17" Rackmount LCD Console – USB – Value Series Title Ingram (Part 1) Refurbished 17" Rackmount LCD Co Title Ingram (Part 2) nsole – USB – Value Series Website Product Headline Centralized control of a server or a USB KVM switch with this 1U rack-mountable LCD console Bullet 1 105 Key Keyboard with touch pad mouse Bullet 2 Bright Active Matrix TFT Display, 300 cd/m2 Bullet 3 Durable steel chassis design Bullet 4 OS independent Bullet 5 OSD function (On Screen Display) for LCD display Marketing Copy Applications - Centralized control of dozens of PCs and servers when used with optional KVM
- Improving the internal space efficiency of existing cabinets
- Managing rack mounted headless servers
Website Search Keyword - 17 inch console
- 1U Console
- cabinet console
- KVM Console
- LCD console
- rack console
- Rackmount LCD
- USB Console
Accessory Products - GCUSBABMF
- MXT101MMHQ10
- MXT101MMHQ25
- MXT101MMHQ35
- MXT101MMLP10
- MXT101MMLP15
- SV1631DUSB
- SV1631DUSBU
- SV1653DXI
- SV1654DX4I
- SV3253DXI
- SV3254DX4I
Related Products - 1UCABCONS
- 1UCABCONS17
- 1UCABCONS19
- CABCONS16
- CABCONS1716I
- CABCONS8
- RACKCONS
- RACKCONS1501
- RACKCONS1701
- RACKCONS1708
- RACKCONS1716
- RACKCONS1901
- RACKCONS1916
- RACKCONV1901

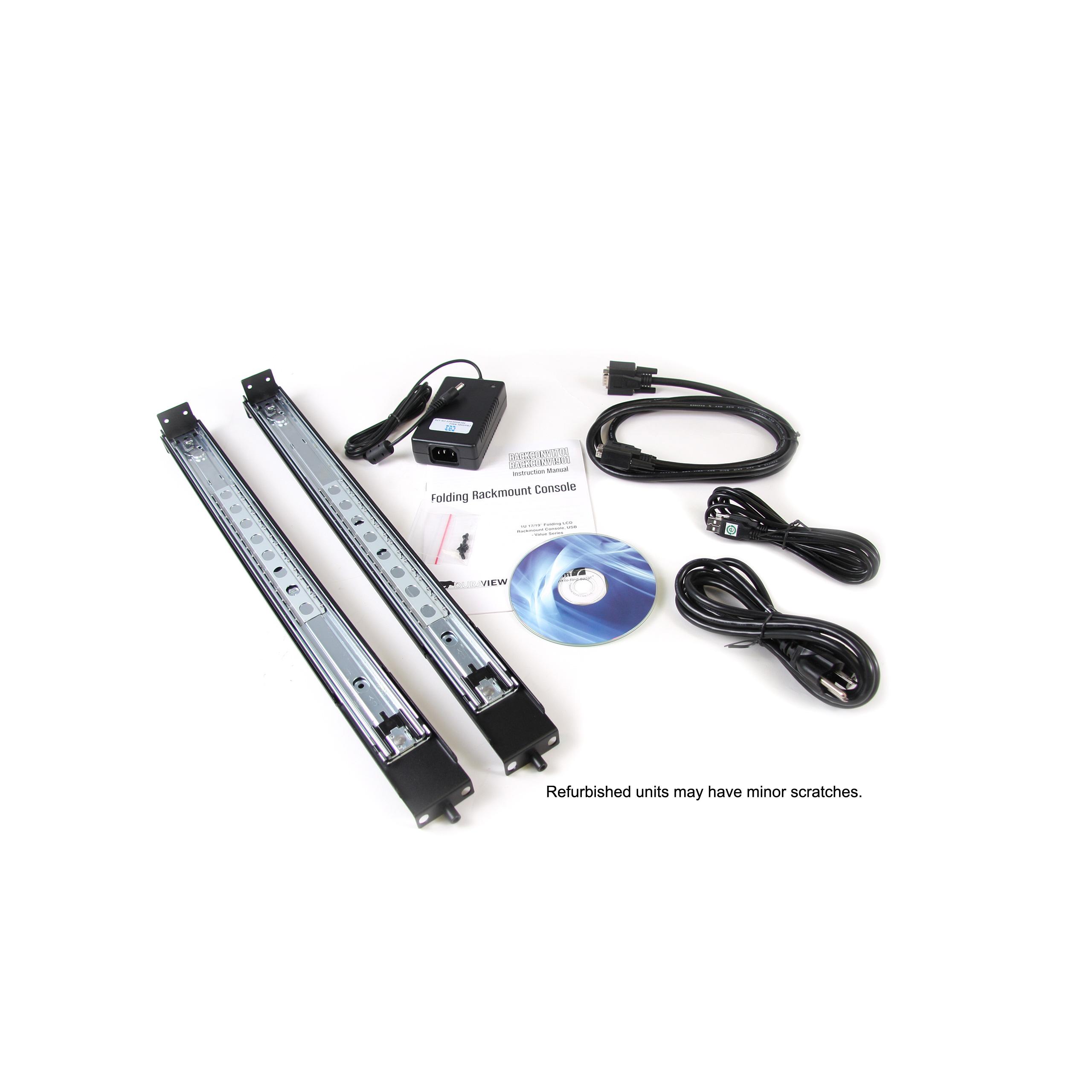

Input Voltage 110V-240V AC Output Current 4.16A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Color Black Humidity 90% RH Material Heavy Duty Steel Maximum Mounting Depth (mm) 809 Minimum Mounting Depth (mm) 508 Operating Temperature 0 ~ 50 °C / 32 ~ 122 °F Product Length (mm) 509.2 Product Width (mm) 477.6 Product Height (mm) 43.7 Product Weight (g) 10400 Storage Temperature -20 ~ 60 °C / -4 ~ 140 °F TAA Compliant No KVM IP Control No Maximum Analog Resolutions 1280x1024 @ 60Hz MTBF (hours) 60,000 Hours On-Screen Display Yes OS Compatibility OS Independent Audio No Display Size 17" Number of KVM Ports 1 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms USB U Height 1U Carton Depth (mm) 680 Carton Height (mm) 242 Carton Quantity 1 Carton Weight Gross (g) 19100 Included in Package - 1 - 1U LCD Rack Console Drawer
- 1 - Console Cable Kit
- 1 - Manual on CD
- 1 - Mounting Rails - Set
- 1 - Package of 6 screws
- 1 - Power Adapter
- 1 - Power Cord
Package Depth (mm) 680 Package Height (mm) 242 Package Width (mm) 560 Package Weight (g) 17900 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 VGA Host Connector 1 (Quantity) 1 Host Connector 2 USB-A (480Mbps, 2.5W) Host Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
