RKCONV1901R

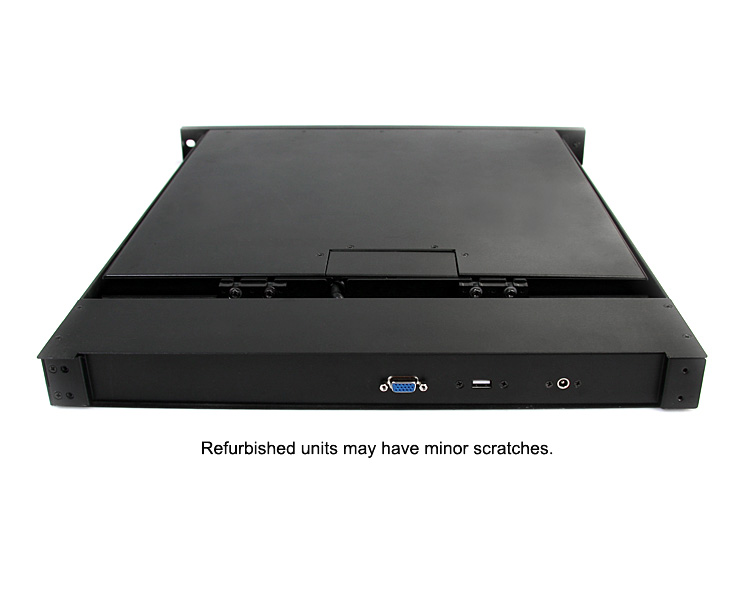

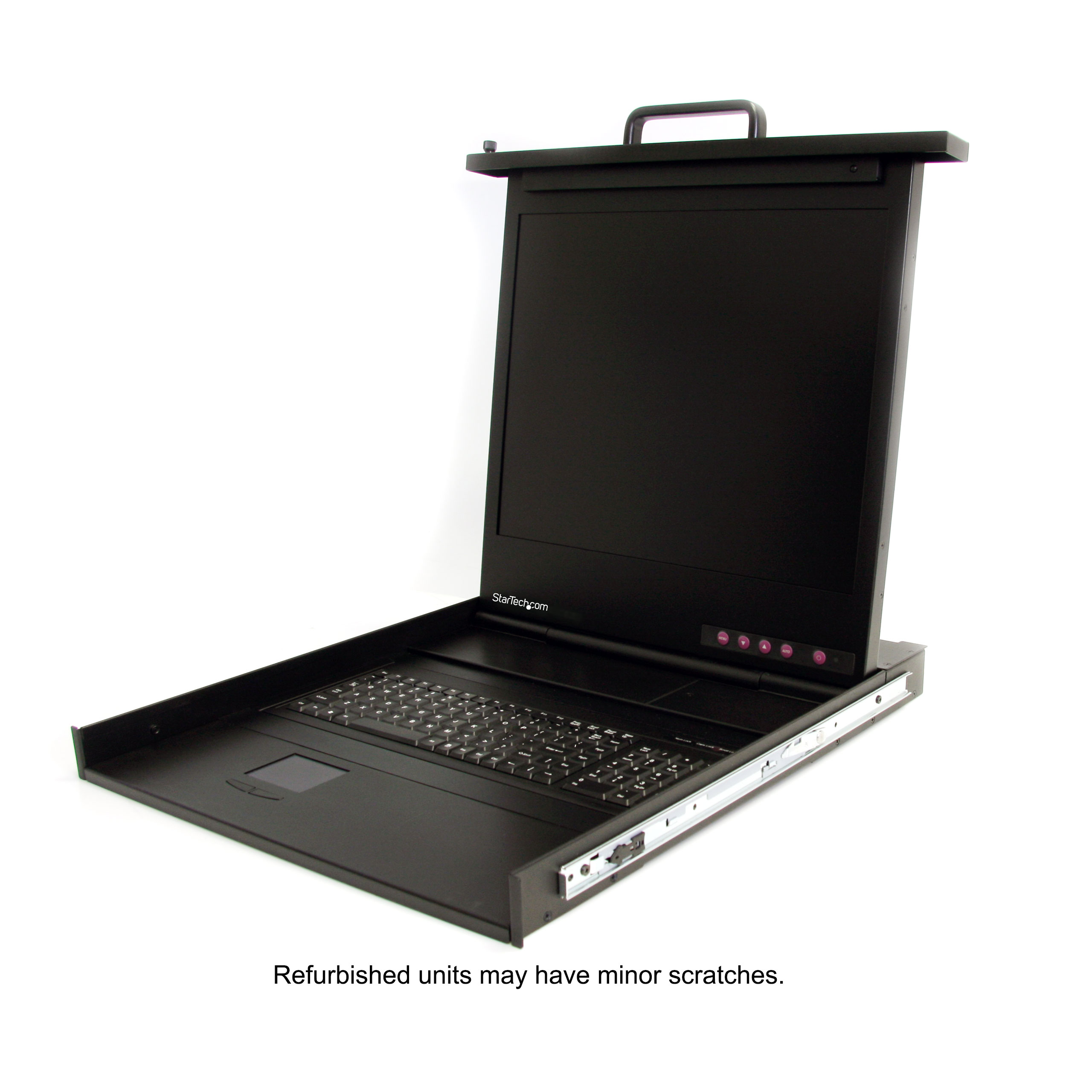

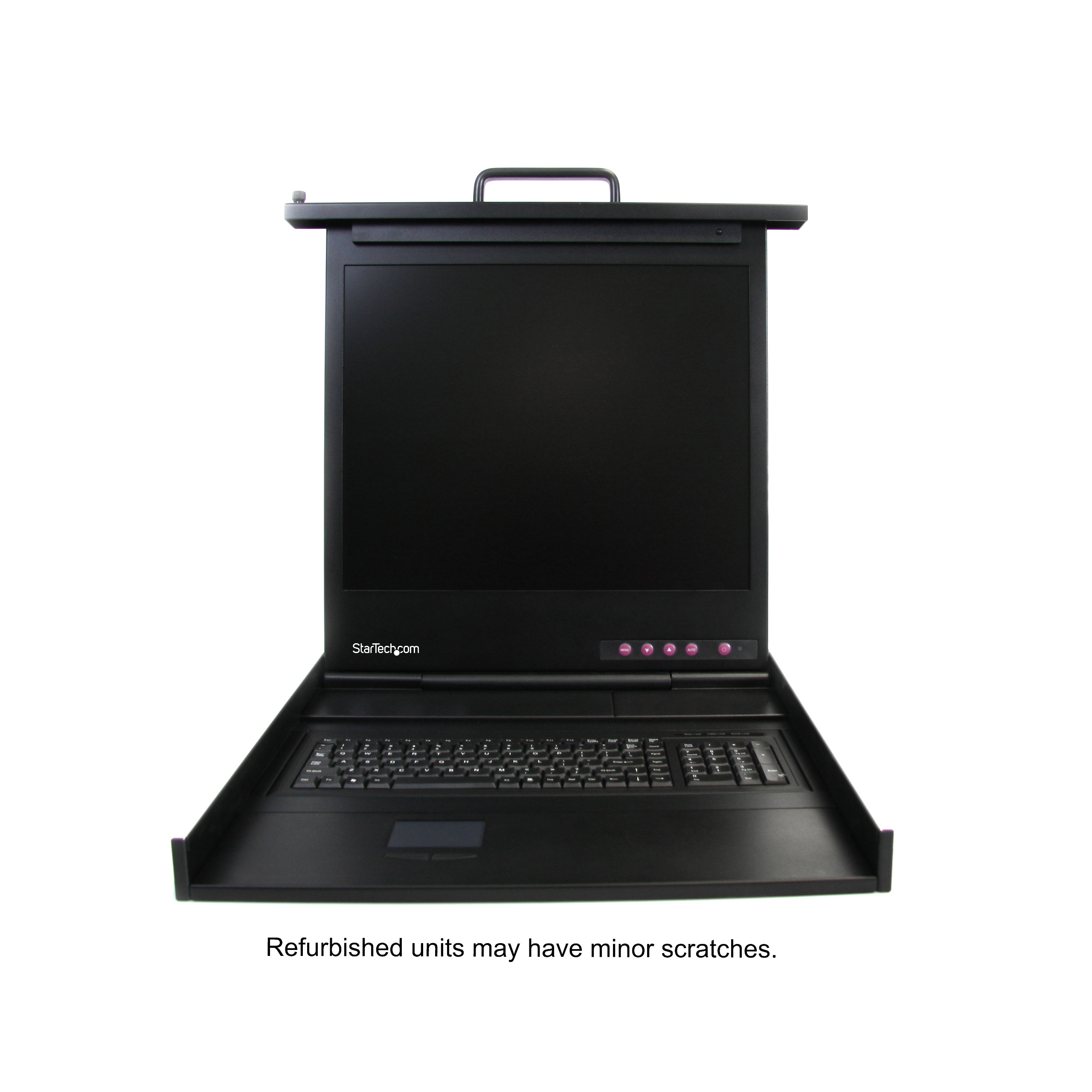

Refurbished 1U 19inch LCD KVM Rack Console
Simple and compact server control with this 19" USB LCD Console
Main Image
Product Images
Product Images
Product Images
Product Images

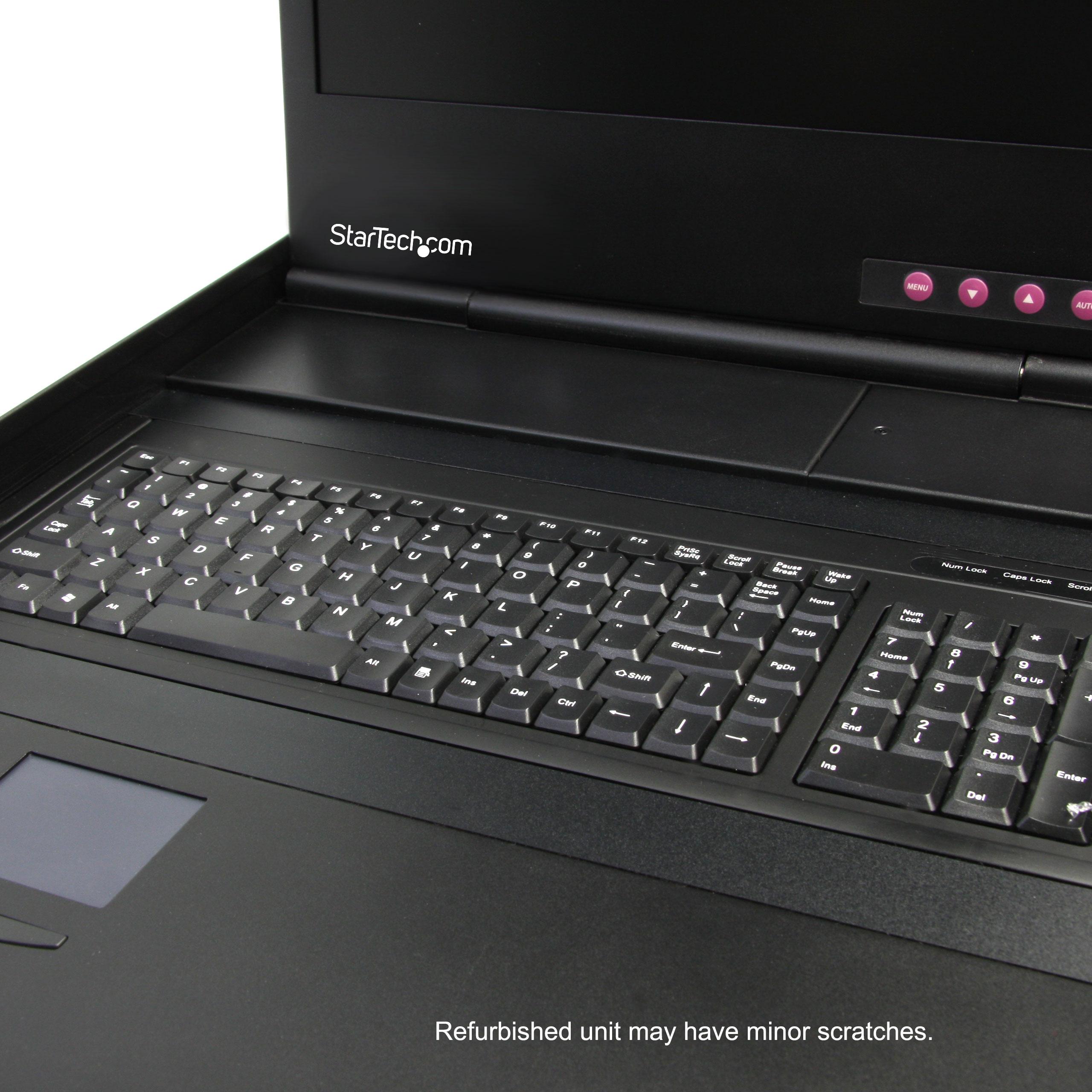

Product Name Refurbished 1U 19inch LCD KVM Rack Console Product Number RKCONV1901R UPC 065030842532 Lifecycle status Discontinued Warranty Refurbished 90 Days Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX009X Product Title (Short) Refurbished 19" Rack LCD Console – USB Product Title (Standard) Refurbished 1U 19" Rackmount LCD Console – USB – Value Series Product Title (Long) Refurbished 1U 19" Rackmount LCD Console – USB – Value Series Title Ingram (Part 1) Refurbished 19" Rackmount LCD Co Title Ingram (Part 2) nsole – USB – Value Series Website Product Headline Simple and compact server control with this 19" USB LCD Console Bullet 1 105 Key Keyboard with touch pad mouse Bullet 2 Adjustable length rails for compatibility with nearly any server rack Bullet 3 Bright Active Matrix TFT 19" Display, 300 cd/m2 Bullet 4 Durable steel chassis design Bullet 5 OS independent; No software or drivers required Marketing Copy Applications - Centralized control of dozens of PCs and servers when used with optional KVM
- Improving the internal space efficiency of existing cabinets
- Managing rack mounted headless servers
Website Search Keyword - 19 inch console
- 1U Console
- cabinet console
- KVM Console
- LCD console
- rack console
- Rackmount LCD
- USB Console
Accessory Products - GCUSBABMF
- MXT101MMHQ10
- MXT101MMHQ25
- MXT101MMHQ35
- MXT101MMLP10
- MXT101MMLP15
- SV1631DUSB
- SV1631DUSBU
- SV1653DXI
- SV1654DX4I
- SV3254DX4I
Related Products - 1UCABCONS
- 1UCABCONS17
- 1UCABCONS19
- CABCONS16
- CABCONS1716I
- CABCONS8
- RACKCONS
- RACKCONS1501
- RACKCONS1701
- RACKCONS1708
- RACKCONS1716
- RACKCONS1901
- RACKCONS1916
- RACKCONV1701

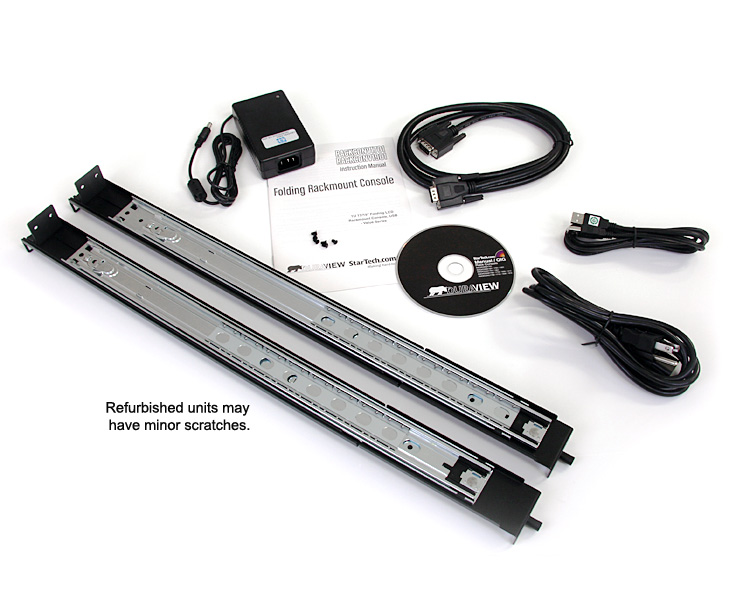

Input Voltage 110V-240V AC Output Current 4.16A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Color Black Humidity 90% RH Material Heavy Duty Steel Maximum Mounting Depth (mm) 1000 Minimum Mounting Depth (mm) 560 Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 555.1 Product Width (mm) 477.6 Product Height (mm) 43.7 Product Weight (g) 11200 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No KVM IP Control No Maximum Analog Resolutions 1280x1024 @ 60Hz MTBF (hours) 60,000 Hours On-Screen Display Yes OS Compatibility OS Independent Aspect Ratio 4:3 Audio No Display Size 19" Front Door Key Lock No Number of KVM Ports 1 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms USB U Height 1U Carton Depth (mm) 725 Carton Height (mm) 244 Carton Quantity 1 Carton Weight Gross (g) 26800 Included in Package - 1 - 1U LCD Rack Console Drawer
- 1 - Console Cable Kit
- 1 - Manual on CD
- 1 - Mounting Rails - Set
- 1 - Package of 6 screws
- 1 - Power Adapter
- 1 - Power Cord
Package Depth (mm) 725 Package Height (mm) 244 Package Width (mm) 170 Package Weight (g) 25520 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 VGA Host Connector 1 (Quantity) 1 Host Connector 2 USB-A (480Mbps, 2.5W) Host Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
