RS232EXTC1
Serial over Cat5 Extender - Serial Port Extender
Extend an RS232 serial connection up to 1000 meters (3300 feet) using Cat 5 cabling
Main Image
Product Images
Product Images
BOM Image
Product Name Serial over Cat5 Extender - Serial Port Extender Product Number RS232EXTC1 UPC 065030841863 Lifecycle status Active Warranty 2 Years Taxonomy Product > Extenders > Serial Extenders Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Extenders and Converters Family Serial Extenders - over Cat Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX011X Product Title (Short) Serial Extender over Cat 5 Up to 3300 ft Product Title (Standard) RS232 Serial over Cat5 Extender, 1 km (3300 ft) Range, Plug & Play, No Software, DB9 Serial Extension - TAA Product Title (Long) RS232 Serial over Cat5 Extender, 1 km (3300 ft) Range, Plug & Play, No Software, DB9 Serial Extension - TAA Product Title (AMZ) RS232 Serial over Cat5 Extender, 1 km (3300 ft) Range, Plug & Play, No Software, DB9 Serial Extension - TAA Title Ingram (Part 1) Serial RS232 Extender over Cat 5 Title Ingram (Part 2) Up to 3300 ft (1000 meters) Website Product Headline Extend an RS232 serial connection up to 1000 meters (3300 feet) using Cat 5 cabling Bullet 1 RELIABLE FULL-DUPLEX COMMUNICATION: Supports full-duplex RS232 data transmission with engineering-grade reliability and compatibility across both legacy systems and modern infrastructure Bullet 2 THE IT PRO'S CHOICE: Designed for reliability in edge and on-prem deployments, our solutions are lab-tested and field-proven for seamless integration and maximum uptime; Backed by free lifetime 24/5 multi-lingual technical assistance Bullet 3 SUPPORT CRITICAL APPLICATIONS: Maintain consistent, standards-based data transmission in environments like CNC control, medical monitoring, POS systems, and industrial automation Bullet 4 NO DRIVERS OR SOFTWARE REQUIRED: Enjoy a true plug-and-play experience with a pure hardware design that needs no drivers or setup software; For fast installs and low-maintenance deployments Bullet 5 EXTEND RS232 OVER CAT 5: Connect serial equipment far beyond standard cable limits using Cat5 or better; Ideal for secure, remote setups in IT-managed environments Bullets (Consolidated) Connect serial equipment beyond standard cable limits using Cat5 or better - Plug-and-play with a hardware design that needs no drivers or software - Maintain consistent, data transmission in environments like CNC control, medical monitoring, POS systems, and industrial automation - Full-duplex RS232 data transmission; Reliable and compatible across both legacy systems and modern infrastructure - For secure, remote setups in IT-managed environments, fast installs and low-maintenance deployments Marketing Copy Applications - Monitor and control medical equipment, security keypads/card scanners, point of sale equipment and remote sensor data, and various other healthcare related serial communications
- Industrial applications include controlling CNC machinery, polling bar code scanner data, administering process control equipment, weigh stations, and other manufacturing applications
- Extend connectivity to Point of Sale card swipe devices, bar code scanners, scales, receipt printers or cash register displays
- Remotely poll data from access keypads, card scanners, camera installations or home security systems
- Remote sensor monitoring for traffic flow management (air traffic control, expressway flow)
Website Search Keyword - RS-232 over cat5
- Serial over Ethernet
- DB9 over Ethernet
- DB9 extension
- Serial over cat5
- Serial Extension
- RS-232 extension
- long distance serial
- extended serial
- B165-101
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
System and Cable Requirements Cat5 RJ45 cabling required Accessory Products - M45PATCH100B
- M45PATCH100G
- M45PATCH100W
- M45PATCH50BL
- M45PATCH50GR
- M45PATCH50WH
- M45PATCH75BL
- M45PATCH75GR
- M45PATCH75WH
- WIRC5E350CMR
- WIRC5E350GR
- WIRC5ECMRWH
- SVA9M2NEUA
Related Products - NETRS232_1
- NETRS232_2
- NETRS232_4
- 110VDSLEXT
- USB100EXT
- USB110EXT
- USB120EXT
- USB201EXT
- USB204EXT
- USB204EXTFIB
- NETRS2321E
- ECS0016
- EOC110K
- EOC110R

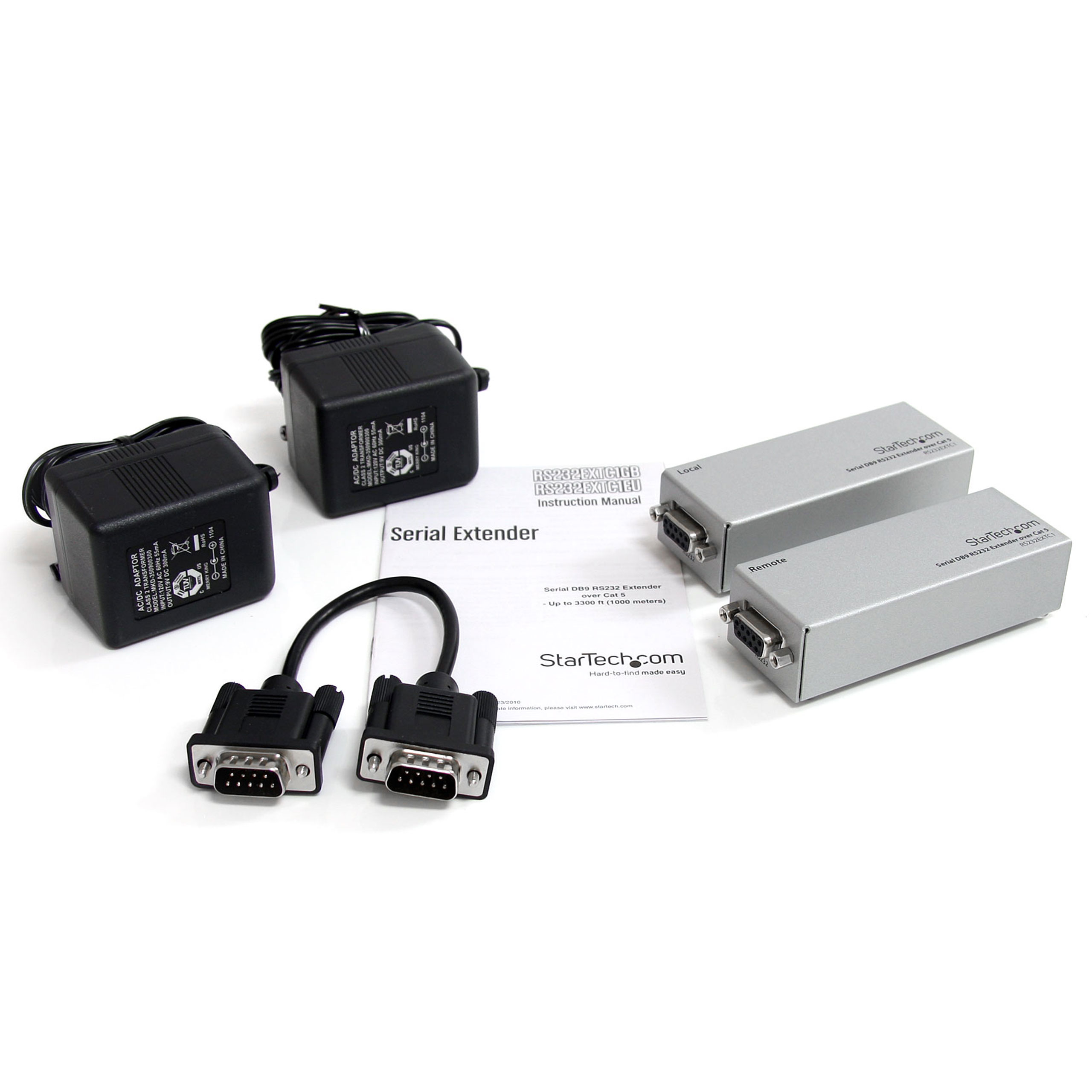

Equivalent Part Number in the EU RS232EXTC1EU Equivalent Part Number in the UK RS232EXTC1GB Input Current 55mA Input Voltage 100 - 240 AC Output Current 0.3A Output Voltage (V) 9V DC Power Consumption (In Watts) 2.7 Power Source 2 AC Adapters Included Plug Type M Center Tip Polarity Positive Color Silver Humidity 0% to 95% Material Steel Operating Temperature 0°C to 70°C (32°F to 158°F) Primary Material Steel Product Length (mm) 92.000 Product Width (mm) 34.000 Product Height (mm) 22.000 Product Weight (g) 273.000 Storage Temperature 0°C to 85°C (32°F to 185°F) TAA Compliant Yes Max Distance 1 km (0.6 mi) Maximum Data Transfer Rate 230 Kbps OS Compatibility OS Independent Cabling Cat 5 UTP Carton Depth (mm) 330 Carton Height (mm) 318 Carton Quantity 10 Carton Weight Gross (g) 7456 Included in Package - 1 - RS232 Extender Local Unit
- 1 - RS232 Extender Remote Unit
- 2 - Power Adapter
- 1 - 20cm Null Modem cable (DB-9 Male to Male)
- 1 - User Manual
Package Depth (mm) 144 Package Height (mm) 58 Package Width (mm) 316 Package Quantity 1 Package Weight (g) 664 Packaging Description Serial RS232 Extender over Cat 5 - 1000m Packaging Description India Serial RS232 Extender over Cat 5 - 1000m Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DB-9 Serial Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Host Connector 1 DB-9 Serial Host Connector 1 (Quantity) 1 Host Connector 2 RJ-45 Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) CA,CO,MX,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
