RS232EXTC1EU

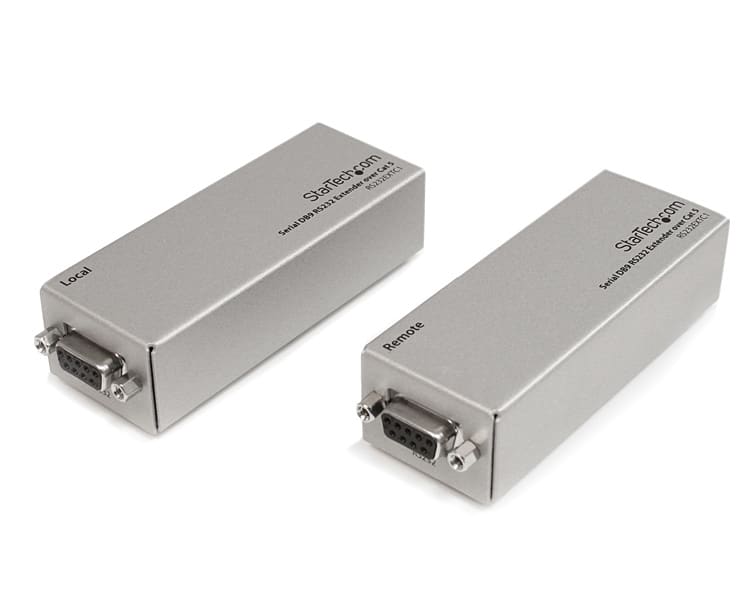

Serial DB9 RS232 Extender over Cat 5 Up to 3300 ft 1000 mete
Extend an RS232 serial connection up to 1000 meters (3300 feet) using Cat 5 cabling
Main Image
Product Images
Product Images
Product Images
Product Name Serial DB9 RS232 Extender over Cat 5 Up to 3300 ft 1000 mete Product Number RS232EXTC1EU UPC 065030842402 Lifecycle status Active Warranty 2 Years Taxonomy Product > Extenders > Serial Extenders Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Extenders and Converters Family Serial Extenders - over Cat Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX011X Product Title (Short) Serial Extender over Cat 5 Up to 3300 ft Product Title (Standard) RS232 Serial over Cat5 Extender, 1km (3300ft) Range, Plug & Play, No Software, DB9 Serial Extension - TAA Product Title (Long) RS232 Serial over Cat5 Extender, 1km (3300ft) Range, Plug & Play, No Software, DB9 Serial Extension - TAA Product Title (AMZ) RS232 Serial over Cat5 Extender, 1km (3300ft) Range, Plug & Play, No Software, DB9 Serial Extension - TAA Title Ingram (Part 1) Serial RS232 Extender over Cat 5 Title Ingram (Part 2) Up to 3300 ft (1000 meters) Website Product Headline Extend an RS232 serial connection up to 1000 meters (3300 feet) using Cat 5 cabling Bullet 1 SUPPORT CRITICAL APPLICATIONS: Maintain consistent, standards-based data transmission in environments like CNC control, medical monitoring, POS systems, and industrial automation Bullet 2 NO DRIVERS OR SOFTWARE REQUIRED: Enjoy a true plug-and-play experience with a pure hardware design that needs no drivers or setup software; For fast installs and low-maintenance deployments Bullet 3 RELIABLE FULL-DUPLEX COMMUNICATION: Supports full-duplex RS232 data transmission with engineering-grade reliability and compatibility across both legacy systems and modern infrastructure Bullet 4 EXTEND RS232 OVER CAT 5: Connect serial equipment far beyond standard cable limits using Cat5 or better; Ideal for secure, remote setups in IT-managed environments Bullet 5 THE IT PRO'S CHOICE: Designed for reliability in edge and on-prem deployments, our solutions are lab-tested and field-proven for seamless integration and maximum uptime; Backed by free lifetime 24/5 multi-lingual technical assistance Marketing Copy Applications - Extend connectivity to Point of Sale card swipe devices, bar code scanners, scales, receipt printers or cash register displays
- Industrial applications include controlling CNC machinery, polling bar code scanner data, administering process control equipment, weigh stations, and other manufacturing applications
- Monitor and control medical equipment, security keypads/card scanners, point of sale equipment and remote sensor data, and various other healthcare related serial communications
- Remote sensor monitoring for traffic flow management (air traffic control, expressway flow)
- Remotely poll data from access keypads, card scanners, camera installations or home security systems
Website Search Keyword - DB9 extension
- DB9 over Ethernet
- extended serial
- long distance serial
- RS-232 extension
- RS-232 over cat5
- Serial Extension
- Serial over cat5
- Serial over Ethernet
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
System and Cable Requirements Cat5 RJ45 cabling required Accessory Products - M45PATCH100B
- M45PATCH100G
- M45PATCH100W
- M45PATCH50BL
- M45PATCH50GR
- M45PATCH50WH
- M45PATCH75BL
- M45PATCH75GR
- M45PATCH75WH
- WIRC5E350CMR
- WIRC5E350GR
- WIRC5ECMRWH
- SVA9M2NEUA
Related Products - 110VDSLEXT
- ECS0016
- EOC110K
- EOC110R
- NETRS232_1
- NETRS232_2
- NETRS232_4
- NETRS2321E
- USB100EXT
- USB110EXT
- USB120EXT
- USB201EXT
- USB204EXT
- USB204EXTFIB

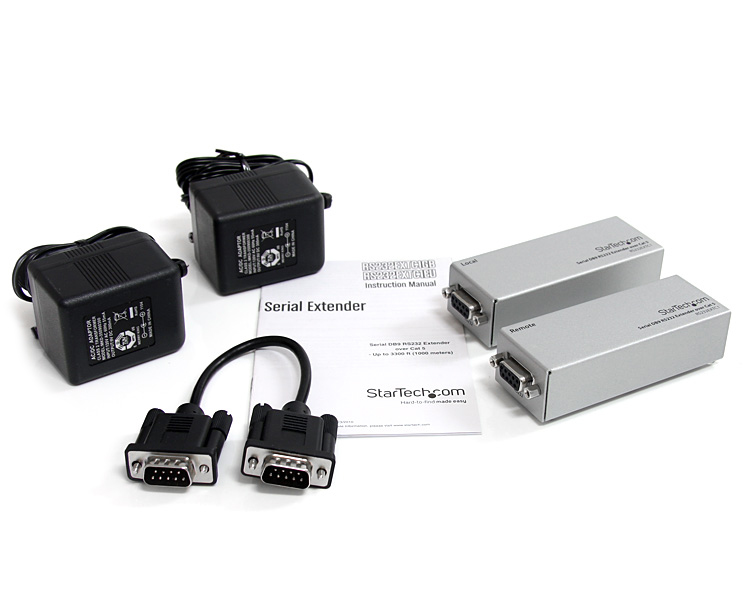

Input Current 55mA Input Voltage 100 - 240 AC Output Current 1A Output Voltage (V) 9V DC Power Consumption (In Watts) 9 Power Source 2 AC Adapters Included Plug Type M Center Tip Polarity Positive Color Silver Humidity 0% to 95% Material Steel Operating Temperature 0°C to 70°C (32°F to 158°F) Primary Material Steel Product Length (mm) 92 Product Width (mm) 34 Product Height (mm) 22 Product Weight (g) 65 Storage Temperature 0°C to 85°C (32°F to 185°F) TAA Compliant Yes Max Distance 1 km (0.6 mi) Maximum Data Transfer Rate 115.2 Kbps OS Compatibility OS Independent Cabling Cat 5 UTP Carton Depth (mm) 326 Carton Height (mm) 300 Carton Quantity 10 Carton Weight Gross (g) 11100 Included in Package - 1 - 20cm Null Modem cable (DB-9 Male to Male)
- 2 - Power Adapter
- 1 - RS232 Extender Local Unit
- 1 - RS232 Extender Remote Unit
- 1 - User Manual
Package Depth (mm) 57 Package Height (mm) 138 Package Width (mm) 315 Package Quantity 1 Package Weight (g) 1000 Packaging Description Serial RS232 Extender over Cat 5 - 1000m Packaging Description India Serial RS232 Extender over Cat 5 - 1000m Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DB-9 Serial Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Host Connector 1 DB-9 Serial Host Connector 1 (Quantity) 1 Host Connector 2 RJ-45 Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CH,DE,ES,FR,IT,NL,SE Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
