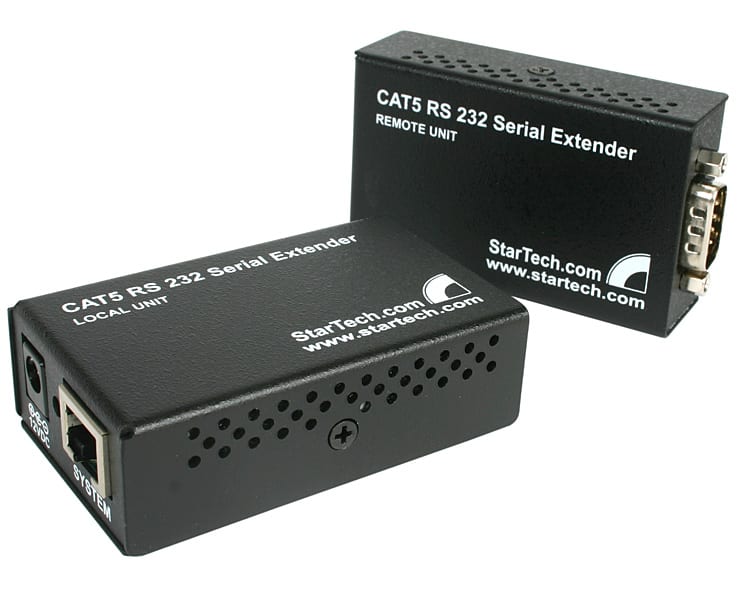

Product Name Category 5 RS232 Serial Extender - 1000m Product Number RS232EXTC5 UPC 065030810173 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Israel Country of Origin North America Israel Product Title (Short) Serial Extender over Cat 5 Up to 3300 ft Product Title (Standard) StarTech.com Serial DB9 RS232 Extender over Cat 5 - RS-232 Serial Extender - Serial port extender - external - up to 3300ft 1000 m Product Title (Long) Serial DB9 RS232 Extender over Cat 5 - Up to 3300 ft (1000 meters) Title Ingram (Part 1) Serial RS232 Extender over Cat 5 Title Ingram (Part 2) Up to 3300 ft (1000 meters) Bullet 1 Supports full-duplex data communication with data transfer rates of up to 57.6 Kbits/sec Bullet 2 Extends using Cat 5 Ethernet cables, allowing users to employ their existing Ethernet infrastructure to remotely connect serial devices Bullet 3 Easy Plug-and-Play installation Bullet 4 Compact design Bullet 5 No driver software required Marketing Copy Applications - Point of Sale (card swipe, bar code scanners, scales, receipt printers, cash register display extension)
- Manufacturing (CNC machinery control, bar code scanners, process control equipment, harsh environment applications)
- Security (access keypads, card scanners, home security systems)
- Healthcare(monitor and control medical equipment)
- Traffic Flow Management (air traffic control, expressway flow)
Special Notes Product weight and dimensions are indicated for a single unit (transmitter or receiver) System and Cable Requirements Cat5 RJ45 cabling required Accessory Products - M45PATCH100B
- M45PATCH50BL
- M45PATCH75BL
- M45PATCH100G
- M45PATCH50GR
- M45PATCH75GR
- M45PATCH100W
- M45PATCH50WH
- M45PATCH75WH
- WIRC5E350CMR
- WIRC5E350GR
- WIRC5ECMRWH
Related Products - NETRS232_1
- NETRS232_2
- NETRS232_4
- USB100EXT
- USB110EXT
- USB120EXT
- USB201EXT
- USB204EXT
- USB204EXTFIB
- 1394FIBEXT
Input Voltage 115V AC Output Current 2A Output Voltage (V) 12V DC Plug Type M Center Tip Polarity Positive Color Black Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 75 Product Width (mm) 45 Product Height (mm) 23 Product Weight (g) 120 Storage Temperature -40°C to 70°C (-40°F to 158°F) TAA Compliant No Max Distance 1000 m / 3300 ft Maximum Data Transfer Rate 57.6Kbps Industry Standards RS232 Carton Depth (mm) 500 Carton Height (mm) 264 Carton Quantity 3 Carton Weight Gross (g) 2850 Package Depth (mm) 165 Package Height (mm) 216 Package Width (mm) 301 Package Weight (g) 550 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DB-9 Serial Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Host Connector 1 DB-9 Serial Host Connector 1 (Quantity) 1 Host Connector 2 RJ-45 Host Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Carey Cline
