RS232STFIB
Main Image

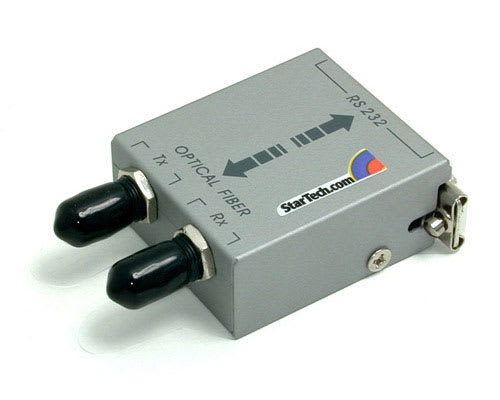

Product Name RS-232 to ST Fiber Media Converter Line Driver - 2km Product Number RS232STFIB UPC 065030788373 Warranty 2 Years Taxonomy Product > Legacy Discontinued Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) 1 Country of Origin History (2) Taiwan Product Title (Long) RS-232 to ST Fiber Media Converter Line Driver - 2km Bullet 1 The convertor interface operates in DCE mode of direct connection to DTE devices such as the PC COM port. Bullet 2 The handshaking lines RT, CTS, and CD are all internally connected. DRS and DTR are also internally connected. Bullet 3 The convertor is completely interface powered and will operate at the full 115.2Kbps speed even with only RD, TD and SG connected (3-wire). Bullet 4 Operates at 115.2 Kbps even with only RD, TD and SG connected (3-wire) Marketing Copy Extend your network range by 2 km! Increase your Fiber signal transmission power with the RS232STFIB, StarTech.com's latest advancement in high-speed Fiber Optics. This converter extends the transmission length of data converted from RS-232 to ST by up to 2 km, with no repeaters! It’s the perfect solution for connecting remote areas or buildings to your main network. Backed by StarTech.com’s 2-year warranty and FREE lifetime tech support. Applications - Compact and affordable solution for extending RS-232 transmissions up to 2 km with no repeaters
- Ideal for connecting remote areas or buildings to your main network
- Rugged steel enclosure withstands harsh environments
Accessory Products - FIBSTST50
- FIBSTST20
- FIBSTST15
- FIBSTST10
Color Gray Product Weight (g) 84 TAA Compliant No General Specifications - Signal Format: EIA RS-232c, ITU V.24, V.28
- Mode: Asynchronous
- Connector: DB25 Female
- Fiber Port: ST
- Fiber Type: Multi-mode
- Light Source: VCSEL
- Wavelength: 850nm
- Power Budget: 10dB@62.5/125um
- Distance: 2 Km
- Speed: DC~115.2Kbps
- Dimensions: 75(l) x 53(w) x 21(d)mm
- Weight: 84g
Maximum Data Transfer Rate 115200 Included in Package - 1 - RS-232 to ST Fiber Media Converter 2K
- 1 - Instruction Manual
Connector 1 DB-25 Parallel / Serial Connector 1 (Quantity) 1 Connector 2 ST Duplex Fiber Connector 2 (Quantity) 1 en-US Content Approved Yes
