RS485STFIB
Main Image

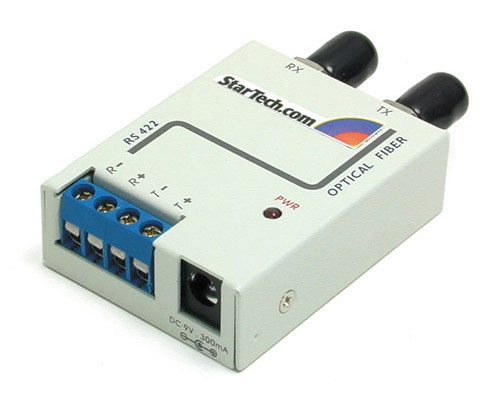

Product Name RS422/485 to ST Fiber Media Converter 2K Product Number RS485STFIB UPC 065030788366 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX016X Product Title (Long) RS-422/485 Serial to Fiber Media Converter Line Driver (ST) - 2km Bullet 1 Compact design ideal for tight spaces Bullet 2 Transparent full duplex bi-directional operation Bullet 3 ST connector accommodates multi-mode fiber optic cable size 62.5/125um Bullet 4 Operates at rates up to 115,200 baud Bullet 5 Provides secure data transmissions and electromagnetic immunity Marketing Copy Extend your network range by 2 km! Increase your Fiber signal transmission power with the RS485STFIB, StarTech.com's latest advancement in high-speed Fiber Optics. This converter extends the transmission length of data converted from RS-422 to ST by up to 2 km, with no repeaters! It’s the perfect solution for connecting remote areas or buildings to your main network. Backed by StarTech.com’s 2-year warranty and FREE lifetime tech support. Applications - Compact and affordable solution for extending RS-422/485 transmissions up to 2 km with no repeaters
- Ideal for connecting remote areas or buildings to your main network
- Rugged metal enclosure withstands harsh environments
Input Voltage 115V AC Output Current 0.3A Output Voltage (V) 9V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Beige Humidity 10~90% RH Operating Temperature 0°C to 50°C (32°F to 122°F) Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Fiber Type Multi Mode General Specifications - Signal Format: EIA RS-422/ST, ITU V.24 and V.28
- Mode: Asynchronous
- Connector: 4-screw terminal (T+,T-,R+,R-)
- Fiber Port and Type: ST Multi-mode 62.5/125um
- Light Source: VCSEL Laser
- Wavelength: 850nm
- Power Budget: 10dB @ 62.5/125um fiber cable
- Distance and Speed: 2000 meters, DC~115,200bps
- Dimensions: 55.6 x 43.4 x 17.4mm
- Weight: 80grams
- LED: Power indicator
Maximum Data Transfer Rate 115200 Max Transfer Distance 2 km (1.2 mi) Wavelength 850nm Fiber Connector ST Power over Ethernet No Wave Division Multiplexing (WDM) No Carton Depth (mm) 755 Carton Height (mm) 240 Carton Quantity 50 Carton Weight Gross (g) 10000 Included in Package - 1 - RS422/485 to ST Fiber Media Converter 2K
- 1 - DC9V Adapter
- 1 - Instruction Manual
Package Depth (mm) 74 Package Height (mm) 187 Package Width (mm) 232 Package Weight (g) 880 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Terminal Block (4 Wire) Connector 1 (Quantity) 1 Connector 2 ST Duplex Fiber Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Carey Cline
