RS485STFIBGB
Main Image

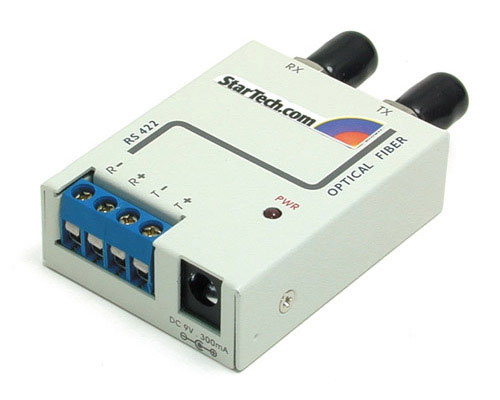

Product Name RS422/485 to ST Fiber Media Converter Product Number RS485STFIBGB UPC 065030800372 Warranty 2 Years Taxonomy Product > Legacy Discontinued Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) 1 Country of Origin History (2) Taiwan Product Title (Long) RS422/485 to ST Fiber Media Converter Bullet 1 Compact design, transparent full duplex bi-directional operation. Bullet 2 Extends RS-422 up to 2 Km. Bullet 3 RS-422 at rates up to 115,200 baud. Bullet 4 ST connector accomodates multi-mode fiber optic cable size 62.5/125um. Bullet 5 Provides secure data transmissions and electromagnetic immunity. Marketing Copy Increase the power of your Fiber signal transmission with the RS485STFIBGB, StarTech.com's latest product designed to make high-speed Fiber Optic data transmission even better. This device extends the transmission length of data converted from RS-422/485 to ST by up to 2km! Applications The RS422/485 is a low cost, compact, fiber converter designed to extend RS-422/RS-485 transmissions up to 2 Km without any repeaters. Power Source AC Adapter Included Center Tip Polarity Positive Color Beige Humidity 10~90% RH Operating Temperature 0°C to 50°C (32°F to 122°F) Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Fiber Type Multi Mode General Specifications - Signal Format: EIA RS-422/ST, ITU V.24 and V.28
- Mode: Asynchronous
- Connector: 4-screw terminal (T+,T-,R+,R-)
- Fiber Port and Type: ST Multi-mode 62.5/125um
- Light Source: VCSEL Laser
- Wavelength: 850nm
- Power Budget: 10dB @ 62.5/125um fiber cable
- Distance and Speed: 2000 meters, DC~115,200bps
- Dimensions: 55.6 x 43.4 x 17.4mm
- Weight: 80grams
- LED: Power indicator
Maximum Data Transfer Rate 115200 Kbits/Sec Max Transfer Distance 2 km (1.2 mi) Wavelength 850nm Fiber Connector ST Power over Ethernet No Wave Division Multiplexing (WDM) No Connector 1 Terminal Block (4 Wire) Connector 1 (Quantity) 1 Connector 2 ST Duplex Fiber Connector 2 (Quantity) 1 en-US Content Approved Yes
