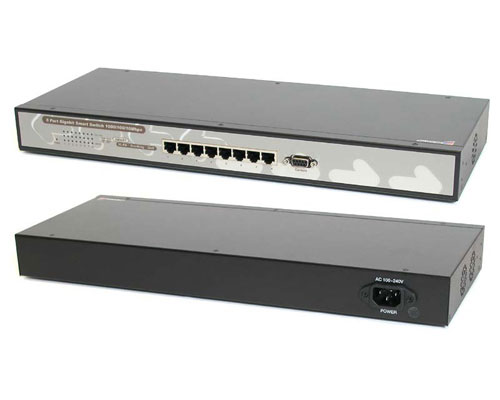

RS81000
Main Image
Product Name 8 Port 10/100/1000 Mbps Ethernet Switch Product Number RS81000 UPC 065030795845 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Product Title (Long) 8 Port 10/100/1000 Gigabit Ethernet Backbone Switch Bullet 1 8 Gigabit ports allow simultaneous data transmission thru a internal high-speed data channel Bullet 2 Supports backpressure and IEEE 802.3x advanced flow control that reduces network congestion and prevents packet loss Bullet 3 Trunking function allows several ports to be combined as a single connection and increases your bandwidth between the smart switch and a server or another switch Bullet 4 Port Mirror configuration allows you to monitor port traffic on all 8 Gigabit ports Bullet 5 QoS function allows Administrator to categorize which users/applications have greater priority than others Marketing Copy Applications - Industries that needs to increase productivity and cost savings through high network throughput
- Ideal for enterprise and data center environments
- Ideal for Data Warehousing, Financial Services, ISP, Scientific Modeling and Medical Imaging Industries
- Smart switch allows you to upgrade your existing network to Gigabit capability using existing cables
- Supports increased data throughput for mission critical applications such as CAD Systems, Video Streaming, Voice over IP (VoIP), and Multicast Video Conferencing
Related Products RS24102V TAA Compliant No General Specifications - Weight: Lbs:5.3 (2.4 Kgs)
- Dimensions:
- Length: 17.3 Inches (440mm)
- Width: 6.6 Inches (170 mm)
- Height: 1.7 Inches (44 mm)
- Gigabit Port: 8 x 1000/100/10 Mbps ports with RJ-45 connectors
- Console Port: 1 x DB9
- Trunking:
- Gigabit Ports: 4 Trunking Groups
- Network Cable Type:
- 10Base-T: UTP/STP category 3 or 5 cable
- 100Base-TX: UTP/STP category 5 cable
- 1000Base-TX: 4 pairs category 5 cable (Optional - Category 6)
- Buffer Memory: 256 K
- MAC Address: 8 K
- LED Indicators:
- System status: 1 x Power Indicator
- Gigabit Ports: 8 x Activity status, 2 x Duplex mode & 2 x Speed status
- Switching Architecture: Store and Forward
- Connectors:
- Gigabit Port: 8 x RJ-45
- Duplex Mode: Supports both Half-Duplex and Full-Duplex
- Power: 100 ~ 240V
- Industry Standards: IEEE 802.3, IEE802.3u, IEEE802.3ab & IEEE 802.1p Certifications: FCC Class A & CE Mark C-Tick
