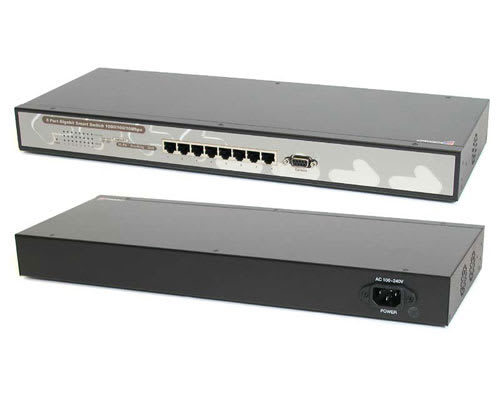

8 Port 10/100/1000 Gigabit Ethernet Backbone Switch

Main Image

Product Name	8 Port 10/100/1000 Gigabit Ethernet Backbone Switch
Product Number	RS81000GB
UPC	065030800532
Warranty	2 Years
Taxonomy	Product > Legacy Discontinued
Country of Origin Europe & Japan	China
Country of Origin North America	China
Country of Origin History (1)	China
Country of Origin Revision (1)	1
Country of Origin History (2)	China

Product Title (Long)	8 Port 10/100/1000 Gigabit Ethernet Backbone Switch
Bullet 1	8 Gigabit ports allow simultaneous data transmission thru a internal high-speed data channel
Bullet 2	Supports backpressure and IEEE 802.3x advanced flow control that reduces network congestion and prevents packet loss
Bullet 3	Trunking function allows several ports to be combined as a single connection and increases your bandwidth between the smart switch and a server or another switch
Bullet 4	Port Mirror configuration allows you to monitor port traffic on all 8 Gigabit ports
Bullet 5	QoS function allows Administrator to categorize which users/applications have greater priority than others
Marketing Copy
Applications	Industries that needs to increase productivity and cost savings through high network throughput Ideal for enterprise and data center environments Ideal for Data Warehousing, Financial Services, ISP, Scientific Modeling and Medical Imaging Industries Smart switch allows you to upgrade your existing network to Gigabit capability using existing cables Supports increased data throughput for mission critical applications such as CAD Systems, Video Streaming, Voice over IP (VoIP), and Multicast Video Conferencing

General Specifications

Weight: Lbs:5.3 (2.4 Kgs)
Dimensions:
Length: 17.3 Inches (440mm)
Width: 6.6 Inches (170 mm)
Height: 1.7 Inches (44 mm)
Gigabit Port: 8 x 1000/100/10 Mbps ports with RJ-45 connectors
Console Port: 1 x DB9
Trunking:
Gigabit Ports: 4 Trunking Groups
Network Cable Type:
10Base-T: UTP/STP category 3 or 5 cable
100Base-TX: UTP/STP category 5 cable
1000Base-TX: 4 pairs category 5 cable (Optional - Category 6)
Buffer Memory: 256 K
MAC Address: 8 K
LED Indicators:
System status: 1 x Power Indicator
Gigabit Ports: 8 x Activity status, 2 x Duplex mode & 2 x Speed status
Switching Architecture: Store and Forward
Connectors:
Gigabit Port: 8 x RJ-45
Duplex Mode: Supports both Half-Duplex and Full-Duplex
Power: 100 ~ 240V
Industry Standards: IEEE 802.3, IEE802.3u, IEEE802.3ab & IEEE 802.1p Certifications: FCC Class A & CE Mark C-Tick
