RUSB315CC2MBR
Rugged USB 3 1 Gen1 5Gbps 2m Black Right Angled 100W 5

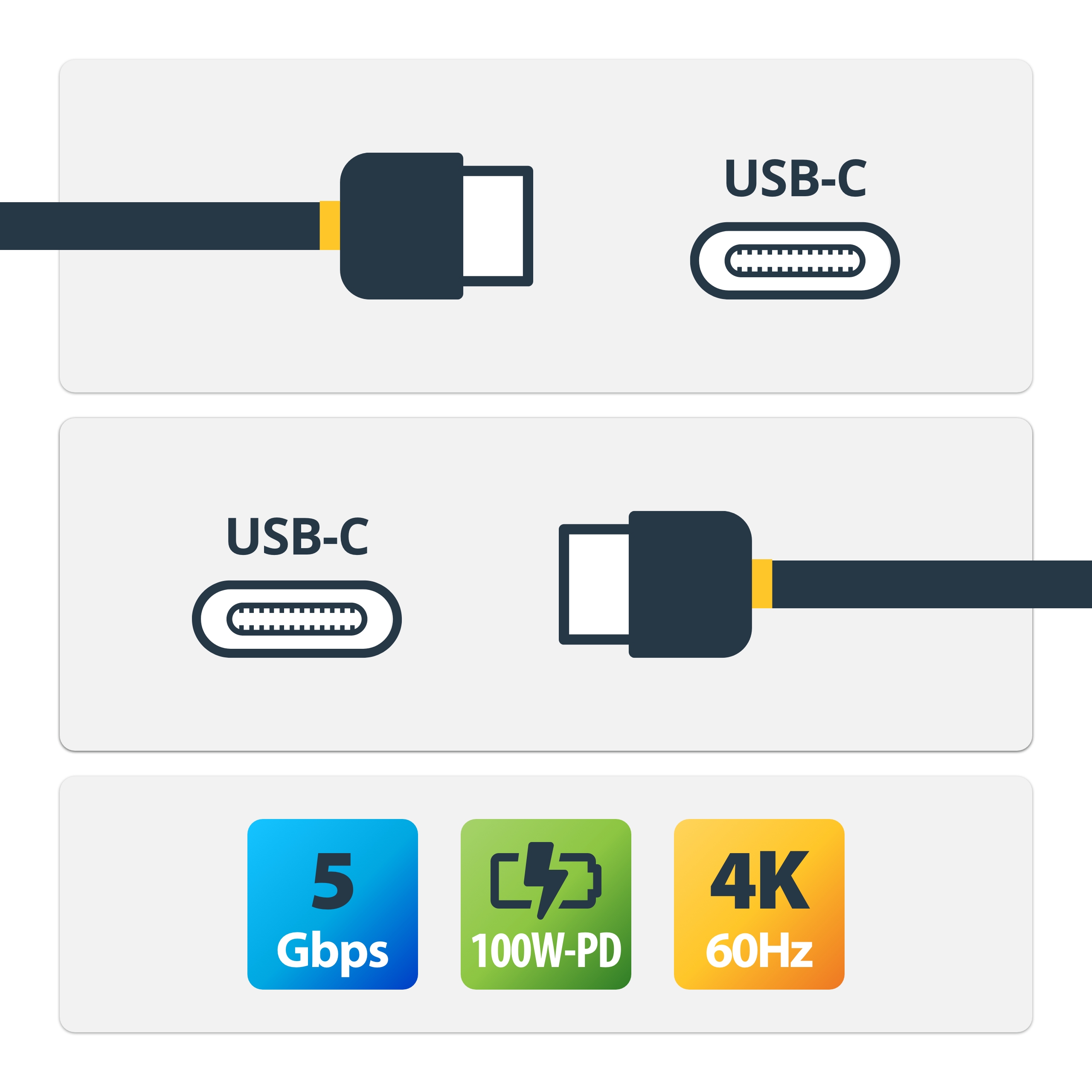

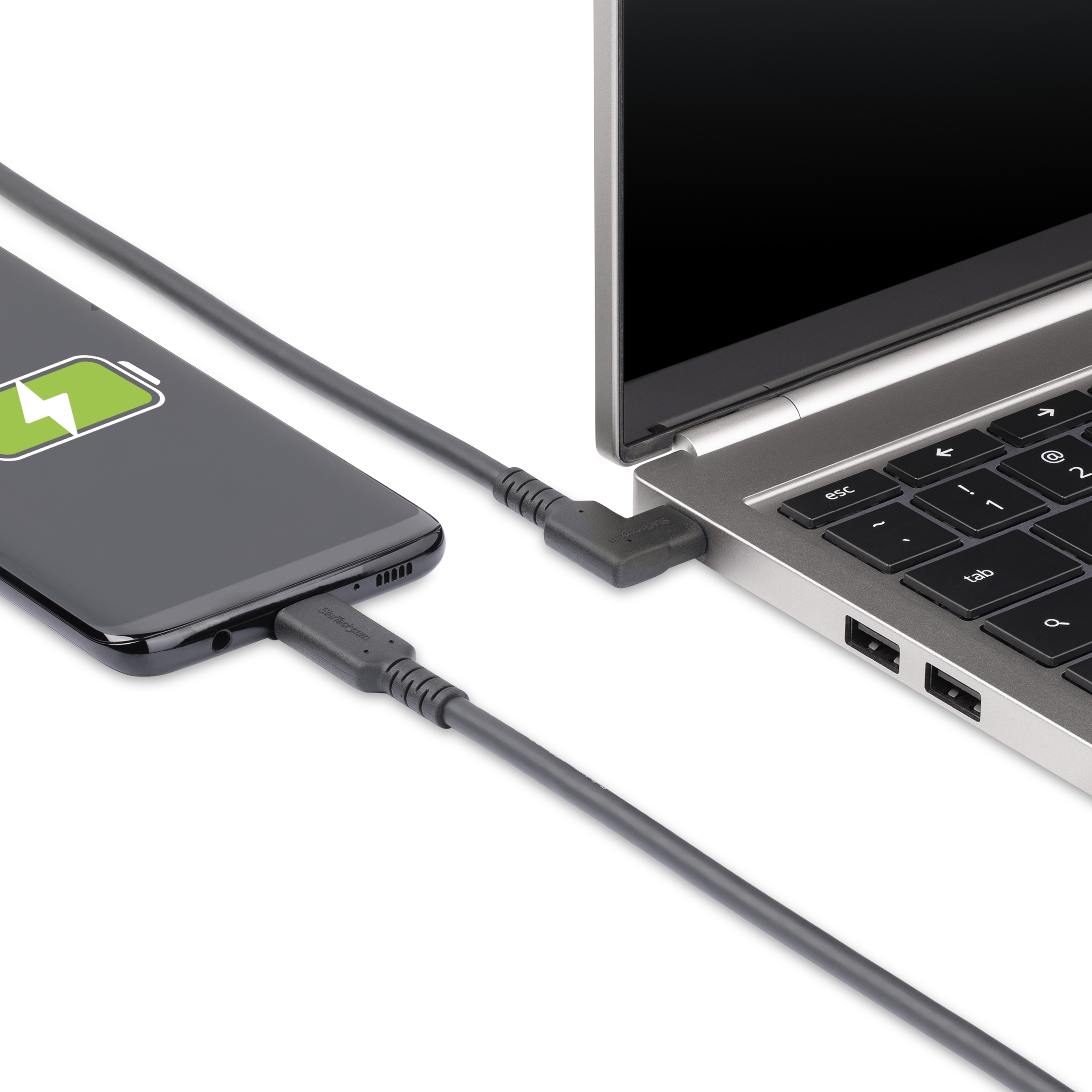

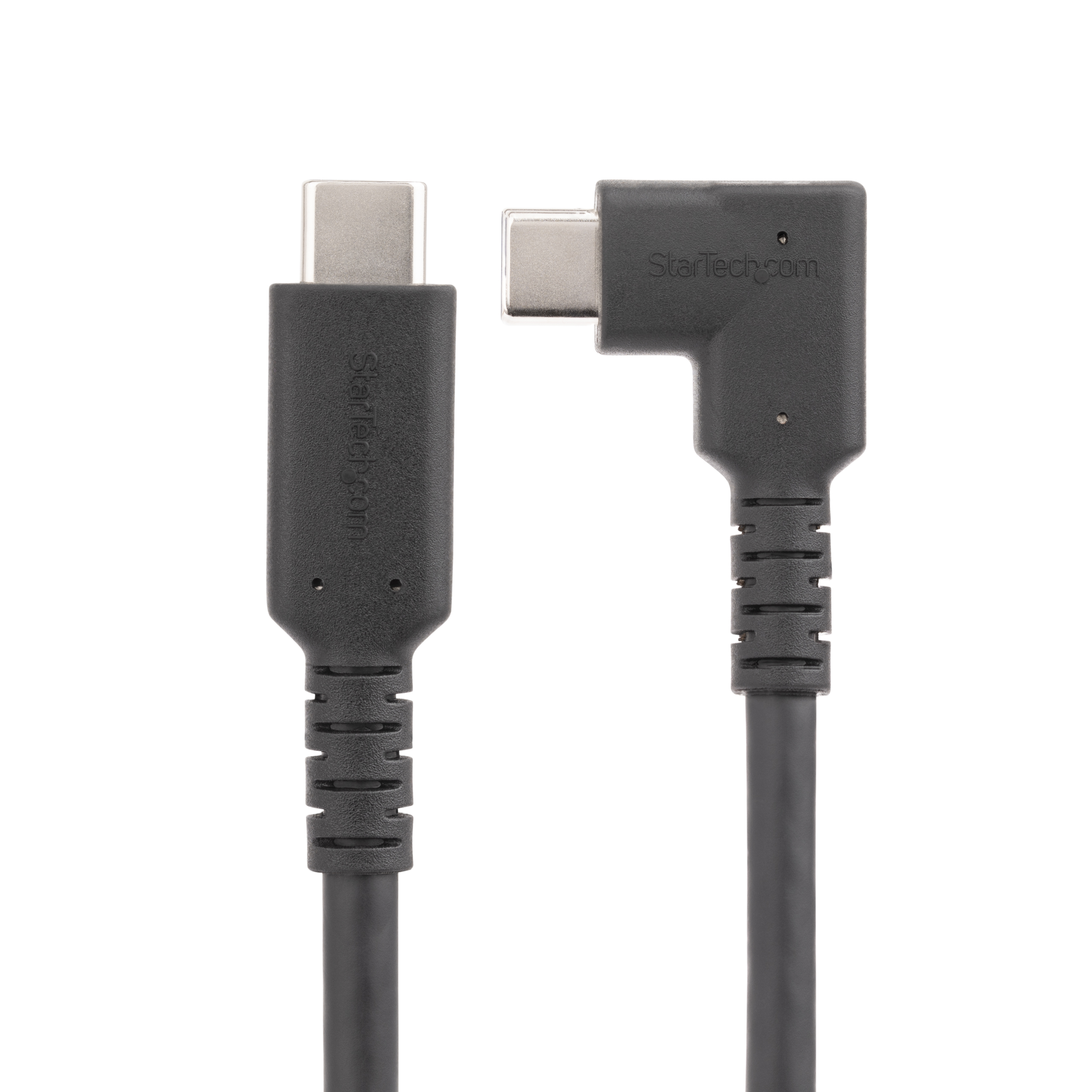

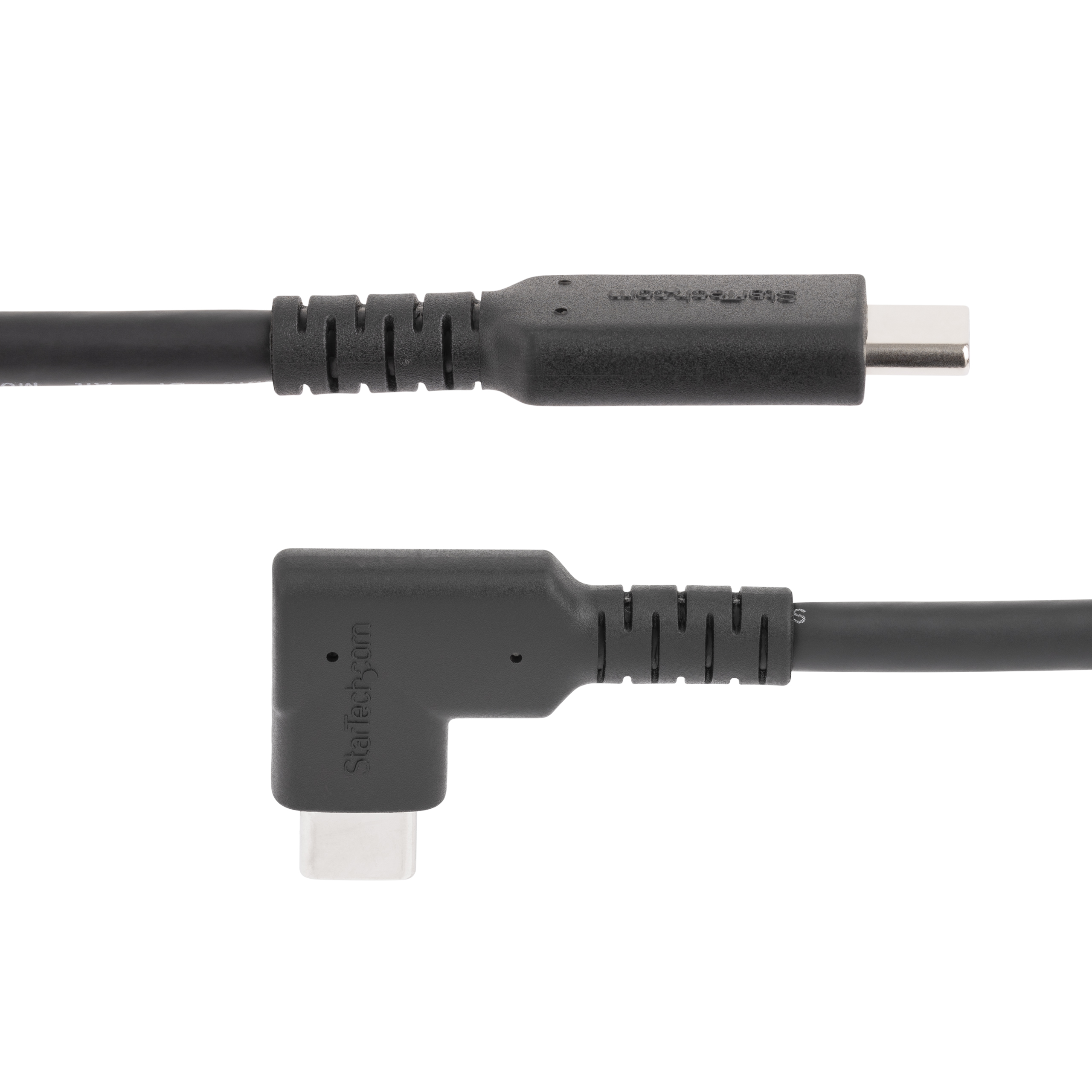

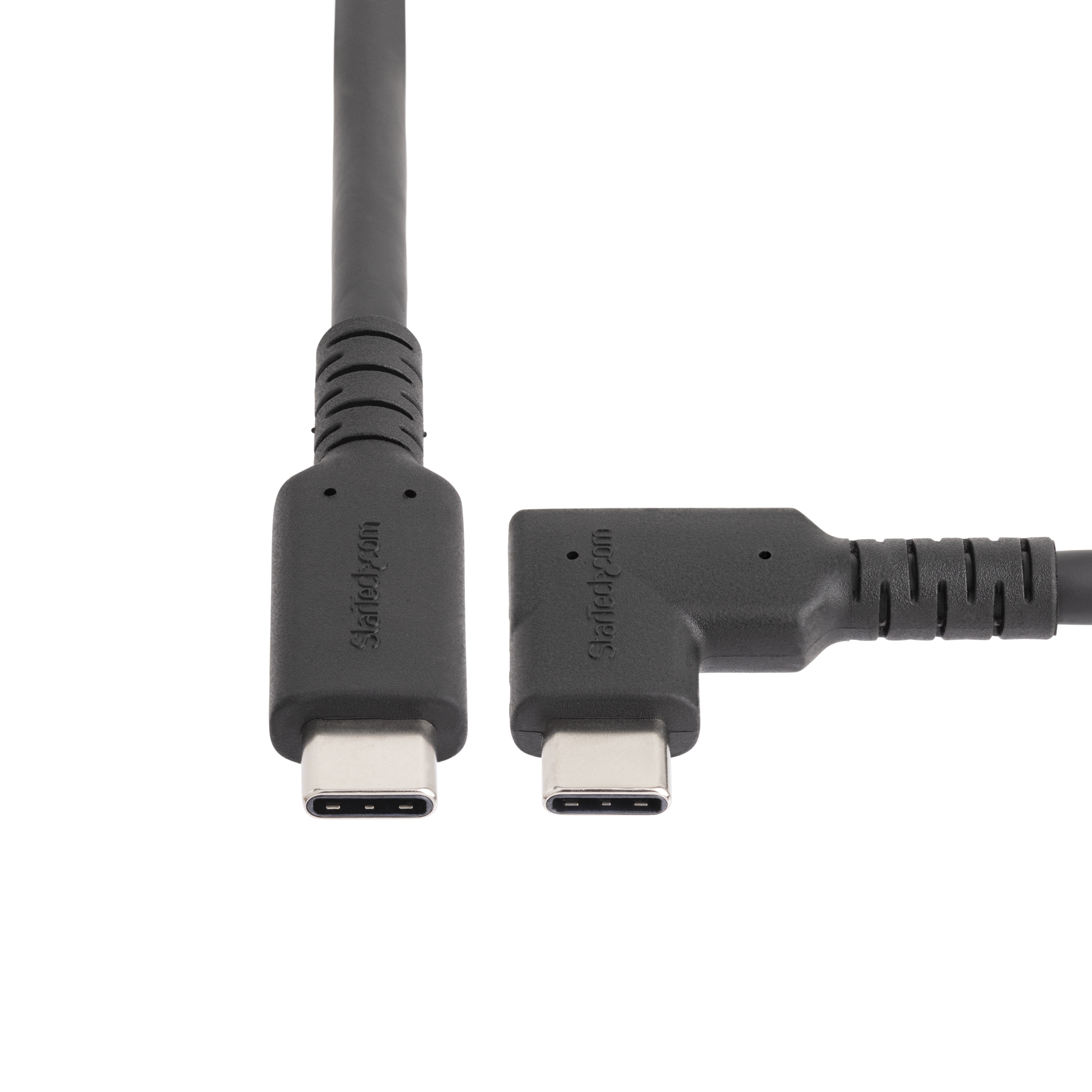

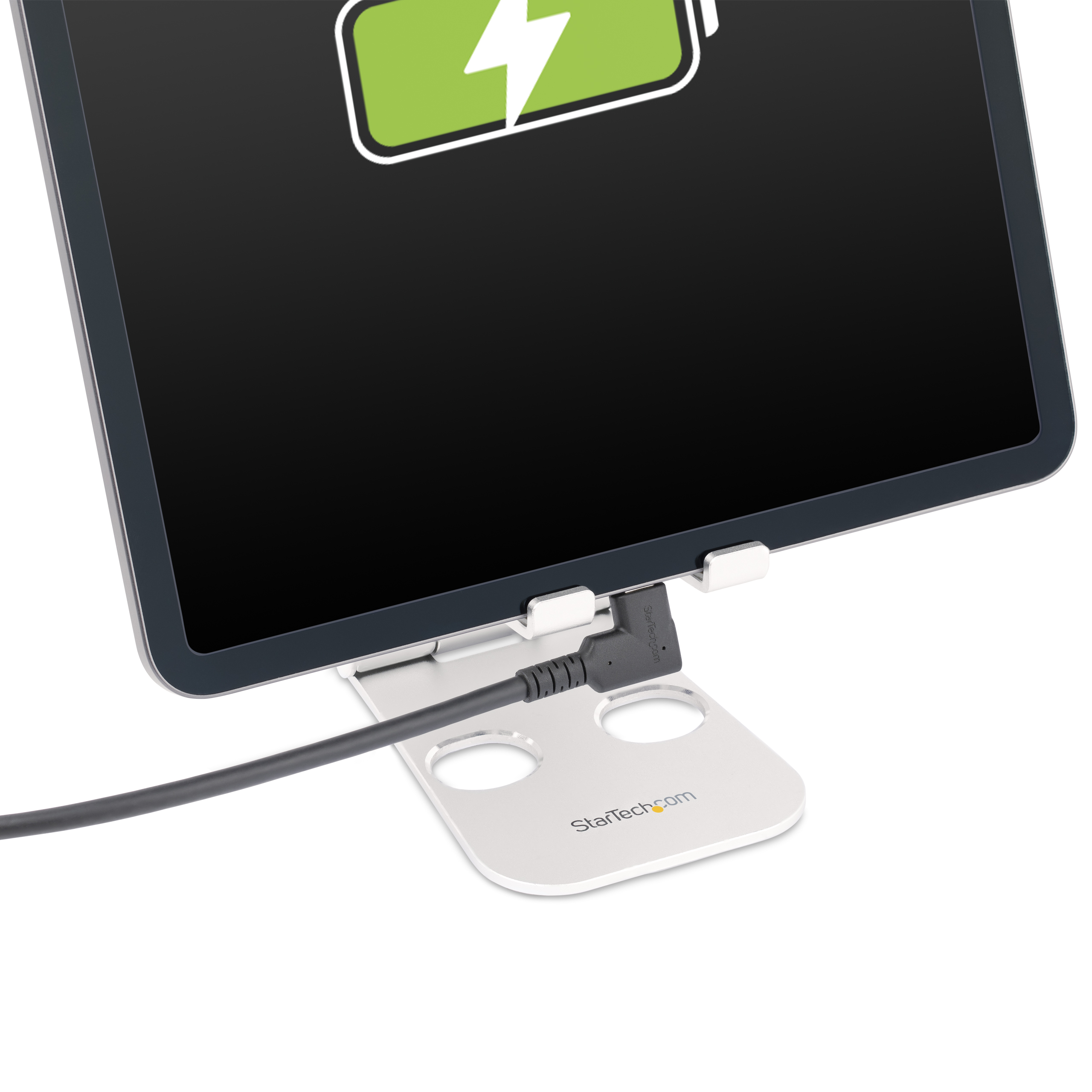

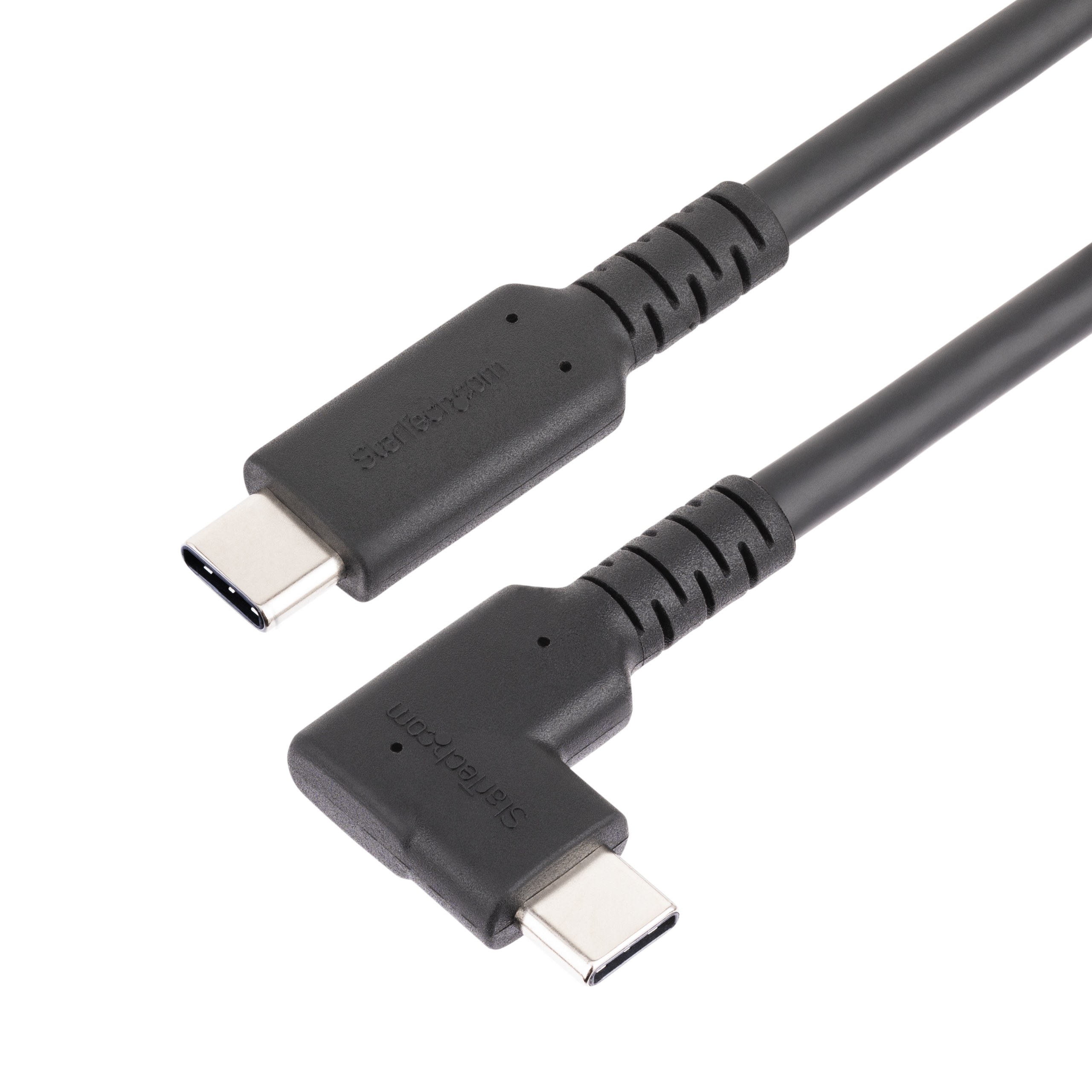

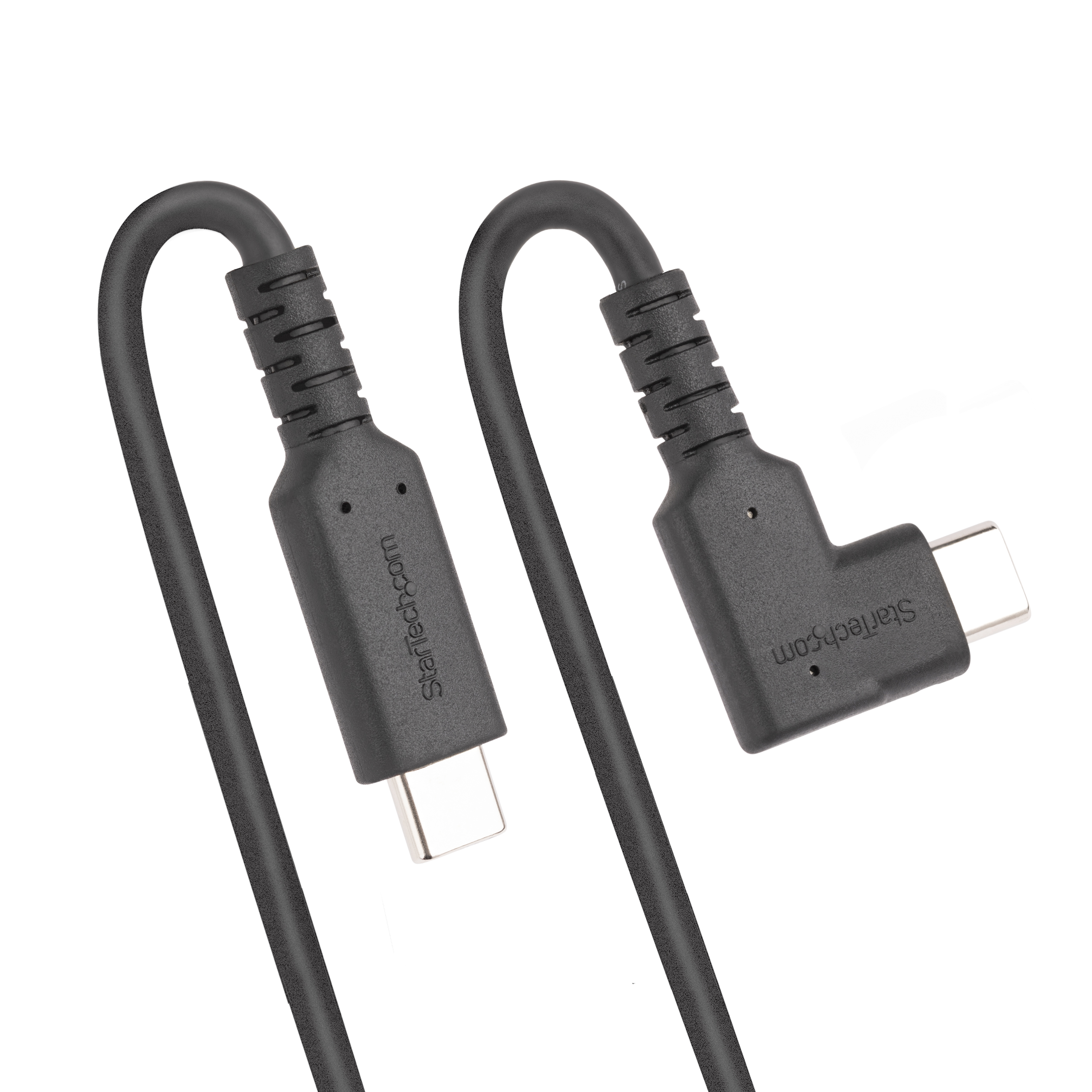

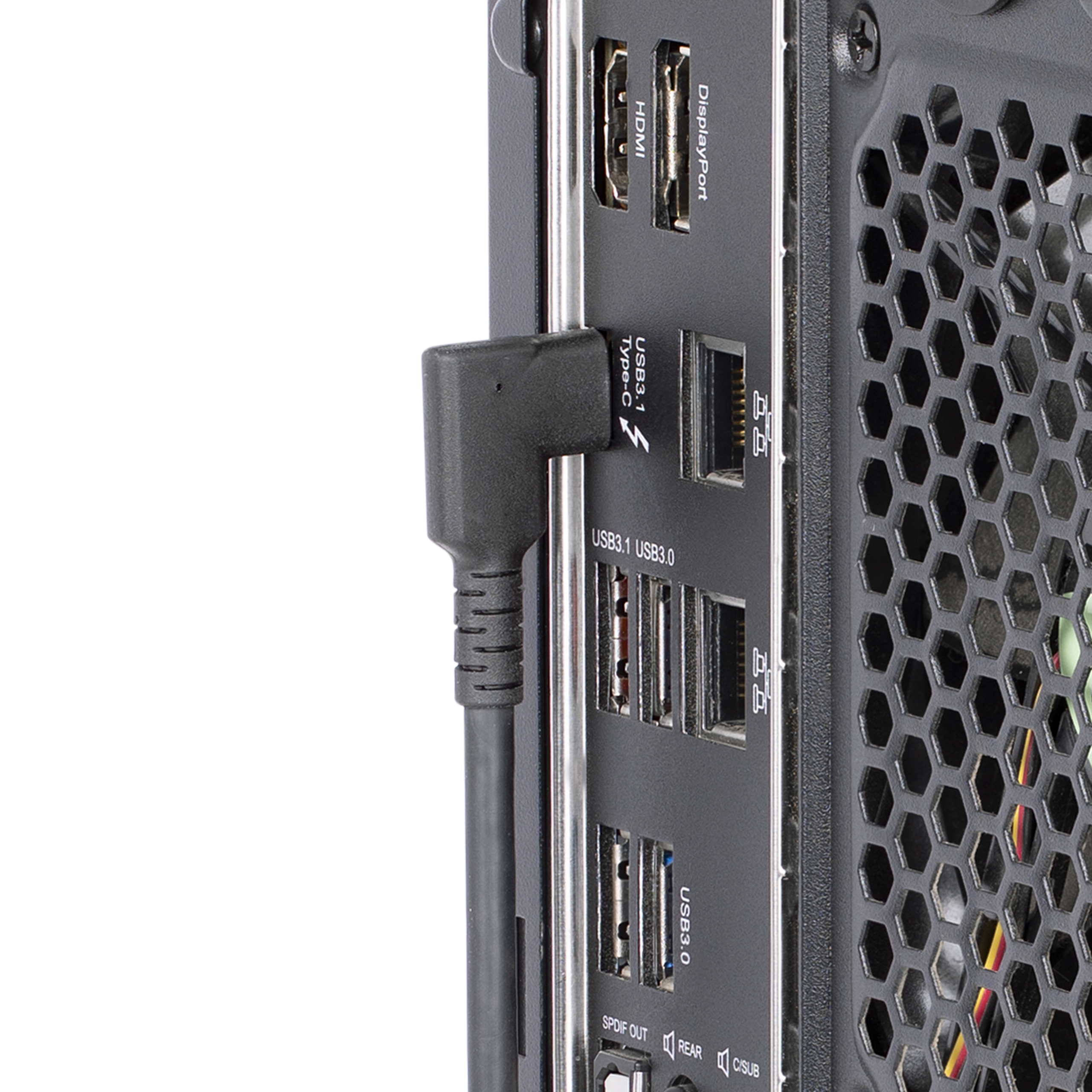

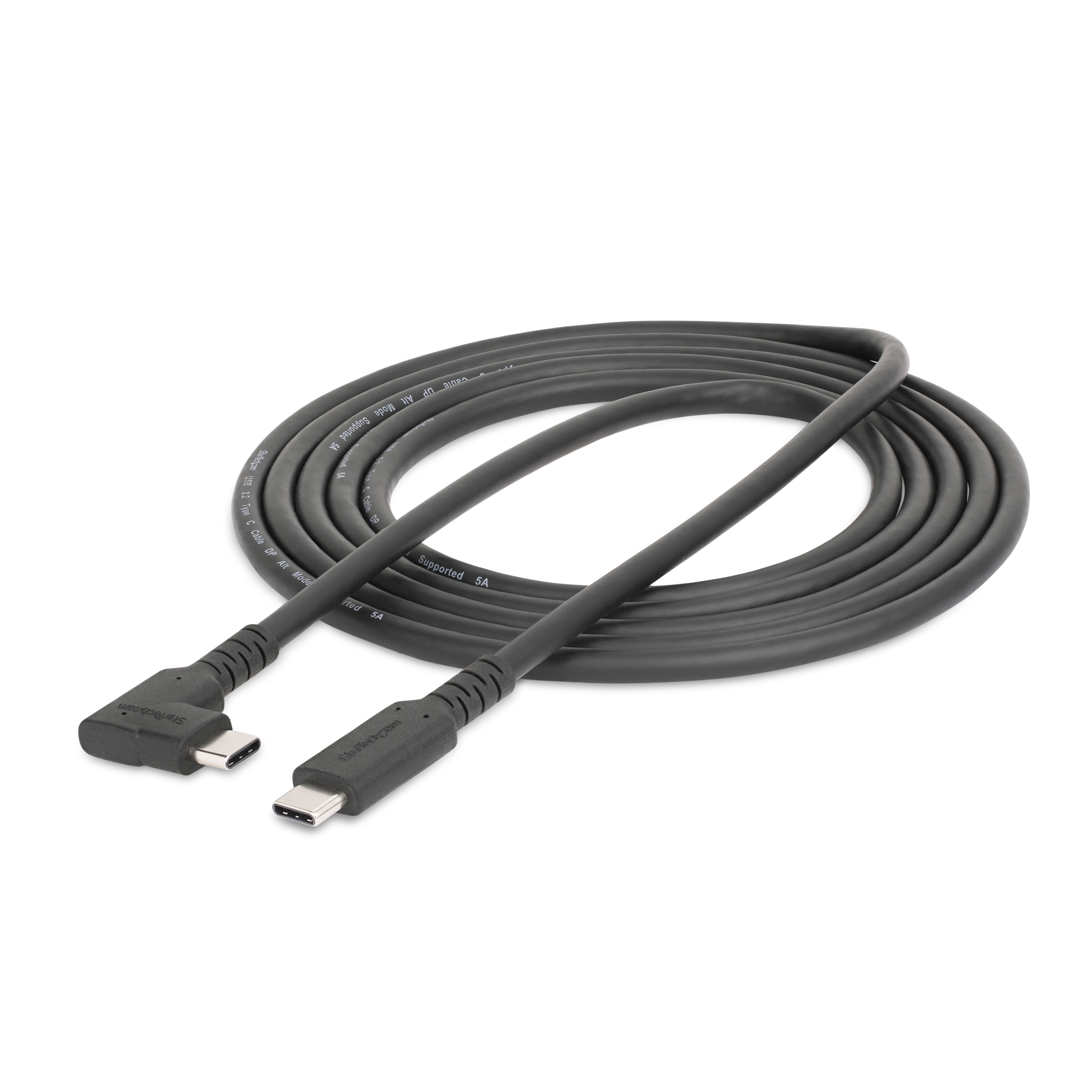

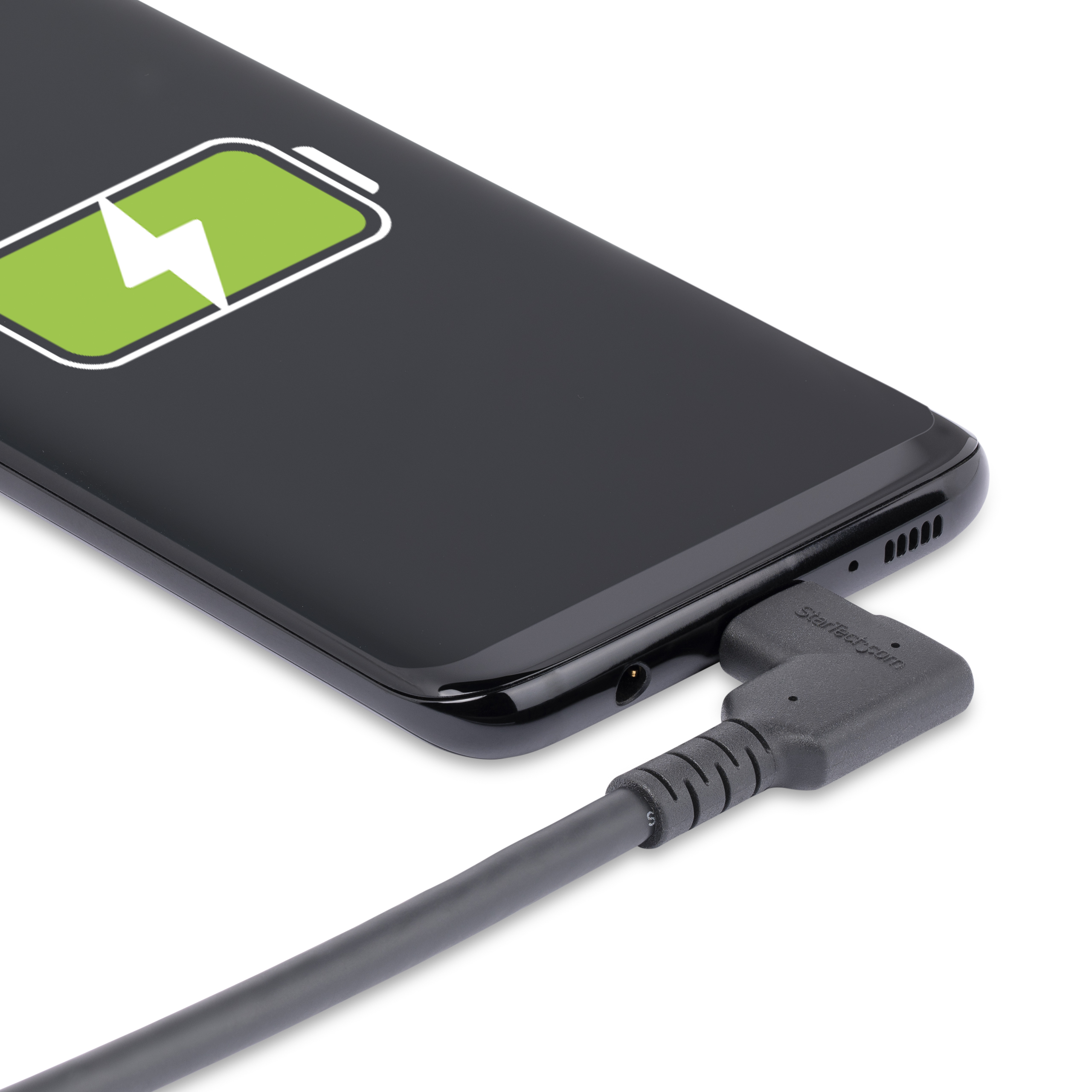

Connect and charge USB Type-C devices with a rugged right-angle USB-C Cable
Main Image
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Name Rugged USB 3 1 Gen1 5Gbps 2m Black Right Angled 100W 5 Product Number RUSB315CC2MBR UPC 065030889933 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cables > USB & Thunderbolt Cables Category Level 1 USB and Thunderbolt Cables Category Level 2 USB-C Cables Category Level 3 USB-C Cables - 5Gbps Rugged Family USB 5Gbps - Angle Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX171X Country of Origin History (2) Vietnam Country of Origin Revision (2) XXXXXX184X Product Title (Ultra-Short) Rugged USB-C Cable Product Title (Short) 6ft (2m) Rugged Right Angle USB-C Cable Product Title (Medium) 6ft (2m) Rugged Right Angle USB-C Cable, USB 5 Gbps, USB C Data Transfer Cable Product Title (Standard) 6.6ft (2m) USB-C Cable, Right-Angled, USB 5Gbps, 100W (5A) PD, 4K 60Hz DP Alt Mode, Rugged USB C Cord, Thunderbolt Compatible Product Title (Long) 6.6ft (2m) USB-C Cable, Right-Angled, USB 5Gbps, 100W (5A) Power Delivery, 4K 60Hz DP Alt Mode, Rugged USB C Cord - Thunderbolt Compatible Product Title (AMZ) 6.6ft (2m) USB-C Cable, Right-Angled, USB 5Gbps, 100W (5A) PD, 4K 60Hz DP Alt Mode, Thunderbolt Compatible Title Ingram (Part 1) Rugged Right Angle USB-C Cable Title Ingram (Part 2) USB C to C Cable - 90 Degrees Website Product Headline Connect and charge USB Type-C devices with a rugged right-angle USB-C Cable Bullet 1 RIGHT ANGLE USB CABLE: Rugged USB Type-C Cable features a right angle USB-C connector; Ideal for connecting in tight spaces; 90 degree connector optimizes cable routing without placing unnecessary strain on the connector and device Bullet 2 FULL-FEATURE USB-C: Right angle USB-C cable supports up to 5 Gbps transfer rates, 4K 60Hz DP Alt Mode, and 100W Power Delivery; Universal compatibility between USB-C laptops, docking stations, UHD monitors, and external devices Bullet 3 DURABLE CONSTRUCTION: The USB-C cable is reinforced with Aramid fiber to enhance flexibility and protection from frequent bending and wear; Robust strain reliefs with 8mm bend radius; Nickel-plated connectors rated beyond 10,000 insertion cycles Bullet 4 THOUGHTFUL DESIGN: Built-in E-Marker chip for consistent data, video, and Power Delivery output; Flexible TPE outer jacket is nontoxic, halogen-free, and RoHS compliant; Aluminum-mylar shield for enhanced EMI protection Bullet 5 PERFORMANCE: USB 3.2 Gen 1 (5 Gbps); 4K 60Hz DP Alt Mode 1.2; 100W Power Delivery; 6.6ft (2m); Black; 4.8mm O.D.; Dock and charge a USB-C laptop over a single connection; Optimize cable routing to a USB-C device Bullets (Compact) Rugged Right Angle USB-C Cable is ideal for connecting in tight spaces; Minimize strain from bending and deliver full USB-C features; 6ft (2m); Black; 4.8mm O.D.; USB 5 Gbps; 4K 60Hz DP Alt Mode; 100W PD; Durable TPE jacket w/ Aramid sheath Bullets (Consolidated) The Rugged USB-C Cable features a right-angle USB-C connector | Ideal for tight spaces allowing the cable to run flush with the device - Dock and charge a USB-C laptop over a single connection | Up to 5 Gbps 4K 60Hz DP Alt Mode and 100W Power Delivery - Durable TPE outer jacket with Aramid fiber sheath enhances flexibility and protects from wear | 90 degree right angle connector minimizes strain from bending - 6ft (2m) | Black | 4.8mm O.D. | USB 5 Gbps | 4K 60Hz DP Alt Mode | 100W PD Marketing Copy Marketing Copy (No HTML) Required Regulatory Compliance Marks - REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- 104
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- Prop 65 - Environmental - United States - Proposition 65 Warning Label
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - Low-Density Polyethylene
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
Power Delivery 100W Cable Length (mm) 2000 Cable OD 4.8 Color Black Connector Style Right Angle to Straight Humidity 0%~85% RH Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 2000.000 Product Width (mm) 25.000 Product Height (mm) 11.700 Product Weight (g) 81.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Maximum Cable Length (mm) 2000 Maximum Digital Resolutions 4K 60Hz USB Speed USB 3.2 Gen 1 (5Gbps) USB Type and Rate USB 5Gbps Video Support Yes Active or Passive Adapter Passive Cable Jacket Material TPE - Thermoplastic Elastomers Cable Shield Material Aluminum-Mylar Foil with Braid Connectors Combo USB-C to USB-C Host or Charger Connector USB-C Peripheral Connector USB-C Carton Depth (mm) 446 Carton Height (mm) 303 Carton Quantity 130 Carton Weight Gross (g) 12462 Included in Package 1 - 2m Right Angled USB-C Cable Included In Package for Label 1 - 2m Right Angled USB-C Cable Number of Sub-Cartons 13 Package Depth (mm) 123 Package Height (mm) 18 Package Width (mm) 166 Package Quantity 1 Package Weight (g) 84 Packaging Description 2m (6.6ft) Rugged Right Angled USB-C Cable M/M - USB 3.1 (5 Gbps) 100W PD Packaging Description India 2m Rugged Right Angled USB-C Cable M/M - USB 5 Gbps 100W PD Sub-Carton Depth (mm) 196 Sub-Carton Height (mm) 57 Sub-Carton Width (mm) 290 Sub-Carton Quantity 10 Sub-Carton Weight (g) 884 Connector 1 USB-C (5Gbps, 4.5W) Connector 1 (Quantity) 1 Connector 2 USB-C (5Gbps, 4.5W) Connector 2 (Quantity) 1 A+ Not Required Actual Inbox Documents Created None Amazon Merchandising Manager Veronica Ye Application Photos Uploaded Artwork Due Date 2023-05-01 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Comparable SKU Comment USB315CC2M Comparable SKU 2 Comment NA Digital Content Due Date 2023-08-22 Enhanced Gallery Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,NL,NZ,SE,SG,UK,US Primary Technology USB-C Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tim North Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Target Development Completion Date 2023-02-03 Target Production Release 2023-05-15 Tech Lead Justin Weaver Technology Lifecycle Mainstream Video Not Required
