Main Image
S2510BMU33CB

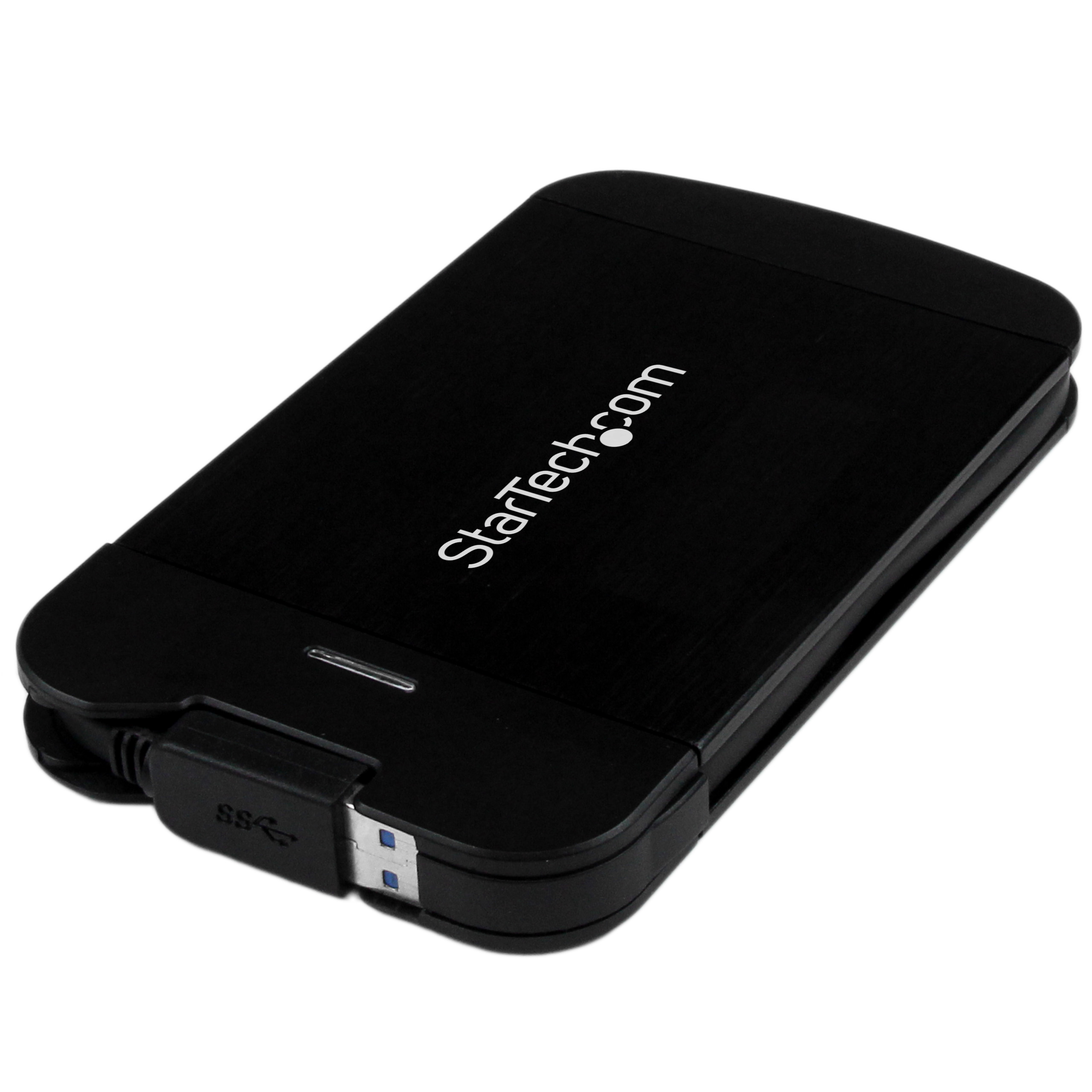

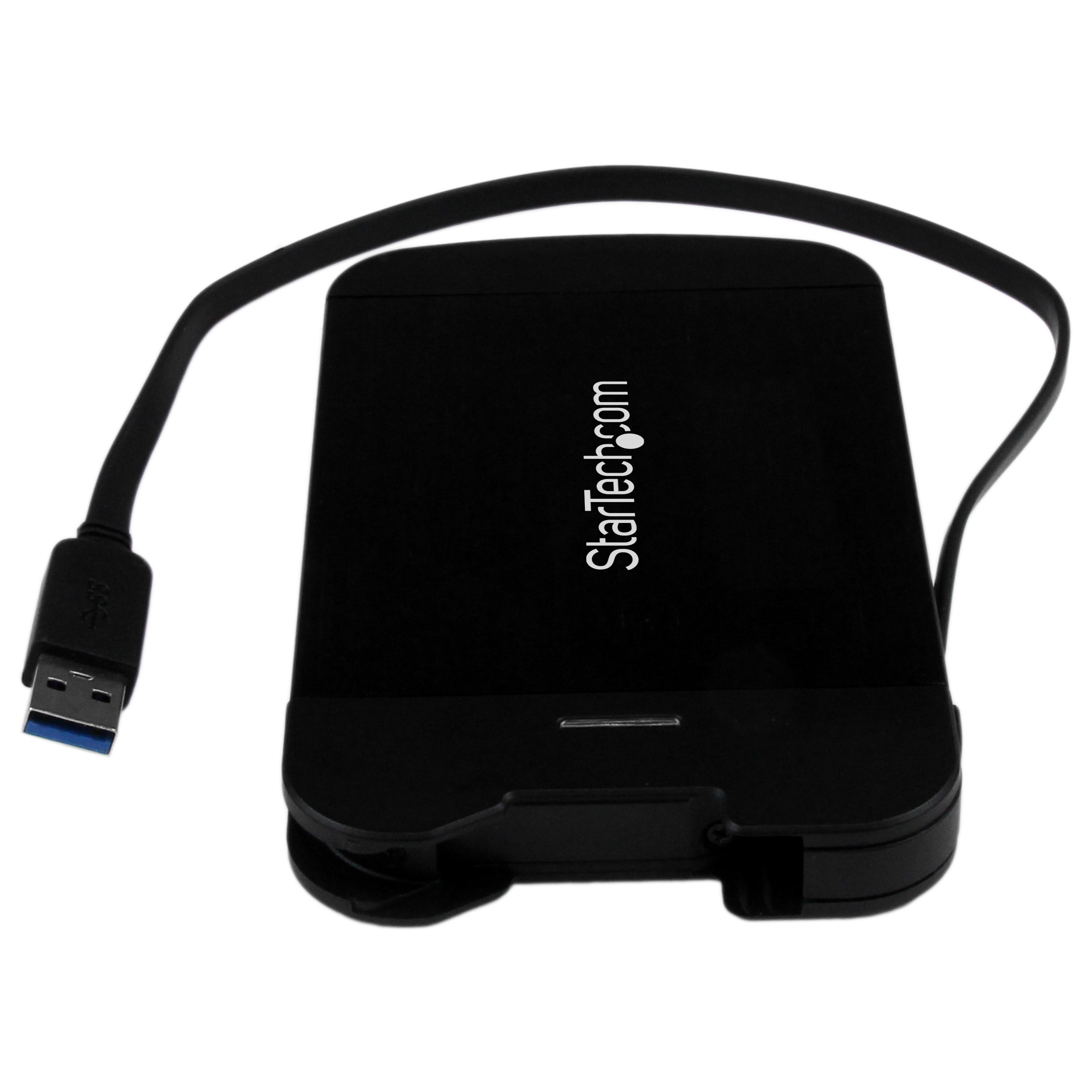

2.5" USB 3.0 SATA HDD Enclosure w/ Attached Cable
Turn a 2.5in SATA HDD/SSD into a complete external storage solution over USB 3.0 with UASP
Main Image
Product Images
BOM Image
Product Name 2.5" USB 3.0 SATA HDD Enclosure w/ Attached Cable Product Number S2510BMU33CB UPC 065030854689 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 External Drive Enclosures Category Level 3 SATA Enclosures - USB-A 5Gbps Country of Origin Europe & Japan China Country of Origin North America China Product Title (Ultra-Short) 2.5" HDD Enclosure Product Title (Short) 2.5” USB 3.0 SATA III UASP HDD Enclosure Product Title (Medium) 2.5” USB 3.0 Aluminum SATA III Hard Drive Enclosure w/ UASP and Built-in Cable Product Title (Standard) 2.5" Hard Drive Enclosure – Supports UASP – Integrated USB 3.0 Cable – SSD/HDD External Hard Drive Enclosure Product Title (Long) 2.5” USB 3.0 Aluminum SATA III Hard Drive Enclosure w/ UASP and Built-in Cable Product Title (AMZ) 2.5" Hard Drive Enclosure - Supports UASP - Integrated USB 3.0 Cable - SSD/HDD External Hard Drive Enclosure (S2510BMU33CB) Title Ingram (Part 1) 2.5in USB 3.0 SATA SSD/HDD Title Ingram (Part 2) Enclosure - Attached Cable UASP Website Product Headline Turn a 2.5in SATA HDD/SSD into a complete external storage solution over USB 3.0 with UASP Bullet 1 Built-in USB 3.0 cable Bullet 2 UASP Support (Attached SCSI Protocol Specification Revision 1.0) Bullet 3 USB-powered Bullet 4 Compatible with USB 3.0/2.0/1.1 (5Gbps/480Mbps/12Mbps) Bullet 5 Solid Aluminum Enclosure Bullets (Consolidated) Turn a 2.5in SATA HDD/SSD into a complete external storage solution over USB 3.0 w/ UASP and built-in cable - Compatible w/ USB 3.0 enabled computers such as Dell Optiplex and Apple Mac and MacBook and 2.5 and 3.5in SATA Hard Drives and Solid-state drives - UASP USB 3.0 Enclosure/2.5 UASP SATA Enclosure/2.5 UASP USB 3.0 SATA III enclosure/2.5" HDD Enclosure w/ Built-in Cable Requiring no Additional Cabling - Re purpose an existing 2.5" SATA HDD or SSD as an external USB 3.0 storage drive Marketing Copy Applications - Take advantage of USB 3.0-enabled laptops or desktops with UASP for faster transfer speeds
- Create a fast, portable external storage solution for desktops, laptops or netbooks
- Use as a portable hard drive that can travel with your laptop
- Add extra storage to almost any USB-enabled computer system
- Retrieve data from an old SATA drive or turn the unused drive into additional external storage space
- Backup important data to an external storage device
- Share large files between computers quickly and securely without a network
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Accessory Products - ECUSB3S11
- PEXUSB3S2
- PEXUSB3S22
- PEXUSB3S4
- PEXUSB3S400
- PEXUSB3S4V
- MPEXUSB3S22B
- ECUSB3S2
- PEXUSB3S11
- ECUSB3S22
- MPEXUSB3S2
- ECUSB3S254F
- UUSBOTGADAP
- USB3SEXT6BK
- USB3SEXT1M
- USB3AAEXT3M
- SDCOTG
- USB3SEXT5DSK
- UUSBOTG
- USB3SEXTAA6
- USB3SEXT1MBK
Related Products - S2510BPU33
- S2510BMU33
- SAT2510B12U3
- S2510BU3PWPS
- S3510WMU33T
- S3520BU33ER
- S3520WU33ER
- S2510BU3ISO
- S2510BU3PW
- S3510SMU33
- S3510BMU33
- S3510BMU33T
Replacement Product S251BU31C3CB Humidity 10%~90% RH Max Drive Height (mm) 9.5 Operating Temperature 5°C to 40°C (41°F to 104°F) Product Length (mm) 144 Product Width (mm) 83 Product Height (mm) 14 Product Weight (g) 100 Storage Temperature -10°C to 65°C (14°F to 149°F) TAA Compliant No Max Drive Capacity Currently tested with up to 1TB 7200 RPM hard drives OS Compatibility OS Independent SATA Type and Rate SATA III (6 Gbps) UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID ASMedia - ASM1053 - 6G Compatible Drive Types SATA Fans Included? Yes/No No Interface/Bridge USB 3.2 Gen 1 (5Gbps) Number of Drives 1 Supported Drive Height(s) - 7mm
- 9.5mm

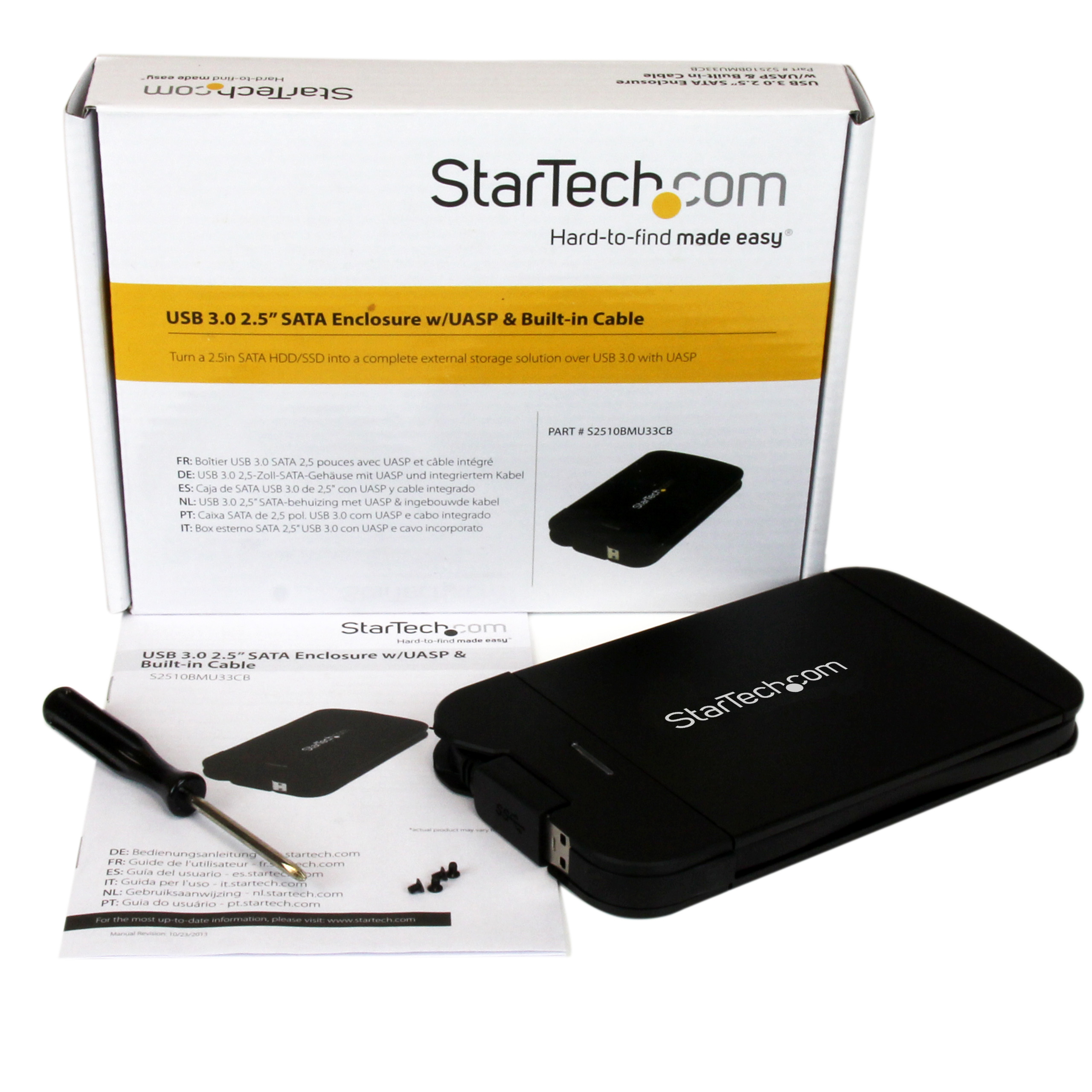

Carton Depth (mm) 312 Carton Height (mm) 199 Carton Quantity 20 Carton Weight Gross (g) 4220 Included in Package - 1 - USB to 2.5" SATA HDD Enclosure
- 1 - Instruction manual
Package Depth (mm) 183 Package Height (mm) 32 Package Width (mm) 143 Package Quantity 1 Package Weight (g) 193 Packaging Description USB 3.0 2.5” SATA Enclosure w/UASP & Built-in Cable Packaging Description India USB 3.0 2.5” SATA Enclosure w/UASP & Built-in Cable Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 USB-A (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-10-16 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,BE,CA,DE,DK,ES,EU,FR,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy
