S2510BPU33
2 5in USB 3 External SATA HDD Enclosure w UASP
Turn a 2.5” SATA Hard Drive or Solid State Drive into a UASP supported USB 3.0 External Hard Drive
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 2 5in USB 3 External SATA HDD Enclosure w UASP Product Number S2510BPU33 UPC 065030851619 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 External Drive Enclosures Category Level 3 SATA Enclosures - USB-A 5Gbps Family Toolless 2.5" SATA Enclosure Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX005X Product Title (Ultra-Short) USB 3 HDD Enclosure Product Title (Short) 2.5" USB 3 SATA SSD / HDD UASP Enclosure Product Title (Medium) x Product Title (Standard) 2.5in USB 3.0 External SATA III SSD Hard Drive Enclosure with UASP – Portable External HDD Product Title (Long) 2.5in USB 3.0 External SATA III SSD Hard Drive Enclosure with UASP – Portable External HDD Product Title (AMZ) 2.5in USB 3.0 External SATA III SSD Hard Drive Enclosure with UASP – Portable External USB HDD with Tool-less Installation (S2510BPU33) Title Ingram (Part 1) 2.5in USB 3 External SATA III Title Ingram (Part 2) SSD / HDD Enclosure with UASP Website Product Headline Turn a 2.5” SATA Hard Drive or Solid State Drive into a UASP supported USB 3.0 External Hard Drive Bullet 1 THE IT PRO'S CHOICE: Designed and built for IT professionals, this 2.5in external SATA enclosure is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance Bullet 2 HOST COMPATIBILITY: This 2.5in external SATA enclosure supports any operating system, no software or driver required; Supports USB 3.2 Gen 1 (5 Gbps) and backward compatible with USB 3.0 and USB 2.0 Bullet 3 DURABLE & PORTABLE: Durable black ABS housing protects your 2.5in SATA SSD/HDD and features a toolless design for convenient drive access and setup; USB bus-powered, no external adapter required; Includes HDD pad and 18in USB cable Bullet 4 EXTERNAL SATA ENCLOSURE: This 2.5in External Hard Drive Enclosure enables access to a 2.5in SATA SSD (solid-state drive) or HDD (hard drive) over a USB 3.2 Gen 1 (5 Gbps) connection; Ideal for file transfer, data recovery, or backup Bullet 5 DRIVE COMPATIBILITY: Compatible with 2.5in SATA SSDs (solid-state drives) and HDDs (hard drives) up to 9.5mm drive height; Supports SATA I/II/III with UASP; Power/Activity LED indicator Bullets (Consolidated) Turn a 2.5" SATA Hard Drive or Solid State Drive into a UASP supported USB 3.0 External Hard Drive - 2.5 HDD Enclosure - 2.5 SATA Hard Drive Enclosure - USB 3.0 Hard Drive Enclosure - USB 3 2.5 Enclosure - UASP Enclosure - 2.5in SATA III Enclosure - HDD Storage Enclosure - Portable External HDD Marketing Copy Marketing Copy (No HTML) The USB 3.0 Hard Drive Enclosure with UASP lets you connect a 2.5in SATA III hard drive (HDD) or solid state drive (SSD) through an available USB port. The enclosure delivers optimal performance with a USB 3.0 connection, but is backward compatible with USB 2.0/1.1 host connections as well. Enhanced with UASP (USB Attached SCSI Protocol), this 2.5" SATA III enclosure performs up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller. Using a more efficient protocol like UASP, it reduces latency, significantly increasing transfer speeds and reducing processor usage to utilize the full potential of your SATA III hard drives. With support for SATA I/II/III, and large capacity drives (tested up to 1TB) this HDD enclosure is compatible with virtually any 2.5in SATA hard drive, and greatly increases the storage/backup capabilities of your computer. For added portability the USB 3.0/SATA III enclosure features tool-less HDD installation, and requires no external power adapter. To ensure compatibility with your computer system, it supports all of the leading operating systems. Backed by a StarTech.com 2-year warranty and free lifetime technical support. UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance. At the same peak in testing UASP also shows an 80% reduction in required processor resources. Applications - Take advantage of new laptops and desktops with USB 3.0 connectivity
- Upgrade from a USB 2.0 drive enclosure to faster USB 3.0
- Create a fast, portable external storage solution for desktops, laptops or netbooks
- Add-on extra storage to almost any USB enabled computer system
- Back up important data to an external storage device
- Share large files between computers quickly and securely without a network
- Retrieve data from SATA drive, or turn the unused drive into additional external storage space
Website Search Keyword - Portable
- USB 3.0
- Super Speed
- SuperSpeed
- USB Rev 3.0
- 5 Gbps
- Notebook
- Laptop
- 2.5" HDD
- Hard Drive
- External Enclosure
- External Case
- UAS
- UASP Hard Drive Enclosure
- UASP
- 2.5" SSD
- U357-025-UASP
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
System and Cable Requirements Available USB port Accessory Products - ECUSB3S2
- PEXUSB3S2
- ECUSB3S254F
- ECUSB3S1
- PEXUSB3S11
- USB3SAUB1
- USB3SAUB3BK
- USB3SAUB3
Related Products - SAT2510BU32
- S2510BMU33
- UNI251BMU33
- S2510BPU337
- S251SMU33EP
- S2510BU33PW
- S251BRU33
- S251BMU313
- S251BPU313
- S251BMU3FP
- S251BPU31C3
- S251BU31315
- S251BRU31C3

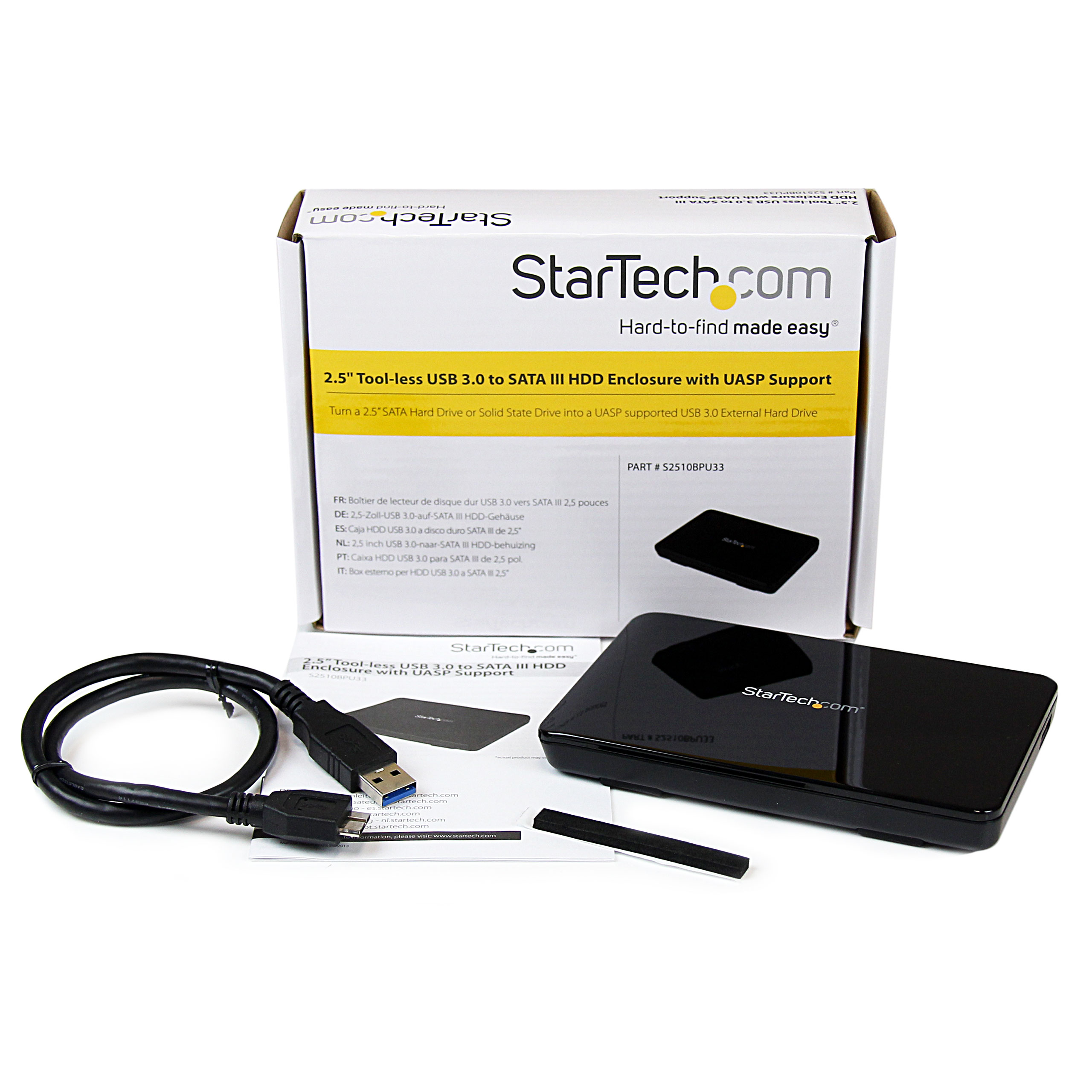

Input Voltage 5V DC Output Voltage (V) 5 DC Power Source USB-Powered Color Black Humidity Material Plastic Max Drive Height (mm) 9.5 Primary Material Plastic Product Length (mm) 131.9 Product Width (mm) 87.98 Product Height (mm) 15 Product Weight (g) 72 TAA Compliant No Max Drive Capacity Currently tested with up to 1TB 5400 RPM hard drives OS Compatibility OS Independent RAID No SATA Type and Rate SATA III (6 Gbps) UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Chipset ID ASMedia - ASM1053 Compatible Drive Types SATA Fans Included? Yes/No No Interface/Bridge USB 3.2 Gen 1 (5Gbps) LED Indicators 1 - Power & Activity Number of Drives 1 Carton Depth (mm) 285 Carton Height (mm) 388 Carton Quantity 40 Carton Weight Gross (g) 8500 Included in Package - 1 - 2.5" USB 3.0 to SATA III HDD Enclosure
- 1 - HDD Pad
- 1 - 18" USB 3.0 Cable
- 1 - Product Manual
Package Depth (mm) 133 Package Height (mm) 42 Package Width (mm) 181 Package Quantity 1 Package Weight (g) 198 Packaging Description 2.5" USB 3.0 to SATA III HDD Enclosure Packaging Description India 2.5" USB 3.0 to SATA III HDD Enclosure Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 USB Micro-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-05-06 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle None
