S2510BPU337
USB 3 0 2 5 SATA Hard Drive Enclosure w UASP
Turn a 7mm high 2.5in SATA III SSD/HDD into a UASP-supported USB 3.0 External Drive
Main Image
Product Images
Product Images
BOM Image
Product Name USB 3 0 2 5 SATA Hard Drive Enclosure w UASP Product Number S2510BPU337 UPC 065030855631 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 External Drive Enclosures Category Level 3 SATA Enclosures - USB-A 5Gbps Family Toolless 2.5" SATA Enclosure Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX005X Product Title (Ultra-Short) USB 3.0 HDD/SSD Product Title (Short) USB 3.0 SATA HDD/SSD Enclosure w/ UASP Product Title (Medium) 2.5" USB 3.0 SATA Hard Drive Enclosure w/ UASP for Slim 7mm SSD / HDD Product Title (Standard) 2.5in USB 3.0 SATA Hard Drive Enclosure w/ UASP for Slim 7mm SATA III SSD/HDD Product Title (Long) Drive Enclosure for 2.5in SATA SSDs / HDDs - USB 3.0 - 7mm Product Title (AMZ) 2.5in USB 3.0 SATA Hard Drive Enclosure w/ UASP for Slim 7mm SATA III SSD / HDD - 7mm 2.5" Drive Enclosure - SATA 6 Gbps (S2510BPU337) Title Ingram (Part 1) USB 3.0 to 2.5" SATA HDD Title Ingram (Part 2) Enclosure w/UASP for 7mm HDD/SSD Website Product Headline Turn a 7mm high 2.5in SATA III SSD/HDD into a UASP-supported USB 3.0 External Drive Bullet 1 DURABLE & PORTABLE: Durable black ABS housing protects your 2.5in SATA SSD/HDD and features a toolless design for convenient drive access and setup; USB bus-powered, no external adapter required; Includes HDD pad and 18in USB cable Bullet 2 DRIVE COMPATIBILITY: Compatible with 2.5in SATA SSDs (solid-state drives) and HDDs (hard drives) up to 7mm drive height; Supports SATA I/II/III with UASP; Power/Activity LED indicator Bullet 3 HOST COMPATIBILITY: This 2.5in external SATA enclosure supports any operating system, no software or driver required; Supports USB 3.2 Gen 1 (5 Gbps) and backward compatible with USB 3.0 and USB 2.0 Bullet 4 THE IT PRO'S CHOICE: Designed and built for IT professionals, this 2.5in external SATA enclosure is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance Bullet 5 EXTERNAL SATA ENCLOSURE: This 2.5in External Hard Drive Enclosure enables access to a 2.5in SATA SSD (solid-state drive) or HDD (hard drive) over a USB 3.2 Gen 1 (5 Gbps) connection; Ideal for file transfer, data recovery, or backup Bullets (Consolidated) Turn a 7mm high 2.5" SATA SSD/HDD into an external data storage solution - USB 3.0 7mm SATA solid state drive or hard drive enclosure - Slim pocket-sized drive enclosure is designed for 7mm drives providing a small portable USB 3.0 enclosure - USB 3.0 HDD and SSD drive enclosure with UASP for enhanced performance - Supports SATA I/II/III (up to 6 Gbps) - Supports drive capacity of up to 2TB - Tool-less installation - Powered directly from the USB port - Plug-and-Play and Hot-Swap compatible Marketing Copy Applications - Take advantage of new laptops and desktops with USB 3.0 connectivity
- Create a fast, portable external storage solution for desktops, laptops or netbooks
- Upgrade from a USB 2.0 drive enclosure to faster USB 3.0
- Add extra storage to almost any USB-enabled computer system
- Back up important data to an external storage device
- Share large files between computers quickly and securely without a network
- Turn an unused drive into additional external storage space
Website Search Keyword - 7mm Height
- 7mm drive
- 2.5" SATA
- 2.5in drive
- 2.5in
- 2.5 SATA
- harddrive case
- UASP enclosure
- USB SATA enclosure
- SATA III
- SATA 6Gbps
- 2.5 solid state
- 2.5
- 7mm sata
- external hard drive
- UASP drive
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Accessory Products - ECUSB3S2
- PEXUSB3S2
- ECUSB3S254F
- ECUSB3S1
- PEXUSB3S11
- USB3SAUB1
- USB3SAUB3BK
- USB3SAUB3
- USB3AUB50CMB
- USB3CAUB1M
Related Products - S251BMU3FP
- S251BRU31C3
- S251BU31315
- S251BPU31C3
- S251BPU313
- S251BMU313
- S251BRU33
- S2510BU33PW
- S251SMU33EP
- UNI251BMU33
- S2510BPU33
- S2510BMU33
- SAT2510BU32

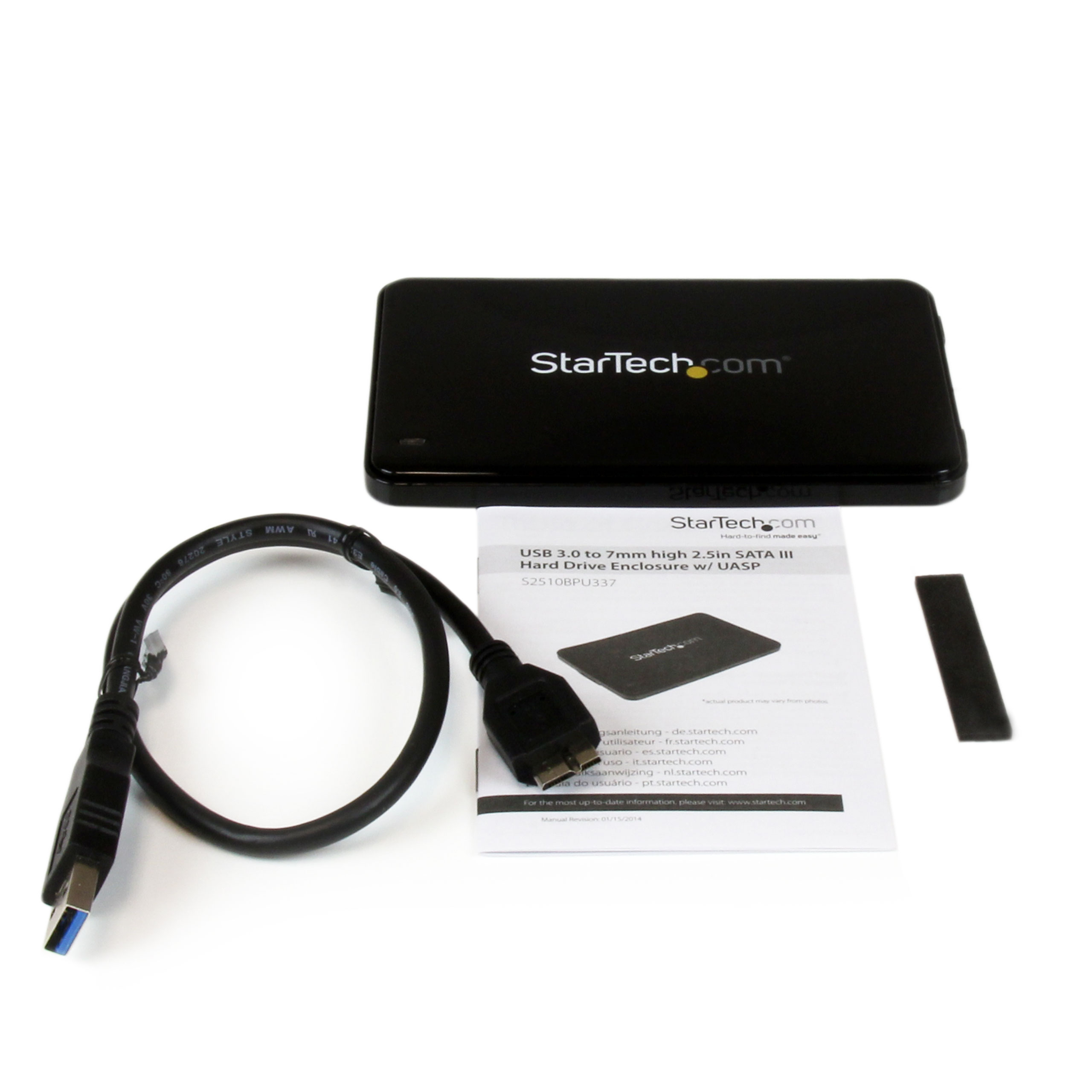

Input Voltage 5V DC Output Voltage (V) 5 DC Power Source USB-Powered Color Black Humidity 10%RH ~ 95%RH Material Plastic Max Drive Height (mm) 7 Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Plastic Product Length (mm) 126.000 Product Width (mm) 80.000 Product Height (mm) 9.500 Product Weight (g) 44.000 Storage Temperature -10°C to 65°C (14°F to 149°F) TAA Compliant No Max Drive Capacity Currently tested with up to 2TB 5400 RPM hard drives OS Compatibility OS Independent RAID No SATA Type and Rate SATA III (6 Gbps) UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Chipset ID ASMedia - ASM1053 - 6G Compatible Drive Types SATA Fans Included? Yes/No No LED Indicators 1 - Power & Activity Number of Drives 1 Carton Depth (mm) 312 Carton Height (mm) 216 Carton Quantity 60 Carton Weight Gross (g) 8684 Included in Package - 1 - USB 3.0 to 2.5" SSD/HDD Enclosure
- 1 - Install Guide
- 1 - USB 3.0 Cable
- 1 - Installation pad for 5mm drives
Package Depth (mm) 94 Package Height (mm) 42 Package Width (mm) 142 Package Quantity 1 Package Weight (g) 132 Packaging Description USB 3.0 to 7mm high 2.5in SATA III HDD Enclosure w/UASP Packaging Description India USB 3.0 to 7mm high 2.5in SATA III HDD Enclosure w/UASP Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 USB Micro-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-01-27 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle None
