S2510BU3PW

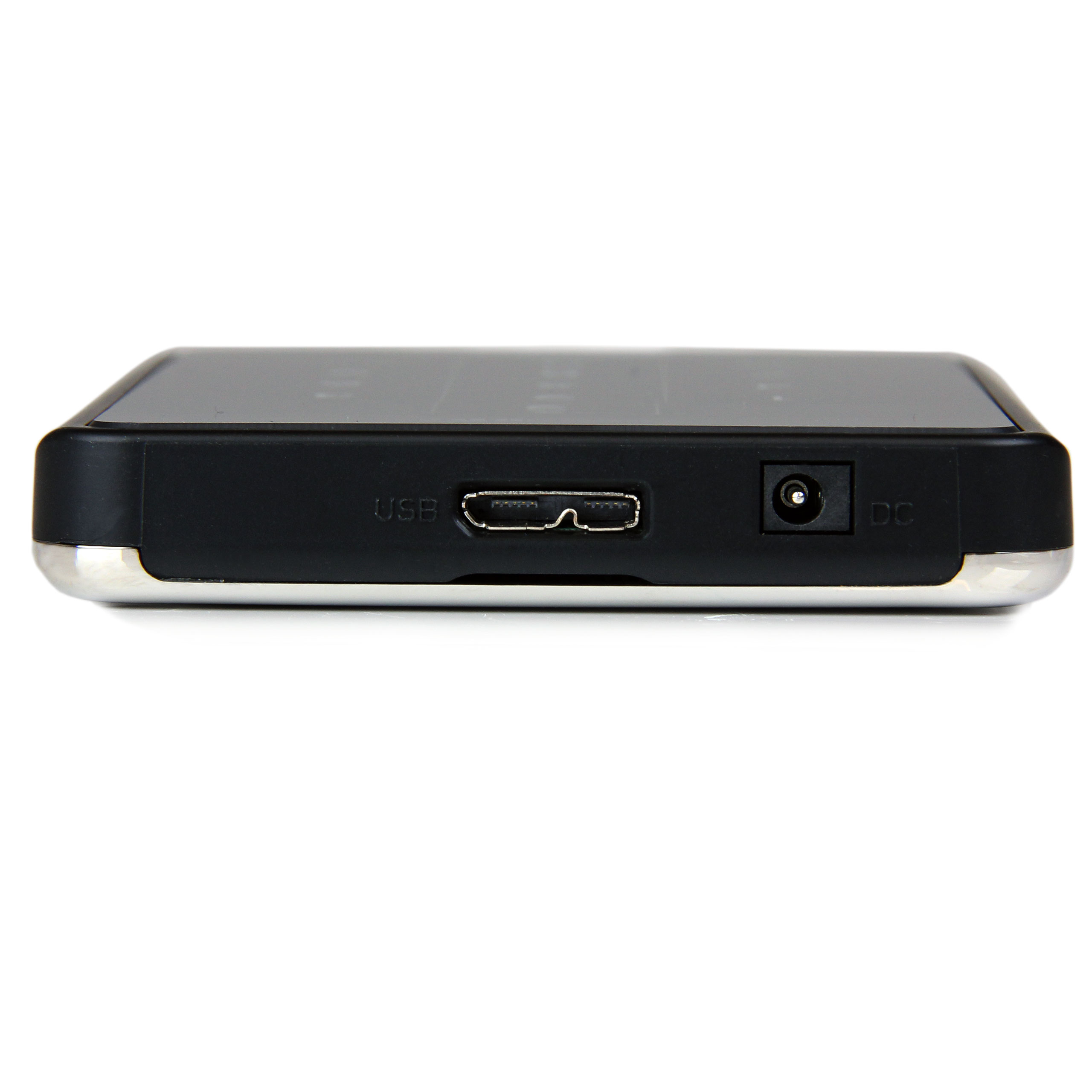

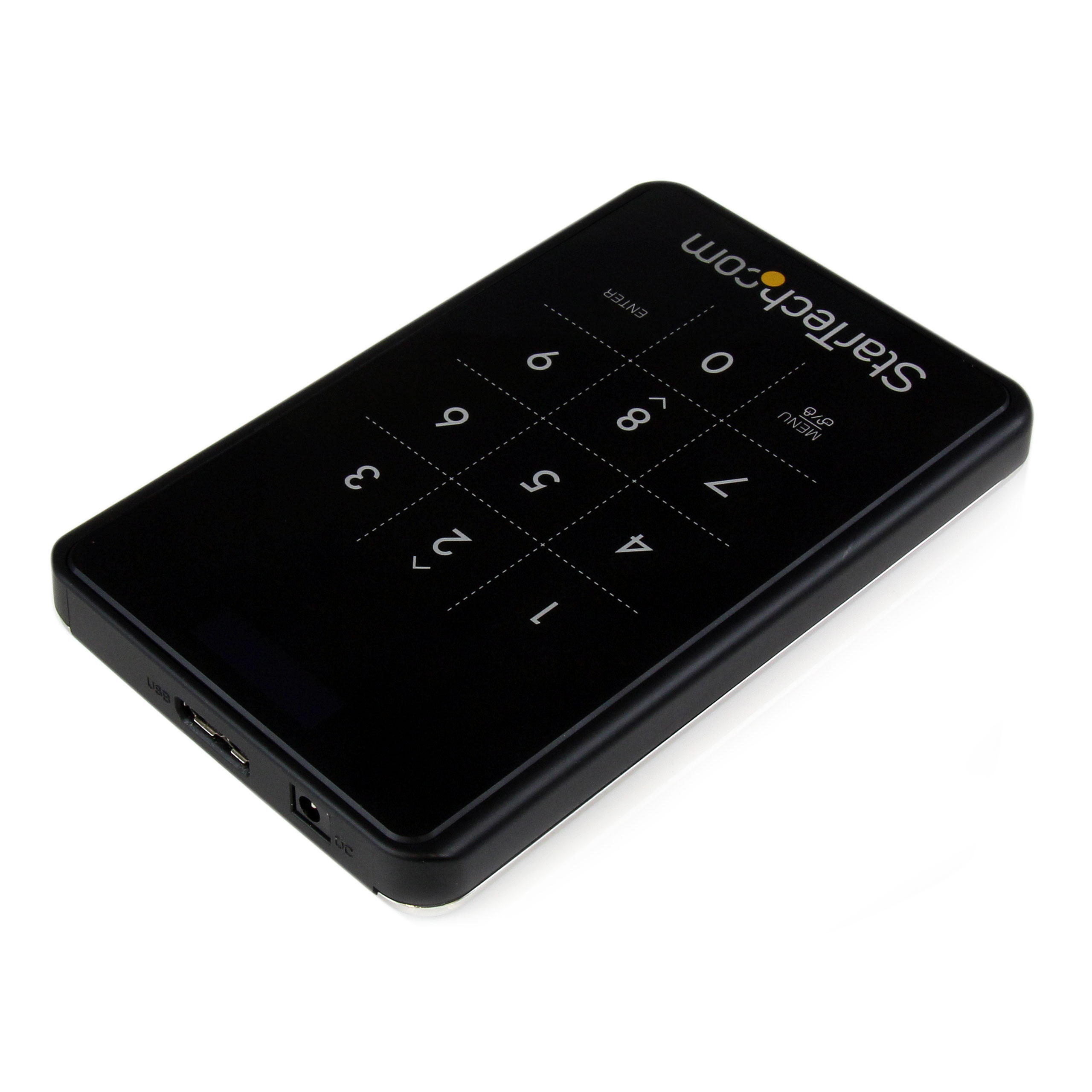

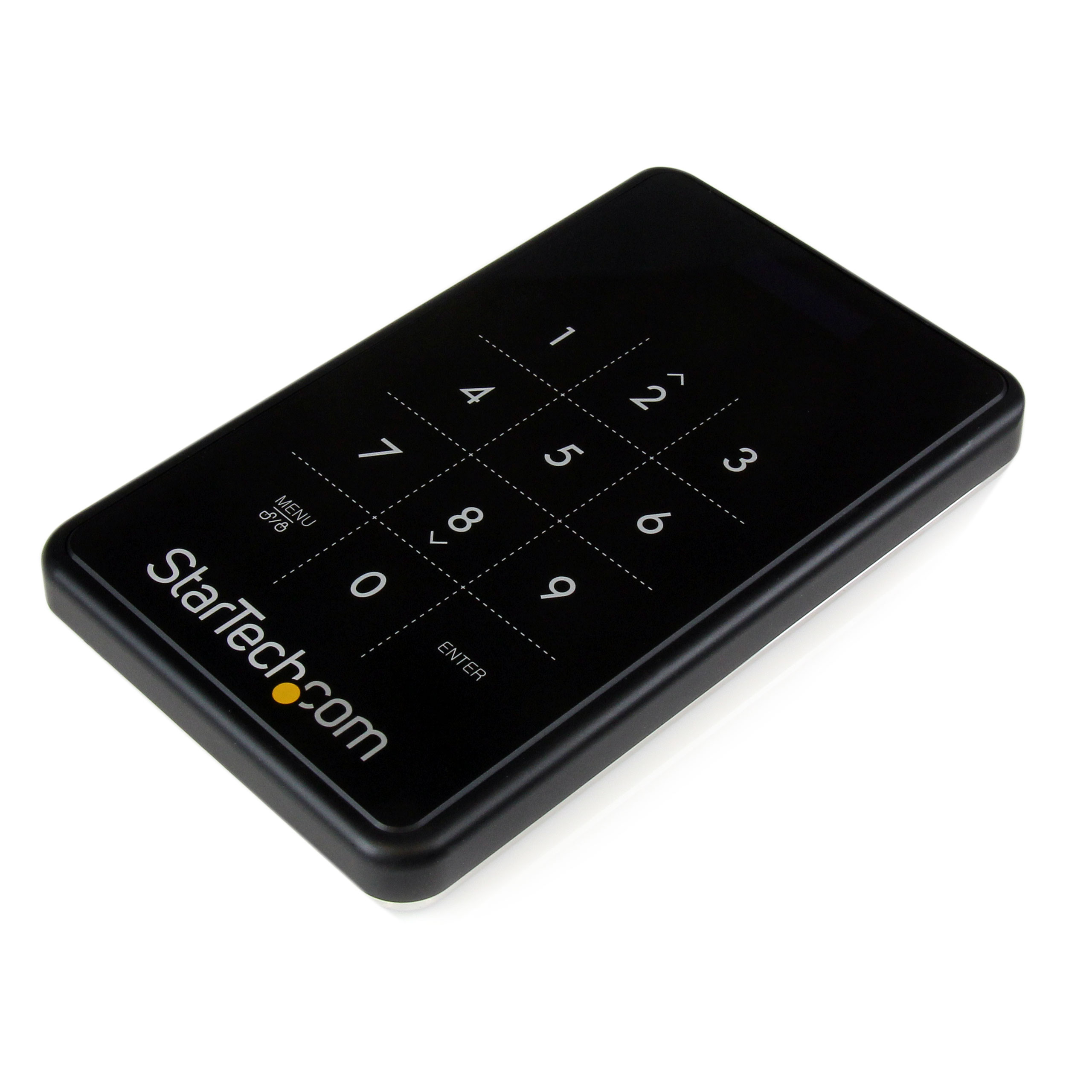

Portable USB 3 Encrypted Hard Drive HDD Enclosure
Turn a 2.5” SATA Hard Drive or Solid State Drive into an encrypted external hard drive, with touchpad password security
Main Image
Product Images
Product Images
BOM Image
Product Name Portable USB 3 Encrypted Hard Drive HDD Enclosure Product Number S2510BU3PW UPC 065030847797 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 External Drive Enclosures Category Level 3 SATA Enclosures - USB-A 5Gbps Country of Origin Europe & Japan South Korea Country of Origin North America South Korea Country of Origin History (1) South Korea Country of Origin Revision (1) XXXXXX070X Product Title (Short) 2.5in USB 3.0 Encrypted HDD Enclosure Product Title (Standard) 2.5in Encrypted Hard Drive Enclosure - Portable External HDD Enclosure SATA to USB 3.0 Product Title (Long) 2.5in Encrypted Hard Drive Enclosure - Portable External HDD Enclosure SATA to USB 3.0 Product Title (AMZ) 2.5in Encrypted Hard Drive Enclosure - Portable External HDD Enclosure SATA to USB 3.0 (S2510BU3PW) Title Ingram (Part 1) Encrypted External Hard Drive US Title Ingram (Part 2) B 3 SATA Portable HDD Enclosure Website Product Headline Turn a 2.5” SATA Hard Drive or Solid State Drive into an encrypted external hard drive, with touchpad password security Bullet 1 Real time 256-bit AES hardware encryption Bullet 2 Hard drive temperature reporting on most HDD/ SSD Bullet 3 Fits 2.5" form factor SATA drives up to 9.5mm in height Bullet 4 Built-in touchpad Bullet 5 High speed 32-bit ARM-based controller Bullets (Consolidated) Turn a 2.5" SATA Hard Drive or Solid State Drive into an encrypted external hard drive - with touchpad password security and#8212; 2.5in Encrypted External Hard Drive and#8212; Encrypted Portable Drive and#8212; Encrypted Hard Drive Enclosure and#8212; Encrypted HDD Enclosure - Portable External HDD Enclosure SATA to USB 3.0 Marketing Copy Applications - Home and/or business users who need to keep secured backups of sensitive documents (e.g. financial)
- Business travelers who need to keep important documents on a local drive secure, while away from the office
- Mobile users who want to make sure their sensitive files are kept private
Website Search Keyword - AES
- encryption
- security keypad
- password protected
- password protection
- hard drive enclosure
- solid state drive
- ssd enclosure
- hdd enclosure
Special Notes It is recommended that the enclosure act as a backup to important files, and not as additional storage (unless also regularly backed up), as lost passwords or hardware failure (SATA drive or enclosure) will result in the stored data being unrecoverable. System and Cable Requirements Available USB 3.0 or 2.0 port Accessory Products - USB3SAUB1
- PEXUSB3S22
- ECUSB3S254F
- ECUSB3S1
- PCIUSB3S2
- USB3SAUB3BK
- PEXUSB3S4
- ECUSB3S22
Related Products - SAT2510BU3
- SAT2510BU32
- SAT2510B12U3
- SAT2510BU2
- SAT2510BU2E

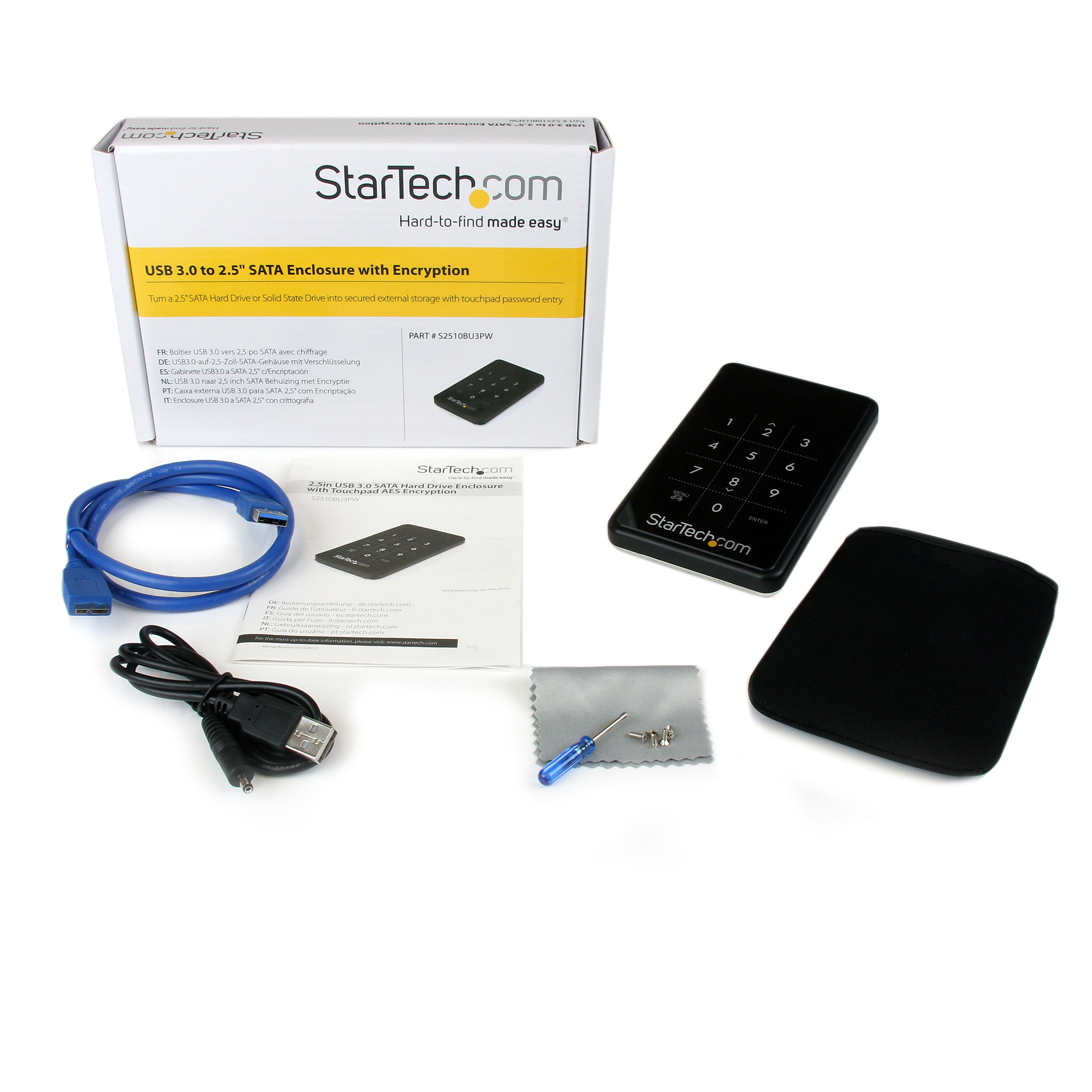

Input Voltage 5 DC Output Current 1 A Output Voltage (V) 5 DC Power Source Not Included (not required for standard applications) Plug Type H Center Tip Polarity Positive Color Black Humidity > 70% RH Material Steel and Plastic Max Drive Height (mm) 9.5 Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 123 Product Width (mm) 77 Product Height (mm) 14 Product Weight (g) 94 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No General Specifications 256-bit AES Hardware Encryption Hot Swap Capability No Max Drive Capacity Currently tested with up to 1TB 5400 RPM hard drives OS Compatibility OS Independent SATA Type and Rate SATA II (3 Gbps) UASP Support No USB Type and Rate USB 3.0 (5Gbps) Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID Fujitsu - MB86C311 Compatible Drive Types SATA Fans Included? Yes/No No Interface/Bridge USB 3.2 Gen 1 (5Gbps) LED Indicators 1 - OLED Readout Display Number of Drives 1 Carton Depth (mm) 315 Carton Height (mm) 225 Carton Quantity 20 Carton Weight Gross (g) 7200 Included in Package - 1 - USB 3.0 Cable
- 1 - USB to DC Adapter Cable
- 1 - 2.5in SATA Enclosure
- 1 - Mini Driver and Screw Kit
- 1 - Instruction Manual
- 1 - Carrying Pouch
- 1 - Cleaning Cloth
Package Depth (mm) 142 Package Height (mm) 40 Package Width (mm) 210 Package Weight (g) 310 Packaging Description USB3.0 to 2.5" SATA Enclosure w/Encryption Packaging Description India USB3.0 to 2.5" SATA Enclosure w/Encryption Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 USB Micro-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy
