S2510PESAT

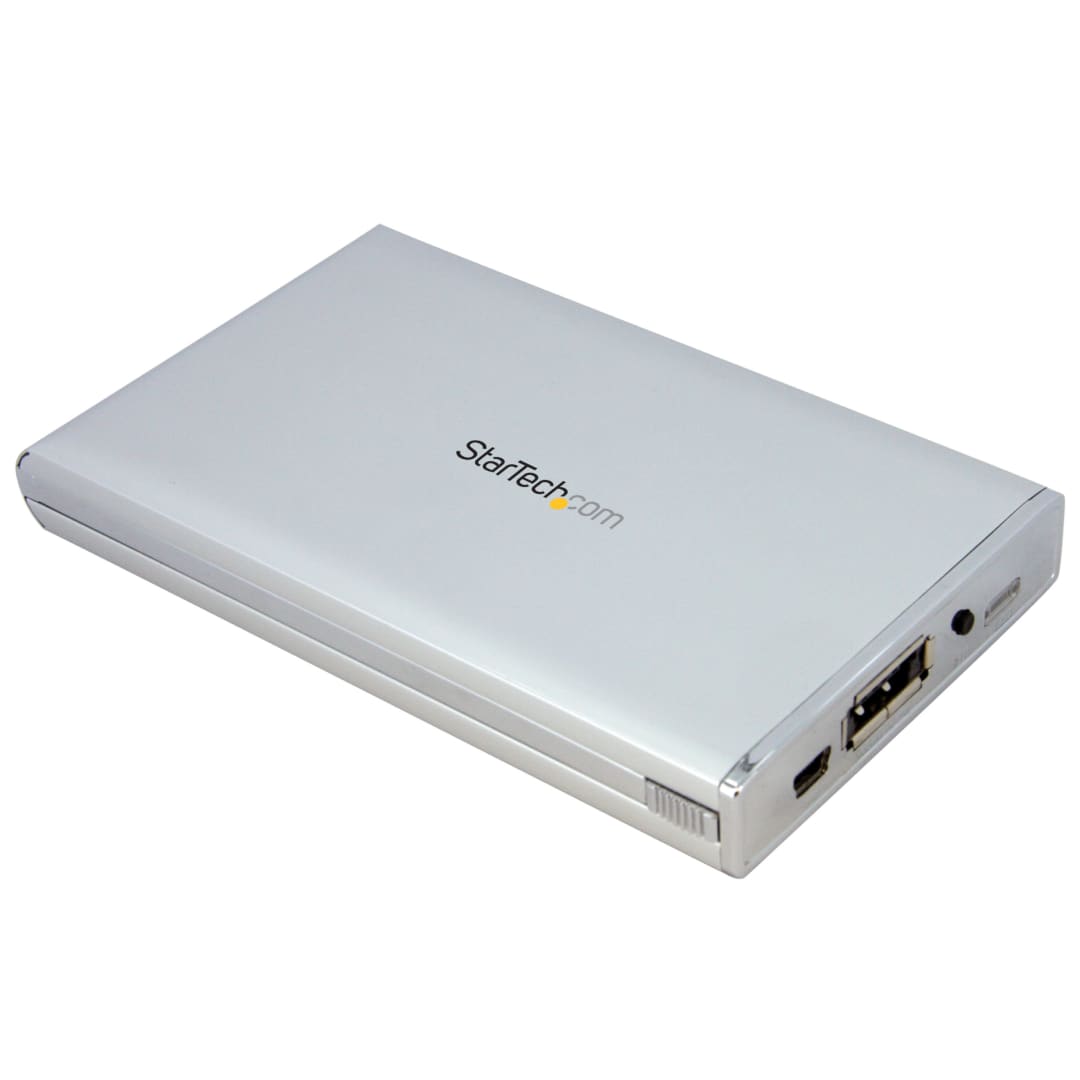

2.5in Power eSATA SATA HDD Enclosure w/ OTB
Turn a 2.5in SATA hard drive into an external backup storage drive over Power eSATA (eSATAp)
Main Image
Product Images
BOM Image
Product Name 2.5in Power eSATA SATA HDD Enclosure w/ OTB Product Number S2510PESAT UPC 065030837712 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Product Title (Short) 2.5in Power eSATA to SATA HDD Enclosure Product Title (Standard) 2.5in Power eSATA SATA Hard Drive Enclosure w/ OTB Product Title (Long) 2.5in Silver Power eSATA to SATA External Hard Drive Enclosure w/ OTB Title Ingram (Part 1) 2.5in Power eSATA SATA External Title Ingram (Part 2) Hard Drive Enclosure w/ OTB Website Product Headline Turn a 2.5in SATA hard drive into an external backup storage drive over Power eSATA (eSATAp) Bullet 1 Aluminum side panels Bullet 2 Supports separate eSATA and USB 2.0 connectivity options Bullet 3 Power eSATA (eSATAp) supports power from USB and data over eSATA from a single cable Bullet 4 SATA revision 2 compliant eSATA host interface, with support for transfer rates up to 3 Gbps Bullet 5 High Speed USB 2.0 compliant host interface, with support for transfer rates up to 480 Mbps Marketing Copy Applications - Make use of existing Power eSATA (eSATAp) connectivity on a laptop or desktop to transfer at eSATA speeds without separate external power connections
- Expand a systems storage capacity with an external drive for backup/archiving
- Turn an extra 2.5" SATA drive into a portable external storage solution
- Create a versatile and portable storage solution for travelers/mobile users
Website Search Keyword - eSATA+USB
- USB 2.0
- eSATA
- Powered eSATA
- Power eSATA
- HDD Enclosure
- Hard Drive Enclosure
- External Enclosure
- One Touch Backup
- eSATAp
Accessory Products - ESATAUSB3
- ESATAUSBMM3
- ESATA3
- ESATA6
- CBESAT2
- ECESATA1
- ECESATA254
- PCIESATA2I
- PEXESATA1
- PEXESATA2
- ECESATA22
- PEXESATA2I
- ECESATUSB1
- PEXSATA24E
- USB2HABM6
- USB2HABMY1
- USB2HABMY3
- USB2HABMY6
Related Products - SAT2510BU2
- SAT2510BU2B
- SAT2510BU2E
- SAT2510SCB
- SAT2510U2
- SAT2510U2E
- SAT2510U2REM
- SAT2510U2S
- SAT2520U2ER
- SAT3510BU2E
Color Silver Humidity 0~75% RH Material Aluminum and Plastic Max Drive Height (mm) 9.5 Operating Temperature -15°C to 50°C (5°F to 122°F) Product Length (mm) 130 Product Width (mm) 76 Product Height (mm) 17 Product Weight (g) 93.5 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Max Drive Capacity Currently tested with up to 1TB 5400 RPM hard drives OS Compatibility - Linux
- Mac OS X
- Windows 2000
- Windows XP
- Windows 2003
- Windows Vista
- Windows 8
- Windows 7

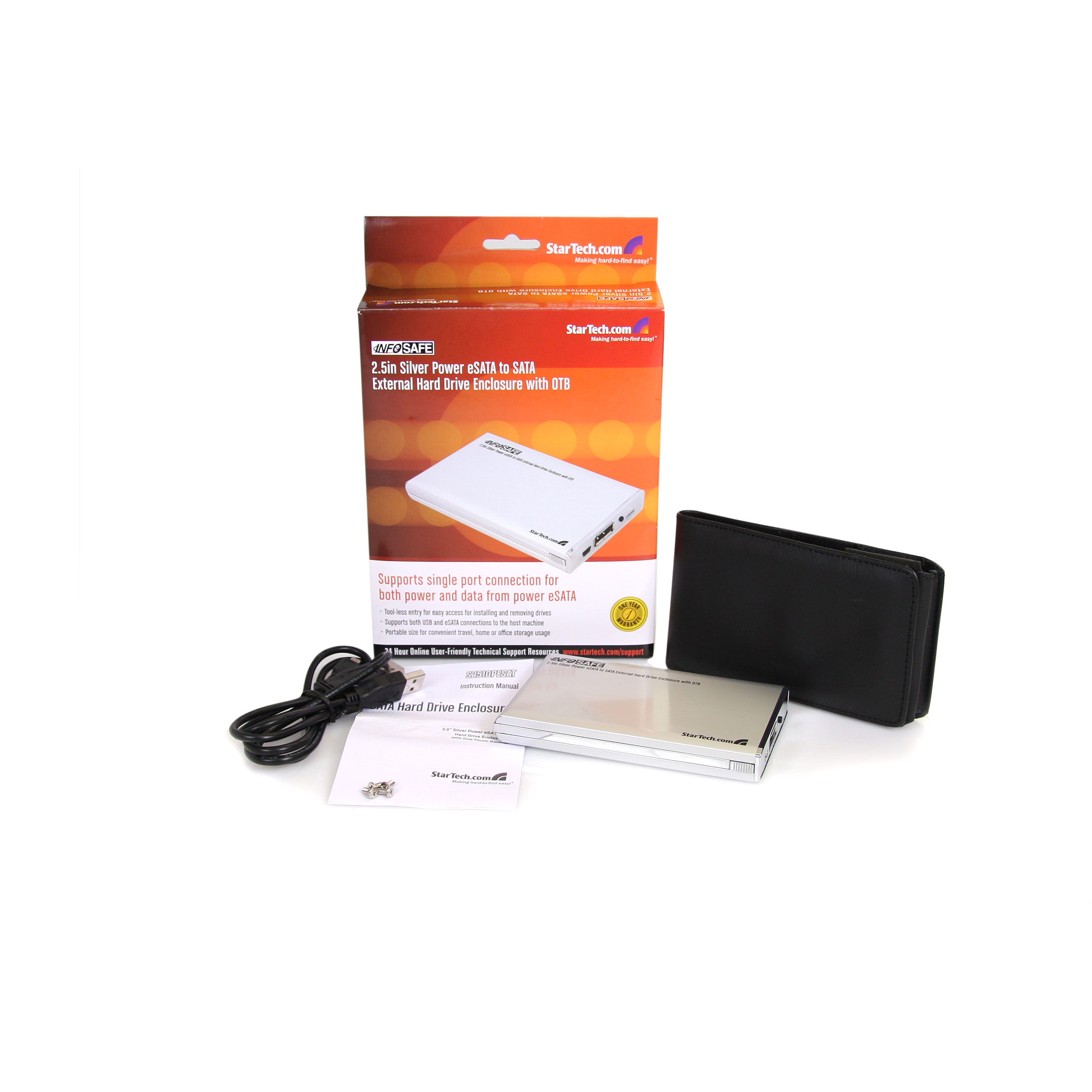

RAID No SATA Type and Rate SATA II (3 Gbps) UASP Support No USB Type and Rate USB 2.0 (480Mbps) Chipset ID SunplusIT - SPIF303 Compatible Drive Types SATA Fans Included? Yes/No No Interface/Bridge USB 2.0 & Power eSATA LED Indicators 1 - Green - Power and Activity Number of Drives 1 Carton Depth (mm) 334 Carton Height (mm) 409 Carton Quantity 18 Carton Weight Gross (g) 6600 Included in Package - 1 - eSATAp 2.5" HDD Enclosure
- 1 - USB A to mini B Y cable
- 1 - Instruction Manual
- 1 - Software CD
- 1 - Soft HDD carrying case
- 4 - Screw Kit
Package Depth (mm) 155 Package Height (mm) 230 Package Width (mm) 55 Package Weight (g) 300 Packaging Description eSATAp to 2.5in SATA HDD Enclosure Packaging Description India eSATAp to 2.5in SATA HDD Enclosure Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 Powered eSATA (11-Pin) Host Connector 1 (Quantity) 1 Host Connector 2 USB Mini-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
