S2510SM12U33
2.5in USB 3 SATA III HDD Enclosure w/ UASP - 6Gbps
Turn a 2.5in SATA SSD/HDD (up to 12.5mm) into a UASP-supported USB 3.0 External Drive
Main Image
Product Images
Product Images
BOM Image
Product Name 2.5in USB 3 SATA III HDD Enclosure w/ UASP - 6Gbps Product Number S2510SM12U33 UPC 065030854757 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 External Drive Enclosures Category Level 3 SATA Enclosures - USB-A 5Gbps Country of Origin Europe & Japan China Country of Origin North America China Product Title (Ultra-Short) USB 3 HDD Enclosure Product Title (Short) 2.5 USB 3 SATA HDD Enclosure w/ UASP Product Title (Medium) x Product Title (Standard) 2.5" External Hard Drive Enclosure – Supports UASP – Aluminum – Height up to 12.5mm – USB 3.0 SSD/HDD Enclosure Product Title (Long) 2.5” Aluminum USB 3.0 SATA III Hard Drive Enclosure w/ UASP - SSD/HDD Height up to 12.5mm Product Title (AMZ) 2.5" External Hard Drive Enclosure - Supports UASP - Aluminum - Height up to 12.5mm - USB 3.0 SSD/HDD Enclosure (S2510SM12U33) Title Ingram (Part 1) 2.5in USB 3 SATA III HDD Title Ingram (Part 2) Enclosure w/ UASP - 6Gbps - SSD/HDD Website Product Headline Turn a 2.5in SATA SSD/HDD (up to 12.5mm) into a UASP-supported USB 3.0 External Drive Bullet 1 UASP Support (Attached SCSI Protocol Specification Revision 1.0) Bullet 2 Compatible with SATA revision I/II/III (1.5/3.0/6.0 Gbps) Bullet 3 USB powered Bullet 4 Compatible with USB 3.0/2.0/1.1 (5Gbps/480Mbps/12Mbps) Bullet 5 Solid Aluminum Enclosure Bullets (Consolidated) Turn a 2.5in SATA SSD/HDD (up to 12.5mm) into a UASP - supported USB 3.0 External Drive - USB 3.0 Hard Drive Enclosure - USB 3.0 2.5" HDD Enclosure - Aluminum 2.5in HDD UASP Enclosure - USB 3 - SATA III 6 Gbps - SSD/HDD Height up to 12.5mm Marketing Copy Applications - Connect a larger capacity SATA SSD up to 12.5mm in height to your computer as an external USB 3.0 hard drive
- Take advantage of your new laptop or desktop with USB 3.0 (UASP) connectivity
- Create a fast, portable external storage solution for desktops, laptops or netbooks
- Add extra storage to almost any USB enabled computer system
- Back up important data to an external storage device
- Share large files between computers quickly and securely without a network
- Retrieve data from old SATA drive, or turn the unused drive into additional external storage space
- Use as a portable hard drive that can travel with your laptop
System and Cable Requirements Available USB port Accessory Products - ECUSB3S11
- PEXUSB3S2
- PEXUSB3S22
- PEXUSB3S4
- PEXUSB3S400
- PEXUSB3S4V
- MPEXUSB3S22B
- ECUSB3S2
- PEXUSB3S11
- ECUSB3S22
- MPEXUSB3S2
- ECUSB3S254F
- USB3SAUB3
- USB3CAUB1M
- USB3SAUB1
- USB3AUB50CMB
- USB3SAUB3BK
- SVA5H2NEUA
- USB2TYPEH
- USB2TYPEH2M
Related Products - S2510BPU33
- S2510BMU33
- SAT2510B12U3
- S2510BU3PWPS
- S3510WMU33T
- S3520BU33ER
- S3520WU33ER
- S2510BU3ISO
- S2510BU3PW
- S3510SMU33
- S3510BMU33
- S3510BMU33T

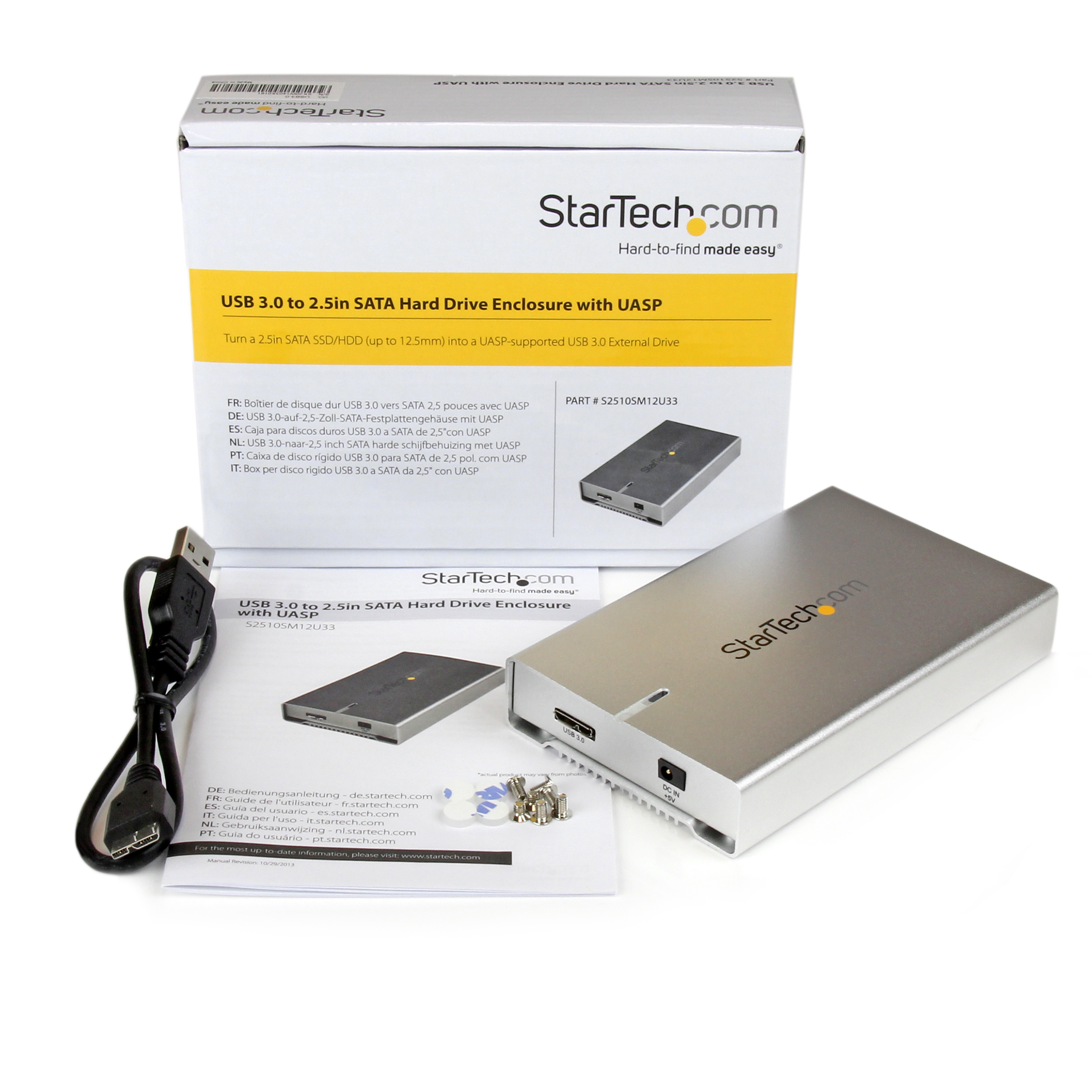

Input Voltage 5 DC Power Source USB-Powered Plug Type H Center Tip Polarity Positive Color Silver Humidity 5% ~ 95% RH Material Aluminum Max Drive Height (mm) 12.5 Operating Temperature 5°C to 35°C (41°F to 95°F) Product Length (mm) 125 Product Width (mm) 78 Product Height (mm) 24 Product Weight (g) 122 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No Max Drive Capacity Currently tested with up to 1TB 7200 RPM hard drives OS Compatibility OS Independent SATA Type and Rate SATA III (6 Gbps) UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID ASMedia - ASM1053 - 6G Compatible Drive Types SATA Fans Included? Yes/No No Interface/Bridge USB 3.2 Gen 1 (5Gbps) LED Indicators 1 - Power/Activity LED Number of Drives 1 Carton Depth (mm) 277 Carton Height (mm) 187 Carton Quantity 20 Carton Weight Gross (g) 5470 Included in Package - 1 - USB 3.0 SATA HDD Enclosure
- 1 - USB 3.0 A to Micro B Cable
- 1 - Screw kit
- 1 - Instruction Manual
- 1 - Foot pad set
Package Depth (mm) 130 Package Height (mm) 48 Package Width (mm) 160 Package Quantity 1 Package Weight (g) 245 Packaging Description USB 3.0 to 2.5in SATA Hard Drive Enclosure with UASP Packaging Description India USB 3.0 to 2.5in SATA Hard Drive Enclosure with UASP Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 USB Micro-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-10-02 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) BE,CA,DE,DK,ES,EU,FR,IT,JP,NL,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy
