Main Image
S2510U2WUKEU
Wireless/USB to 2.5 SATA HDD Enclosure with WiFi
Turn a 2.5" SATA hard drive into a portable storage device that can connect over WiFi or USB 2.0
Main Image
Product Images
Product Images
BOM Image
Product Name Wireless/USB to 2.5 SATA HDD Enclosure with WiFi Product Number S2510U2WUKEU UPC 065030848022 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) Wireless 2.5in SATA HDD Enclosure – WiFi Product Title (Standard) Wireless 2.5in External SATA Hard Drive HDD Enclosure w/USB & WiFi AP Product Title (Long) Wireless 2.5in External SATA Hard Drive HDD Enclosure w/USB & WiFi AP Product Title (AMZ) Wireless 2.5in External SATA Hard Drive HDD Enclosure w/USB & WiFi AP (S2510U2WUKEU) Title Ingram (Part 1) Wireless 2.5in SATA Hard Drive H Title Ingram (Part 2) DD Enclosure w/USB & WiFi AP Website Product Headline Turn a 2.5" SATA hard drive into a portable storage device that can connect over WiFi or USB 2.0 Bullet 1 Wireless IEEE 802.11b/g/n compliant interface with up to 300Mbps of bandwidth Bullet 2 Fits 2.5" form factor SATA drives up to 9.5mm in height Bullet 3 USB 2.0 compliant host interface with up to 480Mbps of bandwidth Bullet 4 2.5" SATA HDD enclosure with a built-in Wireless-N router/access point Bullet 5 No drivers or software required Marketing Copy Applications - Users who want to centrally store files and share them between multiple computers/laptops/tablets/smart phones wirelessly
- Travelers staying in a hotel, who want to connect to their room's wired Internet connection wirelessly and share the connection with multiple laptops/tablets/smart phones
- Older laptops without built-in (or broken) wireless can connect through the Ethernet port
- Business travelers who want to setup a private WLAN to securely share centrally stored files between computers/laptops/tablets/smart phones when away from home/office
- A small, energy efficient NAS for a home/office network applications
Website Search Keyword - wifi
- 802.11g
- 802.11n
- sata enclosure
- wireless
- external hdd
- nas
Special Notes Client software only compatible with Windows operating system System and Cable Requirements WiFi adapter or USB 2.0 port or RJ45 Ethernet port Accessory Products - RJ45PATCH15
- USB2HABM1
- USB150WN1X1
- PCI555WG
- PEX300WN2X3
- USB300WN2X2
- M45PATCH10BL
- USB2HABM10
Related Products - SAT2510U2
- SAT2510BU2
- SAT2510BU2E
- UNI2510U2V
- SAT2510SCB
- SAT2510BU3
- SAT2510B12U3
Input Voltage 110V-240V AC Output Current 2A Output Voltage (V) 5 DC Power Source AC Adapter Included Center Tip Polarity Positive Color Black Humidity 8% ~ 90% RH Material Plastic Max Drive Height (mm) 9.5 Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 150 Product Width (mm) 25 Product Height (mm) 95 Product Weight (g) 155 Storage Temperature -30°C to 70°C (-22°F to 158°F) TAA Compliant No Max Drive Capacity Currently tested with up to 1TB 5400 RPM hard drives OS Compatibility - Linux
- Windows 8
- Mac OS X Mavericks (10.9)
- Windows 7
RAID No SATA Type and Rate SATA II (3 Gbps) UASP Support No USB Type and Rate USB 2.0 (480Mbps) Bus Type USB 2.0 Chipset ID Ralink - RT3052 Compatible Drive Types SATA Fans Included? Yes/No No Front Door Key Lock No Industry Standards - IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX
- IEEE 802.11n
- IEEE 802.11b
- IEEE 802.11g
Interface/Bridge - Wireless Ethernet
- USB 2.0
LED Indicators - 1 - LAN Activity (Green/Orange)
- 1 - WiFi Status (Green/Orange)
- 1 - Power (Green/Orange)
- 1 - HDD Activity (Green/Orange)
Number of Drives 1 Carton Depth (mm) 300 Carton Height (mm) 295 Carton Quantity 12 Carton Weight Gross (g) 8485 Included in Package - 1 - WiFi Enclosure
- 1 - USB Cable
- 1 - Ethernet Cable

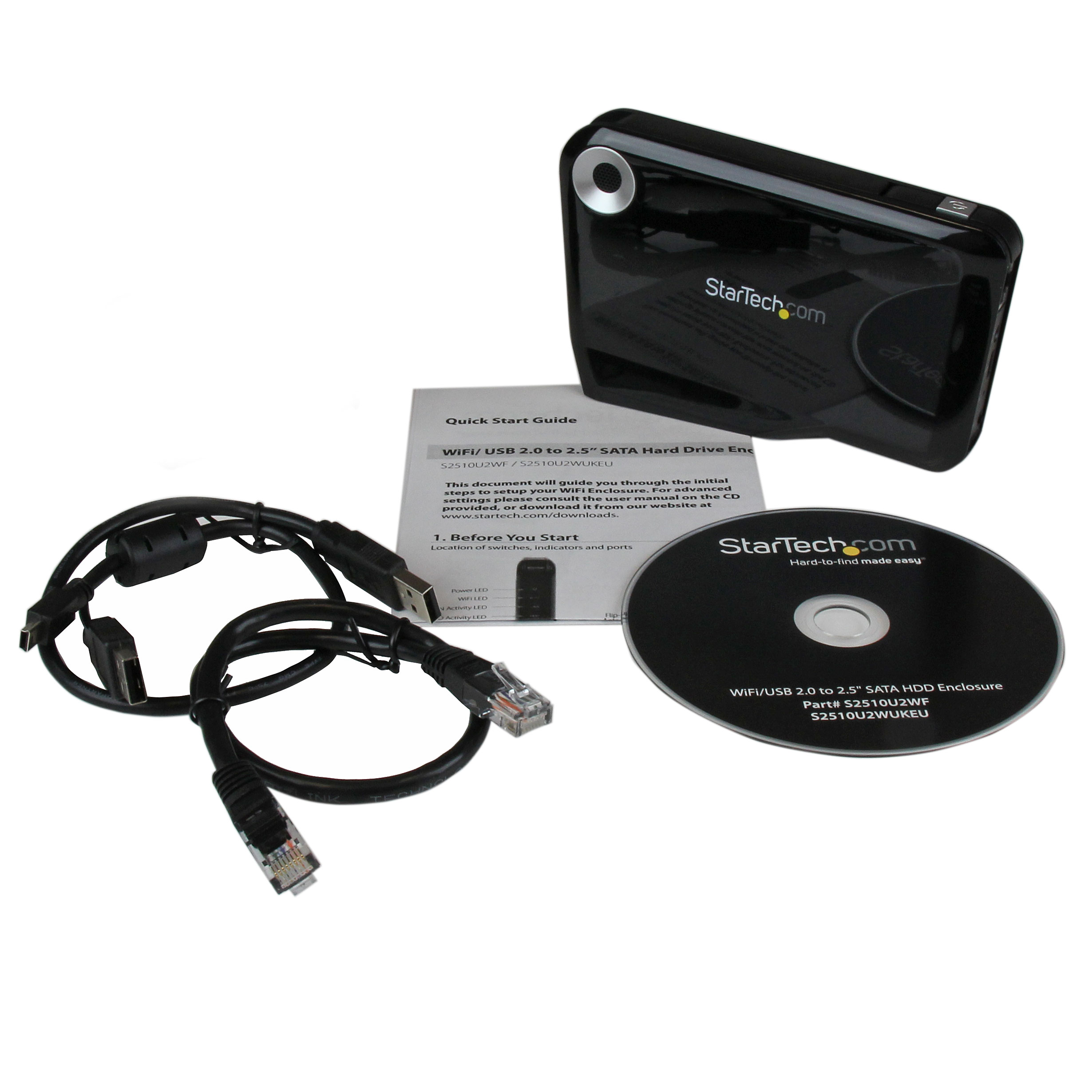

- 1 - Instruction Manual
- 2 - Power Adapter (UK/ EU)
- 1 - Software CD
Package Depth (mm) 140 Package Height (mm) 90 Package Width (mm) 200 Package Quantity 1 Package Weight (g) 651 Packaging Description WiFi/USB 2.0 to 2.5" SATA HDD Enclosure Packaging Description India WiFi/USB 2.0 to 2.5" SATA HDD Enclosure Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 USB Mini-B (480Mbps, 2.5W) Host Connector 1 (Quantity) 1 Host Connector 2 RJ-45 Host Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
