S2510U33USM
2.5in USM HDD Enclosure
Turn a 2.5” HDD/SSD into a USM compatible USB 3.0 enclosure
Main Image
Product Images
Product Images
BOM Image
Product Name 2.5in USM HDD Enclosure Product Number S2510U33USM UPC 065030852678 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Internal Storage Category Level 3 2.5" Drive Mobile Racks and Backplanes Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX005X Product Title (Ultra-Short) 2.5" USM Enclosure Product Title (Short) 2.5” SATA USM Enclosure for S2510U33RUSM Product Title (Medium) x Product Title (Standard) 2.5” SATA USM Enclosure for S2510U33RUSM USM Bay with External USB 3.0 Adapter Product Title (Long) 2.5” SATA USM™ Enclosure for S2510U33RUSM USM Bay with External USB 3.0 Adapter Product Title (AMZ) 2.5” SATA USM Enclosure for S2510U33RUSM USM Bay with External USB 3.0 Adapter Supporting UASP - External SSD / HDD Storage (S2510U33USM) Title Ingram (Part 1) 2.5” SATA USM Enclosure for Title Ingram (Part 2) S2510U33RUSM USM Bay w/ USB 3.0 Website Product Headline Turn a 2.5” HDD/SSD into a USM compatible USB 3.0 enclosure Bullet 1 Designed for Front-Mount Installation with S2510U33RUSM 5.25” USM Bay Bullet 2 USB 3.0 to USM Enclosure Adapter Included Bullet 3 UASP Compliant Bullet 4 SuperSpeed USB 3.0 compliant host interface supporting data transfer rates up to 5Gbps Bullet 5 Supports 2.5" form factor SATA hard drives (HDD) and solid state drives (SSD) Bullets (Consolidated) Turn a 2.5” HDD/SSD into a USM compatible USB 3.0 enclosure - External Hard Drive Storage - Portable Hard Drive Storage - SATA Mobile Rack - Hard Drive Mobile Rack - HDD Mobile Rack - SATA HDD Mobile Rack - Hard Drive Storage Rack - USM Standard HDD Marketing Copy Applications - Create a fast, portable external storage solution for desktops, laptops or netbooks
- Add-on extra storage to almost any USB-enabled computer system
- Back up your important data to an external storage device
- Share large files between computers quickly and securely, without a network
Accessory Products - S2510U33RUSM
- USB3SAUB3BK
- USB3CAUB1M
- USB3SAUB3
- USB3SAUB1
Related Products - SAT2510U3REM
- SAT2510U3S
- SAT2510U2S
- HSB220SAT25B
- SAT2510U2REM
- S25SLOTR
- S2510BMU33
- S2510BPU33
- SAT2510B12U3
- SAT2510BU32
- S2510BU3ISO
- S2510BU3PWPS
Color Black Humidity 10% ~ 90% RH Material Aluminum and Plastic Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 120 Product Width (mm) 81 Product Height (mm) 9 Product Weight (g) 93.2 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No General Specifications UL94 V0 Flammability rating OS Compatibility OS Independent SATA Type and Rate SATA III (6 Gbps) UASP Support Yes USB Type and Rate USB 3.0 (5Gbps) Chipset ID ASMedia - ASM1053 - 6G Compatible Drive Types SATA Interface/Bridge - SATA
- USB 3.2 Gen 1 (5Gbps)

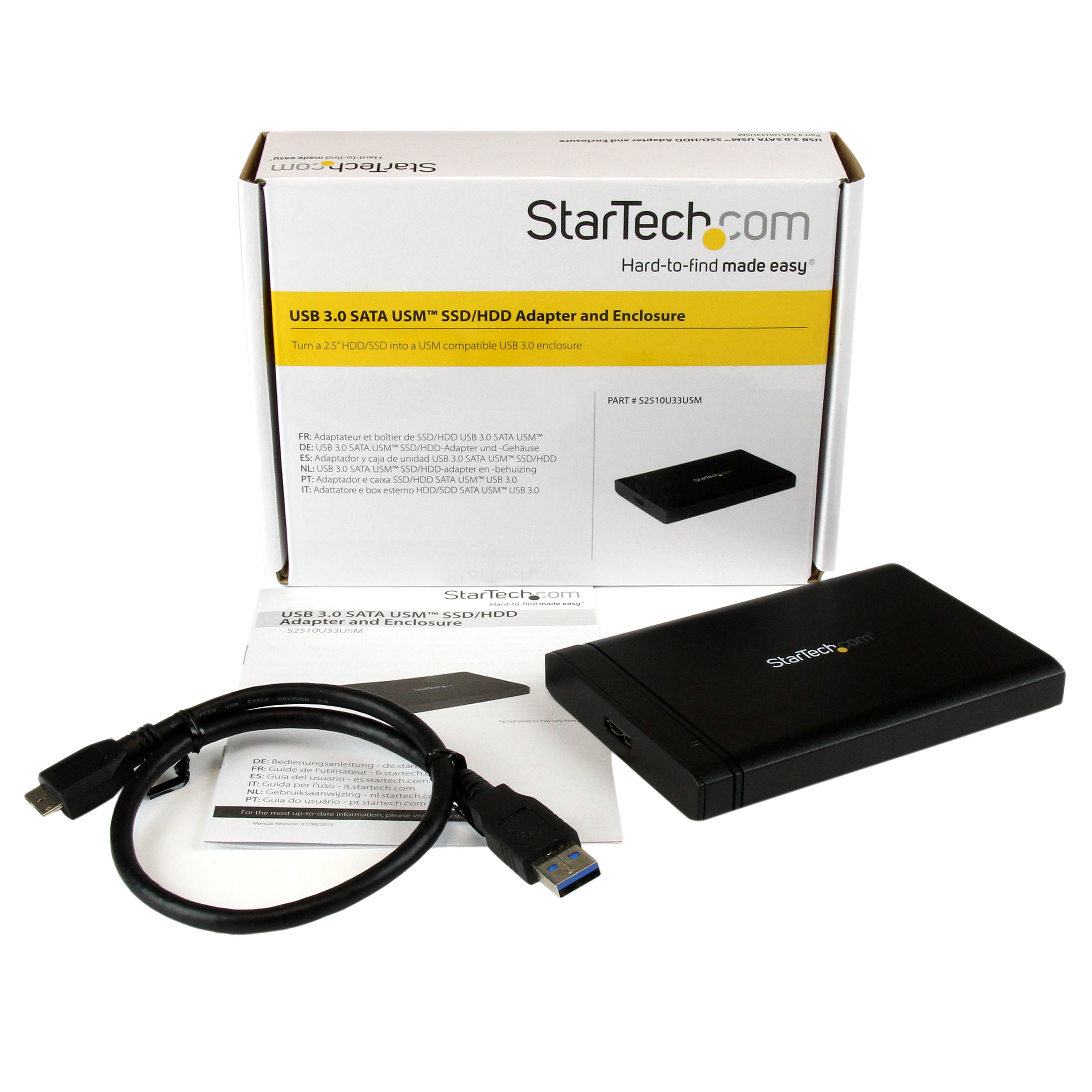

LED Indicators 1 - Hard Drive Power/Activity (Enclosure) Number of Drives 1 Carton Depth (mm) 275 Carton Height (mm) 380 Carton Quantity 40 Carton Weight Gross (g) 9339 Included in Package - 1 - 2.5” USM HDD Enclosure
- 1 - Micro USB 3.0 Cable
- 1 - USM to USB 3.0 interface adapter
- 1 - Instruction Manual
Package Depth (mm) 130 Package Height (mm) 40 Package Width (mm) 175 Package Quantity 1 Package Weight (g) 214.5 Packaging Description USB 3.0 SATA USM™ SSD/HDD Adapter and Enclosure Packaging Description India USB 3.0 SATA USM™ SSD/HDD Adapter and Enclosure Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 SATA (7-Pin + 15-Pin) Host Connector 1 (Quantity) 1 Host Connector 2 USB-B (5Gbps, 4.5W) Host Connector 2 (Quantity) 0 Host Connector 3 USB Micro-B (5Gbps, 4.5W) Host Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-08-05 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,JP,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy
