S251BPU313

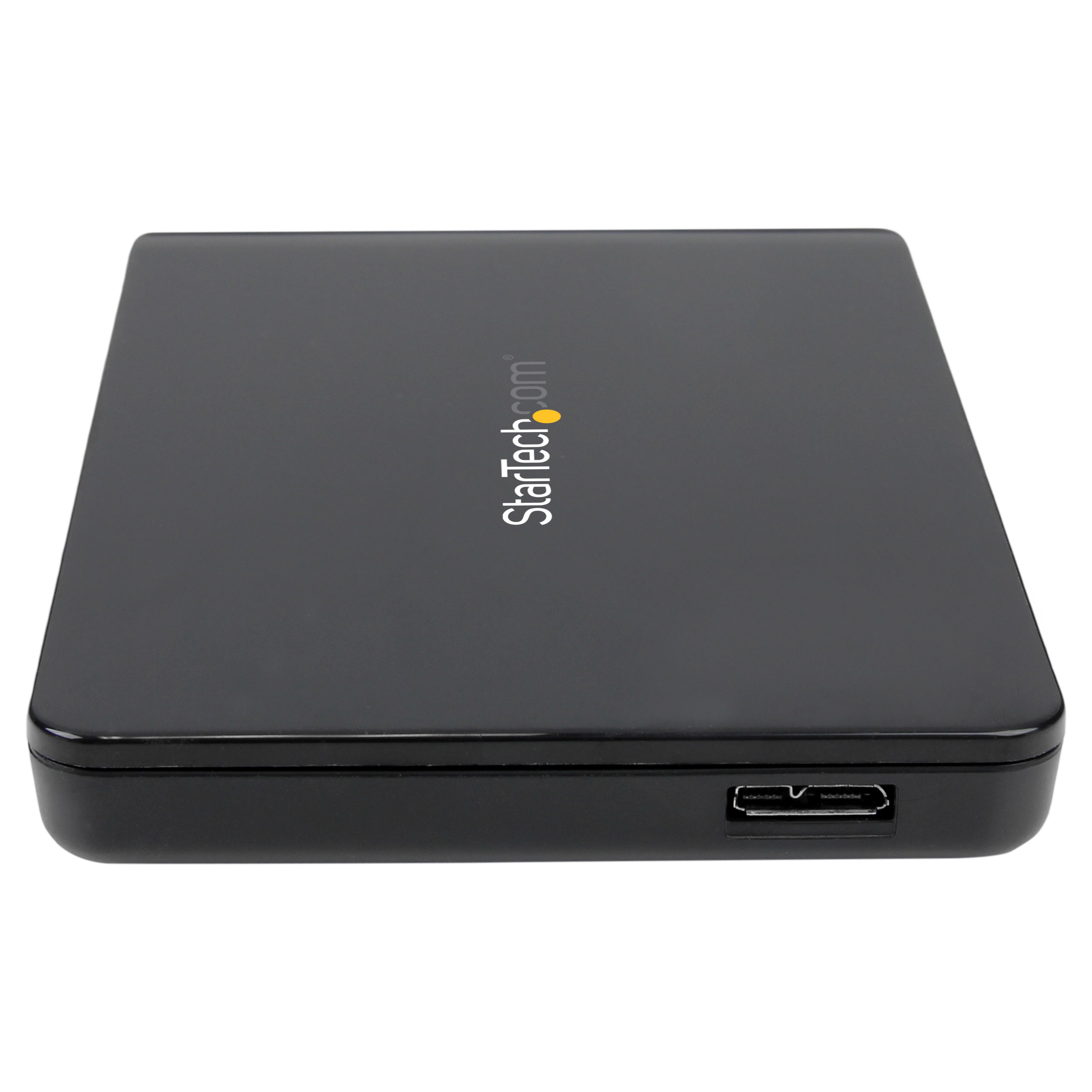

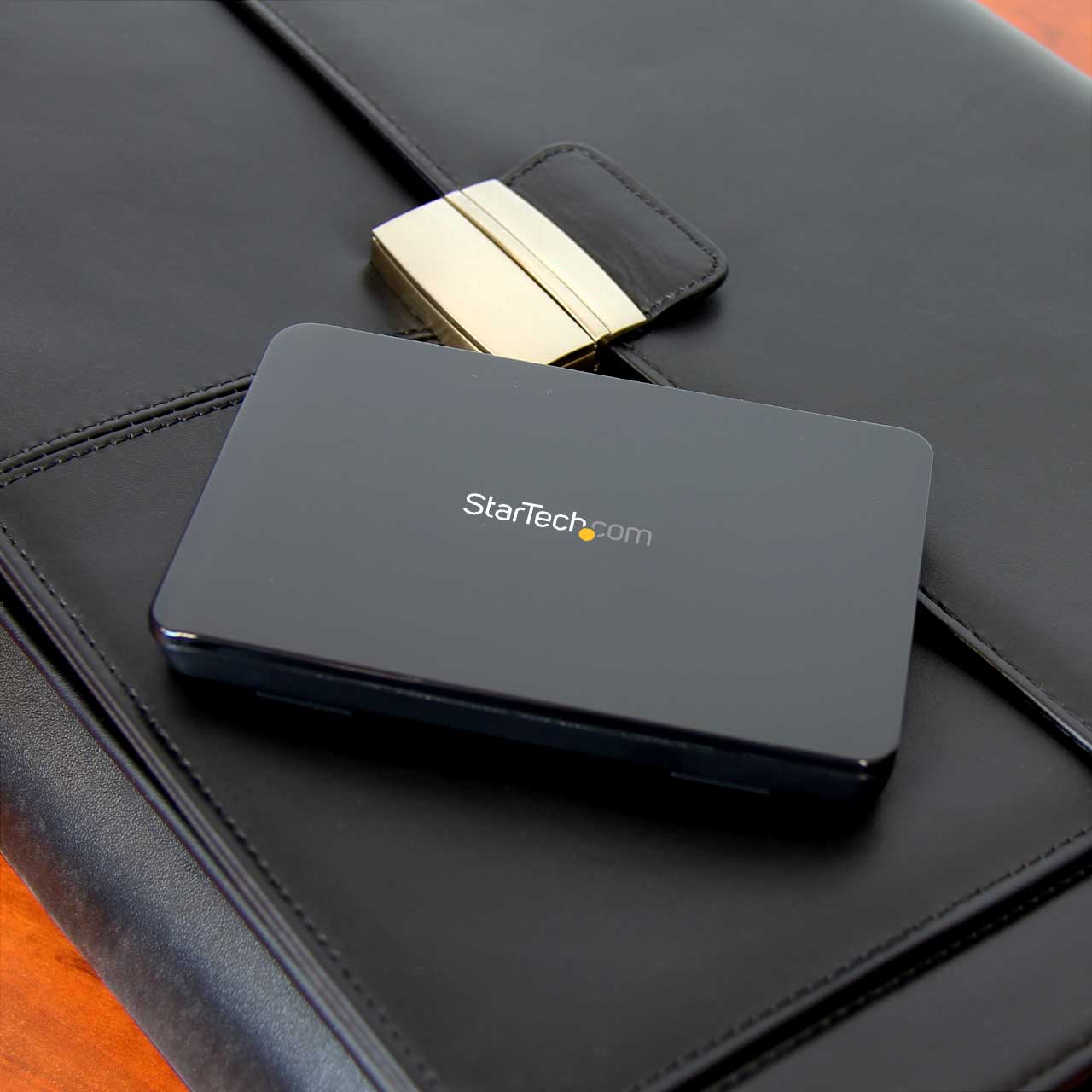

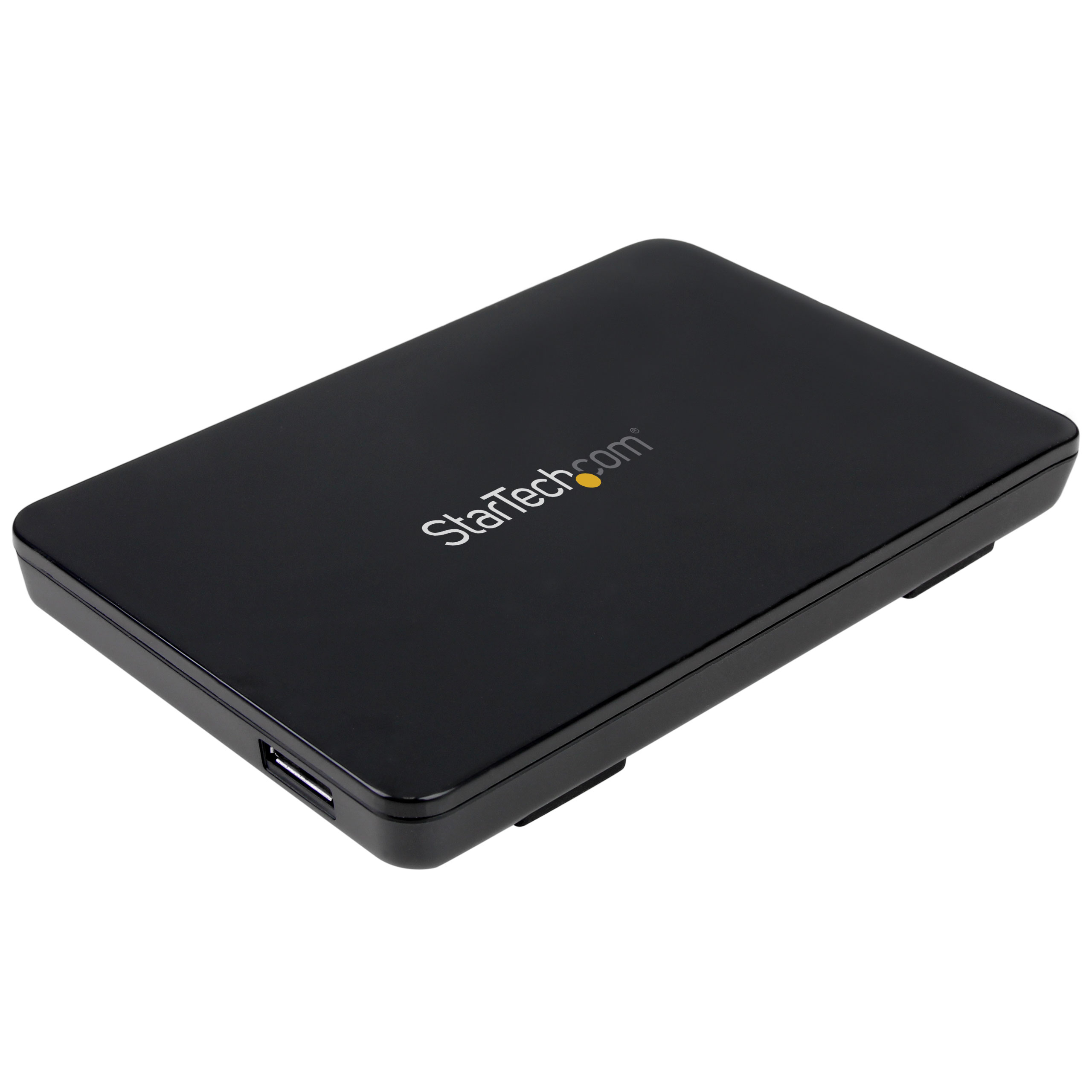

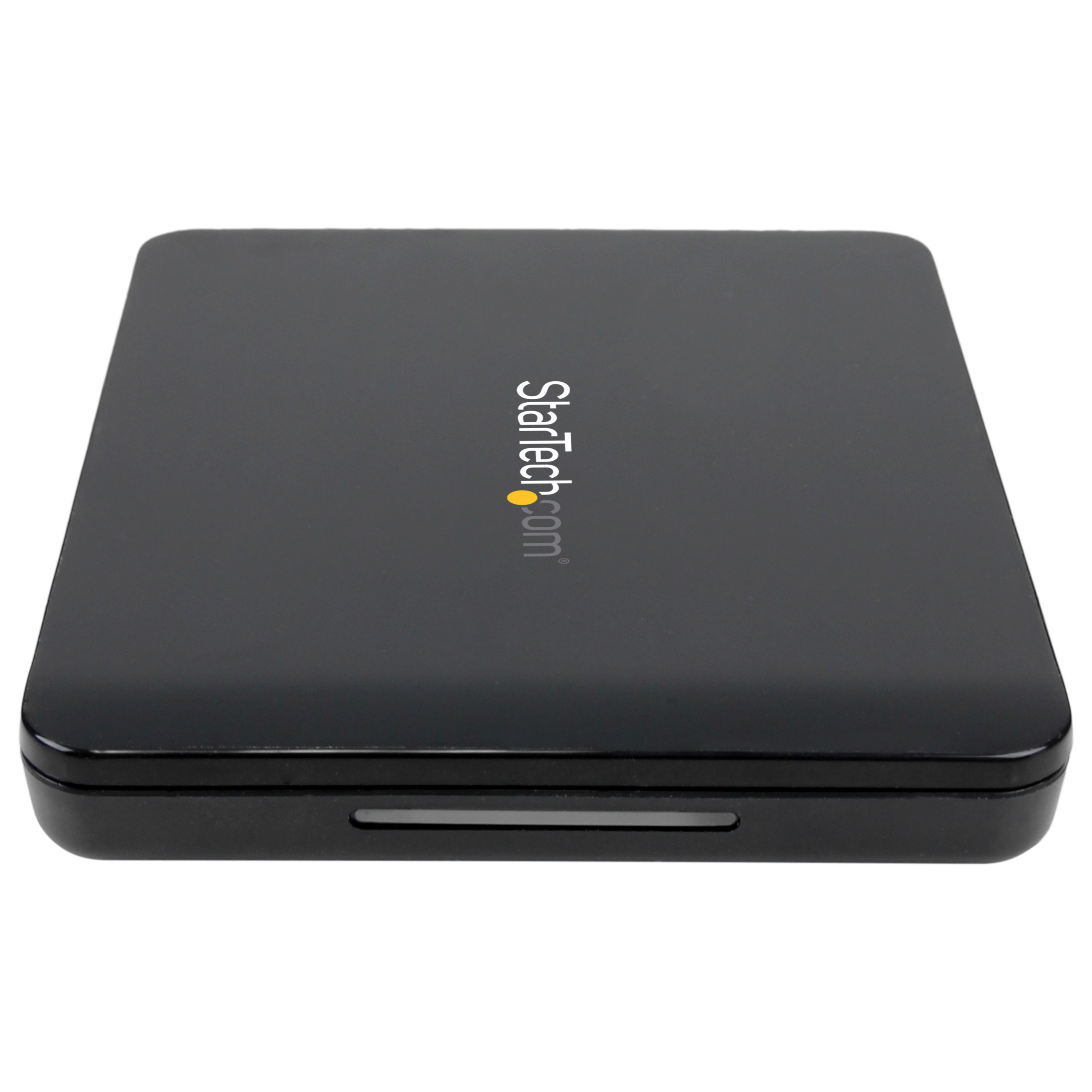

USB 3 1 enclosure for 2 5 SATA SSD HDD Tool free
Get the faster speed of USB 3.1 Gen 2 in a lightweight and portable storage solution
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name USB 3 1 enclosure for 2 5 SATA SSD HDD Tool free Product Number S251BPU313 UPC 065030861946 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Cards & Adapters > External Drive Enclosures Category Level 1 Data Storage Category Level 2 External Drive Enclosures Category Level 3 SATA Enclosures - USB-A 10Gbps Family Toolless 2.5" SATA Enclosure Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX005X Product Title (Ultra-Short) USB 3.1 Enclosure Product Title (Short) USB 3.1 Tool-free Enclosure - 2.5" Drive Product Title (Medium) USB 3.1 (10 Gbps) Tool-free Enclosure for 2.5” SATA Drives Product Title (Standard) USB 3.1 (10 Gbps) Tool-free Enclosure for 2.5” SATA Drives Product Title (Long) USB 3.1 (10 Gbps) Tool-Free Enclosure for 2.5” SATA Drives Product Title (AMZ) USB 3.1 (10Gbps) Tool-free Enclosure for 2.5” SATA Drives - Ultra-fast, Portable Data Storage - Lightweight Plastic (S251BPU313) Title Ingram (Part 1) Portable USB 3.1 enclosure - Title Ingram (Part 2) - tool-free for 2.5" SATA SSD/HDD Website Product Headline Get the faster speed of USB 3.1 Gen 2 in a lightweight and portable storage solution Bullet 1 Create portable external storage for a 2.5” SSD/HDD with USB 3.1 Gen 2 high speed performance Bullet 2 Supports SATA I, II and III (up to 6 Gbps) Bullet 3 Tool-free design and lightweight enclosure for easy portability Bullet 4 UASP support for enhanced performance Bullet 5 Powered directly from the USB port Bullets (Compact) Get the fast speed of USB 3.1 (10Gbps) in lightweight portable storage - 2.5” SATA SSD & HDD hard drive enclosure - USB 3.1 Gen 2 to SATA drive enclosure - Tool-free - Supports SATA III - USB A to Micro B cable included for backward compatibility Bullets (Consolidated) Get the faster speed of USB 3.1 Gen 2 (10 Gbps) in a lightweight portable storage solution - 2.5" SATA SSD/HDD hard drive enclosure - USB 3.1 Gen 2 to SATA drive enclosure - Tool-free HDD enclosure - Portable, external data storage - 2.5" HDD drive enclosure - Supports SATA I and II and III (6 Gbps) - UASP support for enhanced performance - USB A to Micro B cable incl for easy backward compatibility Marketing Copy Applications - Take advantage of new laptops and desktops with ultra-fast USB 3.1 Gen 2 (10 Gbps) connectivity
- Create a fast, portable external storage solution for desktops, laptops or netbooks
- Use your SATA SSD/HDDs at maximum speed
- Back up important data to an external storage device
- Share large files between computers quickly and securely without a network
- Retrieve data from old SATA drive, or turn the unused drive into additional external storage space
Website Search Keyword - USB 3.1 Gen 2 Enclosure
- 2.5" SATA Drive Enclosure
- 2.5" Drive Enclosure
- 2.5" SATA Enclosure
- Drive Enclosure
- SSD Enclosure
- 2.5" SSD Enclosure
- Tool-free drive enclosure
- Tool-free enclosure
- External enclosure
- Portable external enclosure
- Portable drive enclosure
- U457025CG2
- U457-025-AG2
Required Regulatory Compliance Marks - RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Special Notes Windows 7 and earlier Windows versions do not support TRIM with USB to SATA devices. Accessory Products - PEXUSB312A
- USB3AUB15CMS
- USB3SAUB1
- USB3AUB50CMB
Related Products - S251BMU3FP
- S251BRU31C3
- S251BU31315
- S251BPU31C3
- S251BMU313
- S251BRU33
- S2510BU33PW
- S251SMU33EP
- S2510BPU337
- UNI251BMU33
- S2510BPU33
- S2510BMU33
- SAT2510BU32

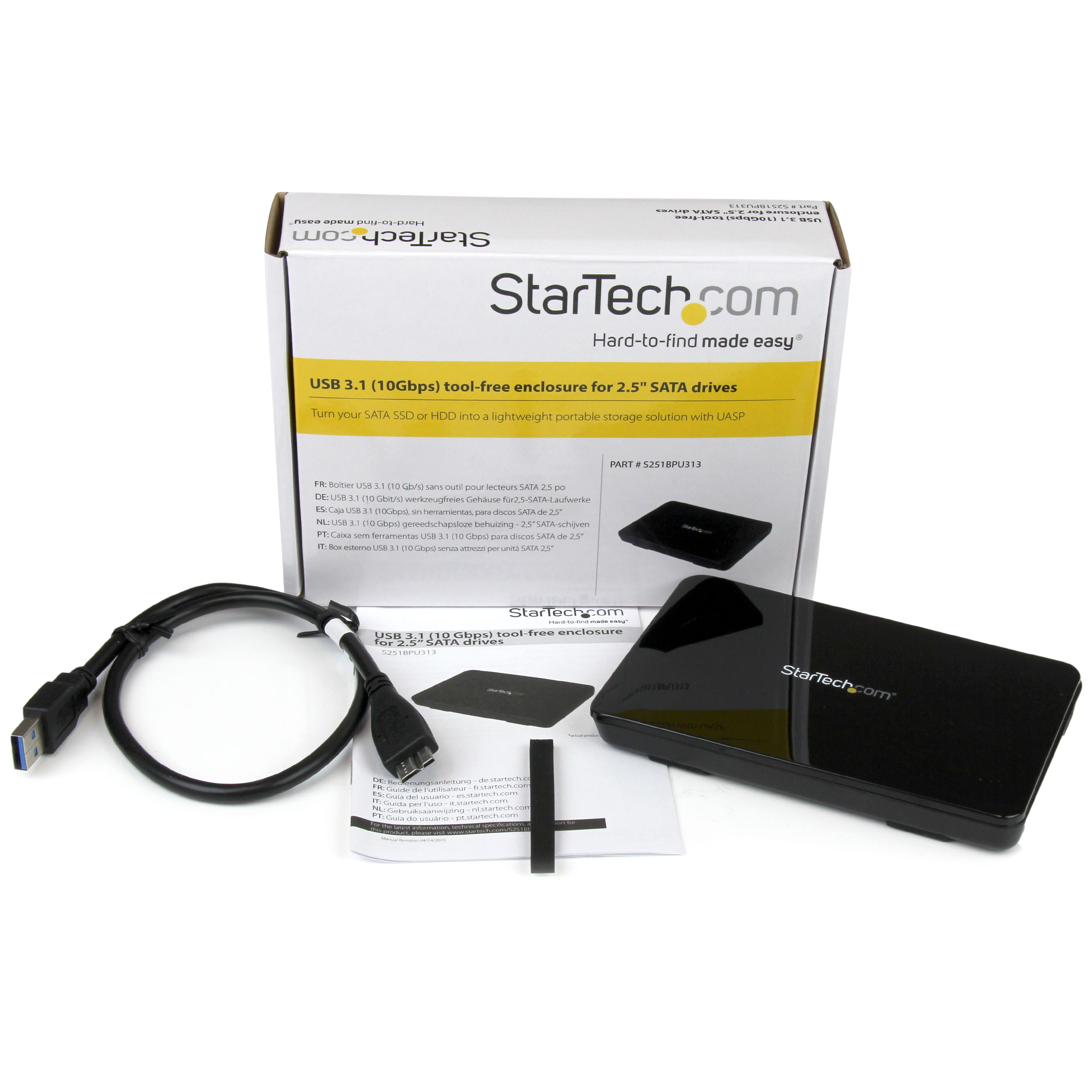

Power Source USB-Powered Color Black Humidity Material Plastic Max Drive Height (mm) 9.5 Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Plastic Product Length (mm) 132 Product Width (mm) 88 Product Height (mm) 15 Product Weight (g) 74 Storage Temperature -10°C to 65°C (14°F to 149°F) TAA Compliant No 4Kn Support Yes Max Drive Capacity Currently tested with hard drives up to 2TB at 7200 RPM Maximum Data Transfer Rate 10 Gbps OS Compatibility OS Independent SATA Type and Rate SATA III (6 Gbps) TRIM Support Yes UASP Support Yes USB Type and Rate USB 10Gbps Bus Type USB 3.2 Gen 2 Chipset ID ASMedia - ASM235CM Compatible Drive Types SATA Fans Included? Yes/No No Interface/Bridge USB 3.2 Gen 2 LED Indicators 1 - Power & Activity Number of Drives 1 Carton Depth (mm) 286 Carton Height (mm) 388 Carton Quantity 40 Carton Weight Gross (g) 8912 Included in Package - 1 - USB 3.1 to 2.5" SATA HDD enclosure
- 1 - drive cushion
- 1 - USB 3.1 A to Micro B cable - 23 inches
- 1 - quick start guide
Package Depth (mm) 136 Package Height (mm) 44 Package Width (mm) 178 Package Quantity 1 Package Weight (g) 204 Packaging Description USB 3.1 (10Gbps) tool-free enclosure for 2.5" SATA drives Packaging Description India USB 3.1 (10Gbps) tool-free enclosure for 2.5" SATA drives Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 USB Micro-B (10Gbps, 4.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2015-04-14 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IT,JP,NL,NZ,PE,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2015-04-10 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle None
