S251BPU31C3
USB 3 1 2 5 SSD HDD Enclosure with USB C Cable
Add fast and portable data storage to your USB Type-C enabled MacBook, Chromebook Pixel, or laptop
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name USB 3 1 2 5 SSD HDD Enclosure with USB C Cable Product Number S251BPU31C3 UPC 065030863520 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 External Drive Enclosures Category Level 3 SATA Enclosures - USB-A 10Gbps Family Toolless 2.5" SATA Enclosure Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX005X Product Title (Ultra-Short) USB 3.1 Enclosure Product Title (Short) USB 3.1 Tool-Free Enclosure - 2.5in SATA Product Title (Medium) USB 3.1 (10Gbps) Tool-Free Enclosure for 2.5in SATA SSD/HDD - USB-C Product Title (Standard) 2.5" USB-C Hard Drive Enclosure – USB 3.1 Type C – Tool-less – External Hard Drive Case – SSD USB C HDD Enclosure Product Title (Long) USB 3.1 (10Gbps) Tool-Free Enclosure for 2.5in SATA SSD/HDD - USB-C Product Title (AMZ) USB 3.1 (10Gbps) Type-C Enclosure - Tool-Free Enclosure - External Hard Drive Enclosure for 2.5in SATA SSD/HDD (S251BPU31C3) Title Ingram (Part 1) USB 3.1 2.5in SSD/HDD Enclosure Title Ingram (Part 2) with USB-C Cable -Portable Storage Website Product Headline Add fast and portable data storage to your USB Type-C enabled MacBook, Chromebook Pixel, or laptop Bullet 1 Utilize the USB-C port on your laptop or tablet to create portable external storage for a 2.5” SSD/HDD Bullet 2 Get ultra-fast data transfer rates through USB 3.1 (10Gbps) Bullet 3 Tool-free design and lightweight enclosure for easy installation and convenient portability Bullet 4 Supports SATA I, II and III (up to 6Gbps) Bullet 5 Supports drives 5mm, 7mm and 9.5mm in height Bullets (Compact) Add fast portable data storage to MacBook, Chromebook Pixel, Dell Latitude 11 5000 Series 2-in-1 or other device with USB-C port - 2.5” SATA SSD/HDD hard drive enclosure w/ USB-C cable - USB 3.1 (10Gbps) to SATA drive enclosure - Tool-free enclosure Bullets (Consolidated) Add fast portable data storage to the latest MacBook or Chromebook Pixel or Dell Latitude 11 5000 Series 2-in-1 or other laptop/tablet with a USB-C port - 2.5" SATA SSD/HDD hard drive enclosure with USB-C cable - USB 3.1 Gen 2 (10Gbps) to SATA drive enclosure - Tool-free HDD enclosure - Portable, external data storage - 2.5in HDD drive enclosure - Supports SATA I/II/III (6 Gbps) - UASP support - Powered directly from the USB port - Supports 2.5" SSD/HDD drives 5mm/7mm/9.5mm in height Marketing Copy Marketing Copy (No HTML) This external hard drive enclosure for 2.5in SATA SSD/HDD lets you utilize the USB-C port on your device to add ultra-fast, ultra-portable data storage.The USB SATA HDD/SSD USB-C enclosure's compact design provides a highly portable solution that tucks easily into a laptop bag for portable storage. It's completely tool-free so you can install your drives quickly on the fly. The USB 3.1 (10Gbps) Type-C enclosure is powered directly from the USB port, with no external power required.The tool-free USB Type-C enclosure comes with a USB-C to Micro B cable. The USB Type-C connector of this external single drive enclosure is small and reversible, which makes for easier insertions. You can connect the USB-C plug quickly with either side facing up, which means less risk of damaging your ports and less frustration.With support for SATA I, II and III and large capacity drives (tested with hard drives up to 2TB), this external hard drive enclosure for 2.5in SATA SSD/HDD is compatible with virtually any 2.5in. SATA hard drive or solid-state drive. The USB SATA HDD/SSD USB-C enclosure delivers USB 3.1 Gen 2 performance with data transfer speeds of up to 10Gbps, letting you leverage the high performance of the latest SSDs and hard drives. The USB 3.1 (10Gbps) Type-C enclosure is also enhanced with UASP, which increases read and write speeds, to utilize the full potential of your SATA III drives. This tool-free USB Type-C enclosure gives you greater bandwidth and speed with file transfer rates of up to 10Gbps - twice the capability of USB 3.0 technology. The external USB Type-C hard drive enclosure is backed by a StarTech.com 2-year warranty and free lifetime technical support. Applications - Take advantage of new laptops and tablets that feature a USB-C port and ultra-fast USB 3.1 (10Gbps) connectivity
- Create fast, portable external storage for MacBook, Chromebook Pixel, Dell Latitude 11 5000 Series 2-in-1 and other devices
- Use your SATA SSD/HDDs at maximum speed
- Back up important data to an external storage device
- Share large files between computers quickly and securely without a network
- Retrieve data from an old SATA drive, or turn the unused drive into additional external storage space
Website Search Keyword - 2.5" SATA Enclosure
- USB-C enclosure
- USB Type C enclosure
- USB-C drive enclosure
- SSD enclosure
- HDD enclosure
- 2.5" SSD enclosure
- 3.5" HDD enclosure
- MacBook drive enclosure
- Chromebook drive enclosure
- portable storage
- data storage
- USB-B data storage
- U457-025-CG2
- U457025CG2
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes Windows 7 and earlier Windows versions do not support TRIM with USB to SATA devices. Accessory Products USB31CUB1M Related Products - S251BMU3FP
- S251BRU31C3
- S251BU31315
- S251BPU313
- S251BMU313
- S251BRU33
- S2510BU33PW
- S251SMU33EP
- S2510BPU337
- UNI251BMU33
- S2510BPU33
- S2510BMU33
- SAT2510BU32

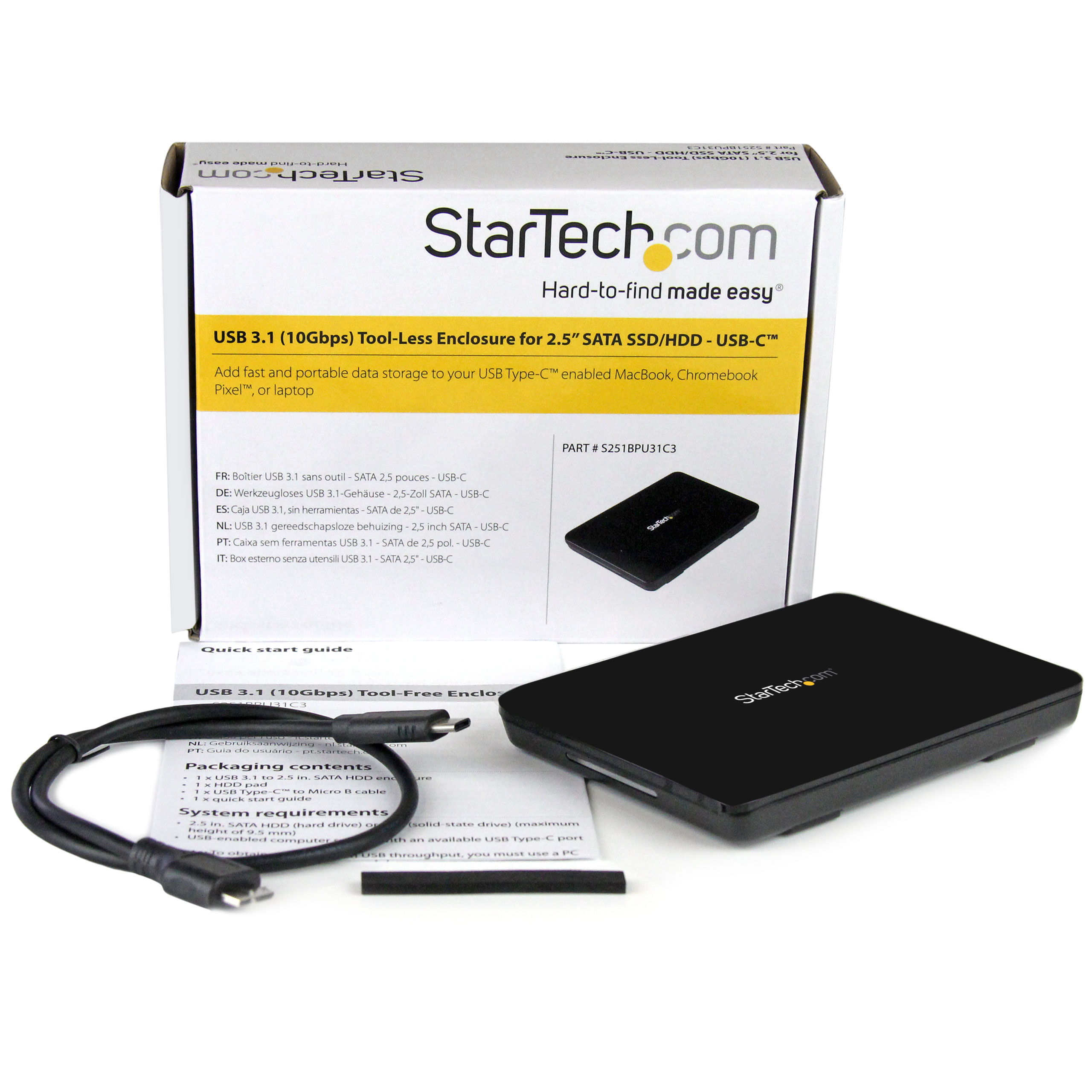

Input Voltage 5V DC Output Voltage (V) 5 DC Power Source USB-Powered Color Black Humidity Material Plastic Max Drive Height (mm) 9.5 Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Plastic Product Length (mm) 132 Product Width (mm) 88 Product Height (mm) 15 Product Weight (g) 69 Storage Temperature -10°C to 65°C (14°F to 149°F) TAA Compliant No 4Kn Support Yes Max Drive Capacity Currently tested with hard drives up to 2TB at 7200 RPM Maximum Data Transfer Rate 10 Gbps OS Compatibility OS Independent SATA Type and Rate SATA III (6 Gbps) TRIM Support Yes UASP Support Yes USB Type and Rate USB 10Gbps Bus Type USB 3.2 Gen 2 Chipset ID ASMedia - ASM235CM Compatible Drive Types SATA Fans Included? Yes/No No Interface/Bridge USB 3.2 Gen 2 LED Indicators 1 - Power & Activity Number of Drives 1 Carton Depth (mm) 284 Carton Height (mm) 388 Carton Quantity 40 Carton Weight Gross (g) 8190 Included in Package - 1 - USB 3.1 to 2.5" SATA HDD enclosure
- 1 - drive cushion
- 1 - USB-C to Micro B cable - 20.25 inches
- 1 - quick start guide
Package Depth (mm) 138 Package Height (mm) 42 Package Width (mm) 178 Package Quantity 1 Package Weight (g) 186 Packaging Description USB 3.1 Tool-Less Enclosure - 2.5" SATA - USB-C Packaging Description India USB 3.1 Tool-Less Enclosure - 2.5" SATA - USB-C Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-C (5Gbps, 4.5W) Connector 1 (Quantity) 1 Connector 2 USB Micro-B (10Gbps, 4.5W) Connector 2 (Quantity) 1 Connector 3 SATA (7-Pin + 15-Pin) Connector 3 (Quantity) 1 Host Connector 1 USB Micro-B (10Gbps, 4.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2016-03-17 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IT,JP,NL,NZ,PE,SE,SG,UK,US Primary Technology USB-C Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2015-12-18 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle None
