S251BU31315
USB 3 1 2 5in SATA Drive Enclosure USB A USB C
Access data stored on your 2.5” SATA SSD/HDD, with support for high-capacity drives up to 15mm
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name USB 3 1 2 5in SATA Drive Enclosure USB A USB C Product Number S251BU31315 UPC 065030866040 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Cards & Adapters > External Drive Enclosures Category Level 1 Data Storage Category Level 2 External Drive Enclosures Category Level 3 SATA Enclosures - USB-A 10Gbps Family No Family Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX005X Product Title (Ultra-Short) USB-C SATA Enclosure Product Title (Short) Enclosure, USB C/A 2.5" SATA, USB 3.1 Product Title (Medium) Drive Enclosure for 2.5" SATA SSDs/HDDs - USB 3.1 (10Gbps) - USB-A, USB-C Product Title (Standard) 2.5" USB-C Hard Drive Enclosure – USB 3.1 Type C – with USB-C and USB-A Cable – USB 3.0 HDD Enclosure Product Title (Long) Drive Enclosure for 2.5" SATA SSDs/HDDs - USB 3.1 (10Gbps) - USB-A, USB-C Product Title (AMZ) 2.5" SATA USB 3.1 Gen 2 Hard Drive Enclosure - w/ USB Type C and Type A Cables - USB 3.0 backwards compatible (S251BU31315) Title Ingram (Part 1) USB 3.1 Gen 2 (10Gbps) 2.5 in. Title Ingram (Part 2) SATA Drive Enclosure USB-A USB-C Website Product Headline Access data stored on your 2.5” SATA SSD/HDD, with support for high-capacity drives up to 15mm Bullet 1 INCREASED FUNCTIONALITY: The USB 3.2 Gen 2 to 2.5in SATA hard drive enclosure works with hard drives (HDDs) and solid-state drives (SSDs) and offers greater bandwidth and speed with file transfer rates of up to 10 Gbps Bullet 2 MAXIMUM COMPATIBILITY: Included USB Type-C to Micro-B cable helps connect newer USB-C enabled devices; Also includes a USB Type-A to Micro-B cable to ensure backward compatibility with your existing USB 3.0/2.0 devices; Supports 5-15mm drive heights Bullet 3 EASY TO USE: The laptop HDD enclosure is powered directly from the USB port, which means no external power is required. For portable storage, you can tuck it away inside your laptop bag; Includes USB-C and A host cables, mounting screws, and screwdriver Bullet 4 STURDY CONSTRUCTION: The laptop to external hard drive is made with a durable vented aluminum housing, that helps to passively cool the drive in order to prevent drive failure and data loss; Check drive status with Power & Activity LED Bullet 5 THE IT PRO’S CHOICE: Designed and built for IT Professionals, this 2.5in SATA drive enclosure is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance Bullets (Compact) Store and access data on a 2.5" SATA drive, with support for high-capacity drives up to 15 mm in height - 2.5" SATA SSD/HDD hard drive enclosure with USB-C and USB-A cable - USB 3.1 (10Gbps) to SATA drive enclosure - Supports 5mm to 15mm drive height Bullets (Consolidated) Store and access data on a 2.5" SATA drive with support for high-capacity drives up to 15 mm in height - 2.5in SATA SSD/HDD hard drive enclosure with USB-C USB-A cable - USB 3.1 10Gbps to SATA drive - USB 3.1 Gen 2 (10Gbps) to SATA drive enclosure - Portable external data storage - 2.5in HDD drive enclosure - Supports SATA I/II/III (6Gbps) - UASP support - Powered directly from the USB port - Supports 2.5" SSD/HDD drives 5mm/7mm/9.5mm/12.5mm/15mm in height - Sleek and durable aluminum housing Marketing Copy Marketing Copy (No HTML) This 2.5 SATA hard drive enclosure gives you an ultra-fast, portable external storage solution for 2.5" hard drives or solid-state drives up to 15 mm in height. The HDD enclosure provides quick access to your data wherever you go and it lets you retain your data after an upgrade to a new SSD or HDD in your computer. USB 3.1 Gen 2 also gives you greater bandwidth and speeds up to 10Gbps for ultra-fast access to your data. The laptop hard drive enclosure also provides you with easy drive access for data migration, drive cloning, and data backups so that you can always safeguard your data . This USB 3.1 external hard drive enclosure is compatible with virtually all 2.5" SATA drives up to 15 mm in height. Plus, it comes with a USB Type-C to Micro-B cable, for connecting to newer USB-C enabled laptops, tablets, and phones. A USB Type-A to Micro-B cable is also included to ensure backward compatibility with your existing USB 3.0 and 2.0 devices. The USB-C external hard drive enclosure is powered directly from the USB port on your device, which means no external power is required. For portable storage, you can tuck this laptop hard drive enclosure away inside your laptop bag or carrying case and take it anywhere. The 2.5 SATA hard drive enclosure is engineered with a sleek and durable aluminum housing to help keep your data safe and secure wherever you go. The HDD enclosure is backed by a StarTech.com 2-year warranty and free lifetime technical support. Applications - Add portable external data storage to your USB-C or USB-A laptop or tablet using a 2.5 in. solid-state drive or hard drive that ranges from 5 mm to 15 mm in height
- Use your SATA SSDs/HDDs at maximum speed, by taking advantage of ultra-fast USB 3.1 Gen 2 (10Gbps) connectivity
- Back up your important data to an external storage device
Website Search Keyword - usb 3.1 gen 2 to sata hard drive enclosure
- usb 3.1 sata enclosure
- usb to sata hard drive enclosure
- 12.5mm HDD enclosure
- 15mm HDD Enclosure
- USB 3.1 Gen 2 HDD enclosure
- 2.5" SATA Enclosure
- USB-C enclosure
- USB Type C enclosure
- USB-C drive enclosure
- SSD enclosure
- HDD enclosure
- 2.5" SSD enclosure
- portable storage
- U457-025-SATAG2
- U457025CG2
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes Windows 7 and earlier Windows versions do not support TRIM with USB to SATA devices. Accessory Products - ECUSB3S2
- PEXUSB3S2
- ECUSB3S254F
- ECUSB3S1
- PEXUSB3S11
- USB3SAUB1
- USB3SAUB3
- USB3SAUB3BK
- USB31CUB1M
- PEXUSB312C
- PEXUSB311A1C
Related Products - S251BMU3FP
- S251BRU31C3
- S251BPU31C3
- S251BPU313
- S251BMU313
- S251BRU33
- S2510BU33PW
- S251SMU33EP
- S2510BPU337
- UNI251BMU33
- S2510BPU33
- S2510BMU33
- SAT2510BU32

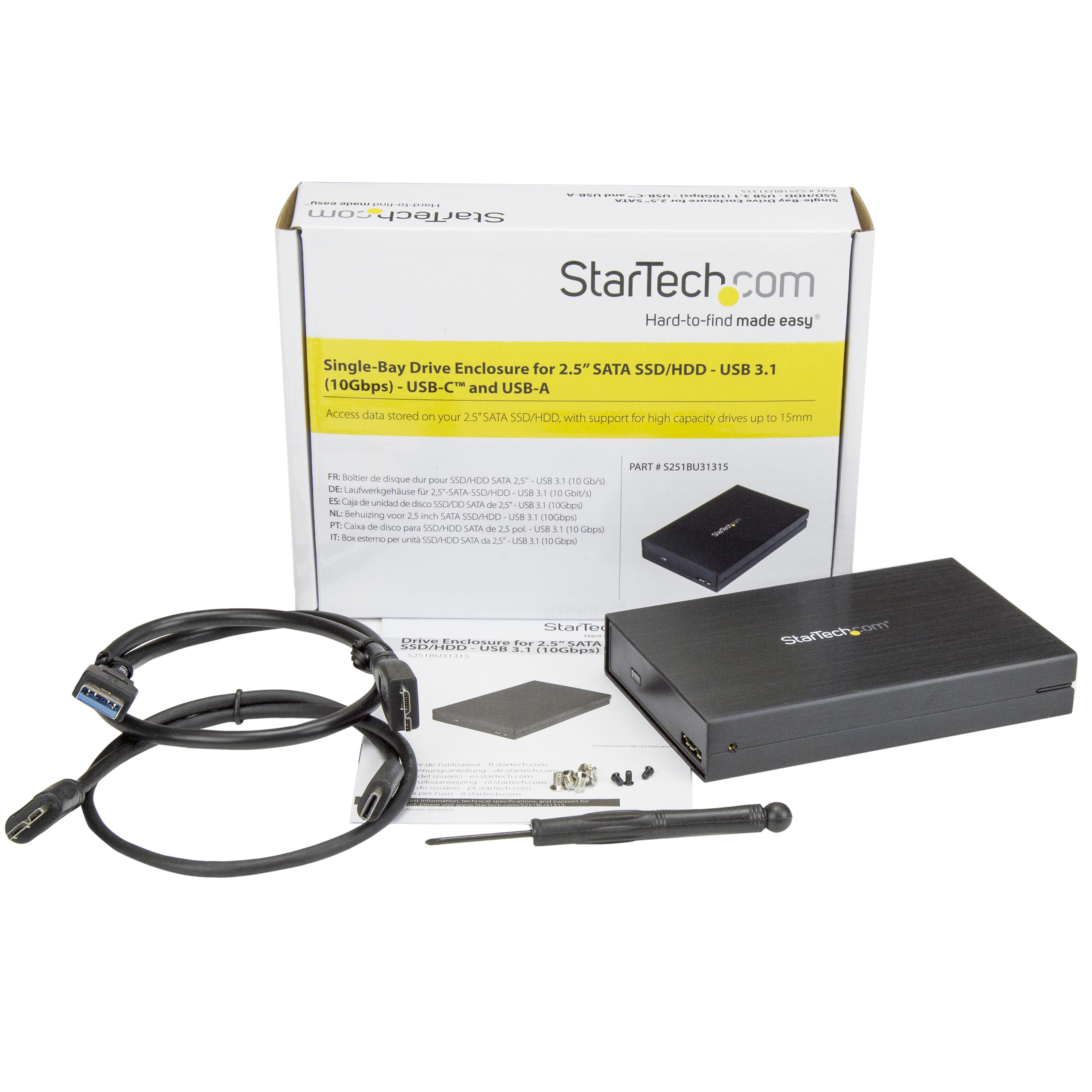

Input Voltage 5V DC Output Voltage (V) 5 DC Power Source USB-Powered Color Black Humidity Material Aluminum Max Drive Height (mm) 15 Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Aluminum Product Length (mm) 120.000 Product Width (mm) 75.000 Product Height (mm) 21.500 Product Weight (g) 105.000 Storage Temperature -10°C to 65°C (14°F to 149°F) TAA Compliant No 4Kn Support Yes Max Drive Capacity Currently tested with hard drives up to 2TB at 7200 RPM Maximum Data Transfer Rate 10 Gbps OS Compatibility OS Independent TRIM Support Yes UASP Support Yes USB Type and Rate USB 10Gbps Bus Type USB 3.2 Gen 2 Chipset ID ASMedia - ASM235CM Compatible Drive Types SATA Fans Included? Yes/No No Interface/Bridge USB 3.2 Gen 2 LED Indicators 1 - Power & Activity Number of Drives 1 Carton Depth (mm) 282 Carton Height (mm) 390 Carton Quantity 40 Carton Weight Gross (g) 11260 Included in Package - 1 - drive enclosure
- 1 - USB-C to Micro-B cable
- 1 - USB-A to Micro-B cable
- 1 - quick-start guide
- 1 - screwdriver
- 5 - drive-mount screws
- 3 - enclosure screws
Package Depth (mm) 136 Package Height (mm) 42 Package Width (mm) 176 Package Quantity 1 Package Weight (g) 258 Packaging Description Drive Enclosure for 2.5” SATA SSD/HDD - USB 3.1 (10Gbps) Packaging Description India Drive Enclosure for 2.5” SATA SSD/HDD - USB 3.1 (10Gbps) Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 USB Micro-B (10Gbps, 4.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2016-08-17 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2016-09-30 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology USB-C Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2016-08-03 Target Production Release 2016-08-26 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle None
