S251BU31REM

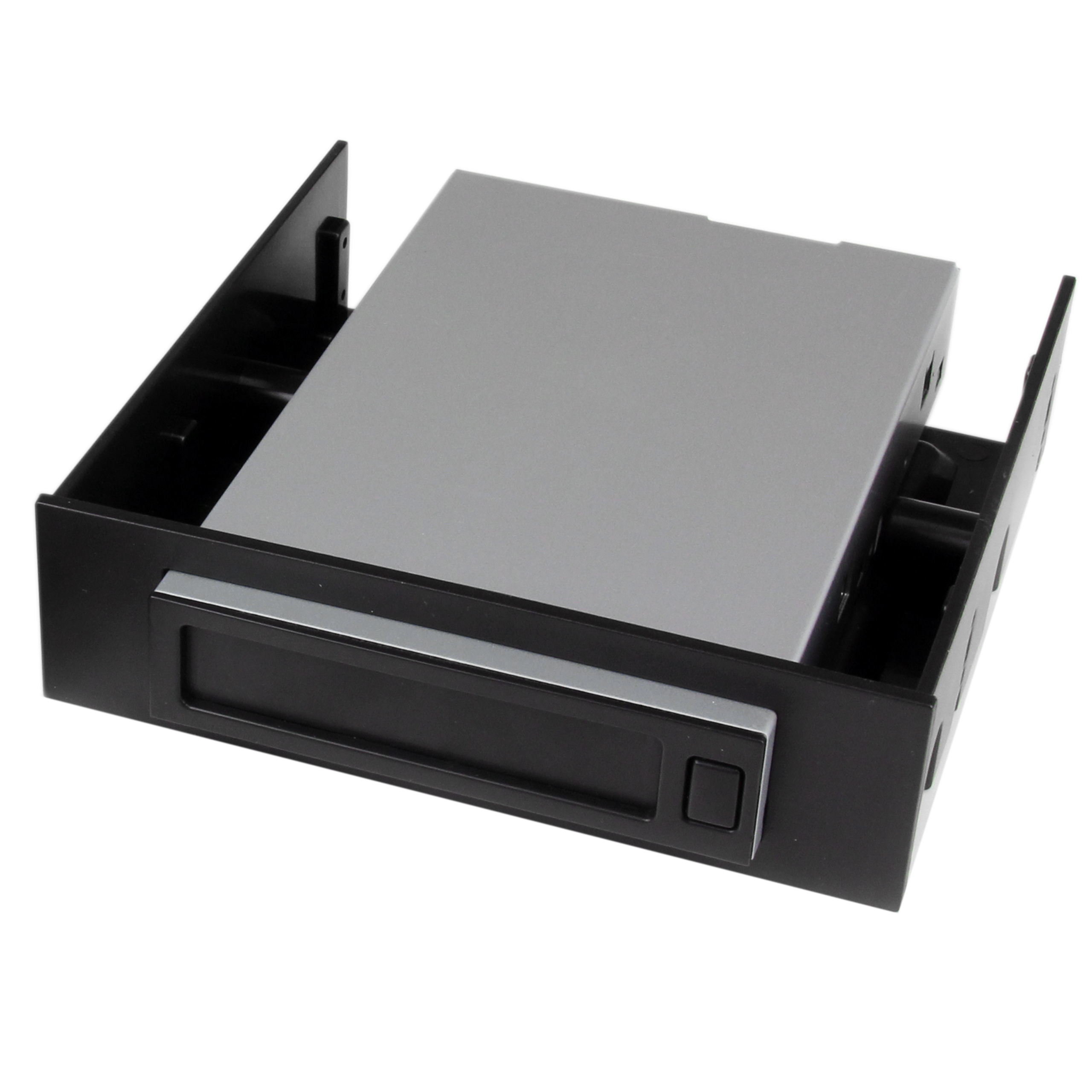

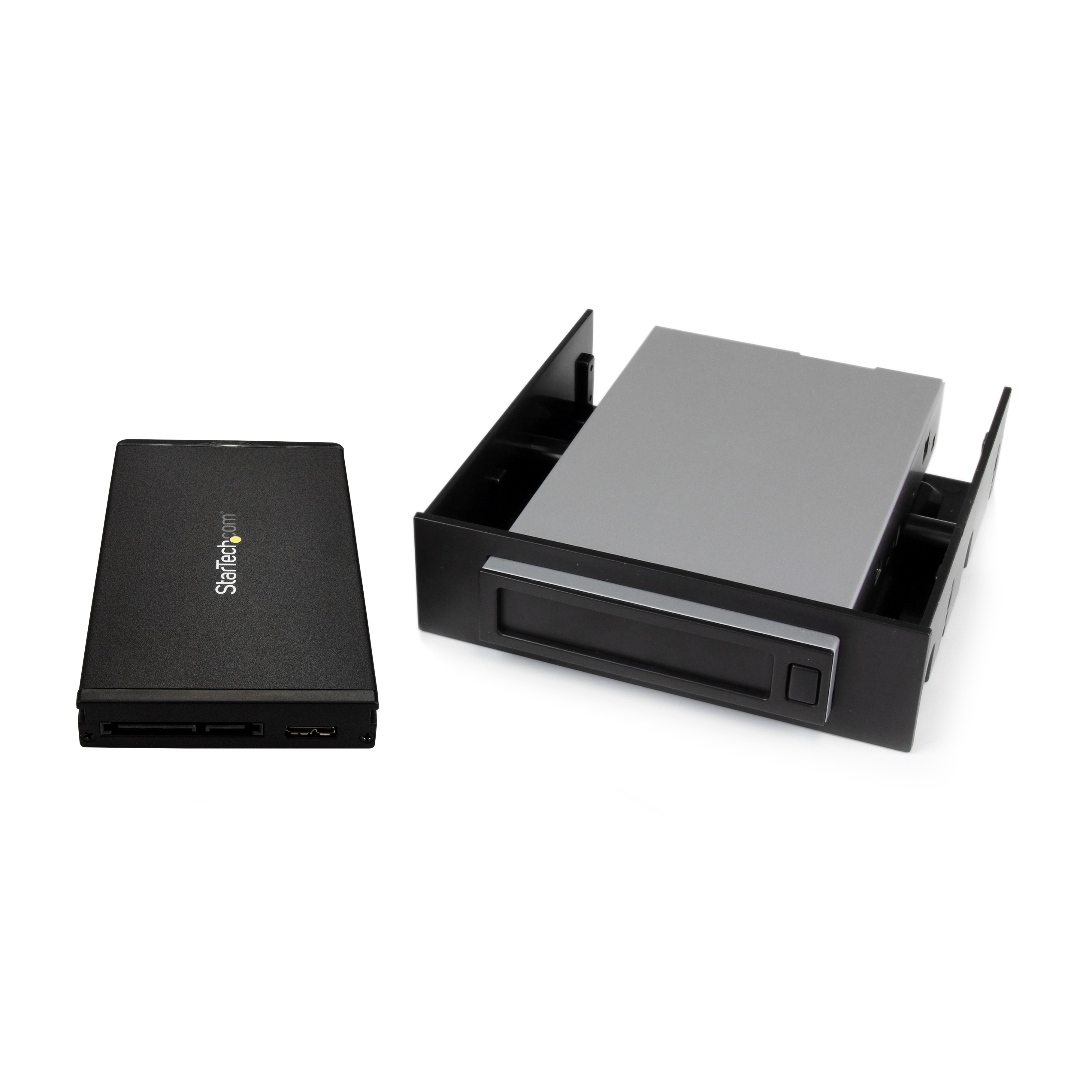

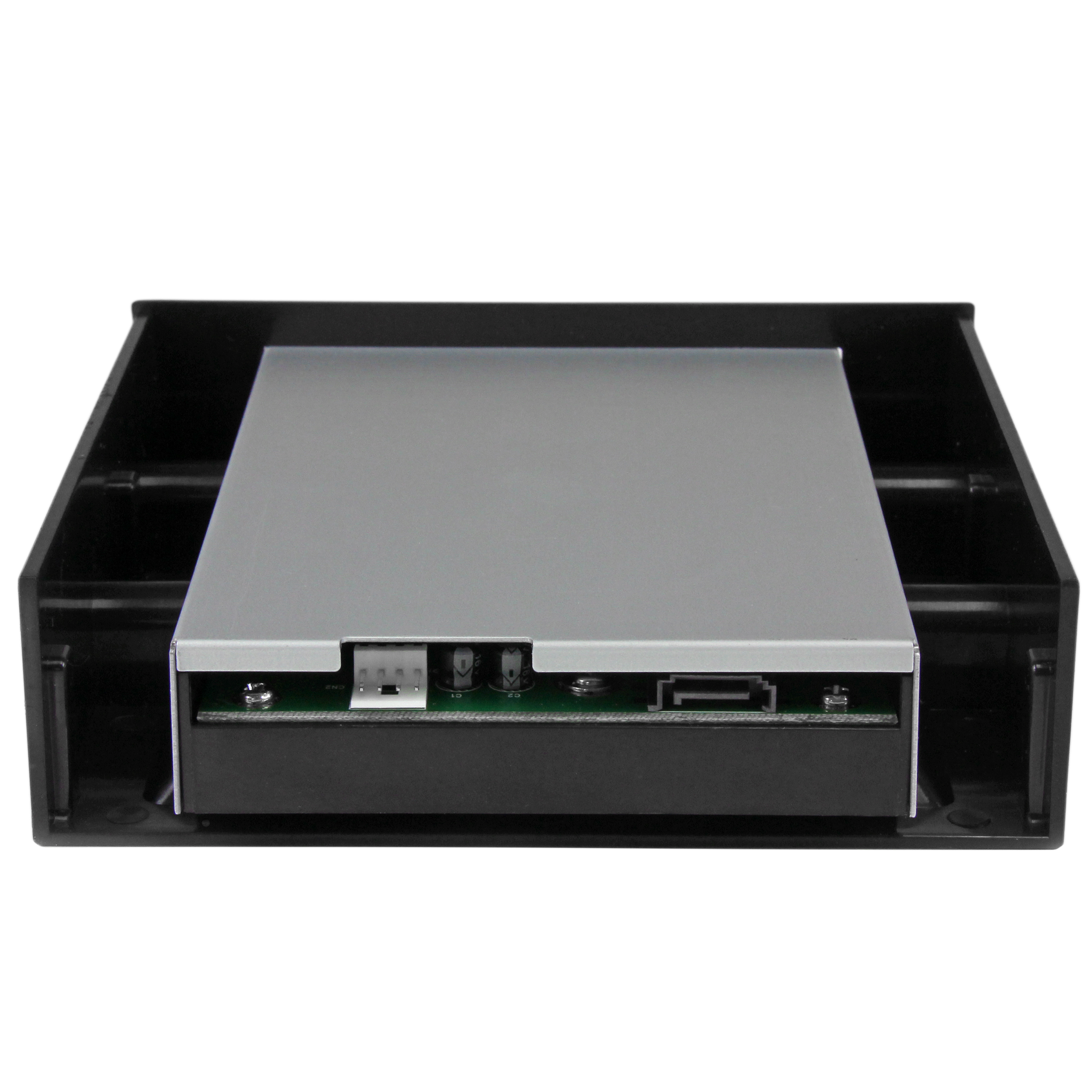

Hot Swap Drive Bay 2.5" SATA SSD HDD 3.1 Enclosure
Use the front bay of your desktop computer or server as a hot-swap drive bay
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name Hot Swap Drive Bay 2.5" SATA SSD HDD 3.1 Enclosure Product Number S251BU31REM UPC 065030868211 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Internal Storage Category Level 3 2.5" Drive Mobile Racks and Backplanes Family No Family Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX005X Product Title (Ultra-Short) SATA Hot Swap Bay Product Title (Short) Hot Swap Bay - 3.5"/5.25" to 2.5" SATA Product Title (Medium) Hot Swap Hard Drive Bay for 2.5" SATA SSD / HDD - USB 3.1 (10Gbps) Enclosure Product Title (Standard) Hot Swap Hard Drive Bay for 2.5" SATA SSD HDD - USB 3.1 10Gbps Enclosure - Mobile Rack 3.5" / 5.25" Bay - Removable Hard Drive Bay Product Title (Long) Hot-Swap Hard Drive Bay for 2.5" SATA SSD / HDD - USB 3.1 (10Gbps) Enclosure Product Title (AMZ) Hot Swap Hard Drive Bay for 2.5" SATA SSD / HDD - Portable - USB 3.1 (10Gbps) Removable Hard Drive Enclosure (S251BU31REM) Title Ingram (Part 1) Hot Swap Drive Bay for 2.5" Title Ingram (Part 2) SATA SSD HDD - 3.1 Enclosure Website Product Headline Use the front bay of your desktop computer or server as a hot-swap drive bay Bullet 1 High-quality vented metal enclosure provides enhanced heat dissipation Bullet 2 Hot-swap your 2.5" SSD and HDD drives Bullet 3 Access your data offline with a portable USB 3.1 (10Gbps) drive enclosure Bullet 4 Front-mount drive bay design installs into any standard 3.5" or 5.25" bay Bullet 5 Push-button drive ejection from the front-mount bay Bullets (Compact) Use the front bay of a desktop computer or server as a hot-swap drive bay - Hot-swap 2.5" SSD & HDD drives - Access data offline with a portable USB 3.1 10Gbps drive enclosure - Front-mount drive bay design installs into any standard 3.5" / 5.25" bay Bullets (Consolidated) Use the front bay of a desktop computer or server as a hot-swap drive bay - Hot-swap 2.5" SSD and HDD drives - Access your data offline with a portable USB 3.1 (10Gbps) drive enclosure - Supports 2.5" form factor SATA hard drives and solid state drives - Front-mount drive bay design installs into any standard 3.5" or 5.25" bay - SSD Hot Swap Bay - Removable Hard Drive Bay - Rack Mount Hard Drive Enclosure - 2.5 Hot Swap Drive bay - Mobile Rack Marketing Copy Marketing Copy (No HTML) This hot swap drive bay for 2.5" SATA SSD/HDD turns your 2.5" SATA hard drive or solid-state drive into a removable drive that you can use as a regular external USB 3.1 enclosure. Mount the removable hard drive bay for 2.5" SATA SSD/HDD into any 3.5" or 5.25" front bay, to provide a hot-swappable mobile rack. The SATA removable hard drive bay makes it easy to install and remove the drive from the computer system without having to open the case every time and provides a more convenient way to create backups that you can remove for data recovery and archiving. If you need access to your data outside of the office, you can use the enclosure portion of the USB 3.1 (10Gbps) hot swap bay as a standard USB 3.1 (10Gbps) enclosure -- a powerful external storage solution when you need access to your files while you're on the road. Simply eject the enclosure from the hot swap hard drive bay for portable data storage. Its lightweight, compact design makes it easy to tuck into a laptop bag or carrying case. The hot swap drive bay for 2.5" SATA SSD/HDD includes a Micro-USB to USB-A and a Micro-USB to USB-C cable, so you can plug the enclosure into your laptop and access your data anywhere you go. For even more versatility, StarTech.com offers the hard drive bay for 2.5" SATA SSD/HDD, an extra 2.5" SATA Drive Enclosure for the S251BU31REM, providing multiple enclosures that can be swapped in and out of the main computer. The removable SATA removable hard drive bay backed by a StarTech.com 2-year warranty and free lifetime technical support. Applications - Add a hot-swap bay to a server or workstation computer, for a removable data backup solution
- Switch between fast internal storage and portable external storage
- Environments where storage drives need to be replaced and removed regularly
Website Search Keyword - 10Gbps HDD Mobile backplane
- 10Gbps SSD Mobile backplane
- 2.5 hdd mobile rack
- 2.5 hot swap drive bay
- 2.5 mobile rack
- 2.5 SATA mobile rack
- 2.5 ssd mobile rack
- 2.5 SSD mobile rack
- 2.5" mobile rack
- 2.5" SATA mobile rack
- 2.5” HDD mobile backplane
- 2.5” HDD mobile rack
- 2.5” SSD mobile backplane
- 2.5” SSD mobile rack
- 2.5in mobile rack
- 2.5in SATA mobile rack
- 3.5 hot swap bay
- 3.5" bay mobile rack
- 5.25 hot swap bay
- 5.25" bay mobile rack
- computer bay
- detachable disk drive
- drive bay
- drive rack
- expansion bay
- hard disk bay
- hard disk rack
- hard drive bay
- hard drive caddy
- hard drive hot swap bay
- hard drive rack
- hard drive rack mount
- hard drive ssd
- hard drive tray
- harddrive rack
- HDD Mobile backplane
- HDD Mobile rack
- hdd rack
- hdd tray
- hot plug sata
- hot swap bay
- hot swap bay 5.25
- hot swap bay drive
- hot swap hard drive bay
- hot swap sata
- hotswap hdd bay
- internal drive bay
- internal hard drive bay
- mobile backplane
- Mobile backplane 3.5" bay
- Mobile backplane 5.25" bay
- Mobile backplane removable enclosure
- mobile rack
- Mobile rack 3.5
- Mobile rack 3.5"
- mobile rack 5.25
- Mobile rack 5.25"
- mobile racks
- mobile ssd
- rack mount hard drive
- rack mount hard drive enclosure
- removable drive
- removable drive bay
- removable hard disk
- removable hard drive
- removable hard drive bay
- removable hard drive caddy
- removable hard drive enclosure
- removable hdd
- sata backplane
- sata bay
- sata drive bay
- sata hard drive bay
- sata hot plug
- sata hot swap bay
- sata removable hard drive bay
- ssd hdd
- ssd hot swap bay
- ssd mobile
- SSD Mobile backplane
- SSD Mobile Rack
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes Windows 7 and earlier Windows versions do not support TRIM with USB to SATA devices. System and Cable Requirements - Available 3.5" or 5.25" front bay
- Available internal SATA data connector
- Available SATA or LP4 Molex internal power connector
Accessory Products - S251BU31REMD
- LSATARND6
- SATA18RA1
- SATA36RA1
- LSATA12RA2
- LP4SATAFMD
- PYO4SATA
- LSATARND18
- PYO2SATA
- SAT2510U3S
- SAT2510U2S
- USB3CAUB1M
- USB31CUB1M
- USB31CUB50CM
- BRACKETFDBK
Related Products - HSB220SAT25B
- HSB100SATBK
- HSB110SATBK
- DRW110SATBK
- DRW115SATBK
- SATSASBAY425
- S351BU313
- S251BU31C3CB
- SMS1BMU313
- S251BPU31C3
- S252BU313R
- S251BMU313
- SM21BMU31C3
- SMS2BU31C3R
- S251BU31315
- S251BPU313
- S352BU313R
Power Source USB-Powered Color Black Humidity Material Aluminum and Plastic Max Drive Height (mm) 9.5 Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Aluminum Product Length (mm) 154.800 Product Width (mm) 145.800 Product Height (mm) 41.600 Product Weight (g) 426.000 Storage Temperature -10°C to 65°C (14°F to 149°F) TAA Compliant No 4Kn Support Yes Max Drive Capacity Currently tested with hard drives up to 2TB at 7200 RPM. Maximum Data Transfer Rate 10Gbps MTBF (hours) 100,000 hours OS Compatibility OS Independent SATA Type and Rate SATA III (6 Gbps) TRIM Support Yes UASP Support Yes USB Type and Rate USB 10Gbps Bus Type USB 3.2 Gen 2 Chipset ID ASMedia - ASM1351 Compatible Drive Types SATA Front Door Key Lock No Interface/Bridge - SATA
- USB 3.2 Gen 2
LED Indicators - 1 - Power(Green)
- 1 - Activity(Red)
Number of Drives 1 Supported Drive Height(s) - 5mm
- 7mm
- 9.5mm

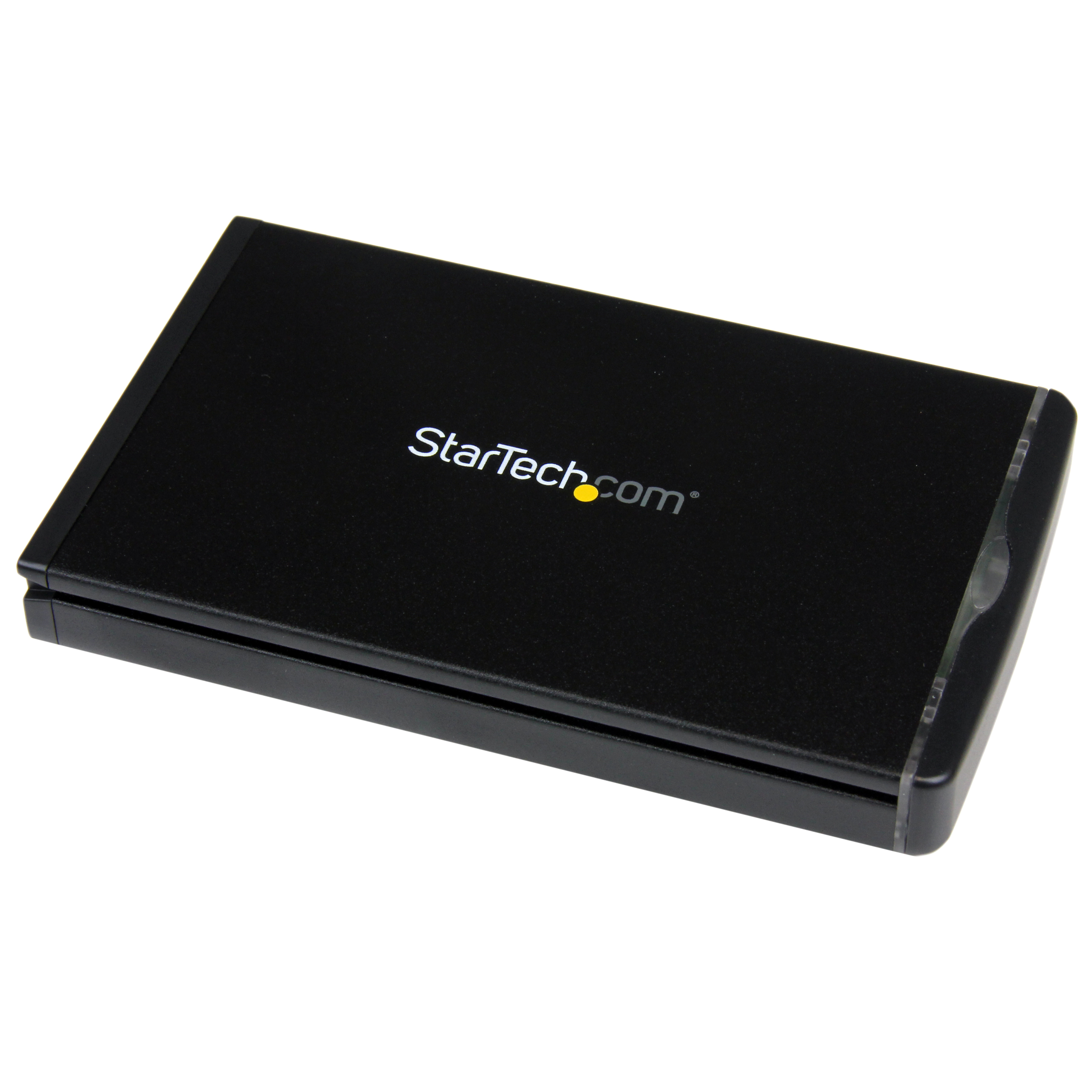

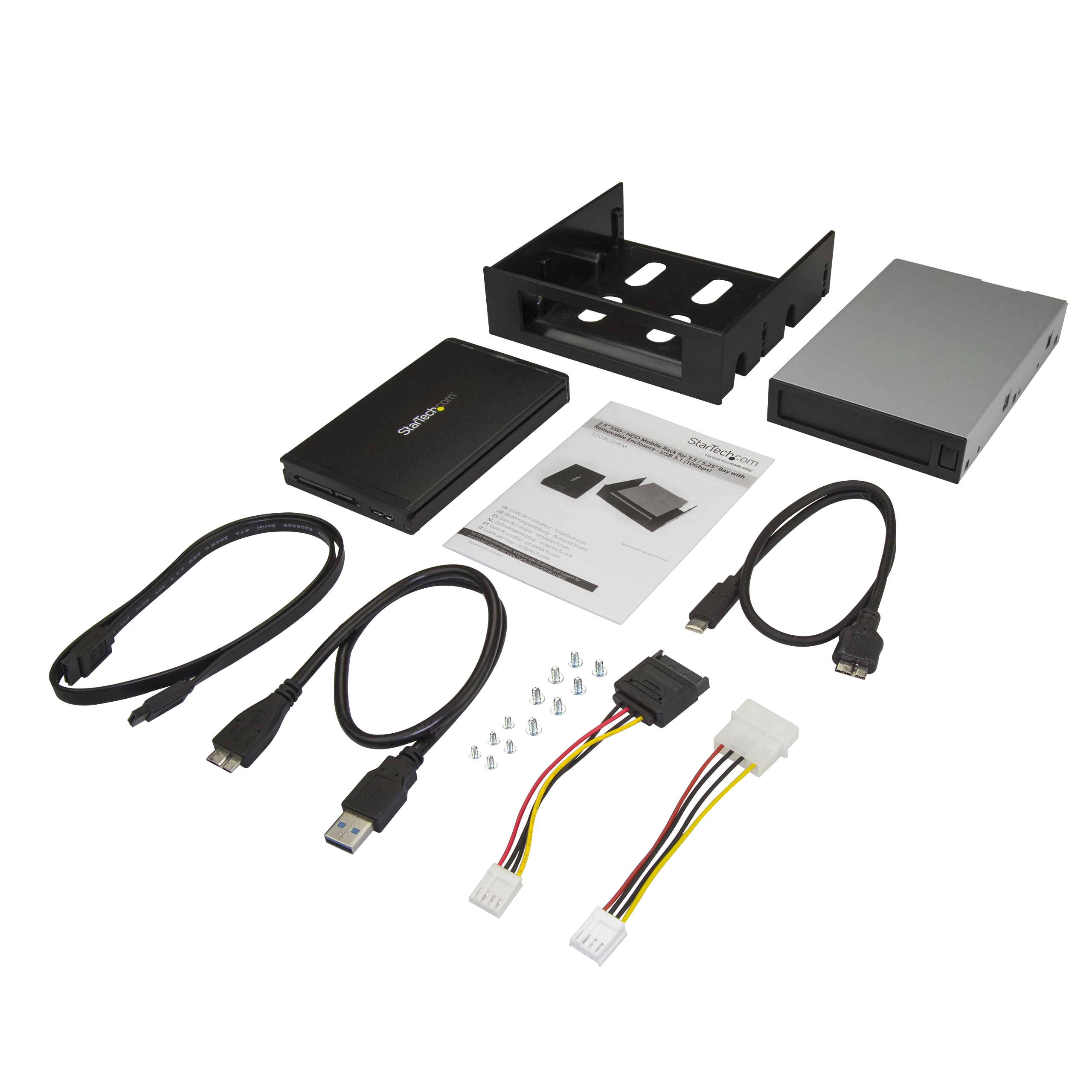

Carton Depth (mm) 324 Carton Height (mm) 270 Carton Quantity 10 Carton Weight Gross (g) 7880 Included in Package - 1 - 2.5” SATA enclosure
- 1 - 3.5” front-panel drive bay
- 1 - 3.5” to 5.25” front bay adapter bracket
- 1 - SATA data cable
- 1 - SATA power cable
- 1 - Molex power cable
- 1 - USB-C to Micro-B cable
- 1 - USB-A to Micro-B cable
- 1 - set of drive-mounting hardware
- 4 - bay-mounting screws
- 4 - bracket-mounting screws
- 1 - quick-start guide
Included In Package for Label - 1 - 2.5” SATA enclosure
- 1 - 3.5” front-panel drive bay
- 1 - 3.5” to 5.25” front bay adapter bracket
- 1 - SATA data cable
- 1 - SATA power cable
- 1 - Molex power cable
- 1 - USB-C to Micro-B cable
- 1 - USB-A to Micro-B cable
- 1 - set of mounting hardware
- 1 - quick-start guide

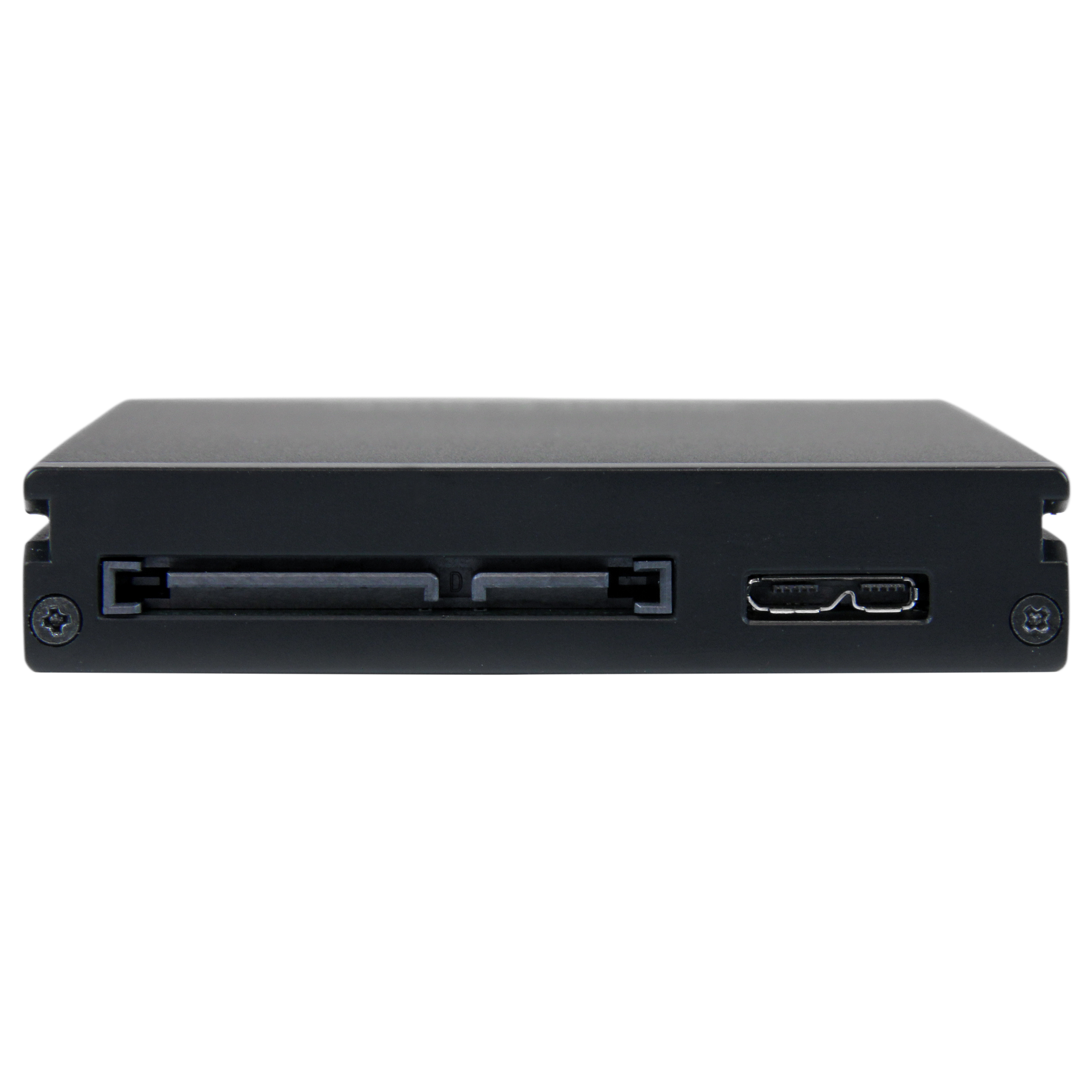

Package Depth (mm) 161 Package Height (mm) 83 Package Width (mm) 241 Package Quantity 1 Package Weight (g) 708 Packaging Description 2.5” SSD / HDD Mobile Rack for 3.5 / 5.25” Bay Packaging Description India 2.5” SSD / HDD Mobile Rack for 3.5 / 5.25” Bay Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 SATA (7-Pin) Host Connector 1 (Quantity) 1 Host Connector 2 SP4 / Floppy Power (4-Pin, 5V / 12V) Host Connector 2 (Quantity) 1 Host Connector 3 USB Micro-B (10Gbps, 4.5W) Host Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2017-03-03 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2017-05-12 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IT,JP,NL,NZ,PE,SE,UK,US Primary Technology USB-C Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2017-02-24 Target Production Release 2017-03-03 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle None
