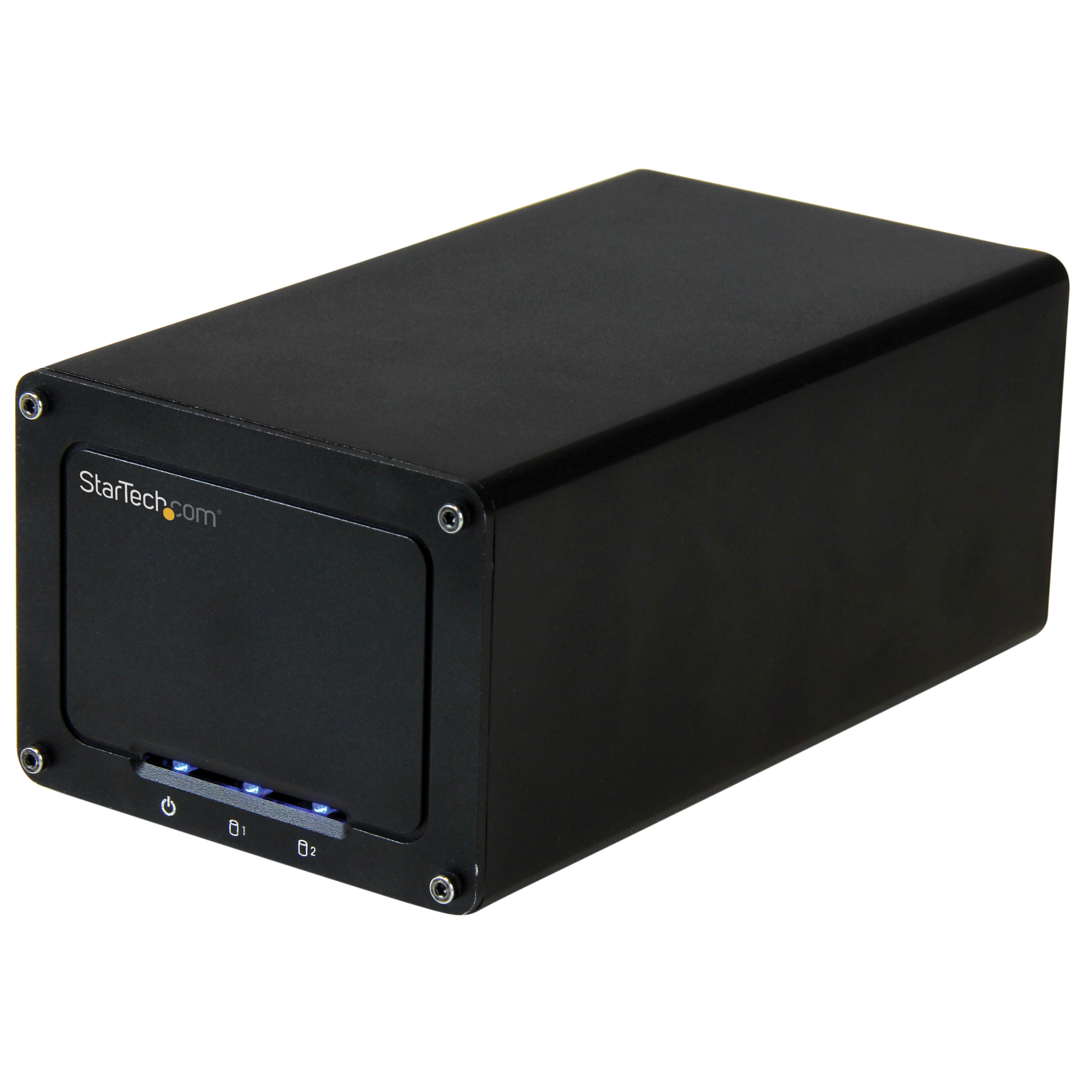

Main Image
S252BU313R
2-Drive Enclosure for 2.5" SSD/HDDs - USB 3.1
Turn two 2.5" SATA SSDs or HDDs into high-performance storage with RAID - for USB-C and USB-A enabled devices

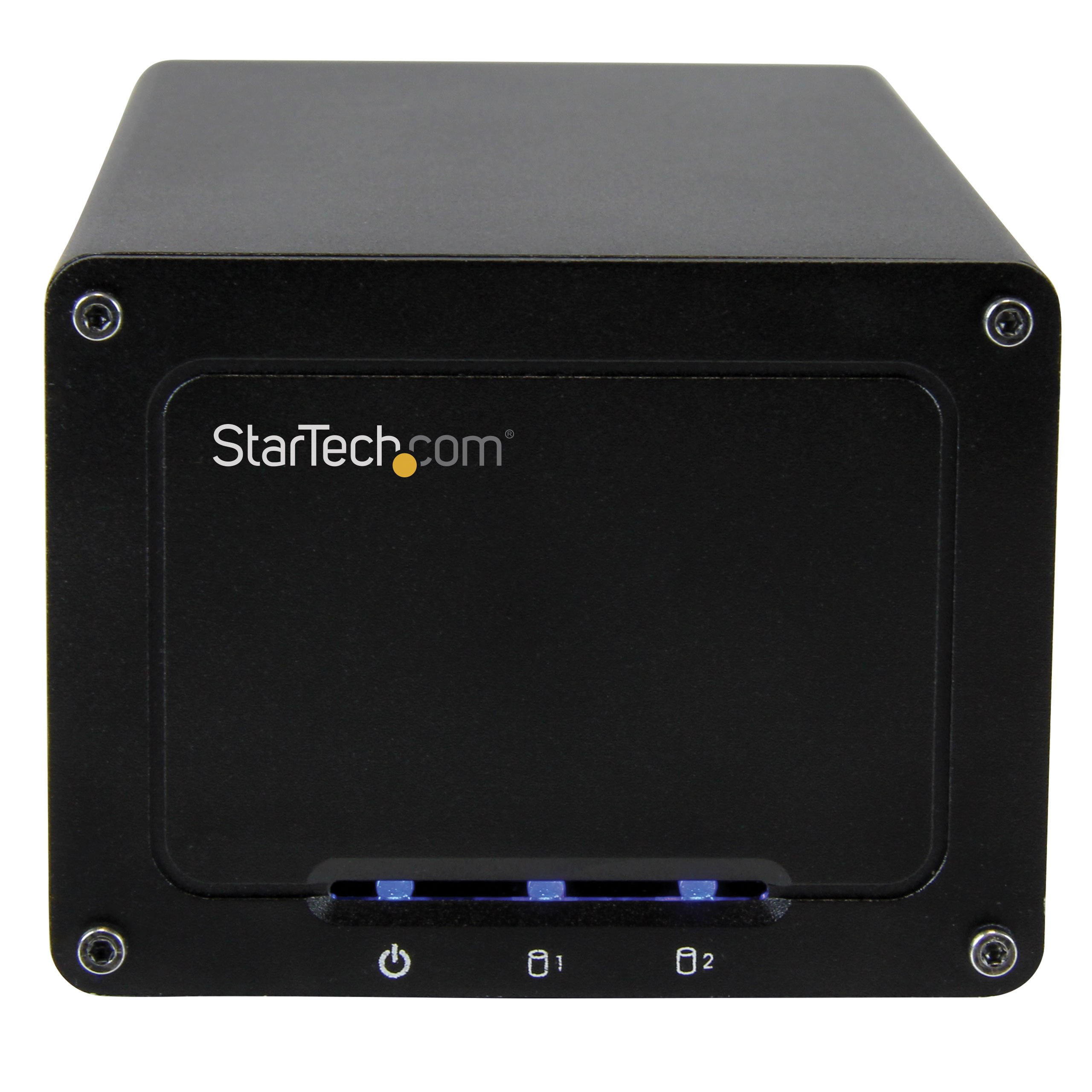

Main Image
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 2-Drive Enclosure for 2.5" SSD/HDDs - USB 3.1 Product Number S252BU313R UPC 065030862028 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 External Drive Enclosures Category Level 3 SATA Enclosures - USB-C 10Gbps Family No Family Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX073X Product Title (Ultra-Short) USB 3.1 Enclosure Product Title (Short) USB 3.1 (10Gbps) Dual External Enclosure Product Title (Medium) USB 3.1 (10Gbps) External Enclosure for Dual 2.5" SATA Drives - with RAID & UASP Product Title (Standard) USB 3.1 (10Gbps) External Enclosure for Dual 2.5" SATA Drives - RAID - UASP - Compatible with USB 3.0 and 2.0 Systems Product Title (Long) USB 3.1 (10Gbps) External Enclosure for Dual 2.5" SATA Drives Product Title (AMZ) USB 3.1 (10Gbps) External Enclosure for 2.5" SATA Hard Drives - RAID - 2-Bay USB Type-C Hard Drive Enclosure (S252BU313R) Title Ingram (Part 1) 2-Drive External Enclosure for Title Ingram (Part 2) 2.5" SSD/HDDs with USB 3.1 (10Gbps) Website Product Headline Turn two 2.5" SATA SSDs or HDDs into high-performance storage with RAID - for USB-C and USB-A enabled devices Bullet 1 Create powerful external storage with a 2-bay enclosure for 2.5” SSD/HDDs Bullet 2 Supports USB 3.1 Gen 2 Bullet 3 Compatible with 5 - 12.5 mm drive sizes, and tested with capacities up to 4TB @ 7200 RPM Bullet 4 SATA I/II/III support (up to 6Gbps) Bullet 5 Supports RAID 0, 1, Big (Spanning or Concatenation) and JBOD Bullets (Compact) Turn two 2.5" SATA SSDs or HDDs into a high-performance storage solution with UASP and RAID - Compact dual external enclosure - Aluminum - USB 3.1 (10Gbps) - SATA I/II/III - Supports RAID 0, 1, Big, JBOD - Compatible with USB 3.0 and 2.0 Systems Bullets (Consolidated) Turn two 2.5" SATA SSDs or HDDs into a high-performance storage solution with UASP and RAID - Compact dual external enclosure - 2-drive enclosure in solid aluminum - Two-bay enclosure for SATA drives - Fast data transfer w/ USB 3.1 (10Gbps) - SATA I/II/III (up to 6Gbps) - Supports RAID 0/1/Big and JBOD - Fan with speed control - Compatible with 5-12.5 mm drive sizes with capacities up to and exceeding 2TB - Compatible with USB 3.0 and 2.0 systems Marketing Copy Marketing Copy (No HTML) This hard drive enclosure for dual 2.5" SATA drives provides powerful external data storage, with ultra-fast data transfer speeds and configurable RAID modes. Create a high-capacity, external data storage solution with support for two 2.5" SSDs/HDDs in a wide range of sizes from 5 to 12.5mm. Tested for compatibility with capacities up to 4TB at 7200 RPM, this aluminum USB 3.1 (10Gbps) hard drive enclosure delivers fast file transfer rates with USB 3.1 Gen 2 performance. The external hard drive enclosure supports SATA I, II and III and is enhanced with UASP to maximize the performance and speed of your SATA III drives. The USB 3.1 dual-bay enclosure even has a fan, with built-in speed control, to keep things running smoothly 3.1 Gen 2 gives you greater bandwidth and speed, supporting transfer rates of up to 10Gbps. The external hard drive enclosure comes with two USB cables for flexible use with the latest laptops and tablets equipped with a USB-C port, as well as legacy devices. It includes both USB-C to Micro B and USB-A to Micro B cables. The USB 3.1 dual-bay enclosure is also compatible with a Thunderbolt 3 USB-C port. Through RAID 0 support, the 2-bay hard drive enclosure lets you maximize the performance of your SATA III SSDs to achieve greater file transfer speeds. The hard drive enclosure for dual 2.5" SATA drives also supports RAID 1, Big (Spanning or Concatenation) and JBOD. The enclosure is OS independent, requiring no additional software or drivers. The dual-bay USB 3.1 (10Gbps) hard drive enclosure is backed by a StarTech.com 2-year warranty and free lifetime technical support. Applications - Increase the external storage capacity of your laptop or PC, ideal for the home office or small business
- Use extra storage to back-up important files, a great advantage for graphic designers and other business professionals
Website Search Keyword - USB 3.1 Gen 2 Enclosure
- 2.5" SATA Drive Enclosure
- 2.5" Drive Enclosure
- 2.5" SATA Enclosure
- Drive Enclosure
- SSD Enclosure
- 2.5" SSD Enclosure
- External enclosure
- 2.5" Dual Drive Enclosure
- Dual Drive Enclosure
- 2-bay enclosure
- Two-drive enclosure
- 2 drive enclosure
- 2 bay external enclosure
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes Windows 7 and earlier Windows versions do not support TRIM with USB to SATA devices. Accessory Products - USB3SAUB1
- USB3AUB50CMB
- USB3SAUB3BK
- USB3SAUB3
Related Products - S252U2ERR
- SAT3520U3R
- S251BMU313
- S251BPU313
- S252BU33R
- SDOCK2U313
- SDOCKU313
- USB312SAT3CB
- SAT2510B12U3
- S2510BPU33
- SAT2510BU32
- S2510BMU33
- S2510BMU33CB
- S252SMTB3
- S2510SM12U33

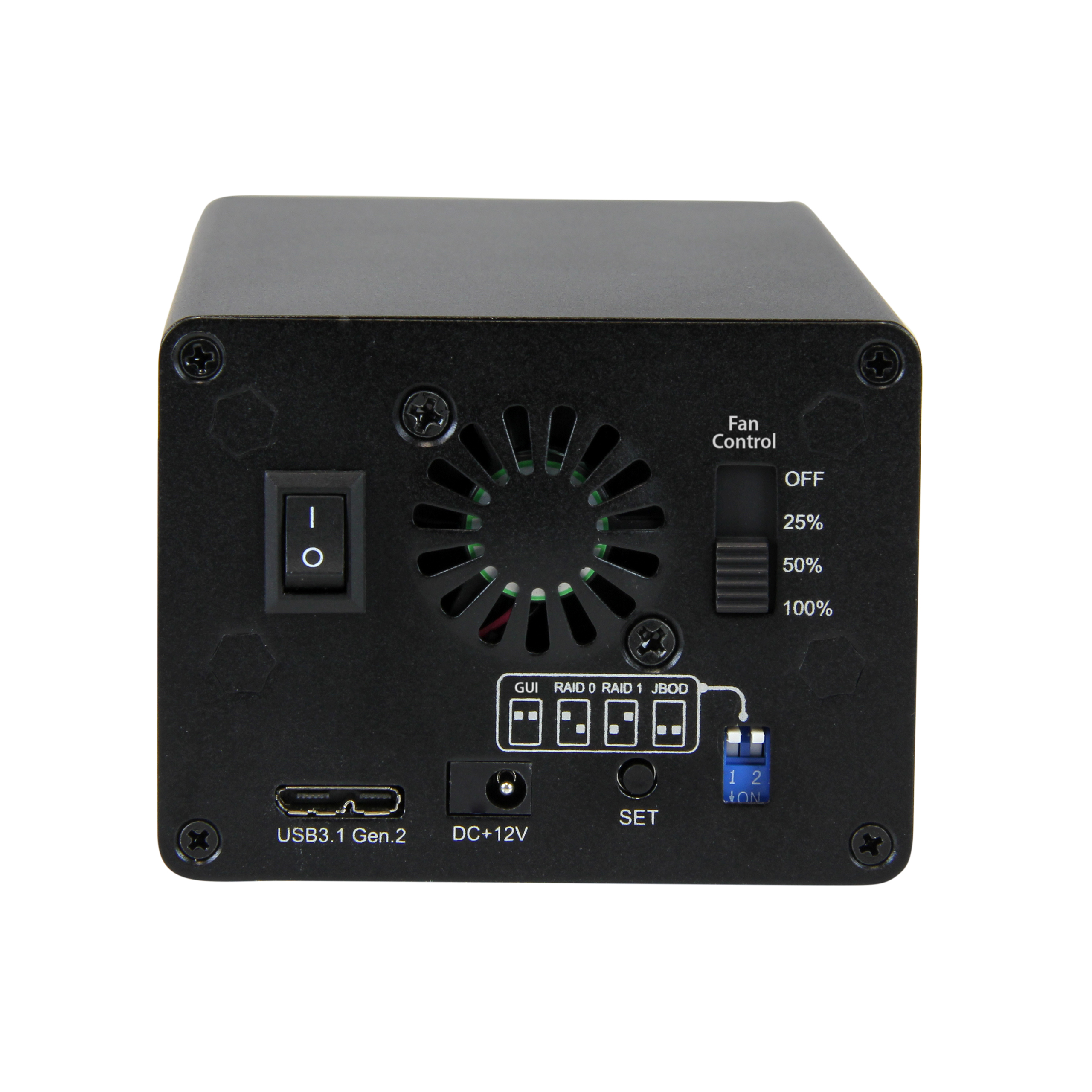

Input Current 0.6A Input Voltage 100 - 240 AC Output Current 2A Output Voltage (V) 12V DC Power Consumption (In Watts) 60 Power Source AC Adapter Included Plug Type B Center Tip Polarity Positive Color Black Humidity 20~80% RH Material Aluminum Max Drive Height (mm) 12.5 Operating Temperature 5°C to 35°C (41°F to 95°F) Primary Material Aluminum Product Length (mm) 148.000 Product Width (mm) 81.000 Product Height (mm) 60.000 Product Weight (g) 378.000 Storage Temperature -20°C to 50°C (-4°F to 122°F) TAA Compliant No 4Kn Support Yes Max Drive Capacity Tested with drives up to 4TB @ 7200 RPM Maximum Data Transfer Rate 10 Gbps MTBF (hours) 50,000 hours OS Compatibility OS Independent RAID Yes TRIM Support Yes UASP Support Yes USB Type and Rate USB 10Gbps Bus Type USB 3.2 Gen 2 Chipset ID ASMedia - ASM1352R Compatible Drive Types SATA Fan Bearing Type Sleeve Bearing Fans 1 - 30 mm Fans Included? Yes/No Yes Interface/Bridge USB 3.2 Gen 2 LED Indicators - 1 - Power
- 1 - Read and Write - HDD1
- 1 - Read and Write - HDD2

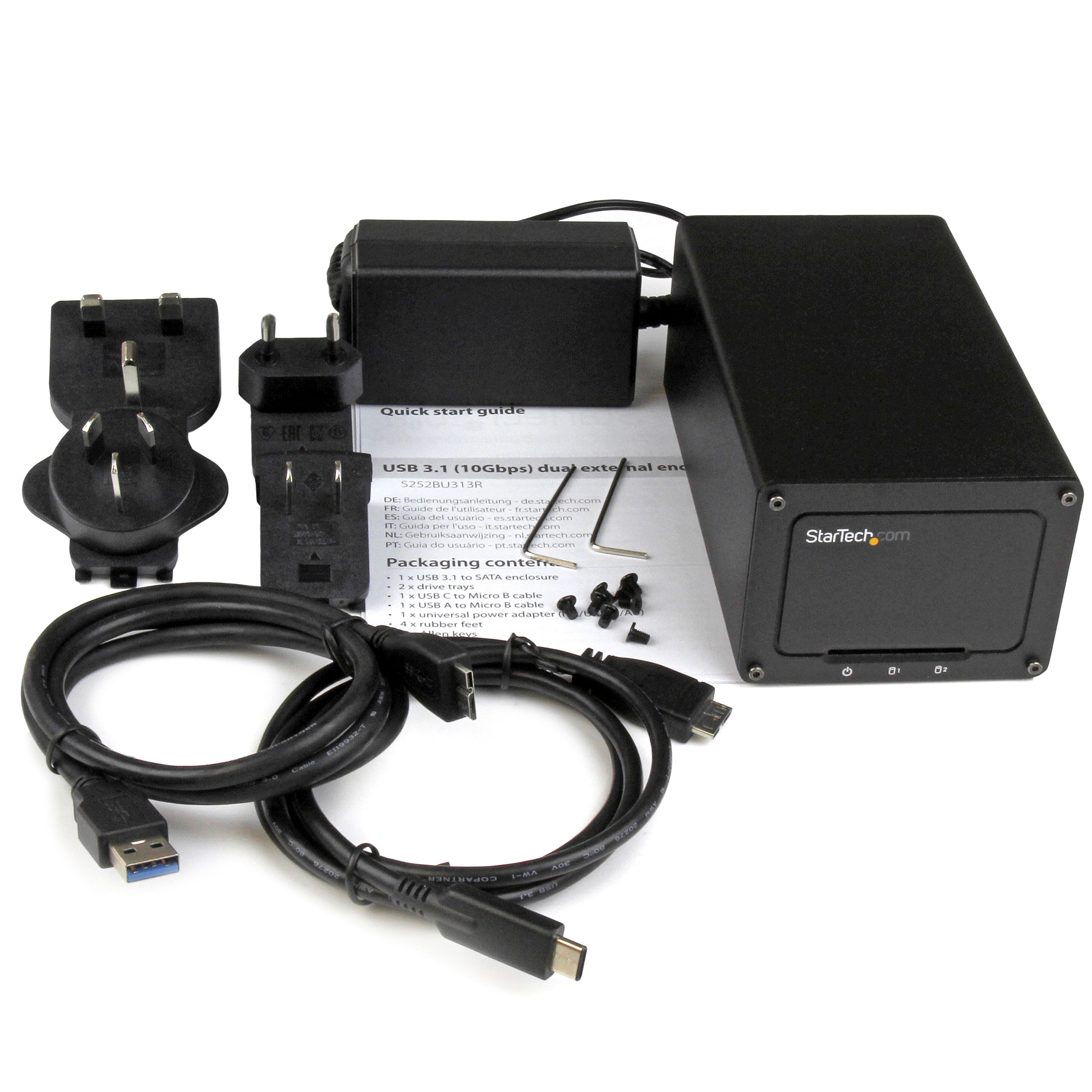

Number of Drives 2 Carton Depth (mm) 371 Carton Height (mm) 241 Carton Quantity 10 Carton Weight Gross (g) 9820 Included in Package - 1 - USB 3.1 to SATA enclosure
- 1 - USB 3.0 A to Micro B cable - 40.25 inches
- 1 - universal power adapter (NA,EU,UK,ANZ) - 70 inches (cable)
- 1 - instruction manual
- 2 - allen keys
- 1 - USB C to Micro B cable - 40.25 inches

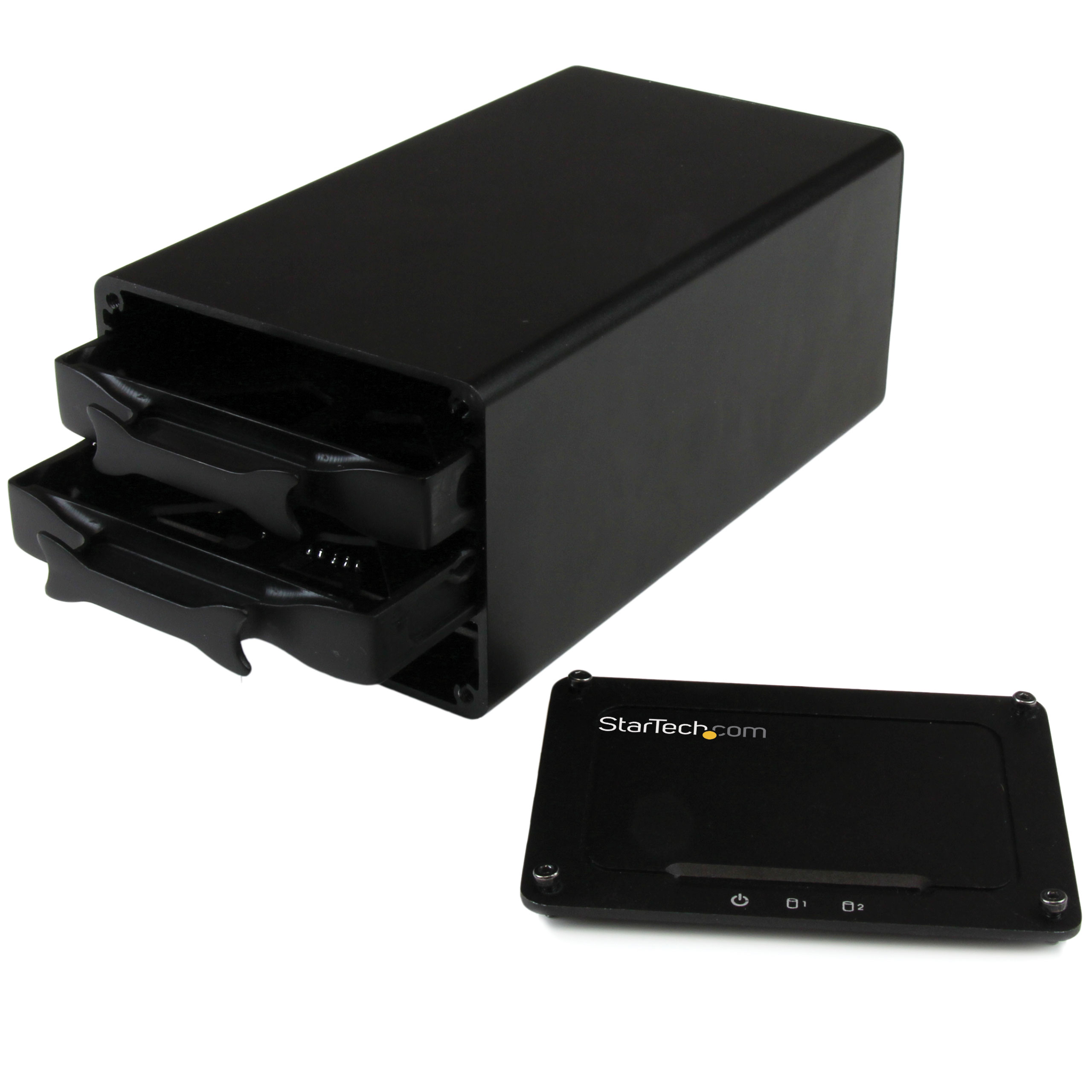

- 2 - drive trays
Package Depth (mm) 163 Package Height (mm) 112 Package Width (mm) 228 Package Quantity 1 Package Weight (g) 910 Packaging Description USB 3.1 (10Gbps) Dual 2.5" SATA Drive Enclosure Packaging Description India USB 3.1 (10Gbps) Dual 2.5" SATA Drive Enclosure Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 2 Host Connector 1 USB Micro-B (10Gbps, 4.5W) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2015-05-18 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IT,JP,NL,NZ,PE,SE,UK,US Primary Technology USB-C Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2015-11-13 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle None
